Windsor Karcher Titan Wet/Dry Vacuum
Vacuum Motor Assembly T708/T208IE
Windsor Karcher Titan Wet/Dry Vacuum Motor Assembly T708/T708IE
| Reference # |
Part # |
Description |
Add to Cart |
| 1A |
86162840 |
Cord, 120 Volt |
Buy Now |
| 1B |
86162830 |
Cord, 230 Volt |
Call to Order |
| 2 |
86164070 |
Strain Relief |
Buy Now |
| 3 |
86164210 |
Terminal Clip |
Call to Order |
| 4 |
86163860 |
Screw |
Buy Now |
| 5 |
86164220 |
Terminal Block |
Call to Order |
| 6 |
86163280 |
Handle |
Buy Now |
| 7 |
- |
Screw |
Call to Order |
| 8 |
86163860 |
Screw |
Buy Now |
| 9 |
86163890 |
Screw |
Buy Now |
| 10 |
86162870 |
Cover |
Buy Now |
| 11 |
86164150 |
Switch |
Buy Now |
| 12 |
86163120 |
Filter |
Buy Now |
| 13 |
86163880 |
Screw |
Buy Now |
| 14 |
86162850 |
Cover Motor |
Buy Now |
| 15 |
86163210 |
Gasket |
Buy Now |
| 16 |
86163780 |
Ring |
Buy Now |
| 17 |
86163110 |
Filter |
Buy Now |
| 18 |
86163480 |
Motor Ring |
Call to Order |
| 19 |
86163200 |
Gasket |
Buy Now |
| 20A |
86163470 |
Motor, 120 Volt |
Buy Now |
| 20B |
86163510 |
Motor, 230 Volt |
Buy Now |
| 21 |
86162940 |
Noise Reduction Disk |
Call to Order |
| 22 |
86162610 |
Motor Base |
Call to Order |
| 23 |
86163410 |
Windsor Logo Label |
Call to Order |
Vacuum Motor Assembly T716/T720TP
Windsor Karcher Titan Wet/Dry Vacuum Motor Assembly T716/T720TP
| Reference # |
Part # |
Description |
Add to Cart |
| 1A |
86162840 |
Cord, 120 Volt |
Buy Now |
| 1B |
86162830 |
Cord, 230 Volt |
Call to Order |
| 2 |
86164070 |
Strain Relief |
Buy Now |
| 3 |
86164210 |
Terminal Clip |
Call to Order |
| 4 |
86163860 |
Screw |
Buy Now |
| 5 |
86163890 |
Screw |
Buy Now |
| 6 |
86163290 |
Handle |
Buy Now |
| 7 |
86163920 |
Screw |
Buy Now |
| 8 |
86163850 |
Screw |
Call to Order |
| 9 |
86164230 |
Terminal Block |
Buy Now |
| 10 |
86162880 |
Cover |
Buy Now |
| 11 |
86164150 |
Switch |
Buy Now |
| 12 |
86163120 |
Filter |
Buy Now |
| 13 |
86163180 |
Gasket |
Buy Now |
| 14 |
86162740 |
Cap |
Call to Order |
| 15 |
86162860 |
Cover |
Buy Now |
| 16 |
- |
Screw |
Call to Order |
| 17 |
86163490 |
Motor Base |
Buy Now |
| 18 |
- |
Screw |
Call to Order |
| 19 |
86164220 |
Terminal Block |
Call to Order |
| 20 |
86163210 |
Gasket |
Buy Now |
| 21 |
86163780 |
Ring |
Buy Now |
| 22 |
86163200 |
L-gasket |
Buy Now |
| 23A |
86163470 |
Motor, 120 Volt |
Buy Now |
| 23B |
86163510 |
Motor, 230 Volt |
Buy Now |
| 24 |
86163500 |
Motor Seal |
Buy Now |
| 25 |
- |
Filter |
Call to Order |
| 26 |
86163100 |
Filter |
Buy Now |
| 27 |
86162640 |
Base Plug |
Call to Order |
| 28 |
86162630 |
Base |
Buy Now |
| 29 |
86163410 |
Windsor Logo |
Call to Order |

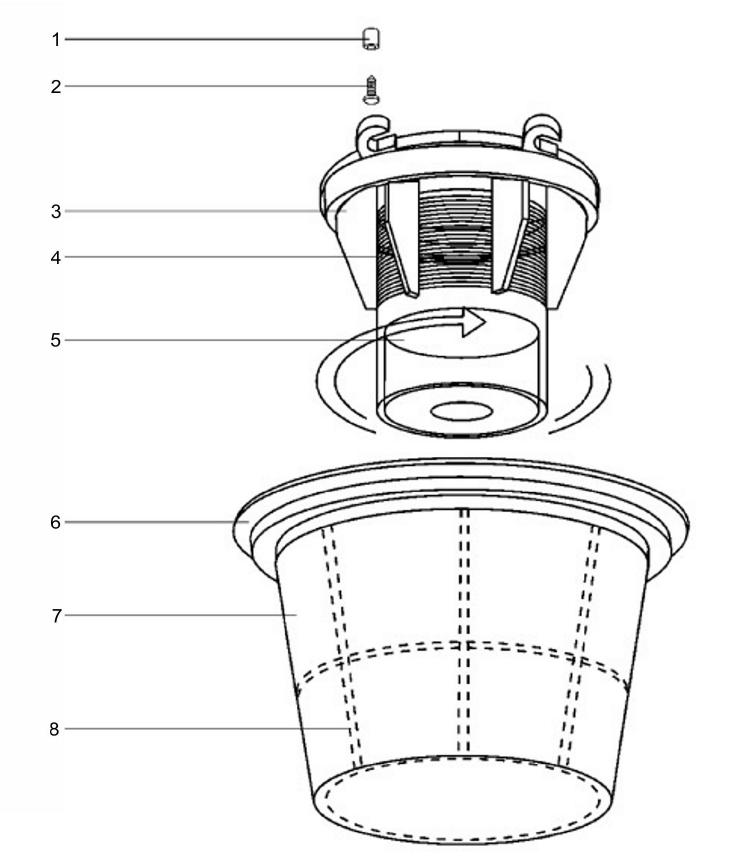

Filter Group T708
Windsor Karcher Titan Wet/Dry Vacuum Filter Group T708
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86162730 |
Bushing |
Buy Now |
| 2 |
86163950 |
Screw |
Buy Now |
| 3 |
86162690 |
Filter Support Body |
Buy Now |
| 4 |
86163080 |
Filter |
Buy Now |
| 5 |
86163150 |
Float |
Buy Now |
| 6 |
- |
Filter Ring |
Call to Order |
| 7 |
86163050 |
Filter Bag |
Buy Now |
| 8 |
86164130 |
Filter Bag Support |
Buy Now |
Filter T716/T720TP
Windsor Karcher Titan Wet/Dry Vacuum Filter T716/T720TP
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86162730 |
Bushing |
Buy Now |
| 2 |
86163950 |
Screw |
Buy Now |
| 3 |
86162690 |
Filter Support Body |
Buy Now |
| 4 |
86164080 |
Strainer |
Buy Now |
| 5 |
86163150 |
Float |
Buy Now |
| 6 |
86163010 |
Filter Ring |
Buy Now |
| 7 |
86163020 |
Filter Bag |
Buy Now |
| 8 |
86164120 |
Filter Support |
Buy Now |
| 9 |
86163030 |
Filter - Optional |
Buy Now |
| 10 |
86163040 |
Filter Retainer - Optional |
Buy Now |

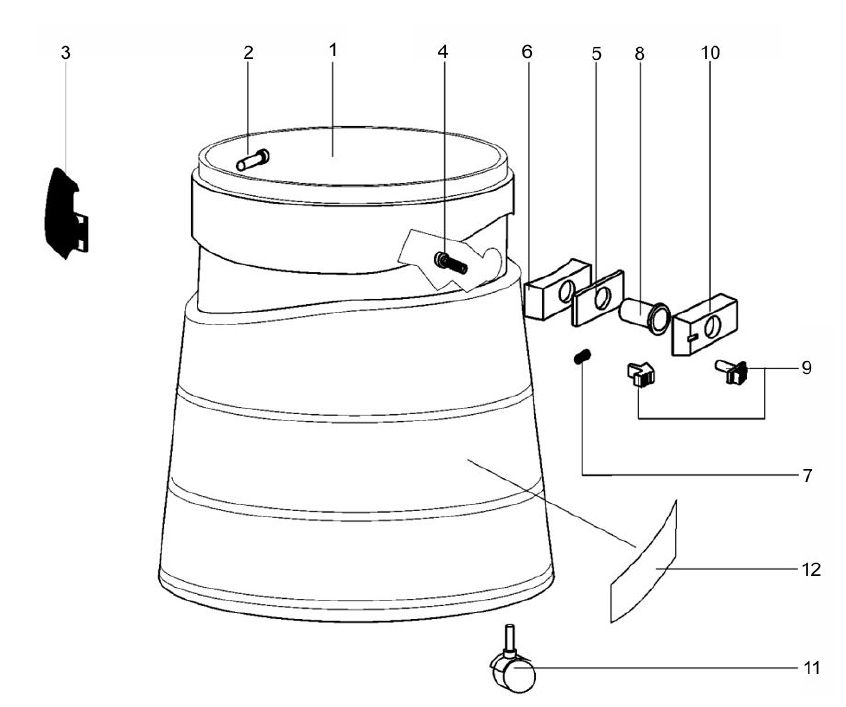

Tank T708
Windsor Karcher Titan Wet/Dry Vacuum Tank T708
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86164190 |
Tank |
Call to Order |
| 2 |
86163800 |
Rivet |
Buy Now |
| 3 |
86164160 |
Tank Clamp |
Buy Now |
| 4 |
86163880 |
Screw |
Buy Now |
| 5 |
86163190 |
Gasket |
Buy Now |
| 6 |
86163770 |
Tank Adapter Retainer |
Buy Now |
| 7 |
86164010 |
Push Button Spring |
Buy Now |
| 8 |
86164180 |
Tank Deflector |
Buy Now |
| 9 |
86163710 |
Push Button |
Buy Now |
| 10 |
86163360 |
Hose Adapter |
Buy Now |
| 11 |
86162760 |
Caster |
Buy Now |
| 12 |
86163400 |
Titan Label |
Call to Order |
Tank T716
Windsor Karcher Titan Wet/Dry Vacuum Tank T716
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86163270 |
Handle |
Buy Now |
| 2 |
86164200 |
Tank |
Buy Now |
| 3 |
86163870 |
Screw |
Buy Now |
| 4 |
86163760 |
Tank Retainer |
Buy Now |
| 5 |
86163190 |
Gasket |
Buy Now |
| 6 |
86164180 |
Tank Deflector |
Buy Now |
| 7 |
86162560 |
Adapter |
Buy Now |
| 8 |
86163800 |
Rivet |
Buy Now |
| 9 |
86164160 |
Clamp |
Buy Now |
| 10 |
86163880 |
Screw |
Buy Now |
| 11 |
86163670 |
Plastic Washer |
Buy Now |
| 12 |
86164090 |
Handle Support |
Call to Order |
| 13 |
86164100 |
Support |
Call to Order |
| 14 |
86163810 |
Rivet |
Call to Order |
| 15 |
86164310 |
Wheel Caster |
Buy Now |
| 16 |
86163930 |
Screw |
Buy Now |
| 17 |
86164110 |
Axle Support |
Buy Now |
| 18 |
86164300 |
Wheel |
Buy Now |
| 19 |
86162750 |
End Cap |
Buy Now |
| 20 |
86162600 |
Axle Cap |
Buy Now |
| 21 |
86164000 |
Wheel Spacer |
Call to Order |
| 22 |
86163860 |
Screw |
Buy Now |
| 23 |
86162580 |
Axle |
Call to Order |
| 24 |
86163570 |
Flange Nut |
Buy Now |
| 25 |
86163170 |
Gasket |
Buy Now |
| 26 |
86162980 |
Elbow |
Buy Now |
| 27 |
86162800 |
Clamp |
Buy Now |
| 28 |
86162950 |
Drain Tube |
Buy Now |
| 29 |
86163940 |
Screw |
Buy Now |
| 30 |
86162810 |
Clip Tube |
Buy Now |
| 31 |
- |
Tie Rod |
Call to Order |
| 32 |
86163690 |
Stopper Plug |
Buy Now |
| 33 |
86163300 |
Handgrip |
Buy Now |
| 34 |
86163710 |
Push Button |
Buy Now |
| 35 |
86163400 |
Titan Label |
Call to Order |

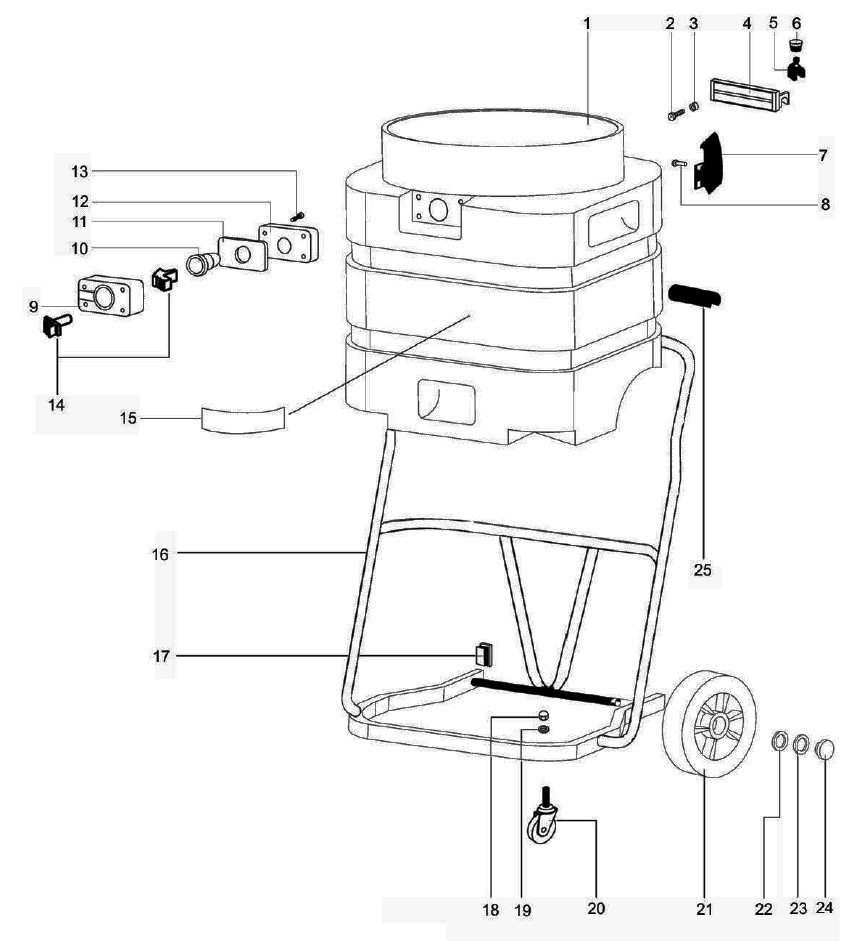

Tank and Cart T720TP
Windsor Karcher Titan Wet/Dry Vacuum Tank and Cart T720TP
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86164170 |
Tank |
Buy Now |
| 2 |
86163870 |
Screw |
Buy Now |
| 3 |
86163670 |
Plastic Washer |
Buy Now |
| 4 |
86163310 |
Latch Hook |
Buy Now |
| 5 |
86163750 |
Release Swivel |
Buy Now |
| 6 |
86163740 |
Release Knob |
Buy Now |
| 7 |
86164160 |
Clamp |
Buy Now |
| 8 |
86163800 |
Rivet |
Buy Now |
| 9 |
86162560 |
Hose Adapter |
Buy Now |
| 10 |
86164180 |
Tank Deflector |
Buy Now |
| 11 |
86163190 |
Gasket |
Buy Now |
| 12 |
- |
Tank Adapter Retainer |
Call to Order |
| 13 |
86163880 |
Screw |
Buy Now |
| 14 |
86163710 |
Push Button |
Buy Now |
| 15 |
86163400 |
Titan Label |
Call to Order |
| 16 |
86162620 |
Base |
Buy Now |
| 17 |
86163650 |
Plastic Pad |
Call to Order |
| 18 |
86163560 |
Nut |
Buy Now |
| 19 |
86164260 |
Washer |
Buy Now |
| 20 |
86164290 |
Caster Wheel |
Buy Now |
| 21 |
86164320 |
Wheel |
Buy Now |
| 22 |
86164280 |
Washer |
Call to Order |
| 23 |
86163660 |
Plastic Retainer |
Call to Order |
| 24 |
86162590 |
Axle Cap |
Call to Order |
| 25 |
86163300 |
Hand Grip |
Buy Now |

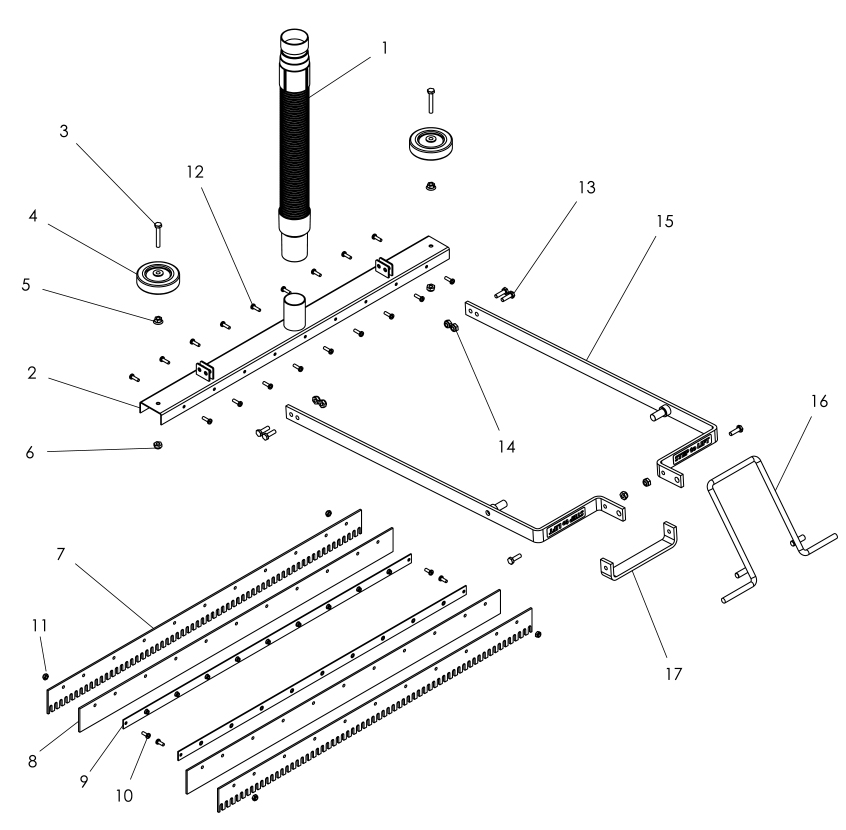

Front Mounted Squeegee TSQ16
Windsor Karcher Titan Wet/Dry Vacuum Front Mounted Squeegee TSQ16
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86163330 |
Hose Assembly |
Buy Now |
| 2 |
86163390 |
Housing |
Buy Now |
| 3 |
- |
Guide Wheel Bolt |
Call to Order |
| 4 |
86163220 |
Guide Wheel |
Buy Now |
| 5 |
- |
Jam Nut |
Call to Order |
| 6 |
- |
Nylock Nut |
Call to Order |
| 7 |
86163960 |
Slotted Blade |
Buy Now |
| 8 |
86163980 |
Solid Blade |
Buy Now |
| 9 |
86162650 |
Blade Support |
Buy Now |
| 10 |
- |
Blade End Screw |
Call to Order |
| 11 |
- |
Blade End Screw Nut |
Call to Order |
| 12 |
- |
Blade Attachment Screw |
Call to Order |
| 13 |
- |
Mounting Bolts |
Call to Order |
| 14 |
- |
Nylock Nut |
Call to Order |
| 15 |
86163440 |
Lifting Arm |
Buy Now |
| 16 |
86163420 |
Latch |
Buy Now |
| 17 |
86162910 |
Cross Member |
Buy Now |
| - |
86162820 |
Complete Squeegee Assembly |
Buy Now |

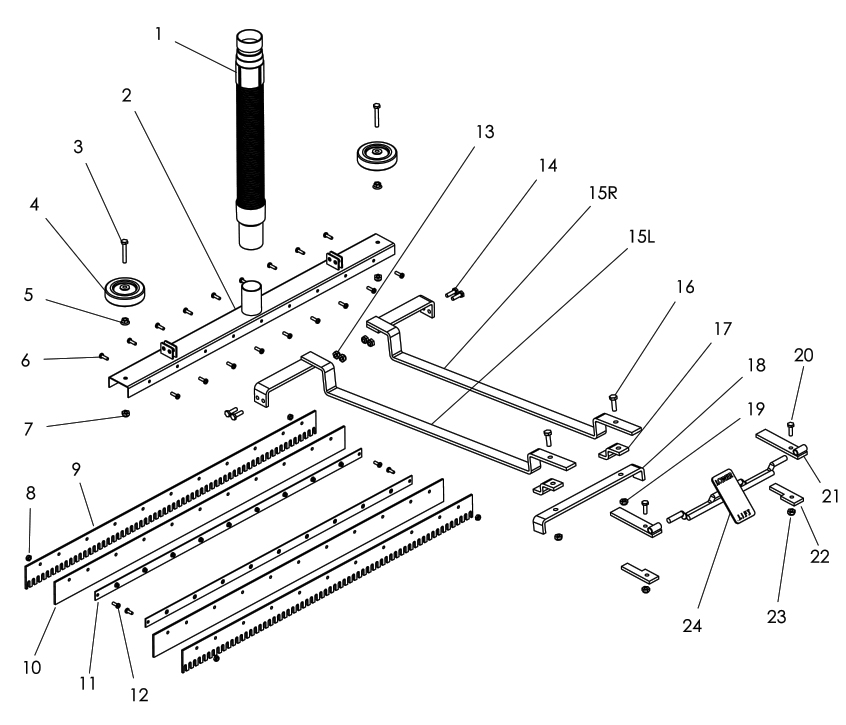

Front Mounted Squeegee TSQ20
Windsor Karcher Titan Wet/Dry Vacuum Front Mounted Squeegee TSQ20
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86163330 |
Hose Assembly |
Buy Now |
| 2 |
86163390 |
Housing |
Buy Now |
| 3 |
- |
Guide Wheel Bolt |
Call to Order |
| 4 |
86163220 |
Guide Wheel |
Buy Now |
| 5 |
- |
Jam Nut |
Call to Order |
| 6 |
- |
Blade Attachment Screw |
Call to Order |
| 7 |
- |
Nylock Nut |
Call to Order |
| 8 |
- |
Blade End Screw Nut |
Call to Order |
| 9 |
86163960 |
Slotted Blade |
Buy Now |
| 10 |
86163980 |
Solid Blade |
Buy Now |
| 11 |
86162650 |
Blade Support |
Buy Now |
| 12 |
- |
Blade Attachment Screw |
Call to Order |
| 13 |
- |
Nylock Nut |
Call to Order |
| 14 |
- |
Mounting Bolts |
Call to Order |
| 15R |
86163460 |
Lifting Arm Right Side |
Buy Now |
| 15L |
86163450 |
Lifting Arm Left Side |
Buy Now |
| 16 |
- |
Lifting Arm Clamp Bolt |
Call to Order |
| 17 |
86162780 |
Lifting Arm Clamp |
Buy Now |
| 18 |
86162920 |
Cross Member |
Buy Now |
| 19 |
- |
Nylock Nut |
Call to Order |
| 20 |
- |
Pedal Mount Bolt |
Call to Order |
| 21 |
86163630 |
Pedal Mount |
Buy Now |
| 22 |
86162790 |
Pedal Mount Clamp |
Buy Now |
| 23 |
- |
Nylock Nut |
Call to Order |
| 24 |
86163640 |
Pedal Assembly |
Buy Now |
