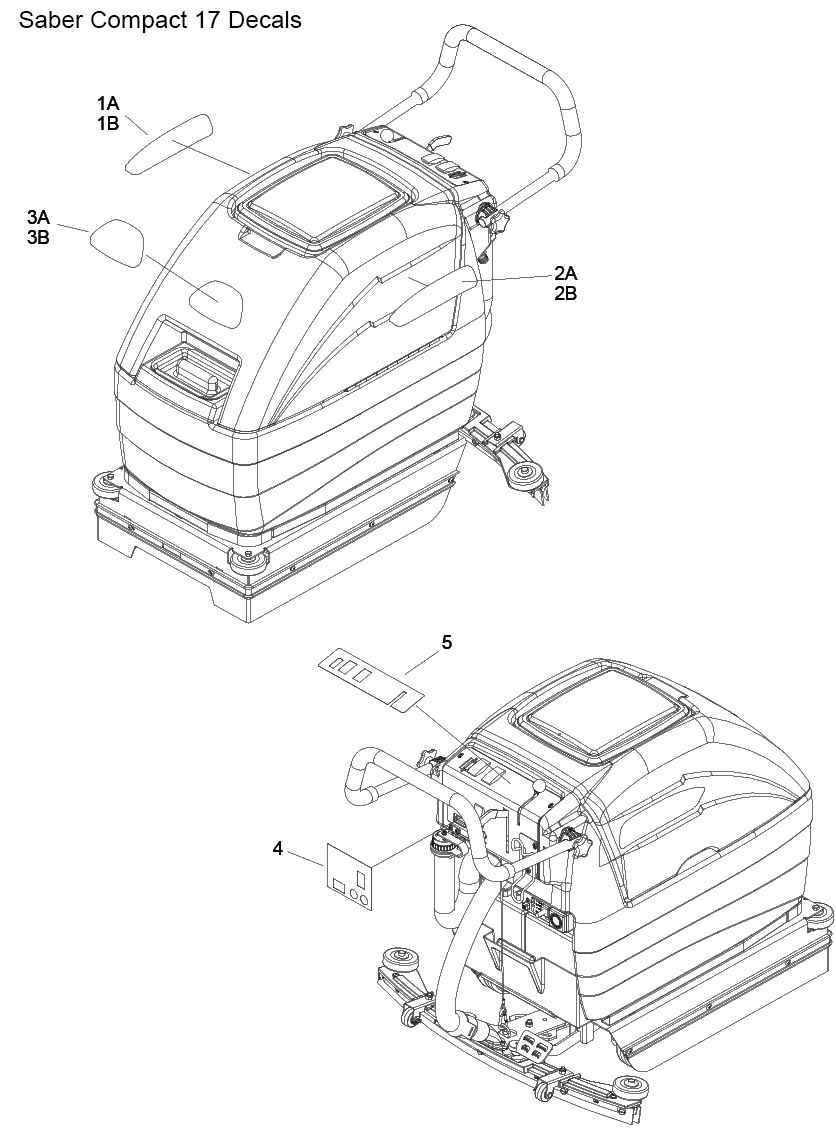

Windsor Saber Compact 17
Decals
Windsor Saber Compact 17 Decals
| Reference # |
Part # |
Description |
Add to Cart |
| 1A |
86243040 |
Main Label Right |
Buy Now |
| 1B |
86244000 |
Main Label Right |
Call to Order |
| 2A |
86243050 |
Main Label Left |
Buy Now |
| 2B |
86244010 |
Main Label Left |
Call to Order |
| 3A |
86004970 |
Domed Logo Label |
Buy Now |
| 3B |
86244020 |
Domed Logo Label |
Call to Order |
| 4 |
86220670 |
Circuit Breaker Label |
Call to Order |
| 5 |
86220660 |
17in Panel Label |
Call to Order |

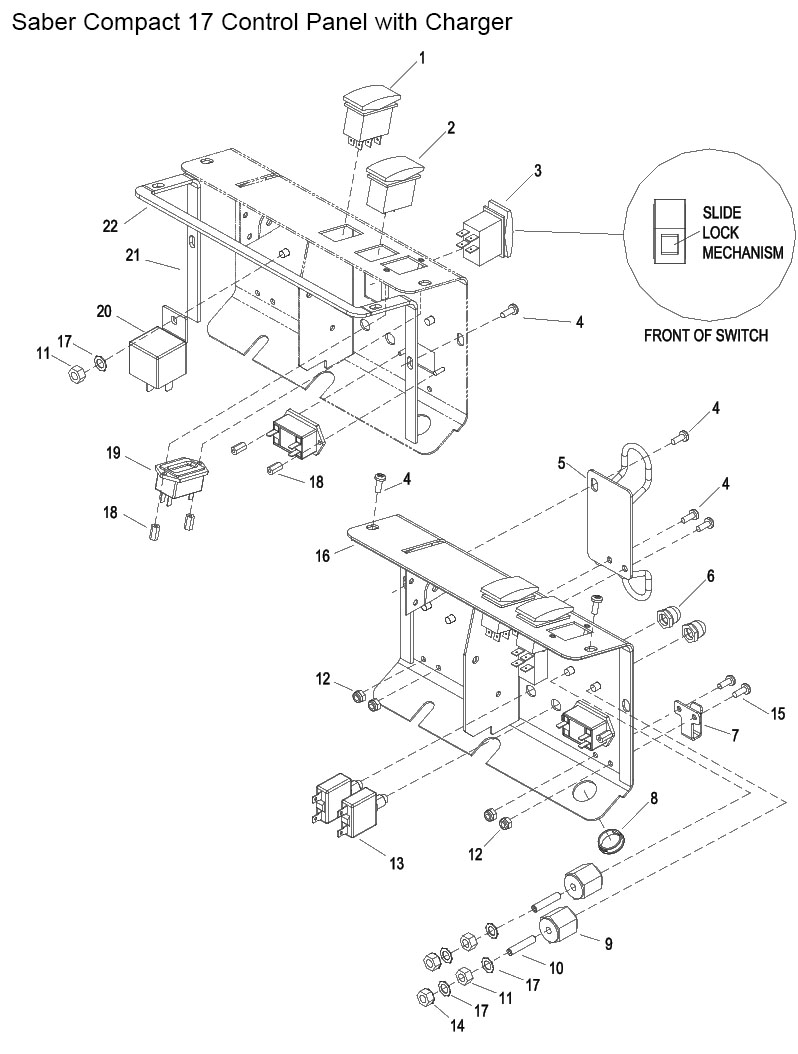

Control Panel with Charger
Windsor Saber Compact 17 Control Panel with Charger
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86348660 |
2 Position Brush Switch |
Buy Now |
| 2 |
86007140 |
2 Position Rocker Switch |
Buy Now |
| 3 |
86348650 |
2 Position Locking Switch |
Buy Now |
| 4 |
86276820 |
Screw |
Buy Now |
| 5 |
86218800 |
Charger Cord Hanger |
Buy Now |
| 6 |
86215420 |
Circuit Breaker Boot |
Buy Now |
| 7 |
86215860 |
Hose Hook Bracket |
Call to Order |
| 8 |
86231240 |
Bushing |
Call to Order |
| 9 |
86255910 |
Standoff |
Buy Now |
| 10 |
86006850 |
Set Screw |
Buy Now |
| 11 |
86222310 |
Nut |
Buy Now |
| 12 |
86005640 |
Nut |
Buy Now |
| 13 |
86215680 |
Breaker |
Buy Now |
| 14 |
86005680 |
Hex Nylock Nut |
Buy Now |
| 15 |
86274290 |
Screw |
Buy Now |
| 16 |
86222490 |
Scrubber Panel |
Buy Now |
| 17 |
86010660 |
Washer |
Buy Now |
| 18 |
86224880 |
Standoff |
Call to Order |
| 19 |
86246970 |
Battery w/ Output Meter |
Buy Now |
| 20 |
86251420 |
Relay |
Buy Now |
| 21 |
86218070 |
Electric Cover Side Gasket |
Call to Order |
| 22 |
86218080 |
Electrical Cover Gasket |
Buy Now |

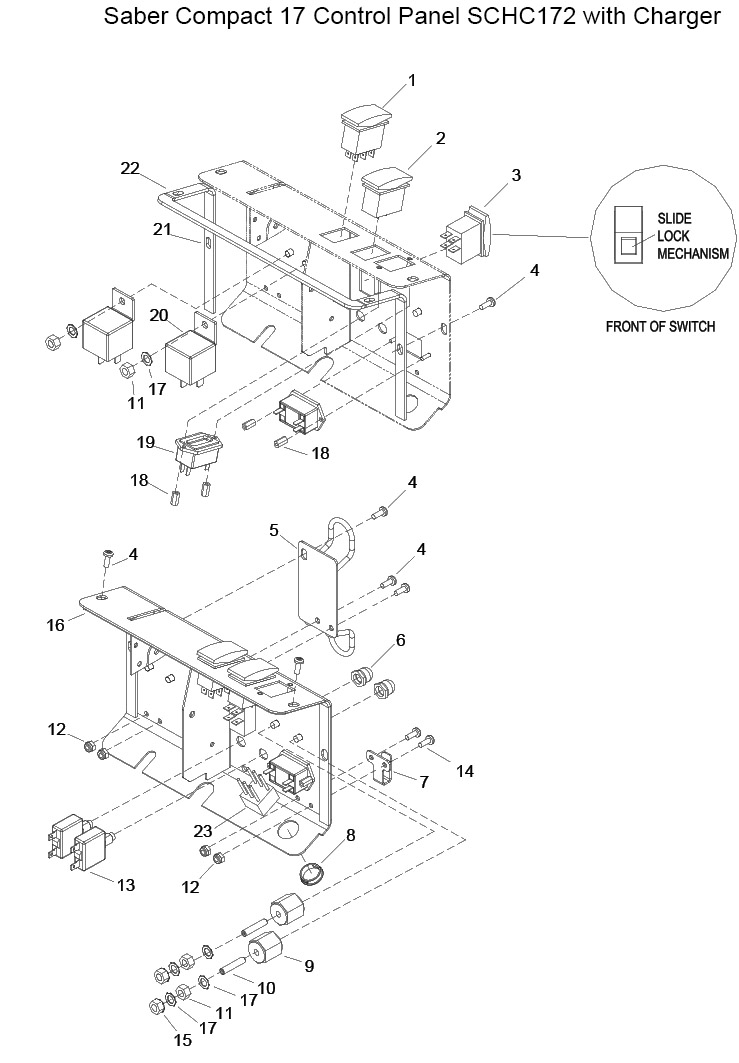

Control Panel - SCHC172 with Charger
Windsor Saber Compact 17 Control Panel - SCHC172 with Charger
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86348660 |
2 Position Brush Switch |
Buy Now |
| 2 |
86007140 |
2 Position Rocker Switch |
Buy Now |
| 3 |
86257090 |
2 Position Rocker Switch |
Call to Order |
| 4 |
86276820 |
Screw |
Buy Now |
| 5 |
86218800 |
Charger Cord Hanger |
Buy Now |
| 6 |
86215420 |
Circuit Breaker Boot |
Buy Now |
| 7 |
86215860 |
Hose Hook Bracket |
Call to Order |
| 8 |
86231240 |
Bushing |
Call to Order |
| 9 |
86255910 |
Standoff |
Buy Now |
| 10 |
86006850 |
Set Screw |
Buy Now |
| 11 |
86222310 |
Nut |
Buy Now |
| 12 |
86005640 |
Hex Nylock Nut |
Buy Now |
| 13 |
86215680 |
Breaker |
Buy Now |
| 14 |
86274290 |
Screw |
Buy Now |
| 15 |
86005680 |
Hex Nylock Nut |
Buy Now |
| 16 |
86222490 |
Scrubber Panel |
Buy Now |
| 17 |
86010660 |
Washer |
Buy Now |
| 18 |
86224880 |
Standoff |
Call to Order |
| 19 |
86246970 |
Battery w/ Output Meter |
Buy Now |
| 20 |
86251420 |
Relay |
Buy Now |
| 21 |
86218070 |
Electrical Cover Side Gasket |
Call to ORder |
| 22 |
86218080 |
Electrical Cover Gakset |
Buy Now |
| 23 |
86251400 |
Battery Meter Output Relay |
Buy Now |

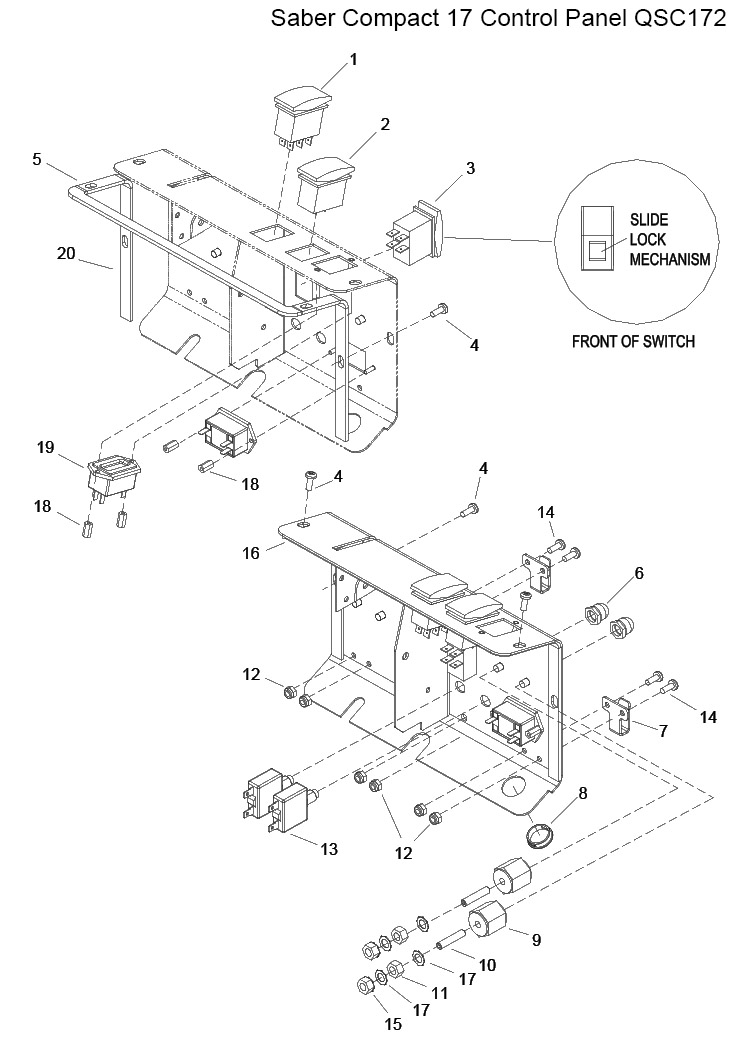

Control Panel - QSC172
Windsor Saber Compact 17 Control Panel - QSC172
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86348660 |
2 Position Brush Switch |
Buy Now |
| 2 |
86007140 |
2 Position Rocker Switch |
Buy Now |
| 3 |
86348650 |
2 Position Locking Switch |
Buy Now |
| 4 |
86276820 |
Screw |
Buy Now |
| 5 |
86218080 |
Electrical Cover Gasket |
Buy Now |
| 6 |
86215420 |
Circuit Breaker Boot |
Buy Now |
| 7 |
86215860 |
Hose Hook Bracket |
Call to Order |
| 8 |
86231240 |
Bushing |
Call to Order |
| 9 |
86255910 |
Standoff |
Buy Now |
| 10 |
86006850 |
Set Screw |
Buy Now |
| 11 |
86222310 |
Nut |
Buy Now |
| 12 |
86005640 |
Hex Nylock Nut |
Buy Now |
| 13 |
86215680 |
Breaker |
Buy Now |
| 14 |
86274290 |
Screw |
Buy Now |
| 15 |
86005680 |
Hex Nylock Nut |
Buy Now |
| 16 |
86222490 |
Scrubber Panel |
Buy Now |
| 17 |
86010660 |
Washer |
Buy Now |
| 18 |
86224880 |
Standoff |
Call to Order |
| 19 |
86246970 |
Battery w/ Output Meter |
Buy Now |
| 20 |
86218070 |
Electrical Cover Side Gasket |
Call to Order |

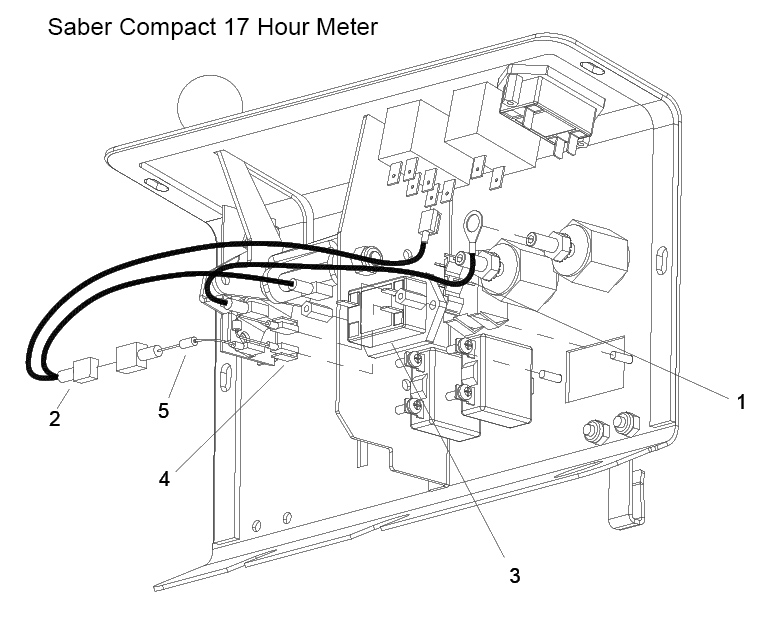

Hour Meter
Windsor Compact 17 Hour Meter
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86267420 |
Wire |
Call to Order |
| 2 |
86260500 |
Wire Assembly |
Buy Now |
| 3 |
86005530 |
Hour Meter LED |
Buy Now |
| 4 |
86261240 |
Diode Assembly |
Buy Now |
| 5 |
86261340 |
Resistor Assembly |
Buy Now |

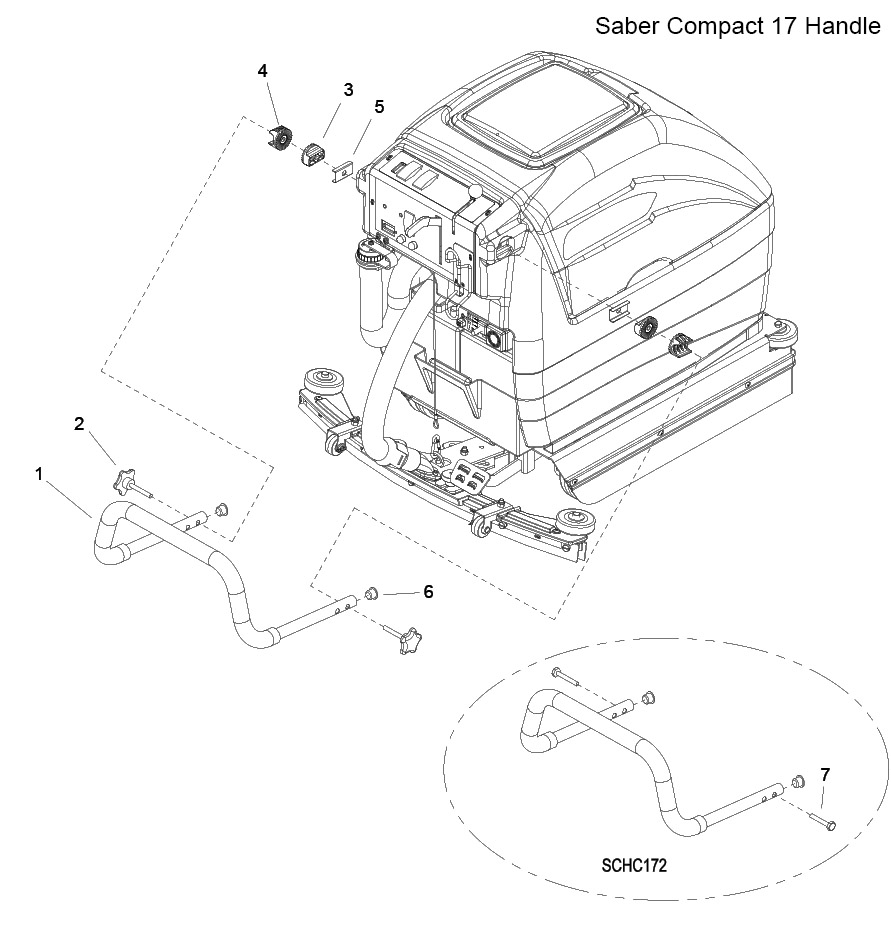

Handle
Windsor Saber Compact 17 Handle
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86218620 |
Scrubber Handle |
Buy Now |
| 2 |
86004880 |
Knob |
Buy Now |
| 3 |
86221880 |
Male Handle Lock |
Buy Now |
| 4 |
86221890 |
Female Handle Lock |
Buy Now |
| 5 |
86069430 |
Handle Mount Support Bracket |
Buy Now |
| 6 |
86216530 |
Handle Cap |
Buy Now |
| 7 |
86277230 |
Screw |
Buy Now |

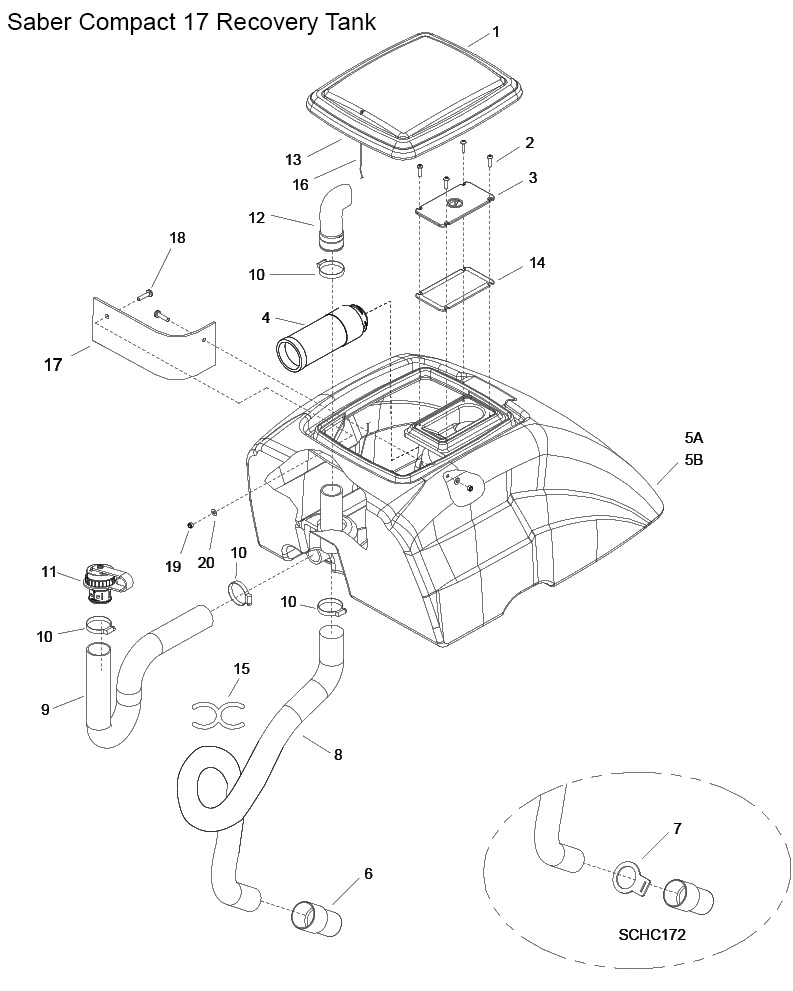

Recovery Tank
Windsor Saber Compact 17 Recovery Tank
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86003340 |
Dome |
Buy Now |
| 2 |
86006600 |
Screw |
Buy Now |
| 3 |
86222860 |
Vac Inlet Cover Plate |
Buy Now |
| 4 |
86003680 |
Float Shut-Off |
Buy Now |
| 5A |
86225290 |
Recovery Tank |
Call to Order |
| 5B |
86225280 |
Recovery Tank |
Call to Order |
| 6 |
86003010 |
Hose Cuff |
Buy Now |
| 7 |
86246070 |
Drain Hose Lanyard |
Buy Now |
| 8 |
86004290 |
Hose |
Buy Now |
| 9 |
86004190 |
Hose |
Buy Now |
| 10 |
86002390 |
Worm Gear Clamp |
Buy Now |
| 11 |
86328980 |
Drain Cap Assembly |
Buy Now |
| 12 |
86240130 |
Hose |
Buy Now |
| 13 |
86004010 |
Dome Edge Gasket |
Buy Now |
| 14 |
86218100 |
Vac Inlet Gasket |
Buy Now |
| 15 |
86216790 |
Vac Hose Coil Clip |
Buy Now |
| 16 |
86279880 |
Cord |
Buy Now |
| 17 |
86215060 |
Air Intake Baffle |
Buy Now |
| 18 |
86223820 |
Screw |
Call to Order |
| 19 |
86222280 |
Hex Nylock Nut |
Buy Now |
| 20 |
86010650 |
Washer |
Buy Now |

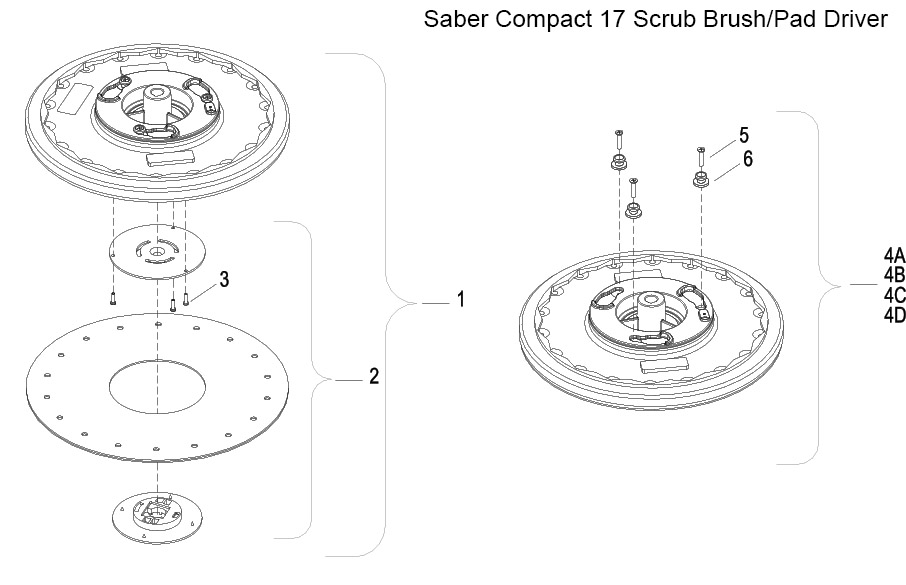

Scrub Brush/Pad Driver
Windsor Saber Compact 17 Scrub Brush/Pad Driver
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86000680 |
Pad Driver |
Buy Now |
| 2 |
86005070 |
Center Pad Snap Lock |
Buy Now |
| 3 |
86276580 |
Screw |
Buy Now |
| 4A |
86000650 |
Polypro Brush |
Buy Now |
| 4B |
86000660 |
Nylon Brush |
Buy Now |
| 4C |
86000670 |
Grit Brush |
Buy Now |
| 4D |
86000700 |
Untrimmed Nylon Brush |
Buy Now |
| 5 |
86340340 |
Screw |
Buy Now |
| 6 |
86004990 |
Brush Mounting Lug |
Buy Now |

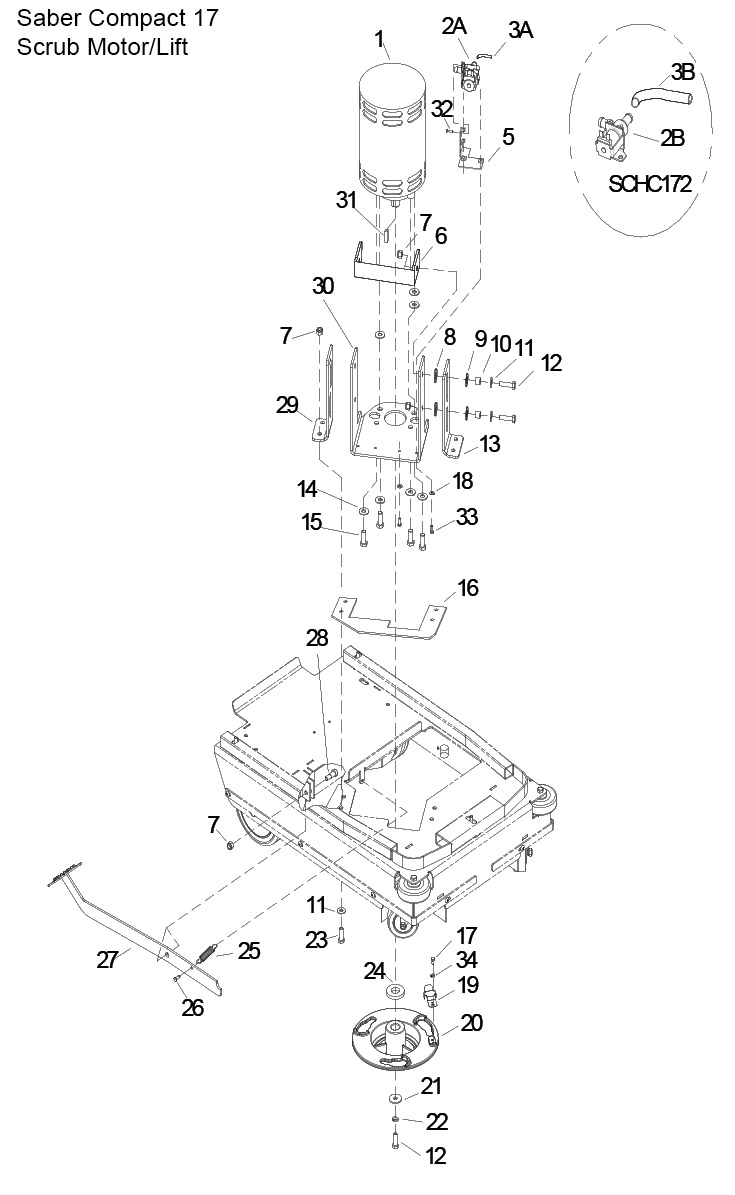

Scrub Motor/Lift
Windsor Saber Compact 17 Scrub Motor/Lift
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86005320 |
Motor Assembly |
Buy Now |
| 2A |
86010610 |
Hose Valve |
Buy Now |
| 2B |
86010540 |
Hosebarb Valve |
Buy Now |
| 3A |
86282080 |
Nylobraid Hose |
Buy Now |
| 3B |
82681470 |
Vinyl Hose |
Call to Order |
| 5 |
86215990 |
Solenoid Valve Bracket |
Buy Now |
| 6 |
86070650 |
Stiffener Bracket |
Call to Order |
| 7 |
86270830 |
Hex Nylock Nut |
Buy Now |
| 8 |
86259400 |
Thrust Washer |
Buy Now |
| 9 |
86259410 |
Thrust Washer |
Buy Now |
| 10 |
86231250 |
Bushing |
Buy Now |
| 11 |
86010670 |
Flat Washer |
Buy Now |
| 12 |
86007020 |
Screw |
Buy Now |
| 13 |
86072600 |
Motor Track Bracket |
Buy Now |
| 14 |
86278910 |
Washer |
Buy Now |
| 15 |
86006740 |
Screw |
Buy Now |
| 16 |
86073580 |
Deck Stiffener Bracket |
Call to Order |
| 17 |
86276800 |
Screw |
Buy Now |
| 18 |
86173350 |
Flat Washer |
Buy Now |
| 19 |
86224610 |
Brush Clip Spring |
Buy Now |
| 20 |
86003430 |
Brush Assist Driver |
Buy Now |
| 21 |
86279630 |
Washer |
Buy Now |
| 22 |
86279130 |
Split Lock Washer |
Buy Now |
| 23 |
86006560 |
Screw |
Buy Now |
| 24 |
86225820 |
Washer |
Buy Now |
| 25 |
86007690 |
Spring |
Buy Now |
| 26 |
86272340 |
Clevis Pin |
Buy Now |
| 27 |
86221740 |
Motor Lift Lever |
Buy Now |
| 28 |
86278360 |
Shoulder Bolt |
Buy Now |
| 29 |
86072610 |
Motor Track Bracket |
Buy Now |
| 30 |
86072590 |
Motor Mount Bracket |
Buy Now |
| 31 |
86004810 |
Key |
Buy Now |
| 32 |
86276730 |
Screw |
Buy Now |
| 33 |
86172950 |
Screw |
Buy Now |
| 34 |
86279470 |
Washer |
Buy Now |

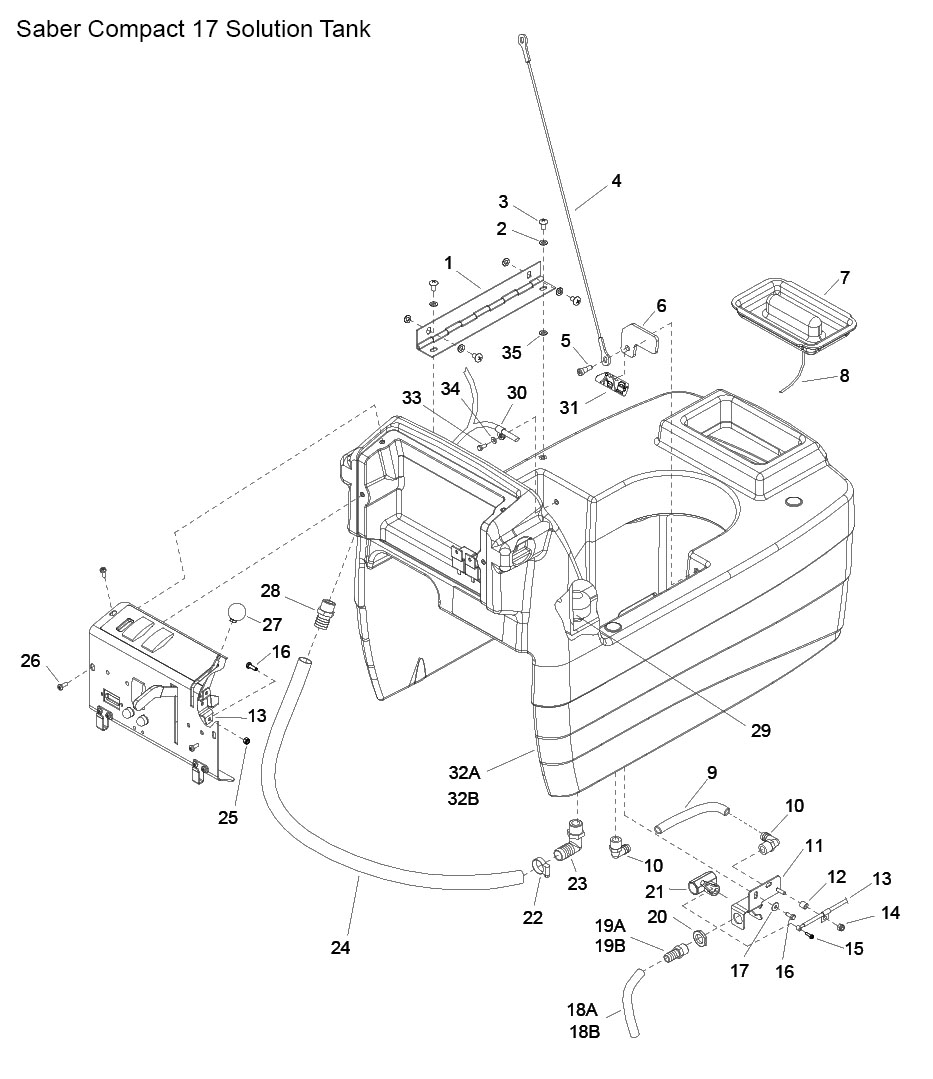

Solution Tank
Windsor Saber Compact 17 Solution Tank
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86239620 |
Scrubber Hinge |
Buy Now |
| 2 |
86010660 |
Star Washer |
Buy Now |
| 3 |
86276700 |
Screw |
Buy Now |
| 4 |
86003210 |
Tank Lanyard Cable |
Buy Now |
| 5 |
86278260 |
Shoulder Bolt |
Buy Now |
| 6 |
86215820 |
Tank Support Bracket |
Buy Now |
| 7 |
86234790 |
Solution Cover |
Buy Now |
| 8 |
86279880 |
Cord |
Buy Now |
| 9 |
86282110 |
Wire Bound Hose |
Buy Now |
| 10 |
86197940 |
Hosebarb |
Buy Now |
| 11 |
86069410 |
Valve Mount Bracket |
Buy Now |
| 12 |
86224430 |
Spacer |
Buy Now |
| 13 |
86221750 |
Solution Cable Lever |
Buy Now |
| 14 |
86222280 |
Hex Nylock Nut |
Buy Now |
| 15 |
86328920 |
Screw |
Buy Now |
| 16 |
86006980 |
Screw |
Buy Now |
| 17 |
86010650 |
Washer |
Buy Now |
| 18A |
86282090 |
Nylobraid Hose |
Buy Now |
| 18B |
86281640 |
Nylobraid Hose |
Buy Now |
| 19A |
86240430 |
Nylon Hosebarb |
Buy Now |
| 19B |
86001590 |
Nylon Hosebarb |
Buy Now |
| 20 |
86248020 |
Sealed Bulkhead Nut |
Buy Now |
| 21 |
86225680 |
Ball Valve |
Buy Now |
| 22 |
86233110 |
Worm Gear Clamp |
Buy Now |
| 23 |
86219160 |
Hosebarb |
Buy Now |
| 24 |
86282100 |
Hose |
Buy Now |
| 25 |
86005640 |
Hex Nylock Nut |
Buy Now |
| 26 |
86276820 |
Screw |
Buy Now |
| 27 |
86242100 |
Solution Lever Knob |
Buy Now |
| 28 |
86240810 |
Hosebarb |
Buy Now |
| 29 |
86007350 |
Mesh Strainer |
Buy Now |
| 30 |
86198450 |
Nylon Clamp |
Buy Now |
| 31 |
86221020 |
Drain Label |
Call to Order |
| 32A |
86322090 |
Solution Tank |
Call to Order |
| 32B |
86327580 |
Solution Tank |
Call to Order |
| 33 |
86274290 |
Screw |
Buy Now |
| 34 |
86279190 |
Washer |
Buy Now |
| 35 |
86279790 |
Washer |
Buy Now |
Squeegee

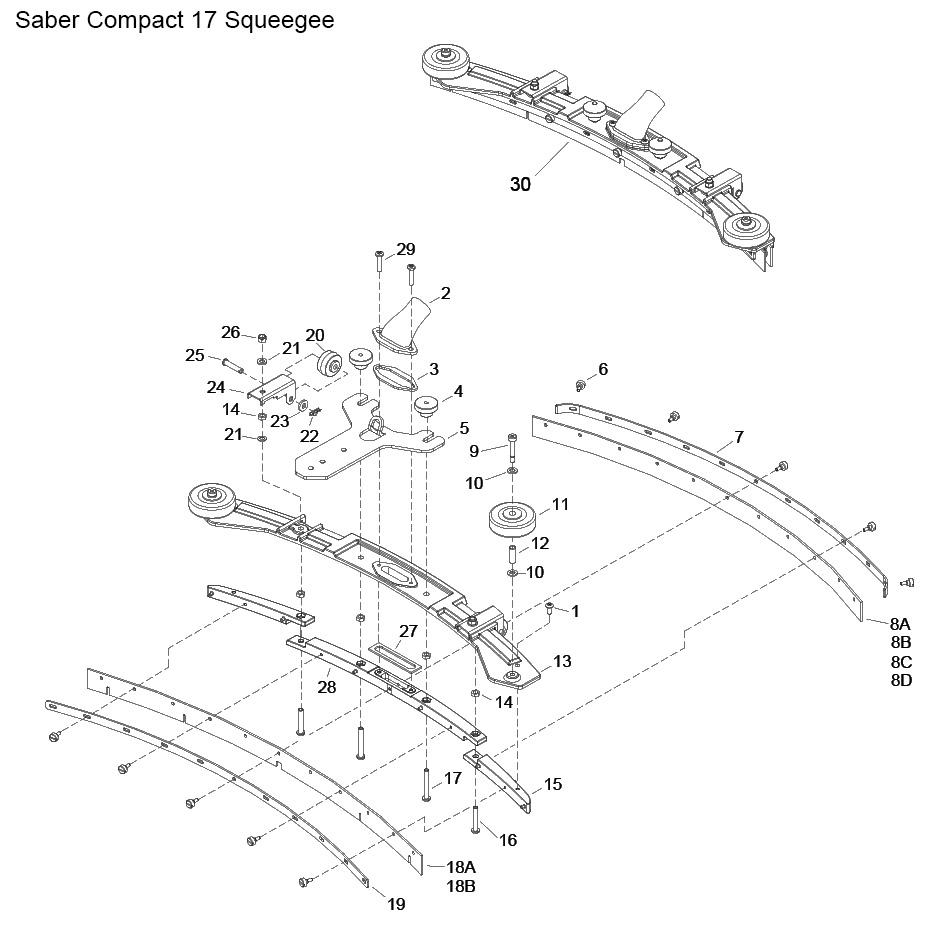

Windsor Saber Compact 17 Squeegee
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86223740 |
Screw |
Buy Now |
| 2 |
86225450 |
Transition Tube |
Buy Now |
| 3 |
86332620 |
Suction Gasket |
Buy Now |
| 4 |
86219690 |
Knob |
Buy Now |
| 5 |
86215800 |
Squeegee Mount Bracket |
Buy Now |
| 6 |
86219730 |
Squeegee Retainer Knob |
Buy Now |
| 7 |
86224950 |
Squeegee Blade Rear Strap |
Buy Now |
| 8A |
86215360 |
Rear Squeegee Blade |
Buy Now |
| 8B |
86007370 |
Soft Duro Rear Blade |
Buy Now |
| 8C |
86007260 |
Urethan Blade |
Buy Now |
| 8D |
86007610 |
Rear Medium Blade |
Buy Now |
| 9 |
86224240 |
Shoulder Bolt |
Buy Now |
| 10 |
86225790 |
Washer |
Buy Now |
| 11 |
86011020 |
Cushion Rubber Wheel |
Buy Now |
| 12 |
86001350 |
Spanner Bushing |
Buy Now |
| 13 |
86334640 |
Top Cast Plate |
Buy Now |
| 14 |
86222300 |
Nut |
Buy Now |
| 15 |
86332670 |
End Insert Squeegee |
Buy Now |
| 16 |
86223750 |
Screw |
Buy Now |
| 17 |
86223760 |
Screw |
Buy Now |
| 18A |
86215350 |
Front Squeegee Blade |
Buy Now |
| 18B |
86007360 |
Red Front Blade |
Buy Now |
| 19 |
86087870 |
Front and Rear Standard Strap |
Buy Now |
| 20 |
86010880 |
Wheel |
Buy Now |
| 21 |
86225780 |
Washer |
Buy Now |
| 22 |
86008660 |
Cotter Ring |
Buy Now |
| 23 |
86279650 |
Seal Washer |
Buy Now |
| 24 |
86215810 |
Squeegee Wheel Bracket |
Buy Now |
| 25 |
86222590 |
Clevis Pin |
Buy Now |
| 26 |
86222290 |
Hex Nylock Nut |
Buy Now |
| 27 |
86332630 |
Lower Gasket |
Buy Now |
| 28 |
86332650 |
Center Insert Squeegee |
Buy Now |
| 29 |
86276610 |
Screw |
Buy Now |
| 30 |
86224870 |
Cast Squeegee |
Buy Now |
Squeegee Lift

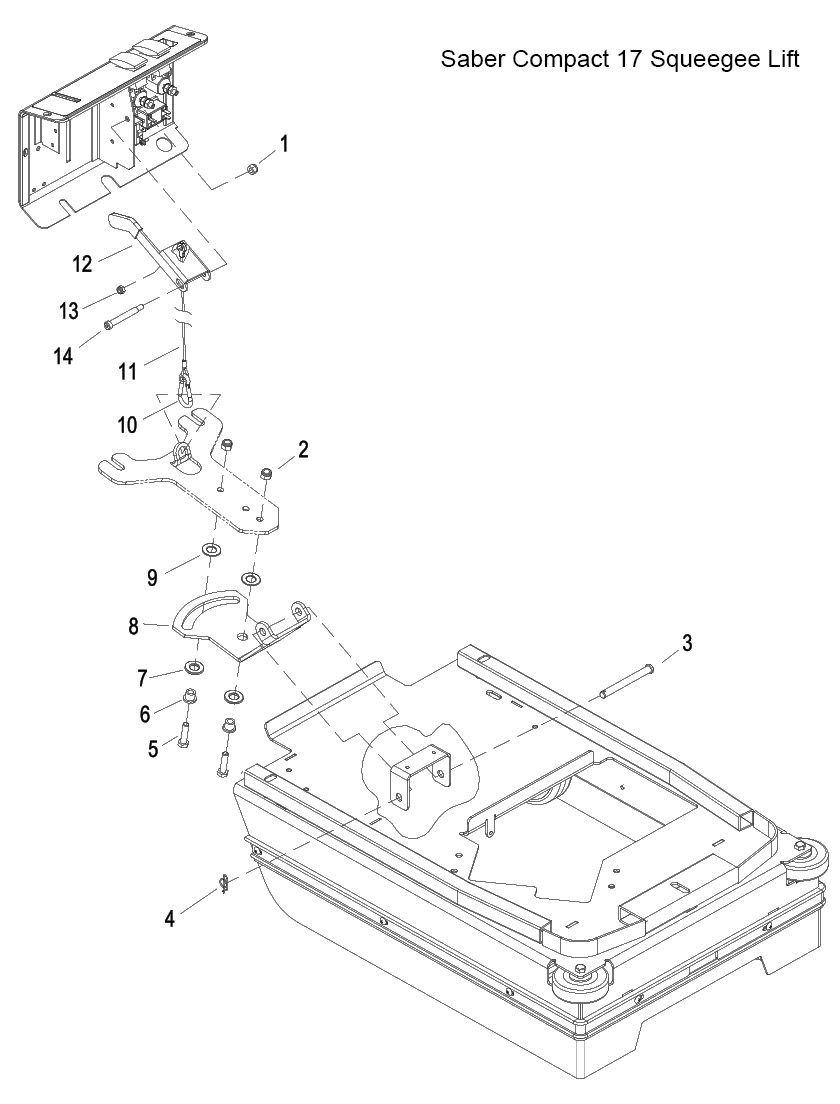

Windsor Saber Compact 17 Squeegee Lift
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86005680 |
Hex Nylock Nut |
Buy Now |
| 2 |
86270830 |
Hex Nylock Nut |
Buy Now |
| 3 |
86249050 |
Clevis Pin |
Buy Now |
| 4 |
86008670 |
Cotter Ring |
Buy Now |
| 5 |
86007020 |
Screw |
Buy Now |
| 6 |
86228840 |
Flanged Bearing |
Buy Now |
| 7 |
86259400 |
Thrust Washer |
Buy Now |
| 8 |
86006320 |
Squeegee Lift Plate |
Buy Now |
| 9 |
86259410 |
Thrust Washer |
Buy Now |
| 10 |
86239670 |
Safety Clip Hook |
Buy Now |
| 11 |
86003220 |
Squeegee Lift Cable |
Buy Now |
| 12 |
86246460 |
Squeegee Lift Lever |
Buy Now |
| 13 |
86005640 |
Hex Nylock Nut |
Buy Now |
| 14 |
86136860 |
Shoulder Bolt |
Call to Order |
Vacuum

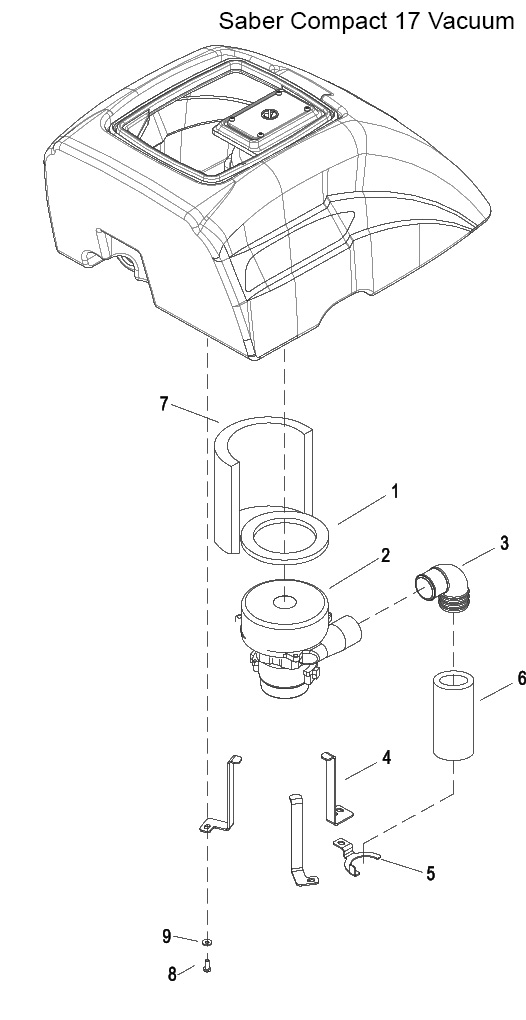

Windsor Saber Compact 17 Vacuum
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86003760 |
Vac Motor Gasket |
Buy Now |
| 2A |
86005440 |
Vac Motor |
Buy Now |
| 2B |
86135310 |
Brush Set |
Call to Order |
| 3 |
86217750 |
Vac Muffler Elbow |
Buy Now |
| 4 |
86072620 |
Vac Motor Mount Bracket |
Buy Now |
| 5 |
86216000 |
Muffler Bracket |
Buy Now |
| 6 |
86222220 |
Muffler Vacuum Foam |
Buy Now |
| 7 |
86215370 |
Sound Reduction Blanket |
Buy Now |
| 8 |
86273750 |
Screw |
Buy Now |
| 9 |
86010630 |
Washer |
Buy Now |
Wheel & Frame

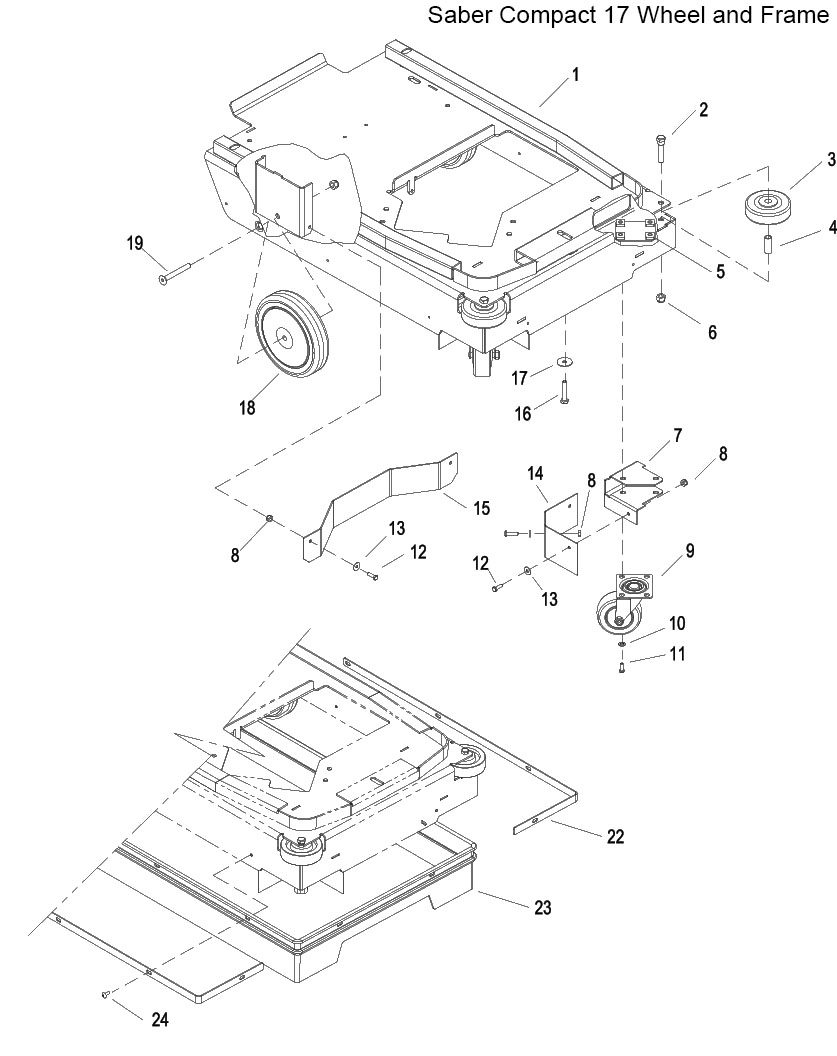

Windsor Saber Compact 17 Wheel & Frame
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86003700 |
Scrubber Frame |
Buy Now |
| 2 |
86223770 |
Screw |
Buy Now |
| 3 |
86011020 |
Cushion Rubber Wheel |
Buy Now |
| 4 |
86216400 |
Spanner Bushing |
Buy Now |
| 5 |
86078910 |
Caster Mount Plate |
Buy Now |
| 6 |
86270830 |
Hex Nylock Nut |
Buy Now |
| 7 |
86070600 |
Splash Guard Bracket |
Buy Now |
| 8 |
86271770 |
Hex Nylock Nut |
Buy Now |
| 9 |
86343450 |
Swivel Caster |
Buy Now |
| 10 |
86279130 |
Washer |
Buy Now |
| 11 |
86006930 |
Screw |
Buy Now |
| 12 |
86276770 |
Screw |
Buy Now |
| 13 |
86010650 |
Washer |
Buy Now |
| 14 |
86253870 |
Caster Shield Skirt |
Buy Now |
| 15 |
86082060 |
Brush Center Plate |
Call to Order |
| 16 |
86273740 |
Screw |
Buy Now |
| 17 |
86010810 |
Washer |
Buy Now |
| 18 |
86259870 |
Wheel |
Buy Now |
| 19 |
86276750 |
Screw |
Buy Now |
| 22 |
86087880 |
Skirt Side Strap |
Buy Now |
| 23 |
86007320 |
Scrubber Skirt |
Buy Now |
| 24 |
86276620 |
Screw |
Buy Now |
Onboard Charger

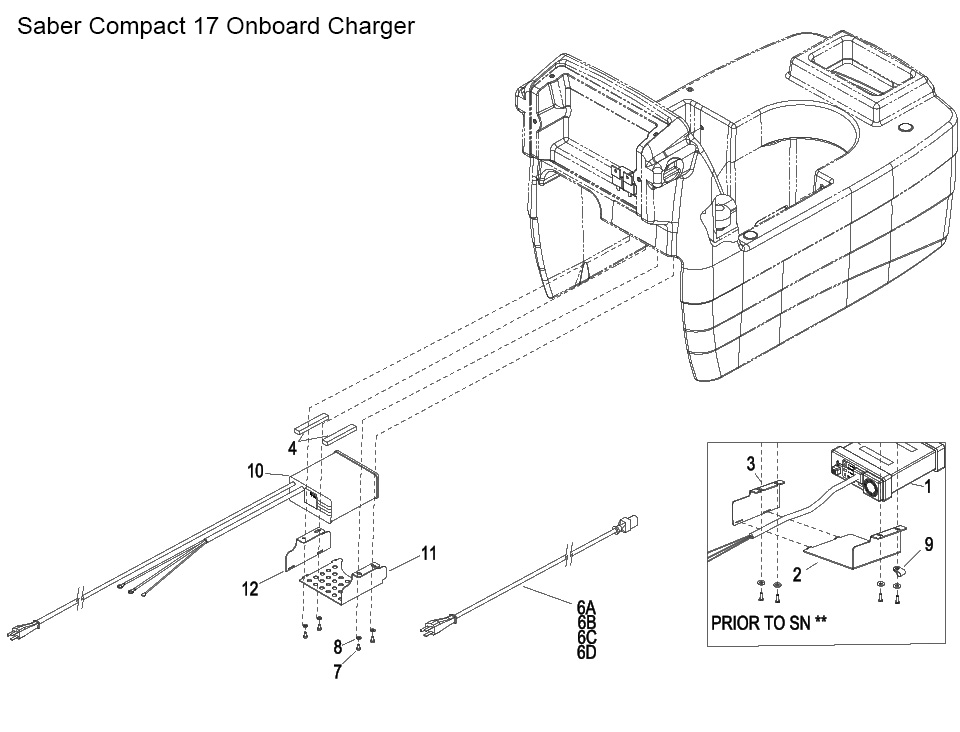

Windsor Saber Compact 17 Onboard Charger
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86216670 |
Charger |
Call to Order |
| 2 |
86215790 |
Charger Bracket |
Buy Now |
| 3 |
86215780 |
Top Charger Bracket |
Buy Now |
| 4 |
86218060 |
Gasket |
Buy Now |
| 5 |
86220720 |
Charger Label |
Call to Order |
| 6A |
86234390 |
Cord Assembly |
Buy Now |
| 6B |
86217090 |
Cord Assembly |
Call to Order |
| 6C |
86217100 |
Cord Assembly |
Call to Order |
| 6D |
86217110 |
Cord Assembly |
Call to Order |
| 7 |
86274290 |
Screw |
Buy Now |
| 8 |
86279190 |
Washer |
Buy Now |
| 9 |
86198450 |
Nylon Clamp |
Buy Now |
| 10 |
98408080 |
Charger Kit |
Call to Order |
| 11 |
86323400 |
Right Charger Bracket |
Buy Now |
| 12 |
86323410 |
Left Charger Bracket |
Buy Now |
Wiring - Battery Cables

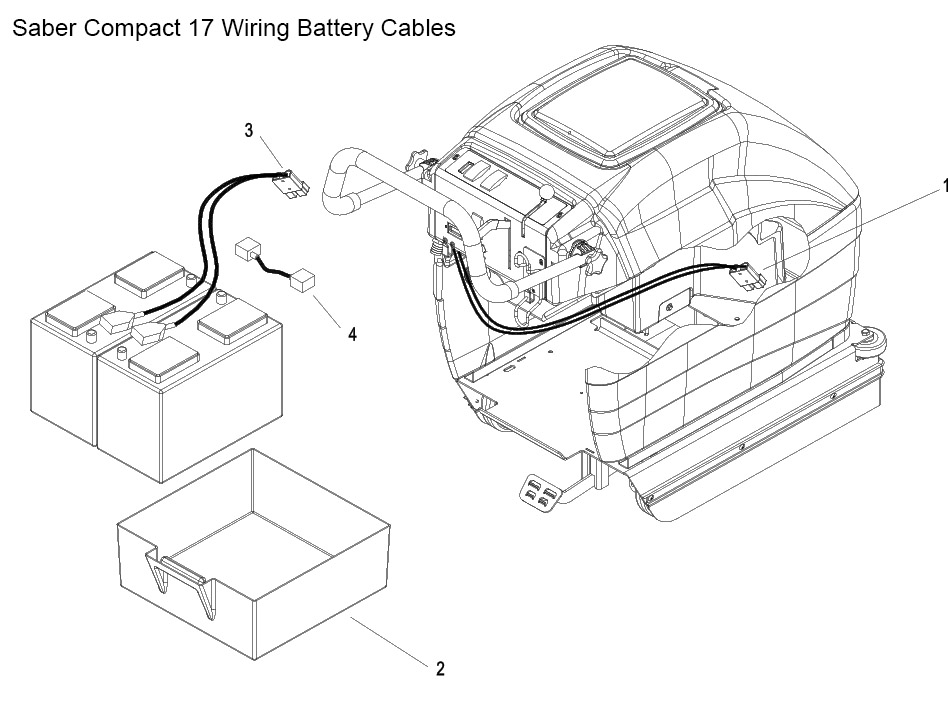

Windsor Saber Compact 17 Wiring - Battery Cables
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86260470 |
Wire Assembly |
Buy Now |
| 2 |
86225330 |
Battery Tray |
Buy Now |
| 3 |
86002540 |
Battery Cable Assembly |
Buy Now |
| 4 |
86002510 |
Cable Assembly |
Buy Now |
