Windsor Saber Blade 16

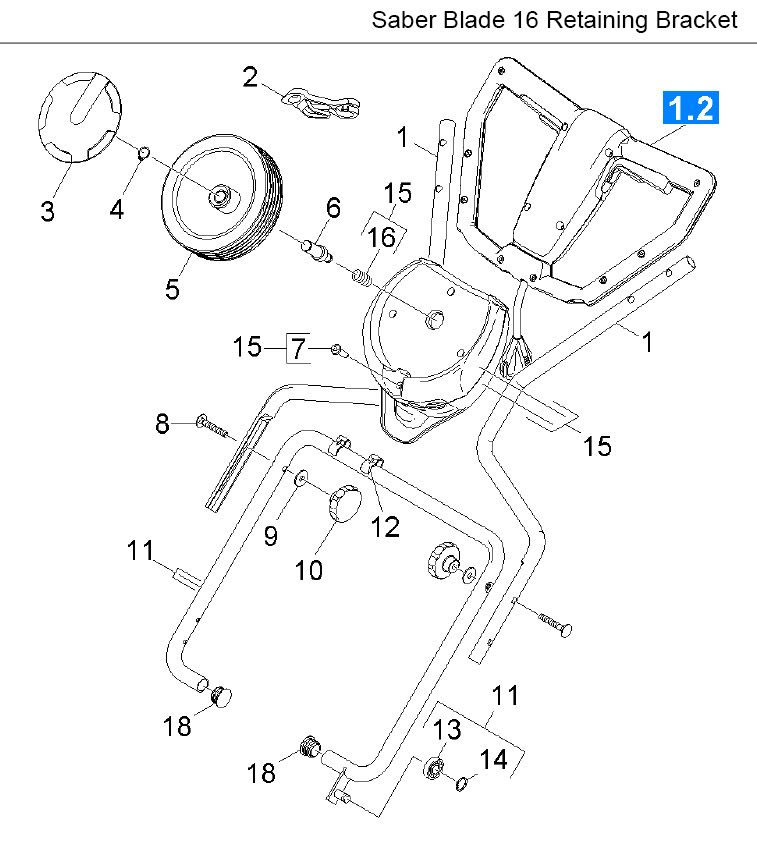

Retaining Bracket
Windsor Saber Blade 16 Retaining Bracket
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
50347830 |
Retaining Bracket Top Part |
Buy Now |
| 2 |
66417760 |
Strain Relief |
Buy Now |
| 3 |
64353490 |
Wheel Cap |
Buy Now |
| 4 |
73430050 |
Locking Ring |
Buy Now |
| 5 |
64351960 |
Wheel |
Call to Order |
| 6 |
50347950 |
Axle Transport Wheel |
Buy Now |
| 7 |
73031080 |
Screw |
Buy Now |
| 8 |
73030090 |
Saucer-Head Screw |
Buy Now |
| 9 |
73122770 |
Washer |
Call to Order |
| 10 |
63212240 |
Turning Knob |
Buy Now |
| 11 |
40342010 |
Retaining Bracket Bottom Part |
Buy Now |
| 12 |
50504260 |
Cable Clip |
Call to Order |
| 13 |
74011490 |
Ball Bearing |
Buy Now |
| 14 |
73433000 |
Lock Washer |
Buy Now |
| 15 |
47830030 |
Wheel Set |
Buy Now |
| 16 |
53329810 |
Pressure Spring |
Buy Now |
| 18 |
63681730 |
Drain Plug |
Call to Order |

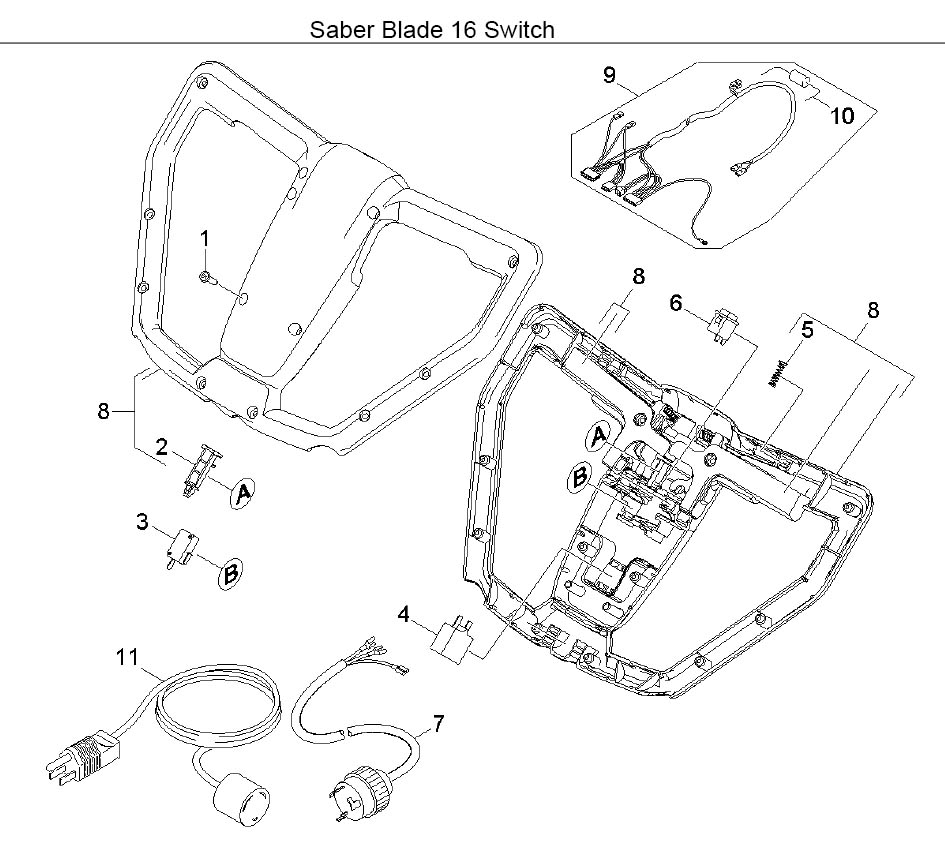

Switch
Windsor Saber Blade 16 Switch
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
73031080 |
Screw |
Buy Now |
| 2 |
50504330 |
Slide Press Switch |
Buy Now |
| 3 |
66304260 |
Main Switch |
Buy Now |
| 4 |
66304280 |
Motor Protecting Switch |
Buy Now |
| 5 |
53329440 |
Spring Conical |
Buy Now |
| 6 |
66304270 |
Switch Water Pump |
Buy Now |
| 7 |
66496960 |
Power Cable |
Buy Now |
| 8 |
47830070 |
Set Operating Unit Replacement |
Buy Now |
| 9 |
66496850 |
Cable Harness |
Call to Order |
| 10 |
66640590 |
Diode |
Buy Now |
| 11 |
86234110 |
Cord Set |
Buy Now |

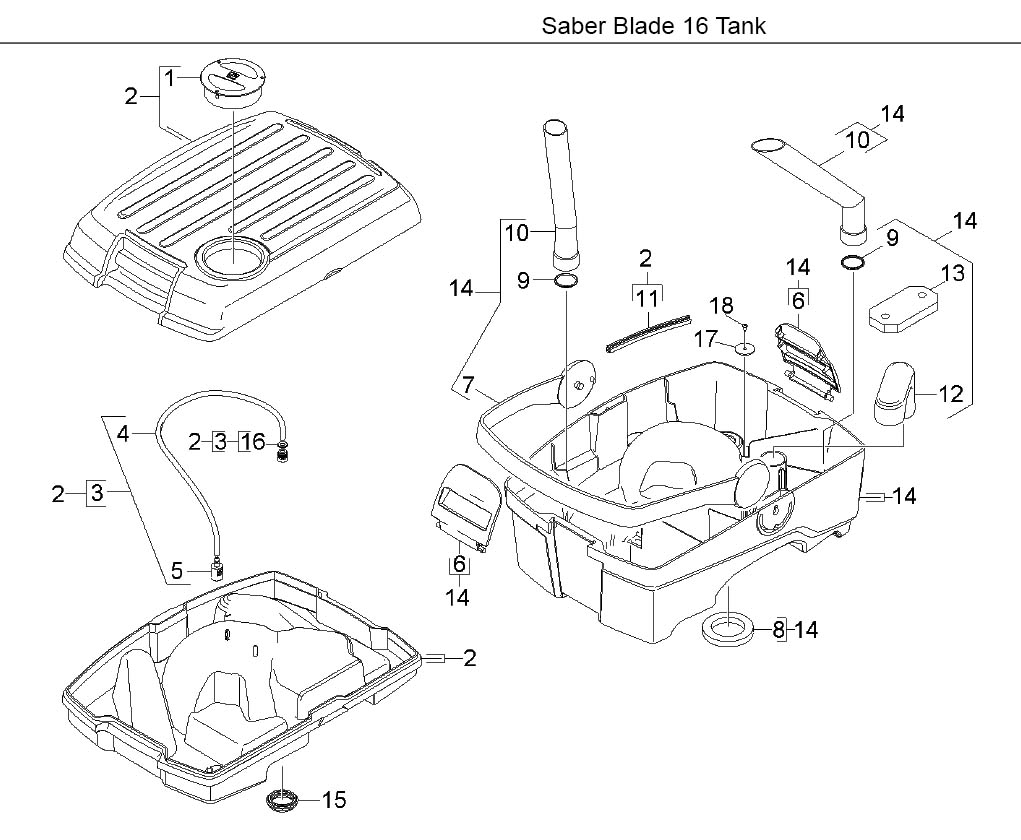

Tank
Windsor Saber Blade 16 Tank
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
50507320 |
Cover Metering Fresh Water |
Buy Now |
| 2 |
47830060 |
Tank Replacement |
Buy Now |
| 3 |
40337530 |
Valve Tank Completely |
Buy Now |
| 4 |
63882160 |
Hose |
Buy Now |
| 5 |
57316640 |
Filter with Weight |
Buy Now |
| 6 |
50512630 |
Closure Tank |
Buy Now |
| 7 |
50503140 |
Carrier Handle Tank |
Buy Now |
| 8 |
50348680 |
Joint Ring |
Buy Now |
| 9 |
63621080 |
O-Ring Seal |
Buy Now |
| 10 |
50504570 |
Suction Tube Waste Water Tank |
Buy Now |
| 11 |
62732820 |
Profile Gasket |
Buy Now |
| 12 |
50504010 |
Elbow Float |
Call to Order |
| 13 |
55850600 |
Float |
Buy Now |
| 14 |
40341980 |
Tank Waste Water |
Call to Order |
| 15 |
50505410 |
Form Seal Valve |
Buy Now |
| 16 |
73120140 |
Washer |
Call to Order |
| 17 |
50999330 |
Washer |
Call to Order |
| 18 |
73032430 |
Screw |
Call to Order |

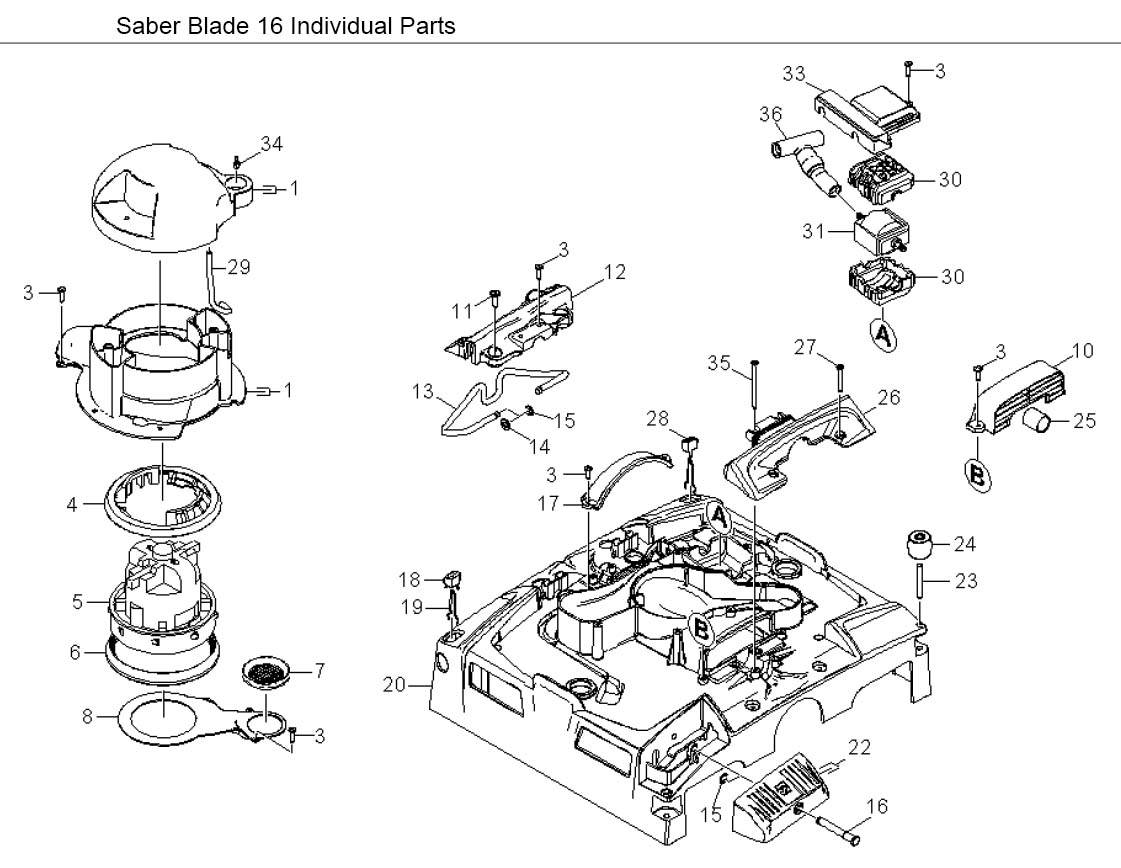

Individual Parts
Windsor Saber Blade 16 Individual Parts
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
40333270 |
Set Housing Valve |
Buy Now |
| 3 |
73031080 |
Screw |
Buy Now |
| 4 |
50503620 |
Seal Above Vac Motor |
Buy Now |
| 5 |
66811340 |
Set Turbine Replacement |
Call to Order |
| 6 |
50503630 |
Seal Bottom Vac Motor |
Buy Now |
| 7 |
53633440 |
Joint Ring |
Buy Now |
| 8 |
50504490 |
Covering Cap Vacuum Channel |
Call to Order |
| 9 |
73031070 |
Screw |
Buy Now |
| 10 |
50504070 |
Splash Guard Right |
Call to Order |
| 11 |
73030670 |
Screw |
Call to Order |
| 12 |
50504130 |
Retaining Bracket Fixing Left |
Buy Now |
| 13 |
50348270 |
Retaining Bracket Adjustment |
Call to Order |
| 14 |
73120170 |
Washer |
Call to Order |
| 15 |
73433000 |
Lock Washer |
Buy Now |
| 16 |
50347860 |
Bolt Pedal |
Call to Order |
| 17 |
50504060 |
Splash Guard Left |
Buy Now |
| 18 |
50507280 |
Rear Pusher |
Buy Now |
| 19 |
50348390 |
Spring Feed Wheel |
Buy Now |
| 20 |
50503080 |
Cover Brush Housing |
Buy Now |
| 22 |
47830080 |
Set Pedal Replacement |
Buy Now |
| 23 |
50348470 |
Deflector Roll Bolt |
Buy Now |
| 24 |
50504050 |
Deflector Roll |
Buy Now |
| 25 |
60340030 |
Bush Plain Bearing |
Buy Now |
| 26 |
50504140 |
Retaining Bracket Fixing Right |
Call to Order |
| 27 |
73031110 |
Screw |
Call to Order |
| 28 |
50507260 |
Push Front Feed Wheel |
Buy Now |
| 29 |
63882160 |
Hose |
Buy Now |
| 30 |
50504080 |
Bearing Pump |
Buy Now |
| 31 |
64735320 |
Motor Pump |
Buy Now |
| 33 |
50504100 |
Cover Pump |
Call to Order |
| 34 |
51081920 |
Pin Valve |
Buy Now |
| 35 |
73031710 |
Screw |
Call to Order |
| 36 |
40509560 |
Check Valve |
Buy Now |

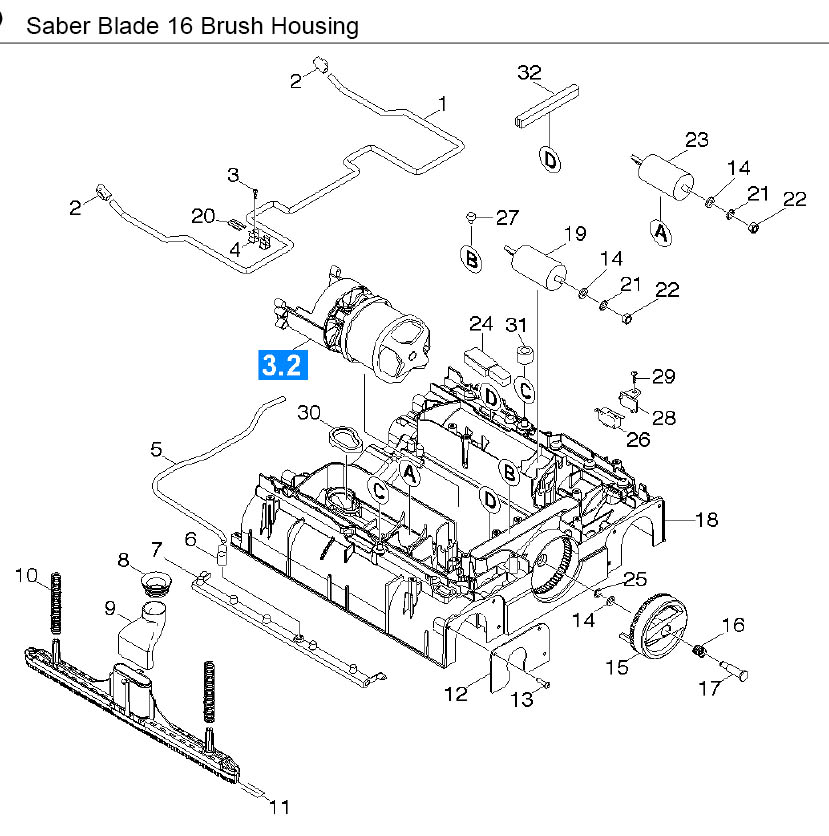

Brush Housing
Windsor Saber Blade 16 Brush Housing
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
50347840 |
Retaining Bracket Suction Bar |
Call to Order |
| 2 |
50507290 |
Pusher Suction Bar Grey |
Buy Now |
| 3 |
73030920 |
Screw |
Call to Order |
| 4 |
63304100 |
Spring Clip |
Buy Now |
| 5 |
63882160 |
Hose |
Buy Now |
| 6 |
50504110 |
Angle Bushing Water Distributor |
Buy Now |
| 7 |
50504090 |
Water Distributor |
Buy Now |
| 8 |
50504150 |
Joint Ring |
Buy Now |
| 9 |
50504040 |
Joining Piece Suction Bar |
Buy Now |
| 10 |
53322160 |
Helical Spring |
Buy Now |
| 11 |
47773220 |
Suction Bar Oil Resistant Complete |
Buy Now |
| 11 |
47773230 |
Suction Bar Complete Replacement |
Call to Order |
| 12 |
50347990 |
Plate Brush Holder |
Buy Now |
| 13 |
73032120 |
Screw |
Buy Now |
| 14 |
73120040 |
Washer |
Buy Now |
| 15 |
50507480 |
Handle Grey |
Buy Now |
| 16 |
53322070 |
Helical Spring |
Buy Now |
| 17 |
50349290 |
Bolt Carriage |
Buy Now |
| 18 |
40333260 |
Brush Housing Replacement |
Buy Now |
| 19 |
66612210 |
Capacitor |
Buy Now |
| 20 |
50348730 |
Plate Reinforcement |
Buy Now |
| 21 |
73122330 |
Serrated Lock Washer |
Call to Order |
| 22 |
73110040 |
Hexagon Nut |
Buy Now |
| 23 |
66612200 |
Capacitor |
Buy Now |
| 24 |
66829750 |
Starting Electronic |
Buy Now |
| 25 |
73433000 |
Lock Washer |
Buy Now |
| 26 |
66304380 |
Micro Switch |
Buy Now |
| 27 |
63392490 |
Rubber Buffer Motor |
Call to Order |
| 28 |
50506540 |
Retainer Micro Switch |
Buy Now |
| 29 |
73031080 |
Screw |
Buy Now |
| 30 |
50505720 |
Seal Exhaust Air |
Buy Now |
| 31 |
50348940 |
Joint Ring |
Buy Now |
| 32 |
62730550 |
Profile Gasket |
Call to Order |

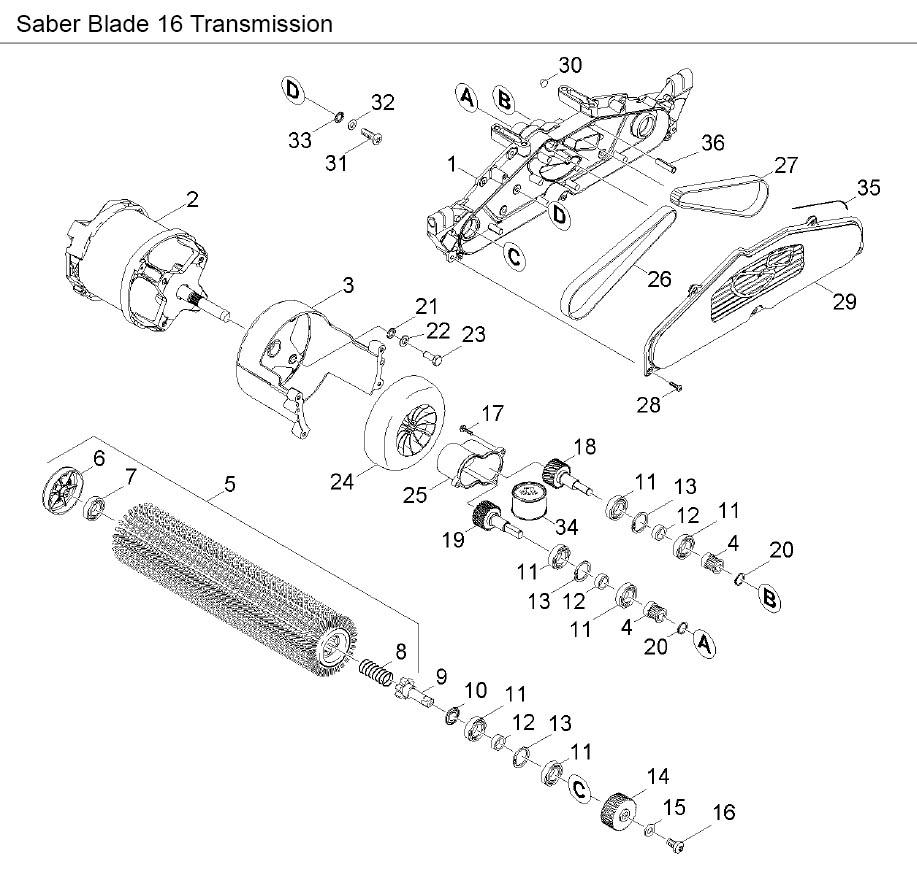

Transmission
Windsor Saber Blade 16 Transmission
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
50504450 |
Gear Case Worked |
Buy Now |
| 2 |
66800000 |
Electric Motor |
Buy Now |
| 3 |
50504320 |
Flange Motor Worked |
Call to Order |
| 4 |
56253180 |
Belt Pulley |
Buy Now |
| 5 |
47622510 |
Orange Roller Brush |
Buy Now |
| 5 |
47624810 |
Black Roller Brush |
Buy Now |
| 5 |
47622500 |
White Roller Brush |
Buy Now |
| 5 |
47622520 |
Green Roller Brush |
Buy Now |
| 5 |
47622740 |
Horsehair Roller Brush |
Buy Now |
| 5 |
47624580 |
Red Roller Brush |
Buy Now |
| 6 |
40386770 |
Sheet Metal Component Thread Deflector |
Buy Now |
| 7 |
64013630 |
Ball Bearing |
Buy Now |
| 8 |
53321140 |
Helical Spring |
Buy Now |
| 9 |
51005710 |
Driveshaft |
Buy Now |
| 10 |
63632920 |
Joint Ring |
Buy Now |
| 11 |
74011150 |
Ball Bearing |
Buy Now |
| 12 |
51106860 |
Spacer Sleeve |
Buy Now |
| 13 |
73432310 |
Locking Ring |
Buy Now |
| 14 |
56253570 |
Belt Pulley |
Buy Now |
| 15 |
73122920 |
Washer |
Buy Now |
| 16 |
73061920 |
Screw |
Call to Order |
| 17 |
73030390 |
Screw |
Buy Now |
| 18 |
41001250 |
Shaft Gear Left |
Buy Now |
| 19 |
41002340 |
Shaft Gear Right |
Call to Order |
| 20 |
73430030 |
Locking Ring |
Buy Now |
| 21 |
73122330 |
Serrated Locking Washer |
Call to Order |
| 22 |
73120170 |
Washer |
Call to Order |
| 23 |
73043970 |
Hexagonal Head Screw |
Call to Order |
| 24 |
50503580 |
Blower Wheel |
Buy Now |
| 25 |
50503570 |
Cover Gear |
Buy Now |
| 26 |
63484440 |
Toothed Belt |
Buy Now |
| 27 |
63484310 |
Toothed Belt |
Buy Now |
| 28 |
73031080 |
Screw |
Buy Now |
| 29 |
50503100 |
Cover Gear Case |
Buy Now |
| 30 |
63683470 |
Cap |
Call to Order |
| 31 |
73061050 |
Screw |
Call to Order |
| 32 |
73120030 |
Washer |
Call to Order |
| 33 |
73122320 |
Serrated Lock Washer |
Buy Now |
| 34 |
62880950 |
Viscous Oil |
Call to Order |
| 35 |
62730370 |
Cellular Rubber Seal String |
Buy Now |
| 36 |
73149440 |
Spring Pin |
Call to Order |

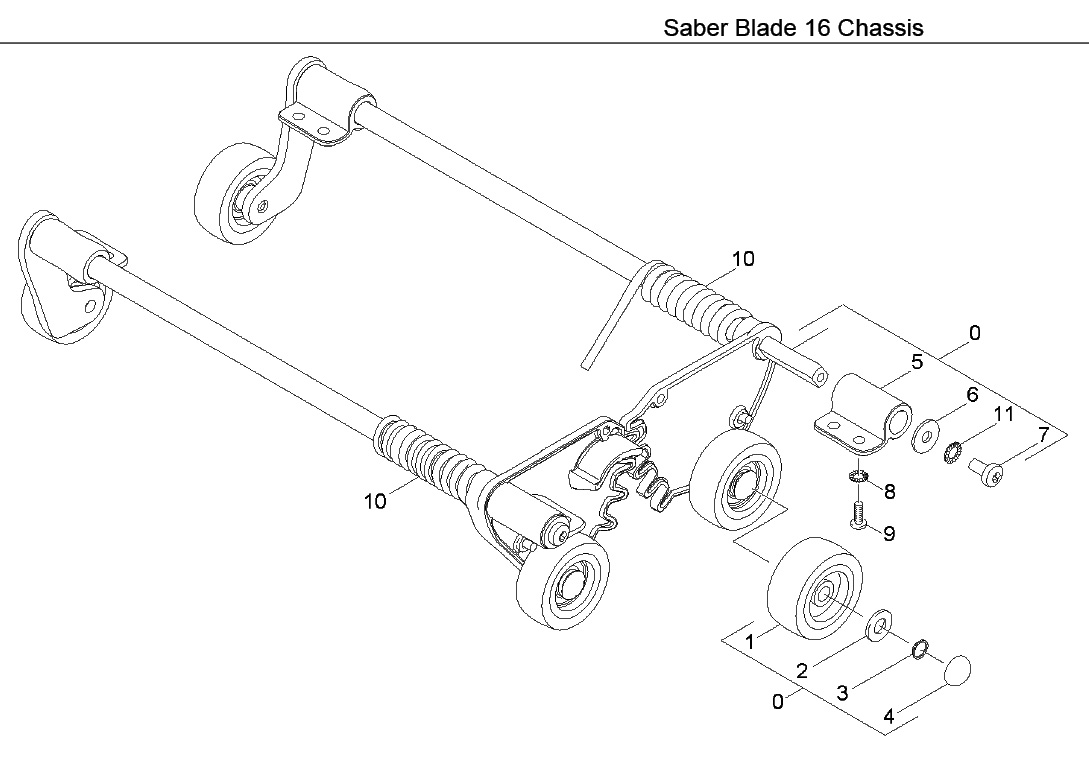

Chassis
Windsor Saber Blade 16 Chassis
| Reference # |
Part # |
Description |
Add to Cart |
| 0 |
30340080 |
Carriage Complete |
Buy Now |
| 1 |
64353730 |
Traceless Wheel |
Buy Now |
| 2 |
73620020 |
Joint Ring |
Buy Now |
| 3 |
73431270 |
Locking Ring |
Buy Now |
| 4 |
63431320 |
Lock Washer |
Buy Now |
| 5 |
50503970 |
Bearing Flange Carriage |
Buy Now |
| 6 |
73122920 |
Washer |
Buy Now |
| 7 |
73061920 |
Screw |
Call to Order |
| 8 |
73120410 |
Serrated Lock Washer |
Buy Now |
| 9 |
73032120 |
Screw |
Buy Now |
| 10 |
40341790 |
Leg Spring Set |
Buy Now |
| 11 |
73120200 |
Serrated Locking Washer |
Buy Now |

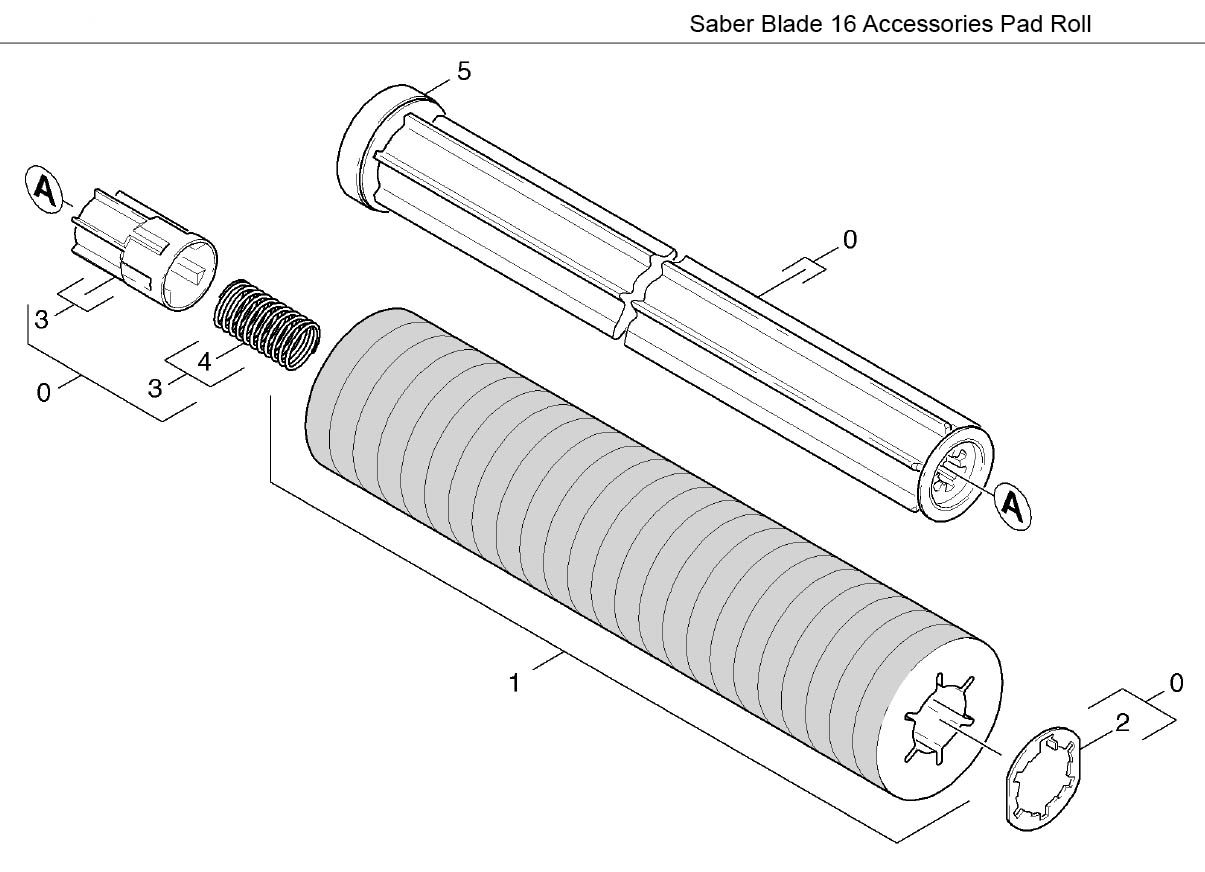

Accessories Pad Roll
Windsor Saber Blade 16 Accessories Pad Roll
| Reference # |
Part # |
Description |
Add to Cart |
| 0 |
47622280 |
Roll Pad |
Buy Now |
| 1 |
63697260 |
Red Pad with Sleeve |
Buy Now |
| 1 |
63697270 |
White Pad with Sleeve |
Buy Now |
| 1 |
63697240 |
Yellow Pad with Sleeve |
Buy Now |
| 1 |
63697250 |
Green Pad with Sleeve |
Buy Now |
| 2 |
41150030 |
Washer Closure |
Buy Now |
| 3 |
51203130 |
Roll Pad Hub |
Buy Now |
| 4 |
53324690 |
Helical Spring |
Buy Now |
| 5 |
40386770 |
Sheet Metal Component Thread Deflector |
Buy Now |
