Windsor Karcher Sensor S (After Jan 2020)





Bag Housing

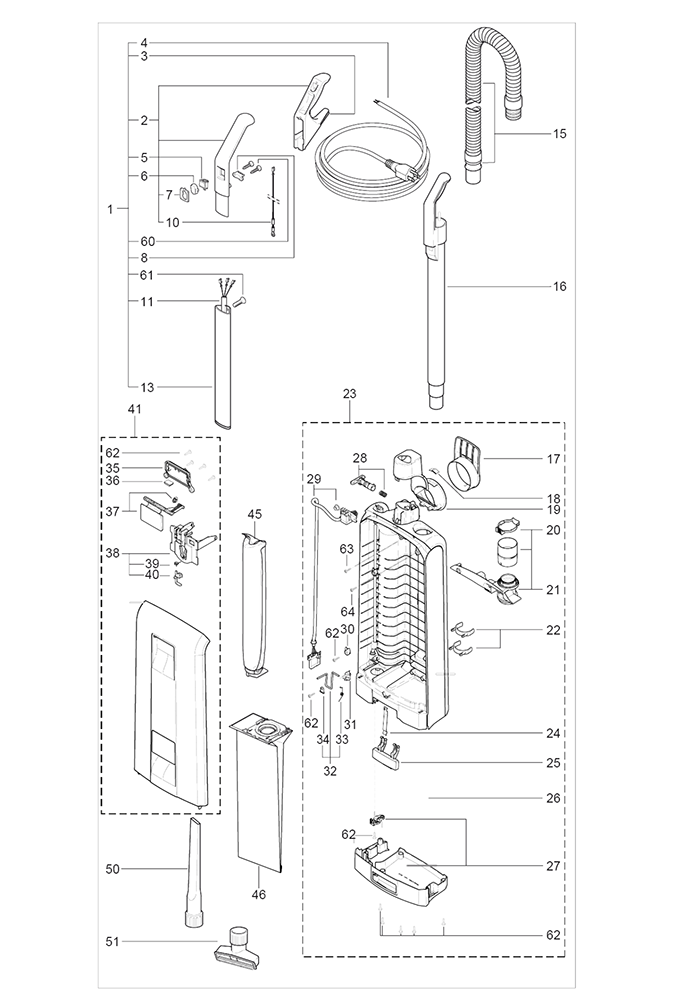

Windsor Karcher Sensor S (after 2020) Bag Housing

Bag Housing

Reference # Part # Description Add to Cart
1A 5625REBKIT NEW! - Handle Rebuild Kit Buy Now
1 86407970 Black Handle Complete Buy Now
2 86372980 Handle Buy Now
3 86319140 Grommet Buy Now
4 86139130 Cord, Yellow Buy Now
5 86397390 Switch Buy Now
6 86407990 Switch, Yellow Buy Now
7 86319180 Switch Cap Holder, Black Buy Now
8 86139280 Cable Clamp Buy Now
10 86137780 Antistatic Wire Buy Now
11 86142310 3 Wire Handle Cable Buy Now
13 86142300 Handle Tube Buy Now
15 86142650 Hose Buy Now
16 86319200 Extension Tube Buy Now
17 86433920 Cable Hook Buy Now
18 86145350 Stop Spring Buy Now
19 86433930 Carrying Handle Buy Now
20 86414170 Locking Ring Buy Now
21 86433940 Internal Cover Buy Now
22 86319250 Accessory Clip Buy Now
23 86433950 Dust Bag Housing Buy Now
24 86145280 Spring for Locking Rod Buy Now
25 86433960 Bag Housing Locking Catch Buy Now
26 86143120 Locking Rod Buy Now
27 86433970 Bag Housing Bumper Buy Now
28 86433980 Locking Catch with Spring Buy Now
29 86433990 Internal Cable Buy Now
30 86139290 Cable Clamp Buy Now
31 86139320 Cable Clamp Buy Now
32 86141620 Filter Safety Catch Buy Now
33 86145320 Return Spring Buy Now
34 86139970 Clamp Buy Now
35 86434000 Cover Buy Now
36 86145340 Bag Holder Spring Buy Now
37 86434010 Cover Release Buy Now
38 86138040 Bag Holder Complete Buy Now
39 86144760 Safety Catch Spring Buy Now
40 86144750 Safety Catch Buy Now
41 86434020 Front Cover Buy Now
45 5301HEPA 5301 HEPA Filter Buy Now
46 5300HEPA HEPA Filter Bags Buy Now
50 86319300 Crevice Tool Buy Now
51 86319290 Upholstery Tool Buy Now
60 86147040 Screw Buy Now
61 86147040 Screw Buy Now
62 86363370 Screw Buy Now
63 86434030 Screw Buy Now
64 86434040 Screw Buy Now





12" Powerhead

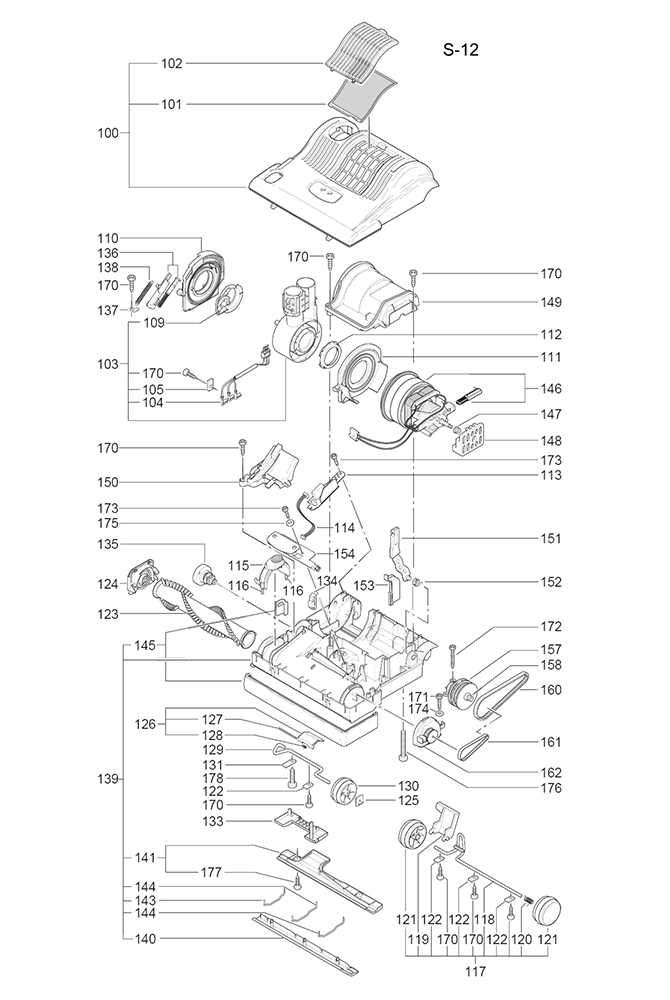

Windsor Karcher Sensor S 12" Powerhead (after 2020)

Windsor Karcher Sensor S 12" Powerhead

Reference # Part # Description Add to Cart
100 86408390 12" Powerhead Cover Buy Now
101 86141400 Exhaust Filter Buy Now
102 86408400 Exhaust Filter Cover Buy Now
103 86435480 Swivel Neck Assembly Buy Now
104 86143180 Male Contact Holder Buy Now
105 86139230 Cable Clamp Buy Now
109 86145900 Swivel Neck Bearing, Right Buy Now
110 86145890 Swivel Neck Support, Right Buy Now
111 86146110 Swivel Neck Support, Left Buy Now
112 86146130 Swivel Neck Bearing, Left Buy Now
113 86143800 Power Supply Buy Now
114 86142780 Internal Cable Buy Now
115 86408420 Brush Roller Release Buy Now
116 86145290 Spring Buy Now
117 86406110 Axle Assembly, Yellow Buy Now
118 86137990 Axle Buy Now
119 86406120 Foot Pedal, Yellow Buy Now
120 86146570 Wheel Return Spring Buy Now
121 86319360 Wheel, Black Buy Now
122 86140000 Clamp Connecting Rod Axle Buy Now
123 86004950 12" Brush Roller Buy Now
124 86406130 Right Hand Bearing Block Buy Now
125 86320320 Rubbing Plate, Black Buy Now
126 86400150 Access Door, Yellow Buy Now
127 86138000 Access Door Axle Buy Now
128 86145330 Access Door Spring Buy Now
129 86143850 Pile Adjsutment Axle Buy Now
130 86319380 Pile Adjustment Wheel Buy Now
131 86137920 Axle Clamp Buy Now
133 86319390 Black Cover Buy Now
134 86146220 Thrust Member Buy Now
135 86408440 Pile Adjustment Knob Buy Now
136 86146230 Thrust Member Buy Now
137 86140010 Clamp Buy Now
138 86145250 Spring Buy Now
139 86408450 12" Chassis Complete Buy Now
140 86406170 Front Bottom Plate Buy Now
141 86408460 Rear Bottom Plate Buy Now
143 86146790 Outer Bottom Plate Wire Tie Buy Now
144 86146800 Center Bottom Plate Wire Tie Buy Now
145 86319410 Black Bumper Set Buy Now
146 86143630 Motor Buy Now
-- 86139400 Carbon Brush set Buy Now
-- 86146210 Thermo Switch Buy Now
147 86143620 Vacuum Motor Pulley Buy Now
148 86144710 Rubber Mounting Buy Now
149 86408470 Motor Cover Buy Now
150 86140610 Air Channel Cover Buy Now
151 86435490 Support Lever Buy Now
152 86145460 Support Spring Buy Now
153 86143570 Motor Pulley Cover Buy Now
154 86435500 Contol Panel Buy Now
157 86145050 Sensor Complete Buy Now
158 86143580 Motor Pulley Buy Now
160 86138240 Belt Buy Now
161 86005000 Belt Buy Now
162 86138200 Left Bearing Block Buy Now
170 86147030 Screw Buy Now
171 86147040 Screw Buy Now
172 86147050 Screw Buy Now
173 86321410 Screw Buy Now
174 86146540 Washer Buy Now
175 86147190 Washer Buy Now
176 86147170 Screw Buy Now
177 86144850 Screw Buy Now
178 86144860 Screw Buy Now





15" Powerhead

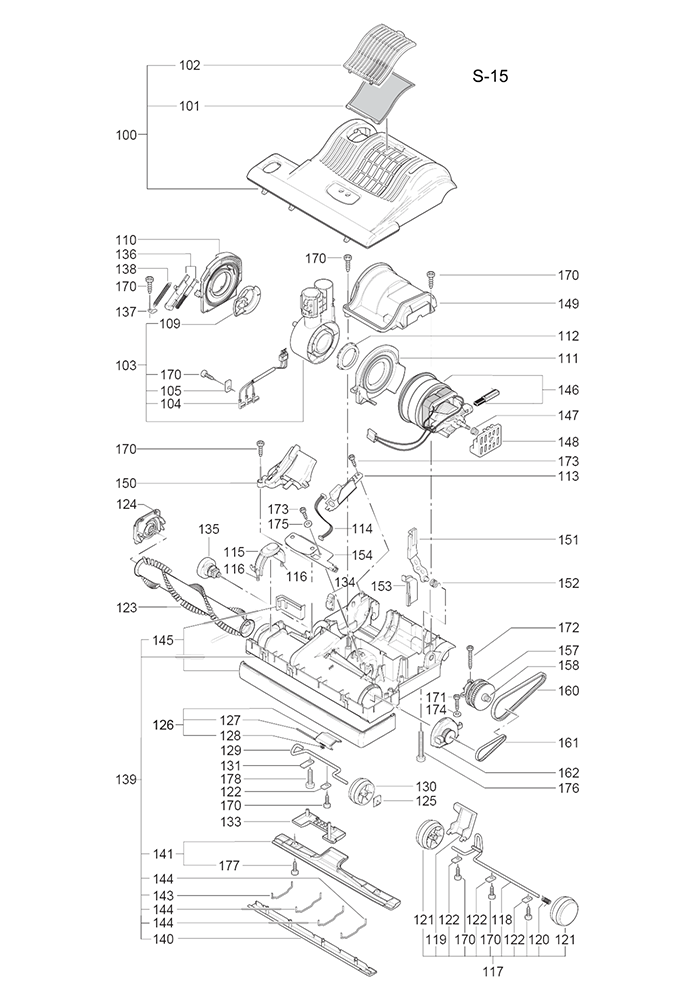

Windsor Karcher Sensor S 15" Powerhead (after 2020)

Windsor Karcher Sensor S 15" Powerhead

Reference # Part # Description Add to Cart
100 86408480 15" Powerhead Cover Buy Now
101 86141400 Exhaust Filter Buy Now
102 86408400 Exhaust Filter Cover Buy Now
103 86435480 Swivel Neck Assembly Buy Now
104 86143180 Male Contact Holder Buy Now
105 86139230 Cable Clamp Buy Now
109 86145900 Swivel Neck Bearing, Right Buy Now
110 86145890 Swivel Neck Support, Right Buy Now
111 86146110 Swivel Neck Support, Left Buy Now
112 86146130 Swivel Neck Bearing, Left Buy Now
113 86143800 Power Supply Buy Now
114 86142780 Internal Cable Buy Now
115 86408420 Brush Roller Release Buy Now
116 86145290 Spring Buy Now
117 86406110 Axle Assembly, Yellow Buy Now
118 86137990 Axle Buy Now
119 86406120 Foot Pedal, Yellow Buy Now
120 86146570 Wheel Return Spring Buy Now
121 86319360 Wheel, Black Buy Now
122 86140000 Clamp Connecting Rod Axle Buy Now
123 86138490 15" Brush Roller Buy Now
124 86406130 Right Hand Bearing Block Buy Now
125 86320320 Rubbing Plate, Black Buy Now
126 86400150 Access Door, Yellow Buy Now
127 86138000 Access Door Axle Buy Now
128 86145330 Access Door Spring Buy Now
129 86143850 Pile Adjsutment Axle Buy Now
130 86319380 Pile Adjustment Wheel Buy Now
131 86137920 Axle Clamp Buy Now
133 86319390 Black Cover Buy Now
134 86146220 Thrust Member Buy Now
135 86408440 Pile Adjustment Knob Buy Now
136 86146230 Thrust Member Buy Now
137 86140010 Clamp Buy Now
138 86145250 Spring Buy Now
139 86408510 15" Chassis Complete Buy Now
140 86408520 Front Bottom Plate Buy Now
141 86408530 Rear Bottom Plate Buy Now
143 86146790 Outer Bottom Plate Wire Tie Buy Now
144 86146800 Center Bottom Plate Wire Tie Buy Now
145 86373720 Black Bumper Set Buy Now
146 86143630 Motor Buy Now
-- 86139400 Carbon Brush set Buy Now
-- 86146210 Thermo Switch Buy Now
147 86143620 Vacuum Motor Pulley Buy Now
148 86144710 Rubber Mounting Buy Now
149 86408470 Motor Cover Buy Now
150 86140610 Air Channel Cover Buy Now
151 86435490 Support Lever Buy Now
152 86145460 Support Spring Buy Now
153 86143570 Motor Pulley Cover Buy Now
154 86435500 Contol Panel Buy Now
157 86145050 Sensor Complete Buy Now
158 86143580 Motor Pulley Buy Now
160 86138240 Belt Buy Now
161 86005000 Belt Buy Now
162 86138200 Left Bearing Block Buy Now
170 86147030 Screw Buy Now
171 86147040 Screw Buy Now
172 86147050 Screw Buy Now
173 86321410 Screw Buy Now
174 86146540 Washer Buy Now
175 86147190 Washer Buy Now
176 86147170 Screw Buy Now
177 86144850 Screw Buy Now
178 86144860 Screw Buy Now





Accessories & Attachments

Accessories & Attachments

Reference # Part # Description Add to Cart
A1 86319290 Upholstery Tool Buy Now
A2 86140860 Crevice Tool Buy Now
B1 86137690 Extension Hose Buy Now
B2 86141510 Extension Tube Buy Now
B3 86284740 Dusting Brush Kit Buy Now
B4 86146290 Upholstery Tool, Special Buy Now
B5 86146530 Floor & Wall Brush Buy Now
C1 5300HEPA Bags Buy Now
C2 5301HEPA Micro Filter Buy Now
C3 86141400 Exhaust Filter Buy Now
C4 86004950 12" Brush Roll Buy Now
C4 86138490 15" Brush Roll Buy Now
