Windsor Chariot 3 iScrub 26
Bumper
Windsor Chariot 3 iScrub 26 Bumper
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86361960 |
Screw |
Buy Now |
| 2 |
86361950 |
Screw |
Buy Now |
| 3 |
86399650 |
Bumper, Left, Black |
Buy Now |
| 4 |
86399640 |
Bumper, Right, Black |
Buy Now |
| 5 |
86276890 |
Screw |
Buy Now |
Console
Windsor Chariot 3 iScrub 26 Console
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86005620 |
Nut |
Buy Now |
| 2 |
86199840 |
Float Screen Cage Assm |
Buy Now |
| 3 |
86272020 |
Nut, nylock |
Buy Now |
| 4 |
86361770 |
Washer |
Buy Now |
| 5 |
86361760 |
Screw |
Buy Now |
| 6 |
86361410 |
Gasket, dome |
Buy Now |
| 7 |
86360770 |
Bracket, Recovery Tube |
Buy Now |
| 8 |
86360700 |
Gasket |
Buy Now |
| 9A |
86399810 |
Console, Gray |
Buy Now |
| 9B |
86399830 |
Console, Gray |
Call to Order |
| 9C |
86399820 |
Console, Gray |
Call to Order |
| 9D |
86399800 |
Console, Gray |
Buy Now |
| 10 |
86006530 |
Screw |
Buy Now |
| 11 |
86360260 |
Shaft |
Buy Now |
| 12 |
86360140 |
Lid Hinge Bracket |
Buy Now |
| 13 |
86359560 |
Gasket Float Adapter |
Buy Now |
| 14 |
86359220 |
Gasket Lid |
Buy Now |
| 15 |
86399930 |
Recovery Lid |
Buy Now |
| 16 |
86359090 |
Float Screen Adapter |
Buy Now |
| 17 |
86359050 |
Sight Glass Dome |
Buy Now |
| 18 |
86359020 |
Basket, Filter, Recover Tank |
Buy Now |
| 19 |
86324210 |
Screw |
Buy Now |
| 20 |
86323300 |
Washer |
Call to Order |
| 21 |
86279610 |
Washer, Seal |
Buy Now |
| 22 |
86161800 |
Snap Fastener |
Buy Now |
| 23 |
86277620 |
Screw |
Buy Now |
| 24 |
86273750 |
Screw |
Buy Now |
| 25 |
86010650 |
Washer |
Buy Now |
| 26 |
86329570 |
Screw |
Buy Now |

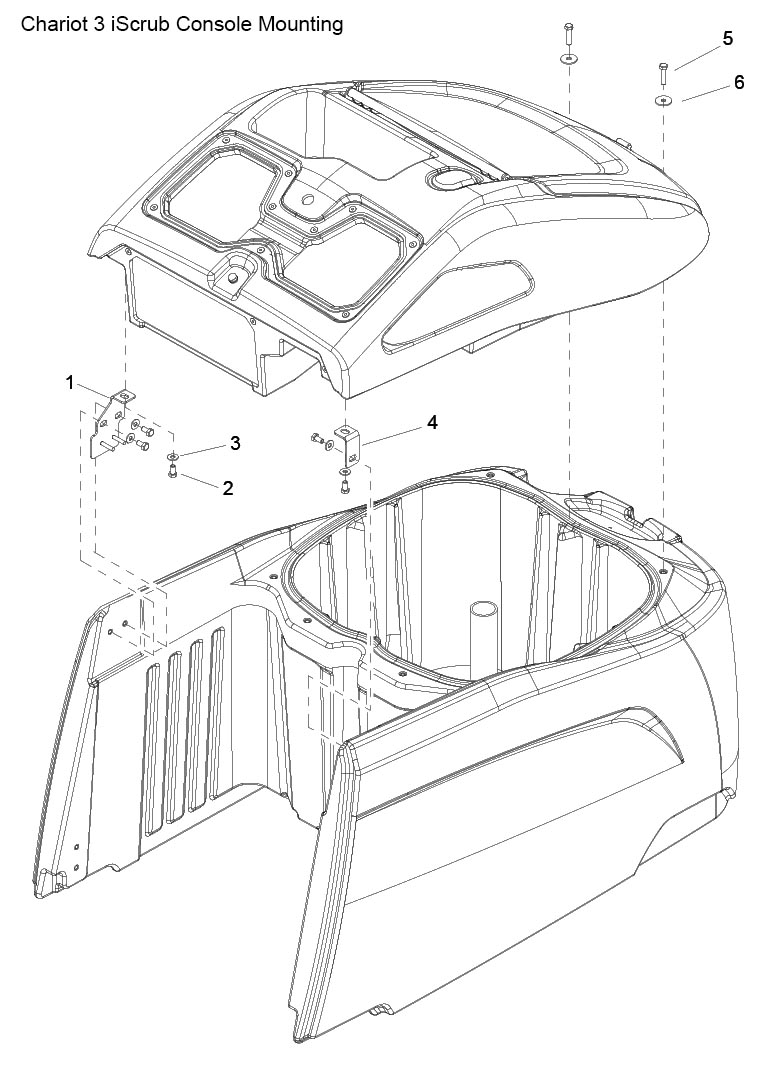

Console Mounting
Windsor Chariot 3 iScrub 26 Console Mounting
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86360300 |
Bracket, Console Mount, Left |
Buy Now |
| 2 |
86276490 |
Screw |
Buy Now |
| 3 |
86010670 |
Washer |
Buy Now |
| 4 |
86360290 |
Bracket, Console Mount, Right |
Buy Now |
| 5 |
86367960 |
Screw |
Buy Now |
| 6 |
86367250 |
Washer |
Buy Now |

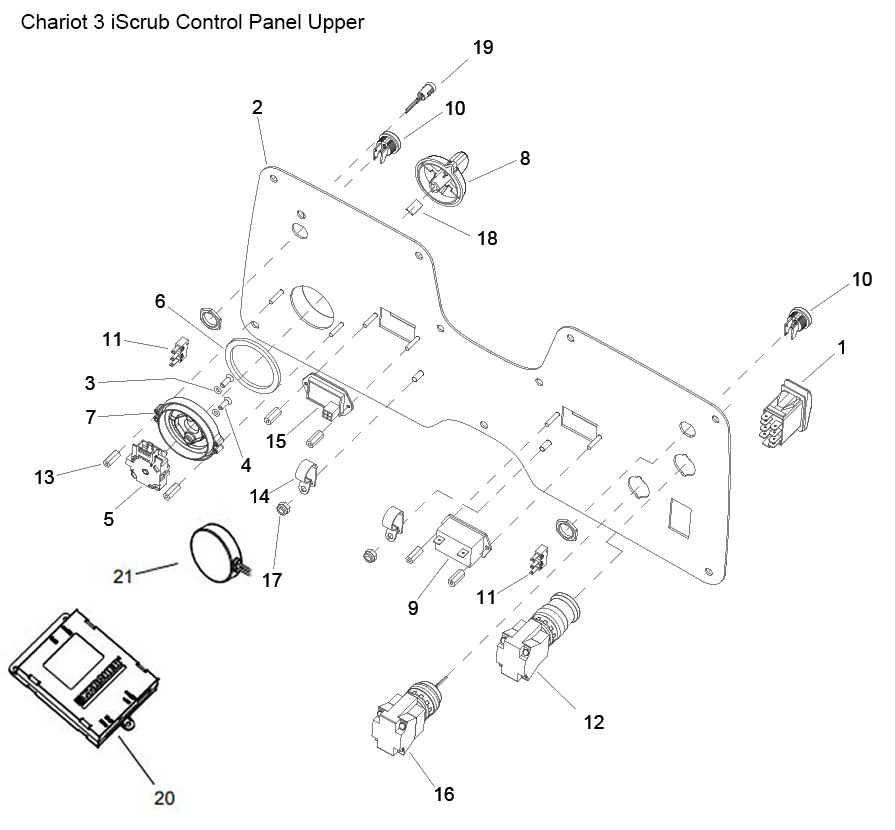

Control Panel - Upper
Windsor Chariot 3 iScrub 26 Control Panel - Upper
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86362590 |
Switch |
Buy Now |
| 2 |
86360690 |
Panel |
Buy Now |
| 3 |
86358440 |
O-Ring |
Buy Now |
| 4 |
86358430 |
Screw |
Buy Now |
| 5 |
86354870 |
Rotary Switch |
Buy Now |
| 6 |
86354810 |
Rotary Switch Gasket |
Buy Now |
| 7 |
86354560 |
Rotary Switch Bezel |
Buy Now |
| 8 |
53217380 |
Handhold |
Buy Now |
| 9 |
86315470 |
Meter |
Buy Now |
| 10 |
86295200 |
Black Button with Bezel Assembly |
Buy Now |
| 11 |
86292780 |
Micro-Switch |
Buy Now |
| 12 |
86292590 |
Switch |
Buy Now |
| 13 |
86255900 |
Stand-off |
Buy Now |
| 14 |
86198460 |
Clamp |
Call to Order |
| 15 |
86012670 |
Meter |
Buy Now |
| 16 |
86007190 |
Ignition Lock Switch |
Buy Now |
| 17 |
86005640 |
Nut |
Buy Now |
| 18 |
63130140 |
Spring Element |
Buy Now |
| 19 |
86367100 |
LED Water Indicator |
Buy Now |
| 20 |
46830270 |
Fleet ManagementModule |
Call to Order |
| 21 |
66820170 |
Antenna, Fleet Management |
Buy Now |
Control Panel - Lower
Windsor Chariot 3 iScrub 26 Control Panel - Lower
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86366910 |
Panel, Lower |
Buy Now |
| 2A |
86370780 |
Spacer |
Call to Order |
| 2B |
86370510 |
Kit, Pcb Replacement |
Buy Now |
| 3 |
86361870 |
Controller |
Buy Now |
| 4 |
86361520 |
Clip, Cable Entry |
Buy Now |
| 5 |
86361420 |
Hinge, Panel |
Call to Order |
| 6 |
86360890 |
Gasket |
7 |
86360880 |
Cover, Control Board |
Buy Now |
| 8 |
86369020 |
Breaker |
Buy Now |
| 9 |
86006620 |
Screw |
Buy Now |
| 10 |
86270920 |
Nut, Nylock |
Buy Now |
| 11 |
86275260 |
Screw |
Buy Now |
| 12 |
86255910 |
Stand-off |
Buy Now |
| 13 |
86255900 |
Stand-off, Distance Pin |
Buy Now |
| 14 |
86006850 |
Screw |
Buy Now |
| 15 |
86005710 |
Nut |
Buy Now |
| 16 |
86005640 |
Nut |
Buy Now |
| 17 |
86006760 |
Screw |
Buy Now |
| 18 |
86369480 |
Bracket, Cable Attachment |
Buy Now |
| 19 |
86271910 |
Nut |
Buy Now |
| 20 |
86413420 |
PCB Assm |
Buy Now |

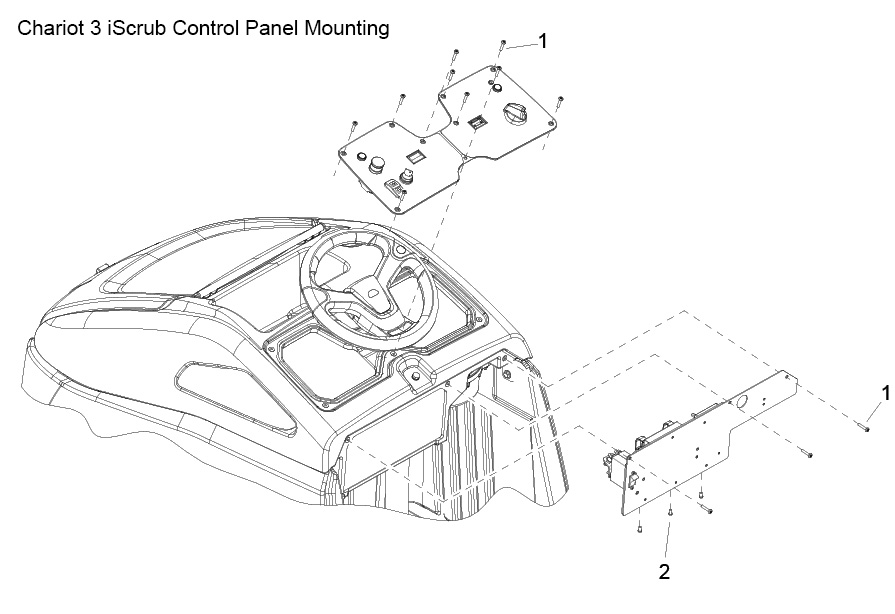

Control Panel - Mounting
Windsor Chariot 3 iScrub 26 Control Panel - Mounting
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86371410 |
Screw |
Buy Now |
| 2 |
86172980 |
Screw |
Buy Now |
Drive - Mounting
Windsor Chariot 3 iScrub 26 Drive - Mounting
| Reference # |
Part # |
Description |
Add to Cart |
| - |
66132310 |
Carbon Brush Set |
Buy Now |
| 1 |
86366140 |
Screw |
Buy Now |
| 2 |
86366130 |
Screw |
Call to Order |
| 3 |
86364130 |
Shaft Drive Motor Assembly |
Buy Now |
| 4 |
86361070 |
Wiring Drive Unit Bracket |
Call to Order |
| 5 |
86218360 |
Groove Grommet |
Buy Now |
| 6 |
86357870 |
Front Drive Bearing Block Assembly |
Buy Now |
| 7 |
86357120 |
Drive Wheel |
Buy Now |
| 8 |
86270990 |
Hexagon Nylock Nut |
Buy Now |
| 9 |
86264940 |
Cable Tie |
Buy Now |
| 10 |
86357130 |
Brake |
Buy Now |
| 11 |
64358540 |
Tire Wheel Drive Motor |
Buy Now |
| 12 |
86223980 |
Ball Bearing |
Buy Now |
| -- |
86134850 |
Carbon Brush Set |
Buy Now |

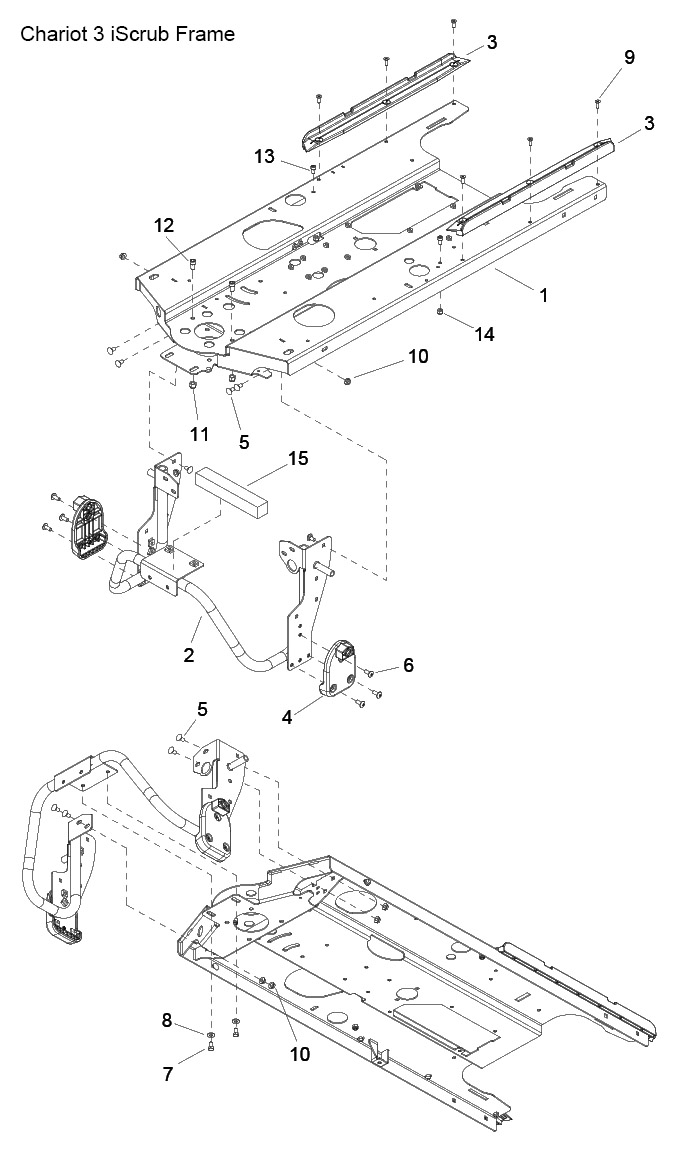

Frame
Windsor Chariot 3 iScrub 26 Frame
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86360820 |
Main Support Assembly |
Call to Order |
| 2 |
86360710 |
Wheel Guard Assembly |
Buy Now |
| 3 |
86358190 |
Battery Tray Glide |
Buy Now |
| 4 |
86357950 |
Tip Pad |
Buy Now |
| 5 |
86277410 |
Screw |
Buy Now |
| 6 |
86276890 |
Screw |
Buy Now |
| 7 |
86276490 |
Screw |
Buy Now |
| 8 |
86010670 |
Washer |
Buy Now |
| 9 |
86400810 |
Screw |
Buy Now |
| 10 |
86368240 |
Nut |
Buy Now |
| 11 |
86361210 |
Screw |
Buy Now |
| 12 |
86005770 |
Nut |
Buy Now |
| 13 |
86006640 |
Screw |
Call to Order |
| 14 |
86270830 |
Nut |
Buy Now |
| 15 |
86368730 |
Foam |
Buy Now |

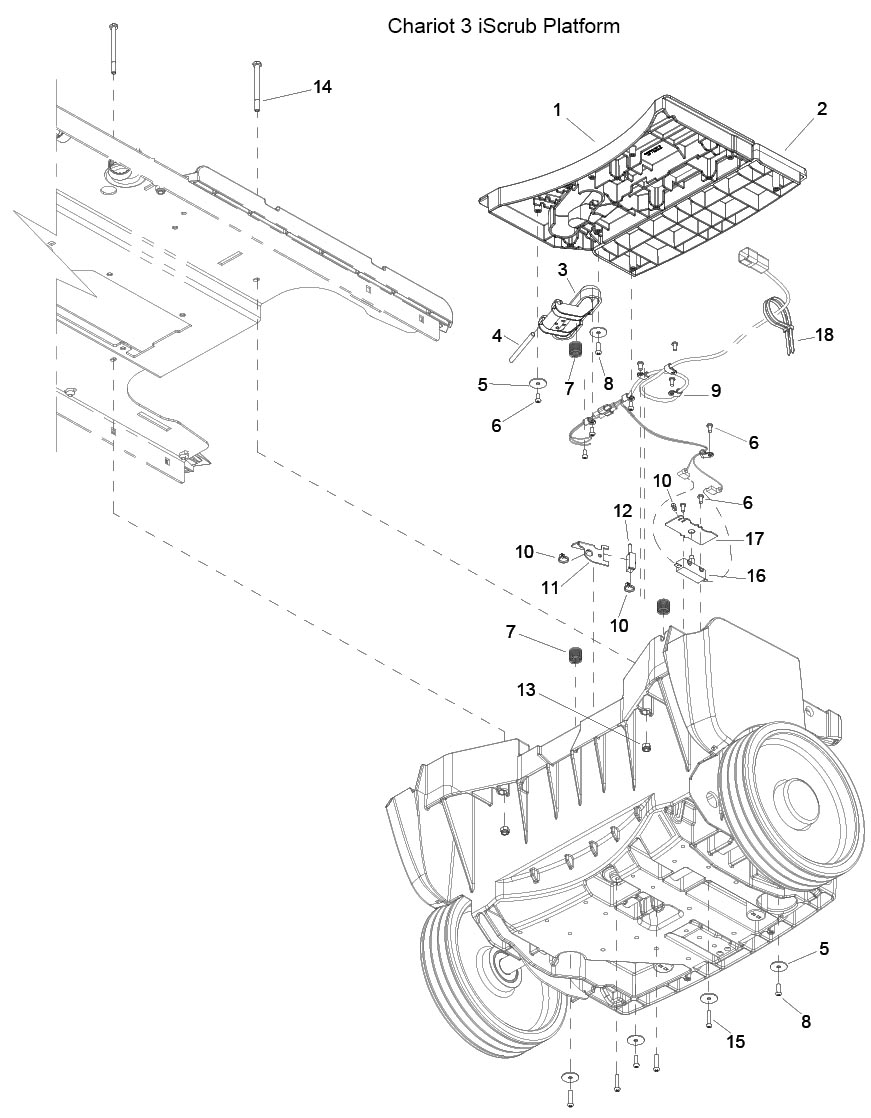

Platform
Windsor Chariot 3 iScrub 26 Platform
Footbox and Rear Wheels
Windsor Chariot 3 iScrub 26 Footbox and Rear Wheels
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86361130 |
Platform Support Plate |
Call to Order |
| 2 |
86271840 |
Nylock Nut |
Buy Now |
| 3 |
86361140 |
Wall Spacer |
Call to Order |
| 4 |
86399620 |
Operator Platform Footbox |
Buy Now |
| 5 |
86361120 |
Shaft Collar |
Buy Now |
| 6 |
86357990 |
Rear Axle |
Buy Now |
| 7 |
86232130 |
Vinyl Cap |
Buy Now |
| 8 |
86335520 |
Wheel |
Buy Now |
| 9 |
86326490 |
Screw |
Buy Now |
| 10 |
86361150 |
Tank Support Plate |
Call to Order |
| 11 |
86224320 |
Spacer |
Buy Now |
| 12 |
86008710 |
Washer |
Buy Now |
Rear Cover
Windsor Chariot 3 iScrub 26 Rear Cover
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86277620 |
Screw |
Buy Now |
| 2 |
86161800 |
Latch and Concealed Keeper |
Buy Now |
| 3 |
86399960 |
Rear Cover Panel |
Buy Now |
| 4 |
86272020 |
Nylock Nut |
Buy Now |
Scrub Deck - Disk
Windsor Chariot 3 iScrub 26 Scrub Deck - Disk
Scrub Deck - Cylindrical
Windsor Chariot 3 iScrub 26 Scrub Deck - Cylindrical
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
50448660 |
Retainer Plate Transmission |
Buy Now |
| 2 |
73060310 |
Screw |
Call to Order |
| 3 |
73120260 |
Washer |
Buy Now |
| 4 |
73130030 |
Spring Washer |
Call to Order |
| 5 |
50448580 |
Holder-Up |
Buy Now |
| 6 |
50560100 |
Rocker |
Buy Now |
| 7 |
51006113 |
Driveshaft |
Buy Now |
| 8 |
73180020 |
Parallel Key |
Call to Order |
| 9 |
73430150 |
Locking Ring |
Buy Now |
| 10 |
51163400 |
Bolt Holder-Up |
Buy Now |
| 11 |
73056370 |
Countersunk Screw |
Buy Now |
| 12 |
51163540 |
Bush Transmission |
Buy Now |
| 13 |
56254830 |
Belt Pulley |
Buy Now |
| 14 |
63431490 |
Quick-Fastener |
Buy Now |
| 15 |
63484420 |
Ribbed V-Belt |
Buy Now |
| 16 |
63631580 |
Joint Ring Nilosring |
Buy Now |
| 17 |
77779990 |
Stockpiling Discontinued |
Call to Order |
| 18 |
74011150 |
Ball Bearing |
Buy Now |
| 19 |
73432310 |
Locking Ring |
Buy Now |
| 20 |
73030470 |
Screw |
Call to Order |
| 21 |
77779990 |
Stockipiling Discontinued |
Call to Order |
| 22 |
50332410 |
Covering Cap Left |
Buy Now |
| 23 |
73030370 |
Screw |
Call to Order |
| 24 |
50332420 |
Covering Cap Right |
Buy Now |
| 25 |
50334030 |
Cover BR |
Buy Now |
| 26 |
55150960 |
Roller |
Buy Now |
| 27 |
53830970 |
Label |
Call to Order |
| 28 |
50615800 |
Brush Housing |
Call to Order |
| 29 |
50707530 |
Tank Refuse |
Buy Now |
| 30 |
51900140 |
Strip Water Distributor |
Buy Now |
| 31 |
46239200 |
Motor Complete |
Buy Now |
| 32 |
66102160 |
Carbon Brush Set |
Buy Now |
| 33 |
66130250 |
Blower Wheel |
Buy Now |
| 34 |
53964190 |
Splash Guard |
Buy Now |
| 35 |
50448670 |
Retainer Strip Splash Guard |
Buy Now |
| 36 |
50094010 |
Retaining Plate Right Scraper Lip |
Buy Now |
| 37 |
50094020 |
Retaining Plate Left Scraper Lip |
Buy Now |
| 38 |
51163390 |
Threaded Bolt |
Buy Now |
| 39 |
50332400 |
Adjustment Wheel |
Buy Now |
| 40 |
63304070 |
Spring Clip |
Buy Now |
| 41 |
63908920 |
Spiral Hose |
Buy Now |
| 42 |
66430470 |
Plug Red Complete |
Buy Now |
| 43 |
66463300 |
Plug Blue |
Call to Order |
| 44 |
73031070 |
Screw |
Buy Now |
| 45 |
66469790 |
Switch Contact |
Buy Now |
| 46 |
63884820 |
Hose Coupling |
Call to Order |
| 47 |
63211960 |
Star Grip |
Call to Order |
| 48 |
86370230 |
Right Deck Mount Bracket |
Buy Now |
| 49 |
86370220 |
Left Deck Mount Bracket |
Buy Now |
| 50 |
86276550 |
Screw |
Buy Now |
| 51 |
86136360 |
Nut |
Buy Now |
| 52 |
86370120 |
Spacer |
Buy Now |
| 53 |
73110060 |
Hexagon Nut |
Call to Order |
| 54 |
73100410 |
Knurled Nut |
Buy Now |
| 55 |
64014750 |
Eye Screw |
Buy Now |
| 56 |
44812950 |
Tie Rod |
Buy Now |
| 57 |
86394860 |
Tension Rod Add-On Kit |
Buy Now |
| 58 |
86005730 |
Nut |
Buy Now |
| 59 |
86274660 |
Screw |
Buy Now |
| 60 |
86005770 |
Nut |
Buy Now |
Scrub Deck Lift - Disk
Windsor Chariot 3 iScrub 26 Scrub Deck Lift - Disk
Scrub Deck Lift - Cylindrical
Windsor Chariot 3 iScrub 26 Scrub Deck Lift - Cylindrical
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86370800 |
Solenoid Bracket |
Call to Order |
| 2 |
86370720 |
Cylinder Deck Attachment Plate |
Call to Order |
| 3 |
86370280 |
Right Lift Mount Bracket |
Call to Order |
| 4 |
86370270 |
Left Lift Mount Bracket |
Call to Order |
| 5 |
86370260 |
Deck Lift Assembly |
Buy Now |
| 6 |
86270250 |
Clamp |
Buy Now |
| 7 |
86370240 |
Clevis Pin |
Buy Now |
| 8 |
86368240 |
Nylock Nut |
Buy Now |
| 9 |
86367250 |
Washer |
Buy Now |
| 10 |
86320880 |
Actuator |
Buy Now |
| 11 |
86276950 |
Screw |
Buy Now |
| 12 |
86276490 |
Screw |
Buy Now |
| 13 |
86272620 |
Clevis Pin |
Buy Now |
| 14 |
86270990 |
Nylock Nut |
Buy Now |
| 15 |
86228790 |
Bushing |
Buy Now |
| 16 |
86010630 |
Washer |
Buy Now |
| 17 |
86008650 |
Cotter Ring Pin |
Buy Now |
| 18 |
86360310 |
Nylock Nut |
Buy Now |
| 19 |
44812440 |
Locking Part |
Buy Now |
| 20 |
86008660 |
Cotter Ring |
Buy Now |
| 21 |
86006200 |
Clevis Pin |
Buy Now |
| 22 |
86373190 |
Spring Hanger Bracket |
Buy Now |
| 23 |
86226830 |
Spring |
Buy Now |
Scrub Deck Skirts
Windsor Chariot 3 iScrub 26 Scrub Deck Skirts
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86358580 |
Scrub Deck Skirt |
Buy Now |
| 2 |
86361590 |
Flex Strip Brush |
Buy Now |
| 3 |
86005810 |
Nylock Nut |
Buy Now |
| 4 |
86364880 |
Screw |
Buy Now |
| 5 |
86006870 |
Screw |
Buy Now |
| 6 |
86335450 |
Washer |
Buy Now |
| 7 |
86358570 |
Deck Access Cover |
Buy Now |
| 8 |
86358560 |
Scrub Deck |
Buy Now |
| 9 |
86273810 |
Screw |
Buy Now |
| 10 |
86358620 |
Left Deck Aquamizer Mount |
Buy Now |
| 11 |
86242130 |
Hex Press-Loc Wing Knob |
Buy Now |
| 12 |
86270990 |
Nylock Nut |
Buy Now |
| 13 |
86358630 |
Right Deck Aquamizer Mount |
Buy Now |
| 14 |
86361670 |
Right Aquamizer Blade |
Buy Now |
| 15 |
86361680 |
Left Aquamizer Blade |
Buy Now |
Scrub Deck Mounting - Disk
Windsor Chariot 3 iScrub 26 Scrub Deck Mounting - Disk
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86276920 |
Screw |
Buy Now |
| 2 |
86278910 |
Washer |
Buy Now |
| 3 |
86008460 |
Spacer |
Buy Now |
| 4 |
86009050 |
Bushing |
Buy Now |
| 5 |
86005630 |
Nut |
Buy Now |
| 6 |
86361570 |
Deck Linkage |
Call to Order |
| 7 |
86276470 |
Screw |
Call to Order |
| 8 |
86224380 |
Spacer |
Buy Now |

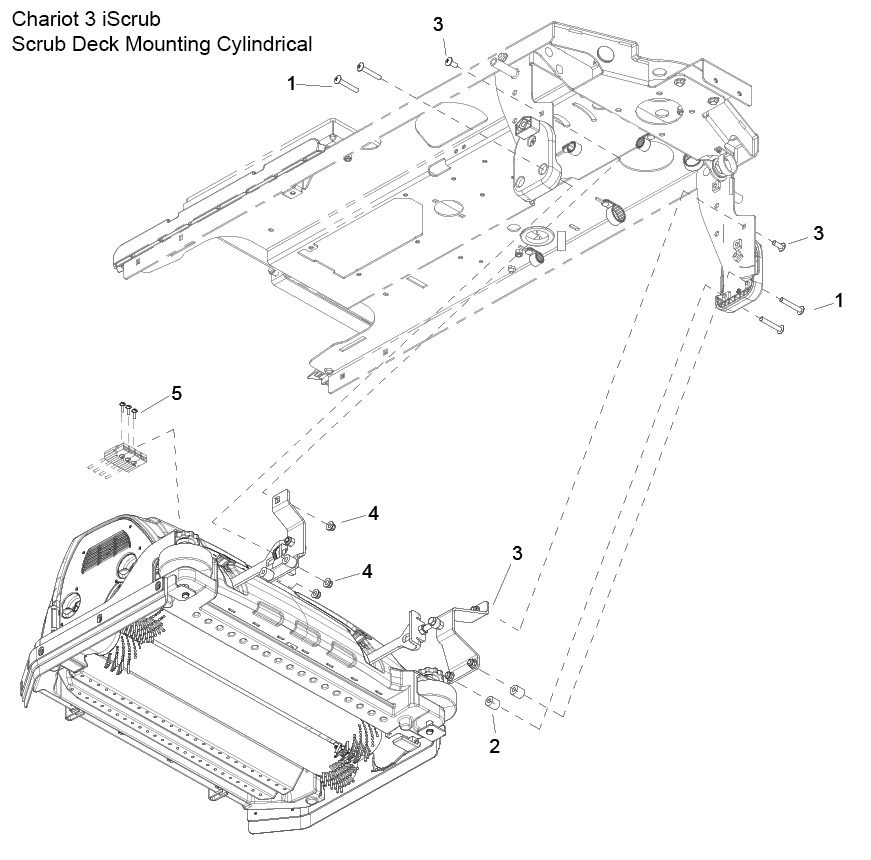

Scrub Deck Mounting - Cylindrical
Windsor Chariot 3 iScrub 26 Scrub Deck Mounting - Cylindrical
Scrub Brush/Pad Driver - Disk
Windsor Chariot 3 iScrub 26 Scrub Brush/Pad Driver - Disk
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86000210 |
Pad Driver |
Buy Now |
| 2A |
86000220 |
Brush 13" Poly |
Buy Now |
| 2B |
86000230 |
Brush 13" Nylon |
Buy Now |
| 2C |
86000240 |
Brush 13" Mild Grit |
Buy Now |
| 3 |
86005070 |
Lock Pad |
Buy Now |
| 4 |
86276590 |
Screw |
Buy Now |
| 5 |
86276580 |
Screw |
Buy Now |
| 6 |
86276600 |
Screw |
Buy Now |
| 7 |
86007910 |
Spring |
Buy Now |
| 8 |
86007280 |
Transmission Brush |
Buy Now |
| 9 |
86005940 |
Plate Brush Release |
Buy Now |

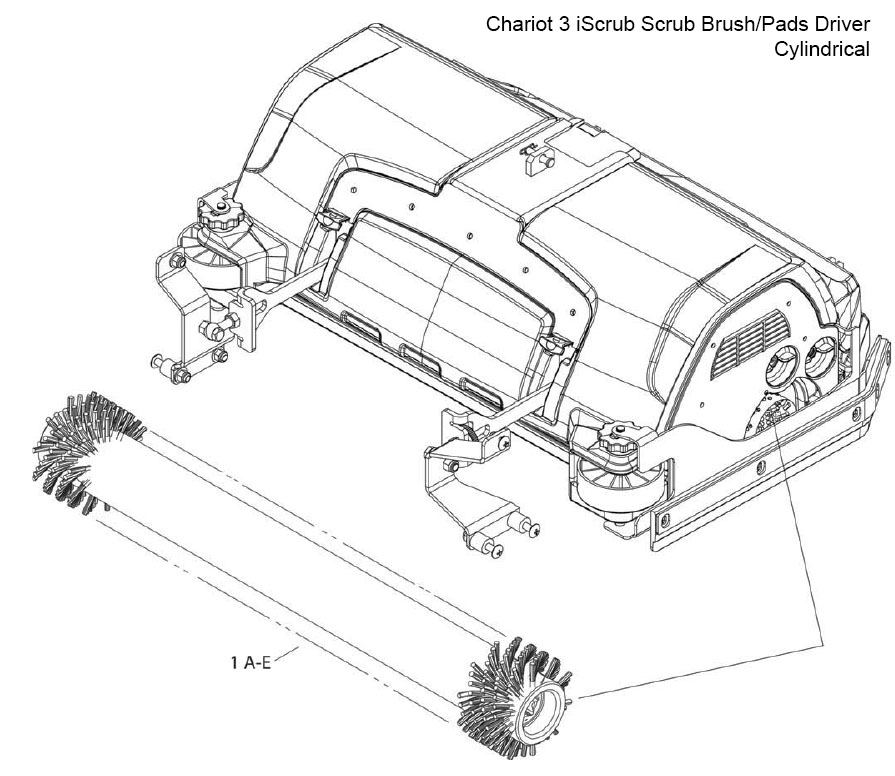

Scrub Brush/Pad Driver - Cylindrical
Windsor Chariot 3 iScrub 26 Scrub Brush/Pad Driver - Cylindrical
| Reference # |
Part # |
Description |
Add to Cart |
| 1A |
40351870 |
Roller Brush - Red |
Buy Now |
| 1B |
69069810 |
Roller Brush - White |
Buy Now |
| 1C |
69069820 |
Roller Brush - Orange |
Buy Now |
| 1D |
69069830 |
Roller Brush - Green |
Buy Now |
| 1E |
69069840 |
Roller Brush - Black |
Buy Now |
Solution System - Disk
Windsor Chariot 3 iScrub 26 Solution System - Disk

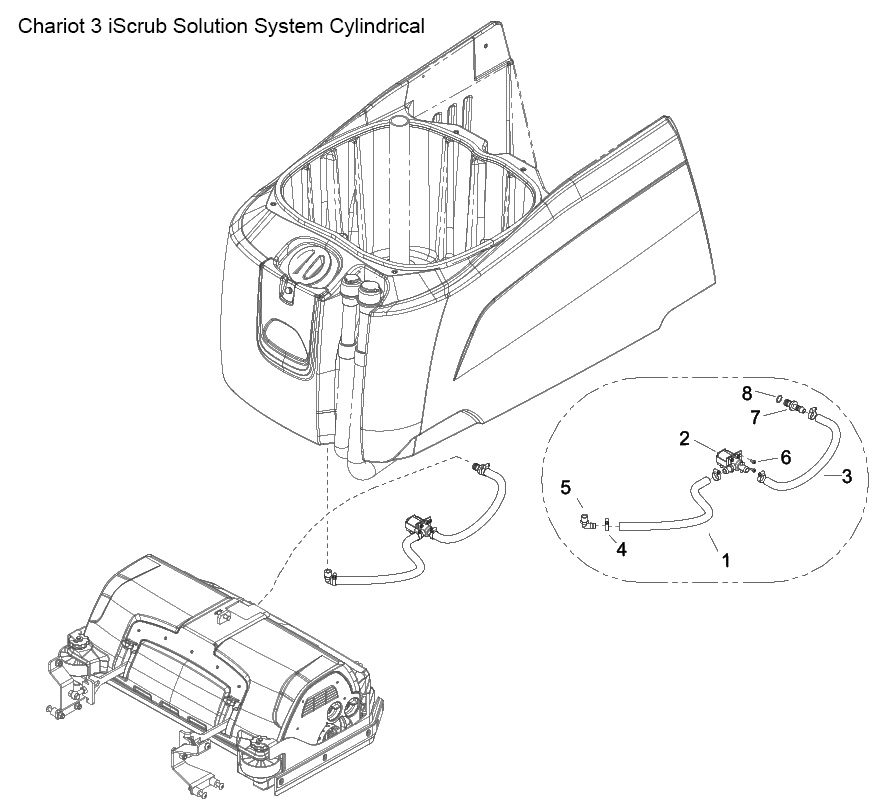

Solution System - Cylindrical
Windsor Chariot 3 iScrub 26 Solution System - Cylindrical

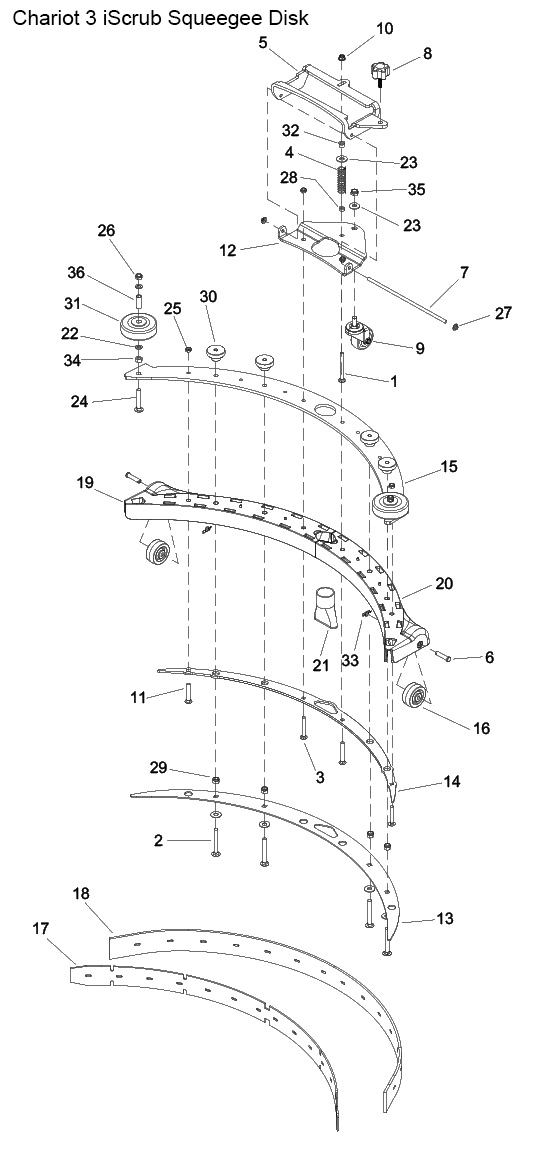

Squeegee - Disk
Windsor Chariot 3 iScrub 26 Squeegee - Disk

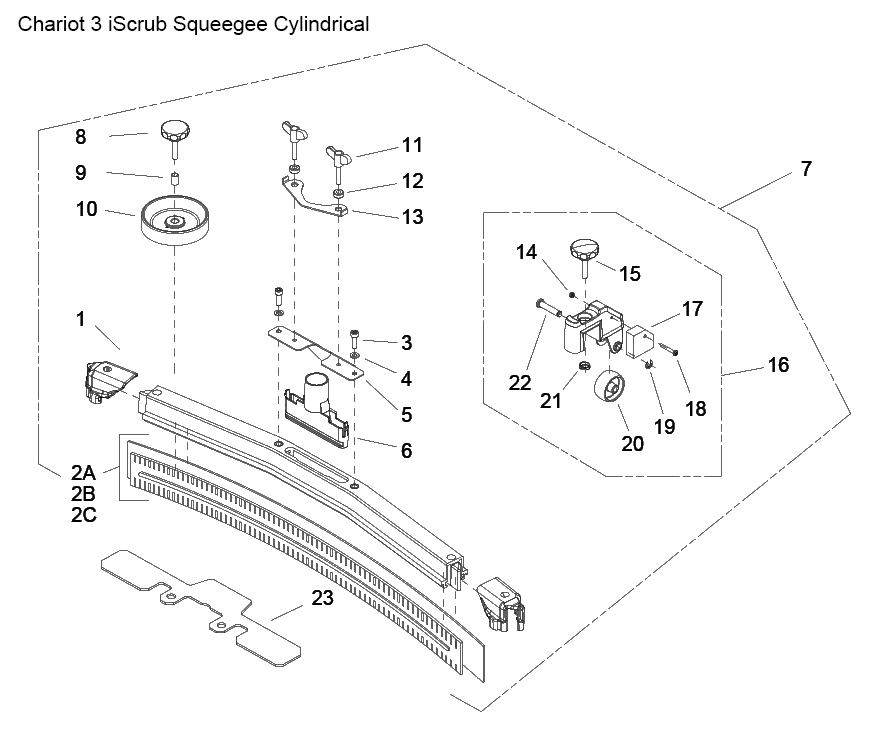

Squeegee - Cylindrical
Windsor Chariot 3 iScrub 26 Squeegee - Cylindrical
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
28852940 |
End Piece Left/Right Spare Parts Set |
Buy Now |
| 2 |
62732900 |
Blades for Textured Floors |
Buy Now |
| 2 |
62732070 |
Rubber Lip Set Oil Resistant |
Buy Now |
| 2 |
62732290 |
Rubber Lip Set Anti Strip Oil Resistant |
Buy Now |
| 3 |
73061420 |
Cylinder Head Screw |
Buy Now |
| 4 |
73120170 |
Washer |
Call to Order |
| 5 |
51005590 |
Suction Bar Support Plate |
Buy Now |
| 6 |
50336010 |
Suction Nipple |
Buy Now |
| 7 |
47771000 |
Suction Bar Curved |
Buy Now |
| 8 |
63212390 |
Star Grip |
Buy Now |
| 9 |
50942310 |
Sleeve Suction Bar |
Buy Now |
| 10 |
55153460 |
Deflector Roll Suction Bar |
Buy Now |
| 11 |
53050080 |
Wing Screw |
Buy Now |
| 12 |
51128100 |
Sleeve |
Buy Now |
| 13 |
51283390 |
Additional Weight Suction Bar |
Buy Now |
| 14 |
64354010 |
Wheel |
Buy Now |
| 15 |
63212400 |
Star Grip with Inscription |
Buy Now |
| 16 |
40353390 |
Roller Suction Bar |
Buy Now |
| 17 |
53325040 |
Pressure Spring |
Buy Now |
| 18 |
53177810 |
Bolt Roller |
Buy Now |
| 19 |
73433030 |
Locking Ring |
Call to Order |

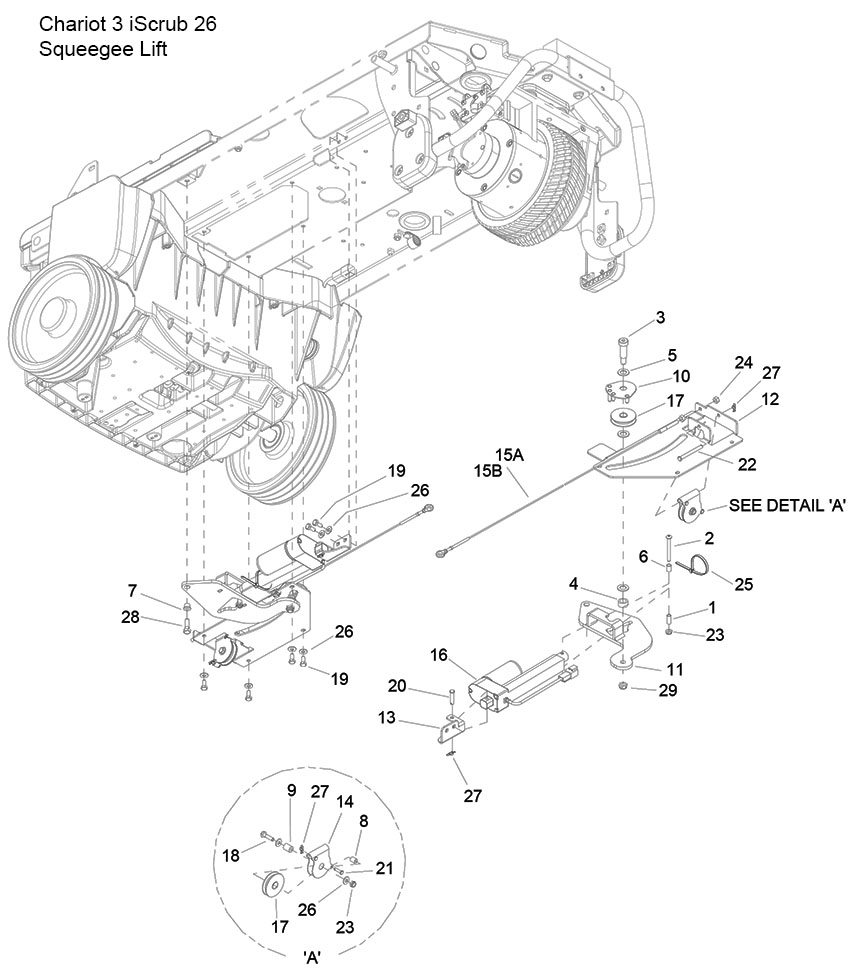

Squeegee Lift
Windsor Chariot 3 iScrub 26 Squeegee Lift

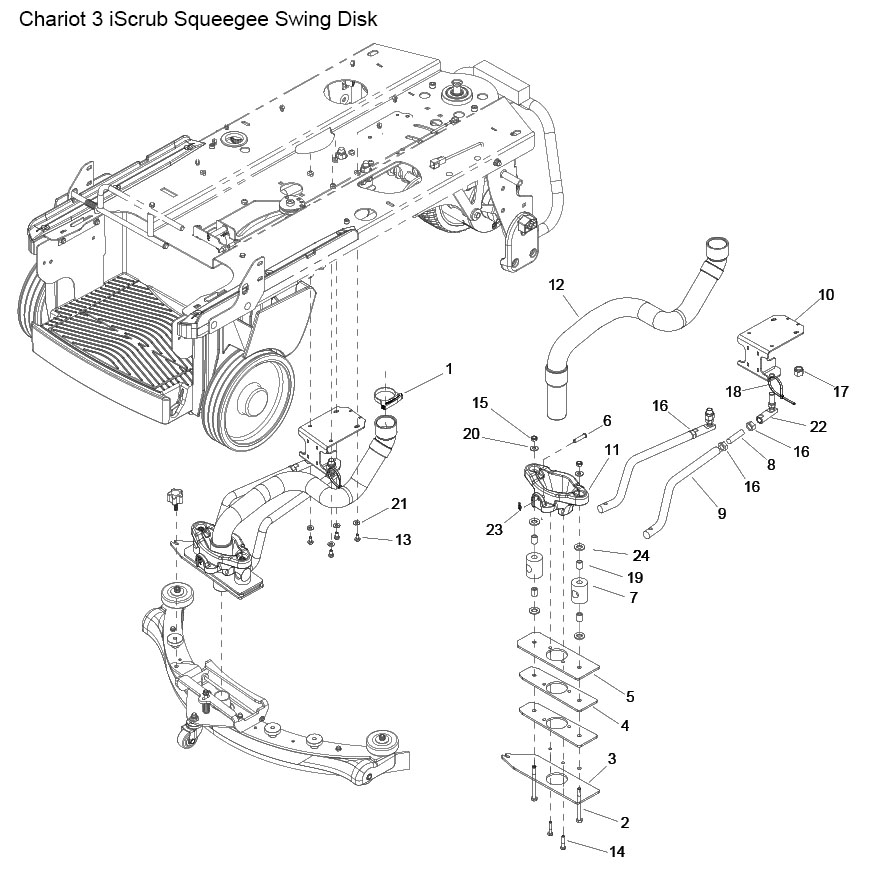

Squeegee Swing - Disk
Windsor Chariot 3 iScrub 26 Squeegee Swing - Disk
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86365530 |
Ratchet Clamp |
Buy Now |
| 2 |
86364110 |
Screw |
Buy Now |
| 3 |
86363080 |
Squeegee Slide Plate |
Call to Order |
| 4 |
86363060 |
Slide Plate |
Call to Order |
| 5 |
86363050 |
Squeegee Slide Plate |
Call to Order |
| 6 |
86362690 |
Clevis Pin |
Call to Order |
| 7 |
86362370 |
Squeegee Rod |
Buy Now |
| 8 |
86362360 |
All-Thread |
Buy Now |
| 9 |
86362350 |
Squeegee Pivot Rod |
Buy Now |
| 10 |
86361730 |
Actuator Assembly Bracket |
Buy Now |
| 11 |
86358220 |
Squeegee Lift Base |
Buy Now |
| 12 |
86354300 |
Suction Hose |
Buy Now |
| 13 |
86273830 |
Screw |
Buy Now |
| 14 |
86273820 |
Screw |
Buy Now |
| 15 |
86271840 |
Nylock Nut |
Buy Now |
| 16 |
86271560 |
Nut |
Buy Now |
| 17 |
86271430 |
Nylock Nut |
Buy Now |
| 18 |
86264940 |
Cable Tie |
Buy Now |
| 19 |
86368800 |
Bushing |
Buy Now |
| 20 |
86010670 |
Washer |
Buy Now |
| 21 |
86010630 |
Washer |
Buy Now |
| 22 |
86009080 |
Ball Joint Assembly |
Buy Now |
| 23 |
86008650 |
Cotter Ring Pin |
Buy Now |
| 24 |
86259420 |
Washer |
Buy Now |
Squeegee Swing - Cylindrical
Windsor Chariot 3 iScrub 26 Squeegee Swing - Cylindrical

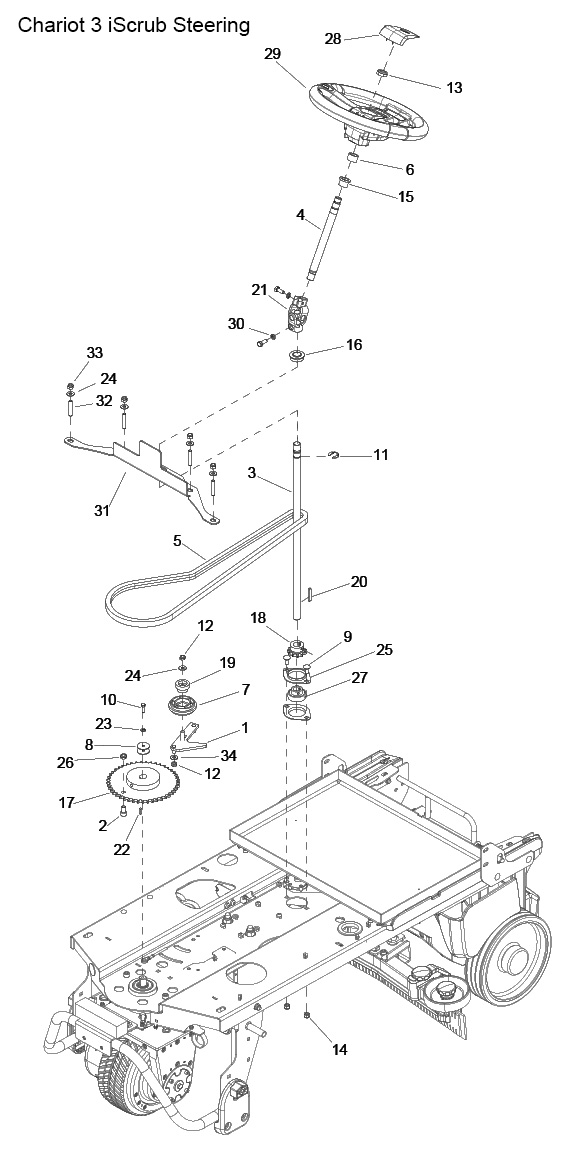

Steering
Windsor Chariot 3 iScrub 26 Steering

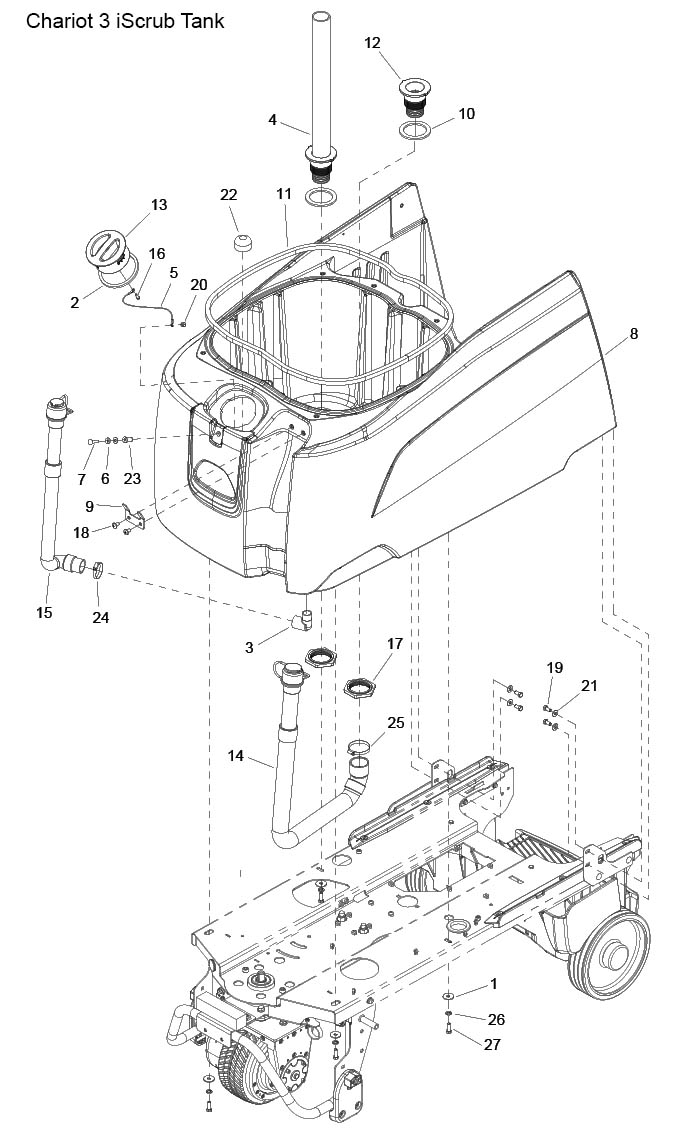

Tank
Windsor Chariot 3 iScrub 26 Tank
Vacuum
Windsor Chariot 3 iScrub 26 Vacuum
Wiring - Batteries
Windsor Chariot 3 iScrub 26 Wiring - Batteries
| Reference # |
Part # |
Description |
Add to Cart |
| - |
86429760 |
Lithium Fuse |
Call to Order |
| 1 |
86228430 |
Battery |
Buy Now |
| 1 |
86283410 |
Battery |
Buy Now |
| 1 |
86228410 |
Battery |
Buy Now |
| 2 |
86273980 |
Screw |
Buy Now |
| 3 |
86271910 |
Nut |
Buy Now |
| 4 |
86270890 |
Nut |
Buy Now |
| 5 |
86264960 |
Cable Tie |
Buy Now |
| 6 |
86260610 |
Wire |
Buy Now |
| 7 |
86260230 |
Wire |
Buy Now |
| 8 |
86260200 |
Wire |
Buy Now |
| 9 |
86233360 |
Cable Kit Clamp |
Buy Now |
| 10 |
86010670 |
Washer |
Buy Now |
| 11 |
86010650 |
Washer |
Buy Now |
| 12 |
86008920 |
Rubber Term Isolator Boot |
Buy Now |
| 13 |
86008760 |
Connector |
Buy Now |
| 14 |
86398140 |
Battery Tray |
Buy Now |
| 15 |
86359500 |
Battery Tray Assembly |
Buy Now |
| 16 |
86272810 |
Ring |
Buy Now |
| 17 |
86254990 |
Compression Spring |
Buy Now |
| 18 |
86092910 |
Battery Tray Latch Rod |
Buy Now |
| 19 |
86360020 |
Battery Stop Plate |
Call to Order |
| 20 |
86428420 |
Black Wire Ring |
Call to Order |
| 21 |
86428410 |
Red Wire Ring |
Call to Order |
| 22 |
86428380 |
Lithium Battery Mount Bracket |
Call to Order |
| 23 |
86428370 |
Lithium Battery |
Buy Now |
| 24 |
86279470 |
Washer |
Buy Now |
| 25 |
86273830 |
Screw |
Buy Now |
| 26 |
86273780 |
Screw |
Buy Now |
| 27 |
86010630 |
Washer |
Buy Now |
| 28 |
86005680 |
Nylock Nut |
Buy Now |
| 29 |
86006830 |
Screw |
Buy Now |
| 30 |
86430840 |
Connector |
Call to Order |

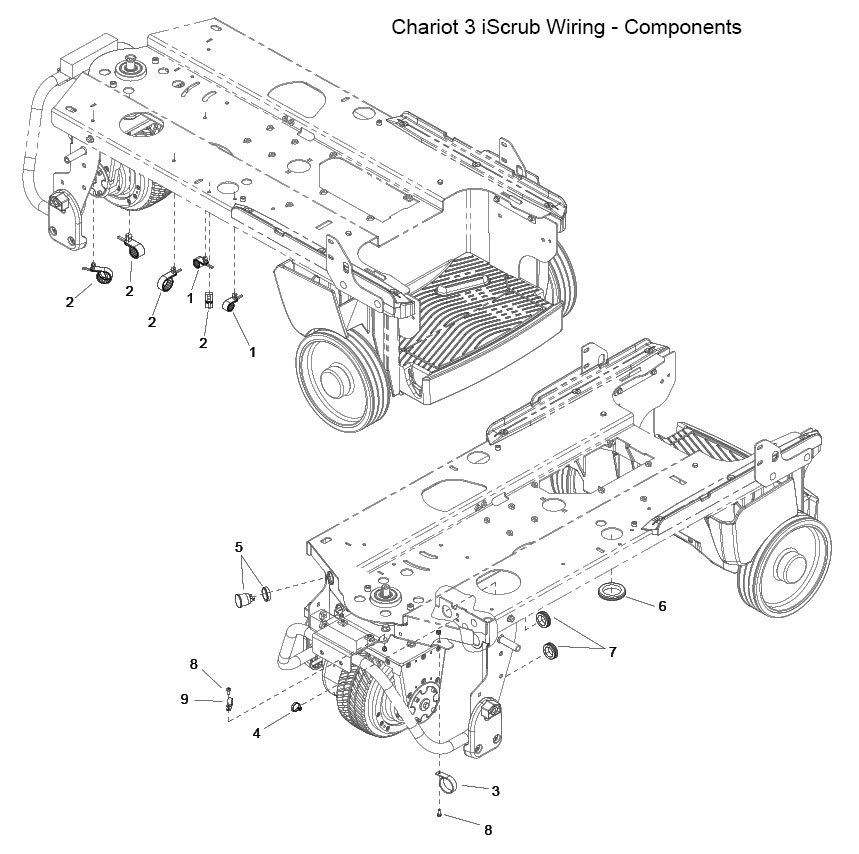

Wiring - Components
Windsor Chariot 3 iScrub 26 Wiring - Components
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86361230 |
Pan Clamp |
Call to Order |
| 2 |
86361220 |
Pan Clamp |
Call to Order |
| 3 |
86326270 |
Clamp |
Buy Now |
| 4 |
86264940 |
Cable Tie |
Buy Now |
| 5 |
86239720 |
Horn |
Buy Now |
| 6 |
86238500 |
Grommet |
Call to Order |
| 7 |
86238430 |
Grommet |
Buy Now |
| 8 |
86006980 |
Screw |
Buy Now |
| 9 |
86198460 |
Clamp |
Call to Order |
Chemical Metering Solution System - Disk
Windsor Chariot 3 iScrub 26 Chemical Metering Solution - Disk
| Reference # |
Part # |
Description |
Add to Cart |
| - |
86370450 |
Chemical Bottle Kit |
Buy Now |
| - |
86369920 |
Storage Cap |
Buy Now |
| - |
40354760 |
Hose Kit Replacement |
Buy Now |
| 1 |
64290383 |
Flowmetre |
Buy Now |
| 2 |
86364390 |
Chemical Dosing Pump |
Buy Now |
| 3 |
86363990 |
Chemical Pump Bracket |
Buy Now |
| 4 |
86363980 |
Hose |
Buy Now |
| 5 |
86363970 |
Hose |
Buy Now |
| 6 |
86363960 |
Hose |
Call to Order |
| 7 |
86363950 |
Hose |
Call to Order |
| 8 |
86363940 |
Chemical Pump Pad |
Call to Order |
| 9 |
86363900 |
Hose |
Buy Now |
| 10 |
86401590 |
Hose |
Buy Now |
| 11 |
86363880 |
Dispensing Filter Cap |
Buy Now |
| 12 |
86362980 |
Elbow |
Buy Now |
| 13 |
86362970 |
Tee |
Buy Now |
| 14 |
86362850 |
O-Ring |
Buy Now |
| 15 |
86362840 |
Conduit Fitting |
Buy Now |
| 16 |
86001550 |
Hose Connection |
Buy Now |
| 17 |
86361690 |
Valve |
Buy Now |
| 18 |
86281330 |
Wire Bound Hose |
Buy Now |
| 19 |
86006520 |
Screw |
Buy Now |
| 20 |
86361230 |
Pan Clamp |
Call to Order |
| 21 |
86359010 |
Chemical Bottle |
Buy Now |
| 22 |
86271850 |
Nut |
Buy Now |
| 23 |
86271830 |
Nut |
Buy Now |
| 24 |
86264940 |
Cable Tie |
Buy Now |
| 25 |
86264930 |
Cable Tie |
Buy Now |
| 26 |
86233150 |
Hose Clamp |
Buy Now |
| 27 |
86197940 |
Hosebarb |
Buy Now |
| 28 |
86223740 |
Screw |
Buy Now |
| 29 |
86402240 |
Gasket |
Buy Now |
| 30 |
86402340 |
Hose Clamp |
Call to Order |
Chemical Metering Solution System - Cylindrical
Windsor Chariot 3 iScrub 26 Chemical Metering Solution System - Cylindrical
| Reference # |
Part # |
Description |
Add to Cart |
| - |
40354760 |
Hose Kit Replacement |
Buy Now |
| - |
86370450 |
Chemical Bottle Kit |
Buy Now |
| - |
86369920 |
Storage Cap |
Buy Now |
| 1 |
64290383 |
Flowmetre |
Buy Now |
| 2 |
86364390 |
Chemical Dosing Pump |
Buy Now |
| 3 |
86363990 |
Chemical Pump Bracket |
Buy Now |
| 4 |
86363980 |
Hose |
Buy Now |
| 5 |
86363950 |
Wirebound Hose |
Call to Order |
| 6 |
86363940 |
Chemical Pump Pad |
Call to Order |
| 7 |
86371740 |
Hose |
Call to Order |
| 8 |
86401590 |
Hose |
Buy Now |
| 9 |
86363880 |
Filter Dispensing Cap |
Buy Now |
| 10 |
86362850 |
O-Ring |
Buy Now |
| 11 |
86362840 |
Conduit Fitting |
Buy Now |
| 12 |
86361690 |
Valve |
Buy Now |
| 13 |
86006520 |
Screw |
Buy Now |
| 14 |
86361230 |
Clamp |
Call to Order |
| 15 |
86359010 |
Chemical Bottle |
Buy Now |
| 16 |
86271850 |
Nylock Nut |
Buy Now |
| 17 |
86264930 |
Cable Tie |
Buy Now |
| 18 |
86233150 |
Hose Clamp |
Buy Now |
| 19 |
86197940 |
Hosebarb |
Buy Now |
| 20 |
86223740 |
Screw |
Buy Now |
| 21 |
86370840 |
Wirebound Hose |
Call to Order |
| 22 |
86302770 |
Wire Bound Hose |
Buy Now |
| 23 |
54433750 |
Hose Stem |
Buy Now |
| 24 |
63621700 |
O-Ring Seal |
Buy Now |
| 25 |
86402240 |
Gasket |
Buy Now |
| 26 |
86402340 |
Hose Clamp |
Call to Order |

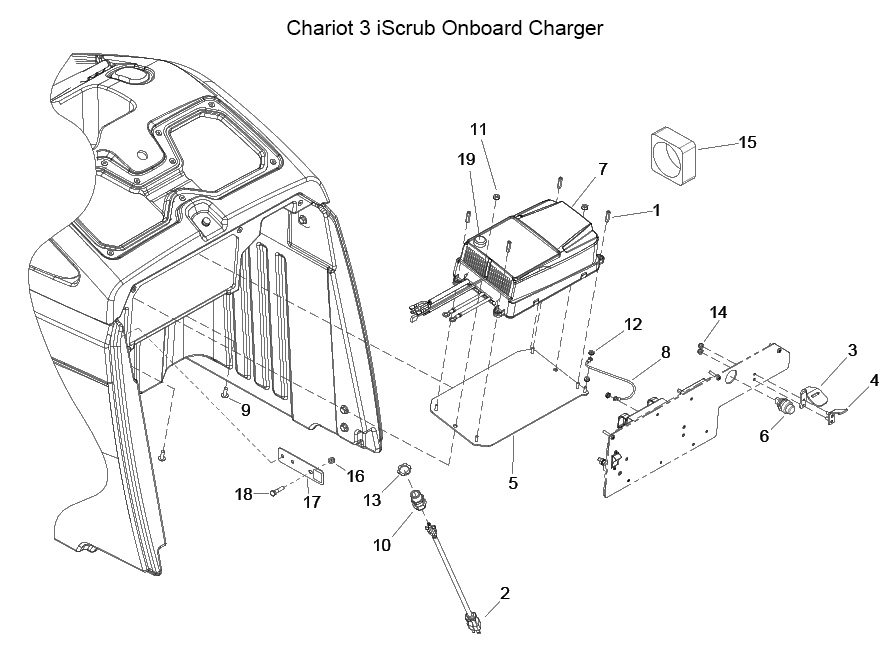

Onboard Charger
Windsor Chariot 3 iScrub 26 Onboard Charger
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86414920 |
Cable Assembly |
Buy Now |
| 2 |
86414910 |
Cord Assembly |
Buy Now |
| 3 |
86414900 |
Charger |
Buy Now |
| 4 |
86369470 |
Cover |
Buy Now |
| 5 |
86366080 |
Standoff |
Call to Order |
| 6 |
86363800 |
Cord Assembly |
Buy Now |
| 7 |
86361440 |
Cord Strap |
Buy Now |
| 8 |
86361430 |
Cord Bracket |
Buy Now |
| 9 |
86361090 |
Mount Plate |
Call to Order |
| 10 |
86307990 |
Wire |
Call to Order |
| 11 |
86277640 |
Screw |
Buy Now |
| 12 |
86256180 |
Strain Relief |
Buy Now |
| 13 |
86005710 |
Nut |
Buy Now |
| 14 |
86005700 |
Nut |
Buy Now |
| 15 |
86005670 |
Nut |
Buy Now |
| 16 |
86005640 |
Nylock Nut |
Buy Now |
| 17 |
86360460 |
Charger |
Buy Now |

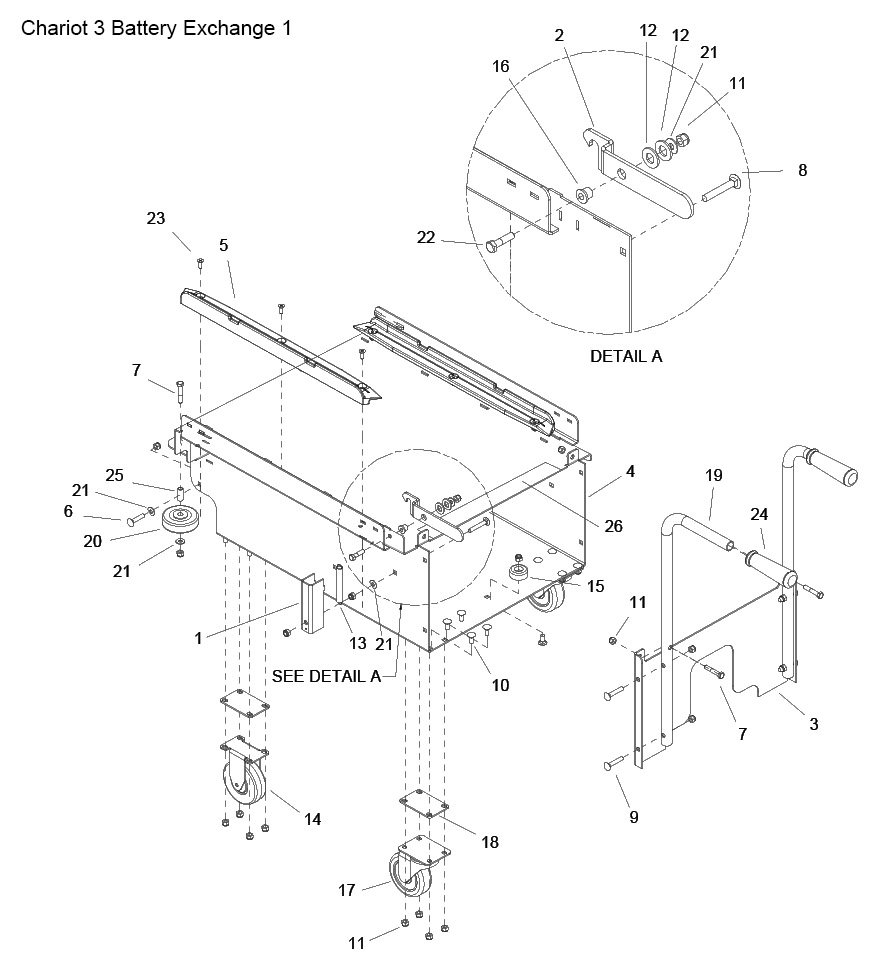

Battery Exchange 1
Windsor Chariot 3 iScrub 26 Battery Exchange 1
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86359450 |
Spring Cover Bracket |
Call to Order |
| 2 |
86359400 |
Tray Catch Bracket |
Call to Order |
| 3 |
86359390 |
Cart Bracket |
Call to Order |
| 4 |
86359380 |
Battery Cart Assembly |
Call to Order |
| 5 |
86358190 |
Battery Tray Glide |
Buy Now |
| 6 |
86277470 |
Screw |
Buy Now |
| 7 |
86276790 |
Screw |
Buy Now |
| 8 |
86276710 |
Screw |
Buy Now |
| 9 |
86276690 |
Screw |
Buy Now |
| 10 |
86276070 |
Screw |
Buy Now |
| 11 |
86270830 |
Nylock Nut |
Buy Now |
| 12 |
86259420 |
Washer |
Buy Now |
| 13 |
86254890 |
Spring |
Buy Now |
| 14 |
86232590 |
Caster |
Buy Now |
| 15 |
86231090 |
Rubber Bumper |
Buy Now |
| 16 |
86228840 |
Bushing |
Buy Now |
| 17 |
86199430 |
Caster Swivel |
Buy Now |
| 18 |
86078890 |
Caster Spacer Plate |
Call to Order |
| 19 |
86076600 |
Battery Cart Handle |
Call to Order |
| 20 |
86011020 |
Cushion Rubber |
Buy Now |
| 21 |
86010670 |
Washer |
Buy Now |
| 22 |
86007020 |
Screw |
Buy Now |
| 23 |
86400810 |
Screw |
Buy Now |
| 24 |
86004070 |
Polisher Handle Grip |
Buy Now |
| 25 |
86001350 |
Spanner Bushing |
Buy Now |
| 26 |
86244280 |
Battery Cart Operation Label |
Call to Order |
Battery Exchange 2
Windsor Chariot 3 iScrub 26 Battery Exchange 2
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86359440 |
Cart Pedal Bracket |
Call to Order |
| 2 |
86359430 |
Cart Latch Link Plate |
Call to Order |
| 3 |
86359420 |
Cart Pedal Link Plate |
Call to Order |
| 4 |
86359410 |
Latch Cart Plate |
Call to Order |
| 5 |
86277470 |
Screw |
Buy Now |
| 6 |
86276070 |
Screw |
Buy Now |
| 7 |
86270830 |
Nylock Nut |
Buy Now |
| 8 |
86259420 |
Washer |
Buy Now |
| 9 |
86259410 |
Washer |
Buy Now |
| 10 |
86259400 |
Washer |
Buy Now |
| 11 |
86254280 |
Washer |
Buy Now |
| 12 |
86231150 |
Bushing |
Buy Now |
| 13 |
86228840 |
Bushing |
Buy Now |
| 14 |
86226830 |
Spring |
Buy Now |
| 15 |
86010670 |
Washer |
Buy Now |
| 16 |
86007020 |
Screw |
Buy Now |
| 17 |
86006560 |
Screw |
Buy Now |

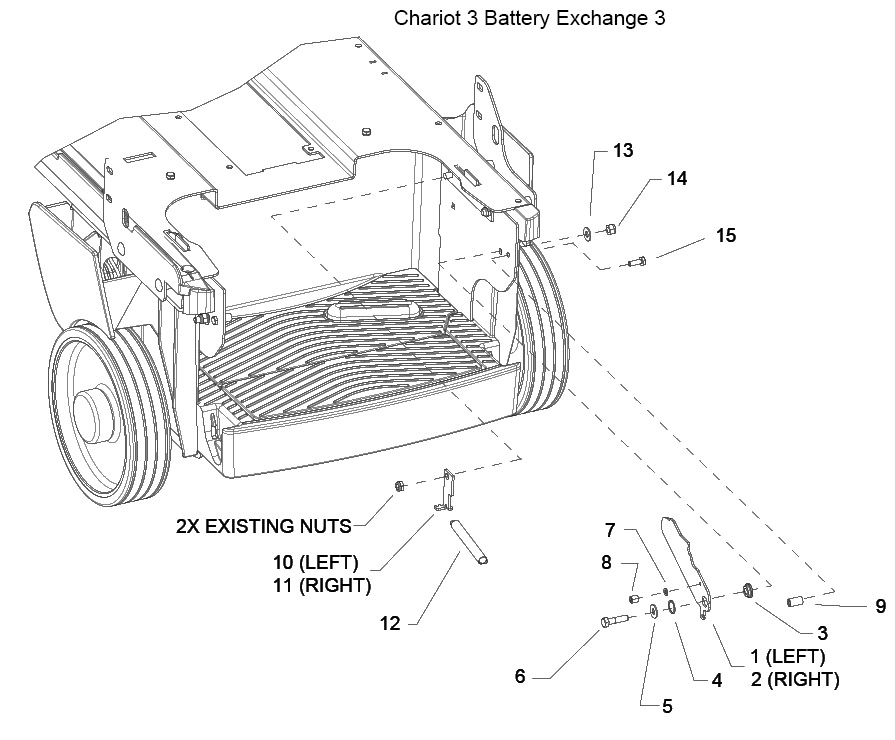

Battery Exchange 3
Windsor Chariot 3 iScrub 26 Battery Exchange 3
