Windsor Chariot 3 iExtract 26

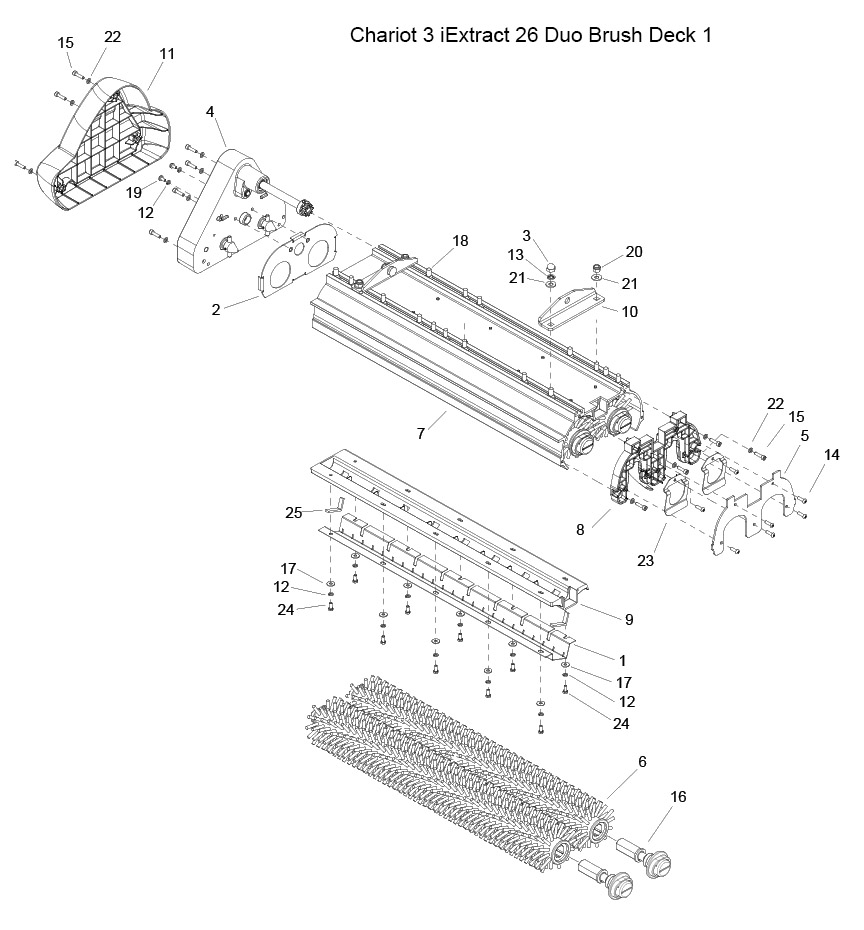

Brush Deck 1
Windsor Chariot 3 iExtract 26 Brush Deck 1
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86373280 |
Agitator Rail |
Buy Now |
| 2 |
86372730 |
Brush Guide Plate |
Buy Now |
| 3 |
86372040 |
Nut |
Call to Order |
| 4 |
86371750 |
GRP |
Call to Order |
| 5 |
86371510 |
End Cap Cover |
Buy Now |
| 6 |
86370500 |
Extractor Brush |
Buy Now |
| 7 |
86374910 |
Extrusion |
Call to Order |
| 8 |
86369150 |
End Cap Brush Clip |
Buy Now |
| 9 |
86369070 |
Solution Manifold Mount |
Buy Now |
| 10 |
86341310 |
Bracket Brush Housing |
Buy Now |
| 11 |
86339570 |
Cover Plate Brushes Drive |
Buy Now |
| 12 |
86331810 |
Washer |
Buy Now |
| 13 |
86330990 |
Washer |
Buy Now |
| 14 |
73031040 |
Screw |
Buy Now |
| 15 |
86014990 |
Screw |
Buy Now |
| 16 |
86373070 |
Brush End Assembly |
Buy Now |
| 17 |
86173330 |
Washer |
Buy Now |
| 18 |
86276070 |
Screw |
Buy Now |
| 19 |
86274290 |
Screw |
Buy Now |
| 20 |
86270830 |
Nut |
Buy Now |
| 21 |
86010670 |
Washer |
Buy Now |
| 22 |
86173350 |
Washer |
Buy Now |
| 23 |
86224630 |
Brush Clip Spring |
Buy Now |
| 24 |
86196300 |
Screw |
Call to Order |
| 25 |
86374190 |
Gasket |
Buy Now |
| 26 |
86172950 |
Screw |
Buy Now |

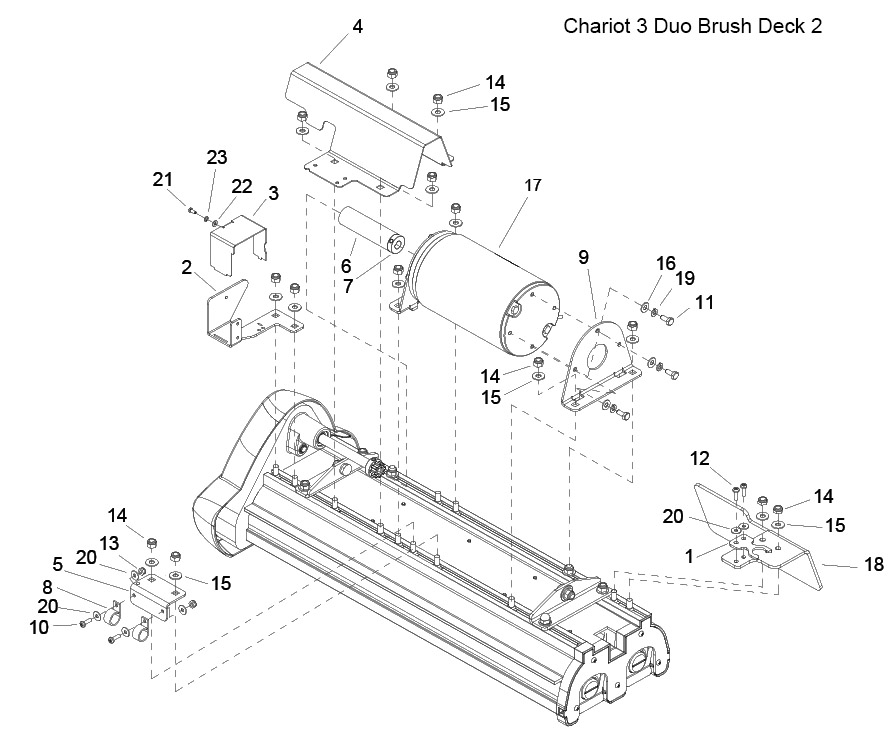

Brush Deck 2
Windsor Chariot 3 iExtract 26 Brush Deck 2
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86372830 |
Manifold Clip |
Buy Now |
| 2 |
86372680 |
Solenoid Bracket |
Call to Order |
| 3 |
86372670 |
Solenoid Cover |
Call to Order |
| 4 |
86371680 |
Shaft Cover Bracket |
Call to Order |
| 5 |
86371580 |
Hose Bracket |
Call to Order |
| 6 |
86370480 |
Sleeve |
Buy Now |
| 7 |
86370470 |
Coupling Hub |
Buy Now |
| 8 |
86354990 |
Nylon Clamp |
Call to Order |
| 9 |
86340490 |
Motor Mount Bracket |
Buy Now |
| 10 |
86275470 |
Screw |
Buy Now |
| 11 |
86275470 |
Screw |
Buy Now |
| 12 |
86006590 |
Screw |
Buy Now |
| 13 |
86270990 |
Nut |
Buy Now |
| 14 |
86270830 |
Nut |
Buy Now |
| 15 |
86010670 |
Washer |
Buy Now |
| 16 |
86010630 |
Washer |
Buy Now |
| 17 |
86222130 |
Motor |
Buy Now |
| 18 |
86373220 |
Deck Balance Bracket |
Call to Order |
| 19 |
86173340 |
Washer |
Buy Now |
| 20 |
86173330 |
Washer |
Buy Now |
| 21 |
86276220 |
Screw |
Buy Now |
| 22 |
86278990 |
Washer |
Buy Now |
| 23 |
86134850 |
Washer |
Buy Now |
Brush Deck Lift
Windsor Chariot 3 iExtract 26 Brush Deck Lift
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86005630 |
Nut |
Buy Now |
| 2 |
86373170 |
Spring |
Buy Now |
| 3 |
86372220 |
Bracket |
Call to Order |
| 4 |
86377910 |
Bracket Assembly |
Buy Now |
| 5 |
86370420 |
X-Ref |
Call to Order |
| 6 |
86370400 |
Bracket Upper |
Call to Order |
| 7 |
86370390 |
Bracket Lower |
Call to Order |
| 8 |
86370360 |
Deck Lift Weldment |
Call to Order |
| 9 |
86364020 |
Shoulder Bolt |
Buy Now |
| 10 |
86320880 |
Long Actuator |
Buy Now |
| 11 |
86278910 |
Washer |
Buy Now |
| 12 |
86277130 |
Screw |
Buy Now |
| 13 |
86277030 |
Screw |
Buy Now |
| 14 |
86273850 |
Screw |
Buy Now |
| 15 |
86270830 |
Nut |
Buy Now |
| 16 |
86259410 |
Washer |
Buy Now |
| 17 |
86228990 |
Bushing |
Buy Now |
| 18 |
86228840 |
Bushing |
Buy Now |
| 19 |
86173340 |
Split Lock Washer |
Buy Now |
| 20 |
86010670 |
Washer |
Buy Now |
| 21 |
86008650 |
Cotter Ring Pin |
Buy Now |
| 22 |
86006250 |
Bolt |
Buy Now |

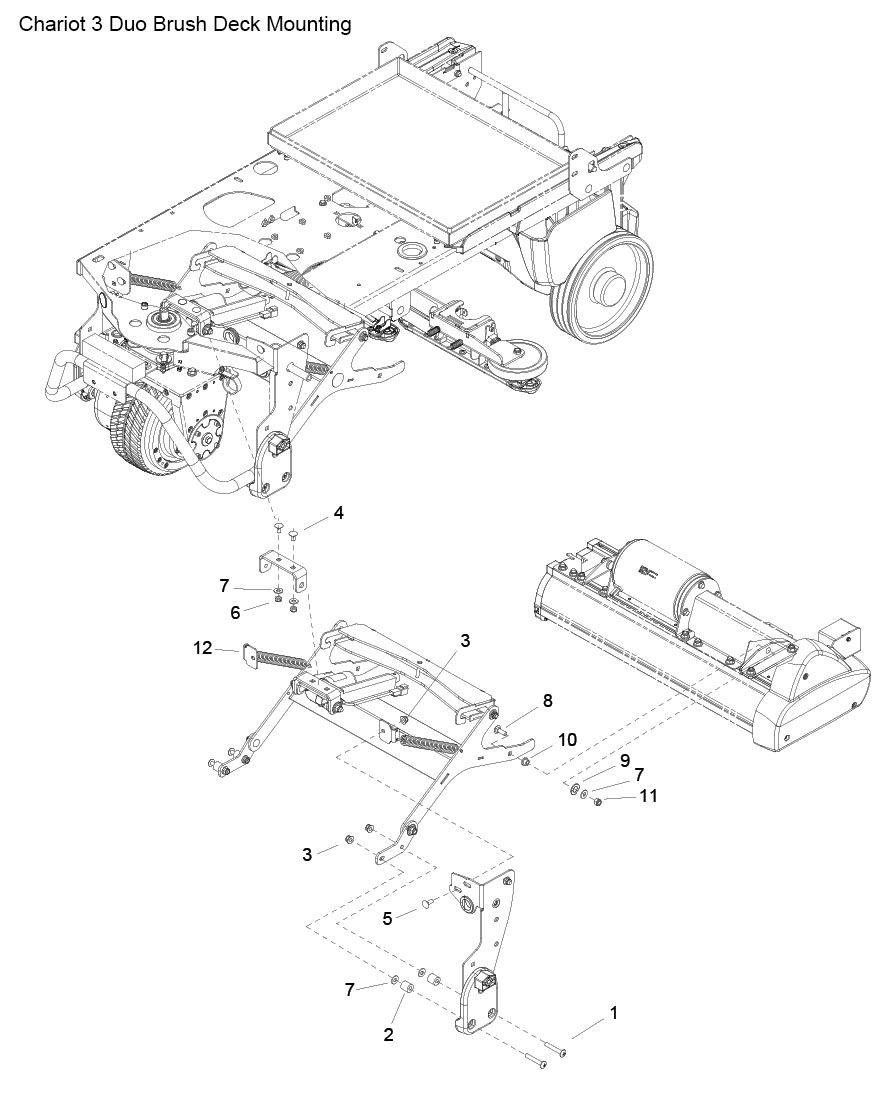

Brush Deck Mounting
Windsor Chariot 3 iExtract 26 Brush Deck Mounting

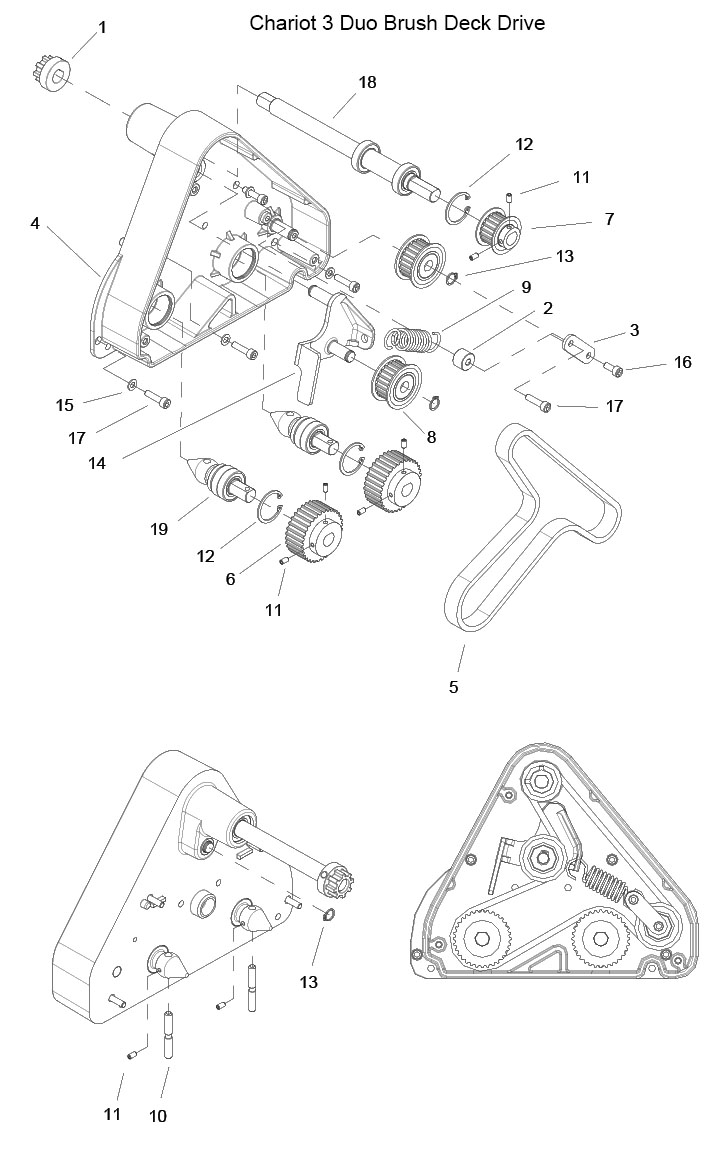

Brush Deck Drive
Windsor Chariot 3 iExtract 26 Brush Deck Drive

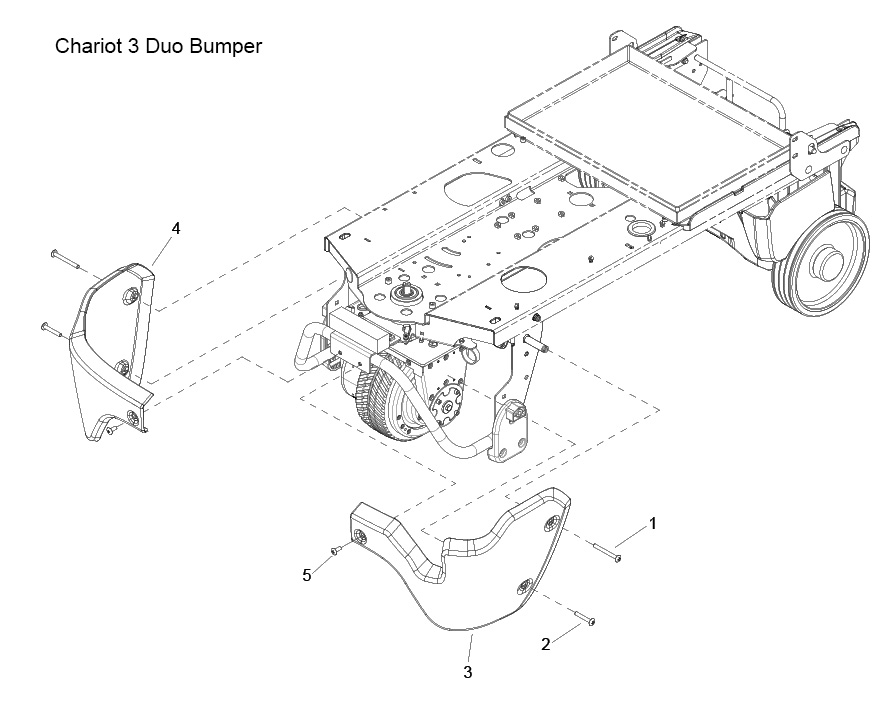

Bumper
Windsor Chariot 3 iExtract 26 Bumper
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86361960 |
Screw |
Buy Now |
| 2 |
86361950 |
Screw |
Buy Now |
| 3 |
86399650 |
Left Bumper |
Buy Now |
| 4 |
86399640 |
Right Bracket |
Buy Now |
| 5 |
86276890 |
Screw |
Buy Now |

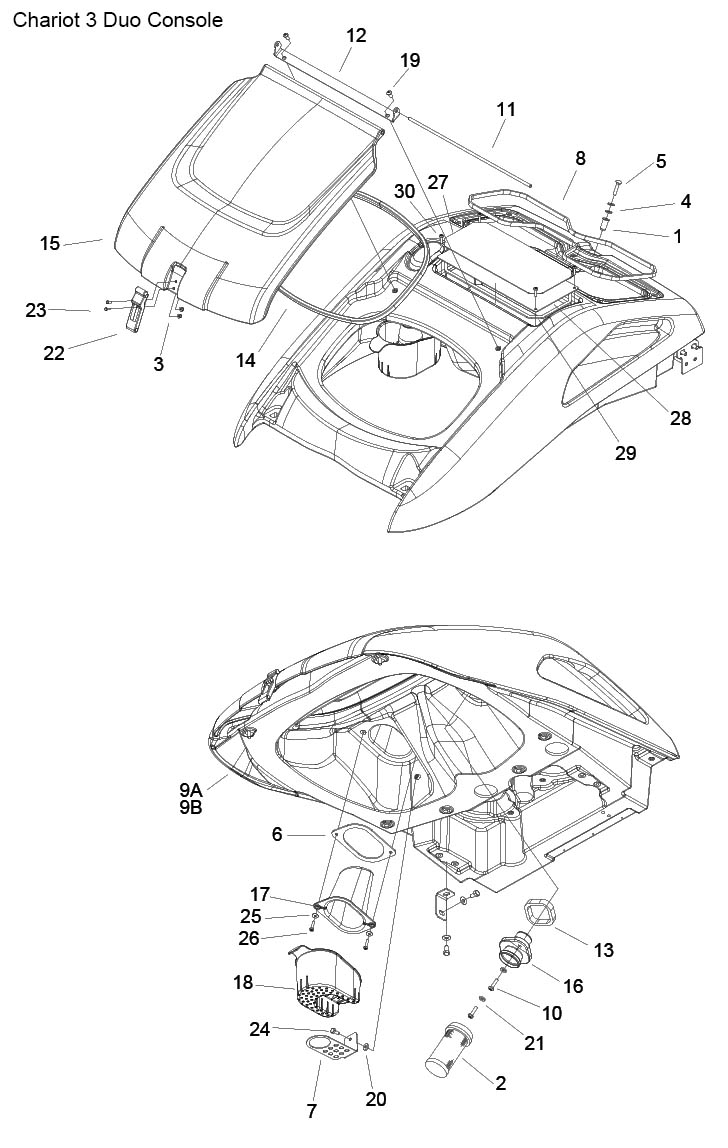

Console
Windsor Chariot 3 iExtract 26 Console
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86005620 |
Nut |
Buy Now |
| 2 |
86199840 |
Cage Float |
Buy Now |
| 3 |
86272020 |
Nut |
Buy Now |
| 4 |
86361770 |
Washer |
Buy Now |
| 5 |
86361760 |
Screw |
Buy Now |
| 6 |
86361410 |
Gasket |
Buy Now |
| 7 |
86360770 |
Recovery Tube Bracket |
Buy Now |
| 8 |
86360700 |
Gasket |
Buy Now |
| 9 |
86369060 |
Console |
Call to Order |
| 9 |
86399730 |
Console |
Call to Order |
| 10 |
86006530 |
Screw |
Buy Now |
| 11 |
86360260 |
Shaft |
Buy Now |
| 12 |
86360140 |
Lid Hinge Bracket |
Buy Now |
| 13 |
86359560 |
Gasket |
Buy Now |
| 14 |
86359220 |
Gasket Lid |
Buy Now |
| 15 |
86399930 |
Recovery Lid |
Buy Now |
| 16 |
86359090 |
Float Screen Adapter |
Buy Now |
| 17 |
86359050 |
Sight Class Dome |
Buy Now |
| 18 |
86359020 |
Recovery Tank Basket |
Buy Now |
| 19 |
86324210 |
Screw |
Buy Now |
| 20 |
86323300 |
Washer |
Call to Order |
| 21 |
86279610 |
Washer |
Buy Now |
| 22 |
86161800 |
Latch and Concealed Keeper |
Buy Now |
| 23 |
86277620 |
Screw |
Buy Now |
| 24 |
86273750 |
Screw |
Buy Now |
| 25 |
86010650 |
Washer |
Buy Now |
| 26 |
86329570 |
Screw |
Buy Now |
| 27 |
86371490 |
Console Pad |
Call to Order |
| 28 |
86374830 |
Steering Access Cover |
Call to Order |
| 29 |
86371500 |
Gasket |
Buy Now |
| 30 |
86371410 |
Screw |
Buy Now |

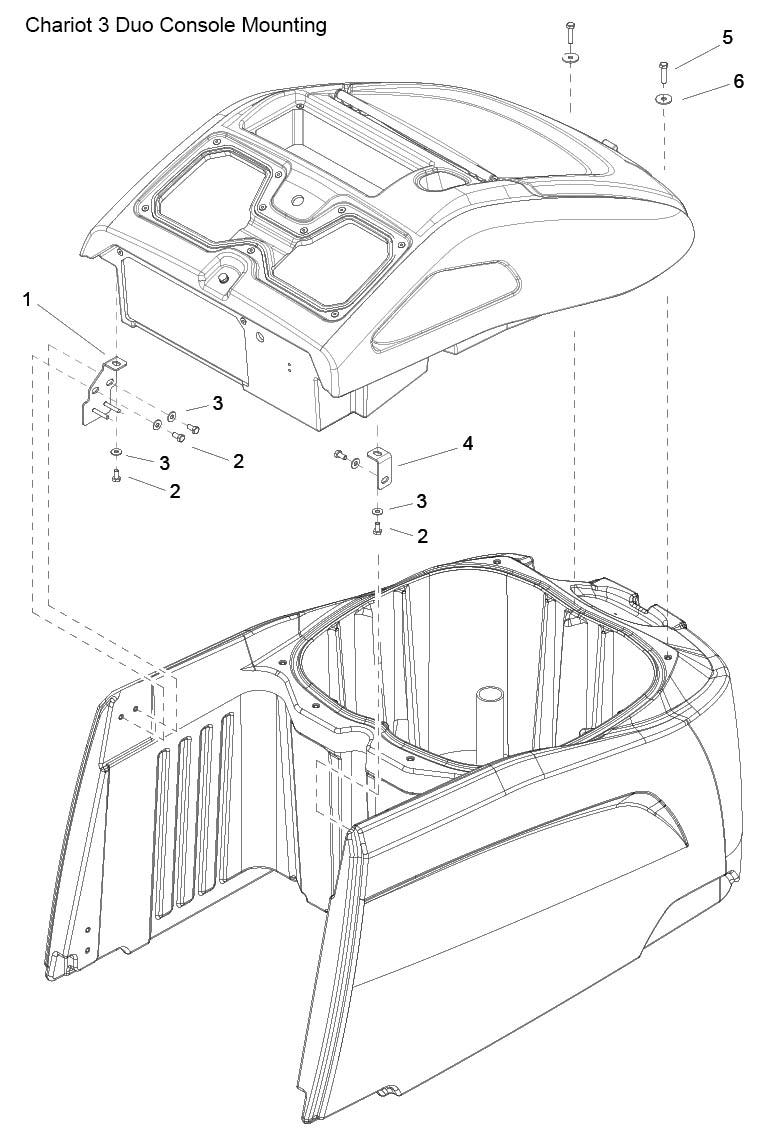

Console Mounting
Windsor Chariot 3 iExtract 26 Console Mounting

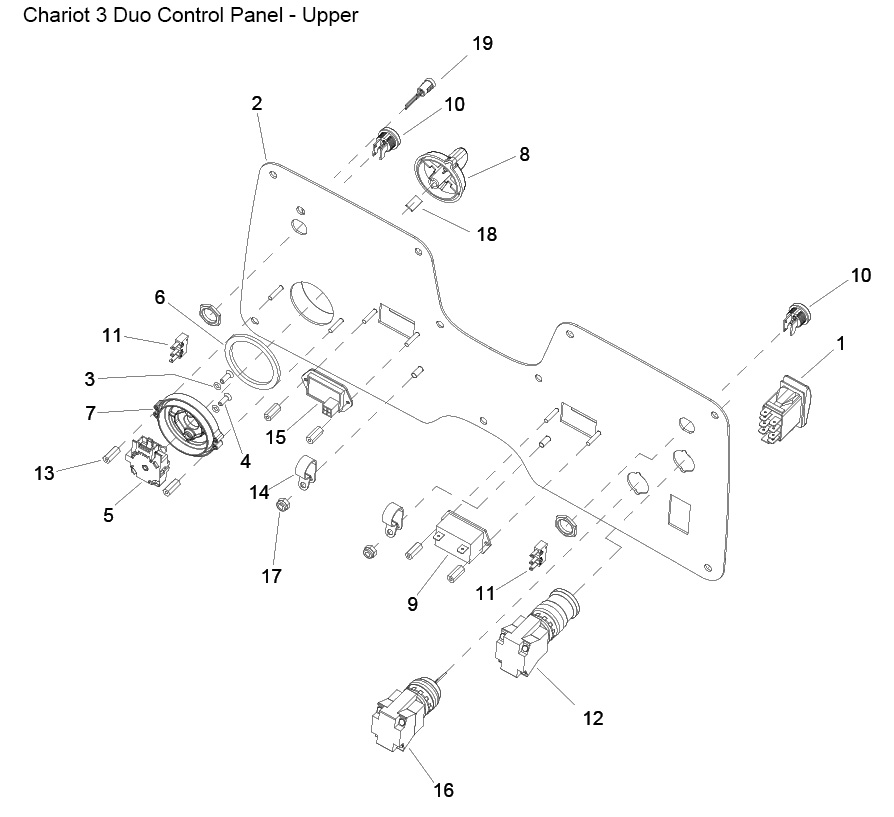

Control Panel - Upper
Windsor Chariot 3 iExtract 26 Control Panel - Upper
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86362590 |
Switch |
Buy Now |
| 2 |
86360690 |
Control Panel Upper |
Buy Now |
| 3 |
86358440 |
O-Ring |
Buy Now |
| 4 |
86358430 |
Screw |
Buy Now |
| 5 |
86354870 |
Rotary Switch |
Buy Now |
| 6 |
86354810 |
Rotary Switch Gasket |
Buy Now |
| 7 |
86354560 |
Rotary Switch Bezel |
Buy Now |
| 8 |
53217380 |
Handhold Operational Concept |
Buy Now |
| 9 |
86315470 |
Meter |
Buy Now |
| 10 |
86295200 |
Button Assembly |
Buy Now |
| 11 |
86292780 |
Micro Switch |
Buy Now |
| 12 |
86292590 |
Switch |
Buy Now |
| 13 |
86255900 |
Distance Pin |
Buy Now |
| 14 |
86198460 |
Clamp |
Call to Order |
| 15 |
86428520 |
Meter Battery |
Call to Order |
| 15 |
86012670 |
Meter Battery |
Buy Now |
| 16 |
86007190 |
Ignition Lock |
Buy Now |
| 17 |
86005640 |
Nut |
Buy Now |
| 18 |
63130140 |
Spring Element |
Buy Now |
| 19 |
86367100 |
Water Indicator LED |
Buy Now |
| 20 |
46830270 |
Fleet Management Module |
Call to Order |
| 21 |
66820170 |
Antenna Fleet Management |
Buy Now |
| 22 |
46832100 |
Fleet Controller |
Buy Now |

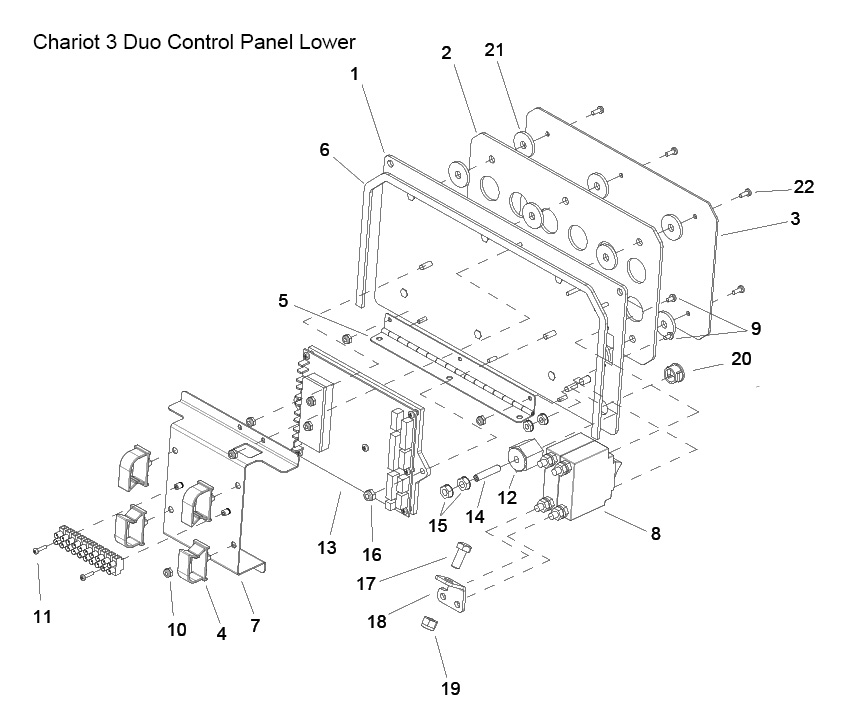

Control Panel - Lower
Windsor Chariot 3 iExtract 26 Control Panel - Lower
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86401370 |
Controller Panel |
Call to Order |
| 1 |
86428580 |
Panel Lower |
Call to Order |
| 2 |
86428590 |
Lithium Plate |
Call to Order |
| 2 |
86400700 |
Heatsink Plate |
Call to Order |
| 3 |
86428600 |
Rear Console Plate |
Call to Order |
| 3 |
86401380 |
Rear Console Plate |
Call to Order |
| 4 |
86361520 |
Cable Entry Clip |
Buy Now |
| 5 |
86361420 |
Panel Hinge |
Call to Order |
| 6 |
86360890 |
Gasket |
Buy Now |
| 7 |
86360880 |
Control Board Cover |
Buy Now |
| 8 |
86369020 |
Breaker |
Buy Now |
| 9 |
86006620 |
Screw |
Buy Now |
| 10 |
86270920 |
Nut |
Buy Now |
| 11 |
86275260 |
Screw |
Buy Now |
| 12 |
86255910 |
Standoff |
Buy Now |
| 14 |
86006850 |
Screw |
Buy Now |
| 15 |
86005710 |
Nut |
Buy Now |
| 16 |
86005640 |
Nut |
Buy Now |
| 17 |
86006760 |
Screw |
Buy Now |
| 18 |
86369480 |
Cable Attachment Bracket |
Buy Now |
| 19 |
86271910 |
Nut |
Buy Now |
| 20 |
86250190 |
Plug |
Call to Order |
| 21 |
86400690 |
Spacer |
Buy Now |
| 22 |
86273990 |
Screw |
Buy Now |
| 23 |
86416720 |
Kit |
Buy Now |

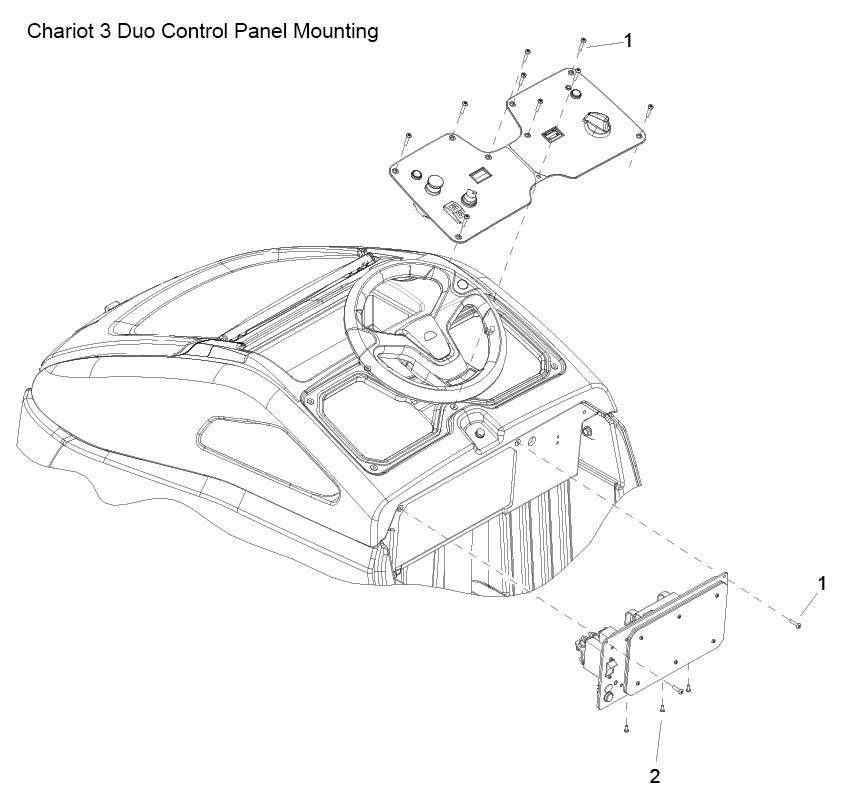

Control Panel - Mounting
Windsor Chariot 3 iExtract 26 Control Panel - Mounting
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86371410 |
Screw |
Buy Now |
| 2 |
86172980 |
Screw |
Buy Now |

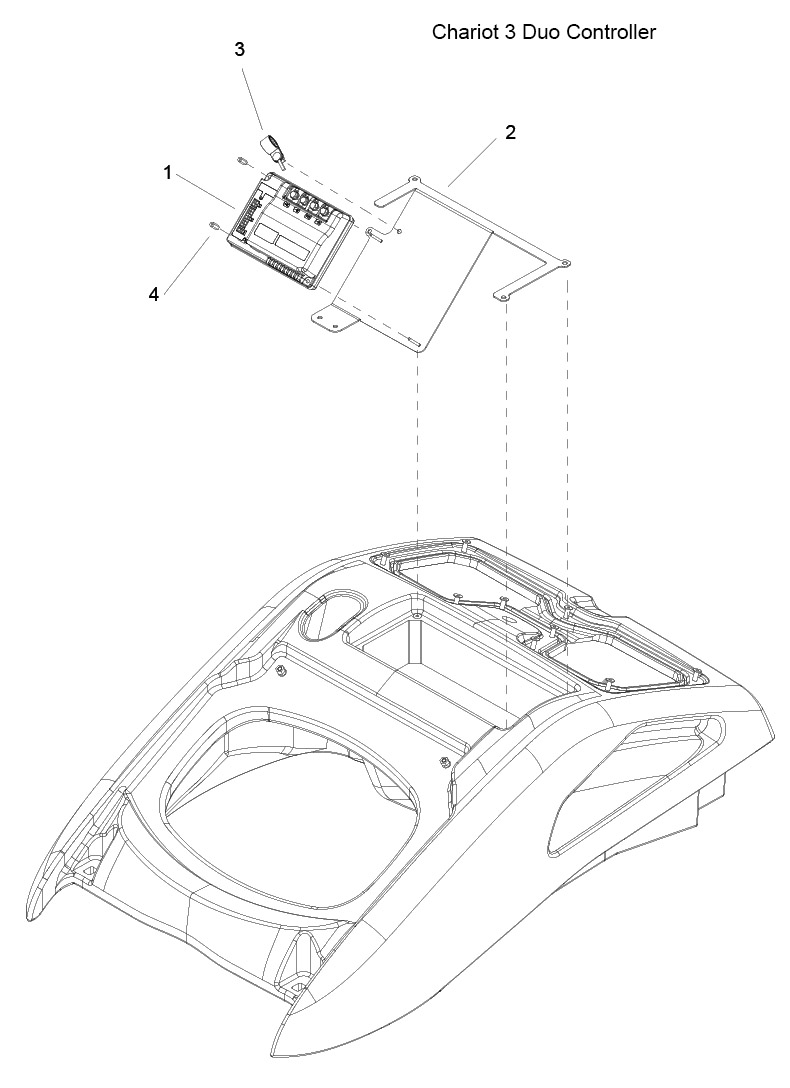

Controller
Windsor Chariot 3 iExtract 26 Controller
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86428440 |
Controller |
Call to Order |
| 1 |
86400170 |
36V Controller |
Buy Now |
| 2 |
86401450 |
Bracket |
Call to Order |
| 3 |
86361230 |
Clamp |
Call to Order |
| 4 |
86255900 |
Distance Pin |
Buy Now |

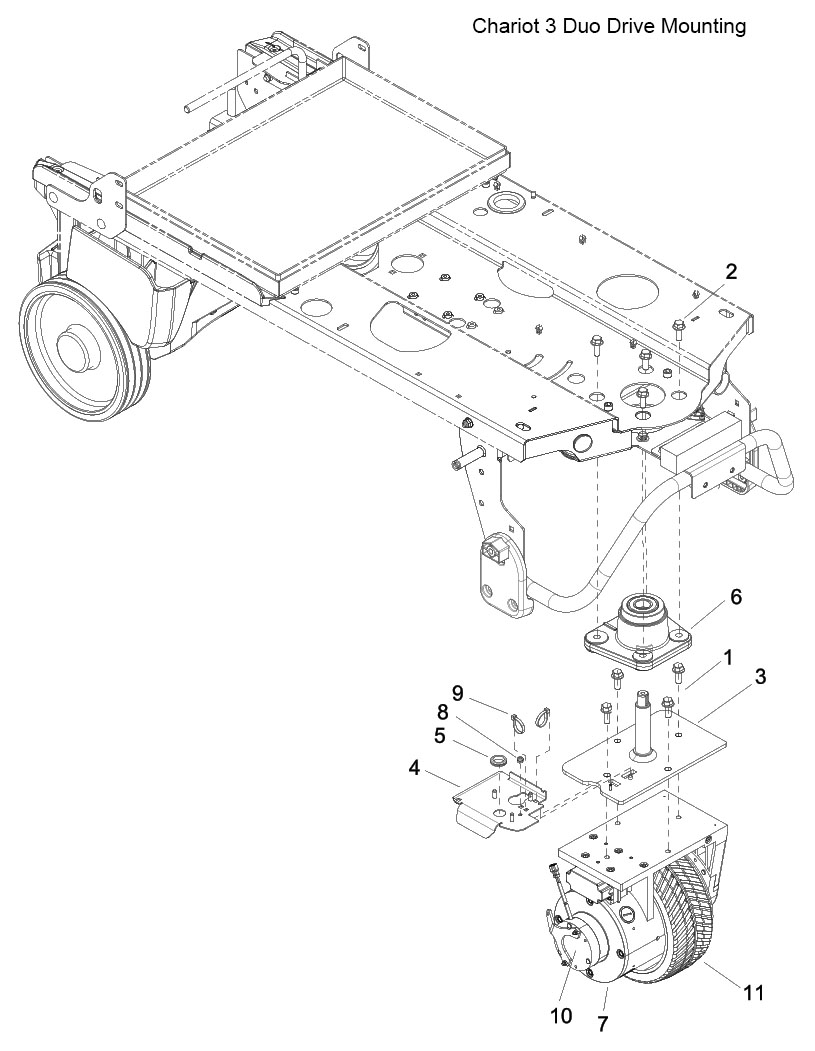

Drive Mounting
Windsor Chariot 3 iExtract 26 Drive Mounting
| Reference # |
Part # |
Description |
Add to Cart |
| - |
66132310 |
Carbon Brush Set |
Buy Now |
| 1 |
86366140 |
Screw |
Buy Now |
| 2 |
86366130 |
Screw |
Call to Order |
| 3 |
86364130 |
Shaft Assembly |
Buy Now |
| 4 |
86361070 |
Bracket |
Call to Order |
| 5 |
86218360 |
Grommet |
Buy Now |
| 6 |
86357870 |
Bearing Block Assembly |
Buy Now |
| 7 |
86357120 |
Drive Wheel |
Buy Now |
| 8 |
86270990 |
Nut |
Buy Now |
| 9 |
86264940 |
Cable Tie |
Buy Now |
| 10 |
86357130 |
Brake |
Buy Now |
| 11 |
64358540 |
Tire Wheel Drive Motor |
Buy Now |
| 12 |
86426030 |
O-Ring |
Call to Order |

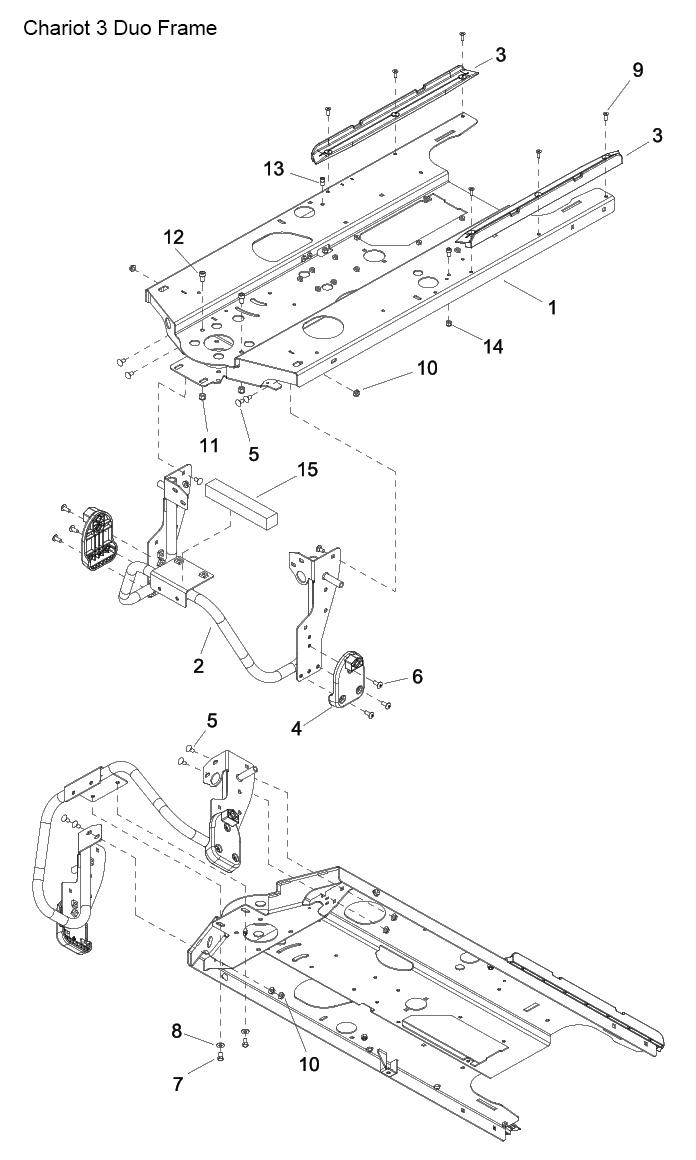

Frame
Windsor Chariot 3 iExtract 26 Frame
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86360820 |
Main Support Assembly |
Call to Order |
| 2 |
86360710 |
Wheel Guard Assembly |
Buy Now |
| 3 |
86358190 |
Battery Tray Glide |
Buy Now |
| 4 |
86357950 |
Tip Pad |
Buy Now |
| 5 |
86277410 |
Screw |
Buy Now |
| 6 |
86276890 |
Screw |
Buy Now |
| 7 |
86276490 |
Screw |
Buy Now |
| 8 |
86010670 |
Washer |
Buy Now |
| 9 |
86400810 |
Screw |
Buy Now |
| 10 |
86368240 |
Nut |
Buy Now |
| 11 |
86361210 |
Screw |
Buy Now |
| 12 |
86005770 |
Nut |
Buy Now |
| 13 |
86006640 |
Screw |
Call to Order |
| 14 |
86270830 |
Nut |
Buy Now |
| 15 |
86368730 |
Foam |
Buy Now |

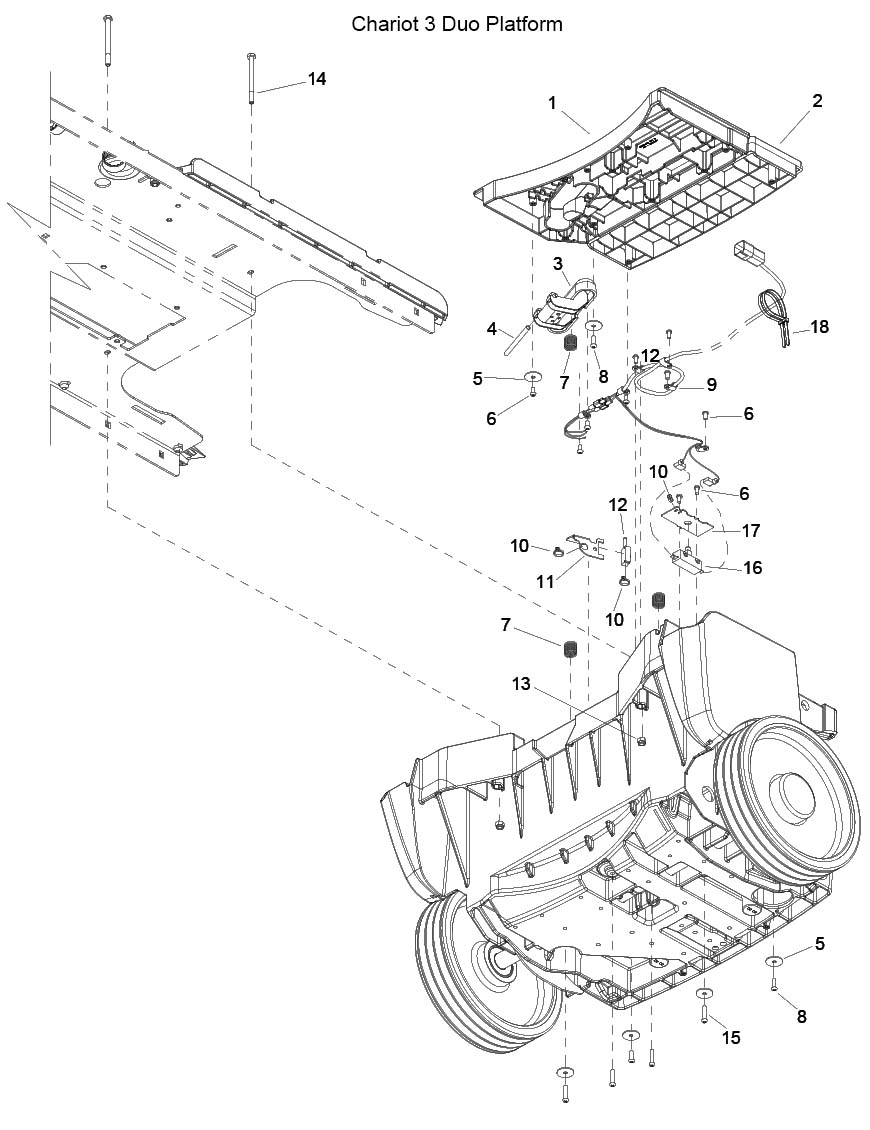

Platform
Windsor Chariot 3 iExtract 26 Platform

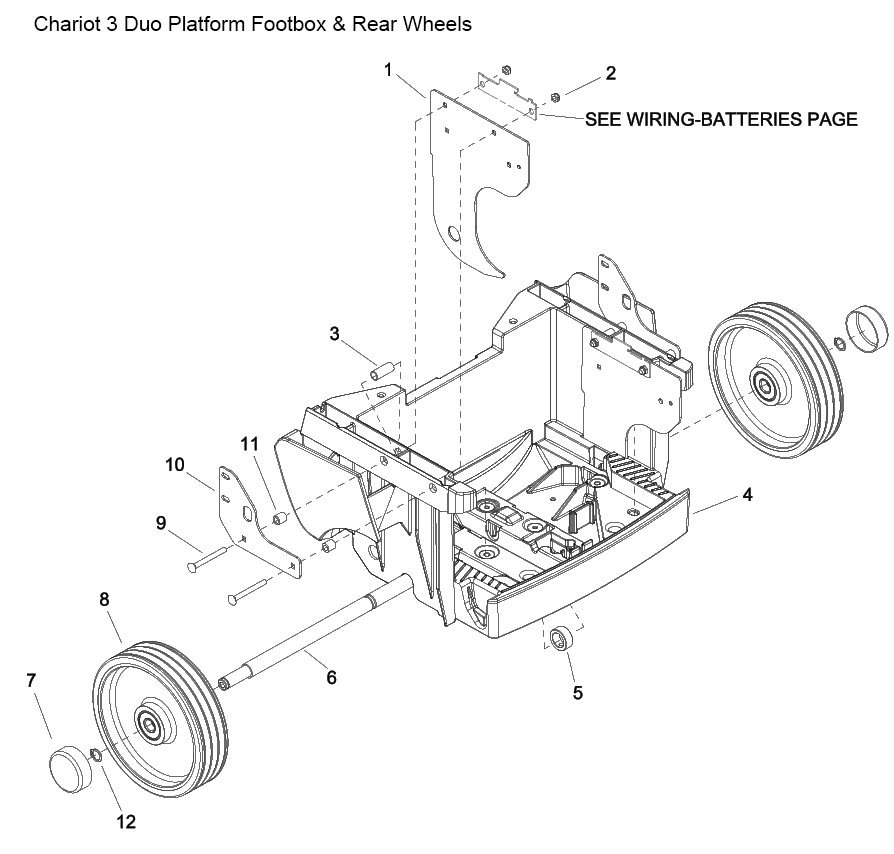

Platform Footbox and Rear Wheels
Windsor Chariot 3 iExtract 26 Platform Footbox and Rear Wheels
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86361130 |
Platform Support Plate |
Call to Order |
| 2 |
86271840 |
Nylock Nut |
Buy Now |
| 3 |
86361140 |
Spacer |
Call to Order |
| 4 |
86399620 |
Operator Platform Footbox |
Buy Now |
| 5 |
86361120 |
Collar |
Buy Now |
| 6 |
86357990 |
Rear Axle |
Buy Now |
| 7 |
86232130 |
Cap |
Buy Now |
| 8 |
86335520 |
Wheel |
Buy Now |
| 9 |
86326490 |
Screw |
Buy Now |
| 10 |
86361150 |
Tank Support Plate |
Call to Order |
| 11 |
86224320 |
Spacer Washer |
Buy Now |
| 12 |
86008710 |
Washer |
Buy Now |

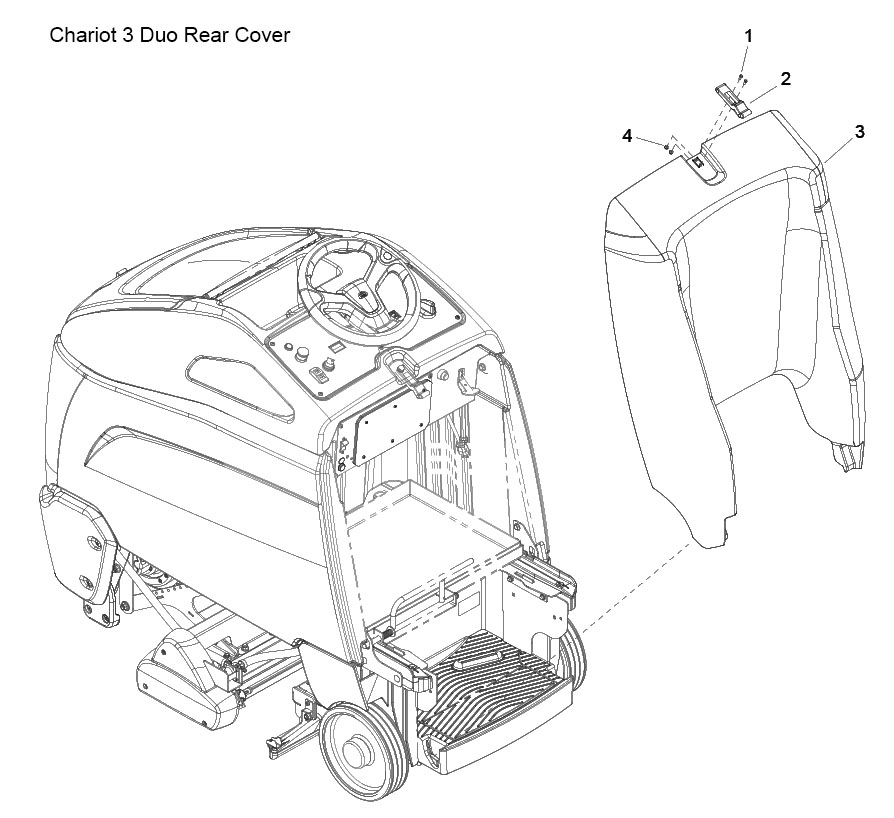

Rear Cover
Windsor Chariot 3 iExtract 26 Rear Cover
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86277620 |
Screw |
Buy Now |
| 2 |
86161800 |
Snap Fastener |
Buy Now |
| 3 |
86399960 |
Rear Cover Panel |
Buy Now |
| 4 |
86272020 |
Nylock Nut |
Buy Now |

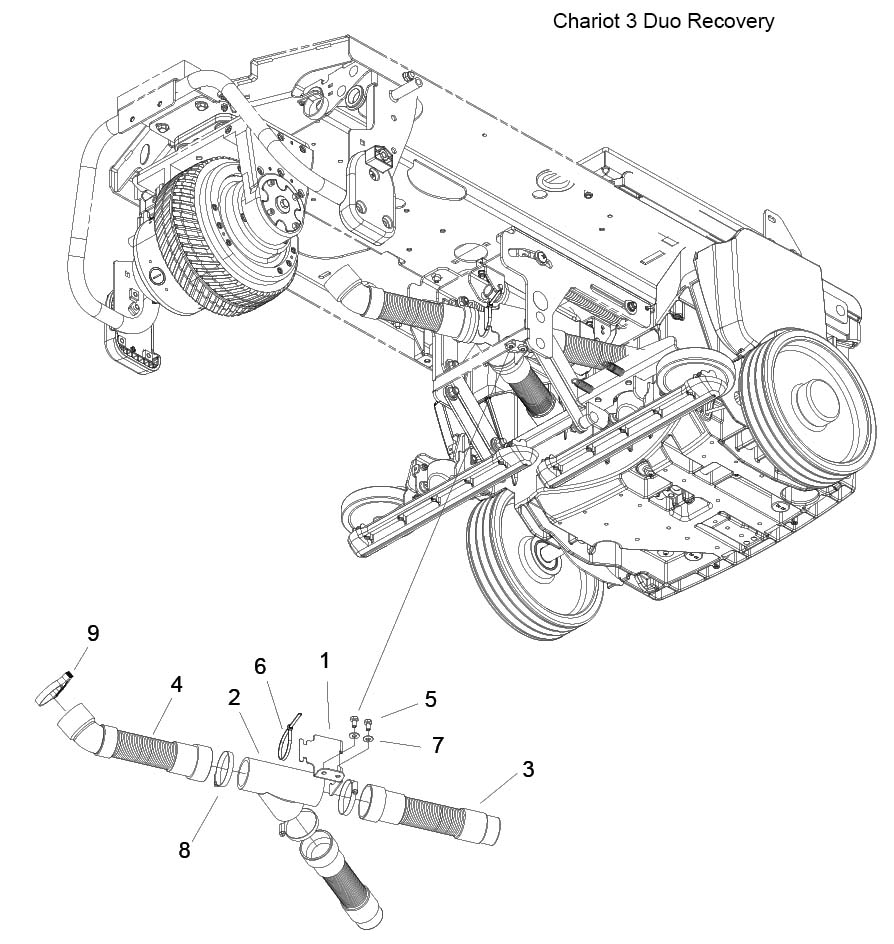

Recovery
Windsor Chariot 3 iExtract 26 Recovery

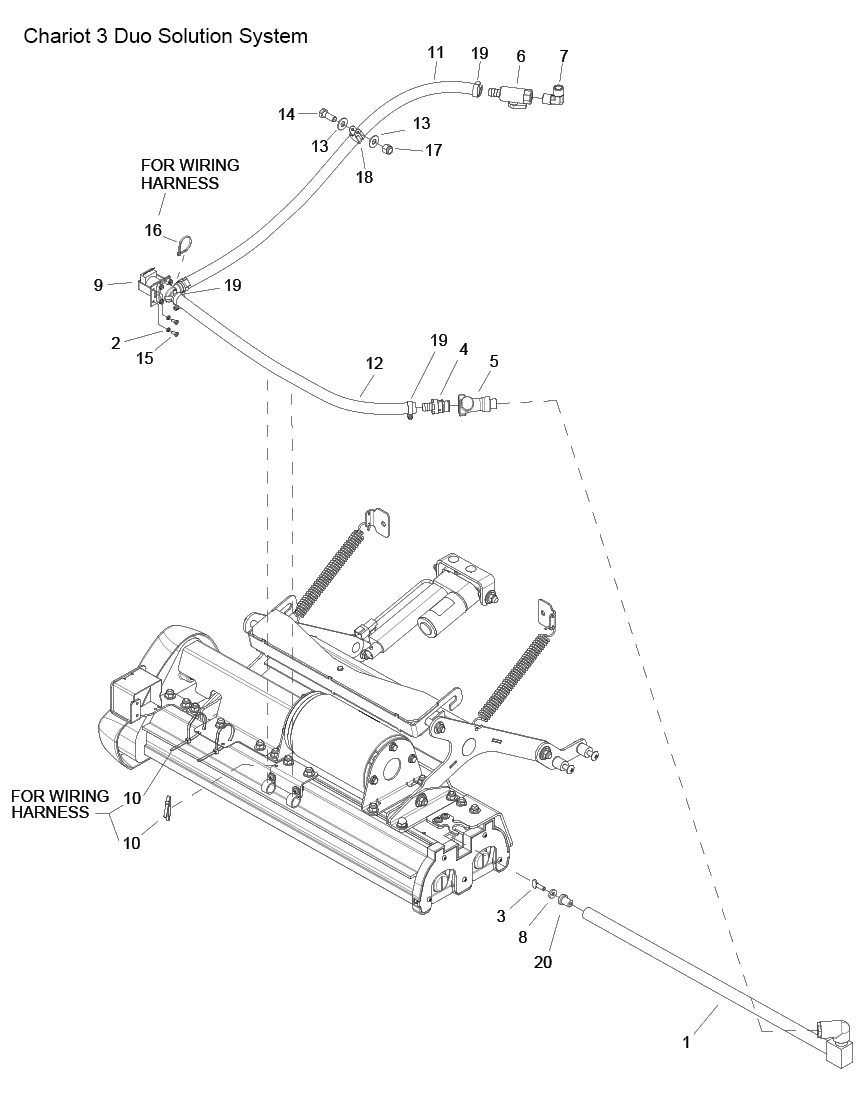

Solution System
Windsor Chariot 3 iExtract 26 Solution System
Steering
Windsor Chariot 3 iExtract 26 Steering

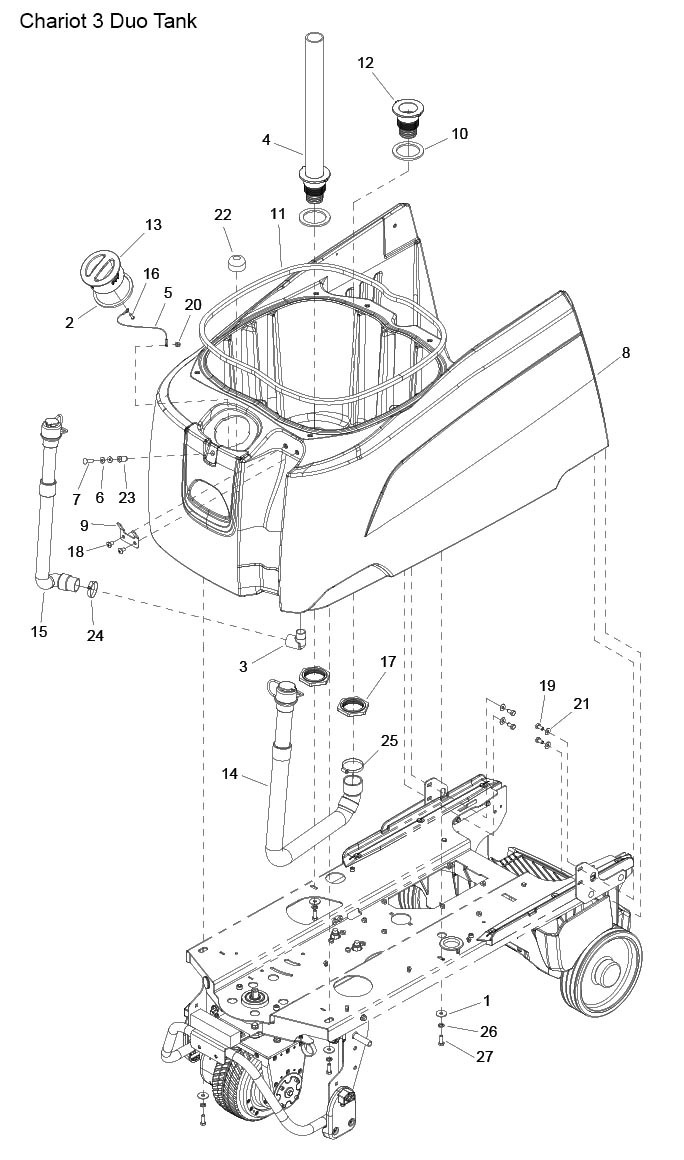

Tank
Windsor Chariot 3 iExtract 26 Tank

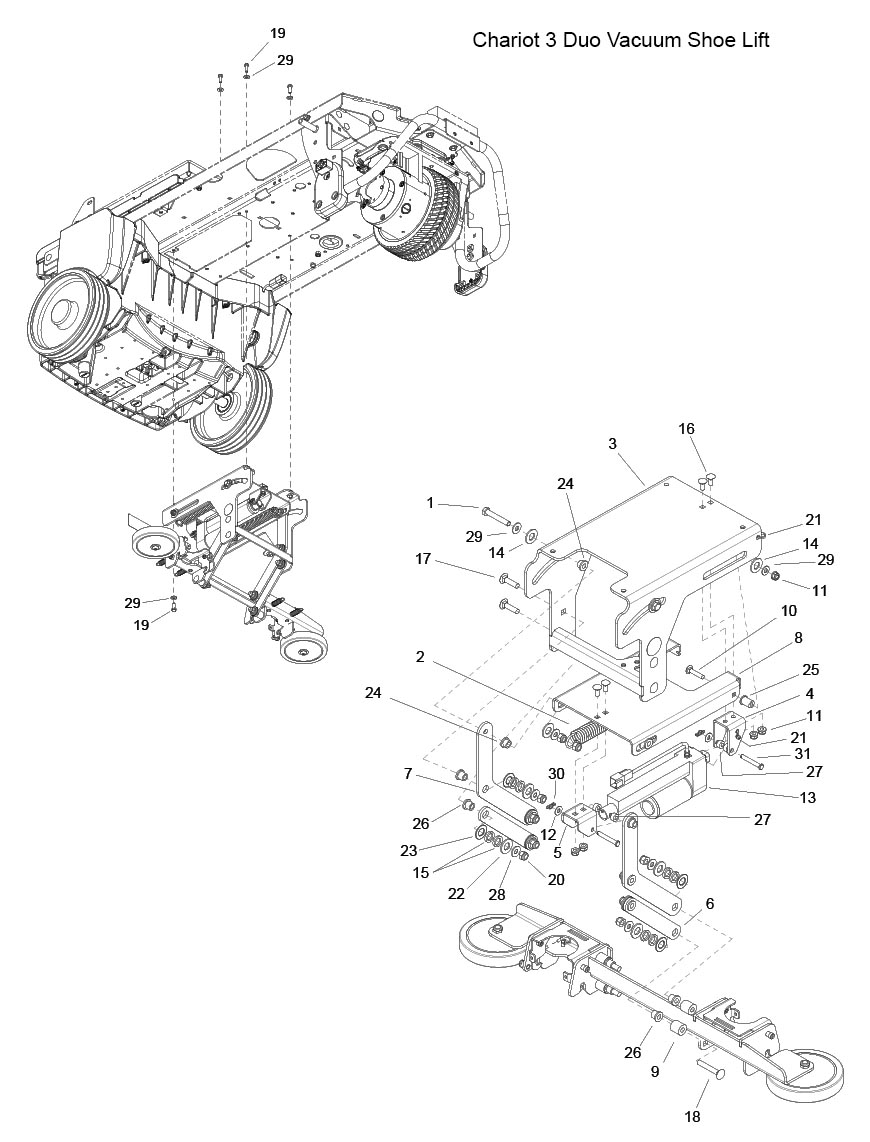

Vacuum Shoe Lift
Windsor Chariot 3 iExtract 26 Vacuum Shoe Lift 2
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86373600 |
Screw |
Call to Order |
| 2 |
86372090 |
Spring |
Buy Now |
| 3 |
86371660 |
Lift Mount Bracket |
Call to Order |
| 4 |
86371640 |
Rear Bracket |
Buy Now |
| 5 |
86371630 |
Front Bracket |
Call to Order |
| 6 |
86371620 |
Lift Link Plate |
Buy Now |
| 7 |
86371610 |
Lift Arm Plate |
Buy Now |
| 8 |
86371600 |
Spring Carriage Bracket |
Call to Order |
| 9 |
86370120 |
Spacer |
Buy Now |
| 10 |
86361760 |
Screw |
Buy Now |
| 11 |
86360310 |
Nut |
Buy Now |
| 12 |
86351350 |
Washer |
Buy Now |
| 13 |
86320880 |
Actuator |
Buy Now |
| 14 |
86279380 |
Washer |
Buy Now |
| 15 |
86279350 |
Washer |
Buy Now |
| 16 |
86277500 |
Screw |
Call to Order |
| 17 |
86277030 |
Screw |
Buy Now |
| 18 |
86276710 |
Screw |
Buy Now |
| 19 |
86273780 |
Screw |
Buy Now |
| 20 |
86270830 |
Nut |
Buy Now |
| 21 |
86264930 |
Cable Tie |
Buy Now |
| 22 |
86259420 |
Washer |
Buy Now |
| 23 |
86259410 |
Washer |
Buy Now |
| 24 |
86228990 |
Bushing |
Buy Now |
| 25 |
86228900 |
Bushing |
Buy Now |
| 26 |
86228840 |
Bushing |
Buy Now |
| 27 |
86201510 |
Washer |
Call to Order |
| 28 |
86010670 |
Washer |
Buy Now |
| 29 |
86010630 |
Washer |
Buy Now |
| 30 |
86008650 |
Cotter Ring Pin |
Buy Now |
| 31 |
86006250 |
Bolt |
Buy Now |

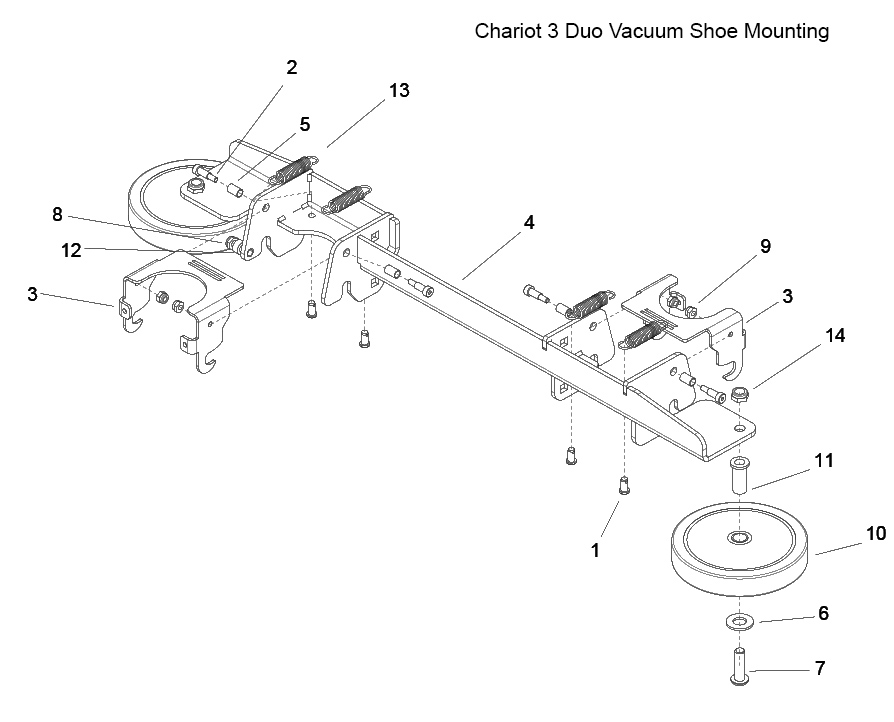

Vacuum Shoe Mounting
Windsor Chariot 3 iExtract 26 Vacuum Shoe Mounting
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86374370 |
Clevis Pin |
Call to Order |
| 2 |
86373620 |
Shoulder Bolt |
Call to Order |
| 3 |
86371820 |
Vac Shoe Latch Bracket |
Call to Order |
| 4 |
86371810 |
Vac Shoe Mount Bracket |
Buy Now |
| 5 |
86346600 |
Spacer |
Call to Order |
| 6 |
86279380 |
Washer |
Buy Now |
| 7 |
86276860 |
Screw |
Buy Now |
| 8 |
86271870 |
Nut |
Buy Now |
| 9 |
86271770 |
Nut |
Buy Now |
| 10 |
86259770 |
Wheel |
Buy Now |
| 11 |
86228910 |
Bushing |
Buy Now |
| 12 |
86201510 |
Washer |
Call to Order |
| 13 |
86007690 |
Spring |
Buy Now |
| 14 |
86005630 |
Nut |
Buy Now |
Vacuum Shoe
Windsor Chariot 3 iExtract 26 Vacuum Shoe

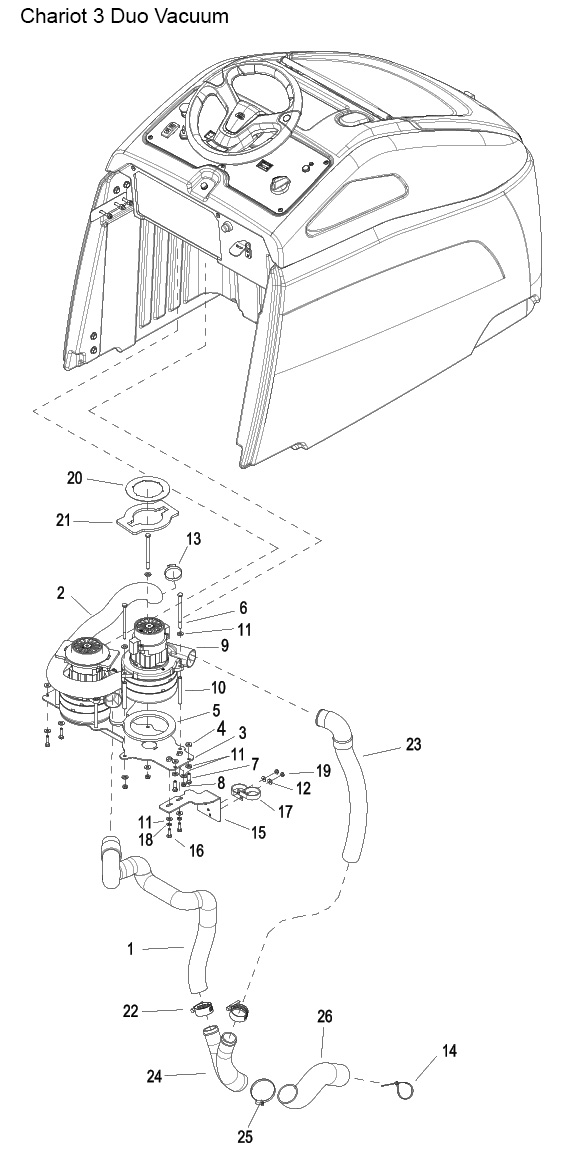

Vacuum
Windsor Chariot 3 iExtract 26 Vacuum
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86371470 |
Hose Assembly |
Buy Now |
| 2 |
86371460 |
Hose |
Buy Now |
| 3 |
86369990 |
Dual Vac Motor Mount |
Call to Order |
| 4 |
86323300 |
Washer |
Call to Order |
| 5 |
86312920 |
Vac Motor Gasket |
Buy Now |
| 6 |
86276720 |
Screw |
Call to Order |
| 7 |
86273810 |
Screw |
Buy Now |
| 8 |
86005680 |
Nut |
Buy Now |
| 9 |
86258480 |
Vac Motor |
Buy Now |
| 10 |
86201950 |
Vac Spacer |
Call to Order |
| 11 |
86010630 |
Washer |
Buy Now |
| 12 |
86010650 |
Washer |
Buy Now |
| 13 |
86002390 |
Clamp |
Buy Now |
| 14 |
86264940 |
Cable Tie |
Buy Now |
| 15 |
86375980 |
Hose Bracket |
Call to Order |
| 16 |
86273780 |
Screw |
Buy Now |
| 17 |
86326270 |
Clamp |
Buy Now |
| 18 |
86173340 |
Washer |
Buy Now |
| 19 |
86271900 |
Nut |
Buy Now |
| 20 |
86378690 |
Retaining Ring |
Buy Now |
| 21 |
86378530 |
Vac Motor Cover Gasket |
Buy Now |
| 22 |
86177050 |
Hose Clamp |
Buy Now |
| 23 |
86004420 |
Hose Assembly |
Buy Now |
| 24 |
86059670 |
Adapter Fitting |
Buy Now |
| 25 |
86233430 |
Clamp Worm Gearing |
Buy Now |
| 26 |
86240050 |
Hose |
Buy Now |

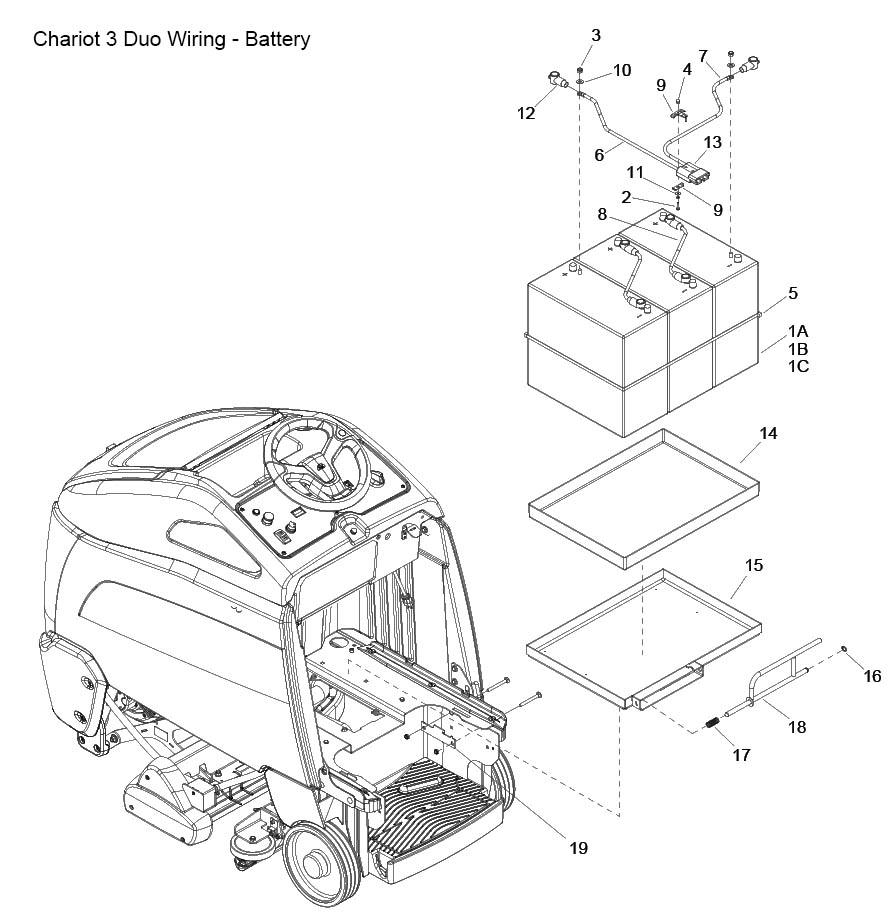

Wiring Batteries
Windsor Chariot 3 iExtract 26 Wiring Batteries

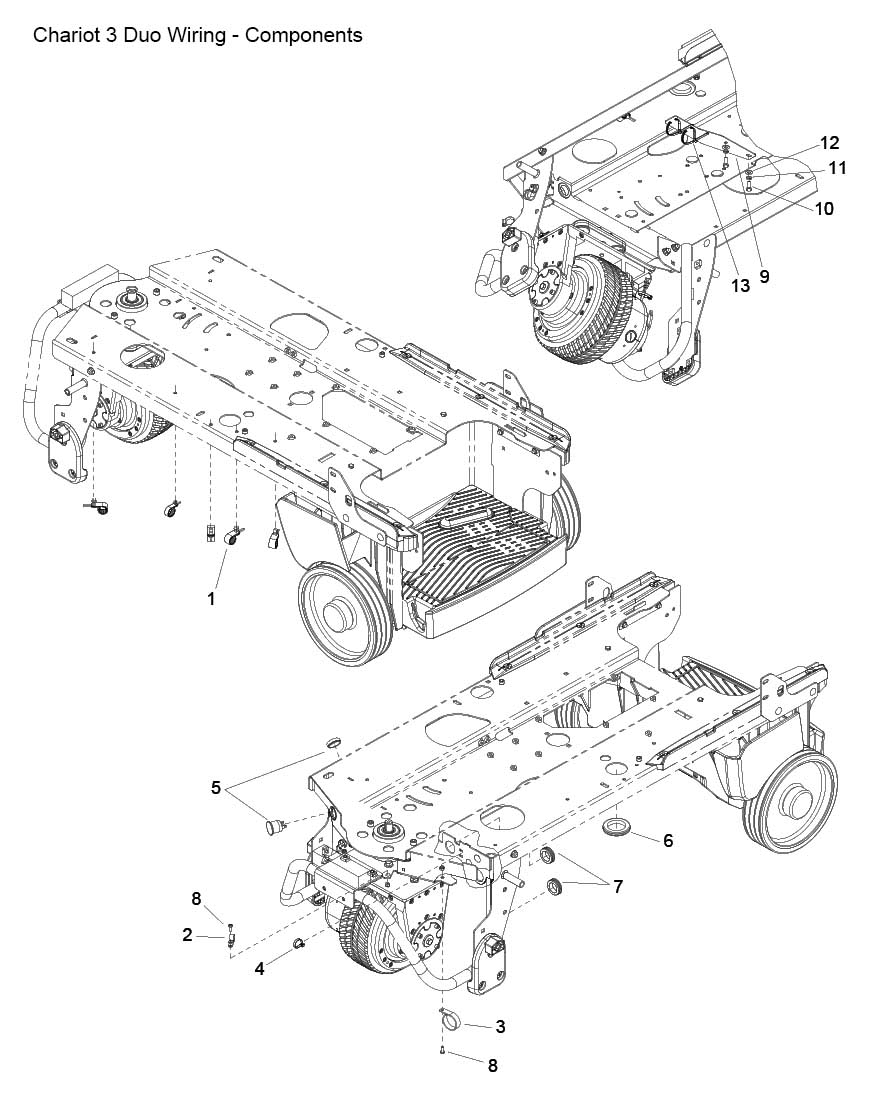

Wiring Components
Windsor Chariot 3 iExtract 26 Wiring Components
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86361230 |
Clamp |
Call to Order |
| 2 |
86198460 |
Clamp |
Call to Order |
| 3 |
86326270 |
Clamp |
Buy Now |
| 4 |
86264940 |
Cable Tie |
Buy Now |
| 5 |
86239720 |
Horn |
Buy Now |
| 6 |
86238500 |
Grommet |
Call to Order |
| 7 |
86238430 |
Grommet |
Buy Now |
| 8 |
86006980 |
Screw |
Buy Now |
| 9 |
86372260 |
Cable Tie Bracket |
Call to Order |
| 10 |
86273780 |
Screw |
Buy Now |
| 11 |
86173340 |
Washer |
Buy Now |
| 12 |
86010630 |
Washer |
Buy Now |
| 13 |
86264920 |
Cable Tie |
Buy Now |

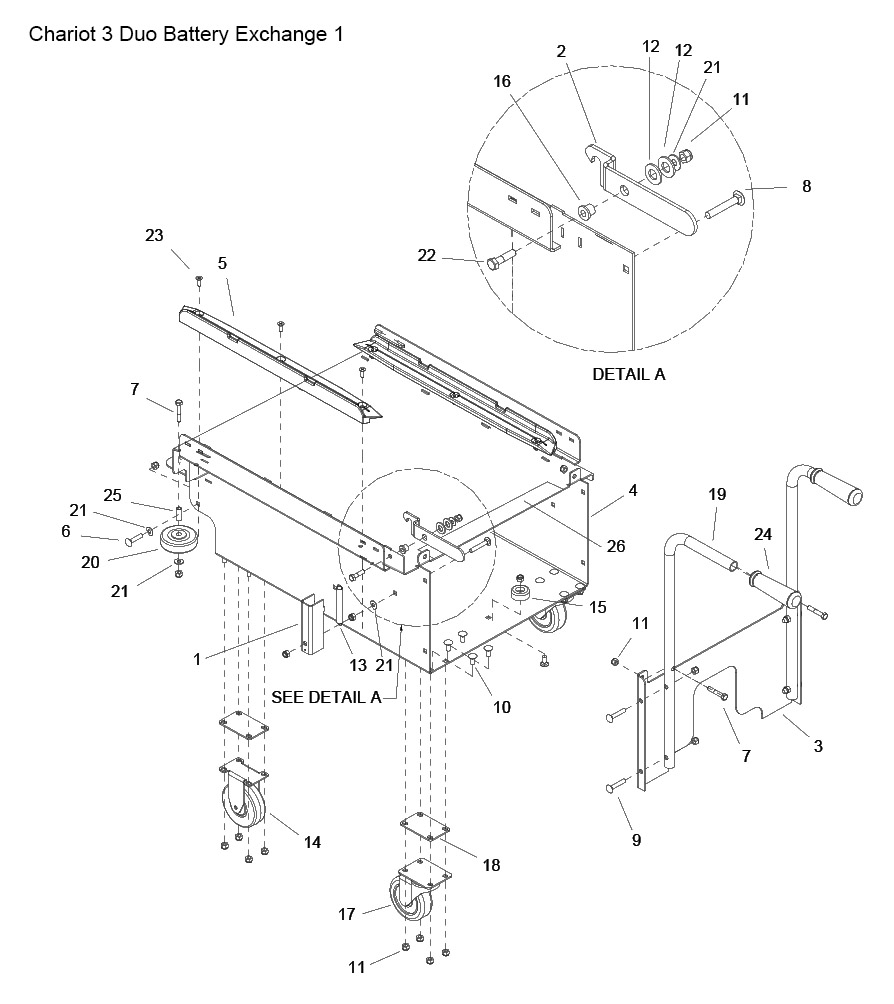

Battery Exchange 1
Windsor Chariot 3 iExtract 26 Battery Exchange 1
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86359450 |
Spring Cover Bracket |
Call to Order |
| 2 |
86359400 |
Tray Catch Bracket |
Call to Order |
| 3 |
86359390 |
Back Cart Bracket |
Call to Order |
| 4 |
86359380 |
Battery Cart Frame Assembly |
Call to Order |
| 5 |
86358190 |
Battery Tray Glide |
Buy Now |
| 6 |
86277470 |
Screw |
Buy Now |
| 7 |
86276790 |
Screw |
Buy Now |
| 8 |
86276710 |
Screw |
Buy Now |
| 9 |
86276690 |
Screw |
Buy Now |
| 10 |
86276070 |
Screw |
Buy Now |
| 11 |
86270830 |
Nut |
Buy Now |
| 12 |
86259420 |
Washer |
Buy Now |
| 13 |
86254890 |
Spring External |
Buy Now |
| 14 |
86232590 |
Caster |
Buy Now |
| 15 |
86231090 |
Rubber Bumper |
Buy Now |
| 16 |
86228840 |
Bushing |
Buy Now |
| 17 |
86199430 |
Caster Swivel |
Buy Now |
| 18 |
86078890 |
Caster Spacer Plate |
Call to Order |
| 19 |
86076600 |
Battery Cart Handle |
Call to Order |
| 20 |
86011020 |
Wheel |
Buy Now |
| 21 |
86010670 |
Washer |
Buy Now |
| 22 |
86007020 |
Screw |
Buy Now |
| 23 |
86400810 |
Screw |
Buy Now |
| 24 |
86004070 |
Polisher Handle Grip |
Buy Now |
| 25 |
86001350 |
Bushing Spanner |
Buy Now |
| 26 |
86244280 |
Battery Cart Operation Label |
Call to Order |

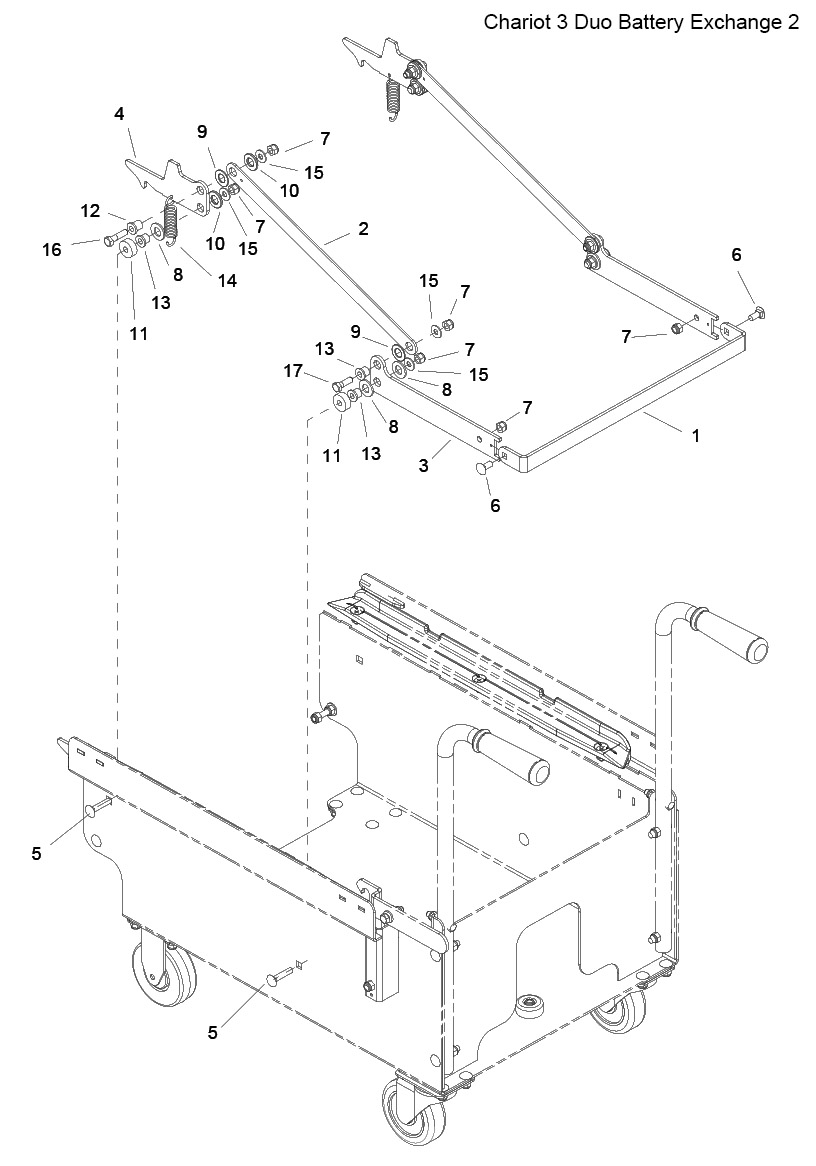

Battery Exchange 2
Windsor Chariot 3 iExtract 26 Battery Exhange 2
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86359440 |
Pedal Cart Bracket |
Call to Order |
| 2 |
86359430 |
Latch Link Cart Plate |
Call to Order |
| 3 |
86359420 |
Pedal Link Cart Plate |
Call to Order |
| 4 |
86359410 |
Latch Cart Plate |
Call to Order |
| 5 |
86277470 |
Screw |
Buy Now |
| 6 |
86276070 |
Screw |
Buy Now |
| 7 |
86270830 |
Nut |
Buy Now |
| 8 |
86259420 |
Washer |
Buy Now |
| 9 |
86259410 |
Washer |
Buy Now |
| 10 |
86259400 |
Washer |
Buy Now |
| 11 |
86254280 |
Washer |
Buy Now |
| 12 |
86231150 |
Bushing |
Buy Now |
| 13 |
86228840 |
Bushing |
Buy Now |
| 14 |
86226830 |
Spring External |
Buy Now |
| 15 |
86010670 |
Washer |
Buy Now |
| 16 |
86007020 |
Screw |
Buy Now |
| 17 |
86006560 |
Screw |
Buy Now |

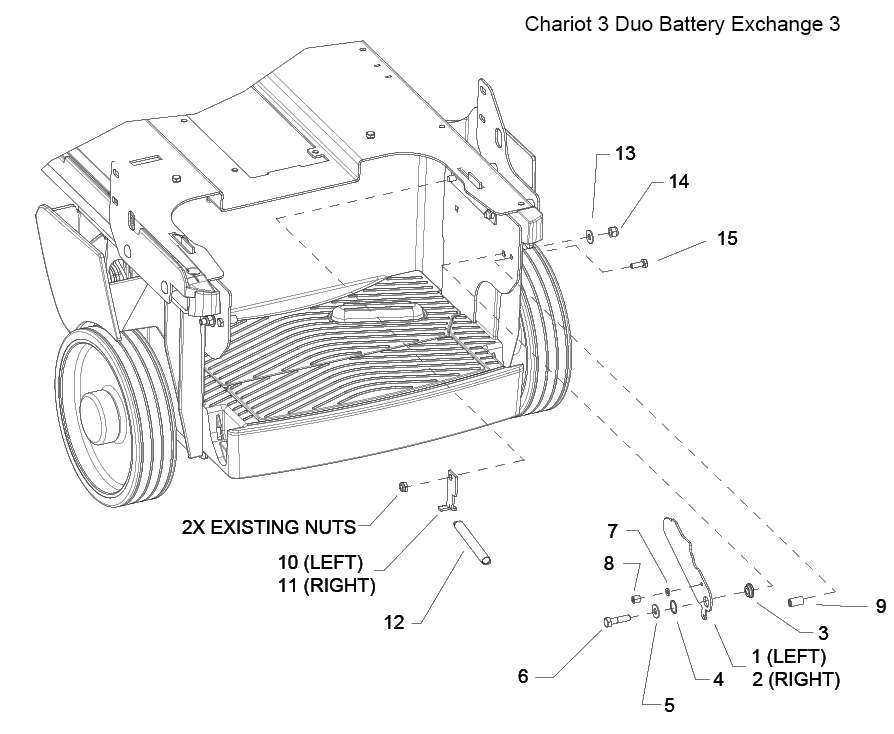

Battery Exchange 3
Windsor Chariot 3 iExtract 26 Battery Exhange 3
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86360040 |
Left Battery Stop |
Buy Now |
| 2 |
86360050 |
Right Battery Stop |
Buy Now |
| 3 |
86319670 |
Bearing Sleeve |
Buy Now |
| 4 |
86363760 |
Thick Shim Plate |
Buy Now |
| 5 |
86010670 |
Washer |
Buy Now |
| 6 |
86007020 |
Screw |
Buy Now |
| 7 |
86279190 |
Washer |
Buy Now |
| 8 |
86360090 |
Standoff |
Buy Now |
| 9 |
86298200 |
Standoff |
Buy Now |
| 10 |
86360060 |
Left Spring Mount Bracket |
Buy Now |
| 11 |
86360070 |
Right Spring Mount Bracket |
Buy Now |
| 12 |
86254890 |
Extension Spring |
Buy Now |
| 13 |
86010670 |
Washer |
Buy Now |
| 14 |
86270830 |
Nut |
Buy Now |
| 15 |
86273780 |
Screw |
Buy Now |

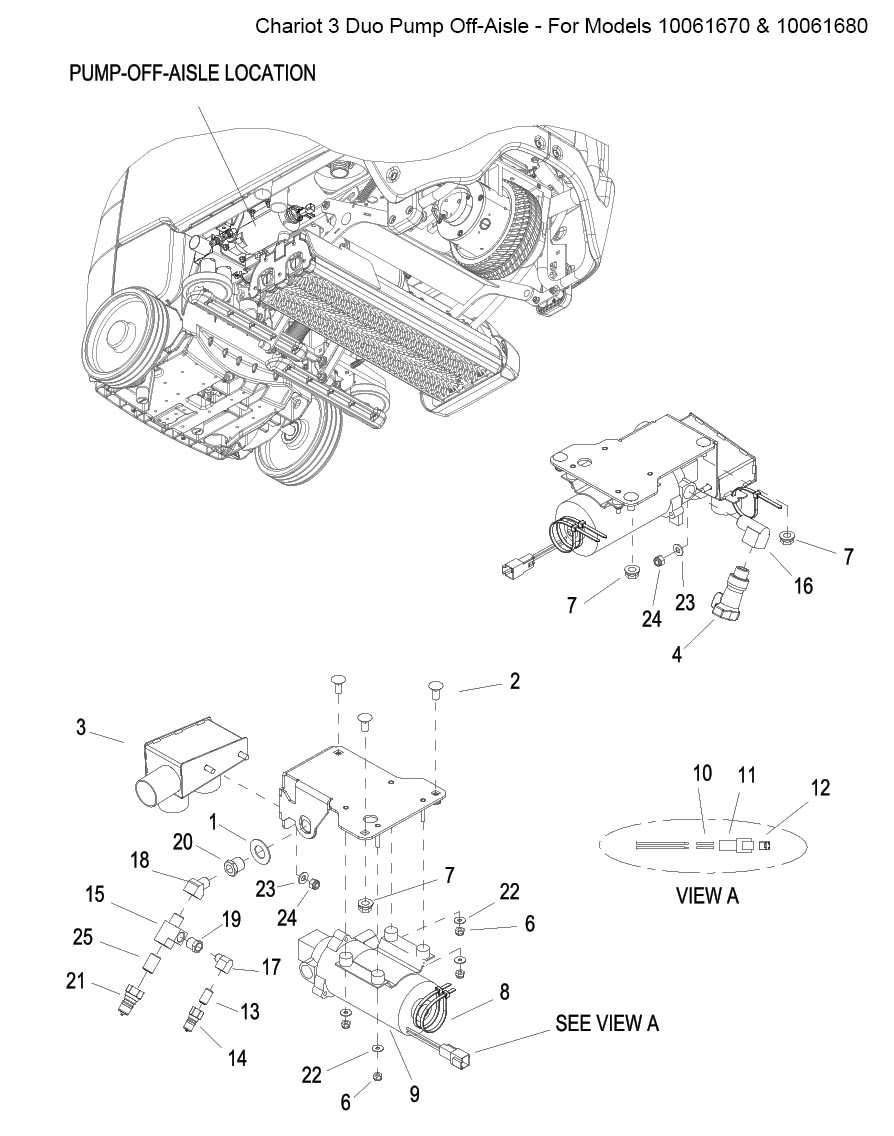

Pump Off Aisle
Windsor Chariot 3 iExtract 26 Pump Off Aisle
