Frame Assembly
Windsor Cadet 7 Frame Assembly
Brush Assembly
Windsor Cadet 7 Brush Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86000730 |
Roller Axle |
Buy Now |
| 2 |
86227150 |
Brush Bridge Adapter |
Buy Now |
| 3 |
86000900 |
Bearing |
Buy Now |
| 4 |
86001100 |
Belt |
Buy Now |
| 5 |
86228890 |
Bearing |
Buy Now |
| 6 |
86001300 |
Brush Pulley Bracket |
Buy Now |
| 7 |
86001310 |
Brush Height Bracket |
Buy Now |
| 8 |
86001140 |
Brush Assembly 15 inch |
Buy Now |
| 9 |
86004750 |
Bearing Adapter Kit |
Buy Now |
| 10 |
86004470 |
Brush 15in Housing |
Buy Now |
| 11 |
86396740 |
Brush Height Label |
Buy Now |
| 12 |
86093080 |
Brush Height Linkage Assembly |
Buy Now |
| 13 |
86005110 |
Roller Support Linkage Assembly |
Buy Now |
| 14 |
86005120 |
Extractor Front Roller Link |
Buy Now |
| 15 |
86005130 |
Height Adjustment Lever |
Buy Now |
| 16 |
86005640 |
Hexagon Nylock Nut |
Buy Now |
| 17 |
86005850 |
Nut |
Buy Now |
| 18 |
86249410 |
Brush Housing RH Plate |
Buy Now |
| 19 |
86249420 |
Brush Housing Left Hand Plate |
Buy Now |
| 20 |
86264700 |
Wire |
Call to Order |
| 21 |
86250680 |
Pulley |
Buy Now |
| 22 |
86006220 |
Roll Pin |
Buy Now |
| 23 |
86006430 |
Roller |
Buy Now |
| 24 |
86006510 |
Screw |
Buy Now |
| 25 |
86006590 |
Screw |
Buy Now |
| 26 |
86006650 |
Screw |
Buy Now |
| 27 |
86006700 |
Screw |
Buy Now |
| 28 |
86275530 |
Screw |
Buy Now |
| 29 |
86010640 |
Lock Star Washer |
Buy Now |
| 30 |
86010650 |
Washer |
Buy Now |
| 31 |
86007030 |
Screw |
Buy Now |
| 32 |
86230620 |
Brush |
Buy Now |
| 33 |
86251710 |
Tolerance Ring |
Buy Now |
| 34 |
86003070 |
Bearing Clip |
Buy Now |
| 35 |
86003370 |
Brush Driver |
Buy Now |
| 36 |
86278130 |
Shoulder Bolt |
Buy Now |
| 37 |
86272770 |
Snap Ring |
Buy Now |
| 38 |
86272510 |
Clevis Pin |
Buy Now |
| 39 |
86008650 |
Rue Cotter Ring |
Buy Now |
| 40 |
86342240 |
Spacer |
Buy Now |
| 41 |
86006030 |
Brush Pulley Assembly |
Buy Now |
| 42 |
86003390 |
Brush Driver Assembly |
Buy Now |

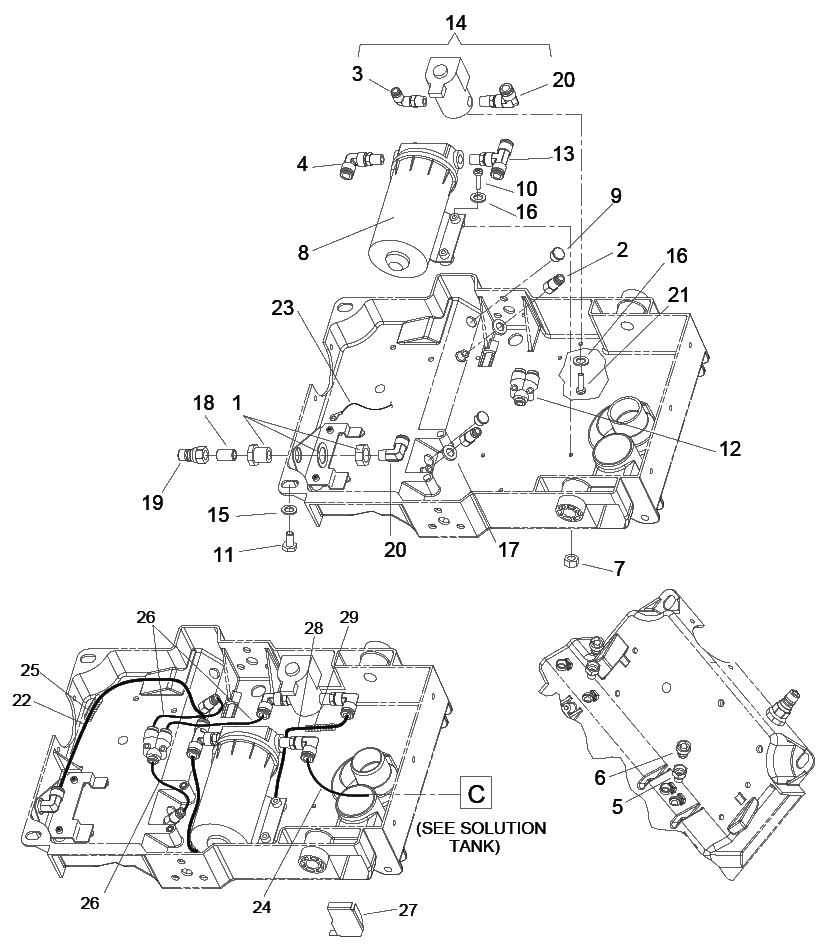

Pump Assembly
Windsor Cadet 7 Pump Assembly

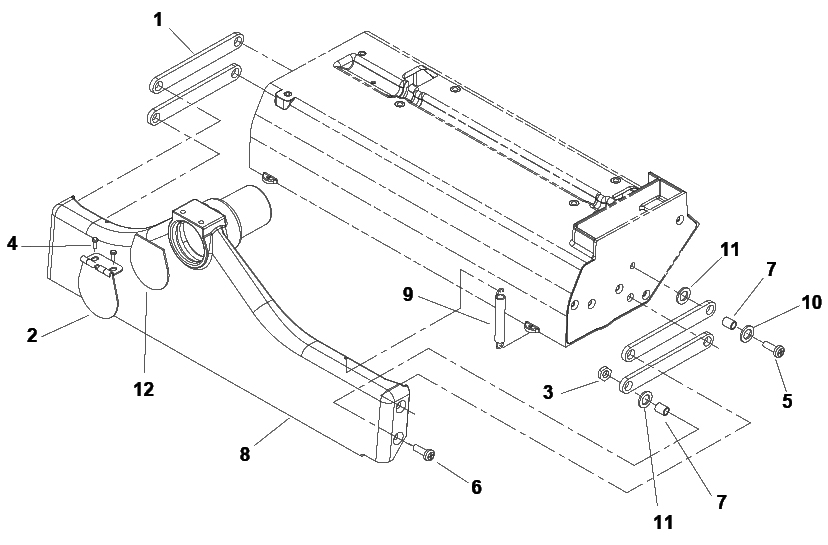

Vacuum Shoe
Windsor Cadet 7 Pump Assembly
Control Panel
Windsor Cadet 7 Control Panel
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86001240 |
Extractor Terminal Block |
Buy Now |
| 2 |
86001980 |
Extractor Breaker |
Buy Now |
| 3 |
86230210 |
Extractor Breaker |
Buy Now |
| 4 |
86002010 |
Circuit Breaker Boot |
Buy Now |
| 5 |
86234320 |
Cord Assembly |
Buy Now |
| 6 |
86005670 |
Conduit Nut |
Buy Now |
| 7 |
86005760 |
Nut with Star Washer |
Buy Now |
| 8 |
86395200 |
Control Panel |
Buy Now |
| 9 |
86006950 |
Screw |
Buy Now |
| 10 |
86006710 |
Nylon Screw |
Buy Now |
| 11 |
86007120 |
Switch |
Buy Now |
| 12 |
86007140 |
Rocker Switch |
Buy Now |
| 13 |
86256180 |
Strain Relief |
Buy Now |
| 14 |
86010800 |
Washer |
Buy Now |
| 15 |
86004480 |
Main Harness |
Call to Order |
| 16 |
86396840 |
Control Panel Label |
Buy Now |
| 17 |
86010750 |
Lock Thin Washer |
Buy Now |
| 18 |
86005700 |
Nut |
Buy Now |
| 19 |
86006830 |
Screw |
Buy Now |
| 20 |
86234110 |
Extractor Cord Set |
Buy Now |
| 21 |
86396850 |
Circuit Breaker Brush Label |
Call to Order |
| 22 |
86396860 |
Circuit Breaker Label |
Call to Order |
| 23 |
86245040 |
Ground Symbol Label |
Buy Now |
Solution Tank
Windsor Cadet 7 Solution Tank
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
86233140 |
Clamp |
Buy Now |
| 2 |
86233150 |
Hose Clamp |
Buy Now |
| 3 |
86003080 |
Vacuum Motor Cover |
Buy Now |
| 4 |
86003090 |
Belt Cover |
Buy Now |
| 5 |
86235500 |
Plastic Elbow Tube |
Buy Now |
| 6 |
86003790 |
Gasket |
Buy Now |
| 7 |
86003920 |
Vacuum Cover Gasket |
Buy Now |
| 8 |
86281880 |
Clear Hose |
Buy Now |
| 9 |
86240009 |
Hose |
Call to Order |
| 10 |
86004340 |
Vacuum Hose Assembly |
Buy Now |
| 11 |
86001590 |
Hosebarb |
Buy Now |
| 12 |
86240980 |
Motor Housing |
Buy Now |
| 13 |
86026880 |
Vacuum Motor Assembly |
Buy Now |
| 13A |
86135320 |
Brush Set |
Buy Now |
| 14 |
86135320 |
Screw |
Call to Order |
| 15 |
86006590 |
Screw |
Buy Now |
| 16 |
86026660 |
Tank, Assembly |
Buy Now |
| 17 |
86259060 |
Cooling Air Small Vent |
Buy Now |
| 18 |
86010650 |
Washer |
Buy Now |
| 19 |
86007970 |
Mesh Strainer |
Buy Now |
| 20 |
86010630 |
Washer |
Buy Now |
| 21 |
86006580 |
Screw |
Buy Now |
| 22 |
86002370 |
Nylon Clamp |
Buy Now |
| 23 |
86233260 |
Worm Gear Clamp |
Buy Now |
| 24 |
86272840 |
Split Ring |
Buy Now |
| 25 |
86256170 |
Cord Hook Strain Relief |
Buy Now |
| 26 |
86003950 |
Tank Gasket |
Buy Now |
| 27 |
86003960 |
Tank Gasket |
Buy Now |
| 28 |
86003970 |
Tank Gasket Right Hand |
Buy Now |
| 29 |
86275690 |
Screw |
Buy Now |
| 30 |
86003940 |
Gasket |
Buy Now |
| 31 |
86002870 |
Cord |
Buy Now |
| 32 |
86232280 |
Instruction Card |
Call to Order |
| 33 |
86177090 |
Cable Clamp |
Call to Order |
| 34 |
86395810 |
Side Label |
Buy Now |
| 35 |
86002870 |
Dome Label |
Buy Now |

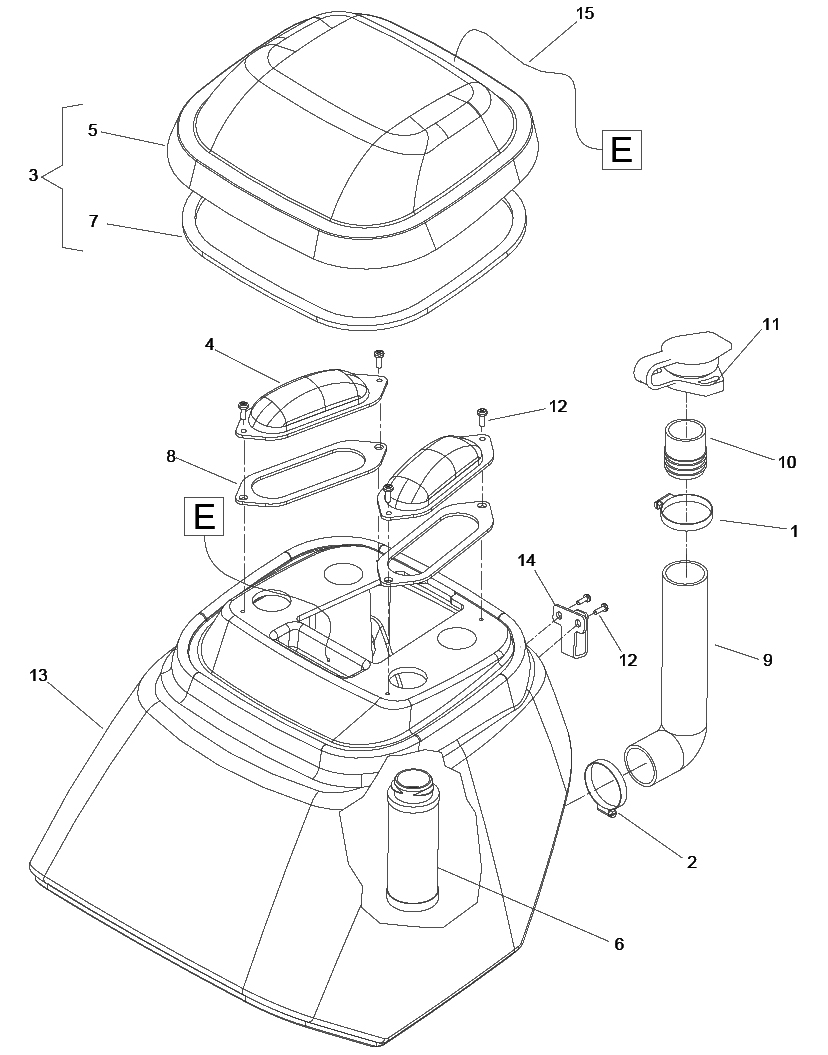

Recovery Tank
Windsor Cadet 7 Recovery Tank
