Nilfisk SW 655

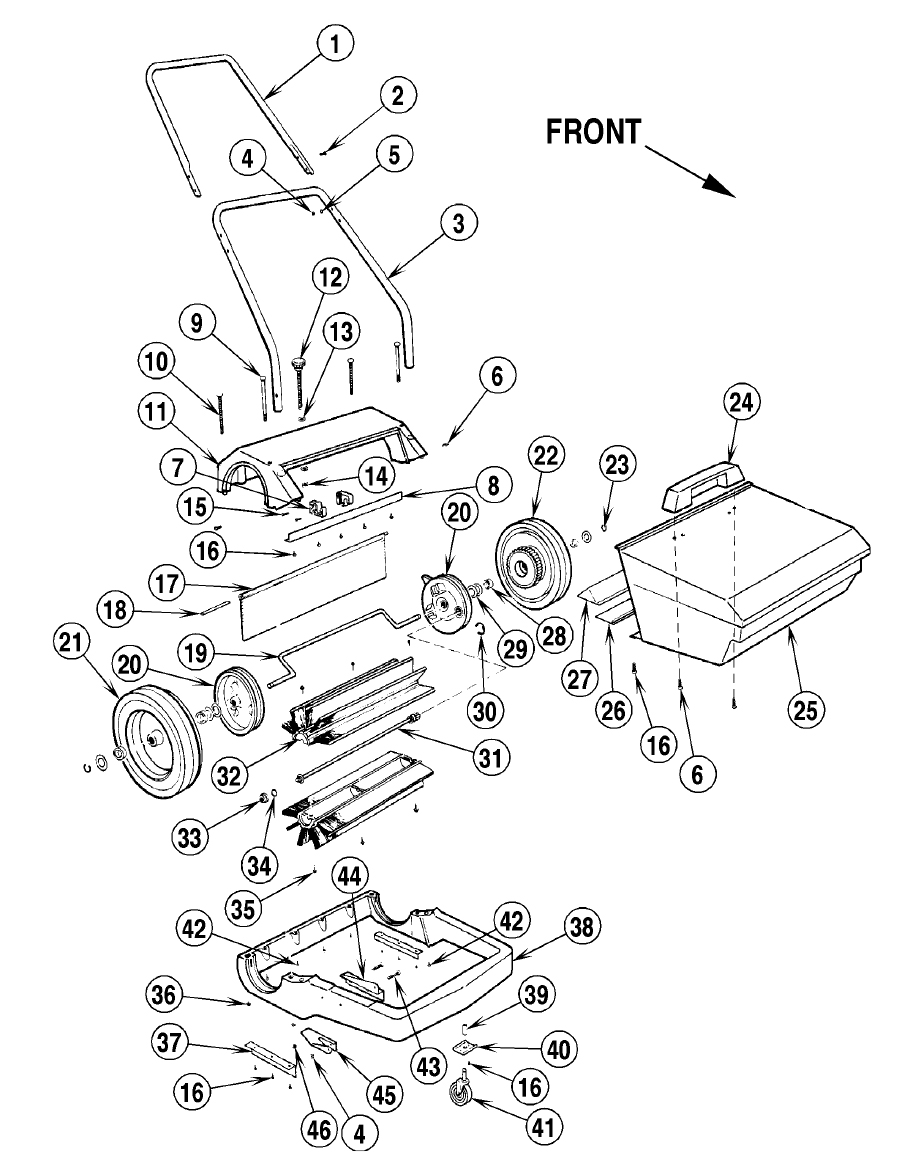

Main Assembly
Main Assembly
Reference #
Part #
Description
Add to Cart
1
56038923
Upper Handle
CALL TO ORDER
2
*
Slotted Head Screw 1/4-20
CALL TO ORDER
3
56038924
Lower Handle
CALL TO ORDER
4
*
Hex Nut 1/4-20
CALL TO ORDER
5
*
External Tool Lockwasher
CALL TO ORDER
6
*
Truss Head Screw 1/4 x 1.00
CALL TO ORDER
7
56038925
Height Adjustment Nut
CALL TO ORDER
8
56038926
Hopper Seal
CALL TO ORDER
9
*
Round Head Bolt 5/16-18 x 4.50
CALL TO ORDER
10
*
Round Head Bolt 5/16-18 x 5.50
CALL TO ORDER
11
56038927
Rear Housing
CALL TO ORDER
12
56038928
Main Broom Adjustment Knob
CALL TO ORDER
13
*
Flatwasher 3/8
CALL TO ORDER
14
56038929
Set Screw Collar
CALL TO ORDER
15
*
Slotted Hex Head Screw (BF)
CALL TO ORDER
16
*
Phillips Pan Head Screw (AB)
CALL TO ORDER
17
56038930
Rear Floor Seal
CALL TO ORDER
18
56038931
Rear Seal Support Rod
CALL TO ORDER
19
56038932
Axle
CALL TO ORDER
20
56038933
Pivot Hub
CALL TO ORDER
21
56038934
Wheel & Bearing Assembly
CALL TO ORDER
22
56038935
Wheel & Clutch Assembly
CALL TO ORDER
23
56038936
Retaining Ring
CALL TO ORDER
24
56038937
Hopper Handle
CALL TO ORDER
25
56648311
Hopper
CALL TO ORDER
26
56038939
Floor Blade
CALL TO ORDER
27
56038940
Floor Blade Retainer
CALL TO ORDER
28
56038941
Wheel Bearing
CALL TO ORDER
29
*
Flatwasher 1/2
CALL TO ORDER
30
56038942
External E-Ring
CALL TO ORDER
31
56038943
Brush Shaft Assembly
CALL TO ORDER
32
56038944
Main Broom Half
CALL TO ORDER
33
56038945
Bearing
CALL TO ORDER
34
56038946
O-Ring
CALL TO ORDER
35
*
Phillips Pan Head Screw (A)
CALL TO ORDER
36
*
Serrated Hex Flange Nut 5/16
CALL TO ORDER
37
56038947
Side Floor Seal
CALL TO ORDER
38
56038948
Main Frame
CALL TO ORDER
39
56038949
Caster Socket
CALL TO ORDER
40
56038950
Caster Support
CALL TO ORDER
41
56038951
Caster
CALL TO ORDER
42
*
Hex Head Screw 1/4 x 1.50
CALL TO ORDER
43
*
Round Head Bolt 1/4-20 x 1.75
CALL TO ORDER
44
56038952
Inner Side Arm Mounting Bracket
CALL TO ORDER
45
56038953
Outer Side Arm Mounting Bracket
CALL TO ORDER
46
*
Lockwasher
CALL TO ORDER

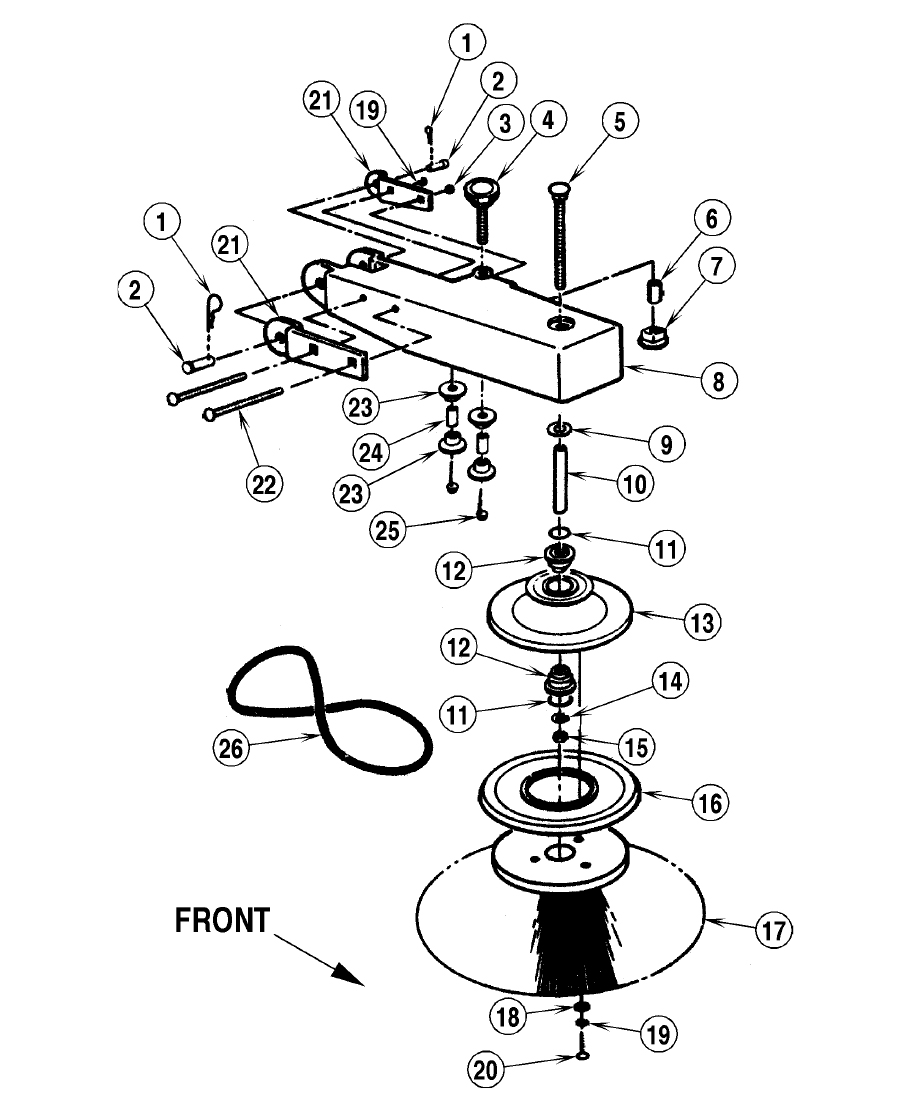

Side Broom Arm Assembly
Nilfisk SW 655 Side Broom Arm
Reference #
Part #
Description
Add to Cart
1
56038954
Hairpin
CALL TO ORDER
2
56038955
Clevis Pin
CALL TO ORDER
3
*
Hex Nut 1/4-20
CALL TO ORDER
4
56038956
Stop Adjustment Knob
CALL TO ORDER
5
*
Round Head Bolt 3/8-16 x 4.00
CALL TO ORDER
6
*
Threaded Insert 3/8
CALL TO ORDER
7
56038959
Stop Adjustment Foot
CALL TO ORDER
8
56038958
Side Broom Arm
CALL TO ORDER
9
*
Flat Washer 1/2
CALL TO ORDER
10
56038960
Side Broom Shaft
CALL TO ORDER
11
56038946
O-ring
CALL TO ORDER
12
56038945
Bearing
CALL TO ORDER
13
56038961
Side broom Cover
CALL TO ORDER
14
*
Lockwasher 3/8
CALL TO ORDER
15
*
Hex Nut 3/8-16
CALL TO ORDER
16
56038962
Side Broom Bumper
CALL TO ORDER
17
56038963
Side Broom
CALL TO ORDER
18
*
Flat Washer 1/4
CALL TO ORDER
19
*
Lockwasher 1/4
CALL TO ORDER
20
*
Slotted Pan head Screw 1/4 x 1.00
CALL TO ORDER
21
56038964
Side Arm Bracket
CALL TO ORDER
22
*
Round Head Bolt 1/4-20 x 3.00
CALL TO ORDER
23
56038965
Belt Guide
CALL TO ORDER
24
56038966
Spacer
CALL TO ORDER
25
*
Hex Head Screw 1/4 x 1.50
CALL TO ORDER
26
56038967
Belt
CALL TO ORDER
