Nilfisk SC901

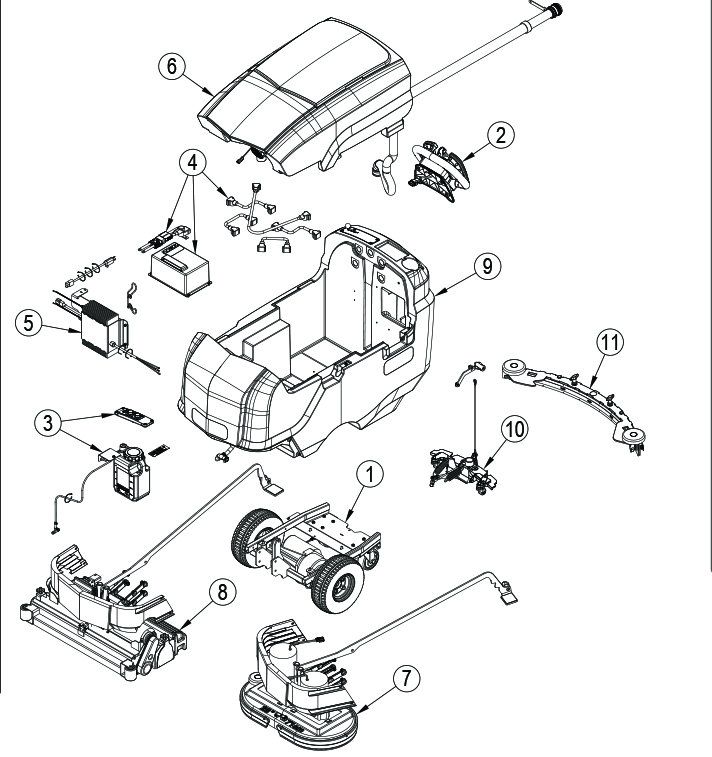

General View
Nilfisk SC901 General View
| 1 |
- |
Chassis System |
Call to Order |
| 2 |
- |
Control System |
Call to Order |
| 3 |
- |
Detergent Kit |
Call to Order |
| 4 |
- |
Electrical System |
Call to Order |
| 5 |
- |
Onboard Charger Assembly |
Call to Order |
| 6 |
- |
Recovery System |
Call to Order |
| 7 |
- |
Scrub System - Disk 28D & 34D |
Call to Order |
| 8 |
- |
Scrub System - Cylindrical 32C |
Call to Order |
| 9 |
- |
Solution System |
Call to Order |
| 10 |
- |
Squeegee Mount System |
Call to Order |
| 11 |
- |
Squeegee Assembly |
Call to Order |

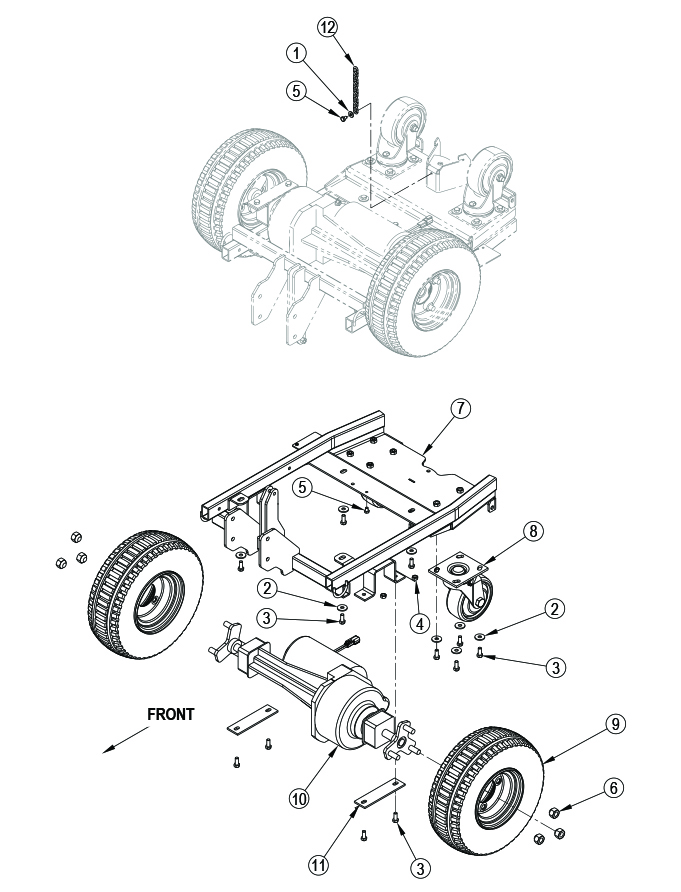

Chassis System
Nilfisk SC901 Chassis System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Washer |
Call to Order |
| 2 |
- |
Washer |
Call to Order |
| 3 |
- |
Screw |
Call to Order |
| 4 |
- |
Nut |
Call to Order |
| 5 |
- |
Screw |
Call to Order |
| 6 |
- |
Nut |
Call to Order |
| 7 |
56115240 |
Chassis Weldment |
Buy Now |
| 8 |
- |
Swivel Caster |
Call to Order |
| 9 |
- |
Wheel |
Call to Order |
| 10 |
56115378 |
Transaxle |
Buy Now |
| - |
56315676 |
Motor |
Buy Now |
| - |
56315677 |
Carbon Brush |
Buy Now |
| - |
56315678 |
Neoprene Mounting Sleeve |
Buy Now |
| - |
56380164 |
Coupling Kit |
Buy Now |
| - |
56381779 |
Transaxle Service Kit |
Buy Now |
| 11 |
56315202 |
Transaxle Mount Plate |
Buy Now |
| 12 |
- |
Chain |
Call to Order |
| K1 |
56115390 |
Chassis Hardware Kit |
Buy Now |
| K2 |
56115391 |
Wheel Castor Kit |
Buy Now |
| K3 |
56115392 |
Drive Wheel Kit |
Buy Now |
| K4 |
56115393 |
Grounding Chain Kit |
Buy Now |

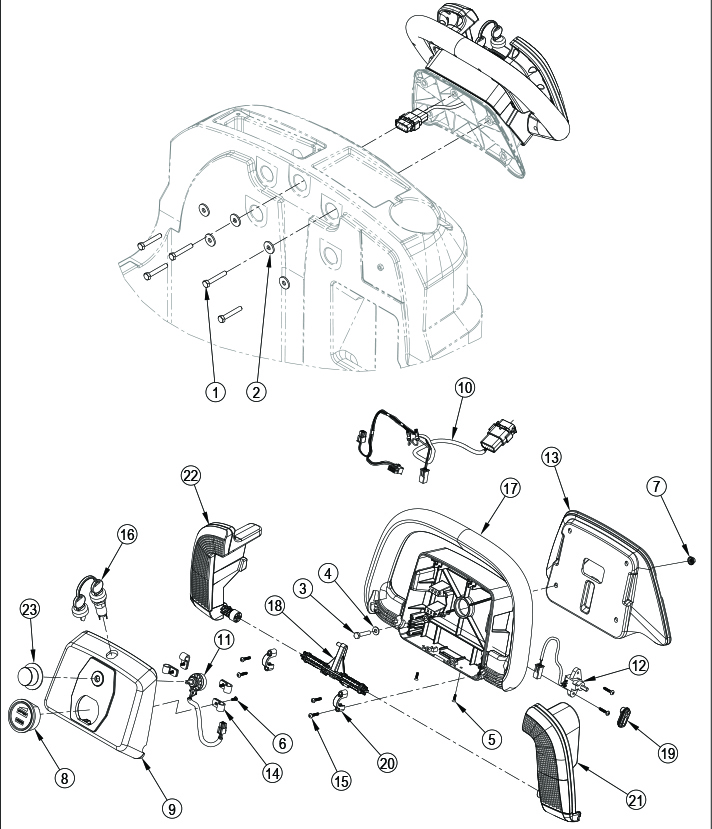

Control System
Nilfisk SC901 Control System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Screw |
Call to Order |
| 2 |
- |
Washer |
Call to Order |
| 3 |
33003977 |
Screw |
Call to Order |
| 4 |
56002919 |
Washer |
Buy Now |
| 5 |
- |
Screw |
Call to Order |
| 6 |
- |
Screw |
Call to Order |
| 7 |
56004081 |
Nut |
Buy Now |
| 8 |
56115296 |
Hour Battery Gauge |
Call to Order |
| 9 |
- |
Front Paddle Handle |
Call to Order |
| 10 |
56115513 |
Harness Paddle Handle |
Buy Now |
| 11 |
56115514 |
Potentiometer Assembly |
Buy Now |
| 12 |
56115515 |
Potentiometer Assembly |
Buy Now |
| 13 |
56115517 |
Handle Adapter Paddle Temp |
Buy Now |
| 14 |
- |
Clamp Cable |
Call to Order |
| 15 |
- |
Screw |
Call to Order |
| 16 |
1462888000 |
Switch Key w/ Cap |
Buy Now |
| - |
1462887000 |
Key |
Buy Now |
| 17 |
- |
Handle Bar |
Call to Order |
| 18 |
- |
Shaft Levers Connection |
Call to Order |
| 19 |
- |
Potentiometer Rod |
Call to Order |
| 20 |
- |
Support for Lever Connection |
Call to Order |
| 21 |
- |
Left Driving Lever |
Call to Order |
| 22 |
- |
Right Driving Lever |
Call to Order |
| 23 |
- |
Control Knob |
Call to Order |
| K1 |
56115400 |
Hardware Control Kit |
Buy Now |
| K2 |
56115528 |
Paddle Handle Kit |
Buy Now |

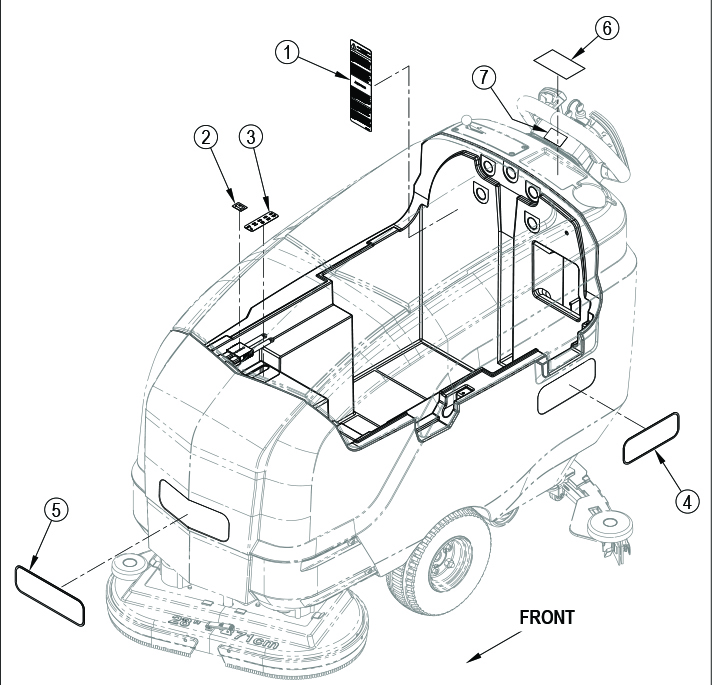

Decal System
Nilfisk SC901 Decal System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56014601 |
Caution Decal |
Buy Now |
| 2 |
56016324 |
Charger Decal |
Buy Now |
| 3 |
56115469 |
Circuit Breaker Decal |
Buy Now |
| 4 |
56115518 |
SC901 Decal |
Buy Now |
| 4 |
56115519 |
SC901 Ecoflex Decal |
Buy Now |
| 5 |
56115520 |
Nilfisk SC901 Decal |
Call to Order |
| 6 |
56115461 |
Batttery Watering Decal |
Buy Now |
| 7 |
71362A |
NFSI Decal |
Buy Now |

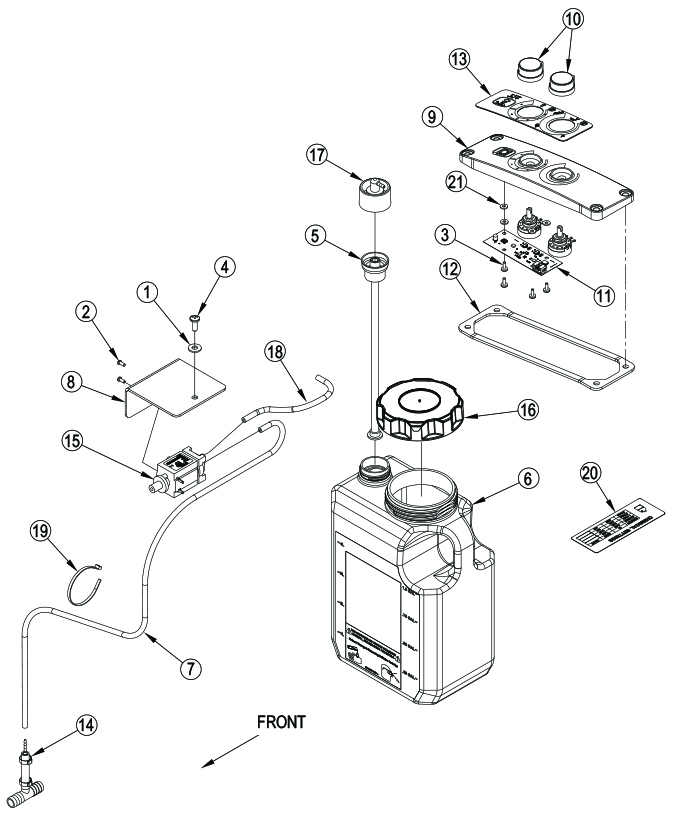

Detergent Kit
Nilfisk SC901 Detergent Kit
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56002098 |
Washer |
Buy Now |
| 2 |
56003970 |
Screw |
Buy Now |
| 3 |
56003196 |
Screw |
Buy Now |
| 4 |
56003627 |
Screw |
Buy Now |
| 5 |
56104189 |
Dry Break Insert |
Buy Now |
| 6 |
56104408 |
Chemical Bottle Assembly |
Buy Now |
| 7 |
56111511 |
Chemical Resistant Hose |
Buy Now |
| 8 |
56112126 |
Pump Mount Bracket |
Buy Now |
| 9 |
56115347 |
Detergent Module Cover |
Buy Now |
| 10 |
56115359 |
Knob |
Buy Now |
| 11 |
56115363 |
Detergent Module |
Buy Now |
| 12 |
56115376 |
Detergent Cover Gasket |
Buy Now |
| 13 |
56115382 |
Detergent Module Decal |
Buy Now |
| 14 |
56314983 |
Tee Assembly |
Buy Now |
| 15 |
56315241 |
Chemical Pump |
Buy Now |
| 16 |
9100001512 |
Plastic Chemical Tank Cap |
Buy Now |
| 17 |
56315523 |
Dry Break Cap |
Buy Now |
| 18 |
56315524 |
Chemical Resistant Hose |
Buy Now |
| 19 |
56478246 |
Cable Tie |
Buy Now |
| 20 |
71489A |
Chemical Settings Label |
Buy Now |
| 21 |
56002006 |
Washer |
Buy Now |

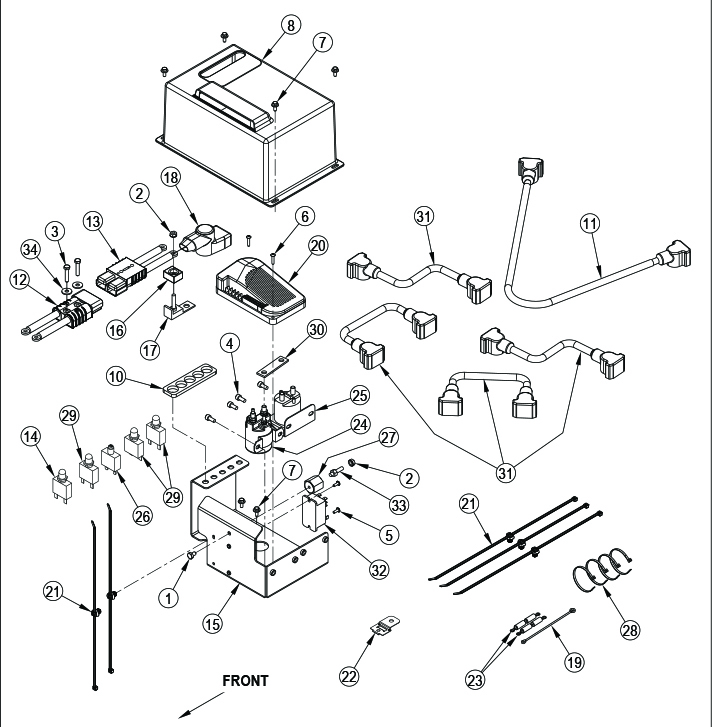

Electrical System
Nilfisk SC901 Electrical System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Screw |
Call to Order |
| 2 |
- |
Nut |
Call to Order |
| 3 |
- |
Screw |
Call to Order |
| 4 |
- |
Screw |
Call to Order |
| 5 |
- |
Screw |
Call to Order |
| 6 |
- |
Screw |
Call to Order |
| 7 |
- |
Screw |
Call to Order |
| 8 |
56115255 |
Electrical Cover |
Buy Now |
| 9 |
56115278 |
Harness |
Buy Now |
| 10 |
56115341 |
Circuit Breaker Gasket |
Buy Now |
| 11 |
56115349 |
Cable Battery |
Buy Now |
| 12 |
56115356 |
Battery Machine Harness |
Buy Now |
| 13 |
56115357 |
Battery Power Harness |
Buy Now |
| 14 |
56115385 |
Circuit Breaker |
Buy Now |
| 15 |
56115389 |
Electrical Panel |
Buy Now |
| 16 |
56115432 |
Fuse |
Buy Now |
| 17 |
56115433 |
Fuse Holder |
Buy Now |
| 18 |
56115434 |
Fuse Holder Boot |
Buy Now |
| 19 |
56115441 |
Diode Assembly |
Buy Now |
| 20 |
56115516 |
Speed Controller |
Buy Now |
| 21 |
56116611 |
Mount Cable Tie |
Buy Now |
| 22 |
56111972 |
Connector Clip |
Buy Now |
| 23 |
56389265 |
Rectifier Assembly |
Buy Now |
| 24 |
56395450 |
Contactor |
Buy Now |
| 25 |
56395455 |
Contactor |
Buy Now |
| 26 |
56413822 |
Circuit Breaker |
Buy Now |
| 27 |
56469858 |
Electrical Mount |
Buy Now |
| 28 |
56478246 |
Cable Tie |
Buy Now |
| 29 |
56315256 |
Circuit Breaker |
Buy Now |
| 30 |
56510285 |
Contactor Bus Bar |
Buy Now |
| 31 |
40172A |
Battery Cable |
Buy Now |
| 32 |
40892A |
Relay |
Buy Now |
| 33 |
- |
Stud |
Call to Order |
| 34 |
- |
Washer |
Call to Order |
| K1 |
56115403 |
Electrical Hardware Kit |
Buy Now |

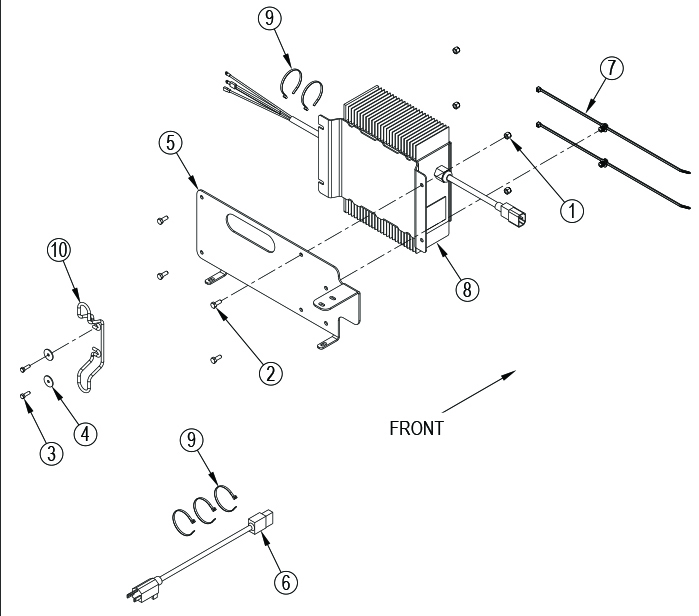

Onboard Charger Assembly
Nilfisk SC901 Onboard Charger Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56003403 |
Nut |
Buy Now |
| 2 |
56003431 |
Screw |
Buy Now |
| 3 |
56003840 |
Screw |
Buy Now |
| 4 |
56009096 |
Washer |
Buy Now |
| 5 |
56115374 |
Onboard Charger Bracket |
Buy Now |
| 6 |
56115375 |
Charger Cord |
Buy Now |
| 7 |
56116611 |
Cable Tie Mount |
Buy Now |
| 8 |
56315774 |
Onboard Charger |
Buy Now |
| 9 |
79A |
Cable Tie |
Call to Order |
| 10 |
9095149000 |
Cable Support |
Buy Now |
Recovery System
Nilfisk SC901 Recovery System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Screw |
Call to Order |
| 2 |
- |
Washer |
Call to Order |
| 4 |
- |
Screw |
Call to Order |
| 5 |
- |
Screw |
Call to Order |
| 6 |
- |
Washer |
Call to Order |
| 7 |
- |
Screw |
Call to Order |
| 8 |
- |
Debris Cage |
Call to Order |
| 9 |
- |
Debris Tray Cover |
Call to Order |
| 10 |
56104164 |
Recovery Tank Gasket |
Buy Now |
| 11 |
56115292 |
Recovery Tank Light |
Buy Now |
| 12 |
56115507 |
Recovery Tank Lid |
Buy Now |
| 13 |
56115343 |
Vacuum Hose Assembly |
Buy Now |
| 14 |
- |
Vacuum Mount Plate |
Call to Order |
| 15 |
56115369 |
Exhaust Tube |
Buy Now |
| 16 |
56115571 |
Retainer Plate |
Buy Now |
| 17 |
56115436 |
Hose Drain |
Buy Now |
| 17 |
56381940 |
Hose Drain |
Buy Now |
| - |
56601411 |
Drain Hose Cap Kit |
Buy Now |
| 18 |
- |
Cable Assembly |
Call to Order |
| 19 |
- |
Vacuum Motor |
Call to Order |
| - |
56116107 |
Vacuum Motor Brush Kit |
Buy Now |
| 20 |
- |
Vacuum Motor Inlet Seal |
Call to Order |
| 21 |
- |
Bushing |
Call to Order |
| 22 |
56315141 |
Vibration Mount |
Buy Now |
| 23 |
- |
Hose Support Clamp |
Call to Order |
| 24 |
- |
Float Cage |
Call to Order |
| 25 |
- |
Float Ball |
Call to Order |
| 26 |
56440213 |
Hose Clamp |
Buy Now |
| 27 |
56456797 |
Hose Clamp |
Buy Now |
| 28 |
- |
Support Float System |
Call to Order |
| 29 |
- |
Gasket Float Support |
Call to Order |
| K1 |
56115396 |
Recovery Hardware Kit |
Buy Now |
| K2 |
56115397 |
Vac Motor Kit |
Buy Now |
| K3 |
56115398 |
Recovery Cable Kit |
Buy Now |
| K4 |
56115399 |
Ball Cage Kit |
Buy Now |
| K5 |
56104360 |
Debris Cage Kit |
Buy Now |

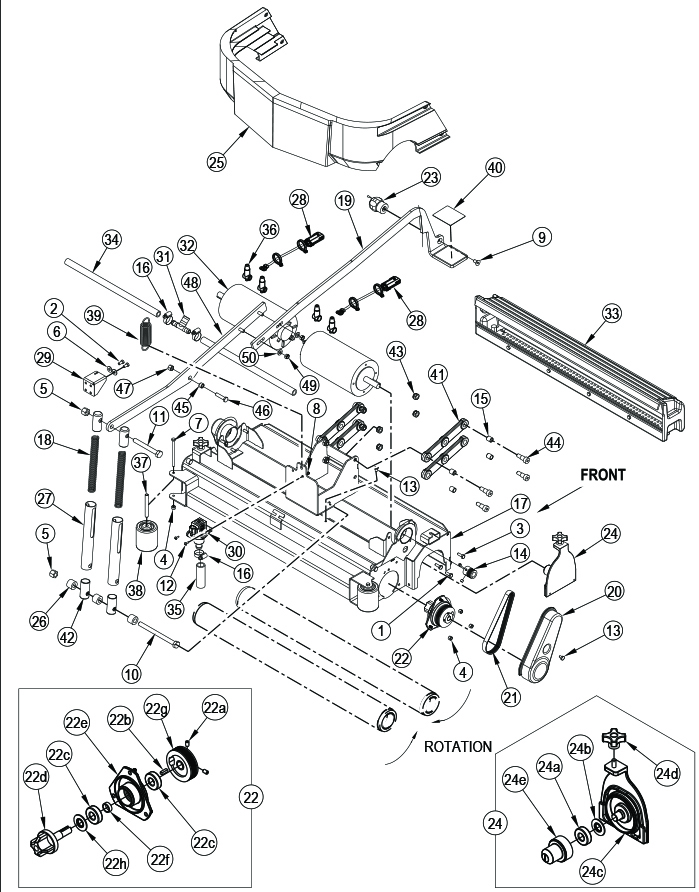

Scrub System - Cylindrical
Nilfisk SC901 Scrub System - Cylindrical
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Screw |
Call to Order |
| 2 |
- |
Screw |
Call to Order |
| 3 |
- |
Screw |
Call to Order |
| 4 |
- |
Nut |
Call to Order |
| 5 |
- |
Nut |
Call to Order |
| 6 |
- |
Washer |
Call to Order |
| 7 |
- |
Screw |
Call to Order |
| 8 |
- |
Nut |
Call to Order |
| 9 |
- |
Screw |
Call to Order |
| 10 |
- |
Screw |
Call to Order |
| 11 |
- |
Screw |
Call to Order |
| 12 |
- |
Screw |
Call to Order |
| 13 |
- |
Screw |
Call to Order |
| 14 |
56112166 |
Sheave |
Buy Now |
| 15 |
- |
Bushing |
Call to Order |
| 16 |
56112771 |
Hose Clamp |
Buy Now |
| 17 |
56115267 |
Housing Weldment |
Buy Now |
| 18 |
- |
Compression Spring |
Call to Order |
| 19 |
- |
Deck Lever |
Call to Order |
| 20 |
56115314 |
Belt Guard Assembly |
Buy Now |
| 21 |
56115315 |
Auto Tension Belt |
Buy Now |
| 22 |
56115318 |
Drive End Assembly |
Buy Now |
| 22a |
56002930 |
Screw |
Buy Now |
| 22b |
56003237 |
Square Key |
Buy Now |
| 22c |
56106070 |
Ball Bearing |
Buy Now |
| 22d |
56115319 |
Long Spindle |
Buy Now |
| 22e |
56381765 |
Bearing Plate |
Buy Now |
| 22f |
56407389 |
Spacer |
Buy Now |
| 22g |
56115316 |
Sheave |
Buy Now |
| 22h |
56407558 |
Washer Bearing |
Buy Now |
| 23 |
56115337 |
Knob |
Buy Now |
| 24 |
56115344 |
Idler End Assembly |
Buy Now |
| 24a |
56106070 |
Ball Bearing |
Buy Now |
| 24b |
56407558 |
Washer Bearing |
Buy Now |
| 24c |
56315447 |
Idler Bearing Plate |
Buy Now |
| 24d |
56407303 |
Knob |
Buy Now |
| 24e |
56115273 |
Idler Hub |
Buy Now |
| 25 |
56115350 |
Front Cover |
Buy Now |
| 26 |
- |
Nylon Spacer |
Call to Order |
| 27 |
- |
Spring Tube |
Call to Order |
| 28 |
56115381 |
Molex Connector Jumper |
Buy Now |
| 29 |
56115431 |
Spring Bracket |
Buy Now |
| 30 |
- |
Solenoid Valve |
Call to Order |
| 31 |
56305760 |
Barb Tee |
Buy Now |
| 32 |
56315611 |
Motor |
Buy Now |
| - |
56510763 |
Motor Brush Kit |
Buy Now |
| 33 |
56315616 |
Hopper Assembly |
Buy Now |
| 34 |
56315647 |
Manifold |
Buy Now |
| 35 |
56324041 |
Hose |
Buy Now |
| 36 |
56409538 |
Terminal Insulator |
Buy Now |
| 37 |
56412176 |
Bushing |
Buy Now |
| 38 |
56412459 |
Wheel |
Buy Now |
| 39 |
56455735 |
Extension Spring |
Buy Now |
| 40 |
- |
Pedal Mat |
Call to Order |
| 41 |
- |
Brush Head Lift Lever |
Call to Order |
| 42 |
- |
Spring Guide |
Call to Order |
| 43 |
- |
Nut |
Call to Order |
| 44 |
- |
Screw |
Call to Order |
| 45 |
- |
Bushing |
Call to Order |
| 46 |
- |
Screw |
Call to Order |
| 47 |
- |
Nut |
Call to Order |
| 48 |
56115472 |
Deck Pivot Lever |
Buy Now |
| 49 |
56002851 |
Nut |
Buy Now |
| 50 |
56002938 |
Flat Washer |
Buy Now |
| K1 |
56115406 |
Link Arm Scrub Kit |
Buy Now |
| K2 |
56115410 |
Hardware Kit |
Buy Now |
| K3 |
56115411 |
Spring Kit |
Buy Now |
| K4 |
56115412 |
Lever Kit |
Buy Now |
| K5 |
56118185 |
Solenoid Seal Kit |
Buy Now |
| K6 |
56116875 |
Solenoid Valve Kit |
Buy Now |

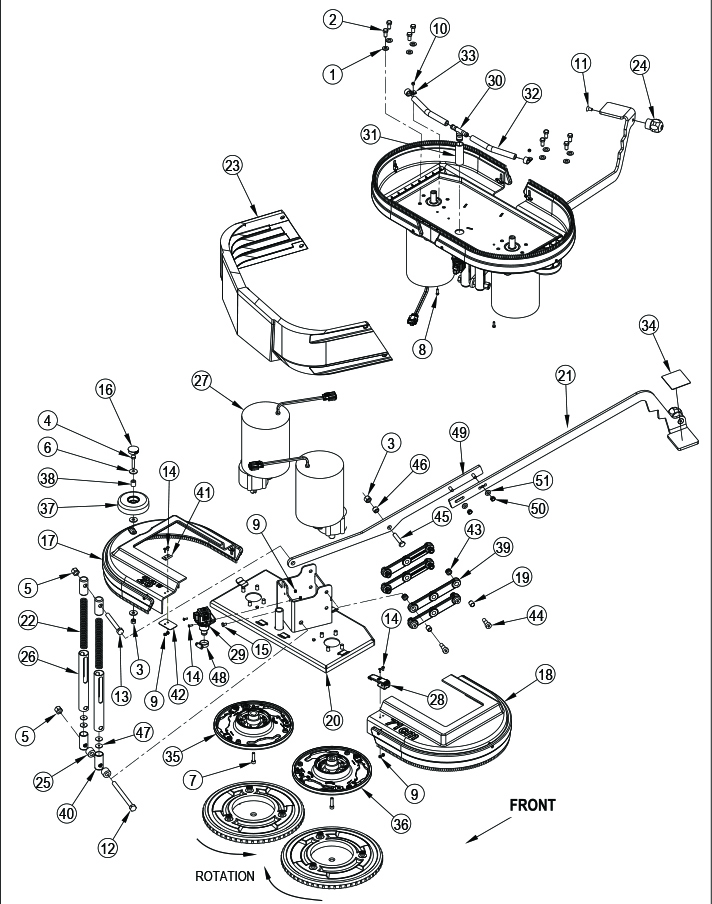

Scrub System - Disk
Nilfisk SC901 Scrub System - Disk
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Washer |
Call to Order |
| 2 |
- |
Screw |
Call to Order |
| 3 |
- |
Nut |
Call to Order |
| 4 |
- |
Screw |
Call to Order |
| 5 |
- |
Nut |
Call to Order |
| 6 |
- |
Washer |
Call to Order |
| 7 |
- |
Screw |
Call to Order |
| 9 |
- |
Nut |
Call to Order |
| 10 |
- |
Nut |
Call to Order |
| 11 |
- |
Screw |
Call to Order |
| 12 |
- |
Screw |
Call to Order |
| 13 |
- |
Screw |
Call to Order |
| 14 |
- |
Screw |
Call to Order |
| 15 |
- |
Screw |
Call to Order |
| 16 |
- |
Button Plug |
Call to Order |
| 17 |
56112259 |
Left Brush Skirt Assembly (28D) |
Buy Now |
| 17 |
56112261 |
Left Brush Skirt Assembly (34D) |
Buy Now |
| 18 |
56112260 |
Right Brush Skirt Assembly (28D) |
Buy Now |
| 18 |
56112262 |
Right Brush Skirt Assembly (34D) |
Buy Now |
| - |
56112306 |
28" Bristle Skirt Kit |
Buy Now |
| - |
56112307 |
34" Bristle Skirt Kit |
Buy Now |
| 19 |
- |
Bushing |
Call to Order |
| 20 |
56115248 |
28D Deck Weldment |
Call to Order |
| 20 |
56115245 |
34D Deck Weldment |
Call to Order |
| 21 |
56115473 |
Disc Deck Lever |
Buy Now |
| 22 |
- |
Compression Spring |
Call to Order |
| 23 |
56115298 |
Front Disc Cover |
Buy Now |
| 24 |
56115337 |
Knob |
Buy Now |
| 25 |
- |
Nylon Spacer |
Call to Order |
| 26 |
- |
Spring Tube |
Call to Order |
| 27 |
56115377 |
Gear Unit Motor |
Buy Now |
| - |
56397139 |
Carbon Brush |
Buy Now |
| - |
56397138 |
Brush Spring |
Buy Now |
| 28 |
56115427 |
Latch Assembly |
Buy Now |
| 29 |
- |
Solenoid Valve |
Call to Order |
| 30 |
56305760 |
Barb Tee |
Buy Now |
| 31 |
56324041 |
Clear Hose |
Buy Now |
| 32 |
56397207 |
Hose |
Buy Now |
| 32 |
56397382 |
Hose |
Buy Now |
| 33 |
56442003 |
Clamp |
Buy Now |
| 34 |
- |
Pedal Mat |
Call to Order |
| 35 |
56601276 |
Brush Plate Assembly |
Buy Now |
| 36 |
56601384 |
Brush Plate Assembly |
Buy Now |
| 37 |
- |
Wheel |
Call to Order |
| 38 |
- |
Nylon Bushing |
Call to Order |
| 39 |
- |
Brush Head Lift Lever |
Call to Order |
| 40 |
- |
Spring Guide |
Call to Order |
| 41 |
55451A |
Latch Keeper |
Buy Now |
| 42 |
69186A |
Brush Latch Tab |
Buy Now |
| 43 |
- |
Nut |
Call to Order |
| 44 |
- |
Screw |
Call to Order |
| 45 |
- |
Screw |
Call to Order |
| 46 |
- |
Bushing |
Call to Order |
| 47 |
- |
Washer |
Call to Order |
| 48 |
- |
Hose Clamp |
Call to Order |
| 49 |
56115472 |
Deck Pivot Lever |
Buy Now |
| 50 |
56002851 |
Nut |
Buy Now |
| 51 |
56002938 |
Washer |
Buy Now |
| K1 |
56115404 |
Hardware Kit |
Buy Now |
| K2 |
56115405 |
Spring |
Buy Now |
| K3 |
56115406 |
Link Arm Scrub Kit |
Buy Now |
| K4 |
56115407 |
Lever Kit |
Buy Now |
| K5 |
56118185 |
Solenoid Seal Kit |
Buy Now |
| K6 |
56115448 |
Wheel Brush Skirt Kit |
Buy Now |
| K7 |
56116875 |
Solenoid Valve Kit |
Buy Now |

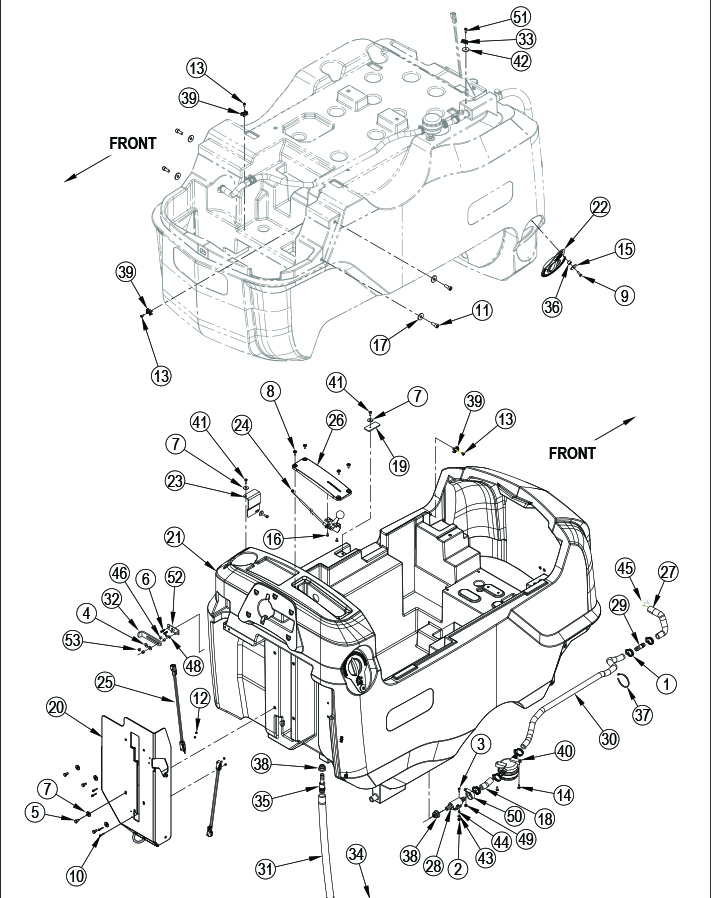

Solution System
Nilfisk SC901 Solution System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
722030 |
Hose Clamp |
Buy Now |
| 2 |
- |
Nut |
Call to Order |
| 3 |
- |
Screw |
Call to Order |
| 4 |
- |
Washer |
Call to Order |
| 5 |
- |
Screw |
Call to Order |
| 6 |
- |
Screw |
Call to Order |
| 7 |
- |
Washer |
Call to Order |
| 8 |
- |
Screw |
Call to Order |
| 9 |
- |
Screw |
Call to Order |
| 10 |
- |
Screw |
Call to Order |
| 11 |
- |
Screw |
Call to Order |
| 12 |
- |
Nut |
Call to Order |
| 13 |
- |
Screw |
Call to Order |
| 14 |
- |
Screw |
Call to Order |
| 15 |
- |
Washer |
Call to Order |
| 16 |
- |
Screw |
Call to Order |
| 17 |
- |
Washer |
Call to Order |
| 18 |
56111385 |
Spiral Hose |
Buy Now |
| 19 |
56115447 |
Retainer Plate |
Buy Now |
| 20 |
56115467 |
Deck Lever Support |
Buy Now |
| 21 |
56115291 |
Solution Tank |
Buy Now |
| 22 |
- |
Solution Cap |
Call to Order |
| 23 |
56115308 |
Retainer Plate |
Buy Now |
| 24 |
- |
Solution Control Cable Assembly |
Call to Order |
| 25 |
56115336 |
Sealed Switch |
Buy Now |
| 26 |
- |
Solution Lever Cover Table |
Call to Order |
| 27 |
56115355 |
Solenoid Adapter Hose |
Buy Now |
| 28 |
56115388 |
Ball Valve |
Buy Now |
| 29 |
56115413 |
Barb Coupler |
Buy Now |
| 30 |
56115439 |
Spiral Hose |
Buy Now |
| 31 |
56115440 |
Hose |
Buy Now |
| 32 |
- |
Drain Hose Slide Retainer |
Call to Order |
| 33 |
56344625 |
Cable Clamp |
Call to Order |
| 34 |
56244969 |
Hose Clamp |
Buy Now |
| 35 |
56315625 |
Coupler Barb |
Buy Now |
| 36 |
- |
Bushing |
Call to Order |
| 37 |
56478246 |
Cable Tie |
Buy Now |
| 38 |
9095286000 |
Gasket |
Buy Now |
| 39 |
9096595000 |
Flat Tie Holder |
Buy Now |
| 40 |
- |
Water Filter |
Call to Order |
| 41 |
- |
Screw |
Call to Order |
| 42 |
- |
Washer |
Call to Order |
| 43 |
- |
Washer |
Call to Order |
| 44 |
- |
Spacer |
Call to Order |
| 45 |
56112771 |
Hose Clamp |
Buy Now |
| 46 |
- |
Bushing |
Call to Order |
| 47 |
- |
Washer |
Call to Order |
| 48 |
- |
Washer |
Call to Order |
| 49 |
- |
Nut |
Call to Order |
| 50 |
56115508 |
Clamp |
Buy Now |
| 51 |
- |
Screw |
Call to Order |
| 52 |
- |
Drain Hose Retainer Base |
Call to Order |
| 53 |
- |
Nut |
Call to Order |
| K1 |
56115394 |
Solution Hardware Kit |
Buy Now |
| K2 |
56115395 |
Cap Solution Fill Kit |
Buy Now |
| K3 |
56104351 |
Solution Filter Kit |
Buy Now |
| K4 |
56115446 |
Solution Control Lever Kit |
Buy Now |
| K5 |
56115524 |
Drain Hose Retainer Kit |
Buy Now |

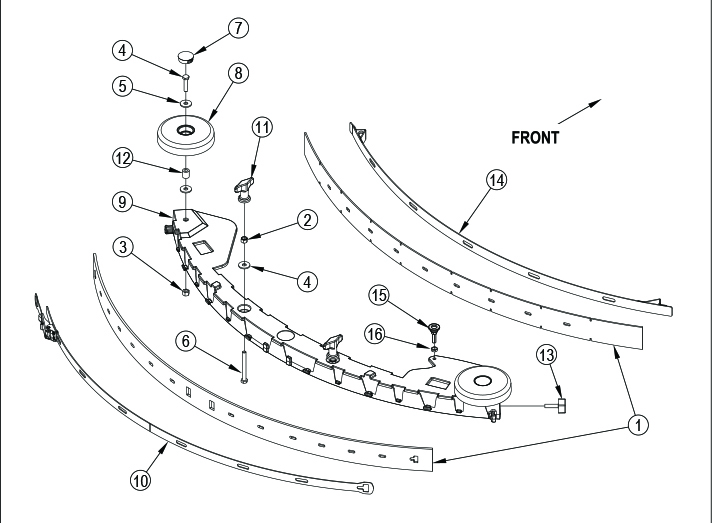

Squeegee Assembly
Nilfisk SC901 Squeegee Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| - |
56115428 |
Gum Squeegee Assembly |
Buy Now |
| - |
56115380 |
Red Gum Squeegee Assembly |
Buy Now |
| 1 |
56115334 |
Gum Squeegee Blade Kit |
Buy Now |
| 1 |
56115333 |
Linatex Squeegee Blade Kit |
Buy Now |
| 2 |
56002856 |
Nut |
Buy Now |
| 3 |
56003405 |
Nut |
Buy Now |
| 4 |
- |
Screw |
Call to Order |
| 5 |
- |
Washer |
Call to Order |
| 6 |
56003649 |
Screw |
Buy Now |
| 7 |
- |
Button Plug |
Call to Order |
| 8 |
- |
Wheel |
Call to Order |
| 9 |
56115271 |
Squeegee Casting |
Buy Now |
| 10 |
56115293 |
Rear Squeegee Strap Assembly |
Buy Now |
| 11 |
56370711 |
Nut Thumb |
Buy Now |
| 12 |
- |
Nylon Bushing |
Call to Order |
| 13 |
54647A |
Knob |
Buy Now |
| 14 |
60546A |
Front Squeegee Strap |
Buy Now |
| 15 |
56115468 |
Leveler |
Buy Now |
| 16 |
56009141 |
Nut |
Buy Now |
| - |
56115334 |
Gum Squeegee Blade Kit |
Buy Now |
| - |
56115333 |
Red Gum Squeegee Blade Kit |
Buy Now |
| - |
56115335 |
PU Squeegee Blade Kit |
Buy Now |
| K1 |
56115449 |
Wheel Squeegee Kit |
Buy Now |

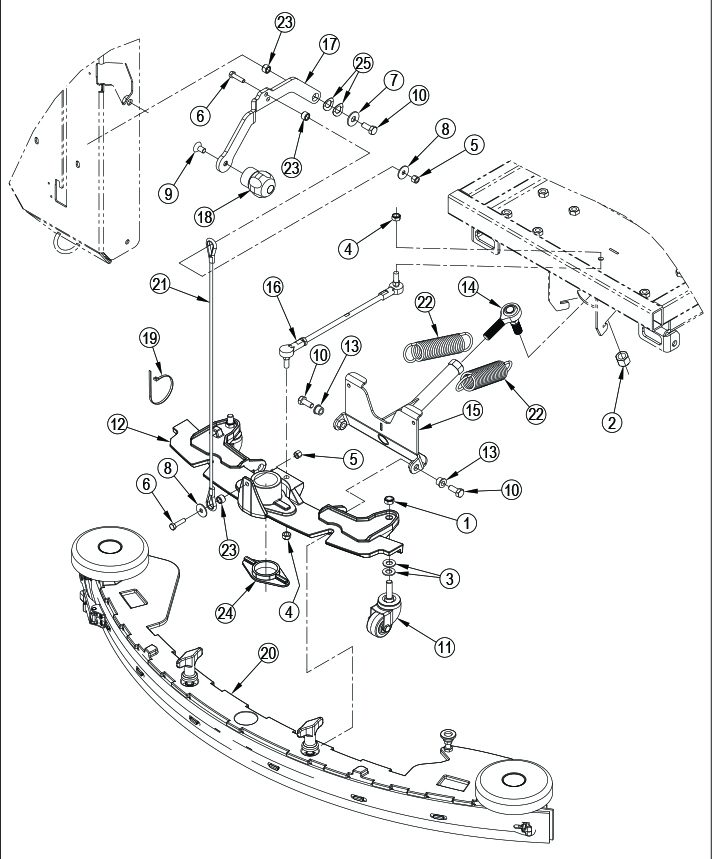

Squeegee System
Nilfisk SC901 Squeegee System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Nut |
Call to Order |
| 2 |
- |
Nut |
Call to Order |
| 3 |
- |
Washer |
Call to Order |
| 4 |
- |
Nut |
Call to Order |
| 5 |
- |
Nut |
Call to Order |
| 6 |
- |
Screw |
Call to Order |
| 7 |
- |
Washer |
Call to Order |
| 8 |
- |
Washer |
Call to Order |
| 9 |
- |
Screw |
Call to Order |
| 10 |
- |
Screw |
Call to Order |
| 11 |
56104231 |
Caster Wheel |
Buy Now |
| 12 |
56115496 |
Squeegee Mount |
Call to Order |
| 13 |
56115262 |
Flange Bearing |
Buy Now |
| 14 |
56115284 |
Rod End |
Buy Now |
| 15 |
56115285 |
Squeegee Bracket Weldment |
Buy Now |
| 16 |
56115287 |
Turnbuckle Assembly |
Buy Now |
| 17 |
- |
Squeegee Lift Lever |
Call to Order |
| 18 |
- |
Knob |
Call to Order |
| 19 |
56383973 |
Cable Tie |
Buy Now |
| 20 |
56115428 |
Gum Squeegee Assembly |
Buy Now |
| 20 |
56115380 |
Red Gum Squeegee Assembly |
Buy Now |
| 21 |
56115429 |
Cable Assembly |
Buy Now |
| 22 |
56315295 |
Spring Extension |
Buy Now |
| 23 |
- |
Bushing |
Call to Order |
| 24 |
56117305 |
Squeegee Seal |
Buy Now |
| 25 |
- |
Bowed Washer |
Call to Order |
| K1 |
56115414 |
Hardware Squeegee Kit |
Buy Now |
| K2 |
56115415 |
Lever Squeegee Kit |
Buy Now |
| K3 |
56115471 |
Squeegee Handle Lever Kit |
Buy Now |
| K4 |
56115527 |
Squeegee Mount Kit |
Buy Now |
