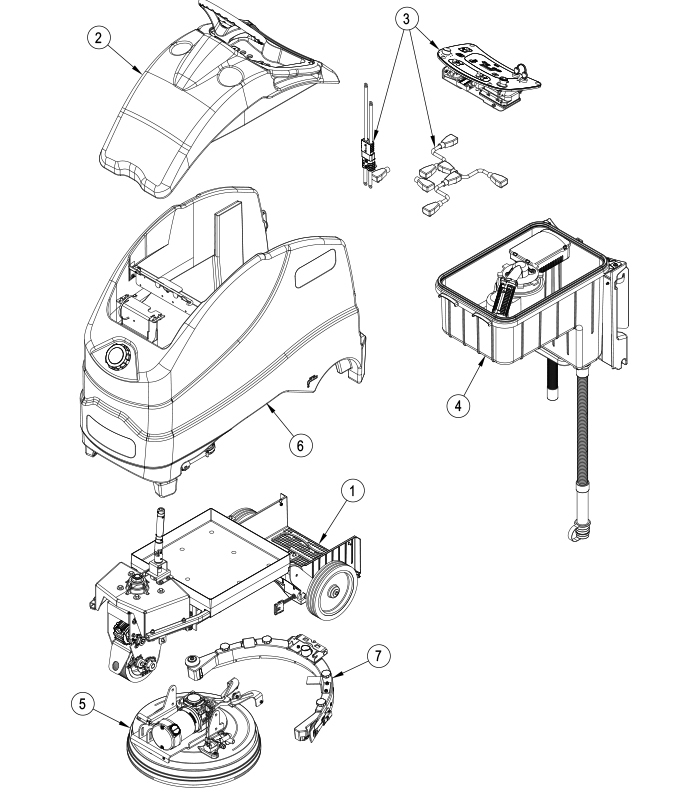

Nilfisk SC1500
General View
Nilfisk SC1500 General View
| 1 |
- |
Chassis System |
Call to Order |
| 2 |
- |
Control System |
Call to Order |
| 3 |
- |
Electrical System |
Call to Order |
| 4 |
- |
Recovery System |
Call to Order |
| 5 |
- |
Scrub System |
Call to Order |
| 6 |
- |
Solution System |
Call to Order |
| 7 |
- |
Squeegee Assembly |
Call to Order |

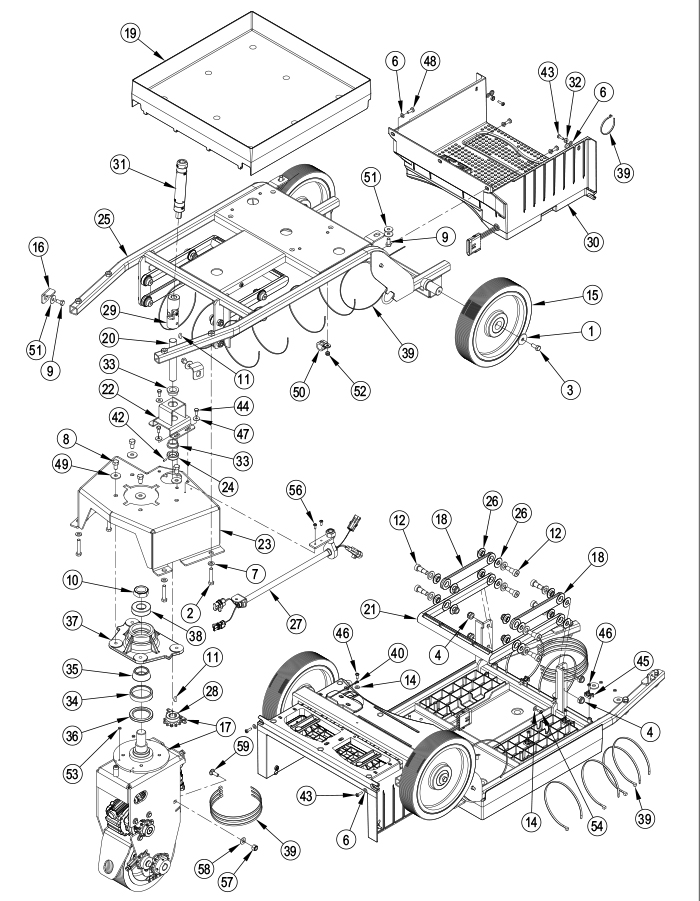

Chassis System
Nilfisk SC1500 Chassis System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Washer |
Call to Order |
| 2 |
- |
Screw |
Call to Order |
| 3 |
- |
Screw |
Call to Order |
| 4 |
- |
Nut |
Call to Order |
| 6 |
- |
Washer |
Call to Order |
| 7 |
- |
Washer |
Call to Order |
| 8 |
- |
Screw |
Call to Order |
| 9 |
- |
Screw |
Call to Order |
| 10 |
- |
Nut |
Call to Order |
| 11 |
- |
Key |
Call to Order |
| 12 |
- |
Screw |
Call to Order |
| 14 |
- |
Washer |
Call to Order |
| 15 |
- |
Wheel |
Call to Order |
| 16 |
56104091 |
Mounting Tab |
Buy Now |
| 17 |
- |
Drive Wheel Assembly |
Call to Order |
| 18 |
56104094 |
Bar Linkage |
Buy Now |
| 19 |
56104105 |
Battery Tray |
Buy Now |
| 20 |
56104130 |
Steering Shaft |
Buy Now |
| 21 |
56104135 |
Link Bar |
Buy Now |
| 22 |
56104148 |
Steering Shaft Weldment |
Buy Now |
| 23 |
56104151 |
Spindle Mount Weldment |
Buy Now |
| 24 |
56104157 |
Collar |
Buy Now |
| 25 |
56104448 |
Chassis Weldment |
Call to Order |
| 26 |
- |
Bushing Link Arm |
Call to Order |
| 27 |
- |
Drive Motor Kit Harness |
Call to Order |
| 28 |
56104269 |
11 Tooth Sprocket |
Buy Now |
| 29 |
- |
Universal Joint |
Call to Order |
| 30 |
- |
Platform Assembly |
Call to Order |
| 31 |
56104319 |
Steering Assembly Tube |
Buy Now |
| 32 |
- |
Screw Cap |
Call to Order |
| 33 |
56104267 |
Bearing Flange |
Buy Now |
| 34 |
- |
Bearing Cup |
Call to Order |
| 35 |
- |
Bearing Cone |
Call to Order |
| 36 |
- |
Shaft Seal |
Call to Order |
| 37 |
56314032 |
Bearing Block |
Buy Now |
| 38 |
- |
Bearing Ball |
Call to Order |
| 39 |
- |
Tie |
Call to Order |
| 40 |
- |
Ball Chain |
Call to Order |
| 42 |
- |
Screw |
Call to Order |
| 43 |
- |
Screw |
Call to Order |
| 44 |
- |
Screw |
Call to Order |
| 45 |
- |
Flat Tie Holder |
Call to Order |
| 46 |
- |
Thread Rolling |
Call to Order |
| 47 |
- |
Washer |
Call to Order |
| 48 |
- |
Screw |
Call to Order |
| 49 |
- |
Washer |
56115393 |
| 50 |
9095516000 |
Clamp |
Buy Now |
| 51 |
- |
Washer |
56115393 |
| 52 |
33005604 |
Nut |
Call to Order |
| 53 |
9099196000 |
Spacer |
Buy Now |
| 54 |
- |
Screw |
Call to Order |
| 56 |
- |
Screw |
Call to Order |
| 57 |
- |
Nut |
Call to Order |
| 58 |
- |
Washer |
Call to Order |
| 59 |
- |
Screw |
Call to Order |
| 60 |
- |
Cable Tie |
Call to Order |
| K1 |
56104328 |
Universal Joint Kit |
Buy Now |
| K2 |
56104331 |
Rear Wheel Kit |
Buy Now |
| K3 |
56104332 |
Bearing Block Kit |
Buy Now |
| K4 |
56104333 |
Chassis Hardware Kit |
Buy Now |
| K5 |
56385136 |
Harness Drive Motor Kit |
Buy Now |

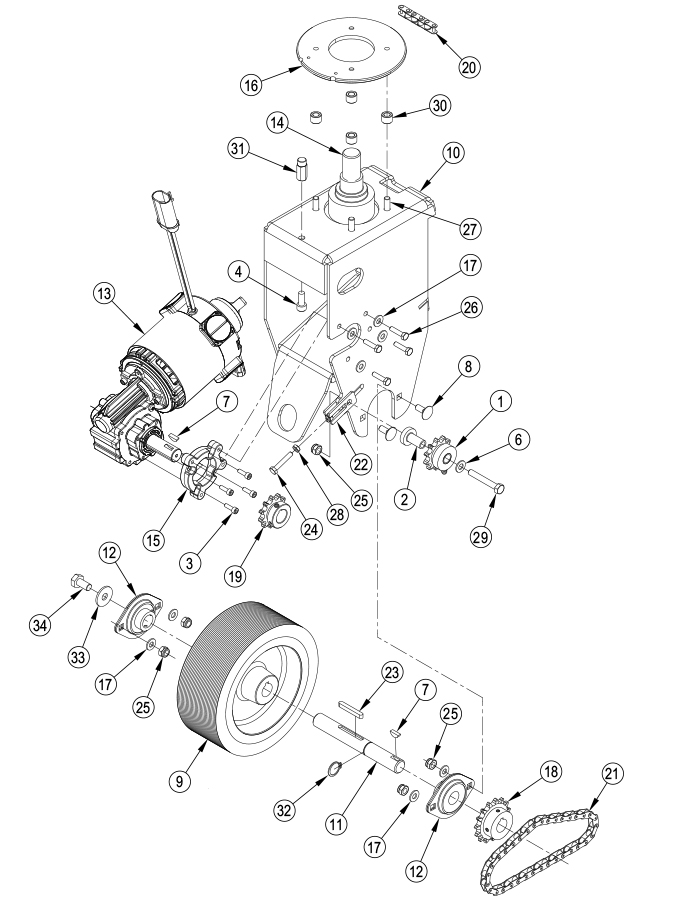

Drive Wheel System
Nilfisk SC1500 Drive Wheel System
| Reference # |
Part # |
Description |
Add to Cart |
| - |
- |
Drive Wheel Assembly |
Call to Order |
| 1 |
- |
Sprocket Assembly |
Call to Order |
| 2 |
- |
Flanged Bushing |
Call to Order |
| 3 |
- |
Screw |
Call to Order |
| 4 |
- |
Screw |
Call to Order |
| 6 |
- |
Washer |
Call to Order |
| 7 |
- |
Key |
Call to Order |
| 8 |
- |
Screw |
Call to Order |
| 9 |
- |
Drive Wheel |
Call to Order |
| 10 |
56104793 |
Drive Wheel Frame Weldment |
Buy Now |
| 10 |
56104498 |
Drive Weldment Kit |
Buy Now |
| 11 |
- |
Axle |
Call to Order |
| 12 |
- |
Axle Bearing |
Call to Order |
| 13 |
- |
Drive Wheel Motor |
Call to Order |
| - |
56384100 |
Electromagnetic Brake Kit |
Buy Now |
| 14 |
56104077 |
Spindle Weldment |
Buy Now |
| 15 |
- |
Spacer |
Call to Order |
| 16 |
56104115 |
Steering Plate |
Buy Now |
| 17 |
56003646 |
Washer |
Buy Now |
| 18 |
- |
15 Tooth Sprocket |
Call to Order |
| 19 |
- |
11 Tooth Sprocket |
Call to Order |
| 20 |
56104270 |
Roller Chain |
Buy Now |
| 21 |
- |
Roller Chain |
Call to Order |
| 22 |
- |
Idler Adjust Weldment |
Call to Order |
| 23 |
- |
Key |
Call to Order |
| 24 |
- |
Screw |
Call to Order |
| 25 |
- |
Nut |
Call to Order |
| 26 |
- |
Screw |
Call to Order |
| 27 |
- |
Screw |
Call to Order |
| 28 |
- |
Nut |
Call to Order |
| 29 |
- |
Screw |
Call to Order |
| 30 |
- |
Spacer |
Call to Order |
| 31 |
- |
Steering Stop Bushing |
Call to Order |
| 32 |
33006059 |
Ring |
Buy Now |
| 33 |
56003959 |
Washer |
Buy Now |
| 34 |
56003533 |
Screw |
Buy Now |
| K5 |
56104336 |
Drive Wheel Motor Kit |
Buy Now |
| K6 |
56104338 |
Wheel and Bearing Kit |
Buy Now |
| K7 |
56104435 |
Sprocket and Chain Kit |
Buy Now |
| K7 |
56104339 |
Sprocket and Chain Kit |
Buy Now |
| K8 |
56104340 |
Drive Wheel Hardware Kit |
Buy Now |
| K9 |
56104384 |
Front Wheel Bearings Kit |
Buy Now |
| K10 |
56394286 |
Steering Stop Kit |
Call to Order |

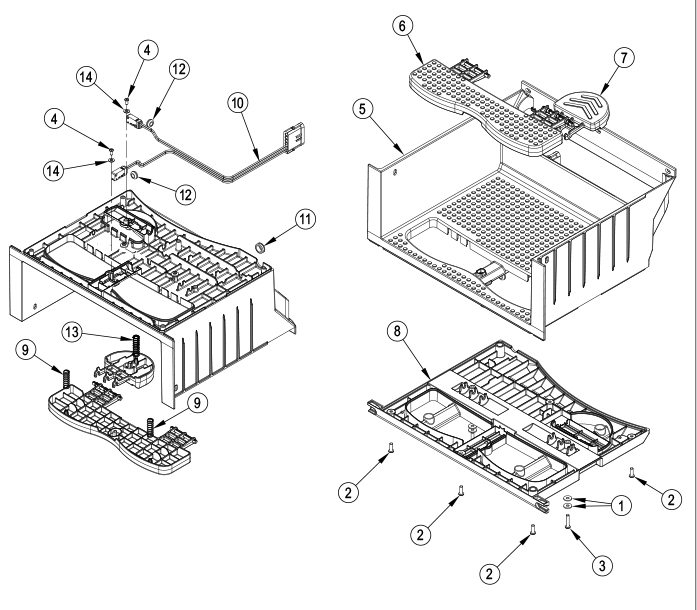

Platform Assembly
Nilfisk SC1500 Platform Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| - |
- |
Platform Assembly |
Call to Order |
| 1 |
- |
Washer |
Call to Order |
| 2 |
- |
Screw |
Call to Order |
| 3 |
- |
Screw |
Call to Order |
| 4 |
- |
Screw |
Call to Order |
| 5 |
56104052 |
Upper Platform |
Buy Now |
| 6 |
56104185 |
Safety Pedal |
Buy Now |
| 7 |
56384567 |
Foot Pedal |
Buy Now |
| 8 |
56104187 |
Bottom Platform |
Buy Now |
| 9 |
56384579 |
Compression Spring |
Buy Now |
| 10 |
56104406 |
Switch Harness |
Buy Now |
| 11 |
56158690 |
Grommet |
Buy Now |
| 12 |
56331006 |
Grommet |
Buy Now |
| 13 |
56384568 |
Compression Spring |
Buy Now |
| 14 |
- |
Washer |
Call to Order |
| K1 |
56104417 |
Platform Hardware Kit |
Buy Now |

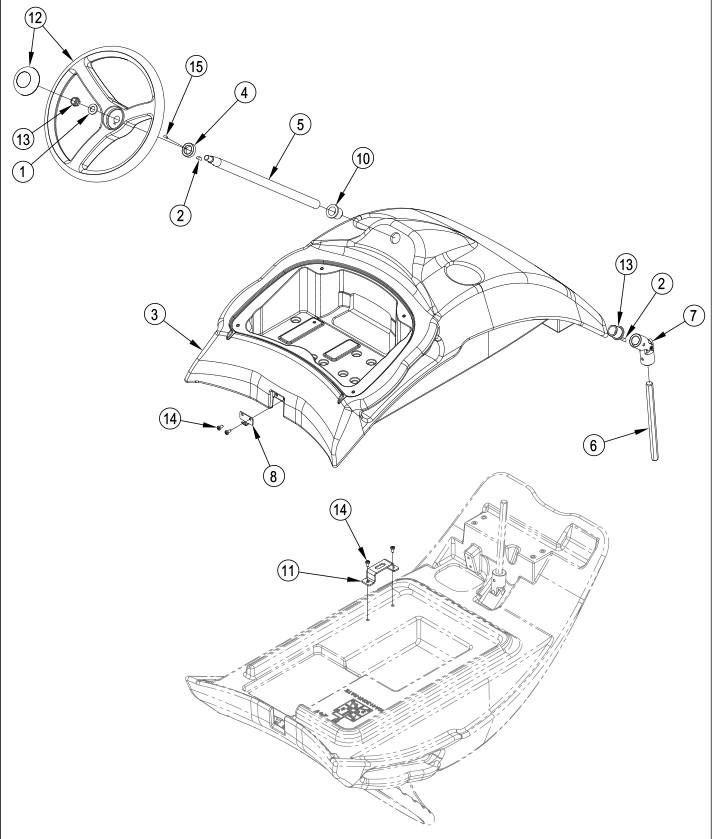

Control System
Nilfisk SC1500 Control System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Washer |
Call to Order |
| 2 |
- |
Key |
Call to Order |
| 3 |
56104053 |
Control Panel |
Buy Now |
| 4 |
- |
Collar |
Call to Order |
| 5 |
56104196 |
Steering Shaft |
Buy Now |
| 6 |
56104265 |
Hex Shaft |
Buy Now |
| 7 |
- |
Universal Joint |
Call to Order |
| 8 |
- |
Hook Latch |
Call to Order |
| 10 |
- |
Flange Bearing |
Call to Order |
| 11 |
56104410 |
Prop Rod Bracket |
Buy Now |
| 12 |
56601060 |
Steering Wheel |
Buy Now |
| 13 |
- |
Nut |
Call to Order |
| 14 |
- |
Screw |
Call to Order |
| 15 |
- |
Screw |
Call to Order |
| K1 |
56104328 |
Universal Joint Kit |
Buy Now |
| K2 |
56104352 |
Draw Latch Kit |
Buy Now |
| K3 |
56104365 |
Control Hardware Kit |
Buy Now |

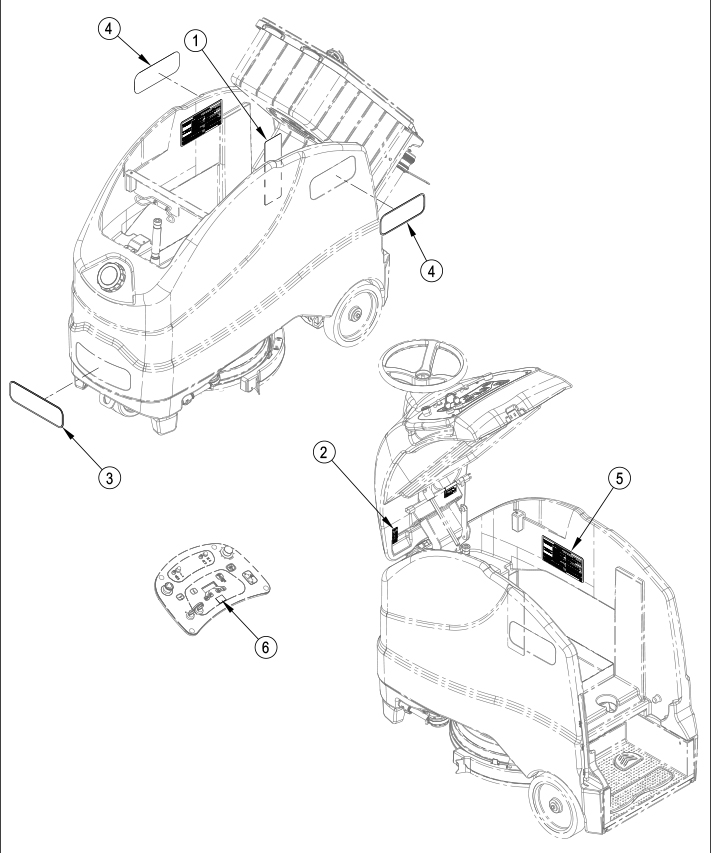

Decal System
Nilfisk SC1500 Decal System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Caution Decal |
Call to Order |
| 2 |
- |
Chemical Ratio Decal |
Call to Order |
| 3 |
- |
Nilfisk Decal |
Call to Order |
| 4 |
- |
Nilfisk SC1500 Decal |
Call to Order |
| 4 |
- |
SC1500 Ecoflex Decal |
Call to Order |
| 5 |
- |
Error Codes Decal |
Call to Order |
| 6 |
- |
SC1500 QR Code Decal |
Call to Order |
| K1 |
56104335 |
SC1500 EU Decal Kit |
Buy Now |
| K2 |
56104481 |
SC1500 EU Ecoflex Kit |
Buy Now |

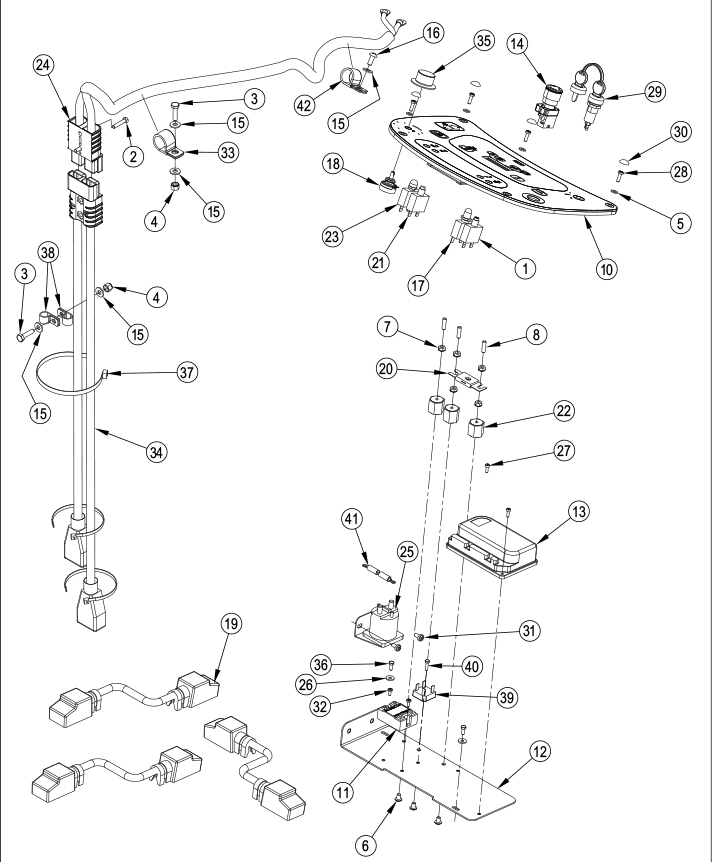

Electrical System
Nilfisk SC1500 Electrical System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56104423 |
Circuit Breaker |
Buy Now |
| 2 |
33003964 |
Screw |
Buy Now |
| 3 |
56002093 |
Screw |
Buy Now |
| 4 |
56002708 |
Nut |
Buy Now |
| 5 |
- |
Washer |
Call to Order |
| 6 |
- |
Screw |
Call to Order |
| 7 |
- |
Nut |
Call to Order |
| 8 |
- |
Stud |
Call to Order |
| 9 |
56104444 |
Main Harness |
Buy Now |
| 10 |
- |
Interface Panel Assembly |
Call to Order |
| - |
- |
Interface Panel Kit |
Call to Order |
| 11 |
56104176 |
Solid State Relay |
Buy Now |
| 12 |
56104193 |
Electrical Panel |
Buy Now |
| 13 |
56104243 |
Speed Controller |
Buy Now |
| 14 |
56104247 |
Emergency Disconnect |
Buy Now |
| 15 |
56002859 |
Washer |
Buy Now |
| 16 |
56009120 |
Screw |
Buy Now |
| 17 |
56315255 |
Circuit Breaker |
Buy Now |
| 18 |
- |
Potentiometer |
Call to Order |
| 19 |
56104438 |
Battery Assembly Cable |
Buy Now |
| 20 |
56412089 |
Fuse |
Buy Now |
| 21 |
56413822 |
Circuit Breaker |
Buy Now |
| 22 |
56469858 |
Electrical Mount |
Buy Now |
| 23 |
56509623 |
Circuit Breaker |
Buy Now |
| 24 |
56104281 |
Power Cable |
Buy Now |
| 25 |
56601183 |
Contactor |
Buy Now |
| 26 |
- |
Washer |
Call to Order |
| 27 |
- |
Screw |
Call to Order |
| 28 |
- |
Screw |
Call to Order |
| 29 |
1462888000 |
Switch Key w/ Water Proof Cup |
Buy Now |
| - |
1462887000 |
Key |
Buy Now |
| 30 |
- |
Screw Cover |
Call to Order |
| 31 |
- |
Screw |
Call to Order |
| 32 |
- |
Screw |
Call to Order |
| 33 |
56303651 |
Hose Support Clamp |
Buy Now |
| 34 |
56104439 |
Connector Assembly Cable |
Buy Now |
| 35 |
50962A |
Speed Control Knob |
Buy Now |
| 36 |
- |
Screw |
Call to Order |
| 37 |
56477613 |
Cable Tie |
Buy Now |
| 38 |
56486112 |
Clamp |
Buy Now |
| 39 |
56265103 |
Rectifier |
Buy Now |
| 40 |
1460497000 |
Screw |
Buy Now |
| 41 |
56389265 |
Rectifier Assembly |
Buy Now |
| 42 |
56496276 |
Hose Support Clamp |
Buy Now |
| 43 |
56385490 |
Battery Panel Harness Assembly Kit |
Buy Now |
| - |
56104425 |
White Wire Assembly |
Buy Now |
| - |
56104424 |
Black Wire Assembly |
Buy Now |
| - |
56090357 |
Instruction Sheet |
Call to Order |
| K1 |
56104341 |
Electrical Hardware Kit |
Buy Now |
| K2 |
56384204 |
Control Board Kit |
Buy Now |
| K3 |
56104372 |
Interface Panel Kit |
Buy Now |

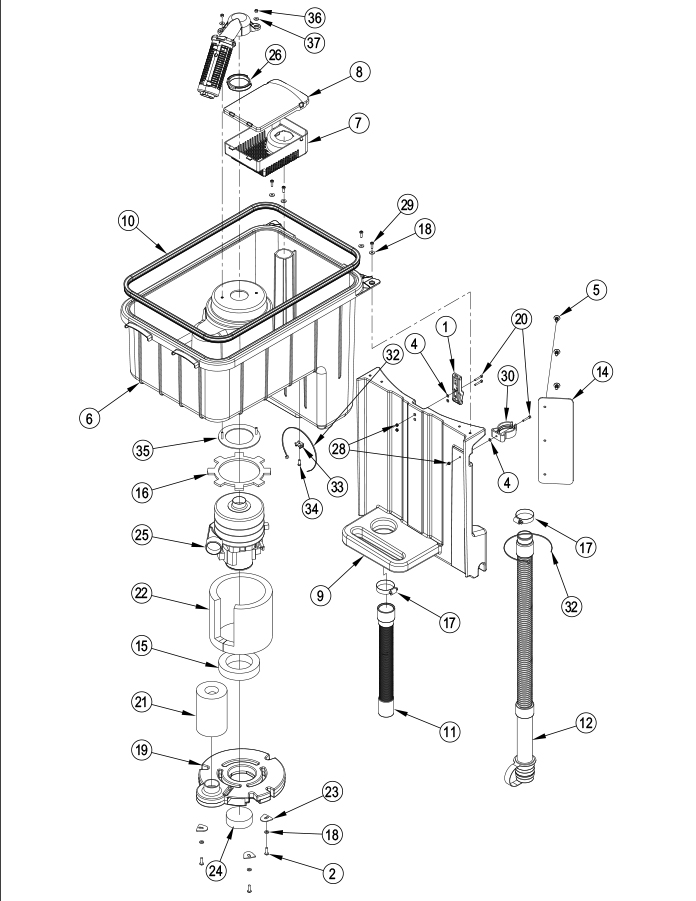

Recovery System
Nilfisk SC1500 Recovery System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Draw Latch |
Call to Order |
| 2 |
- |
Screw |
Call to Order |
| 5 |
- |
Nylon Tree Push-In Rivet |
Call to Order |
| 6 |
56394039 |
Recovery Tank |
Call to Order |
| 7 |
- |
Debris Cage |
Call to Order |
| 8 |
- |
Debris Tray Cover |
Call to Order |
| 9 |
56104158 |
Back Panel |
Buy Now |
| 10 |
56104164 |
Recovery Tank Gasket |
Buy Now |
| 11 |
56104258 |
Vac Hose Assembly |
Buy Now |
| 12 |
56104285 |
Drain Hose |
Buy Now |
| 13 |
56104306 |
Jumper Harness |
Buy Now |
| 14 |
56104443 |
Splash Guard |
Buy Now |
| 15 |
- |
Vacuum Motor Gasket |
Call to Order |
| 16 |
- |
Vacuum Motor Gasket |
Call to Order |
| 17 |
1450543000 |
Hose Clamp |
Call to Order |
| 18 |
- |
Washer |
Call to Order |
| 19 |
9100001246 |
Vacuum Motor Cover |
Buy Now |
| 20 |
- |
Screw |
Call to Order |
| 21 |
- |
Insulation Tube |
Call to Order |
| 22 |
- |
Acoustic Insulation Panel |
Call to Order |
| 23 |
- |
Cover Plate |
Call to Order |
| 24 |
56344168 |
Filter |
Buy Now |
| 25 |
- |
Vacuum Motor |
Call to Order |
| 26 |
- |
Float Support Gasket |
Call to Order |
| 27 |
- |
Complete Float Cage |
Call to Order |
| 28 |
- |
Nut |
Call to Order |
| 29 |
- |
Screw |
Call to Order |
| 32 |
56478523 |
Cable Tie |
Buy Now |
| 33 |
9096595000 |
Flat Tie Holder |
Buy Now |
| 34 |
9097919000 |
Screw |
Buy Now |
| 35 |
56385083 |
Tank Support Assembly |
Call to Order |
| 36 |
56003975 |
Nut |
Buy Now |
| 37 |
56009332 |
Washer |
Buy Now |
| K1 |
56104352 |
Draw Latch Kit |
Buy Now |
| K3 |
56104389 |
Float Cage EU Kit |
Buy Now |
| K4 |
56104360 |
Debris Cage Kit |
Buy Now |
| K5 |
56104362 |
Hose Clamp Kit |
Buy Now |
| K6 |
56104363 |
Vacuum Motor Kit |
Buy Now |
| K7 |
56104364 |
Recovery Hardware Kit |
Buy Now |
| K8 |
56104383 |
Vacuum Motor Insulation Kit |
Buy Now |

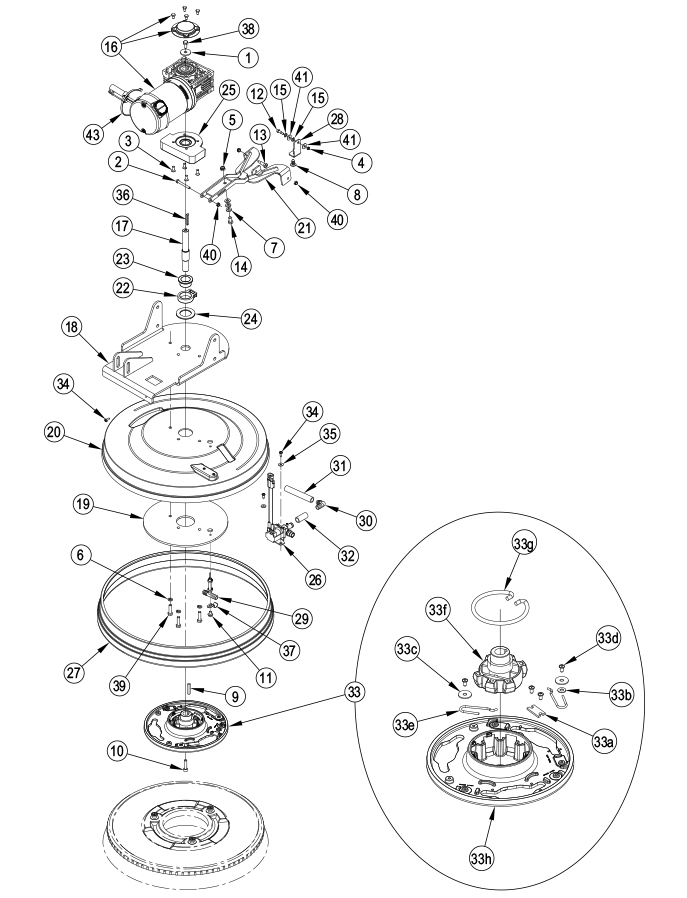

Scrub System
Nilfisk SC1500 Scrub System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Washer |
Call to Order |
| 2 |
- |
Screw |
Call to Order |
| 3 |
- |
Screw |
Call to Order |
| 4 |
- |
Nut |
Call to Order |
| 5 |
- |
Nut |
Call to Order |
| 6 |
- |
Washer |
Call to Order |
| 7 |
- |
Washer |
Call to Order |
| 8 |
- |
Nylon Tree Push-In Rivet |
Call to Order |
| 9 |
- |
Square Key |
Call to Order |
| 10 |
- |
Screw |
Call to Order |
| 11 |
- |
Screw |
Call to Order |
| 12 |
- |
Screw |
Call to Order |
| 13 |
- |
Screw |
Call to Order |
| 14 |
- |
Screw |
Call to Order |
| 15 |
- |
Washer |
Call to Order |
| 16 |
56104071 |
Disc Brush Motor |
Buy Now |
| 17 |
56104095 |
Shaft Disc Brush Motor |
Buy Now |
| 18 |
56104117 |
Deck Lift Plate Weldment |
Buy Now |
| 19 |
56104120 |
Lower Deck Plate |
Buy Now |
| 20 |
56104121 |
Brush Housing |
Buy Now |
| 21 |
56104126 |
Squeegee Link Weldment |
Buy Now |
| 22 |
- |
Squeegee Pivot Block |
Call to Order |
| 23 |
- |
Bearing Flange |
Call to Order |
| 24 |
- |
Squeegee Pivot Washer |
Call to Order |
| 25 |
56104137 |
Spacer Motor |
Buy Now |
| 26 |
56104169 |
Solenoid Valve Assembly |
Buy Now |
| 27 |
56104240 |
Skirt Brush |
Buy Now |
| 28 |
56104241 |
Double Scrub Bracket |
Buy Now |
| 29 |
56314983 |
Tee Assembly |
Buy Now |
| 30 |
56386183 |
Barbed Elbow |
Buy Now |
| 31 |
56384076 |
Hose |
Buy Now |
| 32 |
56397217 |
Hose |
Buy Now |
| 33 |
56601733 |
Brush Plate Assembly |
Buy Now |
| 33a |
56366455 |
Stop Plate |
Buy Now |
| 33b |
- |
Washer |
Call to Order |
| 33c |
- |
Washer |
Call to Order |
| 33d |
- |
Screw |
Call to Order |
| 33e |
56109653 |
Spring Retainer |
Buy Now |
| 33f |
56112521 |
Collar Assembly Gimbal |
Buy Now |
| 33g |
56601056 |
Brush Holder Spring |
Buy Now |
| 33h |
56601118 |
Brush Plate |
Buy Now |
| 34 |
- |
Screw |
Call to Order |
| 35 |
- |
Washer |
Call to Order |
| 36 |
- |
Key |
Call to Order |
| 37 |
9095483000 |
Hose Holder |
Buy Now |
| 38 |
- |
Screw |
Call to Order |
| 39 |
- |
Screw |
Call to Order |
| 40 |
- |
Nut |
Call to Order |
| 41 |
- |
Washer |
Call to Order |
| 42 |
- |
Screw |
Call to Order |
| 43 |
79 |
Tie |
Call to Order |
| K1 |
56104344 |
Squeegee Pivot Kit |
Buy Now |
| K2 |
56104346 |
Disc Deck Hardware Kit |
Buy Now |

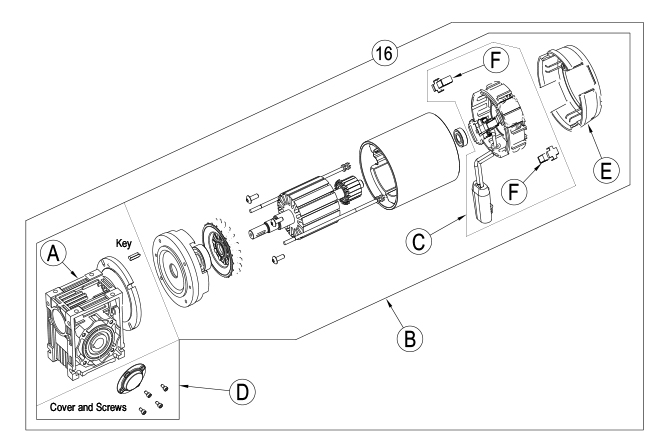

Scrub System
Nilfisk SC1500 Scrub System
| Reference # |
Part # |
Description |
Add to Cart |
| A |
56104297 |
Motor Gearbox |
Buy Now |
| B |
56104298 |
Motor |
Buy Now |
| C |
56104300 |
Brush Housing Assembly |
Buy Now |
| D |
56601588 |
Cover and Screws |
Buy Now |
| E |
56601508 |
Plastic Cover |
Buy Now |
| F |
56601534 |
Carbon Brushes |
Buy Now |

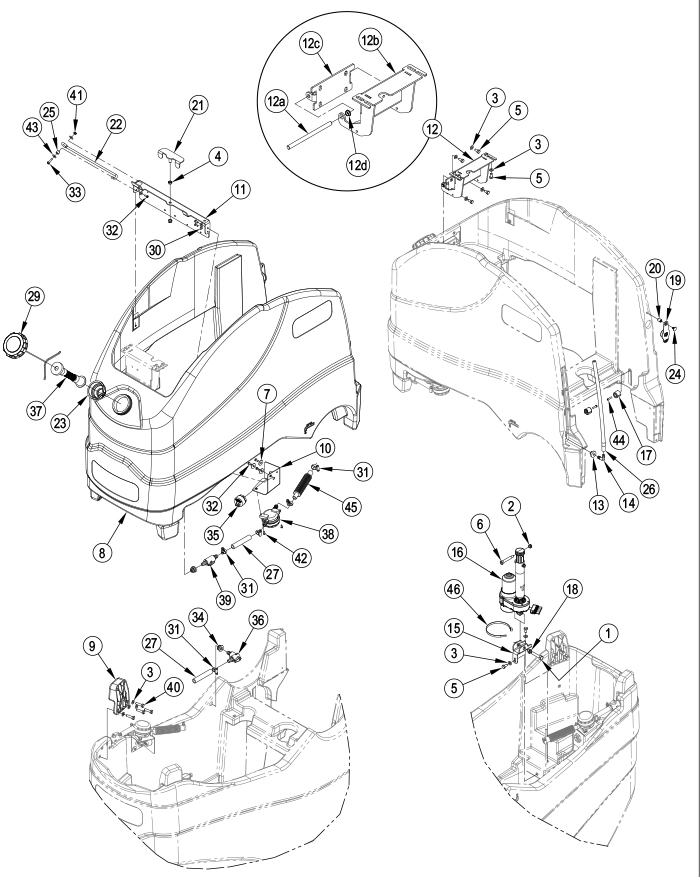

Solution System
Nilfisk SC1500 Solution System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Screw |
Call to Order |
| 2 |
- |
Nut |
Call to Order |
| 3 |
- |
Washer |
Call to Order |
| 4 |
- |
Nut |
Call to Order |
| 5 |
- |
Screw |
Call to Order |
| 6 |
- |
Screw |
Call to Order |
| 7 |
- |
Washer |
Call to Order |
| 8 |
56104050 |
Solution Tank |
Buy Now |
| 9 |
- |
Tip Pad |
Call to Order |
| 10 |
56104165 |
Filter Bracket |
Buy Now |
| 11 |
56104445 |
Tank Support Bracket |
Buy Now |
| 12 |
- |
Hiinge Assembly |
Call to Order |
| 12a |
56104206 |
Hinge Pin |
Buy Now |
| 12b |
56104207 |
Hinge Weldment |
Buy Now |
| 12c |
56104208 |
Hinge Bracket |
Buy Now |
| 12d |
56104249 |
Bearing Flange |
Buy Now |
| 13 |
56104229 |
Grommet |
Buy Now |
| 14 |
51526A |
Hosebarb |
Buy Now |
| 15 |
56104234 |
Actuator Bracket |
Buy Now |
| 16 |
- |
Actuator Assembly |
Call to Order |
| 17 |
56104308 |
Pivot Block |
Buy Now |
| 18 |
- |
Spacer Actuator |
Call to Order |
| 19 |
- |
Rubber Solution Cap |
Call to Order |
| 20 |
56104390 |
Brass Insert |
Buy Now |
| 21 |
56104391 |
Adjustment Pad |
Buy Now |
| 22 |
56104409 |
Prop Rod |
Buy Now |
| 23 |
- |
Fill Hose Support |
Call to Order |
| 24 |
- |
Panel Clip |
Call to Order |
| 25 |
- |
Bushing |
Call to Order |
| 26 |
56393382 |
Hose |
Buy Now |
| 27 |
- |
Spiral Hose |
Call to Order |
| 29 |
56510442 |
Extra Vent Cap |
Buy Now |
| 30 |
- |
Washer |
Call to Order |
| 31 |
- |
Hose Clamp |
Call to Order |
| 32 |
- |
Screw |
Call to Order |
| 33 |
- |
Screw |
Call to Order |
| 34 |
- |
Gasket |
Call to Order |
| 35 |
9096126000 |
Buzzer |
Buy Now |
| 36 |
- |
Ball Valve |
Call to Order |
| 37 |
- |
Filling Hose |
Call to Order |
| 38 |
- |
Water Filter |
Call to Order |
| 39 |
- |
Ball Valve |
Call to Order |
| 40 |
- |
Screw |
Call to Order |
| 41 |
- |
Nut |
Call to Order |
| 42 |
- |
Screw |
Call to Order |
| 43 |
- |
Washer |
Call to Order |
| 44 |
80205A |
Screw |
Buy Now |
| 45 |
- |
Solution Hose |
Call to Order |
| 46 |
56477613 |
Cable Tie |
Buy Now |
| K1 |
56104349 |
Solution Drain Kit |
Buy Now |
| K2 |
56104350 |
Solution Hose Kit |
Buy Now |
| K3 |
56104351 |
Solution Filter Kit |
Buy Now |
| K4 |
56104354 |
Solution Cap Kit |
Buy Now |
| K5 |
56104356 |
Actuator Kit |
Buy Now |
| K6 |
56104357 |
Tip Pad Kit |
Buy Now |
| K7 |
56104358 |
Solution Hardware Kit |
Buy Now |

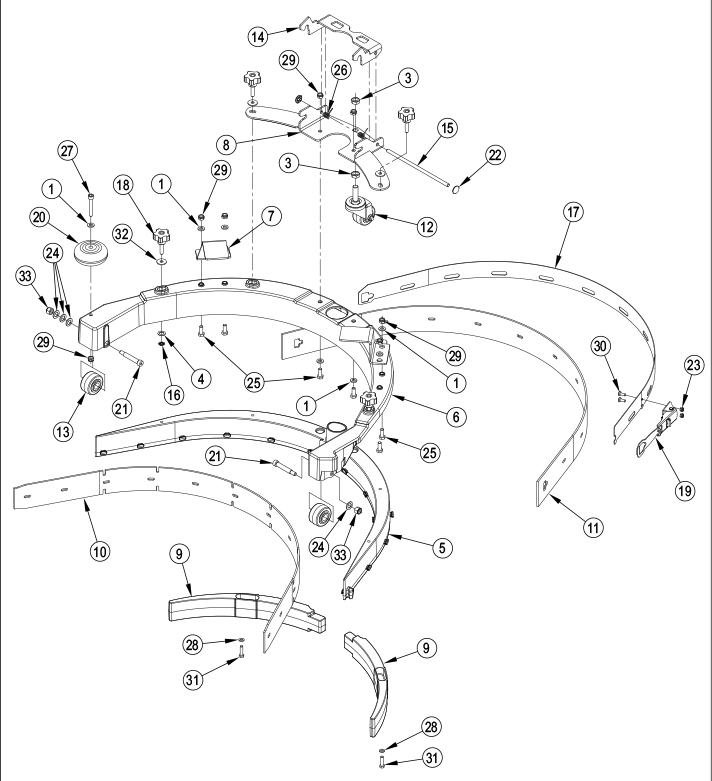

Squeegee System
Nilfisk SC1500 Squeegee System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Washer |
Call to Order |
| 3 |
- |
Nut |
Call to Order |
| 4 |
- |
Washer |
Call to Order |
| 5 |
- |
Squeegee Casting |
Call to Order |
| 6 |
56104989 |
Squeegee Cover |
Buy Now |
| 7 |
- |
Squeegee Lift Bracket |
Call to Order |
| 8 |
- |
Squeegee Bracket Weldment |
Call to Order |
| 9 |
- |
Squeegee Plate |
Call to Order |
| 10 |
- |
Front Linatex Squeegee Blade |
Call to Order |
| 10 |
- |
Front PU Squeegee Blade |
Call to Order |
| 11 |
- |
Rear Linatex Squeegee Blade |
Call to Order |
| 11 |
- |
Rear PU Squeegee Blade |
Call to Order> |
| 12 |
56104231 |
Caster Wheel |
Buy Now |
| 13 |
- |
Roller Wheel |
Call to Order |
| 14 |
- |
Squeegee Mount Bracket |
Call to Order |
| 15 |
- |
Pivot Pin |
Call to Order |
| 16 |
- |
Retaining Ring |
Call to Order |
| 17 |
- |
Rear Squeegee Strap |
Call to Order |
| 18 |
- |
Knob |
Call to Order |
| 19 |
- |
Latch |
Call to Order |
| 20 |
- |
Roller Wheel |
Call to Order |
| 21 |
- |
Shoulder Bolt |
Call to Order |
| 22 |
- |
Pin Cover |
Call to Order |
| 23 |
- |
Nut |
Call to Order |
| 24 |
- |
Spacer |
Call to Order |
| 25 |
- |
Screw |
Call to Order |
| 26 |
- |
Spring |
Call to Order |
| 27 |
- |
Screw |
Call to Order |
| 28 |
- |
Washer |
Call to Order |
| 29 |
- |
Nut |
Call to Order |
| 30 |
- |
Screw |
Call to Order |
| 31 |
- |
Screw |
Call to Order |
| 32 |
L08603689 |
Washer |
Buy Now |
| 33 |
- |
Nut |
Call to Order |
| K1 |
56104325 |
PU Squeegee Blade Kit |
Buy Now |
| K2 |
56104483 |
Linatex Squeegee Blade Kit |
Buy Now |
| K3 |
56104327 |
Squeegee Hardware Kit |
Buy Now |
| K4 |
56104378 |
Squeegee Assembly Kit |
Buy Now |
| K5 |
56104429 |
Squeegee Knobs Kit |
Buy Now |
| K6 |
56104385 |
Squeegee Wheels Kit |
Buy Now |
| K7 |
56104386 |
Squeegee Strap Kit |
Buy Now |
| K8 |
56104387 |
Squeegee Mount Bracket Kit |
Buy Now |
