Nilfisk GU700A

Base System

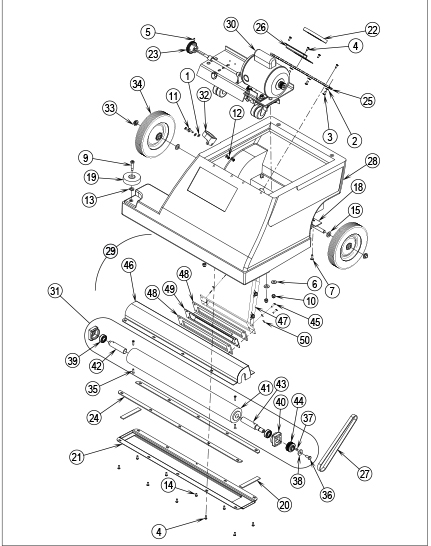

Nilfisk GU700A Base System

Reference #	Part #	Description	Add to Cart
1	56001954	Flat Washer	Buy Now
2	56002098	Flat Washer	Buy Now
3	56002145	Screw	Buy Now
4	56002147	Screw	Buy Now
5	56003123	Screw	Buy Now
6	56002220	Flat Washer	Buy Now
7	56002066	Screw	Buy Now
9	56003472	Screw	Buy Now
10	56002826	Nut	Buy Now
11	56002733	Screw	Buy Now
12	56002832	Nut	Buy Now
13	80317A	Washer	Buy Now
14	56003735	Screw	Buy Now
15	56009003	Washer	Buy Now
18	56330045	Weldment Axle	Buy Now
19	56049261	Wheel	Buy Now
20	56052279	Foam Gasket Strip	Buy Now
21	56381747	Plate	Buy Now
22	56055054	Foam Gasket	Buy Now
23	56475480	Knob	Buy Now
24	56055187	Foam Gasket	Buy Now
25	56055213	Butt Hinge	Buy Now
26	56055217	Intake Tube Bracket	Buy Now
27	56055123	V Belt	Buy Now
28	56330010	Base Tank	Buy Now
29	56330011	Brush Housing Assembly	Buy Now
30	56330901	Brush Motor Assembly	Call to Order
31	56330015	Brush Assembly	Buy Now
32	56331151	Tube Holder	Buy Now
33	56009097	Nut	Buy Now
34	56330051	Wheel	Buy Now
35	56001900	Screw	Buy Now
36	56002956	Screw	Buy Now
37	56003235	Key	Buy Now
38	56001939	Washer	Buy Now
39	56027222	Ball Bearing	Buy Now
40	56055030	Bearing Mount	Buy Now
41	56055126	Cylinder Brush	Buy Now
42	56055127	Brush Shaft	Buy Now
43	56330014	Brush Shaft	Buy Now
44	56330914	Sheave	Buy Now
45	56002192	Screw	Buy Now
46	56034673	Brush Housing Weldment	Buy Now
47	56055121	Intake Machined Tube	Buy Now
48	56055122	Gasket	Buy Now
49	56055615	Plate	Buy Now
50	56001954	Washer	Buy Now

Brush Motor Assembly

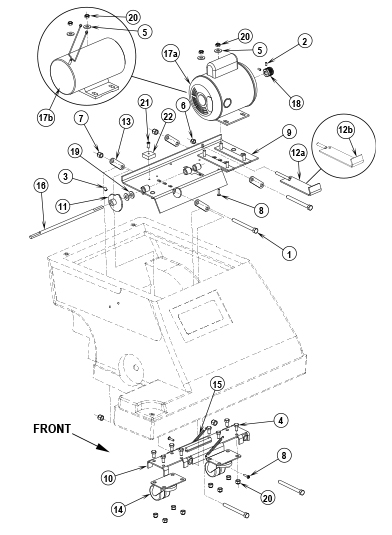

Nilfisk GU700A Brush Motor Assembly

Reference #	Part #	Description	Add to Cart
1	56001819	Screw	Buy Now
2	56001823	Screw	Buy Now
3	56002021	Screw	Buy Now
4	56002035	Screw	Buy Now
5	56002220	Washer	Buy Now
6	56002701	Nut	Buy Now
7	56002769	Nut	Buy Now
8	56009043	Screw	Buy Now
9	56034675	Weldment	Buy Now
10	56034677	Castor Bracket Weldment	Buy Now
11	56034679	Weldment	Buy Now
12a	56034691	Weldment	Buy Now
13	56055031	Steel Bar	Buy Now
14	56055134	Castor	Buy Now
15	56055135	Spring	Buy Now
16	56055137	Height Adjustment Shaft	Buy Now
17a	56330908	Motor	Buy Now
17a	56384573	Motor	Buy Now
17a	56384521	Motor Brush Kit	Buy Now
17b	56330928	Carbon Brush	Buy Now
17b	56330929	Spring Brush	Buy Now
17b	56330930	Brush Access Cover	Buy Now
18	56330016	Sheave	Buy Now
19	56002220	Washer	Buy Now
20	56002826	Nut	Buy Now
21	56009042	Screw	Buy Now
22	56180163	Rectifier	Buy Now

Decals

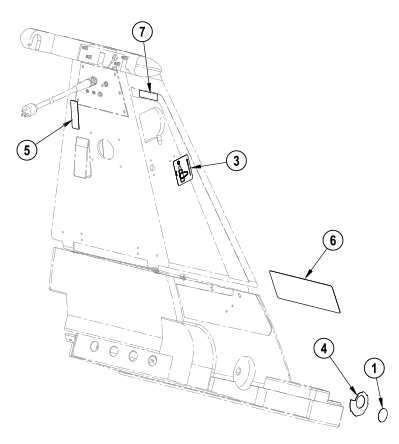

Nilfisk GU700A Decals

Reference #	Part #	Description	Add to Cart
1	56015188	Knob	Buy Now
3	56016619	Wand	Buy Now
4	56057686	Height Adjust	Buy Now
5	56630714	Warning	Buy Now
6	56016368	GU700A	Buy Now
7	56016475	Wand	Buy Now
-	56014119	Ground Symbol	Buy Now

Handle System 1

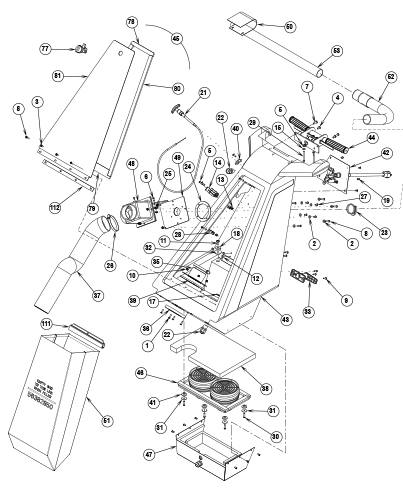

Nilfisk GU700A Handle System 1

Reference #	Part #	Description	Add to Cart
1	56001900	Screw	Buy Now
2	56001954	Washer	Buy Now
3	56002124	Screw	Buy Now
4	56002145	Screw	Buy Now
5	56002192	Screw	Buy Now
6	56002503	Screw	Buy Now
7	56002507	Screw	Buy Now
8	56002674	Screw	Buy Now
9	56001993	Screw	Buy Now
10	56002768	Nut	Buy Now
11	56002793	Screw	Buy Now
12	56009061	Nut	Buy Now
13	56002832	Nut	Buy Now
14	56331154	Plastic Clamp	Buy Now
15	56009011	Washer	Buy Now
17	56009095	Conduit Lock Nut	Buy Now
18	56009122	Washer	Buy Now
19	56009247	Screw	Buy Now
21	56331349	Control Cable	Buy Now
22	56323135	Strain Relief	Buy Now
23	56331304	Hose Clamp	Buy Now
24	56330909	Gasket	Buy Now
25	56344265	Cable Clamp	Buy Now
26	56352829	Hose Clamp	Buy Now
27	56009029	Screw	Buy Now
28	56385564	Clamp	Buy Now
29	56003503	Screw	Buy Now
30	56003504	Screw	Buy Now
31	56009268	Washer	Call to Order
32	56009275	Washer	Buy Now
33	56171112	Cord Hook Assembly	Buy Now
35	56034690	Hose Connector Weldment	Buy Now
36	56055054	Foam Gasket	Buy Now
37	56055081	Vacuum Hose	Buy Now
38	56055084	Bag Guard	Buy Now
39	56055182	Foam Gasket	Buy Now
40	56330921	Plate	Call to Order
41	56111384	Rubber Bushing	Buy Now
42	56330902	Electrical Assembly	Buy Now
43	56330835	Upper Machined Tank	Buy Now
44	56330005	Handle Assembly	Buy Now
45	56330006	Door Assembly	Buy Now
46	56330903	Vacuum Motor Assembly	Buy Now
47	56330008	Muffler Assembly	Buy Now
48	-	Butterfly Assembly	Call to Order
49	56330021	Tube Weldment	Buy Now
50	56639107	Switchbox Cover Weldment	Buy Now
51	56382850	Bag Collector	Buy Now
-	56330690	Paper Bag	Buy Now
52	56331152	Hose Assembly	Buy Now
53	56331153	Wand	Buy Now
111	56330608	Bag Clip	Buy Now
112	56055218	Foam Gasket	Buy Now

Handle System 2

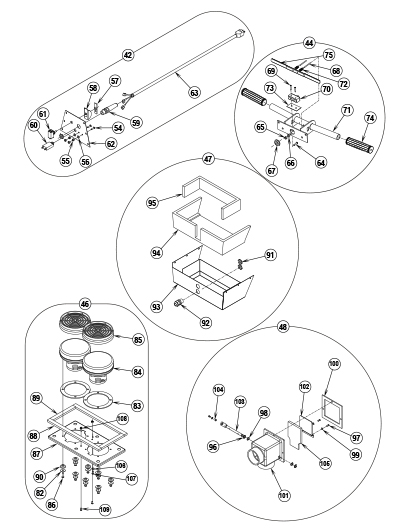

Nilfisk GU700A Handle System 2

Reference #	Part #	Description	Add to Cart
42	56330902	Electrical Assembly	Buy Now
42	56330941	Electrical Assembly	Buy Now
42	56330932	Electrical Assembly	Buy Now
44	56330005	Handle Assembly	Buy Now
46	56330903	Vacuum Motor Assembly	Buy Now
46	56330937	Vacuum Motor Assembly	Buy Now
47	56330008	Muffler Assembly	Buy Now
48	-	Butterfly Assembly	Call to Order
54	56002192	Screw	Buy Now
55	56009009	Nut	Buy Now
56	56009011	Washer	Buy Now
57	56014016	On/Off Decal	Buy Now
58	56200352	Guard Switch	Buy Now
59	56323136	Strain Relief	Buy Now
-	56009095	Conduit Lock Nut	Buy Now
60	56387562	Circuit Breaker	Buy Now
60	56387316	Circuit Breaker	Buy Now
61	56301636	Toggle Switch	Buy Now
62	56643059	Access Cover	Buy Now
63	56330907	Power Cord	Buy Now
63	56330030	Power Cord	Call to Order
-	56330042	Power Cord	Buy Now
64	56002192	Screw	Buy Now
65	56009009	Nut	Buy Now
66	56009011	Washer	Buy Now
67	56497610	Grommet	Call to Order
68	56003502	Pin	Buy Now
69	56002857	Screw	Buy Now
70	56026412	Push Switch	Buy Now
71	56034663	Handle Weldment	Buy Now
72	56046648	Spring	Buy Now
73	56046653	Insulation Paper	Buy Now
74	56381707	Handle Grip	Buy Now
75	56050274	Trigger	Buy Now
77	56055050	Twist Latch	Buy Now
78	56055051	Foam Gasket	Buy Now
79	56055052	Foam Gasket	Buy Now
80	56055053	Gasket	Buy Now
81	56639110	Door Weldment	Buy Now
82	56009096	Washer	Buy Now
83	56209325	Gasket	Buy Now
84	56300411	Vacuum Motor	Buy Now
84	56330389	Vacuum Motor	Buy Now
-	56220065	Carbon Brush Set	Buy Now
-	56009030	Screw	Buy Now
85	56384898	Filter	Buy Now
-	56383934	MicroStat Filter Kit	Buy Now
86	56003505	Screw	Call to Order
87	56055023	Mount Vac Motors Plate	Buy Now
88	56055041	Foam Gasket	Buy Now
89	56055042	Foam Gasket	Buy Now
90	56111384	Rubber Bushing	Buy Now
91	56009095	Conduit Nut	Buy Now
92	56323135	Strain Relief	Buy Now
93	56034668	Muffler Weldment	Buy Now
94	56055117	Foam Gasket	Buy Now
95	56055118	Foam Gasket	Buy Now
96	56003269	Ring	Buy Now
97	56009032	Screw	Buy Now
98	56009045	Washer	Buy Now
99	56009056	Washer	Buy Now
100	-	Gasket	Call to Order
101	-	Housing	Call to Order
102	-	Plate	Call to Order
103	-	Lever Weldment	Call to Order
104	56442445	Swivel Wire	Buy Now
105	-	Seal	Call to Order
106	56009011	Washer	Buy Now
107	56009029	Screw	Buy Now
108	56002808	Nut	Buy Now
109	56001818	Screw	Buy Now
110	56330923	RFI Filter	Buy Now
-	56244138	Receptacle	Buy Now

Handle System 3

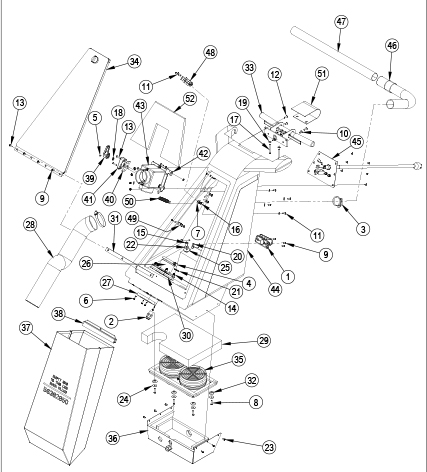

Nilfisk GU700A Handle System 3

Reference #	Part #	Description	Add to Cart
1	56171112	Cord Hook Assembly	Buy Now
2	56323135	Strain Relief	Buy Now
3	56331304	Hose Clamp	Buy Now
4	56352829	Hose Clamp	Buy Now
5	56003123	Screw	Buy Now
6	56001900	Screw	Buy Now
7	56001954	Washer	Buy Now
8	56003112	Screw	Buy Now
9	56002124	Screw	Buy Now
10	56002145	Screw	Buy Now
11	56002192	Screw	Buy Now
12	56002507	Screw	Buy Now
13	56002674	Screw	Buy Now
14	56002768	Nut	Buy Now
15	56002793	Screw	Buy Now
16	56002832	Nut	Buy Now
17	56003503	Screw	Buy Now
18	56003706	O-Ring	Buy Now
19	56009011	Washer	Buy Now
20	56009061	Nut	Buy Now
21	56009095	Nut	Buy Now
22	56009122	Washer	Buy Now
23	56009247	Screw	Buy Now
24	56009002	Washer	Buy Now
25	56009275	Washer	Buy Now
26	56034690	Hose Connector	Buy Now
27	56055054	Foam Gasket	Buy Now
28	56055081	Vac Hose	Buy Now
29	56055084	Bag Guard	Buy Now
30	56055182	Foam Gasket	Buy Now
31	56055218	Foam Gasket	Buy Now
32	56111384	Rubber Bushing	Buy Now
33	56330005	Handle Assembly	Buy Now
34	56330006	Door Assembly	Buy Now
34	56055050	Twist Latch	Buy Now
34	56055051	Foam Gasket	Buy Now
34	56055052	Foam Gasket	Buy Now
34	56055053	Gasket	Buy Now
34	56639110	Door Weldment	Buy Now
35	56330903	Vacuum Motors Assembly	Buy Now
36	56330008	Muffler Assembly	Buy Now
37	56382850	Bag Collector	Buy Now
-	56330690	Paper Bag	Buy Now
38	56330608	Bag Clip	Buy Now
39	56330821	Lever	Buy Now
40	56330822	Base Gasket	Buy Now
41	56330823	Lever Mount Base	Buy Now
42	56330827	Spring Mount Bracket	Buy Now
43	56330830	Vacuum Diverter Assembly	Buy Now
44	56330835	Upper Machined Tank	Buy Now
45	56330902	Electrical Assembly	Buy Now
45	56382882	Electrical Assembly	Buy Now
46	56331152	Vac Hose Assembly	Buy Now
47	56331153	Wand	Buy Now
48	56331154	Plastic Clamp	Buy Now
49	56385564	Clamp	Buy Now
50	56448112	External Spring	Buy Now
51	56639107	Switchbox Cover Weldment	Buy Now
52	56380337	Guard Panel	Buy Now

Handle System 4

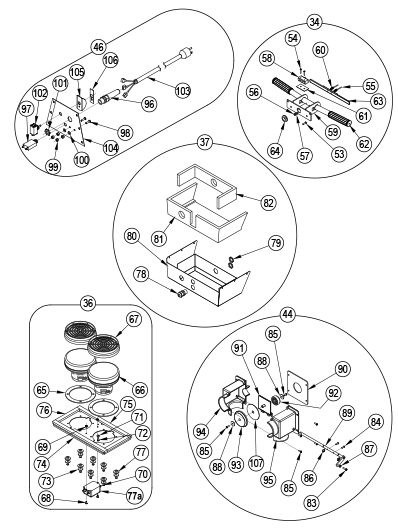

Nilfisk GU700A Handle System 4

Reference #	Part #	Description	Add to Cart
34	56330005	Handle Assembly	Buy Now
36	56330903	Vacuum Motor Assembly	Buy Now
37	56330008	Muffler Assembly	Buy Now
44	56330830	Vacuum Diverter Assembly	Buy Now
46	56330902	Electrical Assembly	Buy Now
46	56382882	Electrical Assembly	Buy Now
53	56002192	Screw	Buy Now
54	56002857	Screw	Buy Now
55	56003502	Pin	Buy Now
56	56009009	Nut	Buy Now
57	56009011	Washer	Buy Now
58	56026412	Push Switch	Buy Now
59	56034663	Handle Weldment	Buy Now
60	56046648	Spring	Buy Now
61	56046653	Insulation Paper	Buy Now
62	56381707	Handle Grip	Buy Now
63	56050274	Trigger	Buy Now
64	56760212	Grommet	Buy Now
65	56209325	Gasket	Buy Now
66	56300411	Vacuum Motor	Buy Now
-	56220065	Carbon Brush Set	Buy Now
67	56384898	Filter	Buy Now
-	56383934	MicroStat Filter Kit	Buy Now
68	56001818	Screw	Buy Now
69	56002808	Nut	Buy Now
70	56009209	Screw	Buy Now
71	56009011	Washer	Buy Now
72	56009029	Screw	Buy Now
73	56009096	Washer	Buy Now
74	56055023	Plate	Buy Now
75	56055041	Foam Gasket	Buy Now
76	56055042	Foam Gasket	Buy Now
77	56111384	Rubber Bushing	Buy Now
77a	56330923	RFI Filter	Buy Now
-	47700A	Terminal	Buy Now
78	56323135	Strain Relief	Buy Now
79	56009095	Conduit Lock Nut	Buy Now
80	56034668	Muffler Weldment	Buy Now
81	56055117	Foam Gasket	Buy Now
82	56055118	Foam Gasket	Buy Now
83	56002192	Screw	Buy Now
84	56002438	Screw	Buy Now
85	56003093	Screw	Buy Now
86	56003269	Ring	Buy Now
87	56009009	Nut	Buy Now
88	56009096	Washer	Buy Now
89	56330824	Shaft Weldment	Buy Now
90	56330828	Housing Gasket	Buy Now
91	56330829	Diverter Plate	Buy Now
92	56330831	Wand Vacuum Seal	Buy Now
93	56330832	Brush Vacuum Seal	Buy Now
94	56330833	Left Half Housing	Buy Now
95	56330834	Right Half Housing	Buy Now
96	56323136	Strain Relief	Buy Now
97	56387562	Circuit Breaker	Buy Now
98	56002192	Screw	Buy Now
99	56009009	Nut	Buy Now
100	56009011	Washer	Buy Now
101	56009095	Conduit Lock Nut	Buy Now
102	56301636	Toggle Switch	Buy Now
102	56200336	Toggle Switch	Buy Now
103	56330907	Power Cord	Buy Now
-	362USP	Electrical Plug	Buy Now
104	56643059	Access Cover	Buy Now
105	56200352	Guard Switch	Buy Now
106	56014016	On/Off Decal	Buy Now
107	56330837	Spacer Plate	Buy Now
