Nilfisk ES 300-400

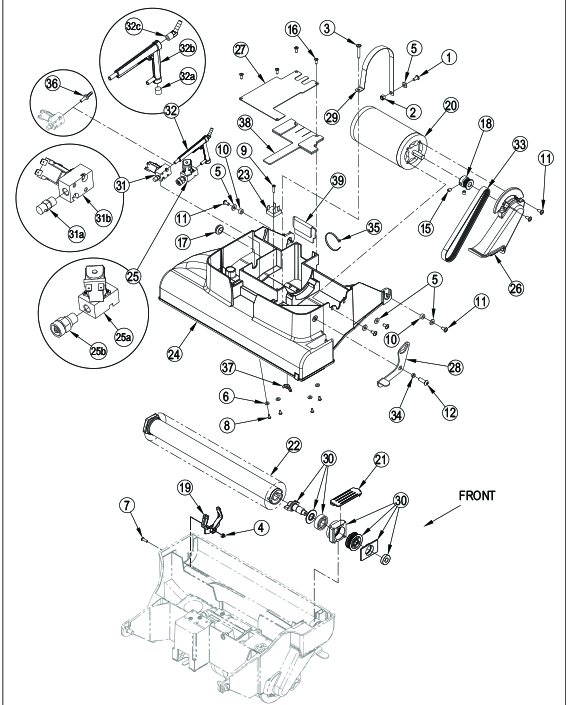

Base System
Nilfisk ES 300-400 Base System

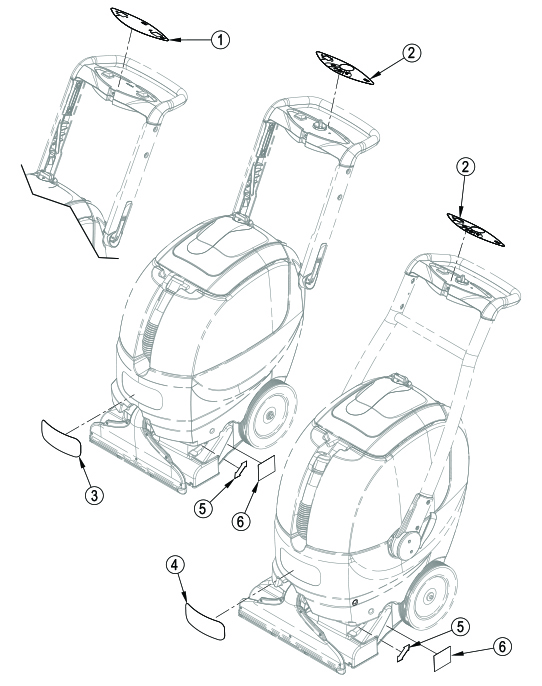

Decals
Nilfisk ES 300-400 Decals
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56265727 |
Panel (ES300 ST) |
Buy Now |
| 2 |
56265567 |
Panel (ES300 XP, ES400 XLP) |
Buy Now |
| 3 |
56265779 |
ES300 ST |
Call to Order |
| 3 |
56265777 |
ES300 XP |
Buy Now |
| 4 |
56265778 |
ES400 XLP |
Buy Now |
| 5 |
56265750 |
Storage Lock (ES300 ST, ES300 XP, ES400 XLP) |
Buy Now |
| 6 |
56265792 |
CRI Gold |
Buy Now |

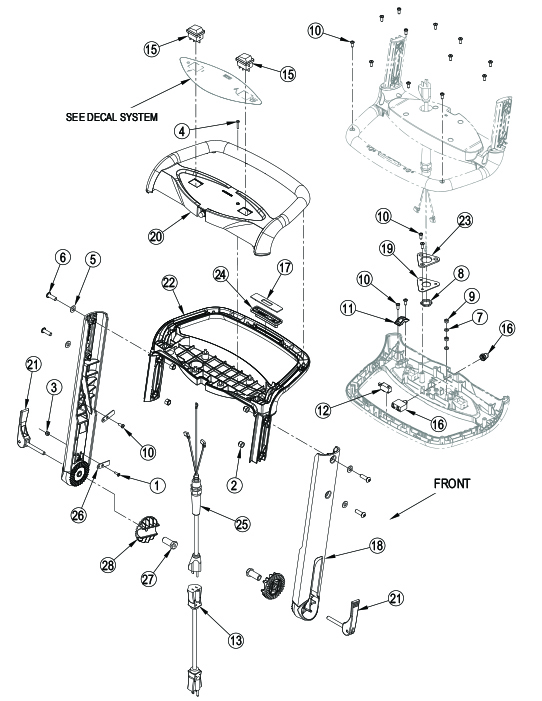

Handle System - 16ST
Nilfisk ES 300-400 Handle System - 16ST

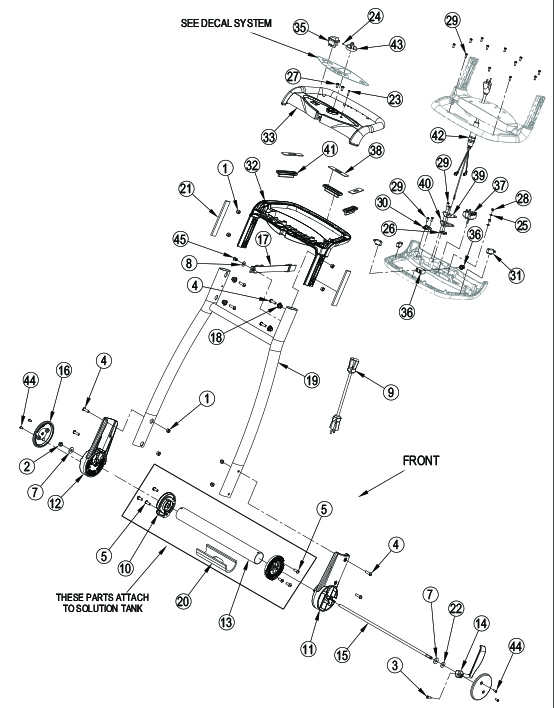

Handle System - 16XP
Nilfisk ES 300-400 Handle System - 16XP

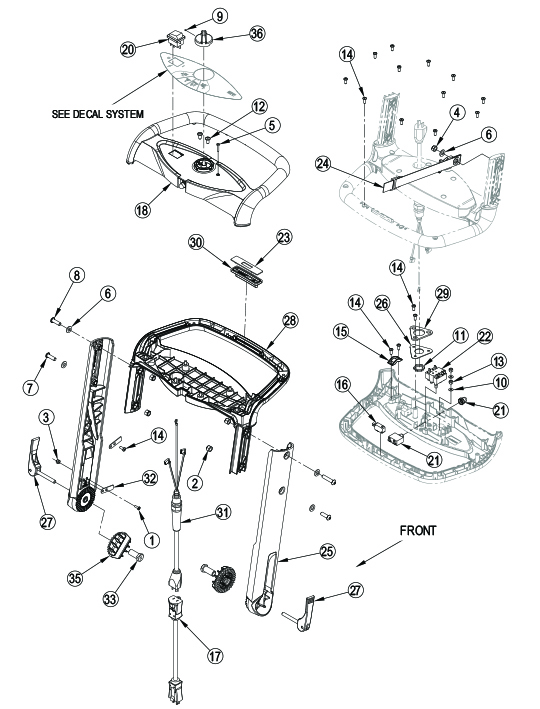

Handle System - 18XLP
Nilfisk ES 300-400 Handle System - 18XLP

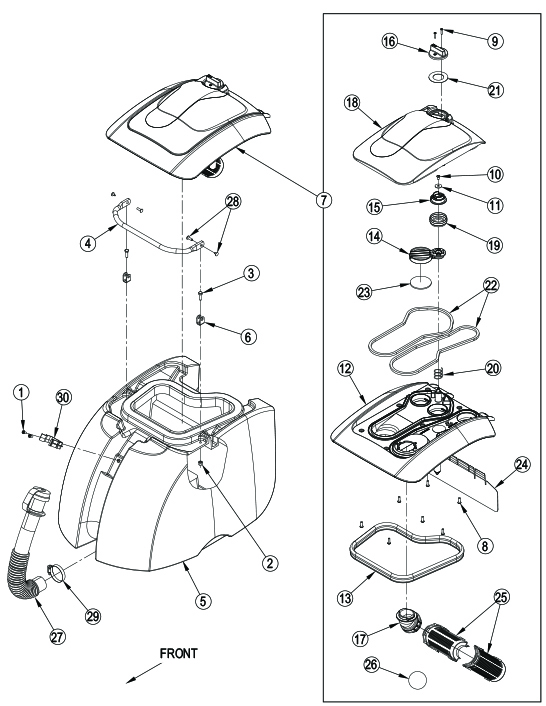

Recovery System
Nilfisk ES 300-400 Recovery System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56002900 |
Screw |
Buy Now |
| 2 |
56003426 |
Nut |
Buy Now |
| 3 |
56003454 |
Screw |
Buy Now |
| 4 |
56265793 |
Tank Handle |
Buy Now |
| 5 |
56265523 |
Recovery Tank (16ST, 16XP) |
Buy Now |
| 5 |
56265623 |
Recovery Tank (18XLP) |
Buy Now |
| 6 |
56265630 |
Handle Retainer Bracket |
Buy Now |
| 7 |
- |
Recovery Lid Assembly |
Call to Order |
| 8 |
56002896 |
Screw |
Buy Now |
| 9 |
56003197 |
Screw |
Buy Now |
| 10 |
56003913 |
Screw |
Buy Now |
| 11 |
56009349 |
Washer |
Buy Now |
| 12 |
56265589 |
Recovery Tank Lid |
Buy Now |
| 13 |
56265604 |
Recovery Tank Gasket |
Buy Now |
| 14 |
56265799 |
Valve Paddle |
Buy Now |
| 15 |
56265798 |
Valve Actuator |
Buy Now |
| 16 |
56265795 |
Valve Knob |
Buy Now |
| 17 |
56265654 |
Ball Float Adapter |
Buy Now |
| 18 |
56265655 |
Recovery Lid Cover |
Buy Now |
| 19 |
56265681 |
Diverter Valve Seal |
Buy Now |
| 20 |
56265709 |
Compression Spring |
Buy Now |
| 21 |
56265710 |
Selector Knob Seal |
Buy Now |
| 22 |
56265737 |
Gasket Lid |
Buy Now |
| 23 |
56265738 |
Paddle Gasket |
Buy Now |
| 24 |
56265783 |
Flexible Lid Barrier |
Buy Now |
| 25 |
56324497 |
Float Cage |
Buy Now |
| 26 |
56391690 |
Float Ball |
Buy Now |
| 27 |
56265685 |
Hose Drain |
Buy Now |
| 28 |
56265747 |
Quick Install Binding Post |
Buy Now |
| 29 |
56329145 |
Hose Clamp |
Buy Now |
| 30 |
56331154 |
Plastic Clamp |
Buy Now |

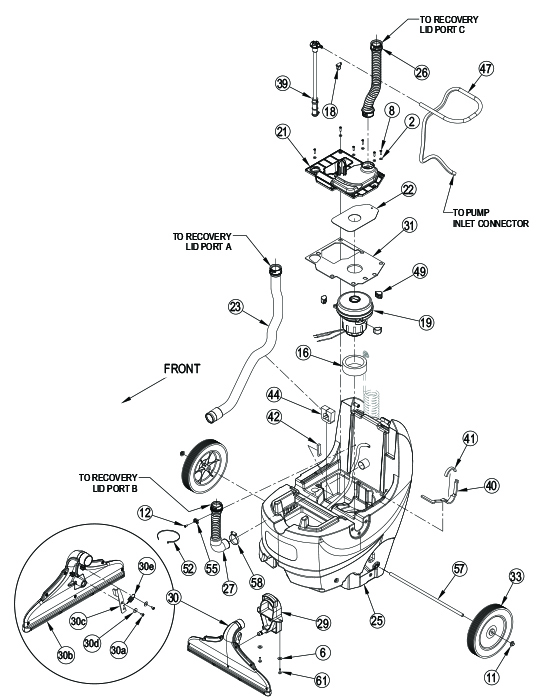

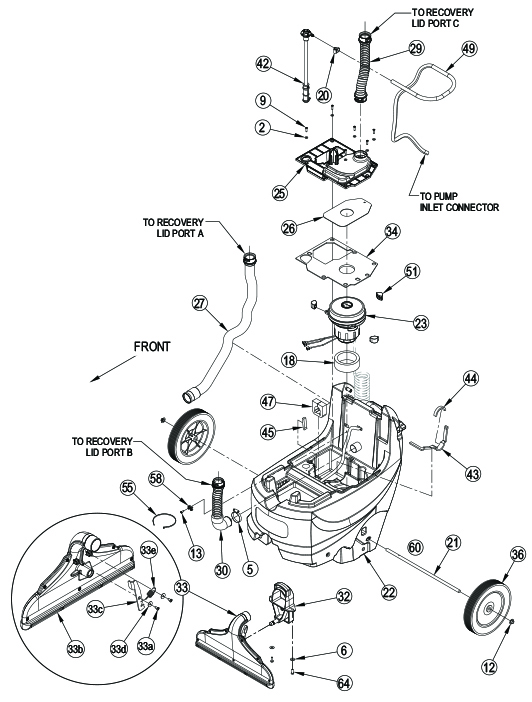

Solution System - 16ST-16XP 1
Nilfisk ES 300-400 Solution System - 16ST-16XP 1
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
832803 |
Elbow Hose |
Buy Now |
| 2 |
56001954 |
Washer |
Buy Now |
| 3 |
56003897 |
Screw |
Buy Now |
| 4 |
56002624 |
Screw |
Buy Now |
| 5 |
56329145 |
Hose Clamp |
Buy Now |
| 6 |
56002914 |
Washer |
Buy Now |
| 7 |
56002958 |
Screw |
Buy Now |
| 8 |
56003913 |
Screw |
Buy Now |
| 9 |
56003091 |
Screw |
Buy Now |
| 10 |
56009022 |
Washer |
Buy Now |
| 11 |
56009043 |
Screw |
Buy Now |
| 12 |
56009097 |
Nut |
Buy Now |
| 13 |
56009191 |
Screw |
Buy Now |
| 14 |
56052237 |
Phenolic Spacer |
Buy Now |
| 15 |
56056903 |
P Clamp |
Buy Now |
| 16 |
56109503 |
Double Barb Assembly |
Buy Now |
| 17 |
56112771 |
Hose Clamp |
Buy Now |
| 18 |
56116110 |
Inlet Seal |
Buy Now |
| 19 |
56116721 |
Grommet |
Buy Now |
| 20 |
56219932 |
Hose Clamp |
Buy Now |
| 21 |
56265057 |
Axle |
Buy Now |
| 22 |
56265522 |
Solution Tank |
Buy Now |
| 23 |
56265552 |
Vacuum Motor |
Buy Now |
| - |
56265683 |
Carbon Brush Kit |
Buy Now |
| 24 |
56265554 |
Pump |
Buy Now |
| 25 |
56265582 |
Vac Motor Cover |
Buy Now |
| 26 |
56265583 |
Vac Motor Plate |
Buy Now |
| 27 |
56265586 |
Vac Hose Assembly |
Buy Now |
| 28 |
56265617 |
Vac Inlet Cover |
Buy Now |
| 29 |
56265625 |
Hose Assembly |
Buy Now |
| 30 |
56265626 |
Vac Hose Assembly |
Buy Now |
| 31 |
56265631 |
Back Cover |
Buy Now |
| 32 |
56265646 |
Shoe Bracket |
Buy Now |
| 33 |
56265650 |
Shoe Assembly |
Buy Now |
| 33a |
56009247 |
Screw |
Buy Now |
| 33b |
56265538 |
Shoe Assembly |
Buy Now |
| 33c |
56265796 |
Shoe Latch |
Buy Now |
| 33d |
1326a |
Flat Washer |
Call to Order |
| 33e |
54196a |
Spring Extension |
Buy Now |
| 34 |
56265665 |
Vac Motor Cover Gasket |
Buy Now |
| 36 |
56265697 |
Wheel |
Buy Now |
| 37 |
56265704 |
Hose Storage Hook |
Buy Now |
| 38 |
56265705 |
Quick Disconect Socket |
Buy Now |
| 39 |
56265708 |
Solution Hose Assembly |
Buy Now |
| 40 |
56265712 |
Barb Coupler |
Buy Now |
| 41 |
56265722 |
Back Panel Gasket |
Buy Now |
| 42 |
56265725 |
Solution Filter Assembly |
Buy Now |
| 43 |
56265732 |
Vac Exhaust Chamber Gasket |
Buy Now |
| 44 |
56265733 |
Vac Exhaust Port Gasket |
Buy Now |
| 45 |
56265734 |
Vac Chamber Gasket |
Buy Now |
| 46 |
56265735 |
Bottom Back Panel Gasket |
Buy Now |
| 47 |
56265739 |
Vac Hose Sound Gasket |
Buy Now |
| 49 |
56265766 |
Spiral Hose |
Buy Now |
| 50 |
56265767 |
Hand Tool/Hoses Assembly |
Buy Now |
| 50a |
- |
Hand Tool/Hose Assembly |
Call to Order |
| 50b |
56265700 |
Hose Assembly/Hand Tool |
Buy Now |
| 50c |
56265791 |
Clamp |
Buy Now |
| 51 |
56315141 |
Vibration Mount |
Buy Now |
| 52 |
56381838 |
Aluminum Tube |
Buy Now |
| 53 |
56265745 |
Hose |
Buy Now |
| 54 |
56265373 |
Hose (16ST) |
Buy Now |
| 54 |
- |
Hose (16XP) |
Call to Order |
| 55 |
56478523 |
Cable Tie |
Buy Now |
| 56 |
56756364 |
Hose Clamp |
Buy Now |
| 57 |
56109566 |
Elbow Barb |
Buy Now |
| 58 |
9096595000 |
Flat Tie Holder |
Buy Now |
| 59 |
9096380000 |
Clamp Kit |
Buy Now |
| 60 |
56265789 |
Vac Inlet Cover Gasket |
Call to Order |
| 61 |
56265787 |
Pump Boot |
Buy Now |
| 62 |
56265791 |
Hose Clamp |
Buy Now |
| 63 |
56055989 |
Hose Cuff |
Buy Now |
| 64 |
56003221 |
Screw |
Buy Now |

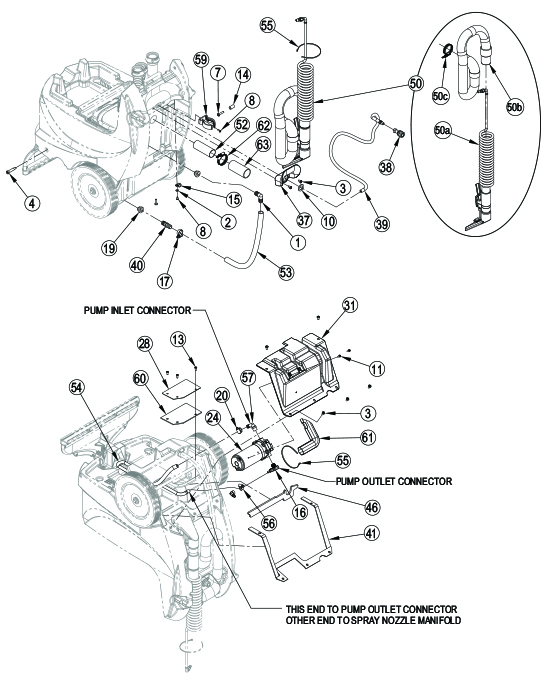

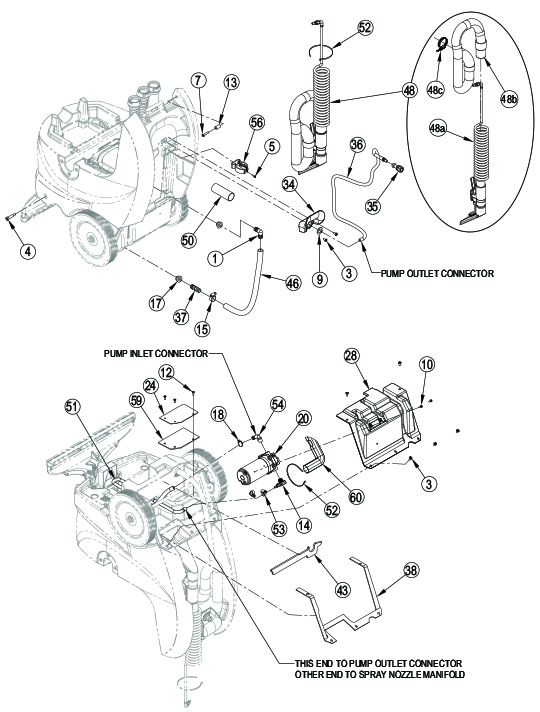

Solution System - 16ST-16XP 2
Nilfisk ES 300-400 Solution System - 16ST-16XP 2
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
832803 |
Elbow Hose |
Buy Now |
| 2 |
56001954 |
Washer |
Buy Now |
| 3 |
56003897 |
Screw |
Buy Now |
| 4 |
56002624 |
Screw |
Buy Now |
| 5 |
56329145 |
Hose Clamp |
Buy Now |
| 6 |
56002914 |
Washer |
Buy Now |
| 7 |
56002958 |
Screw |
Buy Now |
| 8 |
56003913 |
Screw |
Buy Now |
| 9 |
56003091 |
Screw |
Buy Now |
| 10 |
56009022 |
Washer |
Buy Now |
| 11 |
56009043 |
Screw |
Buy Now |
| 12 |
56009097 |
Nut |
Buy Now |
| 13 |
56009191 |
Screw |
Buy Now |
| 14 |
56052237 |
Phenolic Spacer |
Buy Now |
| 15 |
56056903 |
P Clamp |
Buy Now |
| 16 |
56109503 |
Double Barb Assembly |
Buy Now |
| 17 |
56112771 |
Hose Clamp |
Buy Now |
| 18 |
56116110 |
Inlet Seal |
Buy Now |
| 19 |
56116721 |
Grommet |
Buy Now |
| 20 |
56219932 |
Hose Clamp |
Buy Now |
| 21 |
56265057 |
Axle |
Buy Now |
| 22 |
56265522 |
Solution Tank |
Buy Now |
| 23 |
56265552 |
Vacuum Motor |
Buy Now |
| - |
56265683 |
Carbon Brush Kit |
Buy Now |
| 24 |
56265554 |
Pump |
Buy Now |
| 25 |
56265582 |
Vac Motor Cover |
Buy Now |
| 26 |
56265583 |
Vac Motor Plate |
Buy Now |
| 27 |
56265586 |
Vac Hose Assembly |
Buy Now |
| 28 |
56265617 |
Vac Inlet Cover |
Buy Now |
| 29 |
56265625 |
Hose Assembly |
Buy Now |
| 30 |
56265626 |
Vac Hose Assembly |
Buy Now |
| 31 |
56265631 |
Back Cover |
Buy Now |
| 32 |
56265646 |
Shoe Bracket |
Buy Now |
| 33 |
56265650 |
Shoe Assembly |
Buy Now |
| 33a |
56009247 |
Screw |
Buy Now |
| 33b |
56265538 |
Shoe Assembly |
Buy Now |
| 33c |
56265796 |
Shoe Latch |
Buy Now |
| 33d |
1326a |
Flat Washer |
Call to Order |
| 33e |
54196a |
Spring Extension |
Buy Now |
| 34 |
56265665 |
Vac Motor Cover Gasket |
Buy Now |
| 36 |
56265697 |
Wheel |
Buy Now |
| 37 |
56265704 |
Hose Storage Hook |
Buy Now |
| 38 |
56265705 |
Quick Disconect Socket |
Buy Now |
| 39 |
56265708 |
Solution Hose Assembly |
Buy Now |
| 40 |
56265712 |
Barb Coupler |
Buy Now |
| 41 |
56265722 |
Back Panel Gasket |
Buy Now |
| 42 |
56265725 |
Solution Filter Assembly |
Buy Now |
| 43 |
56265732 |
Vac Exhaust Chamber Gasket |
Buy Now |
| 44 |
56265733 |
Vac Exhaust Port Gasket |
Buy Now |
| 45 |
56265734 |
Vac Chamber Gasket |
Buy Now |
| 46 |
56265735 |
Bottom Back Panel Gasket |
Buy Now |
| 47 |
56265739 |
Vac Hose Sound Gasket |
Buy Now |
| 49 |
56265766 |
Spiral Hose |
Buy Now |
| 50 |
56265767 |
Hand Tool/Hoses Assembly |
Buy Now |
| 50a |
- |
Hand Tool/Hose Assembly |
Call to Order |
| 50b |
56265700 |
Hose Assembly/Hand Tool |
Buy Now |
| 50c |
56265791 |
Clamp |
Buy Now |
| 51 |
56315141 |
Vibration Mount |
Buy Now |
| 52 |
56381838 |
Aluminum Tube |
Buy Now |
| 53 |
56265745 |
Hose |
Buy Now |
| 54 |
56265373 |
Hose (16ST) |
Buy Now |
| 54 |
- |
Hose (16XP) |
Call to Order |
| 55 |
56478523 |
Cable Tie |
Buy Now |
| 56 |
56756364 |
Hose Clamp |
Buy Now |
| 57 |
56109566 |
Elbow Barb |
Buy Now |
| 58 |
9096595000 |
Flat Tie Holder |
Buy Now |
| 59 |
9096380000 |
Clamp Kit |
Buy Now |
| 60 |
56265789 |
Vac Inlet Cover Gasket |
Call to Order |
| 61 |
56265787 |
Pump Boot |
Buy Now |
| 62 |
56265791 |
Hose Clamp |
Buy Now |
| 63 |
56055989 |
Hose Cuff |
Buy Now |
| 64 |
56003221 |
Screw |
Buy Now |
Solution System - 18XLP 1
Nilfisk ES 300-400 Solution System - 18XLP 1
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
832803 |
Hose Elbow |
Buy Now |
| 2 |
56001954 |
Washer |
Buy Now |
| 3 |
56003897 |
Screw |
Buy Now |
| 4 |
56002624 |
Screw |
Buy Now |
| 5 |
56003913 |
Screw |
Buy Now |
| 6 |
56002914 |
Washer |
Buy Now |
| 7 |
56002958 |
Screw |
Buy Now |
| 8 |
56003091 |
Screw |
Buy Now |
| 9 |
56009022 |
Washer |
Buy Now |
| 10 |
56009043 |
Screw |
Buy Now |
| 11 |
56009097 |
Push Cap Nut |
Buy Now |
| 12 |
56009191 |
Screw |
Buy Now |
| 13 |
56052237 |
Phenolic Spacer |
Buy Now |
| 14 |
56109503 |
Double Barb Assembly |
Buy Now |
| 15 |
56112771 |
Hose Clamp |
Buy Now |
| 16 |
56116110 |
Inlet Seal |
Buy Now |
| 17 |
56116721 |
Grommet |
Buy Now |
| 18 |
56219932 |
Hose Clamp |
Buy Now |
| 19 |
56265552 |
Vacuum Motor |
Buy Now |
| - |
56265683 |
Carbon Brush Kit |
Buy Now |
| 20 |
56265554 |
Pump |
Buy Now |
| 21 |
56265582 |
Vac Motor Cover |
Buy Now |
| 22 |
56265583 |
Vac Motor Plate |
Buy Now |
| 23 |
56265586 |
Vac Hose Asembly |
Buy Now |
| 24 |
56265617 |
Vac Inlet Cover |
Buy Now |
| 25 |
56265622 |
Solution Tank |
Buy Now |
| 26 |
56265625 |
Hose Assembly |
Buy Now |
| 27 |
56265626 |
Vac Hose Assembly |
Buy Now |
| 28 |
56265631 |
Back Cover |
Buy Now |
| 29 |
56265646 |
Shoe Bracket |
Buy Now |
| 30 |
56265662 |
Latch Assembly |
Buy Now |
| 30a |
56009247 |
Screw |
Buy Now |
| 30b |
56265538 |
Shoe Assembly |
Buy Now |
| 30c |
56265796 |
Shoe Latch |
Buy Now |
| 30d |
1326a |
Flat Washer |
Call to Order |
| 30e |
54196a |
Spring Extension |
Buy Now |
| 31 |
56265665 |
Vac Motor Cover Gasket |
Buy Now |
| 33 |
56265697 |
Wheel |
Buy Now |
| 34 |
56265704 |
Hose Storage Hook |
Buy Now |
| 35 |
56265705 |
Quick Disconnect Socket |
Buy Now |
| 36 |
56265708 |
Solution Hose Assembly |
Buy Now |
| 37 |
56265712 |
Barb Coupler |
Buy Now |
| 38 |
56265722 |
Back Panel Gasket |
Buy Now |
| 39 |
56265726 |
Solution Filter Assembly |
Buy Now |
| 40 |
56265732 |
Vac Exhaust Chamber Gasket |
Buy Now |
| 41 |
56265733 |
Vac Exhaust Port Gasket |
Buy Now |
| 42 |
56265734 |
Side Vac Chamber Gasket |
Buy Now |
| 43 |
56265735 |
Bottom Back Panel Gasket |
Buy Now |
| 44 |
56265739 |
Vac Hose Sound Gasket |
Buy Now |
| 46 |
56265745 |
Hose |
Buy Now |
| 47 |
56265766 |
Spiral Hose |
Buy Now |
| 48 |
56265767 |
Hand Tool/Hose Assembly |
Buy Now |
| 48a |
- |
Hand Tool/Hose Assembly |
Call to Order |
| 48b |
56265700 |
Hose Assembly/Hand Tool |
Buy Now |
| 48c |
56265791 |
Hose Clamp |
Buy Now |
| 49 |
56315141 |
Vibration Mount |
Buy Now |
| 50 |
56381838 |
Tube |
Buy Now |
| 51 |
56456560 |
Hose |
Buy Now |
| 52 |
56478523 |
Cable Tie |
Buy Now |
| 53 |
56756364 |
Hose Clamp |
Buy Now |
| 54 |
56109566 |
Elbow Barb |
Buy Now |
| 55 |
9096595000 |
Flat Tie Holder |
Buy Now |
| 56 |
9096380000 |
Clamp Kit |
Buy Now |
| 57 |
9101863 |
Axel Rod |
Call to Order |
| 58 |
56329145 |
Hose Clamp |
Buy Now |
| 59 |
56265789 |
Vac Inlet Cover Gasket |
Call to Order |
| 60 |
56265787 |
Pump Boot |
Buy Now |
| 61 |
56003221 |
Screw |
Buy Now |
Solution System - 18XLP 2
Nilfisk ES 300-400 Solution System - 18XLP 2
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
832803 |
Hose Elbow |
Buy Now |
| 2 |
56001954 |
Washer |
Buy Now |
| 3 |
56003897 |
Screw |
Buy Now |
| 4 |
56002624 |
Screw |
Buy Now |
| 5 |
56003913 |
Screw |
Buy Now |
| 6 |
56002914 |
Washer |
Buy Now |
| 7 |
56002958 |
Screw |
Buy Now |
| 8 |
56003091 |
Screw |
Buy Now |
| 9 |
56009022 |
Washer |
Buy Now |
| 10 |
56009043 |
Screw |
Buy Now |
| 11 |
56009097 |
Push Cap Nut |
Buy Now |
| 12 |
56009191 |
Screw |
Buy Now |
| 13 |
56052237 |
Phenolic Spacer |
Buy Now |
| 14 |
56109503 |
Double Barb Assembly |
Buy Now |
| 15 |
56112771 |
Hose Clamp |
Buy Now |
| 16 |
56116110 |
Inlet Seal |
Buy Now |
| 17 |
56116721 |
Grommet |
Buy Now |
| 18 |
56219932 |
Hose Clamp |
Buy Now |
| 19 |
56265552 |
Vacuum Motor |
Buy Now |
| - |
56265683 |
Carbon Brush Kit |
Buy Now |
| 20 |
56265554 |
Pump |
Buy Now |
| 21 |
56265582 |
Vac Motor Cover |
Buy Now |
| 22 |
56265583 |
Vac Motor Plate |
Buy Now |
| 23 |
56265586 |
Vac Hose Asembly |
Buy Now |
| 24 |
56265617 |
Vac Inlet Cover |
Buy Now |
| 25 |
56265622 |
Solution Tank |
Buy Now |
| 26 |
56265625 |
Hose Assembly |
Buy Now |
| 27 |
56265626 |
Vac Hose Assembly |
Buy Now |
| 28 |
56265631 |
Back Cover |
Buy Now |
| 29 |
56265646 |
Shoe Bracket |
Buy Now |
| 30 |
56265662 |
Latch Assembly |
Buy Now |
| 30a |
56009247 |
Screw |
Buy Now |
| 30b |
56265538 |
Shoe Assembly |
Buy Now |
| 30c |
56265796 |
Shoe Latch |
Buy Now |
| 30d |
1326a |
Flat Washer |
Call to Order |
| 30e |
54196a |
Spring Extension |
Buy Now |
| 31 |
56265665 |
Vac Motor Cover Gasket |
Buy Now |
| 33 |
56265697 |
Wheel |
Buy Now |
| 34 |
56265704 |
Hose Storage Hook |
Buy Now |
| 35 |
56265705 |
Quick Disconnect Socket |
Buy Now |
| 36 |
56265708 |
Solution Hose Assembly |
Buy Now |
| 37 |
56265712 |
Barb Coupler |
Buy Now |
| 38 |
56265722 |
Back Panel Gasket |
Buy Now |
| 39 |
56265726 |
Solution Filter Assembly |
Buy Now |
| 40 |
56265732 |
Vac Exhaust Chamber Gasket |
Buy Now |
| 41 |
56265733 |
Vac Exhaust Port Gasket |
Buy Now |
| 42 |
56265734 |
Side Vac Chamber Gasket |
Buy Now |
| 43 |
56265735 |
Bottom Back Panel Gasket |
Buy Now |
| 44 |
56265739 |
Vac Hose Sound Gasket |
Buy Now |
| 46 |
56265745 |
Hose |
Buy Now |
| 47 |
56265766 |
Spiral Hose |
Buy Now |
| 48 |
56265767 |
Hand Tool/Hose Assembly |
Buy Now |
| 48a |
- |
Hand Tool/Hose Assembly |
Call to Order |
| 48b |
56265700 |
Hose Assembly/Hand Tool |
Buy Now |
| 48c |
56265791 |
Hose Clamp |
Buy Now |
| 49 |
56315141 |
Vibration Mount |
Buy Now |
| 50 |
56381838 |
Tube |
Buy Now |
| 51 |
56456560 |
Hose |
Buy Now |
| 52 |
56478523 |
Cable Tie |
Buy Now |
| 53 |
56756364 |
Hose Clamp |
Buy Now |
| 54 |
56109566 |
Elbow Barb |
Buy Now |
| 55 |
9096595000 |
Flat Tie Holder |
Buy Now |
| 56 |
9096380000 |
Clamp Kit |
Buy Now |
| 57 |
9101863 |
Axel Rod |
Call to Order |
| 58 |
56329145 |
Hose Clamp |
Buy Now |
| 59 |
56265789 |
Vac Inlet Cover Gasket |
Call to Order |
| 60 |
56265787 |
Pump Boot |
Buy Now |
| 61 |
56003221 |
Screw |
Buy Now |
