Nilfisk BR 755 & 855

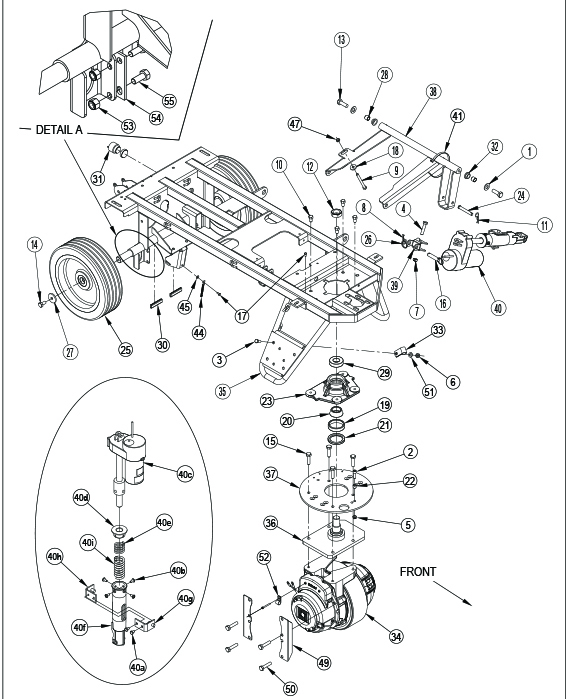

Chassis

Nilfisk BR 755 & 855 Chassis

Reference #	Part #	Description	Add to Cart
1	56001879	Washer	Buy Now
2	56002129	Screw	Buy Now
3	56002667	Screw	Buy Now
4	56002684	Screw	Buy Now
5	56002826	Nut	Buy Now
6	56002701	Nut	Buy Now
7	56002841	Nut	Buy Now
8	56002959	Cotter Hair Pin	Buy Now
9	56003008	Screw	Buy Now
10	56003040	Screw	Buy Now
11	56003120	Cotter Hair Pin	Buy Now
12	56003220	Nut	Buy Now
13	56003412	Screw	Buy Now
14	56003442	Screw	Buy Now
15	56003491	Screw	Buy Now
16	56003679	Ring Pin	Buy Now
17	56009012	Screw	Buy Now
18	56009122	Flat Washer	Buy Now
19	56158143	Bearing Cup	Buy Now
20	56158151	Bearing Cone	Buy Now
21	56171081	Shaft Seal	Buy Now
22	56244941	Bushing	Buy Now
23	56314032	Bearing Block	Buy Now
24	56003803	Clevis Pin	Buy Now
25	56382693	Wheel	Buy Now
26	56317071	Ring	Buy Now
27	56367117	Washer	Buy Now
28	56367206	Bushing	Buy Now
29	56378380	Bearing Ball	Buy Now
30	56412122	Trim Edge	Buy Now
31	56412177	Horn	Buy Now
32	56420160	Flange Bearing	Buy Now
33	56469380	Clamp	Buy Now
34	56601050	Drive Wheel	Buy Now
-	56601472	Tire with Hub	Buy Now
-	56601473	Motor	Buy Now
-	56601509	Carbon Brush Kit	Buy Now
-	56601471	Tire	Buy Now
-	56601507	Electromagnetic Brake	Buy Now
-	56422174	Tire Puller Kit	Buy Now
-	56504482	Drive Motor Cover	Buy Now
-	56504481	Drive Motor Kit	Buy Now
-	56380310	Brake Lever Kit	Buy Now
35	56114199	Weldment Chassis	Buy Now
36	56601077	Spindle Weldment	Buy Now
37	56314116	Steering Plate	Buy Now
38	56601239	Deck Linkage	Buy Now
39	56601328	Actuator Yoke	Buy Now
40	56601432	Lift Actuator Assembly	Buy Now
40a	56009019	Screw	Buy Now
40b	56009062	Screw	Buy Now
40c	56393303	Motor Actuator	Buy Now
40d	56396268	Spring Housing Guide	Buy Now
40e	56412071	Compression Spring	Buy Now
40f	56412262	Spring Housing	Buy Now
40g	56420019	Nut Retainer	Buy Now
40h	56420020	Nut Retainer	Buy Now
40i	56601470	Compression Spring	Buy Now
41	56477613	Cable Tie	Buy Now
44	56601716	Ground Chain	Buy Now
45	56009011	Washer	Buy Now
47	56009086	Nut	Buy Now
49	56344100	Wheel Bracket	Buy Now
50	56003445	Screw	Buy Now
51	56002220	Washer	Buy Now
52	56486112	Clamp	Buy Now
53	56002856	Nut	Buy Now
54	56601675	Bracket	Buy Now
55	56003925	Screw	Buy Now

Control System

Nilfisk BR 755 & 855 Control System

Reference #	Part #	Description	Add to Cart
1	56394342	Seat	Buy Now
2	56001879	Washer	Buy Now
3	56001939	Washer	Buy Now
4	56002063	Washer	Buy Now
5	56002086	Screw	Buy Now
6	56002859	Washer	Buy Now
7	56003119	Screw	Buy Now
8	56002957	Screw	Buy Now
9	56002843	Nut	Buy Now
10	56002933	Screw	Buy Now
11	56003081	Screw	Buy Now
12	56003179	Screw	Buy Now
13	56003186	Screw	Buy Now
14	56003227	Key	Buy Now
15	56003228	Key	Buy Now
16	56003261	Ring	Buy Now
17	56003268	Ring	Buy Now
18	56003389	Nut	Buy Now
19	56001834	Screw	Buy Now
20	56002523	Screw	Buy Now
21	56009062	Screw	Buy Now
22	56100393	Bushing	Buy Now
23	56250414	Bearing Flange	Buy Now
24	56320595	Bushing	Buy Now
25	56362778	Knob	Buy Now
26	56367095	Shaft Collar	Buy Now
27	56412198	Roller Chain	Buy Now
28	56413211	Flange Bearing	Buy Now
29	56413658	Steering Column Ratchet	Buy Now
30	56454081	Universal Joint	Buy Now
31	56471148	Sprocket	Buy Now
32	56578222	Compression Spring	Buy Now
33	56385084	Foot Pedal Assembly	Buy Now
34	56601060	Steering Wheel	Buy Now
35	56601850	Lower Column Weldment	Buy Now
36	56601169	Upper Column Weldment	Buy Now
37	56601223	Lower Steering Shaft	Buy Now
38	56601224	Upper Steering Shaft	Buy Now
39	56601271	Knob	Buy Now
40	56601284	Steering Pawl Weldment	Buy Now
41	56601292	Pull Lever	Buy Now
42	56601362	Seat Panel Weldment	Buy Now
43	56601484	Lower Column Shroud	Buy Now
44	56601500	Steering Boot	Buy Now
45	78200050	Switch	Call to Order
46	56601683	Cap Plug	Buy Now
47	56315382	Conduit Clip	Buy Now
48	56601601	Foot Pedal Plate	Buy Now
49	56383230	Flanged Bushing Seat	Buy Now

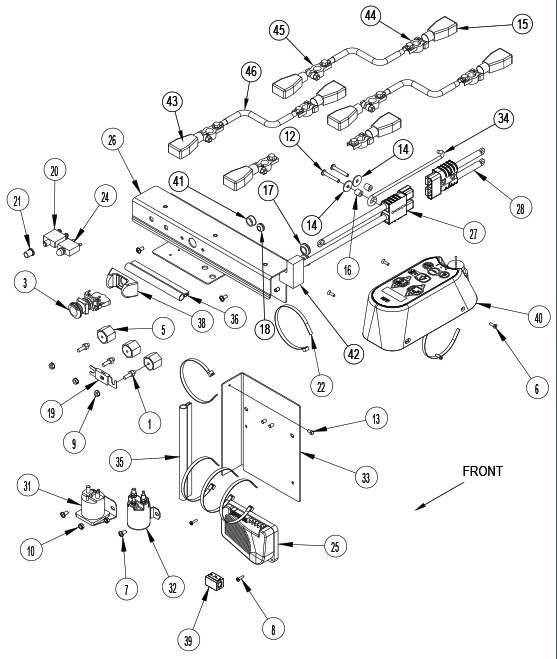

Electrical System

Nilfisk BR 755 & 855 Electrical System

Reference #	Part #	Description	Add to Cart
1	83302A	Stud	Buy Now
3	56407130	Emergency Disconnect	Buy Now
5	56469858	Electrical Mount	Buy Now
6	56003056	Screw	Buy Now
7	56002828	Screw	Buy Now
8	56002146	Screw	Buy Now
9	56002561	Nut	Buy Now
10	56002840	Nut	Buy Now
12	56002997	Screw	Buy Now
13	56009012	Screw	Buy Now
14	56009060	Washer	Buy Now
15	20005173	Bat Terminal Cover	Call to Order
16	56046309	Phenolic Spacer	Buy Now
17	56157376	Grommet	Buy Now
18	56321540	Grommet	Buy Now
19	56412089	Fuse	Buy Now
20	56454429	Circuit Breaker	Buy Now
21	56459369	Reset Button Book	Buy Now
22	56477613	Cable Tie	Buy Now
24	56507644	Circuit Breaker	Buy Now
25	56601061	Speed Control	Buy Now
26	56601854	Panel	Buy Now
27	56601171	Connector Assembly	Buy Now
28	56601172	Connector Assembly	Buy Now
29	56601174	Main Harness	Buy Now
30	56344205	Traction Drive Harness	Buy Now
31	56601183	Contactor	Buy Now
32	56412179	Contactor	Buy Now
33	56601185	Panel	Buy Now
34	56601215	Prop Rod	Buy Now
35	56601251	Gasket	Buy Now
36	56601252	Gasket	Buy Now
37	56601431	Jumper Cable	Buy Now
38	56601434	Emergency Button Guard	Buy Now
39	40849A	Suppressor	Buy Now
40	56384462	Interface Panel Assembly	Buy Now
-	56601096	Interface Panel Kit	Buy Now
-	56303553	Key Switch	Buy Now
-	56303526	Replacement Key Set	Buy Now
41	56900144	Cap Plug	Buy Now
42	56601600	Foam Insert	Buy Now
43	20005171	Bat Terminal Cover	Call to Order
44	9100000883	Clamp Bat	Buy Now
45	9100000882	Clamp Bat	Buy Now
46	56409485	Cable Battery	Buy Now

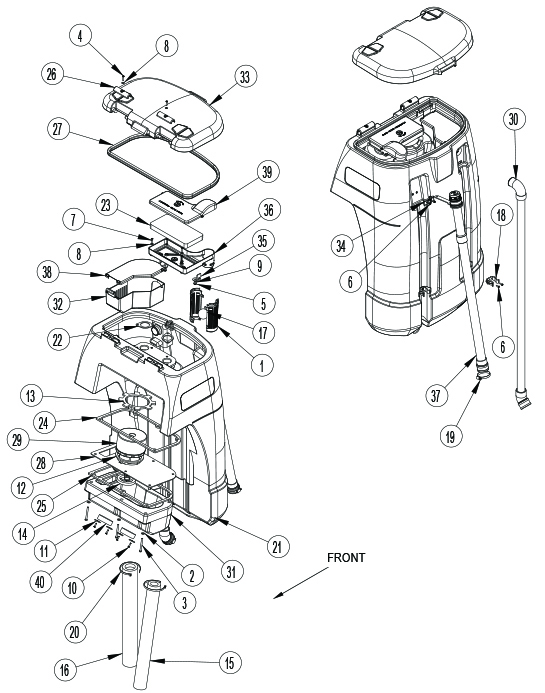

Recovery System

Nilfisk BR 755 & 855 Recovery System

Reference #	Part #	Description	Add to Cart
1	56324497	Float Cage	Buy Now
2	56002098	Washer	Buy Now
3	56003867	Screw	Buy Now
4	56003951	Screw	Buy Now
5	56002859	Washer	Buy Now
6	56002896	Screw	Buy Now
7	56002894	Screw	Buy Now
8	56002916	Washer	Buy Now
9	56003799	Screw	Buy Now
10	56009005	Screw	Buy Now
11	56003817	Washer	Buy Now
12	56212143	Vacuum Duct Gasket	Buy Now
13	56264103	Vacuum Motor Gasket	Buy Now
14	56314760	Vacuum Duct Gasket	Buy Now
15	56315375	Acoustical Foam	Buy Now
16	56315847	Foam Tube Assembly	Buy Now
17	56391690	Float Ball	Buy Now
18	56407361	Plastic Clamp	Buy Now
19	56440213	Hose Clamp	Buy Now
20	56477613	Cable Tie	Buy Now
21	56601120	Recovery Tank	Buy Now
22	56601121	Vac Filter Gasket	Buy Now
23	56601125	Filter	Buy Now
24	56601126	Exhaust Gasket	Buy Now
25	56601127	Vac Gasket	Buy Now
26	56601128	Hinge Clamp	Buy Now
27	56114185	Recovery Tank Gasket	Buy Now
28	56601131	Standard Vac Plate	Buy Now
29	56601488	Vac Motor	Buy Now
-	56397098	Carbon Brush	Buy Now
30	56601136	Recovery Hose	Buy Now
31	56601137	Vac Motor Cover	Buy Now
32	56601138	Strainer Basket	Buy Now
33	56601139	Recovery Lid	Buy Now
34	56601204	Drain Hose Hook	Buy Now
35	56601250	Filter Cover Strap	Buy Now
36	56601253	Filter Box	Buy Now
37	56383319	Drain Hose Assembly	Buy Now
38	56601421	Debris Cover	Buy Now
39	56601451	Cover	Buy Now
40	56344168	Filter	Buy Now

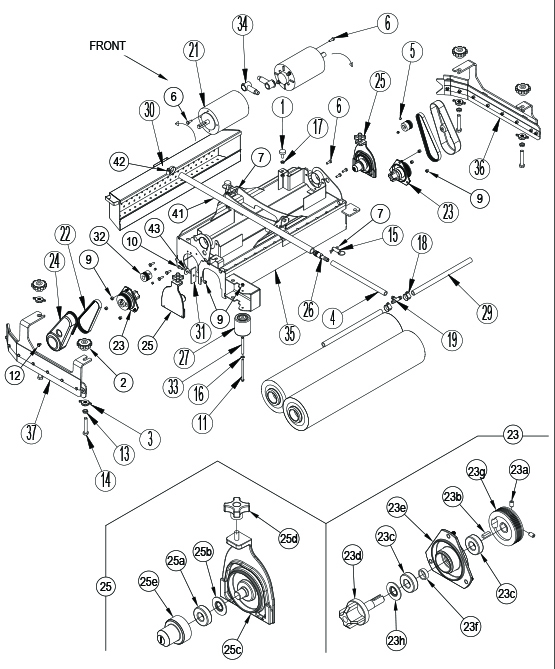

Scrub System - Cylindrical

Nilfisk BR 755 & 855 Scrub System - Cylindrical

Reference #	Part #	Description	Add to Cart
1	56401783	Leveler	Buy Now
2	56380149	Knob	Buy Now
3	56601578	Knob	Buy Now
4	56409462	Spiral Hose	Buy Now
5	56002086	Screw	Buy Now
6	56002948	Screw	Buy Now
7	56003222	Cotter Hair Pin	Buy Now
9	56003426	Nut	Buy Now
10	56003431	Screw	Buy Now
11	56003939	Screw	Buy Now
12	56009019	Screw	Buy Now
13	56003657	Nut	Buy Now
14	56003658	Screw	Buy Now
15	56003786	Ring Pin	Buy Now
16	56009045	Washer	Buy Now
17	56009086	Nut	Buy Now
18	56112771	Hose Clamp	Buy Now
19	56262549	Barb Tee	Buy Now
21	56315061	Motor	Buy Now
-	56412287	Motor Brush/Spring Kit	Buy Now
-	56412258	Brush Assembly	Call to Order
-	56412259	Brush Spring	Call to Order
22	56315321	Auto Tension Belt	Buy Now
23	56115318	Drive End Assembly	Buy Now
23a	56002930	Screw	Buy Now
23b	56003237	Key	Buy Now
23c	56106070	Ball Bearing	Buy Now
23d	56115319	Spindle	Buy Now
23e	56381765	Plate Bearing	Buy Now
23f	56407389	Spacer	Buy Now
23g	56115316	Sheave	Buy Now
23h	56407558	Bearing Washer	Buy Now
24	56115314	Belt Cover	Buy Now
25	56115344	Idler End Assembly	Buy Now
25a	56106070	Ball Bearing	Buy Now
25b	56407558	Bearing Washer	Buy Now
25c	56315447	Idler Bearing Plate	Buy Now
25d	56407303	Knob	Buy Now
25e	56115273	Hub	Buy Now
26	56315625	Coupler Barb	Buy Now
27	56316089	Wheel	Buy Now
28	56316210	Brush Motor Harness	Buy Now
29	56316553	Manifold	Buy Now
30	56601049	Hopper Weldment	Buy Now
31	56407391	Blade	Buy Now
32	56407433	Sheave	Buy Now
33	56412176	Bushing	Buy Now
34	56493357	Terminal Insulator	Buy Now
35	56601048	Housing Weldment	Buy Now
36	56601468	Left Skirt Assembly	Buy Now
37	56601476	Right Skirt Assembly	Buy Now
41	56379139	PVC Tube	Buy Now
42	56244969	Clamp Hose	Buy Now
43	56009060	Washer	Buy Now

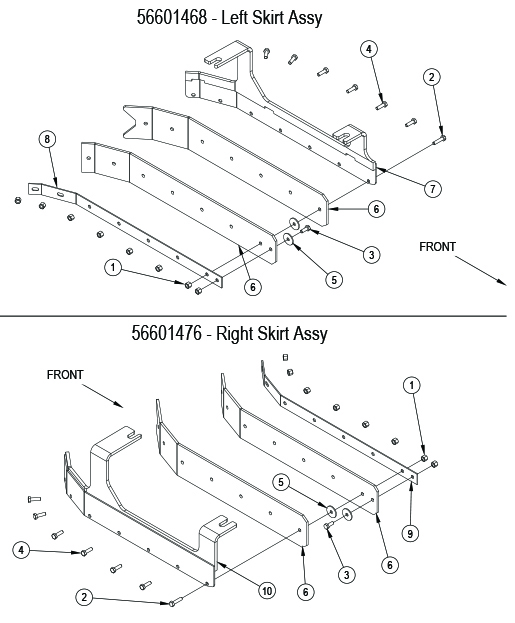

Scrub System - Cylindrical - Skirt Assemblies

Nilfisk BR 755 & 855 Scrub System - Cylindrical - Skirt Assemblies

Reference #	Part #	Description	Add to Cart
-	56601468	Left Skirt Assembly	Buy Now
-	56601476	Right Skirt Assembly	Buy Now
1	56003426	Nut	Buy Now
2	56003430	Screw	Buy Now
3	56003431	Screw	Buy Now
4	56003454	Screw	Buy Now
5	56009060	Washer	Buy Now
6	56316194	Blade Kit	Buy Now
-	56601538	Blade Kit	Buy Now
-	56601681	Blade Kit	Buy Now
7	56601047	Skirt Bracket Weldment (Left)	Buy Now
8	56601046	Skirt Retainer (Left)	Buy Now
9	56601045	Skirt Retainer (Right)	Buy Now
10	56601044	Skirt Bracket Weldment (Right)	Buy Now

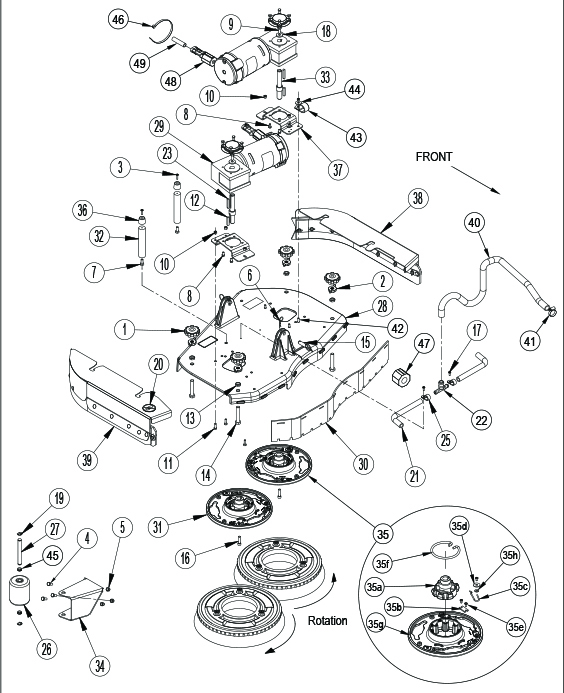

Scrub System - Disk BR 755

Nilfisk BR 755 & 855 Scrub System - Disk BR 755

Reference #	Part #	Description	Add to Cart
1	56380149	Knob	Buy Now
2	56601578	Knob	Buy Now
3	56002192	Screw	Buy Now
4	56002667	Screw	Buy Now
5	56002701	Nut	Buy Now
6	56003222	Cotter Hair Pin	Buy Now
7	56003012	Screw	Buy Now
8	56003211	Screw	Buy Now
9	56003335	Screw	Buy Now
10	56003426	Nut	Buy Now
11	56003454	Screw	Buy Now
12	56003526	Square Key	Buy Now
13	56003657	Nut	Buy Now
14	56003658	Screw	Buy Now
15	56003786	Ring Pin	Buy Now
16	56003798	Screw	Buy Now
17	56009029	Screw	Buy Now
18	56009057	Washer	Buy Now
19	56003264	Ring	Buy Now
20	56016163	No Step Decal	Buy Now
21	56266108	Spiral Hose	Buy Now
22	56305760	Barb Tee	Buy Now
23	56314359	Key	Buy Now
25	56328064	Clamp	Buy Now
26	56407006	Roller Wheel	Buy Now
27	56601580	Pin	Buy Now
28	56601113	Scrub Deck	Buy Now
29	56601134	Motor Gearbox Assembly	Buy Now
-	56601533	Gearbox	Buy Now
-	56314580	Bearing	Buy Now
-	56601537	Bearing	Buy Now
-	56601534	Carbon Brush	Buy Now
-	56601535	Key	Buy Now
-	56601508	Brush Motor Cover	Buy Now
-	56601536	Motor Fan	Buy Now
30	56601248	Blade	Buy Now
-	56601521	Blade	Buy Now
31	56601734	Brush Plate Assembly	Buy Now
32	56601289	Up Stop Rod	Buy Now
33	56601319	Hub Mount Shaft	Buy Now
34	56601032	Roller Bracket	Buy Now
35	56601733	Brush Plate Assembly	Buy Now
35a	56112521	Gimbal Assembly	Buy Now
35b	56366455	Stop Plate	Buy Now
35c	56109653	Spring Retainer	Buy Now
35d	56009002	Washer	Buy Now
35e	56009247	Screw	Buy Now
35f	56601056	Brush Holder Spring	Buy Now
35g	56601118	Brush Plate	Buy Now
35h	56001954	Washer	Buy Now
36	56601388	Up Stop Mount	Buy Now
37	56601389	Motor Bracket	Buy Now
38	56601541	Skirt Assembly	Buy Now
-	56383471	Skirt Assembly	Buy Now
39	56601543	Skirt Assembly	Buy Now
-	56383470	Skirt Assembly	Buy Now
40	56601793	Hose	Buy Now
41	56244969	Hose Clamp	Buy Now
42	56003695	Screw	Buy Now
43	56409463	Hose Support Clamp	Buy Now
44	56003696	Washer	Buy Now
45	56302164	Nylon Bearing	Buy Now
46	56477613	Cable Tie	Buy Now
47	56601687	Ferrite Bead	Buy Now
48	56601686	Ferrite Bead	Buy Now
49	56384077	Braided Sleeve	Buy Now

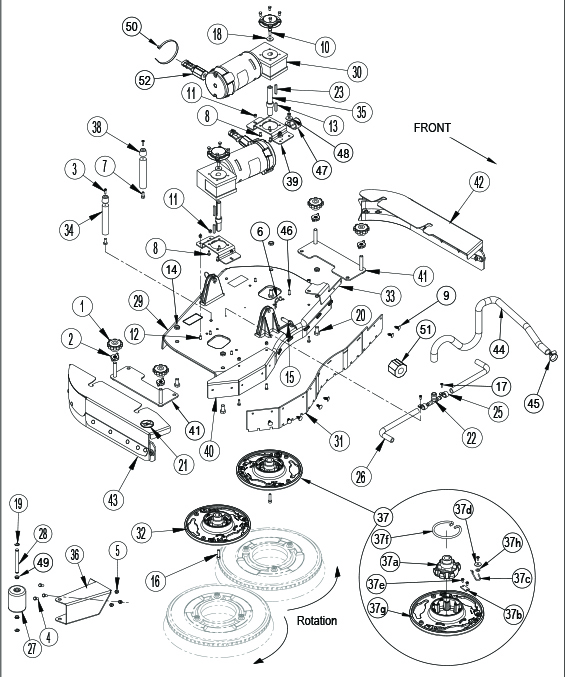

Scrub System - Disk BR 855

Nilfisk BR 755 & 855 Scrub Syste - Disk 855

Reference #	Part #	Description	Add to Cart
1	56380149	Knob	Buy Now
2	56601578	Knob	Buy Now
3	56002192	Screw	Buy Now
4	56002667	Screw	Buy Now
5	56002701	Nut	Buy Now
6	56003222	Cotter Hair Pin	Buy Now
7	56003012	Screw	Buy Now
8	56003211	Screw	Buy Now
9	56003263	Rivet	Buy Now
10	56003335	Screw	Buy Now
11	56003426	Nut	Buy Now
12	56003454	Screw	Buy Now
13	56003526	Key Square	Buy Now
14	56003657	Nut	Buy Now
15	56003786	Ring Pin	Buy Now
16	56003798	Screw	Buy Now
17	56009029	Screw	Buy Now
18	56009057	Washer	Buy Now
19	56003264	Ring	Buy Now
20	56009119	Screw	Buy Now
21	56016163	No Step Decal	Buy Now
22	56305760	Barb Tee	Buy Now
23	56314359	Key	Buy Now
25	56328064	Clamp	Buy Now
26	56387302	Spiral Hose	Buy Now
27	56407006	Roller Wheel	Buy Now
28	56601580	Pin	Buy Now
29	56601113	Scrub Deck	Buy Now
30	56601134	Motor Gearbox Assembly	Buy Now
-	56601533	Gearbox	Buy Now
-	56314580	Bearing	Buy Now
-	56601537	Bearing	Buy Now
-	56601534	Carbon Brush	Buy Now
-	56601535	Key	Buy Now
-	56601508	Brush Motor Cover	Buy Now
-	56601536	Motor Fan	Buy Now
31	56601275	Blade	Buy Now
-	56601522	Blade	Buy Now
32	56601734	Brush Plate Assembly	Buy Now
33	56601278	Skirt Bracket	Buy Now
34	56601289	Up Stop Rod	Buy Now
35	56601319	Hub Mount Shaft	Buy Now
36	56601031	Roller Bracket	Buy Now
37	56601733	Brush Plate Assembly	Buy Now
37a	56112521	Gimbal Assembly	Buy Now
37b	56366455	Stop Plate	Buy Now
37c	56109653	Spring Retainer	Buy Now
37d	56009002	Washer	Buy Now
37e	56009247	Screw	Buy Now
37f	56601056	Brush Holder Spring	Buy Now
37g	56601118	Brush Plate	Buy Now
37h	56001954	Washer	Buy Now
38	56601388	Up Stop Mount	Buy Now
39	56601389	Motor Bracket	Buy Now
40	56601452	Brush Cover	Buy Now
41	56601034	Side Skirt Weldment	Buy Now
42	56601542	SKirt Assembly Left	Buy Now
-	56383472	Skirt Assembly Left	Buy Now
43	56601543	Skirt Assembly Right	Buy Now
-	56383470	Skirt Assembly Right	Buy Now
44	56601793	Hose	Buy Now
45	56244969	Hose Clamp	Buy Now
46	56003695	Screw	Buy Now
47	56409463	Hose Support Clamp	Buy Now
48	56003696	Washer	Buy Now
49	56302164	Nylon Bearing	Buy Now
50	56477613	Cable Tie	Buy Now
51	56601687	Ferrite Bead	Buy Now
52	56601686	Ferrite Bead	Buy Now

Scrub System - Disk Skirt Assemblies (before January 20 2014 and after April 13 2015)

Nilfisk BR 755 & 855 Scrub System - Disk Skirt Assemblies

Reference #	Part #	Description	Add to Cart
-	56601541	Left Skirt Assembly	Buy Now
-	56601542	Left Skirt Assembly	Buy Now
-	56601543	Right Skirt Assembly	Buy Now
1	56003824	Nut	Buy Now
2	56003715	Carriage Screw	Buy Now
3	56003828	Carriage Screw	Buy Now
4	56009060	Washer	Buy Now
5	56601043	Left Skirt Frame	Buy Now
-	56601042	Left Skirt Frame	Buy Now
6	56601040	Left Skirt Retainer	Buy Now
-	56601039	Left Skirt Retainer	Buy Now
7	56383488	Skirt Blade	Buy Now
-	56383490	Skirt Blade	Buy Now
-	56383489	Skirt Blade	Buy Now
8	56601040	Right Skirt Retainer	Buy Now
9	56601041	Right Skirt Frame	Buy Now

Scrub System - Disk Skirt Assemblies (between January 20 2014 and April 13 2015)

Nilfisk BR 755 & 855 Scrub System - Disk Skirt Assemblies

Reference #	Part #	Description	Add to Cart
-	56383471	Left Skirt Assembly	Buy Now
-	56383472	Left Skirt Assembly	Buy Now
-	56383470	Right Skirt Assembly	Buy Now
1	56003824	Wing Plastic Nut	Buy Now
2	56003715	Carriage Screw	Buy Now
3	56003828	Carriage Screw	Buy Now
4	56009060	Washer	Buy Now
5	56383492	Left Skirt Bracket Weldment	Call to Order
5	56383493	Left Skirt Bracket Weldment	Call to Order
6	56383473	Front Strap	Buy Now
6	56383474	Left Front Strap	Buy Now
7	56383488	Skirt Blade Kit	Buy Now
-	56383490	Skirt Blade Kit	Buy Now
-	56383489	Skirt Blade Kit	Buy Now
8	56114386	Left Rear Strap	Buy Now
8	56114387	Left Rear Strap	Buy Now
9	56383491	Right Skirt Bracket Weldment	Call to Order
10	56114386	Right Rear Strap	Buy Now
11	56383473	Right Front Strap	Buy Now

Solution System

Nilfisk BR 755 & 855 Solution System

Reference #	Part #	Description	Add to Cart
1	56002916	Washer	Buy Now
2	56003400	Screw	Buy Now
3	56003913	Screw	Buy Now
5	56003119	Screw	Buy Now
6	56002667	Screw	Buy Now
7	56002849	Nut	Buy Now
8	56002859	Washer	Buy Now
9	56002989	Screw	Buy Now
10	56009122	Washer	Buy Now
11	56051209	Rubber Tip	Buy Now
12	56510442	Extra Vent Cap	Buy Now
13	56244969	Hose Clamp	Buy Now
14	56255076	Cap	Buy Now
15	56261265	Hose	Buy Now
16	56314757	Elbow Barb	Buy Now
17	56601598	Hose Clip	Buy Now
18	56315285	Hinge	Buy Now
19	56315296	Solution Filter	Buy Now
-	56601594	Solution Filter Kit	Buy Now
20	56381475	Ball Valve	Buy Now
21	56368776	Rubber Washer	Buy Now
23	56380132	Turn Latch	Buy Now
24	56380137	Retainer	Buy Now
25	56380141	Clamp Nut	Buy Now
26	56410097	Clamp	Buy Now
27	56412182	Coupling	Buy Now
28	56601064	Solenoid Valve Assembly	Buy Now
29	56601076	Solution Tank	Buy Now
30	56601106	Panel	Buy Now
31	56601202	Chemical Bottle Cover	Buy Now
32	56601212	Nipple Reducer	Buy Now
33	56601213	Battery Box	Buy Now
34	56601236	Special Tee	Buy Now
35	56601246	Mat	Buy Now
36	56601268	Plate	Buy Now
37	56112553	Hose	Buy Now
38	56601339	Charger Cover Weldment	Buy Now
39	56601845	Bracket	Buy Now
40	56344172	Pressure Sensing Tube	Buy Now
41	56601843	Plate	Buy Now
42	56601569	Gasket	Buy Now
43	56601570	Gasket	Buy Now
44	56900273	Adapter Barb	Buy Now
45	30445A	Solution Hose	Buy Now
46	56002935	Screw	Buy Now
47	56601685	Gasket	Buy Now
48	56009064	Washer	Buy Now

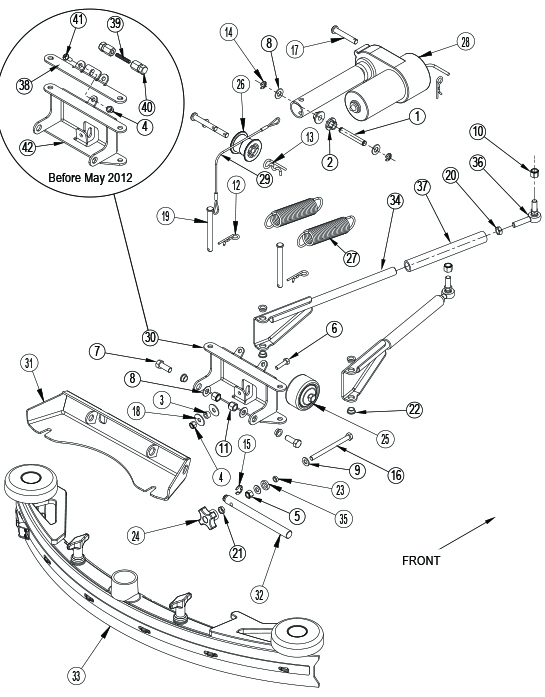

Squeegee System

Nilfisk BR 755 & 855 Squeegee System

Reference #	Part #	Description	Add to Cart
1	56412088	Pin	Buy Now
2	56412248	Squeegee Cable Spacer	Buy Now
3	56453691	Spacer	Buy Now
4	56002491	Nut	Buy Now
5	56002856	Nut	Buy Now
6	56002883	Screw	Buy Now
7	56002886	Screw	Buy Now
8	56002910	Washer	Buy Now
9	56002938	Washer	Buy Now
10	56002951	Nut	Buy Now
11	56003219	Nut	Buy Now
12	56003222	Cotter Hair Pin	Buy Now
13	56003223	Cotter Hair Pin	Buy Now
14	56003262	Ring	Buy Now
15	56003264	Ring	Buy Now
16	56003486	Screw	Buy Now
17	56003656	Clevis Pin	Buy Now
18	56003696	Washer	Buy Now
19	56003713	Clevis Pin	Buy Now
20	56009103	Nut	Buy Now
21	56009141	Nut	Buy Now
22	56324505	Flange Bearing	Buy Now
23	56381818	Bushing	Buy Now
24	56407303	Knob	Buy Now
25	56412124	Wheel	Buy Now
26	56412208	Roller	Buy Now
27	56412216	Spring Extension	Buy Now
28	56601147	Motor Actuator	Buy Now
29	56601257	Cable Assembly	Buy Now
30	56601038	Squeegee Pivot Weldment	Buy Now
31	56601037	Squeegee Mount Weldment	Buy Now
32	56601442	Shaft	Buy Now
32	56316105	Shaft	Buy Now
33	56601449	Squeegee Assembly (BR 755)	Buy Now
-	56601454	Squeegee Assembly (BR 855)	Buy Now
34	56601460	Bar Weldment	Buy Now
35	56601463	Washer	Buy Now
36	56601469	Rod End	Buy Now
37	56601512	Hose	Buy Now
38	56382623	Spring Advenger Bracket	Buy Now
39	56382637	Threaded Rod	Buy Now
40	56382624	Spring Nut	Call to Order
41	56002957	Screw	Buy Now
42	56601436	Squeegee Pivot Bracket Weldment	Buy Now

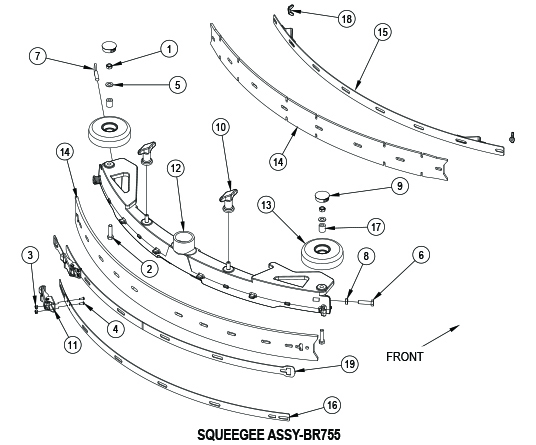

Squeegee Assembly - BR 755

Nilfisk BR 755 & 855 Squeegee Assembly - BR 755

Reference #	Part #	Description	Add to Cart
-	56601449	Squeegee Assembly	Buy Now
1	56002851	Nut	Buy Now
2	56003302	Screw	Buy Now
3	56002907	Nut	Buy Now
4	56002909	Screw	Buy Now
5	56002938	Washer	Buy Now
6	56003302	Screw	Buy Now
7	56003792	Screw	Buy Now
8	56009141	Nut	Buy Now
9	56111444	Button Plug	Buy Now
10	56370711	Thumb Nut	Buy Now
11	56471194	Latch	Buy Now
12	-	Squeegee Casting	Call to Order
13	56601450	Wheel	Buy Now
14	56382734	Blade Kit	Call to Order
-	56601744	Blade Kit	Buy Now
-	56382737	Blade Kit	Call to Order
-	56601745	Blade Kit	Buy Now
-	56382735	Blade Kit	Call to Order
-	56601746	Blade Kit	Buy Now
15	56601489	Front Strap Weldment	Buy Now
16	56601591	Rear Strap	Buy Now
-	56382676	Rear Strap	Buy Now
17	56601499	Nylon Bushing	Buy Now
18	56009111	Wing Nut	Buy Now
19	56382697	Band Clamp	Buy Now

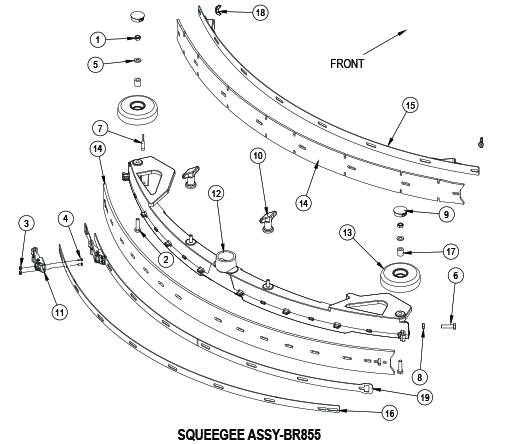

Squeegee Assembly - BR 855

Nilfisk BR 755 & 855 Squeegee Assembly - BR 855

Reference #	Part #	Description	Add to Cart
-	56601454	Squeegee Assembly	Buy Now
1	56002851	Nut	Buy Now
2	56003302	Screw	Buy Now
3	56002907	Nut	Buy Now
4	56002909	Screw	Buy Now
5	56002938	Washer	Buy Now
6	56003302	Screw	Buy Now
7	56003792	Screw	Buy Now
8	56009141	Nut	Buy Now
9	56111444	Button Plug	Buy Now
10	56370711	Thumb Nut	Buy Now
11	56471194	Latch	Buy Now
12	-	Squeegee Casting	Call to Order
13	56601450	Wheel	Buy Now
14	56382738	Blade Kit	Buy Now
-	56382740	Blade Kit	Call to Order
-	56382739	Blade Kit	Call to Order
15	56601495	Front Strap	Buy Now
16	56601496	Rear Strap	Buy Now
-	56601593	Rear Strap	Buy Now
17	56601499	Nylon Bushing	Buy Now
18	56009111	Wing Nut	Buy Now
19	56382698	Band Clamp	Buy Now
