AX 300-400

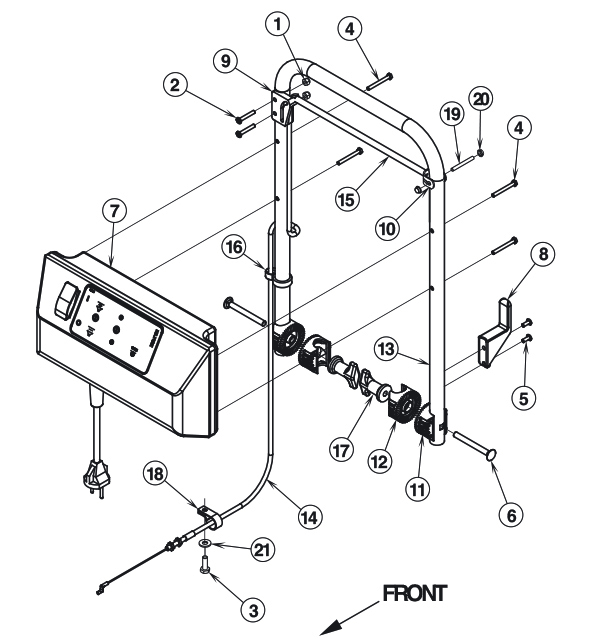

Upper Handle
AX 300-400 Upper Handle
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56001822 |
Acorn Nut |
Call to Order |
| 2 |
56002824 |
Screw |
Buy Now |
| 3 |
56002948 |
Screw |
Buy Now |
| 4 |
56002020 |
Screw |
Buy Now |
| 5 |
56009029 |
Screw |
Buy Now |
| 6 |
56009138 |
Screw |
Buy Now |
| 7 |
56262149 |
Console Assembly |
Call to Order |
| 7 |
56262173 |
Console Assembly |
Call to Order |
| 7 |
56262169 |
Console Assembly |
Call to Order |
| 7 |
56262188 |
Console Assembly |
Call to Order |
| 7 |
56262801 |
Console Assembly |
Call to Order |
| 7 |
56264023 |
Console Assembly |
Call to Order |
| 8 |
56262518 |
Cord Hook |
Buy Now |
| 9 |
56262570 |
Cable Support |
Buy Now |
| 10 |
56262655 |
Clevis |
Buy Now |
| 11 |
56264118 |
Ratchet |
Buy Now |
| 12 |
56264123 |
Ratchet |
Buy Now |
| 13 |
56264142 |
Upper Handle |
Call to Order |
| 14 |
56264146 |
Cable Assembly |
Buy Now |
| 15 |
56264147 |
Handle Tube |
Call to Order |
| 16 |
56264374 |
Cable Support |
Call to Order |
| 17 |
56370711 |
Thumb Nut |
Buy Now |
| 18 |
56486112 |
P Clamp |
Buy Now |
| 19 |
56262193 |
Stud |
Buy Now |
| 20 |
56009132 |
Push Cap |
Buy Now |
| 21 |
56002098 |
Washer |
Buy Now |

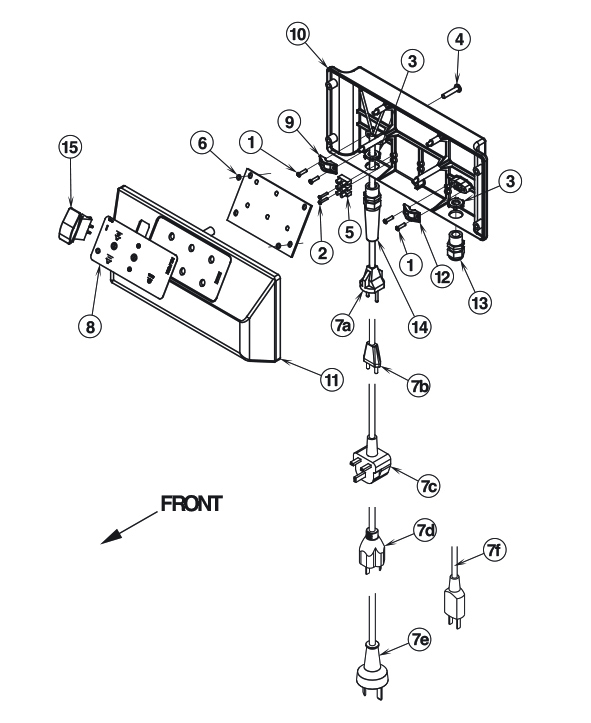

Console Assembly
AX 300-400 Console Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56002738 |
Screw |
Buy Now |
| 2 |
56003092 |
Screw |
Buy Now |
| 3 |
56009095 |
Conduit Lock Nut |
Buy Now |
| 4 |
56009181 |
Screw |
Call to Order |
| 5 |
56183523 |
Terminal Block |
Buy Now |
| 6 |
56257362 |
O-Ring |
Call to Order |
| 7a |
56262003 |
Cord Set |
Call to Order |
| 7b |
56262172 |
Cord Set |
Call to Order |
| 7c |
56262168 |
Cord Set |
Call to Order |
| 7d |
56262189 |
Cord Set |
Call to Order |
| 7e |
56330029 |
Cord Set |
Call to Order |
| 7f |
56209341 |
Cord Set |
Call to Order |
| 8 |
56262009 |
Membrane Switch Assembly |
Call to Order |
| 8 |
56264120 |
Membrane Switch Assembly |
Buy Now |
| 9 |
56262136 |
Cord Clamp |
Call to Order |
| 9 |
56262185 |
Cord Clamp |
Call to Order |
| 10 |
56262141 |
Bottom Console |
Call to Order |
| 10 |
56264055 |
Bottom Console |
Call to Order |
| 11 |
56262142 |
Top Console |
Call to Order |
| 11 |
56264054 |
Top Console |
Call to Order |
| 12 |
56262185 |
Cord Clamp |
Call to Order |
| 12 |
56264119 |
Cord Clamp |
Buy Now |
| 13 |
56323135 |
Strain Relief |
Buy Now |
| 14 |
56323136 |
Strain Relief |
Buy Now |
| 15 |
56393312 |
Rocker Switch |
Buy Now |

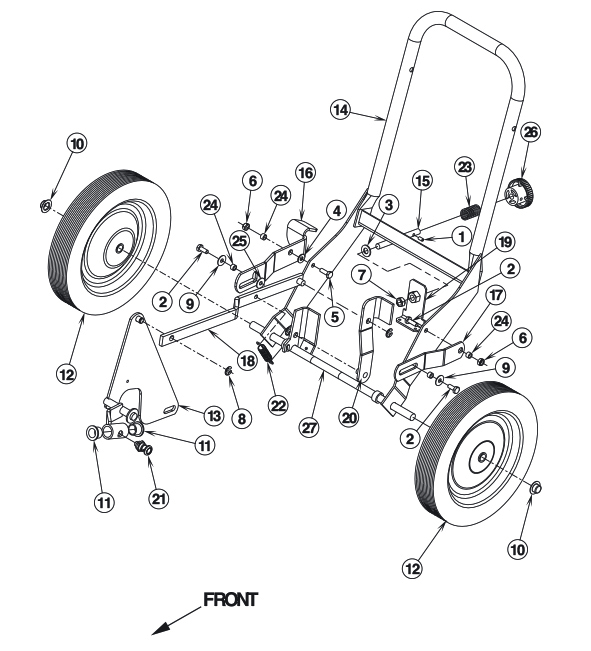

Lower Handle
AX 300-400 Lower Handle
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56003123 |
Screw |
Buy Now |
| 2 |
56001836 |
Screw |
Buy Now |
| 3 |
56002063 |
Washer |
Buy Now |
| 4 |
56002098 |
Washer |
Buy Now |
| 5 |
56002155 |
Screw |
Buy Now |
| 6 |
56002840 |
Nut |
Buy Now |
| 7 |
56002841 |
Nut |
Buy Now |
| 8 |
56003262 |
Ring |
Buy Now |
| 9 |
56009025 |
Washer |
Buy Now |
| 10 |
56009097 |
Push Cap Nut |
Buy Now |
| 11 |
56171095 |
Flange Bearing |
Buy Now |
| 12 |
56201774 |
Wheel |
Call to Order |
| 13 |
56264041 |
Lever Weldment |
Call to Order |
| 14 |
56264046 |
Axle Weldment |
Call to Order |
| 15 |
56264067 |
Adjusting Screw |
Call to Order |
| 16 |
56264076 |
Latch |
Call to Order |
| 17 |
56264078 |
Handle Support Plate |
Call to Order |
| 18 |
56264390 |
Linkage Weldment |
Call to Order |
| 19 |
56264443 |
Nut Plate Weldment |
Call to Order |
| 20 |
56264447 |
Lever Weldment |
Call to Order |
| 21 |
56365548 |
Lock Pin Assembly |
Buy Now |
| 22 |
56370355 |
Spring |
Call to Order |
| 23 |
56377253 |
Compression Spring |
Buy Now |
| 24 |
56379298 |
Bushing |
Buy Now |
| 25 |
56388762 |
Flat Washer |
Buy Now |
| 26 |
56475480 |
Knob |
Buy Now |
| 27 |
56264396 |
Isolator |
Call to Order |

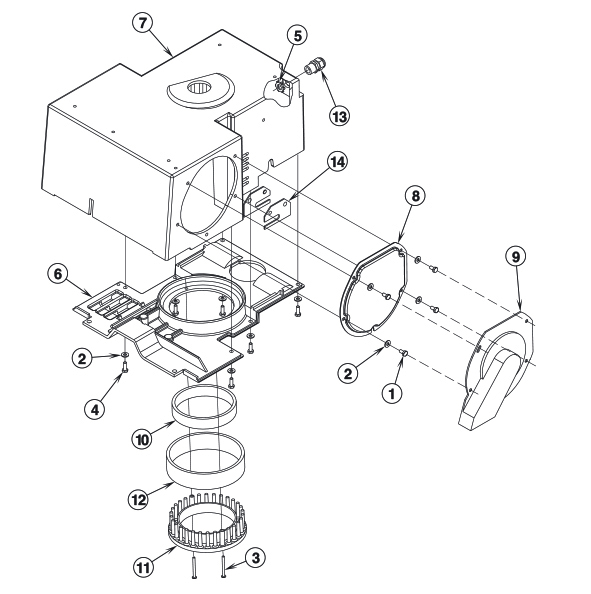

Chassis
AX 300-400 Chassis
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56001854 |
Screw |
Buy Now |
| 2 |
56002098 |
Washer |
Buy Now |
| 3 |
56002171 |
Screw |
Buy Now |
| 4 |
56002948 |
Screw |
Buy Now |
| 5 |
56009095 |
Conduit Lock Nut |
Buy Now |
| 6 |
56264002 |
Bottom Cover |
Buy Now |
| 7 |
56264003 |
Chassis |
Call to Order |
| 8 |
56264072 |
Belt Guard (AX 300) |
Call to Order |
| 9 |
56264051 |
Belt Guard (AX 400) |
Call to Order |
| 10 |
56264327 |
Acoustical Foam |
Buy Now |
| 11 |
56264328 |
Cap |
Call to Order |
| 12 |
56264329 |
Cooling Air Filter |
Buy Now |
| 13 |
56323135 |
Strain Relief |
Buy Now |
| 14 |
56264004 |
Plate |
Call to Order |
Brush
AX 300-400 Brush
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56001939 |
Washer |
Buy Now |
| 2 |
56002086 |
Screw |
Buy Now |
| 3 |
56002488 |
Screw |
Buy Now |
| 4 |
56002667 |
Screw |
Buy Now |
| 5 |
56002701 |
Nut |
Buy Now |
| 6 |
56002807 |
Screw |
Buy Now |
| 7 |
56002859 |
Washer |
Buy Now |
| 8 |
56003318 |
Screw |
Call to Order |
| 9 |
56009018 |
Screw |
Buy Now |
| 10 |
56009137 |
Screw |
Buy Now |
| 11 |
56262558 |
Sheave |
Buy Now |
| 12 |
56262626 |
Ball Bearing |
Buy Now |
| 13 |
56262645 |
Bearing Washer |
Buy Now |
| 14 |
56262647 |
Block Bearing |
Buy Now |
| 15 |
56264000 |
Brush Housing |
Call to Order |
| 15 |
56264025 |
Brush Housing |
Buy Now |
| 16 |
56264459 |
Cover |
Buy Now |
| 17 |
56264016 |
Brush End Cap |
Buy Now |
| 18 |
56264049 |
Drive Spindle |
Buy Now |
| 19 |
56264050 |
Sheave |
Buy Now |
| 20 |
56264070 |
Retainer Plate |
Call to Order |
| 21 |
56264438 |
Motor Bracket Weldment |
Call to Order |
| 22 |
56264308 |
Motor |
Call to Order |
| 22 |
56264356 |
Motor |
Call to Order |
| 23 |
56264357 |
Carpet Brush Assembly |
Call to Order |
| 23 |
56264358 |
Carpet Brush Assembly |
Buy Now |
| 24 |
56264394 |
Isolator |
Call to Order |
| 25 |
56264395 |
Bracket Weldment |
Buy Now |
| 26 |
56327476 |
Belt |
Buy Now |
| 27 |
56372773 |
Ball Bearing |
Buy Now |
| 28 |
56262648 |
Block Bearing |
Buy Now |
| 29 |
56002708 |
Nut |
Buy Now |
| 30 |
56002098 |
Washer |
Buy Now |
| 31 |
56002093 |
Screw |
Buy Now |
| 32 |
56001985 |
Nut |
Call to Order |
| 33 |
56262626 |
Ball Bearing |
Buy Now |
Solution System
AX 300-400 Solution System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56002093 |
Screw |
Buy Now |
| 2 |
56002098 |
Washer |
Buy Now |
| 3 |
56002155 |
Screw |
Buy Now |
| 4 |
56002837 |
Screw |
Buy Now |
| 5 |
56002851 |
Nut |
Buy Now |
| 6 |
56002916 |
Washer |
Buy Now |
| 7 |
56002938 |
Washer |
Buy Now |
| 8 |
56003297 |
Screw |
Call to Order |
| 9 |
56009003 |
Washer |
Buy Now |
| 10 |
56009009 |
Nut |
Buy Now |
| 11 |
56200123 |
Bushing |
Buy Now |
| 12 |
56112771 |
Hose Clamp |
Buy Now |
| 13 |
56264462 |
Solution Gauge Hose |
Call to Order |
| 14 |
56249334 |
Nozzle |
Buy Now |
| 15 |
56249568 |
Coupling |
Buy Now |
| 16 |
56262148 |
Solution Tank (AX 300) |
Call to Order |
| 16 |
56262153 |
Solution Tank (AX 400) |
Call to Order |
| 17 |
56262596 |
Valve |
Call to Order |
| 18 |
56264137 |
Screen |
Buy Now |
| 19 |
56264444 |
Valve Lever |
Buy Now |
| 20 |
56264216 |
Nozzle Adapter |
Call to Order |
| 21 |
56264257 |
Extension Spring |
Buy Now |
| 22 |
56264260 |
Hose |
Buy Now |
| 23 |
56264306 |
Pump |
Call to Order |
| 23 |
56264305 |
Pump |
Buy Now |
| 24 |
56264382 |
Barbed Adapter |
Buy Now |
| 25 |
56456802 |
Elbow |
Buy Now |
| 26 |
56324505 |
Flange Bearing |
Buy Now |
| 27 |
56328064 |
P Clamp |
Buy Now |
| 28 |
56369594 |
Adapter Barb |
Buy Now |
| 29 |
56262190 |
Adapter Barb |
Buy Now |
| 30 |
56470138 |
Barb |
Buy Now |
| 31 |
56752020 |
Tee |
Buy Now |
| 32 |
56756364 |
Hose Clamp |
Buy Now |
| 33 |
56264442 |
Elbow Barb |
Buy Now |
| 34 |
56009135 |
Screw |
Buy Now |
| 35 |
56264465 |
Support Bracket |
Buy Now |
Flow Diverter Assembly
AX 300-400 Flow Diverter Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| - |
56264347 |
Flow Diverter Assembly (AX 300) |
Call to Order |
| - |
56264348 |
Flow Diverter Assembly (AX 400) |
Call to Order |
| 1 |
56900044 |
Nipple |
Call to Order |
| 2 |
56752020 |
Tee |
Buy Now |
| 3 |
56264301 |
Braided Hose |
Buy Now |
| 4 |
56750363 |
Bushing |
Buy Now |
| 5 |
56369632 |
Elbow |
Buy Now |
| 6 |
56372506 |
Tee |
Buy Now |
| 7 |
56263809 |
Barb |
Buy Now |
| 8 |
56264318 |
Spiral Hose |
Buy Now |
| 9 |
56756364 |
Hose Clamp |
Buy Now |
| 10 |
56264351 |
Barb |
Call to Order |
| 10 |
56264352 |
Barb |
Buy Now |
| 11 |
56264286 |
Valve |
Buy Now |
| 12 |
56264346 |
Hose |
Buy Now |
| 13 |
56755726 |
Barb |
Buy Now |
| 14 |
56756364 |
Hose Clamp |
Buy Now |
| 15 |
56219932 |
Hose Clamp |
Buy Now |
Recovery System
AX 300-400 Recovery System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56262146 |
Recovery Tank (AX 300) |
Call to Order |
| 1 |
56262152 |
Recovery Tank (AX 400) |
Call to Order |
| 2 |
56002875 |
Washer |
Buy Now |
| 3 |
56324045 |
Cover Assembly (Items 27-33) |
Buy Now |
| 4 |
56392171 |
Clamp |
Buy Now |
| 5 |
56009186 |
Screw |
Buy Now |
| 6 |
56392170 |
Recovery Hose Assembly |
Buy Now |
| 7 |
56262143 |
Drain Hose Assembly |
Buy Now |
| 8 |
56393772 |
Hose Plug |
Buy Now |
| 9 |
56262147 |
Vacuum Hose Assembly |
Buy Now |
| 10 |
56329145 |
Hose Clamp |
Buy Now |
| 11 |
56264103 |
Vacuum Motor Gasket |
Buy Now |
| 12 |
56002836 |
Nut |
Buy Now |
| 13 |
56002053 |
Washer |
Buy Now |
| 14 |
56262007 |
Vac Motor Assembly |
Call to Order |
| 14 |
56250201 |
Vac Motor Assembly |
Call to Order |
| 15 |
56264233 |
Acoustical Foam |
Buy Now |
| 16 |
56264283 |
Vac Motor Housing |
Buy Now |
| 17 |
56264088 |
Shoe Weldment (AX 300) |
Call to Order |
| 17 |
56264117 |
Shoe Weldment (AX 400) |
Call to Order |
| 18 |
56264343 |
Ring Assembly |
Buy Now |
| 19 |
56264079 |
Vac Motor Ring |
Buy Now |
| 20 |
56264105 |
Vacuum Motor Gasket |
Buy Now |
| 21 |
56264116 |
Vacuum Outlet Gasket |
Buy Now |
| 22 |
56009135 |
Screw |
Buy Now |
| 23 |
56264114 |
Vacuum Gasket |
Buy Now |
| 24 |
56264282 |
Muffler Wall |
Call to Order |
| 26 |
56264450 |
Muffler |
Call to Order |
| 27 |
56324298 |
Float Elbow |
Buy Now |
| 28 |
56324497 |
Float Cage |
Buy Now |
| 29 |
56391690 |
Float Ball |
Buy Now |
| 30 |
56324046 |
Drilled Cover |
Buy Now |
| 31 |
56262576 |
Gasket |
Buy Now |
| 32 |
56003633 |
Screw |
Buy Now |
| 33 |
56209261 |
Washer |
Buy Now |
| 34 |
56002877 |
Nut |
Buy Now |
Decals
AX 300-400 Decals
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56014781 |
Warning |
Call to Order |
| 2 |
56015638 |
Pressure |
Call to Order |
| 3 |
56015639 |
Brush Pressure |
Call to Order |
| 4 |
56015655 |
Direction |
Buy Now |
| 5 |
56015678 |
Flow Diverter |
Call to Order |

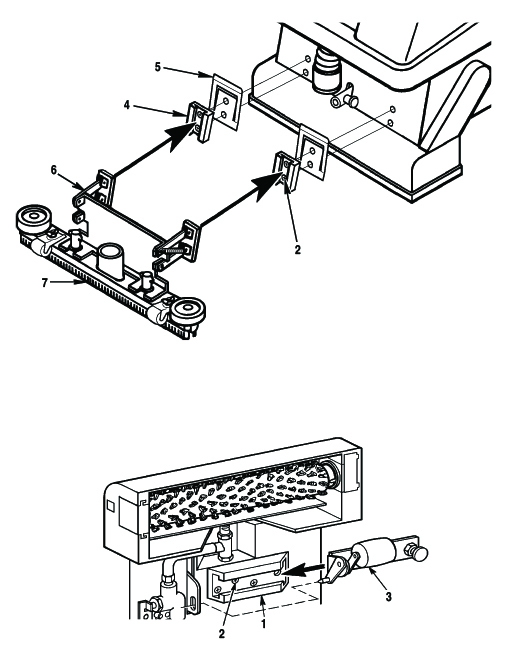

Hard Floor Tool
AX 300-400 Hard Floor Tool
| Reference # |
Part # |
Description |
Add to Cart |
| - |
56264369 |
Hard Floor Kit (AX 300) |
Call to Order |
| - |
56262164 |
Hard Floor Kit (AX 400) |
Call to Order |
| - |
56040537 |
Instruction Sheet |
Call to Order |
| 1 |
56264183 |
Channel |
Call to Order |
| 2 |
56003096 |
Screw |
Buy Now |
| 3 |
56264398 |
Carriage Assembly |
Call to Order |
| 4 |
56264201 |
Channel |
Call to Order |
| 5 |
56264342 |
Clip |
Call to Order |
| 6 |
56264344 |
Squeegee Mount Assembly |
Call to Order |
| 7 |
56264130 |
Squeegee Assembly (AX 300) |
Call to Order |
| 7 |
56262165 |
Squeegee Assembly (AX 400) |
Call to Order |

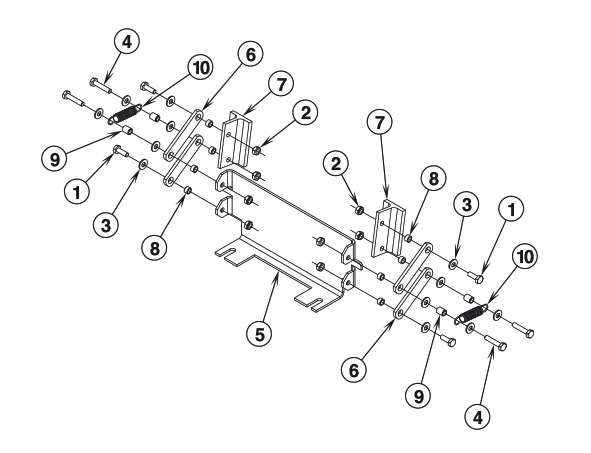

Squeegee Mount Assembly
AX 300-400 Squeegee Mount Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| - |
56264344 |
Squeegee Mount Assembly |
Call to Order |
| 1 |
56002807 |
Screw |
Buy Now |
| 2 |
56002850 |
Nut |
Buy Now |
| 3 |
56002859 |
Washer |
Buy Now |
| 4 |
56002897 |
Screw |
Buy Now |
| 5 |
56264125 |
Squeegee Mount |
Call to Order |
| 6 |
56264204 |
Arm |
Call to Order |
| 7 |
56264273 |
Bracket |
Call to Order |
| 8 |
56379298 |
Bushing |
Buy Now |
| 9 |
56475411 |
Bushing |
Call to Order |
| 10 |
56481699 |
Spring |
Buy Now |
Squeegee Assembly
AX 300-400 Squeegee Assembly
| Reference # |
Part # |
Description |
Add to Cart |
| - |
56264130 |
Squeegee Assembly (AX 300) |
Call to Order |
| - |
56262165 |
Squeegee Assembly (AX 400) |
Call to Order |
| 1 |
56002859 |
Washer |
Buy Now |
| 2 |
56387376 |
Roller Assembly |
Buy Now |
| 3 |
56264158 |
Channel Weldment (AX 300) |
Call to Order |
| 3 |
56262166 |
Channel Weldment (AX 400) |
Call to Order |
| 4 |
56400613 |
Gasket |
Buy Now |
| 5 |
56400614 |
Gasket |
Buy Now |
| 6 |
56003269 |
Ring |
Buy Now |
| 7 |
56264159 |
Squeegee Cartridge (AX 300) |
Call to Order |
| 7 |
56264172 |
Squeegee Cartridge (AX 400) |
Call to Order |
| 8 |
56370711 |
Thumb Nut |
Buy Now |
| 9 |
56009047 |
Flat Washer |
Buy Now |
| 10 |
56363855 |
Wheel |
Buy Now |
| 11 |
56264160 |
Channel (AX 300) |
Call to Order |
| 11 |
56264166 |
Channel (AX 400) |
Call to Order |
| 12 |
56105577 |
Squeegee Blade (AX 300) |
Call to Order |
| 12 |
56105578 |
Squeegee Blade (AX 400) |
Buy Now |
| 13 |
56264161 |
Retainer (AX 300) |
Call to Order |
| 13 |
56264167 |
Retainer (AX 400) |
Call to Order |
| 14 |
56003037 |
Screw |
Buy Now |
| 15 |
56003067 |
Screw |
Buy Now |
| 16 |
56009048 |
Nut |
Buy Now |
