Karcher NT 30
Small Parts

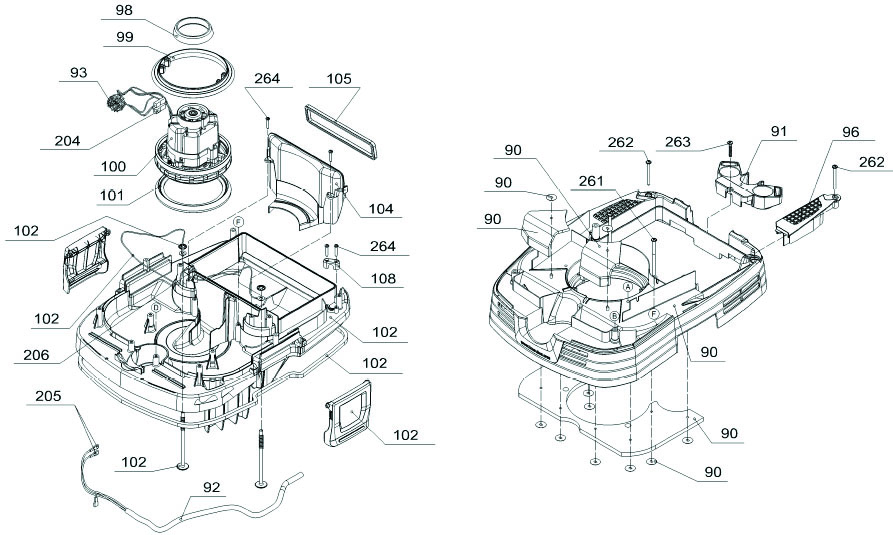

Karcher NT 30 Small Parts
| Reference # |
Part # |
Description |
Add to Cart |
| 90 |
40703950 |
Housing Air Circulation Set |
Call to Order |
| 91 |
50330380 |
Holder Accessories |
Buy Now |
| 92 |
66505303 |
Power Cable Rubber |
Buy Now |
| 93 |
63460430 |
Ferrite Ring |
Call to Order |
| 96 |
56050580 |
Cover Housing Air Circulation |
Call to Order |
| 98 |
53637350 |
Seal Vacuum Motor Above |
Call to Order |
| 99 |
53637950 |
Seal Vacuum Motor Center |
Call to Order |
| 100 |
64903100 |
Blower Motor |
Buy Now |
| 101 |
53632560 |
Seal Bottom |
Buy Now |
| 102 |
40703850 |
Housing Base Plate Set |
Call to Order |
| 104 |
50640570 |
Air Circulation |
Call to Order |
| 105 |
53631870 |
Seal Supply Air |
Call to Order |
| 108 |
50314740 |
Strain Relief |
Call to Order |
| 204 |
66477620 |
Insulation Housing |
Call to Order |
| 205 |
66477480 |
Insulation Sheath |
Call to Order |
| 206 |
66477490 |
Insulation Sheath |
Call to Order |
| 261 |
73031710 |
Screw |
Call to Order |
| 262 |
73031110 |
Screw |
Call to Order |
| 263 |
73030860 |
Screw |
Buy Now |
| 264 |
73030960 |
Screw |
Call to Order |

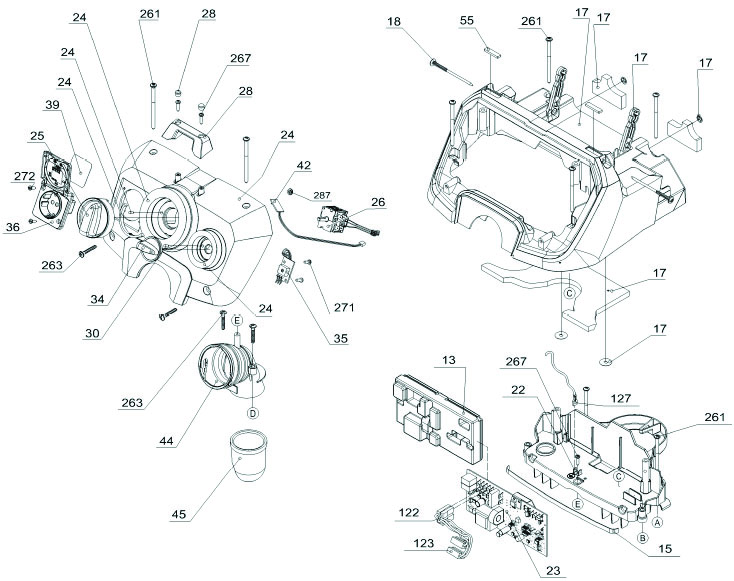

Body Parts
Karcher NT 30 Body Parts
| Reference # |
Part # |
Description |
Add to Cart |
| 13 |
56050610 |
Housing Electronics |
Call to Order |
| 15 |
62733560 |
Sealing Strip |
Call to Order |
| 17 |
40703840 |
Cover Set |
Call to Order |
| 18 |
51070040 |
Guide Screw |
Call to Order |
| 22 |
66499140 |
Tab |
Call to Order |
| 23 |
40712780 |
Control System |
Buy Now |
| 24 |
40703440 |
Control Panel Set |
Buy Now |
| 25 |
57440010 |
Handle |
Call to Order |
| 26 |
66308063 |
Rotary Switch |
Buy Now |
| 28 |
40703450 |
Fixing Case |
Call to Order |
| 34 |
57440020 |
Handle Number of Revolutions |
Call to Order |
| 35 |
46821250 |
Circuit Board Speed Control |
Call to Order |
| 36 |
66458620 |
Plug Socket |
Buy Now |
| 39 |
53961573 |
Label Plug Socket |
Call to Order |
| 42 |
40711010 |
Magnet Sensor Set |
Call to Order |
| 44 |
50340970 |
Suction Nipple Electronically Conducting |
Call to Order |
| 45 |
50339940 |
Suction Nipple Bottom |
Call to Order |
| 55 |
40703600 |
Antislip Rubber Set |
Call to Order |
| 122 |
66508300 |
Cable White |
Call to Order |
| 123 |
66508310 |
Cable Black |
Call to Order |
| 127 |
66508330 |
Cable Green |
Call to Order |
| 261 |
73031710 |
Screw |
Call to Order |
| 263 |
73030860 |
Screw |
Buy Now |
| 267 |
73031290 |
Screw |
Buy Now |
| 271 |
63033180 |
Screw |
Buy Now |
| 272 |
73032060 |
Screw |
Buy Now |
| 287 |
63431390 |
Lock Washer |
Call to Order |

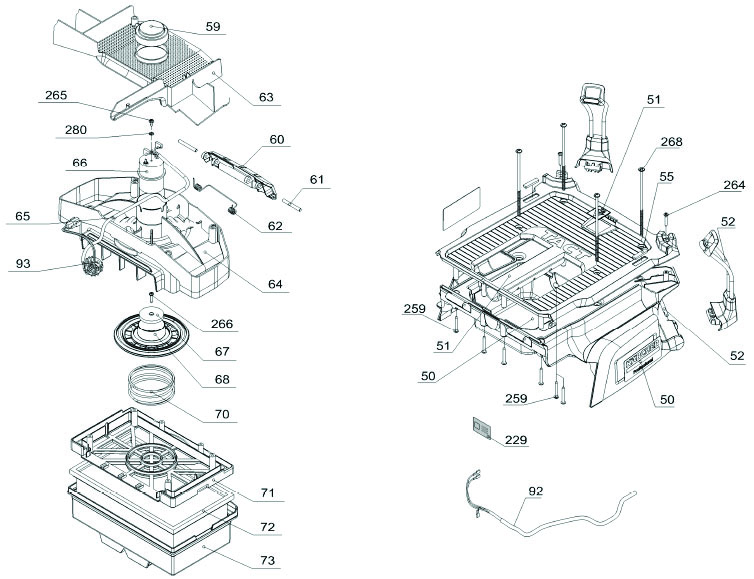

Internal Parts
Karcher NT 30 Internal Parts
| Reference # |
Part # |
Description |
Add to Cart |
| 50 |
40704880 |
Filter Cover Set |
Call to Order |
| 51 |
40704710 |
Filter Cover Top Part |
Call to Order |
| 52 |
40710860 |
Hose Hook Set |
Call to Order |
| 55 |
40703600 |
Antislip Rubber Set |
Call to Order |
| 59 |
50641010 |
Magnet Covering Cap |
Call to Order |
| 60 |
53221570 |
Filter Cover Closure |
Call to Order |
| 61 |
53172310 |
Bolt Hook |
Call to Order |
| 62 |
53332210 |
Spring |
Call to Order |
| 63 |
50311003 |
Moulded Part Cover Filter |
Buy Now |
| 64 |
50442330 |
Holder Magnet |
Call to Order |
| 65 |
66508280 |
Cable Magnet |
Call to Order |
| 66 |
46070500 |
Magnet |
Call to Order |
| 67 |
50052770 |
Plate Magnet |
Call to Order |
| 68 |
55821430 |
Valve Disc |
Call to Order |
| 70 |
53329750 |
Spring Soft |
Call to Order |
| 71 |
50640563 |
Holder Flat Filter |
Call to Order |
| 72 |
69076290 |
Flat-Pleated Filter |
Buy Now |
| 73 |
50640550 |
Frame Flat-Pleated Filter |
Buy Now |
| 92 |
66505303 |
Power Cable Rubber |
Buy Now |
| 93 |
63460430 |
Ferrite Ring |
Call to Order |
| 229 |
53950700 |
Label |
Call to Order |
| 259 |
73032850 |
Screw |
Call to Order |
| 264 |
73030960 |
Screw |
Call to Order |
| 265 |
73030300 |
Screw |
Call to Order |
| 266 |
63035680 |
Oval Head Screw |
Call to Order |
| 268 |
73033230 |
Screw |
Buy Now |
| 280 |
73120390 |
Serrated Lock Washer |
Call to Order |
External Parts

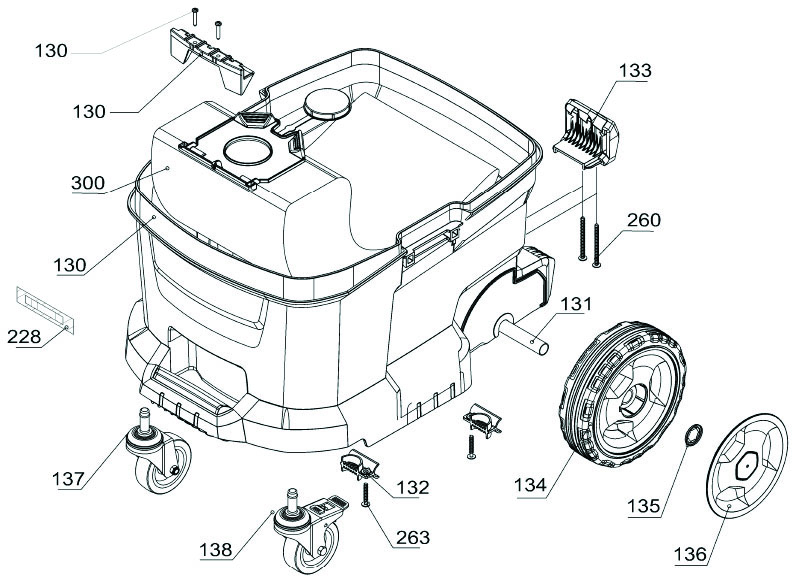

Karcher NT 30 External Parts
| Reference # |
Part # |
Description |
Add to Cart |
| 130 |
40703380 |
Tank Set |
Buy Now |
| 131 |
51050250 |
Axle |
Call to Order |
| 132 |
50444560 |
Holder Axle |
Call to Order |
| 133 |
50443170 |
Holder Floor Nozzle |
Call to Order |
| 134 |
55153770 |
Wheel |
Buy Now |
| 135 |
63431680 |
Lock Washer |
Call to Order |
| 136 |
55153860 |
Wheel Cap Large |
Buy Now |
| 137 |
64358940 |
Castor |
Call to Order |
| 138 |
64358950 |
Castor with Brake |
Buy Now |
| 228 |
53950630 |
Label |
Call to Order |
| 260 |
73032340 |
Screw |
Call to Order |
| 263 |
73030860 |
Screw |
Buy Now |
| 300 |
28891540 |
Filter Bags |
Buy Now |
Pan

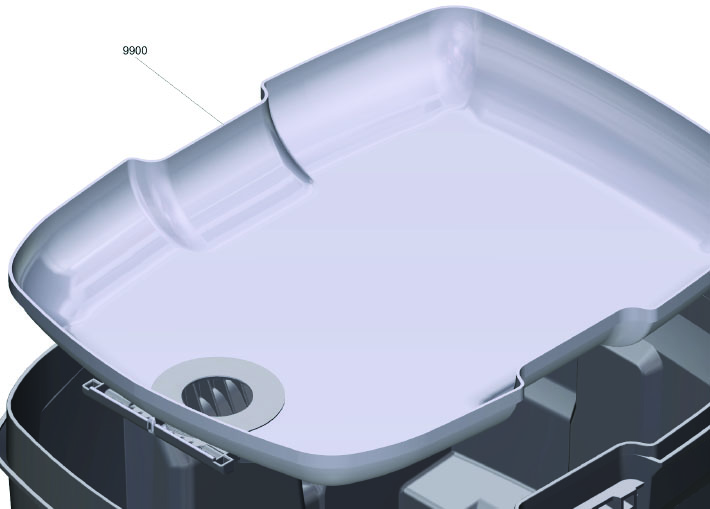

Karcher NT 30 Pan
| Reference # |
Part # |
Description |
Add to Cart |
| 9900 |
28892810 |
Membrane |
Call to Order |
Cover Set

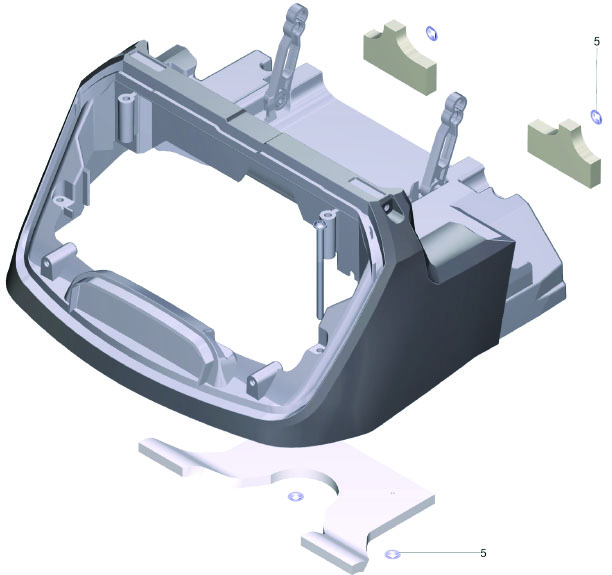

Karcher NT 30 Cover Set
| Reference # |
Part # |
Description |
Add to Cart |
| 5 |
63431450 |
Lock Washer |
Call to Order |
Housing Air Circulation Set

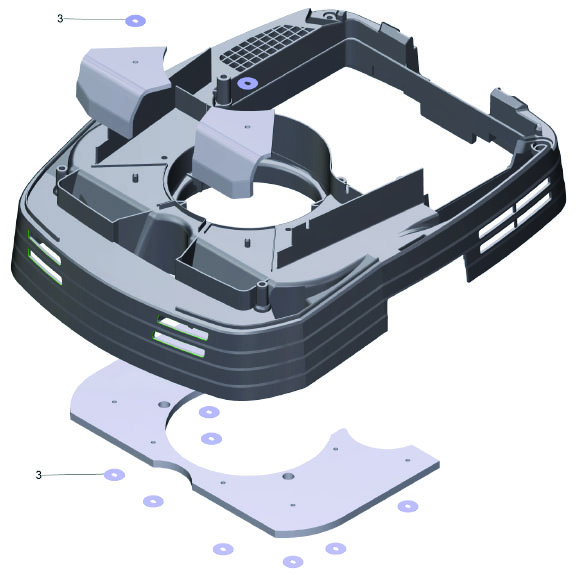

Karcher NT 30 Housing Air Circulation Set
| Reference # |
Part # |
Description |
Add to Cart |
| 3 |
63431450 |
Lock Washer |
Call to Order |
Housing Base Plate Set

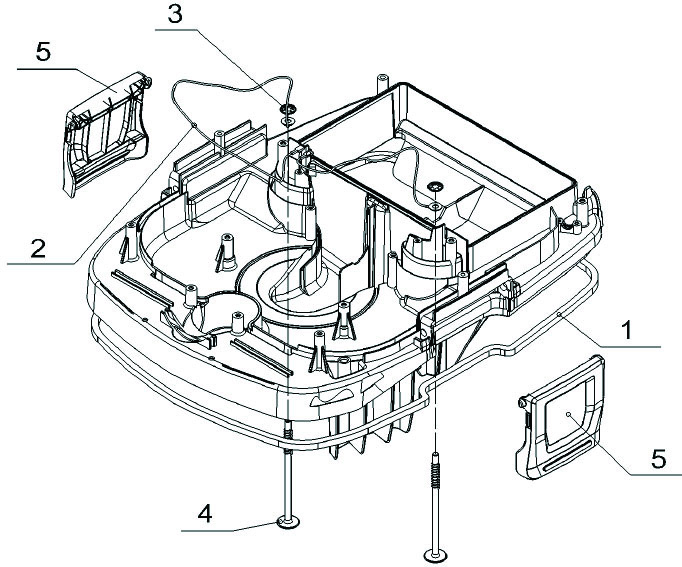

Karcher NT 30 Housing Base Plate Set
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
62730183 |
Seal String Housing Base Plate |
Call to Order |
| 2 |
66506660 |
Cable Probe |
Call to Order |
| 3 |
63431190 |
Lock Washer |
Buy Now |
| 4 |
51070020 |
Probe |
Call to Order |
| 5 |
50330340 |
Locking Clip |
Call to Order |

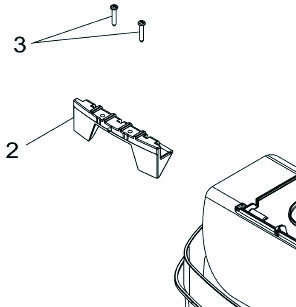

Tank Set
Karcher NT 30 Tank Set
| Reference # |
Part # |
Description |
Add to Cart |
| 2 |
50640990 |
Retainer Flange Filter Bag |
Call to Order |
| 3 |
73030960 |
Screw |
Call to Order |

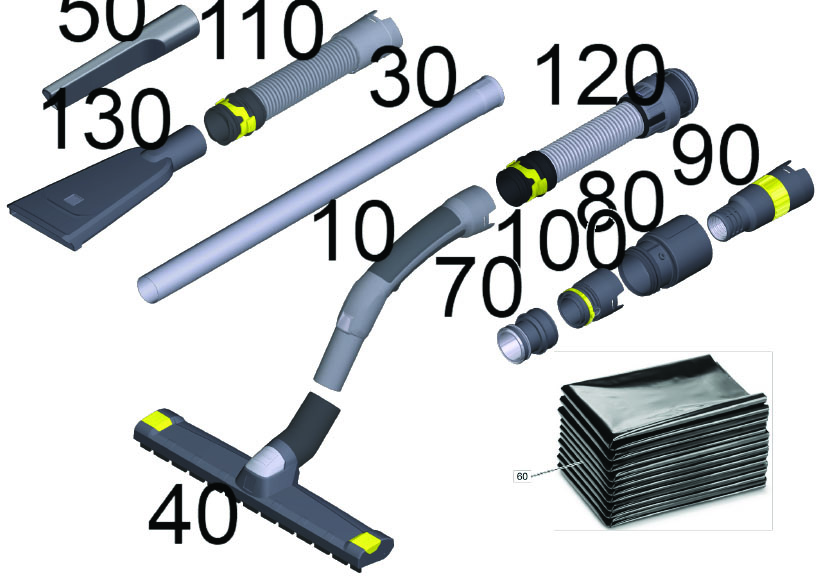

Accessories
Karcher NT 30 Accessories
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
28891680 |
Elbow Packaged Electrically |
Call to Order |
| 10 |
28891700 |
Elbow Packaged |
Buy Now |
| 10 |
28891710 |
Elbow Packaged |
Call to Order |
| 10 |
28891720 |
Elbow Electrically Conducting |
Buy Now |
| 20 |
28891350 |
Hose Packaged |
Buy Now |
| 30 |
28891770 |
Suction Tube Chromed |
Call to Order |
| 30 |
28891820 |
Suction Tube Stainless Steel |
Call to Order |
| 30 |
28891920 |
Suction Tube Stainless Steel |
Buy Now |
| 30 |
- |
Suction Tube Chromed |
Call to Order |
| 30 |
28891940 |
Suction Tube Stainless Steel |
Call to Order |
| 40 |
28891530 |
Floor Tool Packaged |
Buy Now |
| 40 |
28891520 |
Floor Tool Packaged |
Buy Now |
| 50 |
28891590 |
Crevice Nozzle Wet and Dry |
Buy Now |
| 50 |
28891600 |
Crevice Nozzle Wet and Dry |
Call to Order |
| 60 |
28891580 |
Disposal Bag |
Buy Now |
| 70 |
54060050 |
Threaded Ring Electrically Conducting |
Call to Order |
| 70 |
54060060 |
Threaded Ring Electrically Conducting |
Call to Order |
| 80 |
50314360 |
Adapter Old Electrically Conducting |
Call to Order |
| 90 |
28891510 |
Sleeve Packaged |
Buy Now |
| 100 |
28893120 |
Adapter |
Call to Order |
| 110 |
28891450 |
Extension Hose Packaged |
Call to Order |
| 120 |
28891350 |
Hose Packaged |
Buy Now |
| 130 |
28893560 |
Car Nozzle |
Call to Order |

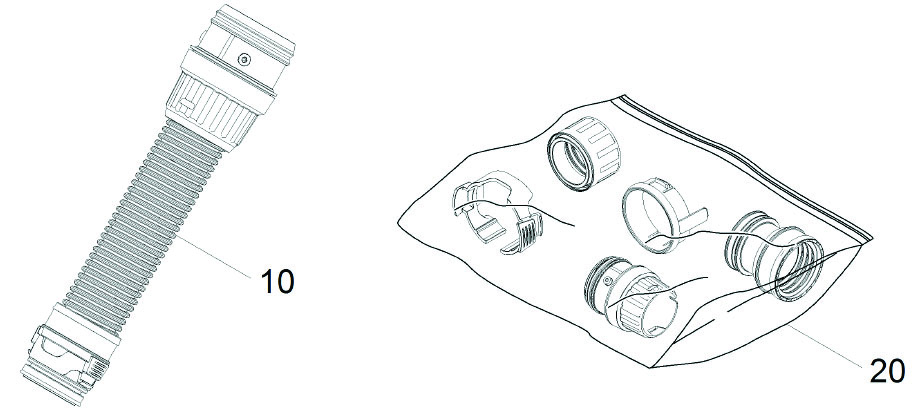

Hose Packaged
Karcher NT 30 Hose Packaged
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
44400400 |
Suction Hose |
Buy Now |
| 20 |
28891490 |
Repair Set |
Buy Now |

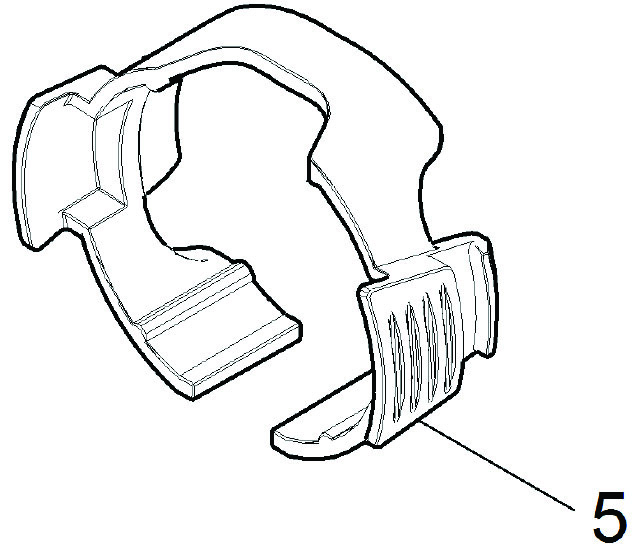

Suction Hose Complete
Karcher NT 30 Suction Hose Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 5 |
50311400 |
Tension Ring |
Buy Now |
Repair Set

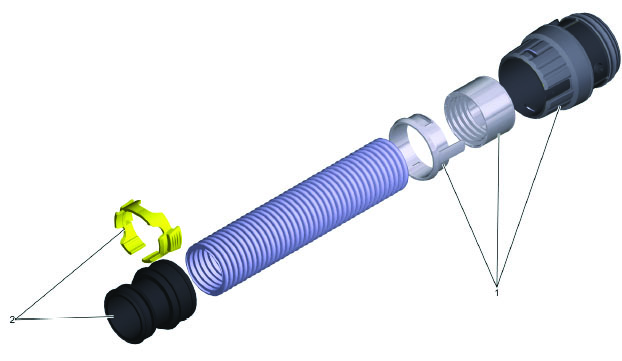

Karcher NT 30 Repair Set
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
44401450 |
Repair Set |
Call to Order |
| 2 |
44401460 |
Repair Set |
Call to Order |
Floor Tool

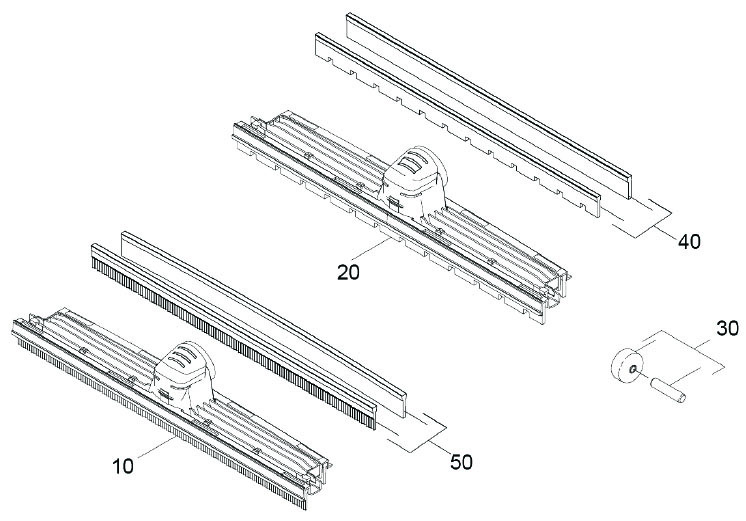

Karcher NT 30 Floor Tool
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
48620200 |
Assembly Group Holder Rubber Lips |
Buy Now |
| 20 |
48620170 |
Assembly Group Holder Brush Strips |
Call to Order |
| 30 |
45153420 |
Roller Complete with Axle |
Buy Now |
| 40 |
40716060 |
Spare Parts Set Brush Strip Packaged |
Call to Order |
| 50 |
40716070 |
Rubber Lips Packaged |
Call to Order |

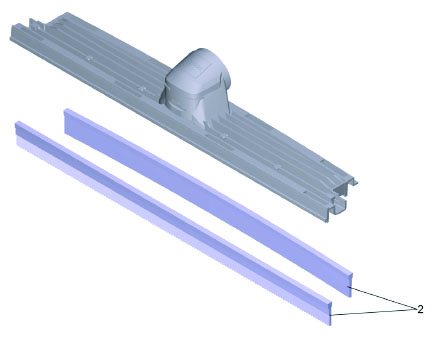

Squeegee Blade
Karcher NT 30 Squeegee Blade
| Reference # |
Part # |
Description |
Add to Cart |
| 2 |
40716070 |
Rubber Lips Packaged |
Call to Order |

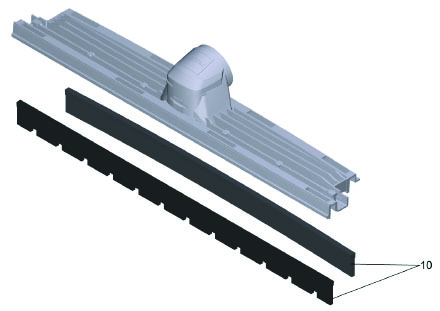

Brush Strips
Karcher NT 30 Brush Strips
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40716060 |
Spare parts Set |
Call to Order |
