BD 45/22 C BP
BR 45/22 Complete
Karcher BR 45/22 Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
- |
Waste Water Tank Complete |
Call to Order |
| 20 |
- |
Chassis Complete |
Call to Order |
| 30 |
- |
Steering Pillar Complete |
Call to Order |
| 40 |
40370720 |
Brush Head Complete |
Buy Now |
| 9000 |
66801240 |
Hose Fresh Water Complete |
Buy Now |

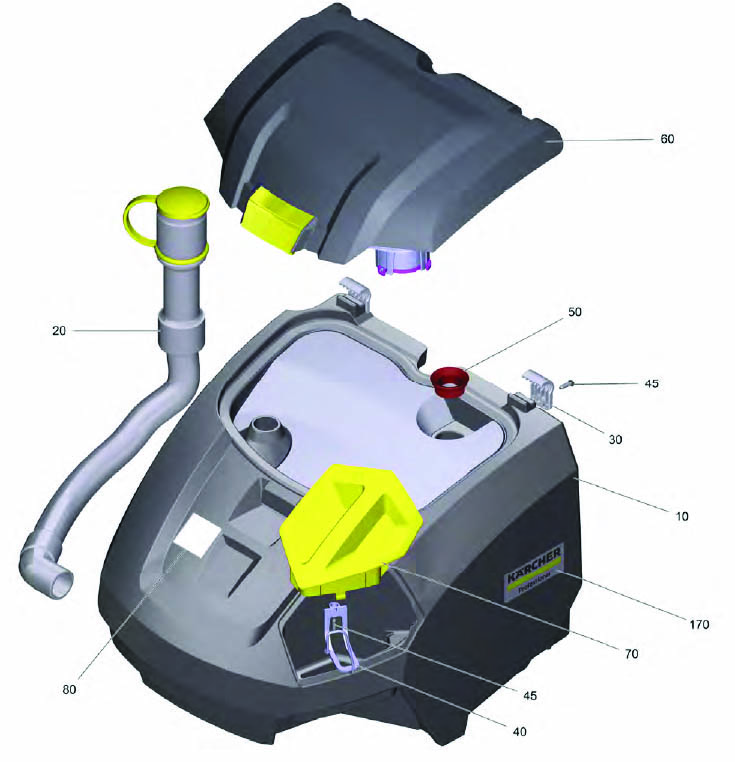

BR 45/22 Waste Water Tank
Karcher BR 45/22 Waste Water Tank
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50374400 |
Waste Water Tank |
Buy Now |
| 20 |
63924830 |
Drain Hose with Cover |
Buy Now |
| 30 |
50374420 |
Fastening Element Cover |
Buy Now |
| 40 |
50374520 |
Loss Prevention Device |
Buy Now |
| 45 |
73031040 |
Screw |
Buy Now |
| 50 |
50504150 |
Joint Ring |
Buy Now |
| 60 |
- |
Cover Waste Water |
Call to Order |
| 70 |
50374020 |
Cover Fresh Water |
Buy Now |
| 80 |
53940890 |
Label Signet |
Buy Now |
| 170 |
53963790 |
Label Logo |
Buy Now |

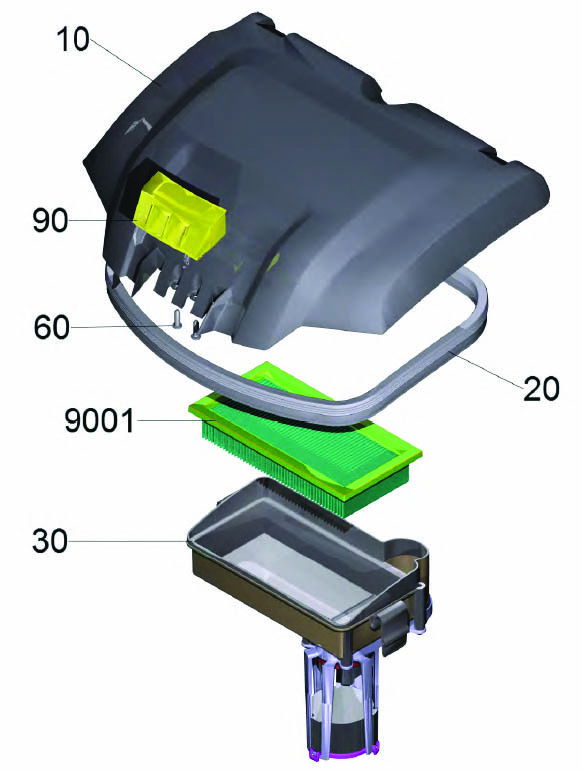

BR 45/22 Cover Waste Water Tank
Karcher BR 45/22 Cover Waste Water Tank
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50374410 |
Waste Water Tank Cover |
Buy Now |
| 20 |
63660580 |
Sealing Profile |
Buy Now |
| 30 |
40370950 |
Filter Housing and Float |
Buy Now |
| 60 |
73031040 |
Screw |
Buy Now |
| 90 |
50374030 |
Closure |
Buy Now |
| 9001 |
64146310 |
Intermediate Filter |
Buy Now |

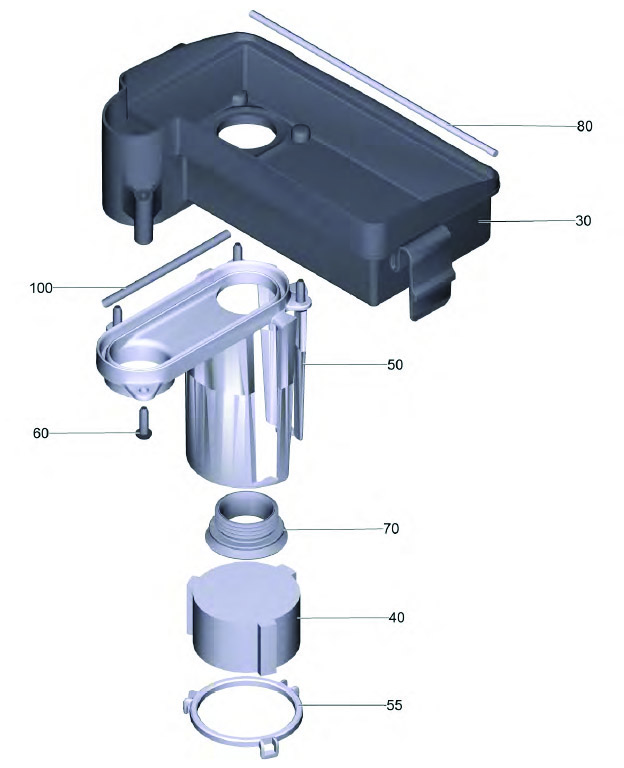

BR 45/22 Filter Housing and Float
Karcher BR 45/22 Filter Housing and Float
| Reference # |
Part # |
Description |
Add to Cart |
| 30 |
50374010 |
Filter Housing |
Buy Now |
| 40 |
50374530 |
Float Foamed |
Buy Now |
| 50 |
50372970 |
Float Retainer |
Buy Now |
| 55 |
50374210 |
Cover Float Cage |
Buy Now |
| 60 |
73031040 |
Screw |
Buy Now |
| 70 |
50504150 |
Joint Ring |
Buy Now |
| 80 |
62730700 |
Seal String Rubber |
Buy Now |
| 100 |
62730370 |
Seal String Rubber |
Buy Now |

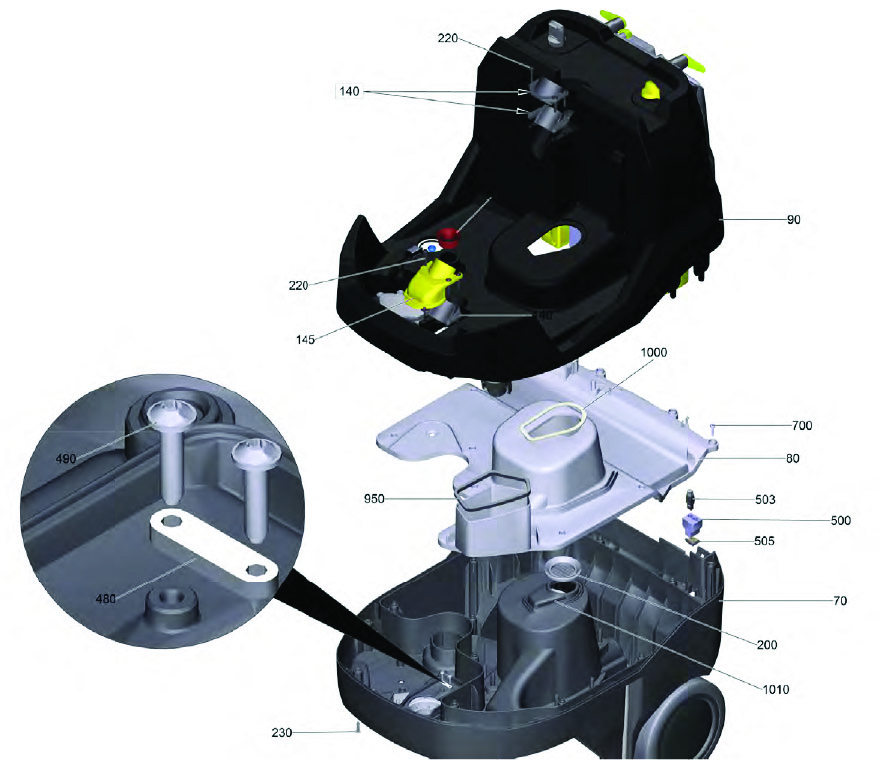

BR 45/22 Chassis 1
Karcher BR 45/22 Chassis 1
| Reference # |
Part # |
Description |
Add to Cart |
| 70 |
50373750 |
Fresh Water Tank Bottom Part |
Buy Now |
| 80 |
50374140 |
Fresh Water Tank Top Part |
Buy Now |
| 90 |
50373770 |
Covering Cap Appliance |
Buy Now |
| 140 |
50372890 |
Half Shell Bearing Operating Unit |
Buy Now |
| 145 |
50370150 |
Covering Cap |
Buy Now |
| 200 |
53634420 |
Joint Ring |
Buy Now |
| 220 |
73030860 |
Screw |
Buy Now |
| 230 |
73031080 |
Screw |
Buy Now |
| 480 |
66475130 |
Strain Relief |
Buy Now |
| 490 |
73030260 |
Screw |
Buy Now |
| 500 |
63301110 |
Adapter |
Buy Now |
| 503 |
66407510 |
Adapter Plug |
Buy Now |
| 505 |
50338290 |
Rubber Stopper |
Buy Now |
| 700 |
73032120 |
Screw |
Buy Now |
| 950 |
50352280 |
Rating Plate |
Buy Now |
| 1000 |
50374890 |
Seal Chassis |
Buy Now |
| 1010 |
62730700 |
Seal String |
Buy Now |

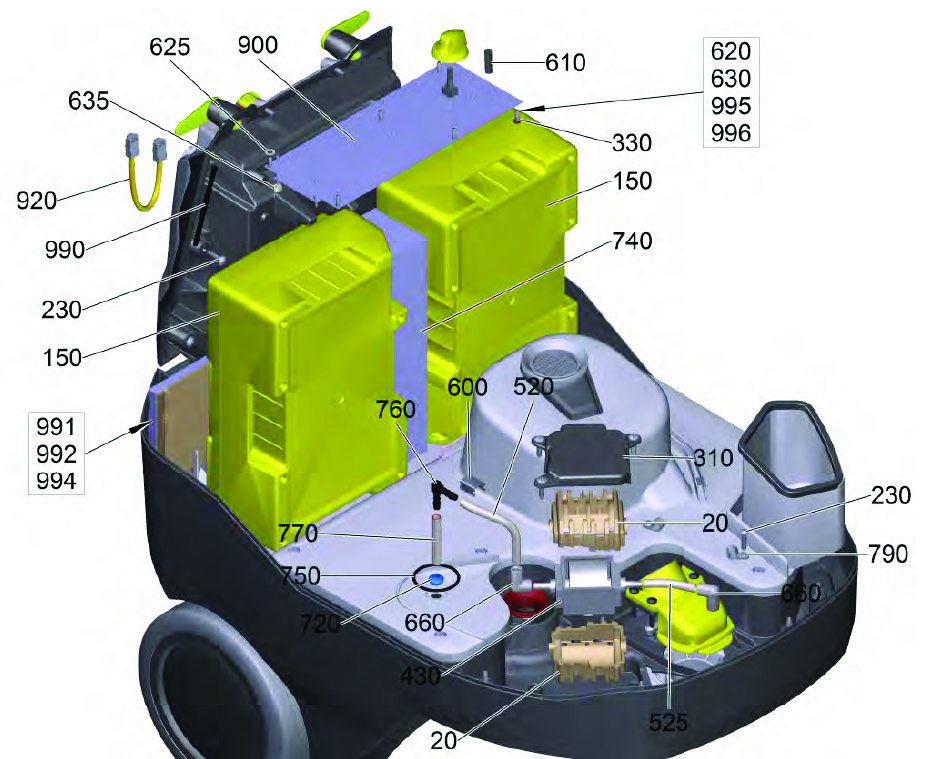

BR 45/22 Chassis 2
Karcher BR 45/22 Chassis 2
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50504080 |
Bearing Pump |
Buy Now |
| 150 |
66542940 |
Drive Battery |
Buy Now |
| 230 |
73031080 |
Screw |
Buy Now |
| 310 |
50373070 |
Cover Pump |
Buy Now |
| 330 |
73030950 |
Screw |
Buy Now |
| 430 |
64730110 |
Pump |
Buy Now |
| 520 |
63882160 |
Hose |
Buy Now |
| 525 |
63882160 |
Hose |
Buy Now |
| 600 |
63738620 |
U-Fastening |
Buy Now |
| 610 |
63889580 |
Hose |
Buy Now |
| 620 |
73122300 |
Serrated Lock Washer |
Buy Now |
| 625 |
73120410 |
Serrated Lock Washer |
Buy Now |
| 630 |
73110010 |
Hexagon Nut |
Buy Now |
| 635 |
73110020 |
Hexagon Nut |
Buy Now |
| 660 |
50504110 |
Angle Bushing Water Distribution |
Buy Now |
| 720 |
66418740 |
Wire Protecting Sleeve |
Buy Now |
| 740 |
50374510 |
Distance Holder Battery |
Buy Now |
| 750 |
62730370 |
Seal String Rubber |
Buy Now |
| 760 |
63865750 |
Elbow Screw Connector |
Buy Now |
| 770 |
63882160 |
Hose |
Buy Now |
| 790 |
63736700 |
Pipe Clamp |
Buy Now |
| 900 |
46830520 |
Control System |
Buy Now |
| 920 |
68820010 |
Cable Patch |
Buy Now |
| 990 |
62730700 |
Seal String Rubber |
Buy Now |
| 991 |
46832100 |
Fleet Controller |
Buy Now |
| 994 |
66414630 |
Zip Tie |
Buy Now |
| 995 |
66402250 |
Ferrite Ring |
Call to Order |
| 996 |
66414580 |
Cable Tape |
Buy Now |

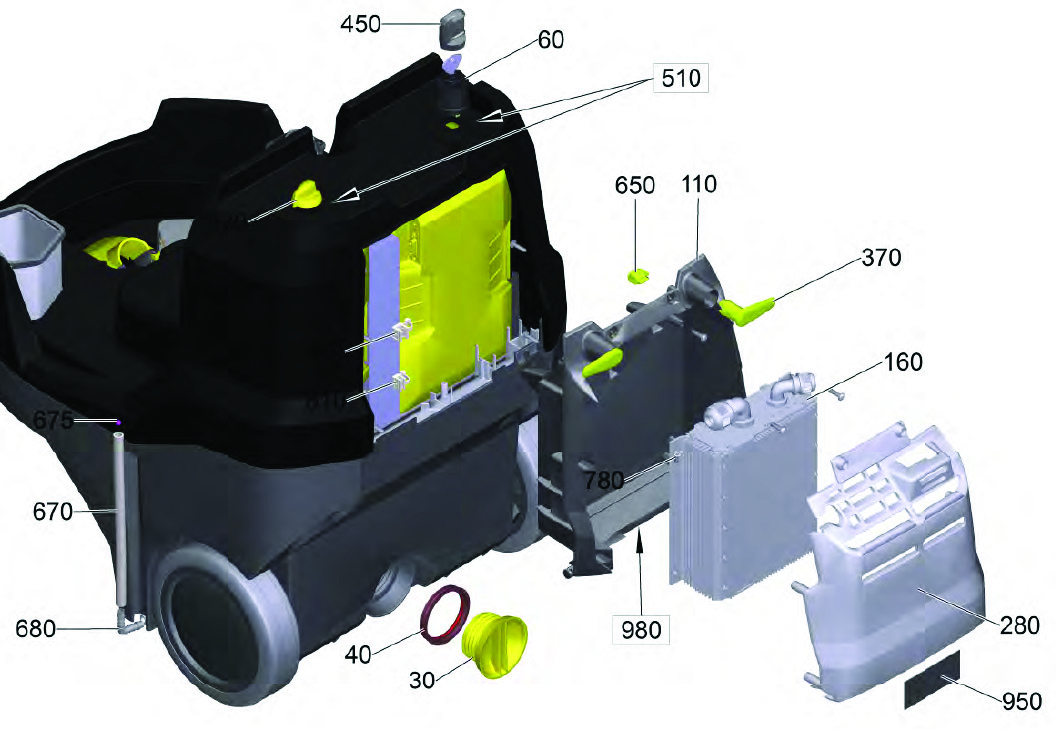

BR 45/22 Chassis 3
Karcher BR 45/22 Chassis 3
| Reference # |
Part # |
Description |
Add to Cart |
| 30 |
50640480 |
Cover Water Filter |
Buy Now |
| 40 |
53630030 |
Seal Water Filter |
Buy Now |
| 60 |
66301060 |
Key Switch |
Buy Now |
| 110 |
50370100 |
Covering Cap |
Buy Now |
| 160 |
66543470 |
Battery Charger |
Buy Now |
| 280 |
50370110 |
Covering Cap |
Buy Now |
| 370 |
50446610 |
Catch for Cable |
Buy Now |
| 450 |
50323260 |
Cap |
Buy Now |
| 510 |
50373510 |
Label |
Buy Now |
| 650 |
50339280 |
Plug |
Buy Now |
| 670 |
63905090 |
Hose |
Buy Now |
| 675 |
60350720 |
Sphere Level Indicator |
Buy Now |
| 680 |
63919130 |
Elbow Nipple |
Buy Now |
| 780 |
60370030 |
Mounting Clip |
Buy Now |
| 950 |
62730440 |
Sealing Profile |
Buy Now |
| 980 |
50374690 |
Seal |
Buy Now |

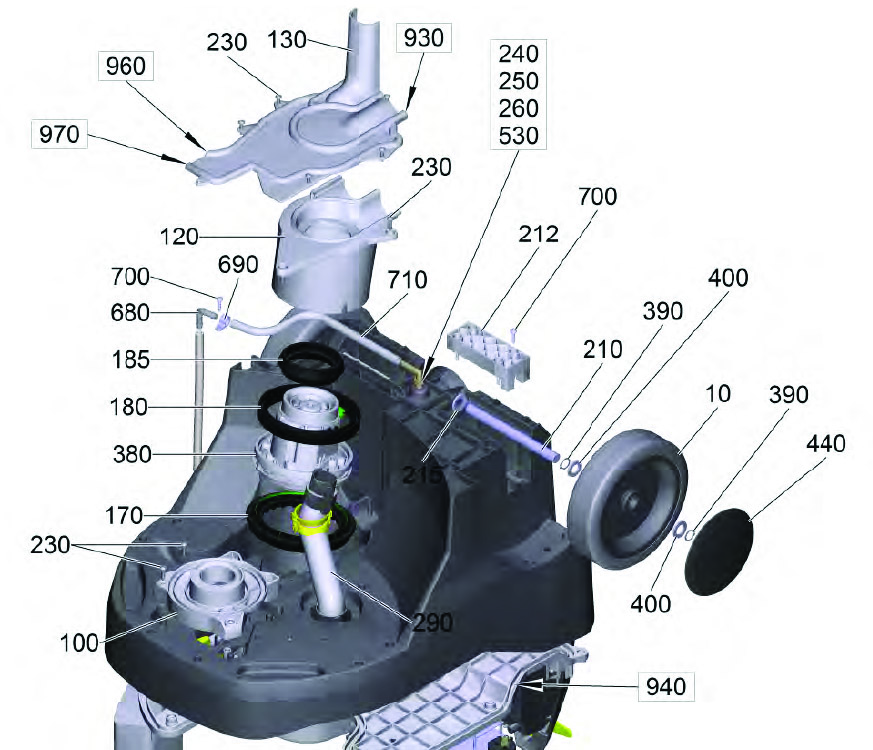

BR 45/22 Chassis 4
Karcher BR 45/22 Chassis 4
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
64354120 |
Wheel D 200 |
Buy Now |
| 100 |
50372850 |
Bearing Brush Head |
Buy Now |
| 120 |
50340320 |
Air Circulation Turbine Bottom |
Buy Now |
| 130 |
50352060 |
Motor Cover |
Buy Now |
| 170 |
90790500 |
Motor Sealing |
Call to Order |
| 180 |
50353320 |
Joint Ring Turbine |
Buy Now |
| 185 |
53630340 |
Seal |
Buy Now |
| 210 |
50373790 |
Axle Wheels |
Buy Now |
| 212 |
50374150 |
Axle Clamp |
Buy Now |
| 215 |
63431890 |
Quick-Fastener |
Buy Now |
| 230 |
73031080 |
Screw |
Buy Now |
| 240 |
63884280 |
90 Degree Fitting |
Buy Now |
| 250 |
73110790 |
Hexagon Nut |
Buy Now |
| 260 |
73625010 |
O-Ring Seal |
Buy Now |
| 290 |
40370980 |
Suction Hose Complete |
Buy Now |
| 380 |
64903120 |
Vac Motor |
Buy Now |
| 390 |
73430150 |
Locking Ring |
Buy Now |
| 400 |
50109770 |
Sheet Metal Ring |
Buy Now |
| 440 |
64358600 |
Wheel Cap |
Buy Now |
| 530 |
57316640 |
Filter with Weight |
Buy Now |
| 680 |
63919130 |
Elbow Nipple |
Buy Now |
| 690 |
63738770 |
Hose Clip |
Buy Now |
| 700 |
73032120 |
Screw |
Buy Now |
| 710 |
63905090 |
Hose |
Buy Now |
| 930 |
50374640 |
Gasket |
Buy Now |
| 940 |
50374650 |
Form Seal |
Buy Now |
| 960 |
62732680 |
Rubber Seal |
Buy Now |
| 970 |
62732680 |
Rubber Seal |
Buy Now |

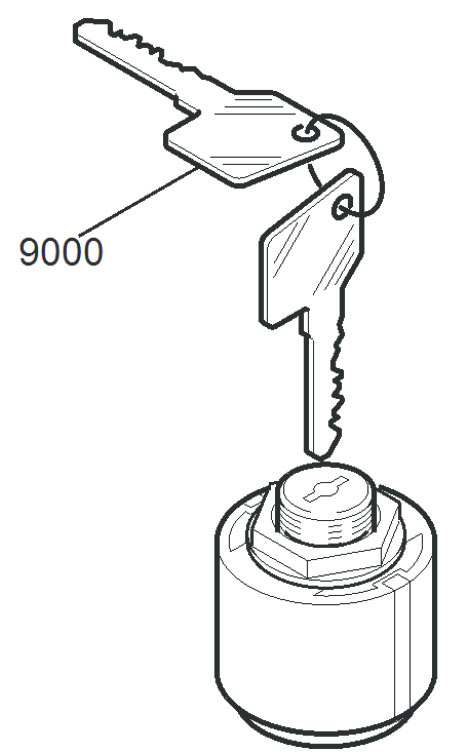

BR 45/22 Key Switch
Karcher BR 45/22 Key Switch
| Reference # |
Part # |
Description |
Add to Cart |
| 9000 |
66002100 |
Key Only for Replacement |
Buy Now |

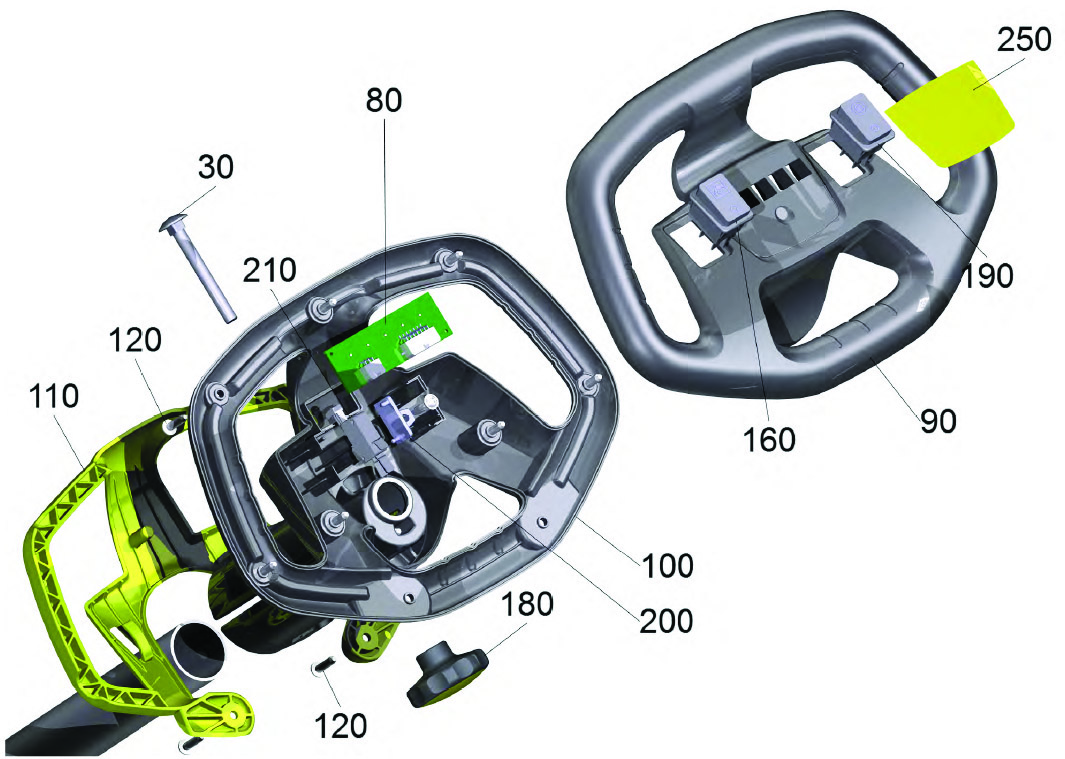

BR 45/22 Steering Pillar 1
Karcher BR 45/22 Steering Pillar 1
| Reference # |
Part # |
Description |
Add to Cart |
| 30 |
73032910 |
Saucer-Head Screw |
Buy Now |
| 80 |
66831140 |
Diode Board |
Buy Now |
| 90 |
50372940 |
Steering Wheel Top Part |
Buy Now |
| 100 |
50372930 |
Steering Wheel Bottom Part |
Buy Now |
| 110 |
50373190 |
Retaining Bracket Switch |
Buy Now |
| 120 |
73031080 |
Screw |
Buy Now |
| 160 |
66325420 |
Switch Pump |
Buy Now |
| 180 |
63211770 |
Turning Knob |
Buy Now |
| 190 |
66325430 |
Switch |
Buy Now |
| 200 |
50506540 |
Micro Switch Retainer |
Buy Now |
| 210 |
66318180 |
Switch |
Buy Now |
| 250 |
50373740 |
Foil Control Panel |
Buy Now |

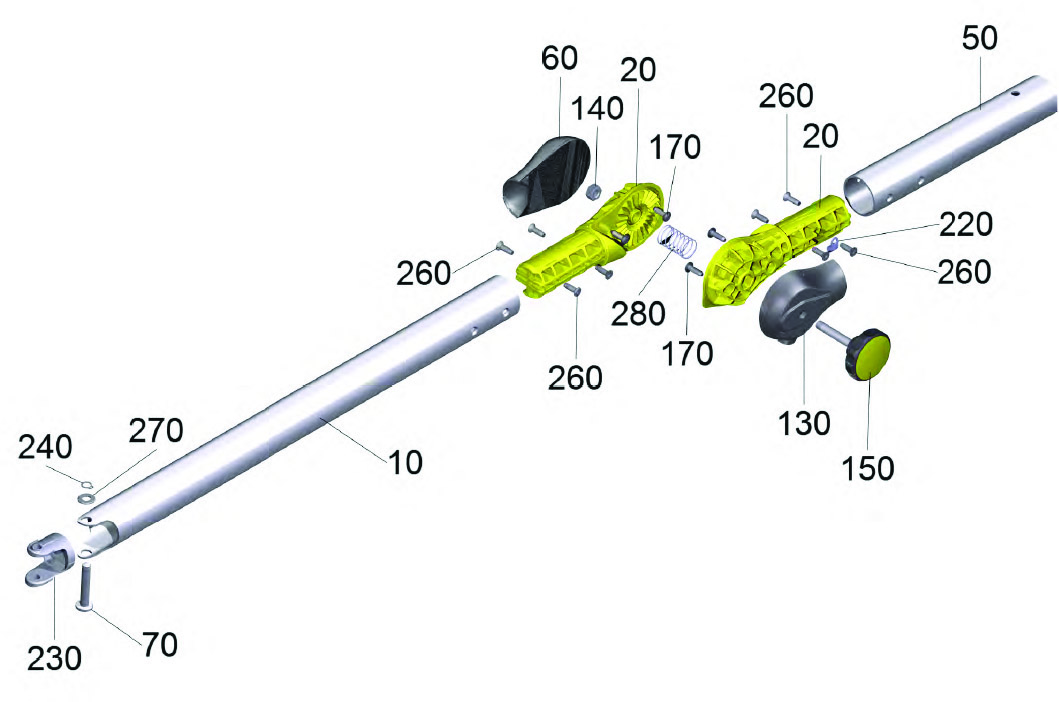

BR 45/22 Steering Pillar 2
Karcher BR 45/22 Steering Pillar 2
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50373720 |
Steering Pillar Bottom |
Buy Now |
| 20 |
50372920 |
Joint Steering Pillar |
Buy Now |
| 50 |
50373730 |
Steering Pillar Above |
Buy Now |
| 60 |
50372950 |
Covering Cap Joint |
Buy Now |
| 70 |
50373180 |
Bolt Steering Pillar |
Buy Now |
| 130 |
50373240 |
Covering Cap Joint Cable Gland |
Buy Now |
| 140 |
73110040 |
Hexagon Nut |
Buy Now |
| 150 |
63211790 |
Star Grip |
Buy Now |
| 170 |
73031070 |
Screw |
Buy Now |
| 220 |
63733430 |
Pipe Clamp |
Buy Now |
| 230 |
50373370 |
Joint Part Steering Pillar |
Buy Now |
| 240 |
73430140 |
Locking Ring |
Buy Now |
| 260 |
73032960 |
Countersunk Screw |
Call to Order |
| 270 |
73120040 |
Washer |
Buy Now |
| 280 |
53329810 |
Pressure Spring |
Buy Now |

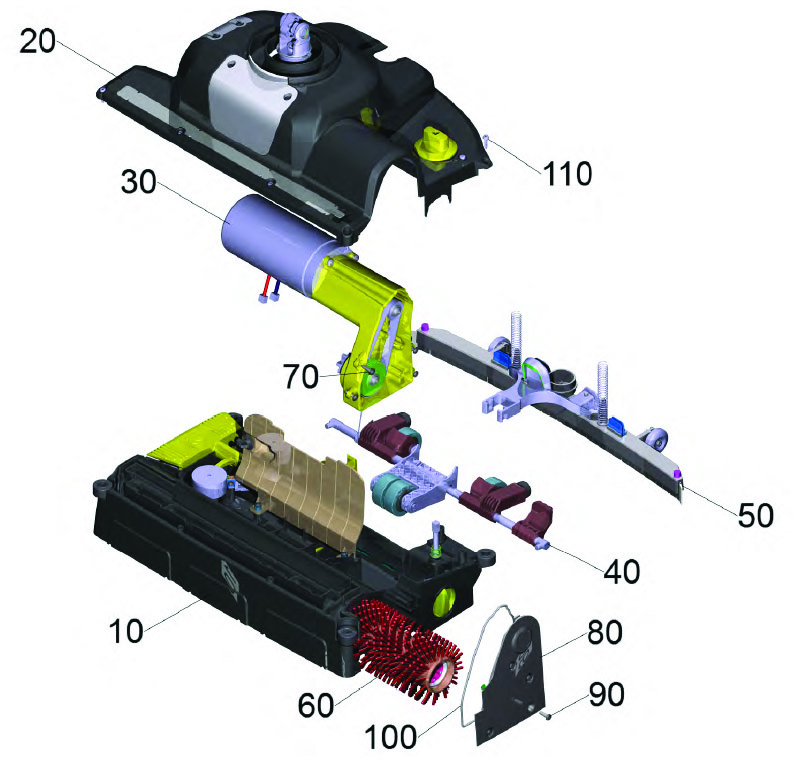

BR 45/22 Brush Head
Karcher BR 45/22 Brush Head
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40370770 |
Brush Housing Complete |
Call to Order |
| 20 |
- |
Cover Brush Housing Complete |
Call to Order |
| 30 |
- |

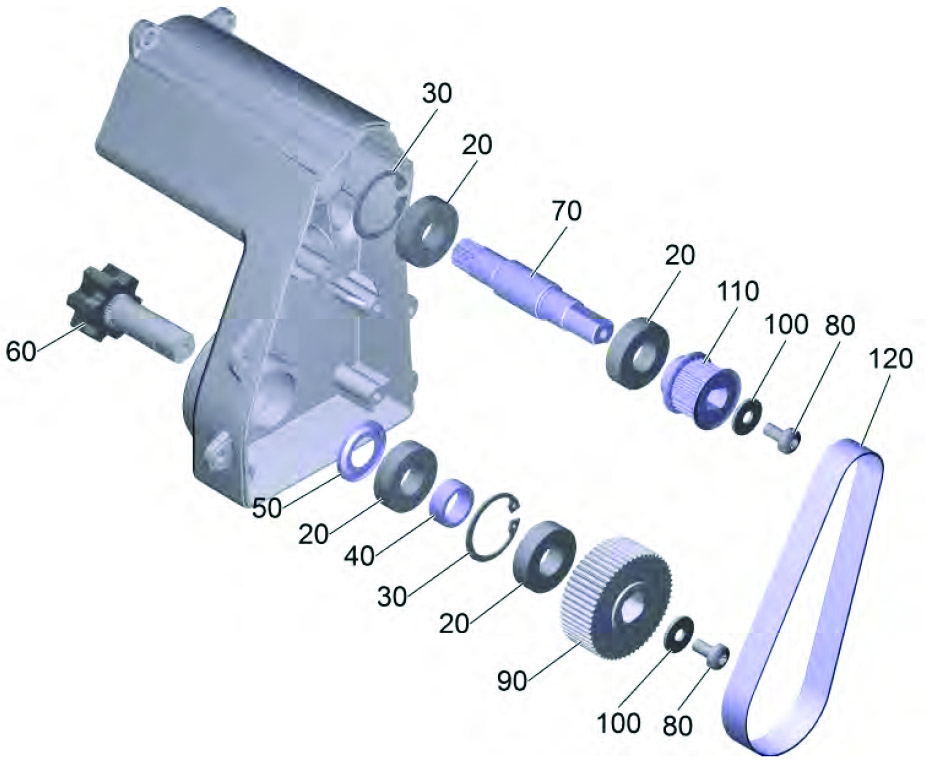

Gear Case |
Call to Order |
| 40 |
- |

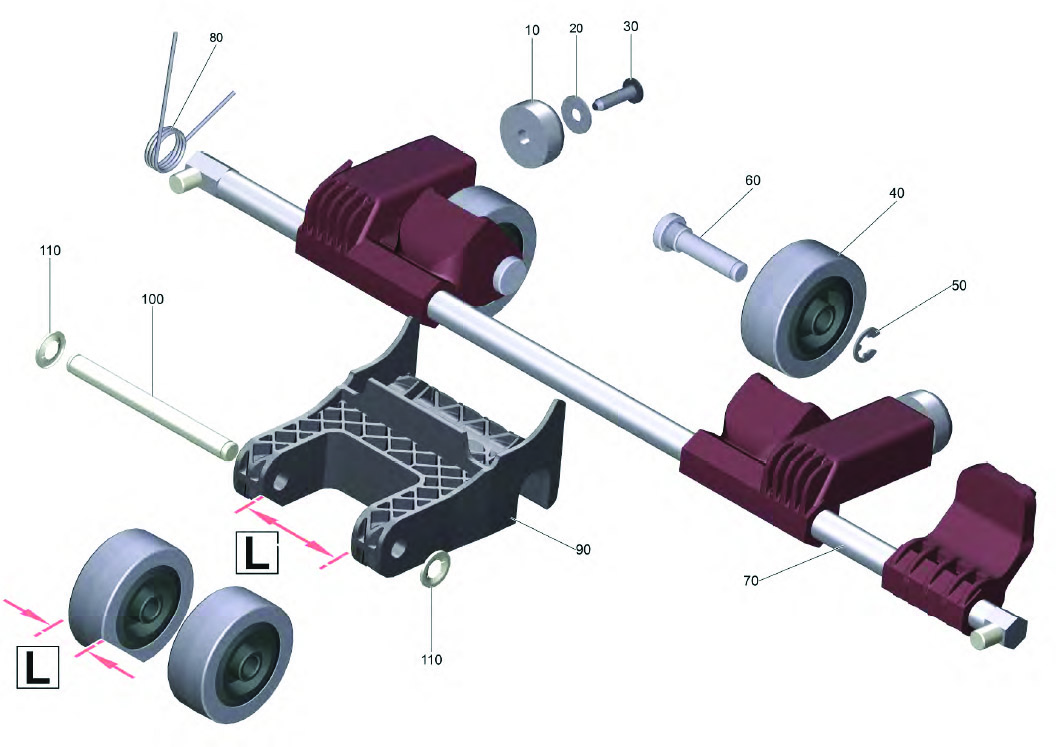

Carriage Complete |
Call to Order |
| 50 |
40370760 |

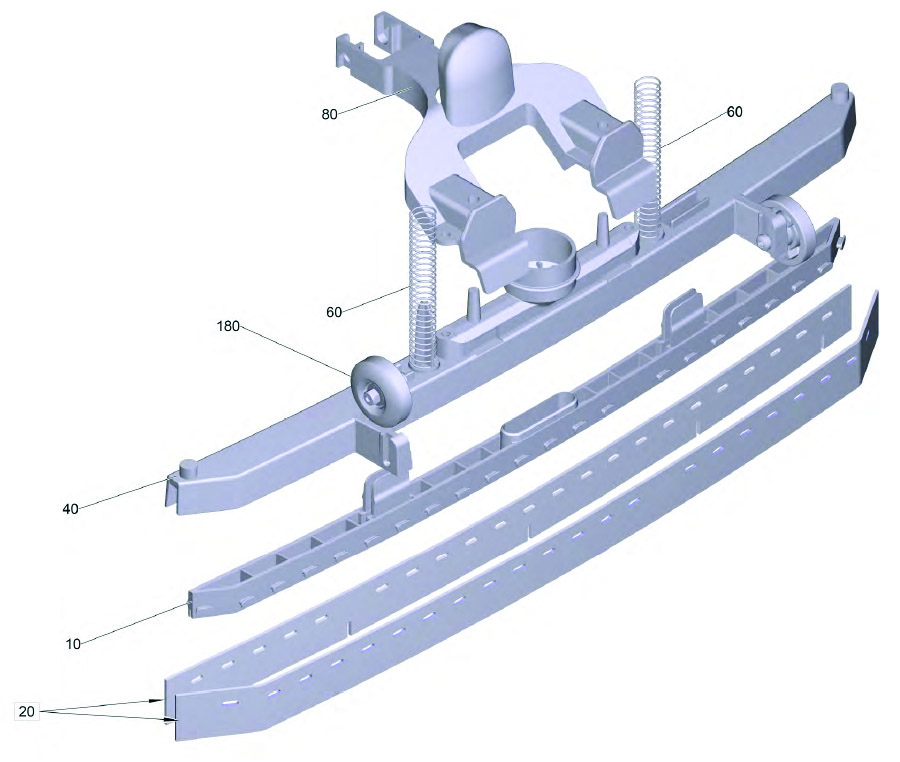

Suction Bar Complete |
Buy Now |
| 60 |
47624070 |
Roller Brush Green |
Buy Now |
| 60 |
47624130 |
Roll Pad |
Buy Now |
| 60 |
63671050 |
Yellow Pad |
Buy Now |
| 60 |
63671060 |
Green Pad |
Buy Now |
| 60 |
63671070 |
Red Pad |
Buy Now |
| 60 |
47624060 |
Roller Brush Orange |
Buy Now |
| 60 |
40370930 |
Microfiber Roller |
Buy Now |
| 60 |
47623920 |
Roller Brush Red |
Buy Now |
| 60 |
47624050 |
Roller Brush White |
Buy Now |
| 70 |
73031080 |
Screw |
Buy Now |
| 80 |
50372750 |
Gear Case Cover |
Buy Now |
| 90 |
73030390 |
Screw |
Buy Now |
| 100 |
62730370 |
Seal String Rubber |
Buy Now |
| 110 |
73032120 |
Screw |
Buy Now |

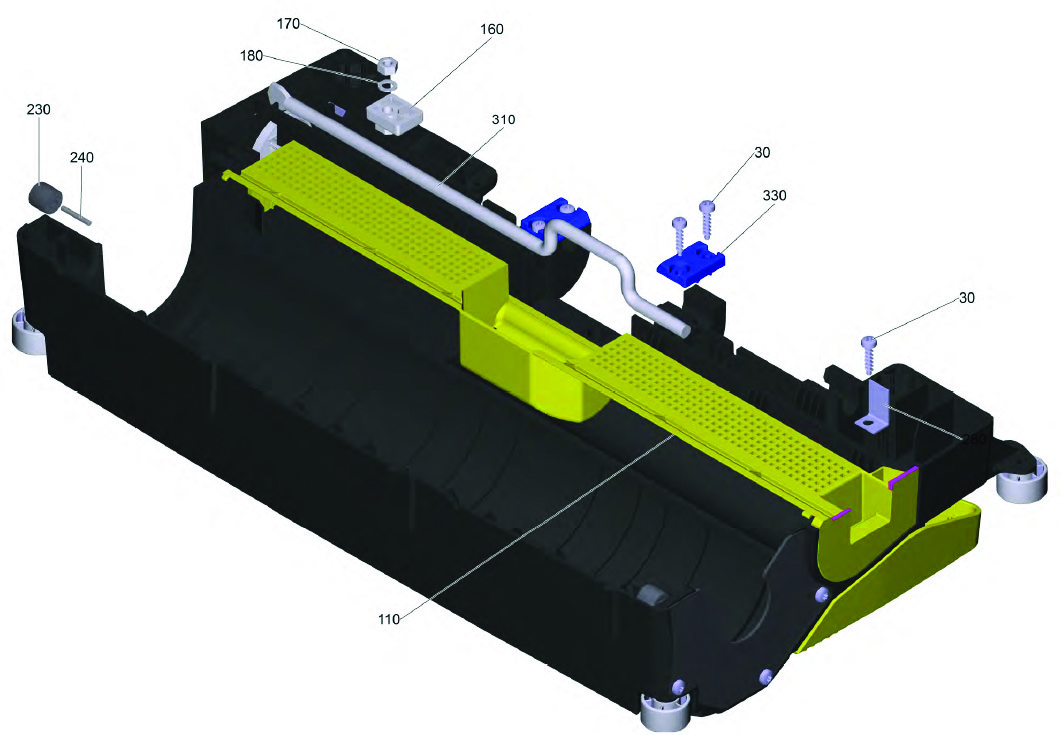

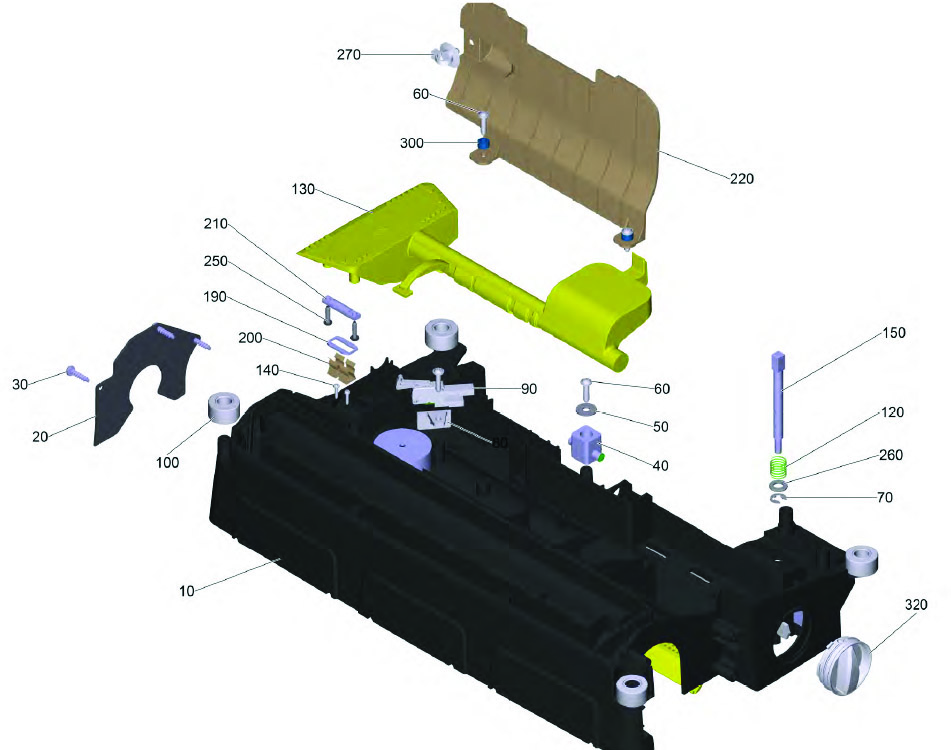

BR 45/22 Brush Housing 1
Karcher 45/22 Brush Housing 1
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50373860 |
Brush Housing |
Buy Now |
| 20 |
50374250 |
Plate Brush Holder |
Buy Now |
| 30 |
73032120 |
Screw |
Buy Now |
| 40 |
50372600 |
Swivel Joint Suction Beam Retraction |
Buy Now |
| 50 |
73122920 |
Washer |
Buy Now |
| 60 |
73031080 |
Screw |
Buy Now |
| 70 |
73433000 |
Lock Washer |
Buy Now |
| 90 |
66304380 |
Micro Switch |
Buy Now |
| 100 |
50372620 |
Deflector Roll |
Buy Now |
| 120 |
53322070 |
Helical Spring |
Buy Now |
| 130 |
50373960 |
Retaining Bracket Suction Bar |
Buy Now |
| 140 |
63035570 |
Screw |
Buy Now |
| 150 |
50373020 |
Threaded Part |
Buy Now |
| 190 |
50373540 |
Plate |
Buy Now |
| 200 |
63304100 |
Spring Clip |
Buy Now |
| 210 |
50373250 |
Pedal Fixing Axle |
Buy Now |
| 220 |
50373400 |
Baffle Plate Brush Head |
Buy Now |
| 250 |
73030260 |
Screw |
Buy Now |
| 260 |
73120040 |
Washer |
Buy Now |
| 270 |
66503350 |
Cable Tie |
Call to Order |
| 300 |
50370180 |
Sleeve |
Buy Now |
| 320 |
50374350 |
Handhold Adjustment Transport Roll |
Buy Now |
BR 45/22 Brush Housing 2
Karcher BR 45/22 Brush Housing 2
| Reference # |
Part # |
Description |
Add to Cart |
| 30 |
73032120 |
Screw |
Buy Now |
| 110 |
50373870 |
Sweep Drawer |
Buy Now |
| 160 |
50373030 |
Slide Part Height Adjustment |
Buy Now |
| 170 |
73110030 |
Hexagon Nut |
Buy Now |
| 180 |
73122320 |
Serrated Lock Washer |
Buy Now |
| 230 |
55152770 |
Roller |
Buy Now |
| 240 |
53141290 |
Axle |
Buy Now |
| 310 |
50374290 |
Lever Transport Wheel |
Buy Now |
| 330 |
50374340 |
Holder-Up Axle |
Buy Now |

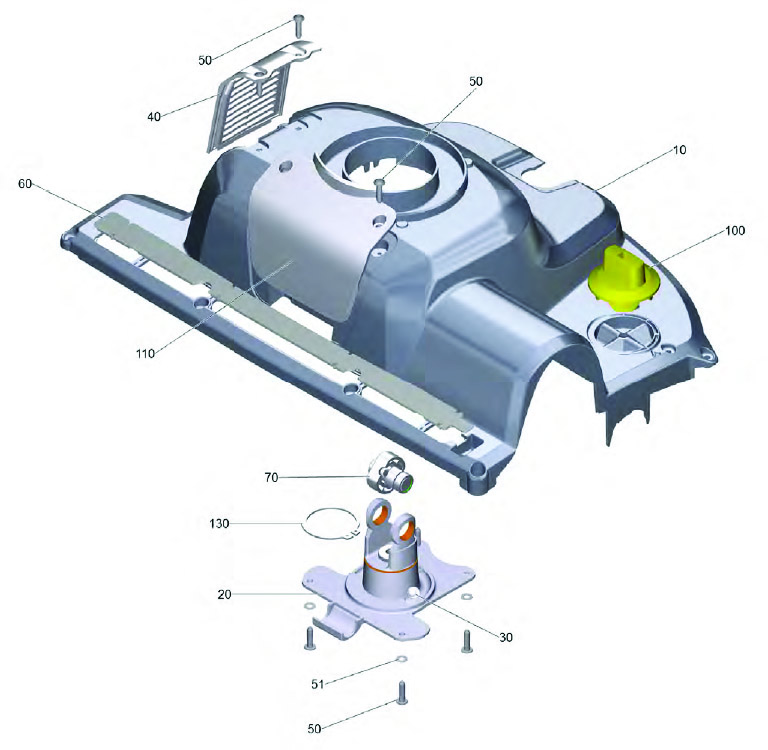

BR 45/22 Cover Brush Housing
Karcher BR 45/22 Cover Brush Housing
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50373810 |
Cover Brush Housing |
Buy Now |
| 20 |
50372670 |
Fixing Brush-Head |
Buy Now |
| 30 |
74019170 |
Sphere |
Buy Now |
| 40 |
50372680 |
Cover Refrigeration Motor |
Buy Now |
| 50 |
73032120 |
Screw |
Buy Now |
| 51 |
73122310 |
Serrated Lock Washer |
Buy Now |
| 60 |
50374050 |
Cover Water Distribution |
Buy Now |
| 70 |
40370040 |
Bearing Set |
Buy Now |
| 100 |
50373010 |
Button Height Adjustment |
Buy Now |
| 110 |
50374160 |
Cover Brush-Head |
Buy Now |
| 130 |
73430190 |
Locking Ring |
Buy Now |

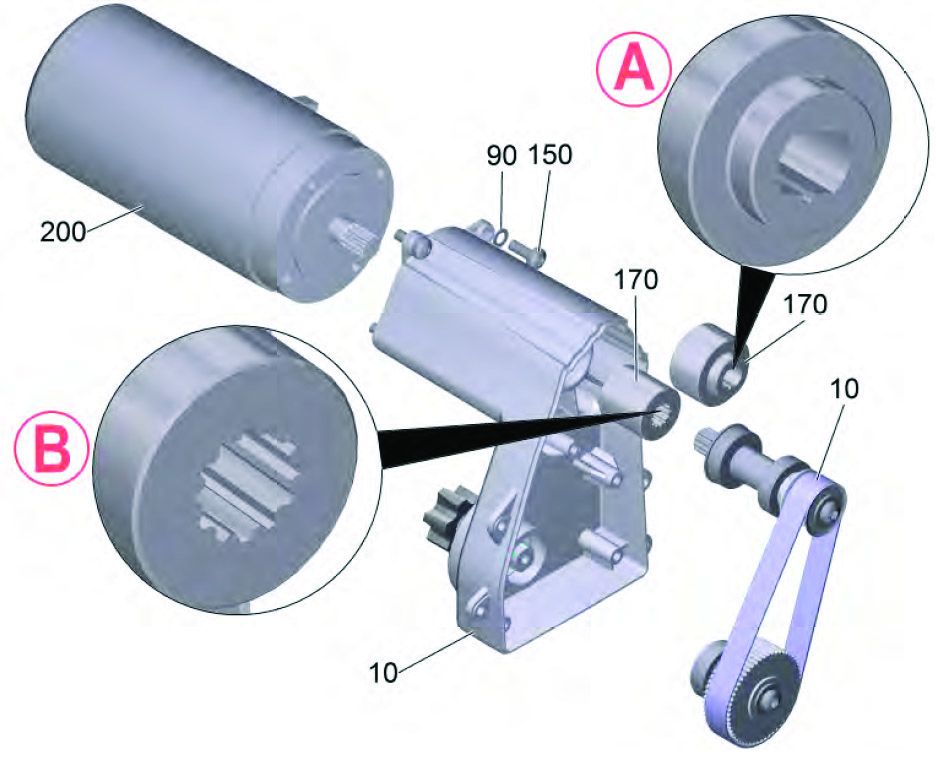

BR 45/22 Gearcase
Karcher BR 45/22 Gearcase
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40371160 |
Gear Case Replacement |
Buy Now |
| 10 |
40371170 |
Gear Case Replacement |
Buy Now |
| 90 |
73122320 |
Serrated Lock Washer |
Buy Now |
| 150 |
73060900 |
Screw |
Buy Now |
| 170 |
50373130 |
Coupler |
Buy Now |
| 170 |
60370050 |
Coupler |
Buy Now |
| 200 |
66135060 |
Motor Rotomag |
Buy Now |
| 200 |
66132820 |
Motor Rotomag |
Buy Now |
BR 45/22 Gear Case Replacement
Karcher BR 45/22 Gear Case Replacement
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
74011150 |
Ball Bearing |
Buy Now |
| 30 |
73432310 |
Locking Ring |
Buy Now |
| 40 |
51106860 |
Spacer Sleeve |
Buy Now |
| 50 |
63632920 |
Joint Ring |
Buy Now |
| 60 |
50374970 |
Star Carrier |
Buy Now |
| 70 |
60370060 |
Shaft Brushes Drive |
Buy Now |
| 80 |
63041800 |
Screw |
Buy Now |
| 90 |
56253570 |
Belt Pulley |
Buy Now |
| 100 |
73122920 |
Washer |
Buy Now |
| 110 |
50372760 |
Belt Pulley |
Buy Now |
| 120 |
63484800 |
Toothed Belt |
Buy Now |
BR 45/22 Carriage
Karcher BR 45/22 Carriage
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50315190 |
Stand Foot |
Buy Now |
| 20 |
73122780 |
Washer |
Buy Now |
| 30 |
73032120 |
Screw |
Buy Now |
| 40 |
64353090 |
Oil Resistant Wheel |
Buy Now |
| 50 |
73433000 |
Lock Washer |
Buy Now |
| 60 |
50373140 |
Axle Wheel Height Adjustment |
Buy Now |
| 70 |
50374100 |
Retaining Bracket Contact Pressure |
Buy Now |
| 80 |
50373460 |
Leg Spring |
Buy Now |
| 90 |
50374280 |
Lever Transport |
Buy Now |
| 90 |
40371210 |
Set Holder Rollers |
Buy Now |
| 100 |
50374260 |
Axle Transport Wheel |
Buy Now |
| 110 |
63431190 |
Lock Washer |
Buy Now |
| 120 |
64352110 |
Wheel |
Call to Order |
| 120 |
40371210 |
Set Holder Rollers |
Buy Now |
BR 45/22 Suction Bar
Karcher BR 45/22 Suction Bar
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50373820 |
Suction Bar Internal Part |
Buy Now |
| 20 |
40371310 |
Suction Lip Set |
Buy Now |
| 20 |
40370970 |
Set Suction Lip |
Buy Now |
| 40 |
50373850 |
Suction Bar Top Part |
Buy Now |
| 60 |
53322160 |
Helical Spring |
Buy Now |
| 80 |
50374830 |
Retainer Suction Bar |
Buy Now |
| 180 |
40370570 |
Set Wheel Suction Bar |
Buy Now |

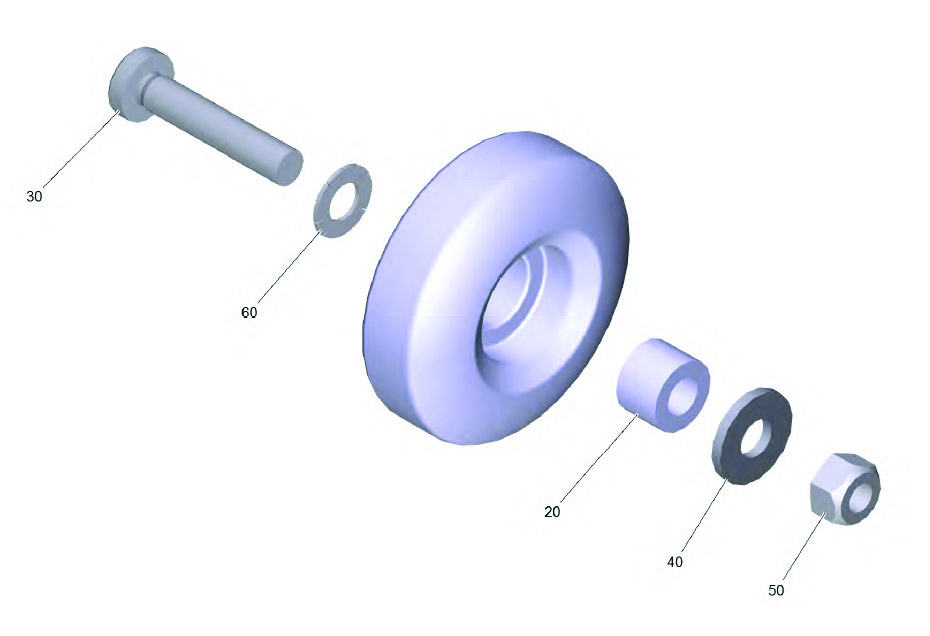

BR 45/22 Set Wheel Suction Bar
Karcher BR 45/22 Set Wheel Suction Bar
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50370180 |
Sleeve |
Buy Now |
| 30 |
- |
Screw |
Call to Order |
| 40 |
50330790 |
Washer |
Buy Now |
| 50 |
73114310 |
Hexagon Nut |
Buy Now |
| 60 |
73120410 |
Serrated Lock Washer |
Buy Now |

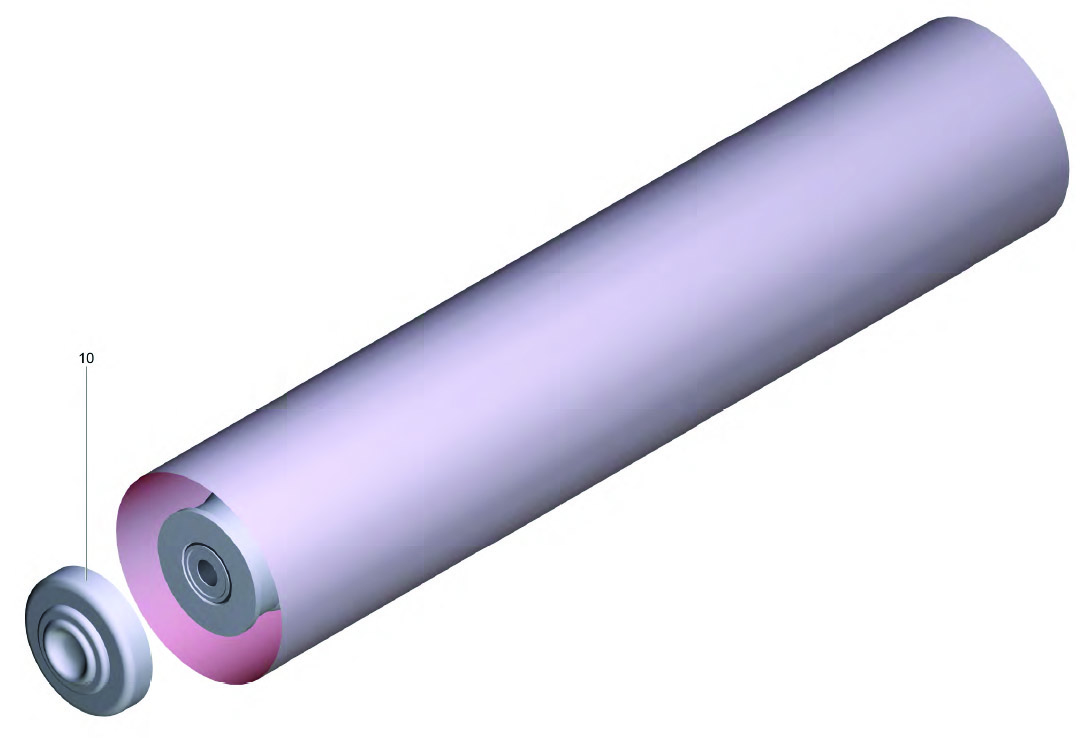

BR 45/22 Roller Brush
Karcher BR 45/22 Roller Brush
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
- |
Thread Deflector |
Call to Order |
