BR 35/12 Autoscrubber

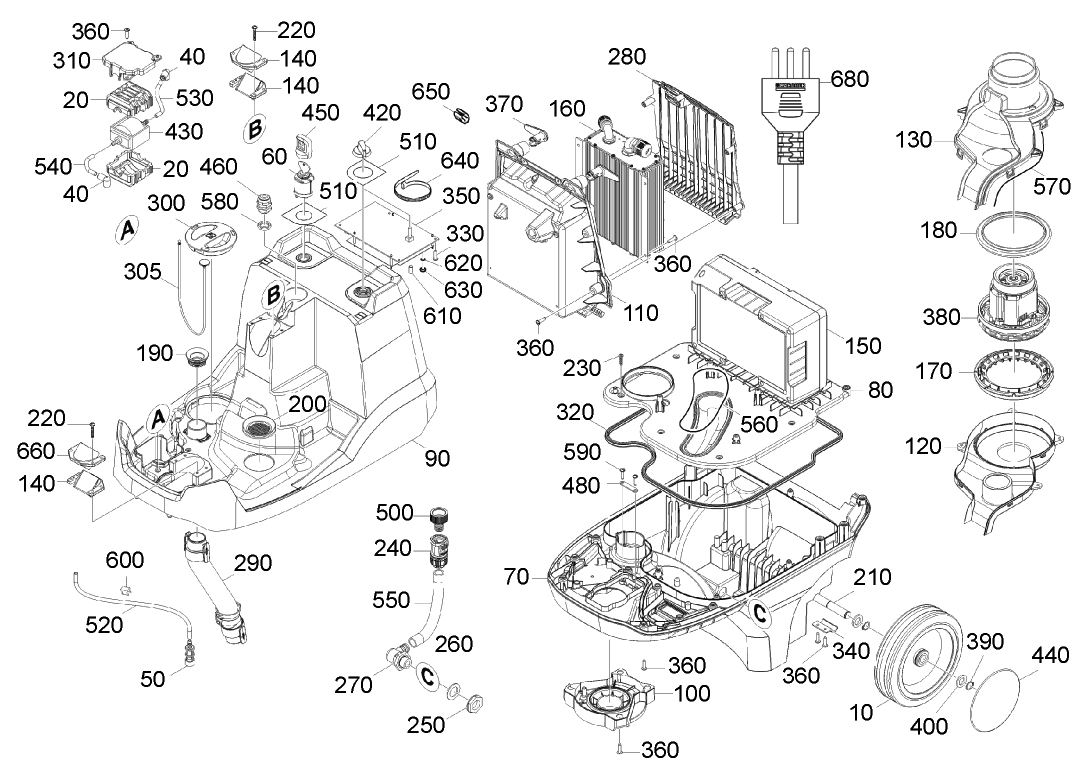

BR 35/12 Chassis
Karcher BR 35/12 Chassis
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
64354120 |
Wheel D 200 |
Buy Now |
| 20 |
50504080 |
Bearing Pump |
Buy Now |
| 40 |
50504110 |
Angle Bushing Water Distribution |
Buy Now |
| 50 |
57316640 |
Filter with Weight |
Buy Now |
| 60 |
66301060 |
Key Switch |
Buy Now |
| 70 |
50372780 |
Fresh Water Tank Bottom Part |
Buy Now |
| 80 |
50372790 |
Fresh Water Tank Top Part |
Buy Now |
| 90 |
50372800 |
Covering Cap Appliance |
Buy Now |
| 100 |
50372850 |
Bearing Brush-Head |
Buy Now |
| 110 |
50372860 |
Covering Cap Battery Charger |
Buy Now |
| 120 |
50372870 |
Retainer |
Buy Now |
| 130 |
50372880 |
Retainer Vac Motor Above |
Buy Now |
| 140 |
50372890 |
Half Shell Bearing Operating Unit |
Buy Now |
| 150 |
66544230 |
Battery Li-Ion |
Call to Order |
| 160 |
93855010 |
Battery Charger |
Call to Order |
| 170 |
51955680 |
Bearing |
Call to Order |
| 180 |
90790240 |
Seal Motor Above |
Buy Now |
| 190 |
50504150 |
Joint Ring |
Buy Now |
| 200 |
53633440 |
Joint Ring |
Buy Now |
| 210 |
50373040 |
Axle Wheels |
Buy Now |
| 220 |
73030860 |
Screw |
Buy Now |
| 230 |
73032120 |
Screw |
Buy Now |
| 240 |
93890780 |
Quick Connector |
Call to Order |
| 250 |
63100040 |
Hexagon Nut |
Buy Now |
| 260 |
55152530 |
Seal |
Buy Now |
| 270 |
63951633 |
Angle Bushing |
Buy Now |
| 280 |
50373060 |
Covering Cap Battery Charger Rear |
Buy Now |
| 290 |
40370320 |
Suction Hose Complete |
Buy Now |
| 300 |
50512940 |
Cover Plate Tank |
Buy Now |
| 305 |
50353580 |
Mounting Rope Cover |
Buy Now |
| 310 |
50373070 |
Pump Cover |
Buy Now |
| 320 |
50373080 |
Seal Fresh Water Tank |
Buy Now |
| 330 |
73030950 |
Screw |
Buy Now |
| 340 |
50373090 |
Fixing Axle |
Buy Now |
| 350 |
28162120 |
Electronics |
Call to Order |
| 360 |
73031080 |
Screw |
Buy Now |
| 370 |
50446610 |
Catch for Cable |
Buy Now |
| 380 |
64903120 |
Blower Motor |
Buy Now |
| 390 |
73430150 |
Locking Ring |
Buy Now |
| 400 |
50109770 |
Sheet Metal Ring |
Buy Now |
| 420 |
50354370 |
Rotary Controller |
Buy Now |
| 420 |
50370140 |
Rotary Controller |
Buy Now |
| 430 |
64735800 |
Pump |
Buy Now |
| 440 |
64358600 |
Wheel Cap |
Buy Now |
| 450 |
50323260 |
Cap |
Buy Now |
| 460 |
66484000 |
Cable Gland |
Buy Now |
| 480 |
66475130 |
Strain Relief |
Buy Now |
| 500 |
93890810 |
Tap Connector |
Call to Order |
| 505 |
63431470 |
Quick-Fastener |
Buy Now |
| 510 |
50373510 |
Label |
Buy Now |
| 520 |
93891040 |
Hose |
Call to Order |
| 530 |
63882160 |
Hose |
Buy Now |
| 540 |
63882160 |
Hose |
Buy Now |
| 550 |
50373580 |
Hose Discharge |
Buy Now |
| 560 |
62730370 |
Seal String Cellular |
Buy Now |
| 570 |
62730370 |
Seal String Cellular |
Buy Now |
| 580 |
66484160 |
Locknut |
Buy Now |
| 590 |
73030260 |
Screw |
Buy Now |
| 600 |
63738620 |
U-Fastening |
Buy Now |
| 610 |
63889580 |
Hose |
Buy Now |
| 620 |
73122300 |
Serrated Lock Washer |
Buy Now |
| 630 |
73110010 |
Hexagon Nut |
Buy Now |
| 640 |
66414580 |
Cable Tape |
Buy Now |
| 650 |
50339280 |
Plug Fixing |
Buy Now |
| 660 |
50370150 |
Covering Cap Joint |
Buy Now |
| 670 |
93403670 |
Plug |
Call to Order |
| 680 |
93403670 |
Plug |
Call to Order |

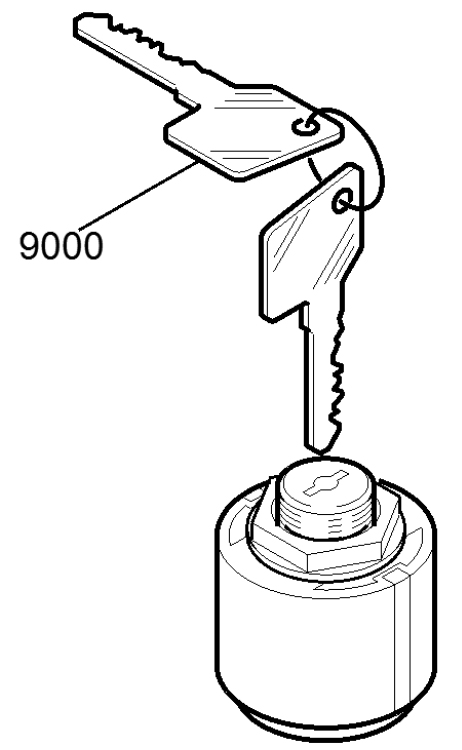

BR 35/12 Key Switch
Karcher BR 35/12 Key Switch
| Reference # |
Part # |
Description |
Add to Cart |
| 9000 |
66002100 |
Key Only for Replacement |
Buy Now |

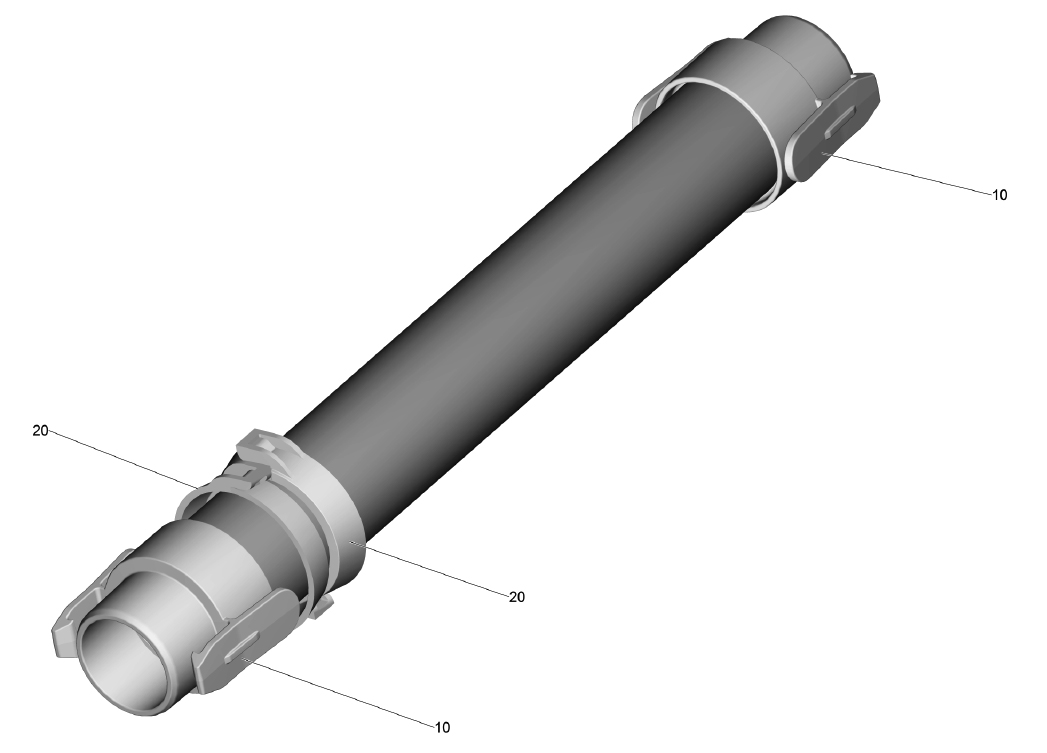

BR 35/12 Suction Hose
Karcher BR 35/12 Suction Hose
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50373260 |
Sleeve Suction Hose |
Buy Now |
| 20 |
50373490 |
Hose Hanger |
Buy Now |

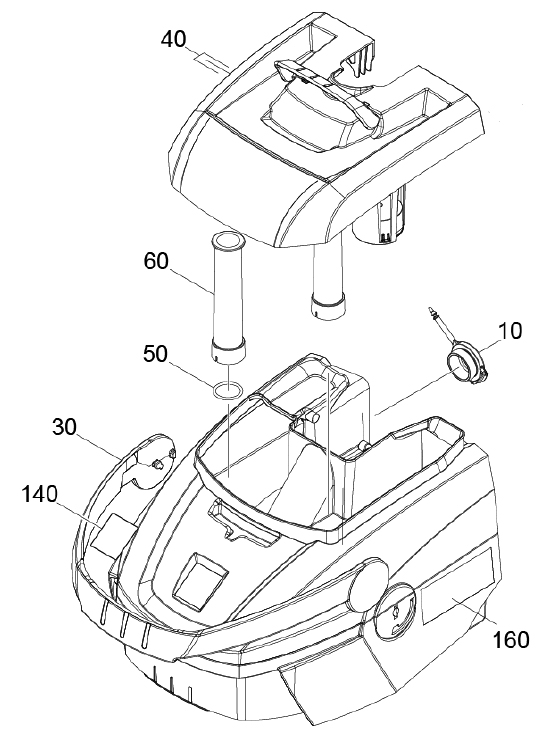

BR 35/12 Waste Water Tank
Karcher BR 35/12 Waste Water Tank
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50373350 |
Cover Discharge Waste Water |
Buy Now |
| 30 |
50372570 |
Carrier Handle Waste Water Tank |
Buy Now |
| 40 |
40370000 |
Cover Waste Water Tank Replacement |
Buy Now |
| 50 |
63621080 |
O-Ring Seal |
Buy Now |
| 60 |
50372960 |
Suction Tube Waste Water Tank |
Buy Now |
| 140 |
53855170 |
Label Signet |
Call to Order |
| 160 |
53855120 |
Label Logo |
Call to Order |

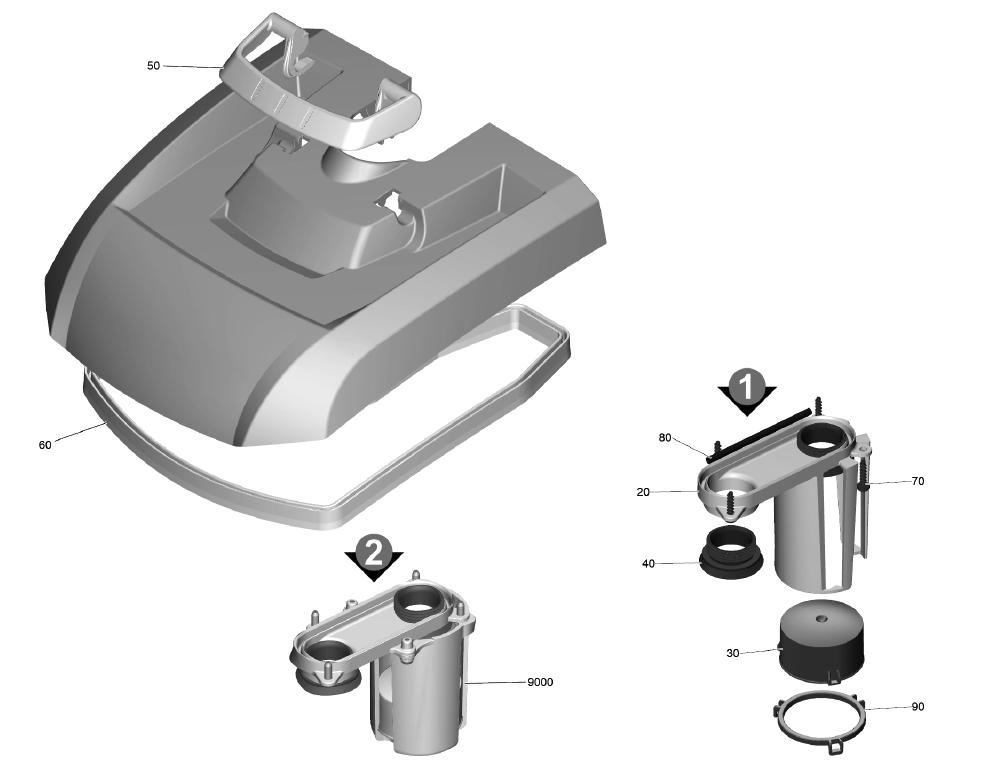

BR 35/12 Cover Waste Water Tank Replacement
Karcher BR 35/12 Cover Waste Water Tank Replacement
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50372970 |
Float Retainer |
Buy Now |
| 30 |
40352520 |
Float Replacement |
Buy Now |
| 40 |
50504150 |
Joint Ring |
Buy Now |
| 50 |
50372990 |
Closure Handhold Waste Water Tank |
Buy Now |
| 60 |
50375270 |
Seal Cover Oil Resistant |
Call to Order |
| 70 |
73032120 |
Screw |
Buy Now |
| 80 |
62730370 |
Seal String Cellular Rubber |
Buy Now |
| 90 |
50374210 |
Cover Float Cage |
Buy Now |
| 9000 |
26392920 |
Conversion Kit Float |
Call to Order |

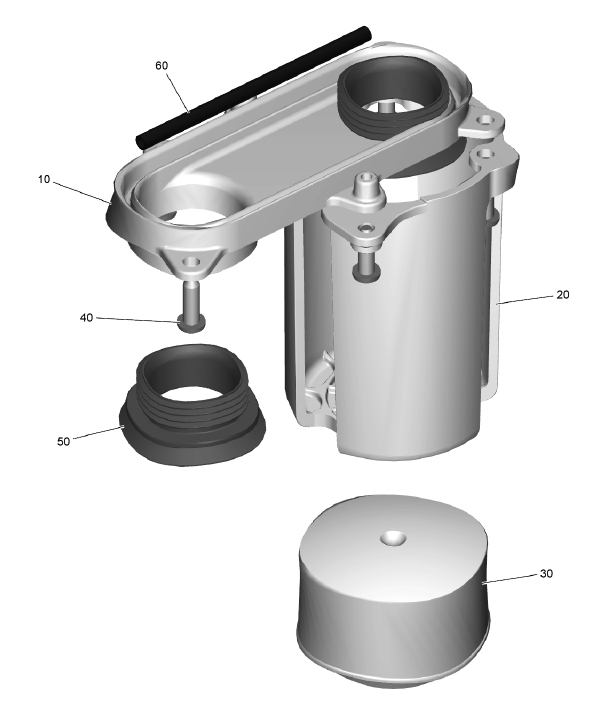

BR 35/12 Conversion Kit Float
Karcher BR 35/12 Conversion Kit Float
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50378610 |
Float Retainer |
Call to Order |
| 20 |
50378620 |
Float Cage |
Call to Order |
| 30 |
40356070 |
Float Replacement |
Call to Order |
| 40 |
73031040 |
Screw |
Buy Now |
| 50 |
50504150 |
Joint Ring |
Buy Now |
| 60 |
62730370 |
Seal String Cellular Rubber |
Buy Now |

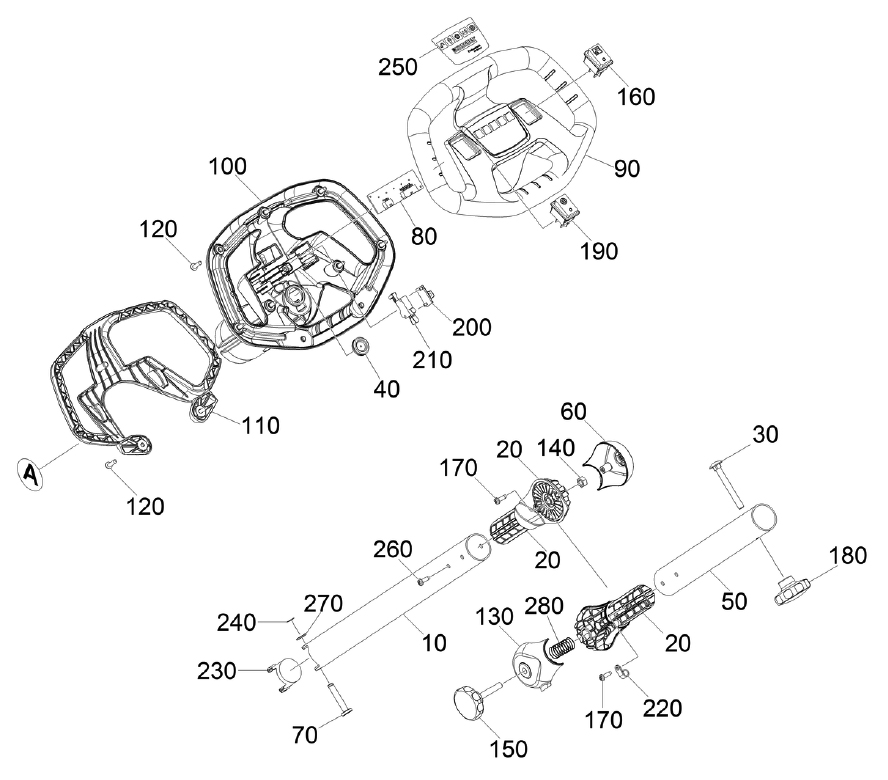

BR 35/12 Steering Pillar
Karcher BR 35/12 Steering Pillar
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50372900 |
Steering Pillar Bottom |
Buy Now |
| 20 |
50372920 |
Joint Steering Pillar |
Buy Now |
| 30 |
73032910 |
Saucer-Head Screw |
Buy Now |
| 40 |
53651090 |
Profile Gasket |
Buy Now |
| 50 |
50372910 |
Steering Pillar Above |
Buy Now |
| 60 |
50372950 |
Covering Cap Joint |
Buy Now |
| 70 |
50373180 |
Bolt Steering Pillar |
Buy Now |
| 80 |
66831140 |
Diode Board |
Buy Now |
| 90 |
50372940 |
Steering Wheel Top Part |
Buy Now |
| 100 |
50372930 |
Steering Wheel Bottom Part |
Buy Now |
| 110 |
50373190 |
Retaining Bracket Switch |
Buy Now |
| 120 |
73031080 |
Screw |
Buy Now |
| 130 |
50373240 |
Covering Cap Joint Cable Gland |
Buy Now |
| 140 |
73110040 |
Hexagon Nut |
Buy Now |
| 150 |
63211790 |
Star Grip |
Buy Now |
| 160 |
66325420 |
Switch Pump |
Buy Now |
| 170 |
73031070 |
Screw |
Buy Now |
| 180 |
63211770 |
Turning Knob Yellow |
Buy Now |
| 190 |
66325430 |
Switch |
Buy Now |
| 200 |
50506540 |
Retainer Micro Switch |
Buy Now |
| 210 |
66318180 |
Switch |
Buy Now |
| 220 |
63733430 |
Pipe Clamp |
Buy Now |
| 230 |
50373370 |
Joint Part Steering Pillar |
Buy Now |
| 240 |
73430140 |
Locking Ring |
Buy Now |
| 250 |
50373480 |
Foil Control panel |
Buy Now |
| 260 |
73032960 |
Countersunk Screw |
Call to Order |
| 270 |
73120040 |
Washer |
Buy Now |
| 280 |
53329810 |
Pressure Spring |
Buy Now |
BR 35/12 Brush Head
Karcher BR 35/12 Brush Head
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
- |
Brush Housing Complete |
Call to Order |
| 20 |
- |
Cover Brush Housing Complete |
Call to Order |
| 30 |
- |

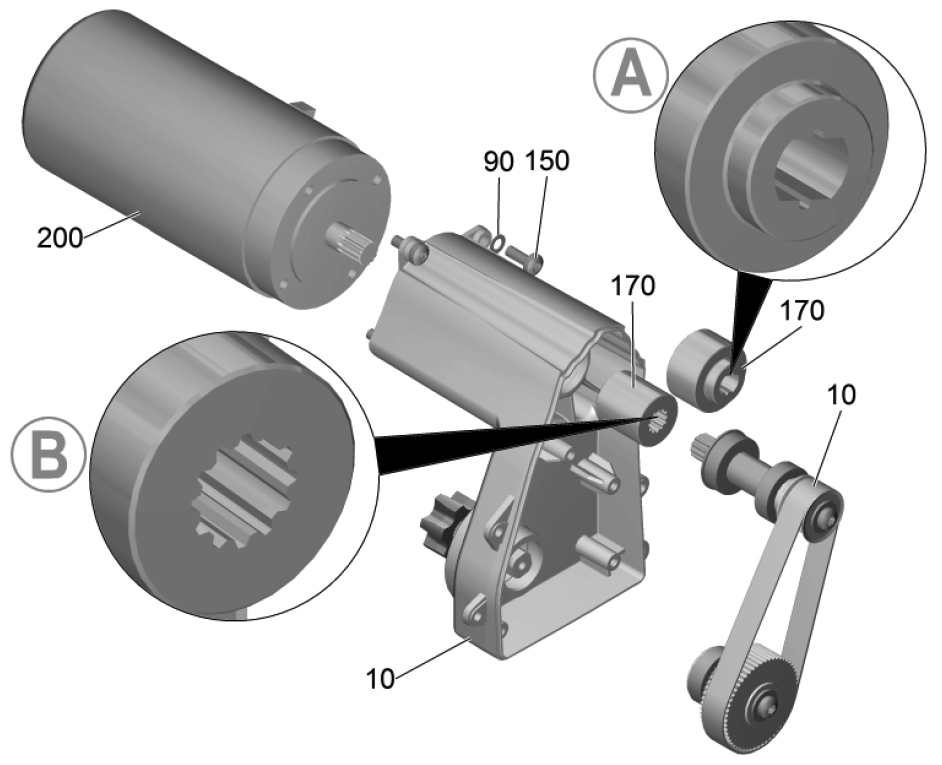

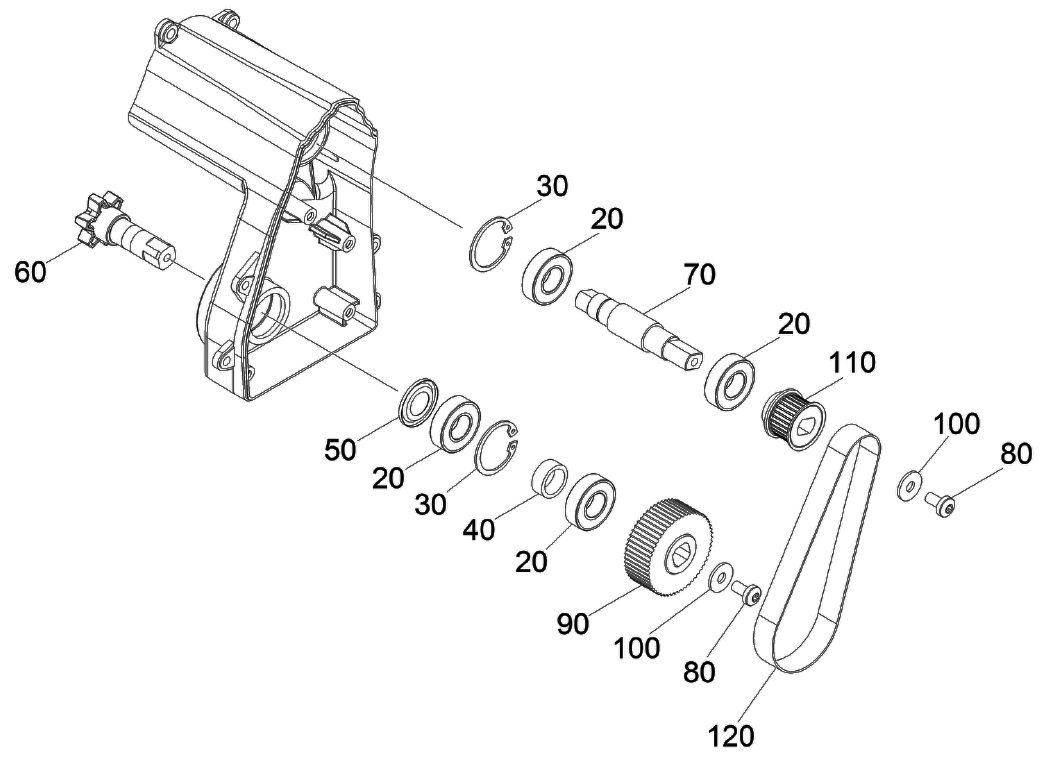

Gear Case Complete |
Call to Order |
| 40 |
40371200 |

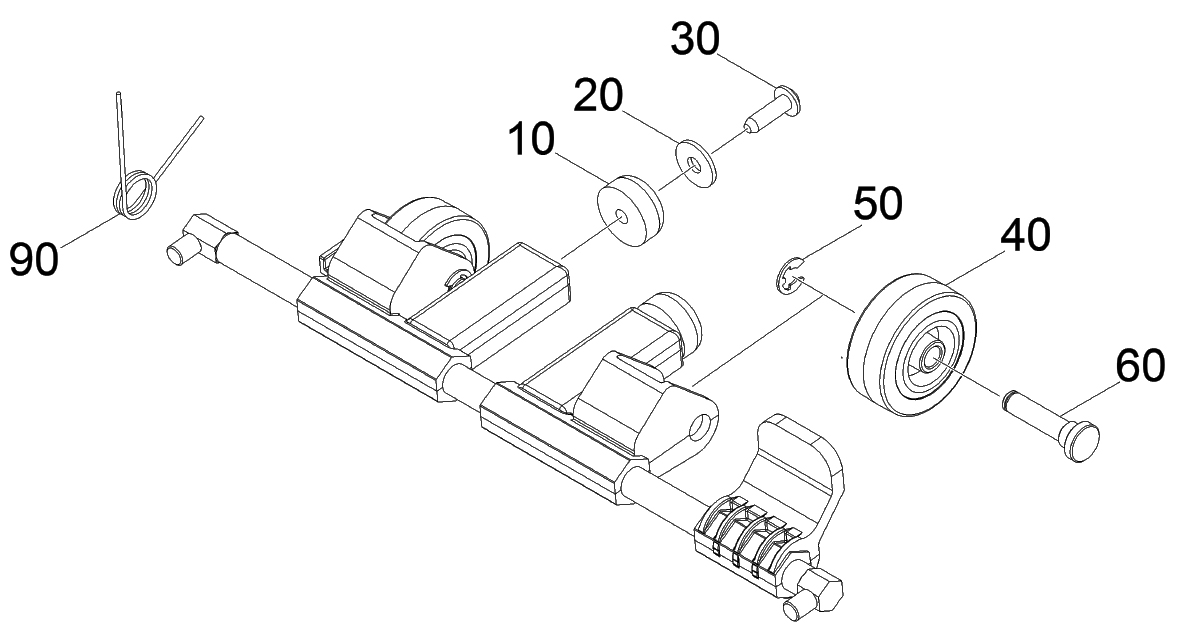

Carriage Complete for Replacement |
Buy Now |
| 50 |
- |
Suction Bar Complete |
Call to Order |
| 60 |
40370310 |
Roller Brush Red |
Buy Now |
| 60 |
40370360 |
Roller Brush White |
Buy Now |
| 60 |
40370370 |
Roller Brush Orange |
Buy Now |
| 60 |
40370380 |
Roller Brush Green |
Buy Now |
| 60 |
40370390 |
Roller Brush Black |
Buy Now |
| 70 |
73031080 |
Screw |
Buy Now |
| 80 |
50372750 |
Cover Gear Case |
Buy Now |
| 90 |
73030390 |
Screw |
Buy Now |
| 100 |
62730370 |
Seal String Cellular |
Buy Now |
BR 35/12 Brush Housing
Karcher BR 35/12 Brush Housing
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50372540 |
Brush Housing |
Buy Now |
| 20 |
50372590 |
Plate Brush Holder |
Buy Now |
| 30 |
73032120 |
Screw |
Buy Now |
| 40 |
50372600 |
Swivel Joint |
Buy Now |
| 50 |
73122920 |
Washer |
Buy Now |
| 60 |
73031080 |
Screw |
Buy Now |
| 70 |
73433000 |
Lock Washer |
Buy Now |
| 80 |
50506540 |
Micro Switch Retainer |
Buy Now |
| 81 |
50394340 |
Micro Switch Covering Cap |
Call to Order |
| 90 |
66304380 |
Micro Switch |
Buy Now |
| 100 |
50372620 |
Deflector Roll |
Buy Now |
| 110 |
50374570 |
Debris Tray Yellow |
Buy Now |
| 120 |
53322070 |
Helical Spring |
Buy Now |
| 130 |
50372650 |
Retaining Bracket Suction Bar |
Buy Now |
| 140 |
63035570 |
Screw |
Buy Now |
| 150 |
50373020 |
Threaded Part |
Buy Now |
| 160 |
50373030 |
Slide Part Height Adjustment |
Buy Now |
| 170 |
73110030 |
Hexagon Nut |
Buy Now |
| 180 |
73122320 |
Serrated Lock Washer |
Buy Now |
| 190 |
50373540 |
Plate |
Buy Now |
| 200 |
63304100 |
Spring Clip |
Buy Now |
| 210 |
50373250 |
Pedal Fixing Axle |
Buy Now |
| 220 |
50373400 |
Baffle Plate Brush-Head |
Buy Now |
| 230 |
48800580 |
Roller Set |
Buy Now |
| 250 |
73031290 |
Screw |
Buy Now |
| 260 |
73120040 |
Washer |
Buy Now |
| 280 |
50370080 |
Plate Stop |
Buy Now |
| 500 |
73120020 |
Washer |
Buy Now |
BR 35/12 Cover Brush Housing
Karcher BR 35/12 Cover Brush Housing
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50374920 |
Cover Brush Housing |
Buy Now |
| 20 |
50372670 |
Fixing Brush-Head |
Buy Now |
| 30 |
74019170 |
Sphere |
Buy Now |
| 40 |
50372680 |
Cover Refrigeration Motor |
Buy Now |
| 50 |
73031080 |
Screw |
Buy Now |
| 51 |
73122310 |
Serrated Lock Washer |
Buy Now |
| 60 |
50372690 |
Cover Water Distribution |
Buy Now |
| 70 |
40370040 |
Bearing Set |
Buy Now |
| 100 |
50373010 |
Button Height Adjustment |
Buy Now |
| 110 |
50374930 |
T-Piece Cleaning Agents |
Buy Now |
| 120 |
50373090 |
Fixing Axle |
Buy Now |
| 130 |
73430190 |
Locking Ring |
Buy Now |
| 140 |
63913410 |
Hose Chemistry |
Buy Now |
| 150 |
63913410 |
Hose Chemistry |
Buy Now |
| 160 |
63730080 |
U-Fastening |
Buy Now |
BR 35/12 Gear Case
Karcher BR 35/12 Gear Case
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40370330 |
Gear Case Replacement |
Buy Now |
| 10 |
40371170 |
Gear Case Replacement |
Buy Now |
| 90 |
73122320 |
Serrated Lock Washer |
Buy Now |
| 150 |
73060900 |
Screw |
Buy Now |
| 170 |
50373130 |
Coupler |
Buy Now |
| 170 |
60370050 |
Coupler |
Buy Now |
| 200 |
66132820 |
Motor Rotomag |
Buy Now |
| 200 |
66135060 |
Motor Rotomag |
Buy Now |
BR 35/12 Gear Case Replacement
Karcher BR 35/12 Gear Case Replacement
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
74011150 |
Ball Bearing |
Buy Now |
| 30 |
73432310 |
Locking Ring |
Buy Now |
| 40 |
51106860 |
Spacer Sleeve |
Buy Now |
| 50 |
63632920 |
Joint Ring |
Buy Now |
| 60 |
51005710 |
Driveshaft |
Buy Now |
| 70 |
50372740 |
Shaft Gear |
Buy Now |
| 80 |
63041800 |
Screw |
Buy Now |
| 90 |
50378740 |
Belt Pulley |
Call to Order |
| 100 |
73122920 |
Washer |
Buy Now |
| 110 |
50372760 |
Belt Pulley |
Buy Now |
| 120 |
63484800 |
Toothed Belt |
Buy Now |
BR 35/12 Gear Case Replacement
Karcher Gear Case Replacement
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
74011150 |
Ball Bearing |
Buy Now |
| 30 |
73432310 |
Locking Ring |
Buy Now |
| 40 |
51106860 |
Spacer Sleeve |
Buy Now |
| 50 |
63632920 |
Joing Ring |
Buy Now |
| 60 |
50374970 |
Star Carrier |
Buy Now |
| 70 |
60370060 |
Shaft Brushes Drive |
Buy Now |
| 80 |
63041800 |
Screw |
Buy Now |
| 90 |
50378740 |
Belt Pulley |
Call to Order |
| 100 |
73122920 |
Washer |
Buy Now |
| 110 |
50372760 |
Belt Pulley |
Buy Now |
| 120 |
63484800 |
Toothed Belt |
Buy Now |
BR 35/12 Carriage Complete
Karcher BR 35/12 Carriage Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50315190 |
Stand Foot |
Buy Now |
| 20 |
73122780 |
Washer |
Buy Now |
| 30 |
73031080 |
Screw |
Buy Now |
| 40 |
64353090 |
Wheel Oil Resistant |
Buy Now |
| 50 |
73433000 |
Lock Washer |
Buy Now |
| 60 |
50373140 |
Axle Wheel Height Adjustment |
Buy Now |
| 90 |
50373460 |
Leg Spring |
Buy Now |
BR 35/12 Suction Bar
Karcher BR 35/12 Suction Bar
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40370340 |
Suction Bar Replacement |
Buy Now |
| 60 |
53322160 |
Helical Spring |
Buy Now |
| 80 |
50374830 |
Retainer Suction Bar |
Buy Now |
| 90 |
73114310 |
Hexagon Nut |
Buy Now |
| 210 |
73031040 |
Screw |
Buy Now |
BR 35/12 Suction Bar Replacement
Karcher BR 35/12 Suction Bar Replacement
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50372820 |
Suction Bar Internal Part |
Buy Now |
| 20 |
40370350 |
Suction Lip Set |
Buy Now |
| 20 |
40371270 |
Suction Lip Set Linatex |
Buy Now |
| 40 |
50372810 |
Suction Bar Top Part |
Buy Now |
| 50 |
40370570 |
Set Wheel Suction Bar |
Buy Now |
| 60 |
40370650 |
Conversion Kit Suction Bar |
Buy Now |
BR 35/12 Set Wheel Suction Bar
Karcher BR 35/12 Set Wheel Suction Bar
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50370180 |
Sleeve |
Buy Now |
| 30 |
73064040 |
Screw |
Call to Order |
| 40 |
50330790 |
Washer |
Buy Now |
| 50 |
73114310 |
Hexagon Nut |
Buy Now |
| 60 |
73120410 |
Serrated Lock Washer |
Buy Now |

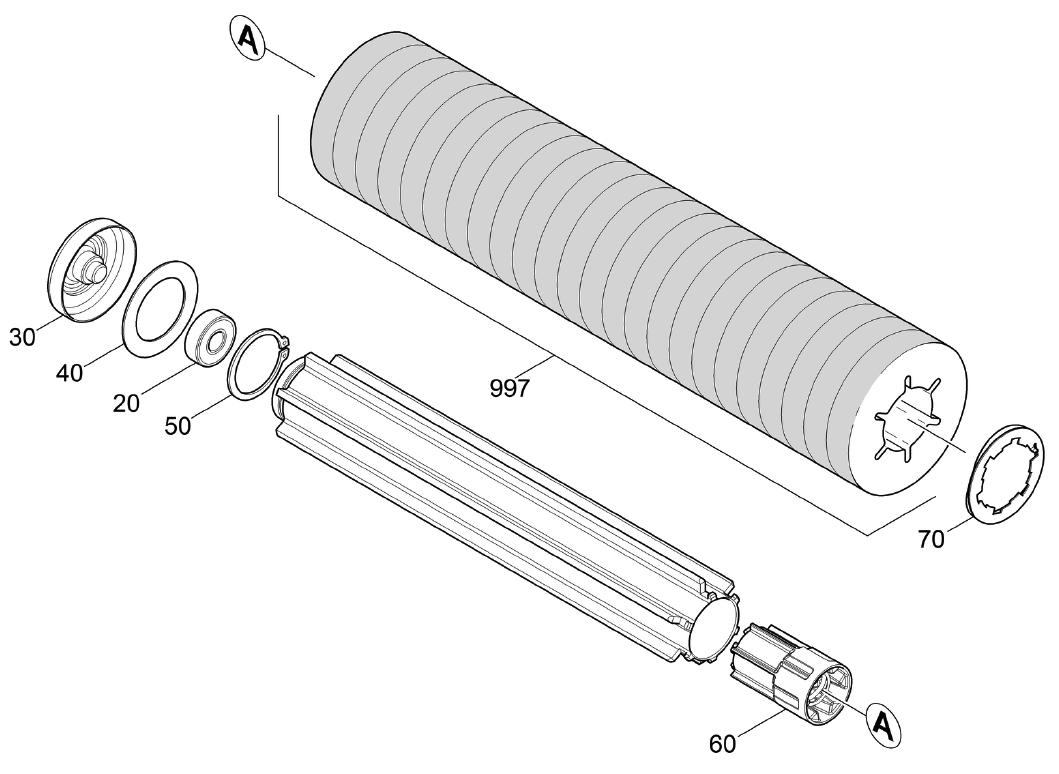

BR 35/12 Roll Pad
Karcher BR 35/12 Roll Pad
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
74011690 |
Ball Bearing |
Buy Now |
| 30 |
40386770 |
Sheet Metal Component Thread Deflector |
Buy Now |
| 40 |
50052660 |
Ronde |
Buy Now |
| 50 |
73430300 |
Locking Ring |
Call to Order |
| 60 |
51203130 |
Hub Pad Roll |
Buy Now |
| 70 |
41150030 |
Washer Closure |
Buy Now |
| 997 |
63690470 |
Pad Red with Sleeve |
Buy Now |
| 997 |
63690520 |
Pad Green with Sleeve |
Buy Now |
| 997 |
63690530 |
Pad Yellow with Sleeve |
Buy Now |
| 997 |
93026880 |
Pad Green |
Call to Order |

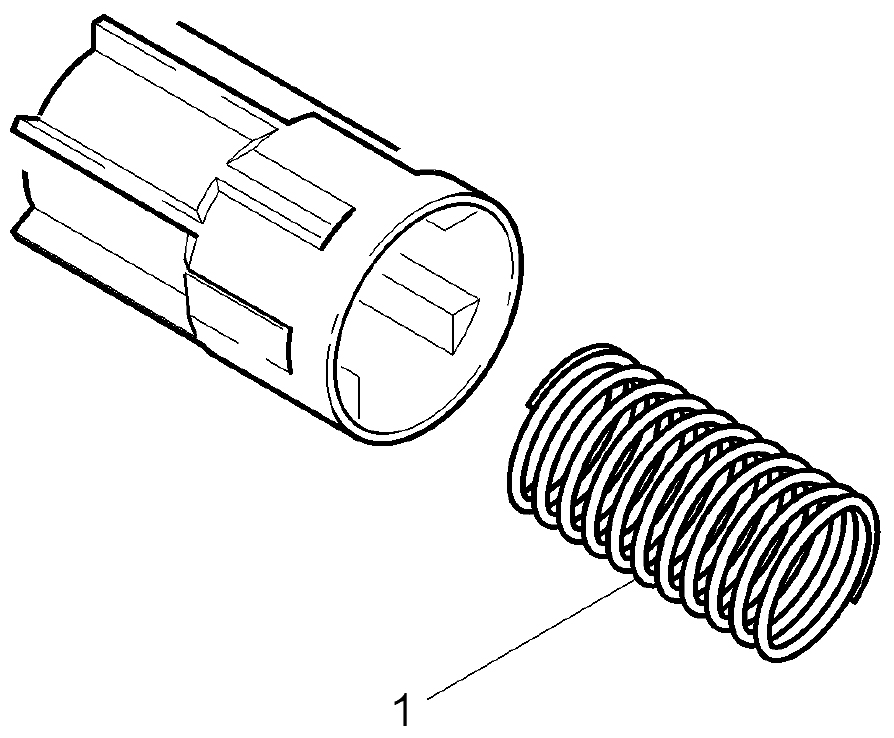

BR 35/12 Hub Roll Pad
Karcher BR 35/12 Hub Roll Pad
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
53324690 |
Helical Spring |
Buy Now |
