Karcher B 60 W BP
Cover Complete
Karcher B 60 W BP Cover Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50355610 |
Cap of Tank Top Part |
Buy Now |
| 30 |
50360660 |
Cover Bottom Part Foamed |
Call to Order |
| 40 |
73031090 |
Screw |
Buy Now |
| 44 |
50358340 |
Washer |
Buy Now |
| 50 |
50362130 |
Cover Plate Locking Part |
Buy Now |
| 60 |
50357870 |
Float |
Buy Now |
| 70 |
63660580 |
Sealing Profile |
Buy Now |
| 90 |
50358350 |
Plug Vacuum Channel |
Buy Now |
| 100 |
62730370 |
Rubber Seal String |
Buy Now |
| 500 |
40354900 |
Float Holder Replacement |
Buy Now |
B 60 W BP Components
Karcher B 60 W BP Components
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
26426230 |
Basic Machinery |
Call to Order |

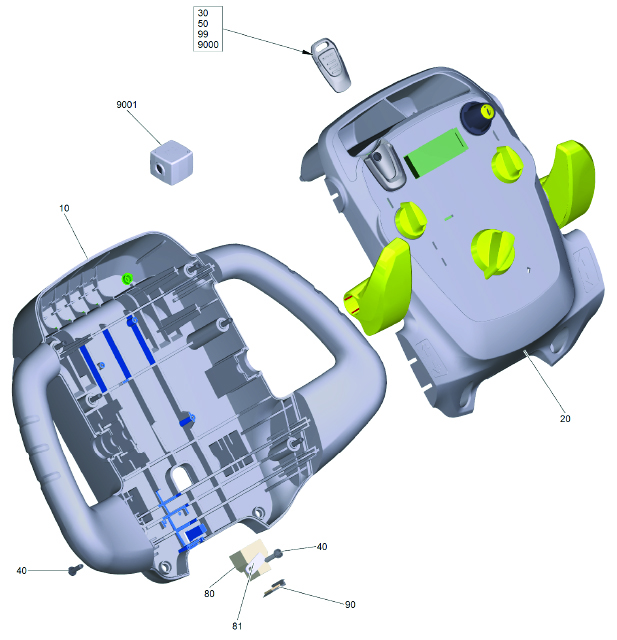

| 20 |
- |
Control Panel Complete |
Call to Order |
| 30 |
- |

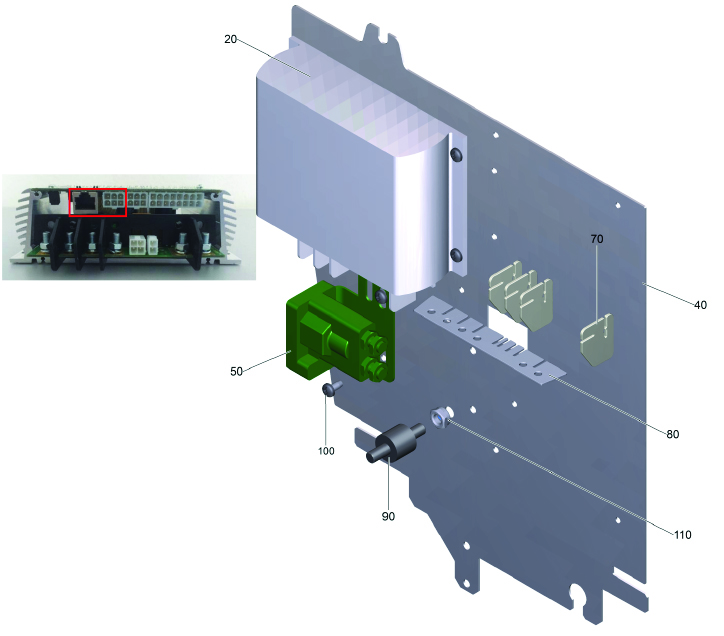

Electric Equipment |
Call to Order |
| 30 |
- |
Electric Equipment |
Call to Order |
| 35 |
40354930 |
Power Cable Replacement |
Buy Now |
| 40 |
- |
Gear Complete |
Call to Order |
| 50 |
63033150 |
Screw |
Buy Now |
| 60 |
50354500 |
Bearing Bush Electronics |
Call to Order |
| 70 |
73031070 |
Screw |
Buy Now |
| 80 |
64720073 |
Solenoid Valve |
Buy Now |
| 140 |
63903240 |
Hose |
Buy Now |
| 150 |
63908920 |
Spiral Hose |
Buy Now |
| 200 |
66414640 |
Cable Tie |
Buy Now |
| 210 |
66414740 |
Cable Tape |
Call to Order |
| 220 |
66414600 |
Cable Clamp |
Buy Now |

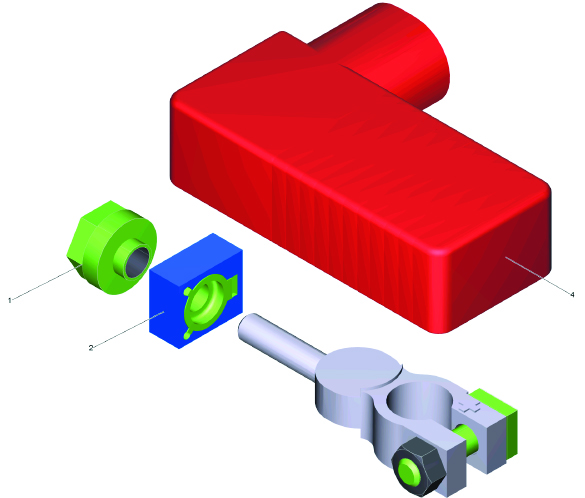

| 230 |
46430093 |
Pole Binder Single Lateral |
Buy Now |
| 250 |
66414630 |
Zip Tie |
Buy Now |

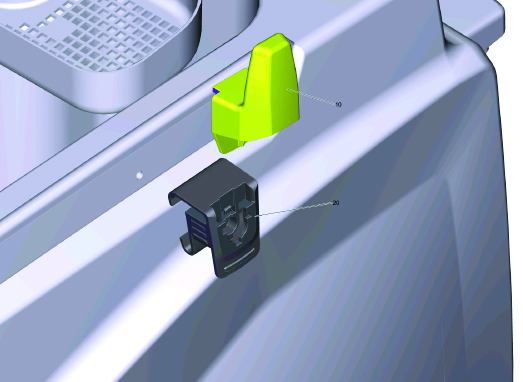

| 9000 |
40700750 |
Set Universal Hook |
Buy Now |

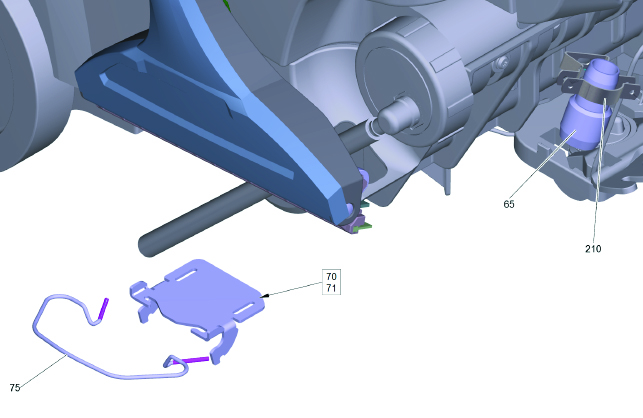

| 9001 |
26439370 |

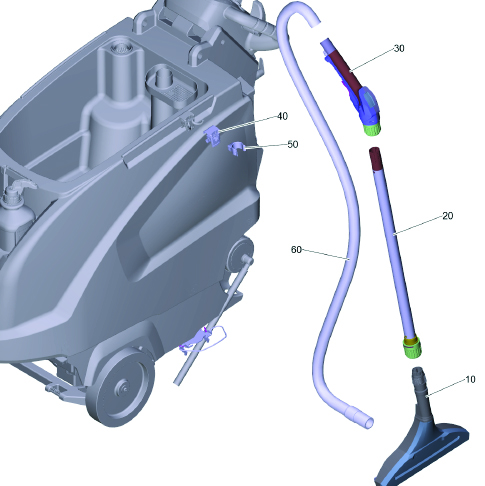

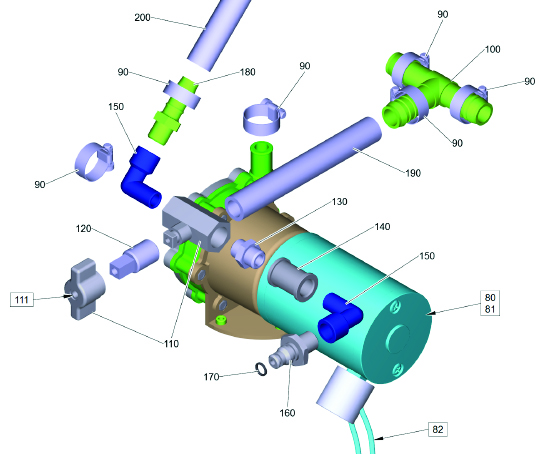

Add-On Spray Kit Sucking |
Call to Order |

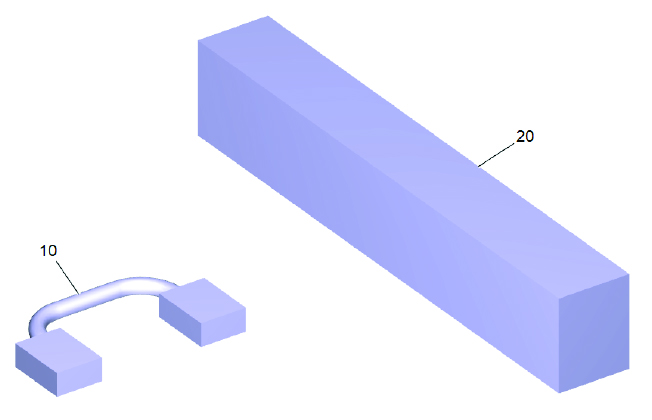

| 9510 |
28151000 |
Battery Kit |
Call to Order |
| 9511 |
26380360 |

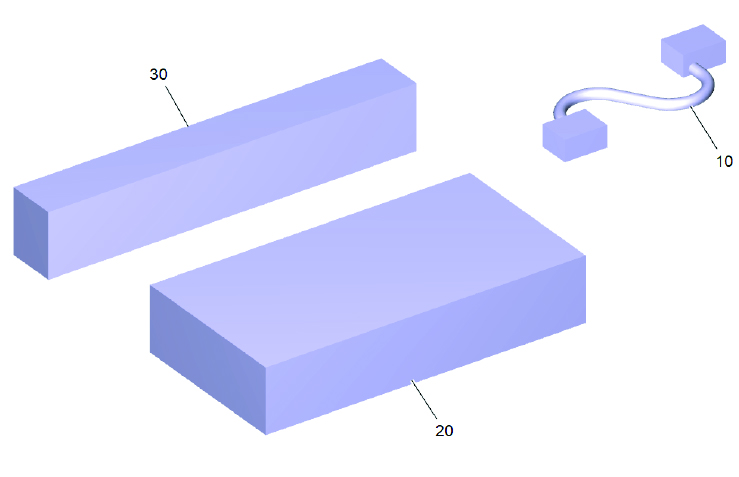

Mounting Kit Battery Kit |
Call to Order |
| 9520 |
28151010 |
Battery Kit |
Call to Order |
| 9521 |
26381060 |
Mounting Kit Battery Kit |
Call to Order |
| 9530 |
28150910 |
Battery Kit |
Call to Order |
| 9531 |
26380370 |
Mounting Kit Battery Kit |
Call to Order |
| 9540 |
28150920 |
Battery Kit |
Call to Order |
| 9541 |
26380640 |
Mounting Kit Battery Kit |
Call to Order |
B 60 W BP Basic Machinery
Karcher B 60 W BP Basic Machinery
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40353990 |
Frame Complete |
Call to Order |
| 20 |
40354000 |
Tank Complete |
Call to Order |

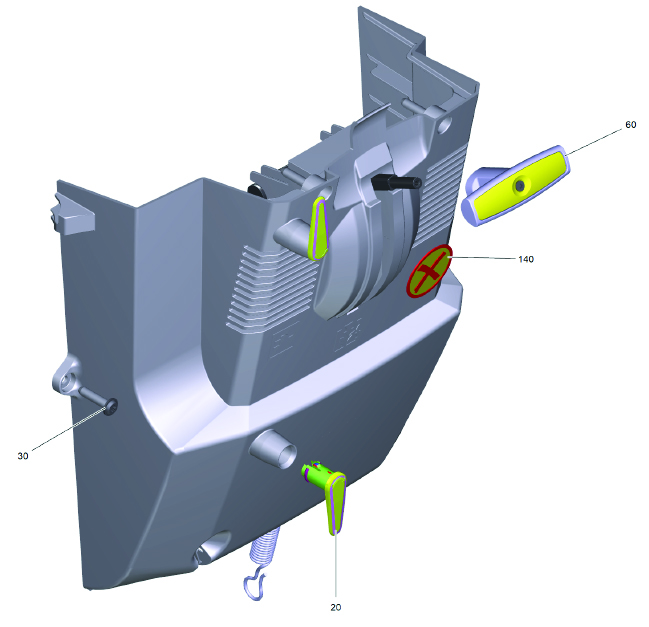

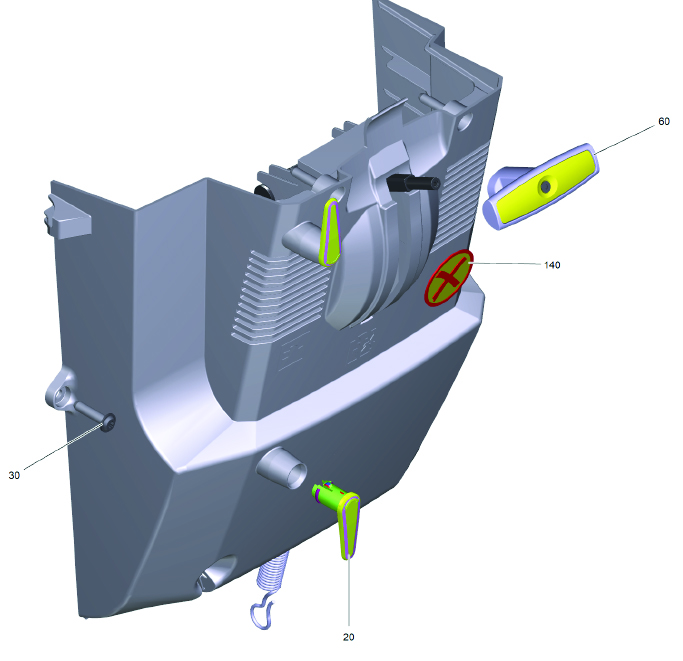

| 30 |
40353980 |
Covering Cap Rear Complete |
Call to Order |
| 40 |
50354880 |
Adapter Homebase |
Buy Now |
| 50 |
69800770 |
Double Hook |
Buy Now |
| 60 |
50429450 |
Holder |
Call to Order |
| 80 |
54433750 |
Hose Stem |
Buy Now |
| 90 |
63621700 |
O-Ring Seal |
Buy Now |
| 100 |
56731890 |
Splash Guard Mat |
Buy Now |
| 110 |
40351890 |
Battery Charger for Replacement |
Buy Now |
| 120 |
73062360 |
Screw |
Call to Order |
| 130 |
73120010 |
Washer |
Call to Order |
| 200 |
40354930 |
Power Cable Replacement |
Buy Now |
| 200 |
40354940 |
Power Cable Replacement |
Buy Now |

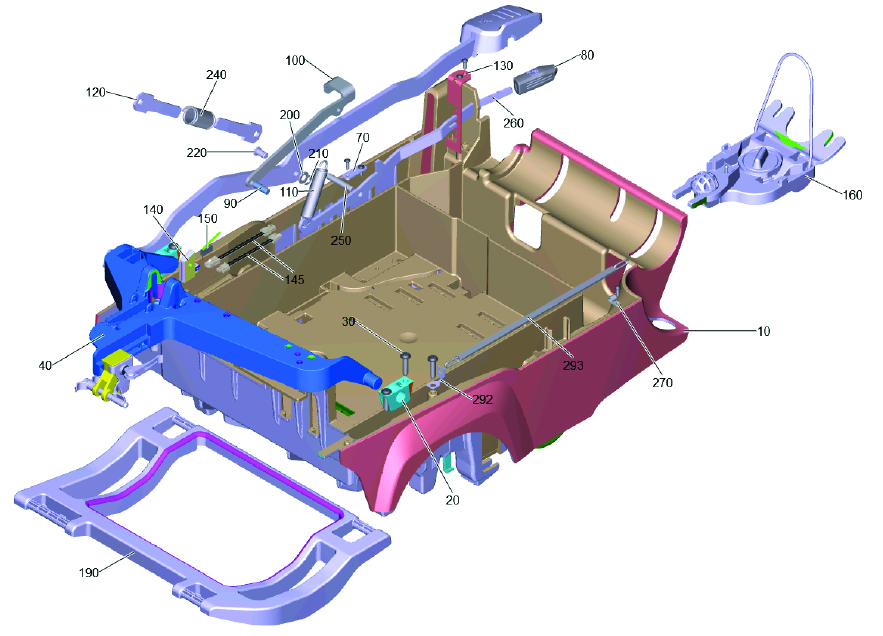

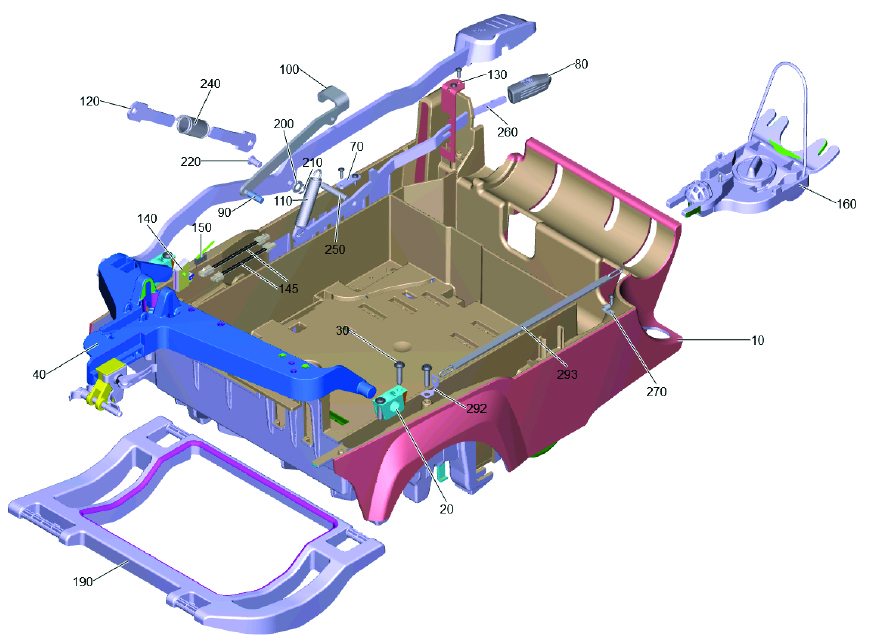

B 60 W BP Frame 1
Karcher B 60 W BP Frame 1
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50355660 |
Frame |
Buy Now |
| 20 |
50355760 |
Bearing Sleeve |
Call to Order |
| 30 |
63033150 |
Screw |
Buy Now |
| 40 |
40355760 |
Conscription Reinforced Complete |
Call to Order |
| 60 |
73031070 |
Screw |
Buy Now |
| 70 |
50356380 |
Retaining Plate |
Buy Now |
| 90 |
50356300 |
Bolt |
Buy Now |
| 100 |
50355810 |
Limit Plate Lever |
Buy Now |
| 110 |
63304580 |
Extension Spring |
Buy Now |
| 120 |
50356400 |
Guide Plate |
Buy Now |
| 130 |
50355820 |
Locking Plate |
Call to Order |
| 140 |
50609980 |
Housing Micro Switch |
Buy Now |
| 145 |
46300100 |
Cable Micro Switch Replacement |
Buy Now |
| 150 |
66303310 |
Micro Switch |
Buy Now |
| 160 |
- |
Label Water Regulation |
Call to Order |
| 190 |
50355770 |
Connecting Rod |
Buy Now |
| 200 |
73120050 |
Washer |
Buy Now |
| 210 |
73433020 |
Lock Washer |
Buy Now |
| 240 |
53329650 |
Pressure Spring |
Buy Now |
| 250 |
53162320 |
Bolt |
Call to Order |
| 260 |
50355800 |
Hand Lever |
Call to Order |
| 270 |
63738770 |
Hose Clip |
Buy Now |
| 292 |
50019870 |
Plate Bracket |
Call to Order |
| 293 |
97630550 |
Strap Suction Bar |
Buy Now |

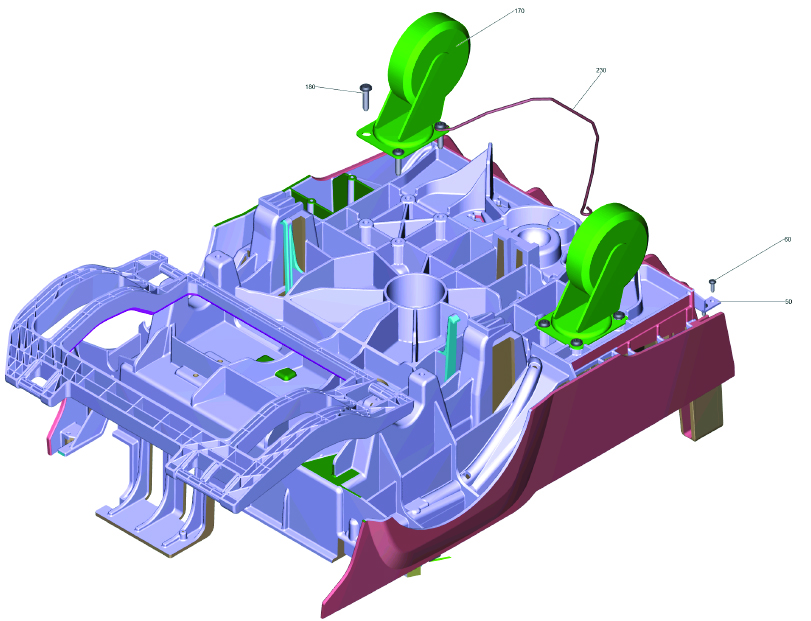

B 60 W BP Frame 2
Karcher B 60 W BP Frame 2
| Reference # |
Part # |
Description |
Add to Cart |
| 50 |
50353610 |
Sheet Metal Component |
Call to Order |
| 60 |
73031070 |
Screw |
Buy Now |
| 170 |
64358090 |
Castor |
Buy Now |
| 180 |
63033150 |
Screw |
Buy Now |
| 230 |
50356520 |
Wire Spring |
Buy Now |

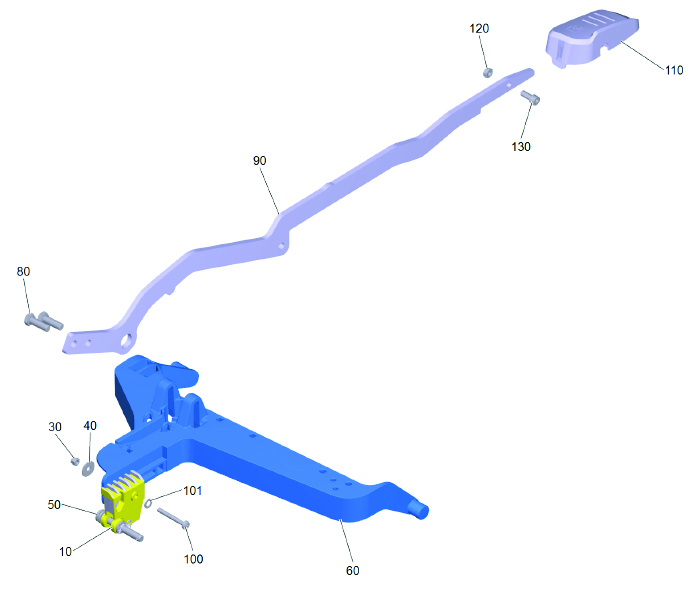

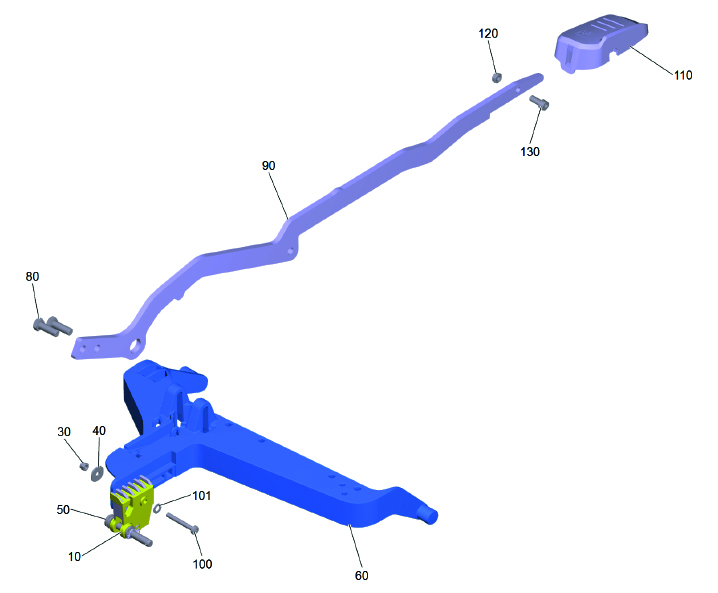

B 60 W BP Conscription
Karcher B 60 W BP Conscription
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50359940 |
Groove Stone |
Buy Now |
| 30 |
73115120 |
Hexagon Nut |
Call to Order |
| 40 |
73122600 |
Washer |
Buy Now |
| 50 |
40355850 |
Bolt Complete |
Call to Order |
| 60 |
50355730 |
Suspension Brush-Head |
Buy Now |
| 80 |
73044170 |
Hexagonal Head Screw |
Buy Now |
| 90 |
50355750 |
Lever-Brush |
Call to Order |
| 100 |
73061330 |
Screw |
Call to Order |
| 101 |
73431070 |
Shim Ring |
Call to Order |
| 110 |
50353740 |
Pedal Brush-Head |
Buy Now |
| 120 |
73114320 |
Hexagon Nut |
Call to Order |
| 130 |
73060410 |
Cylinder Head Screw |
Buy Now |

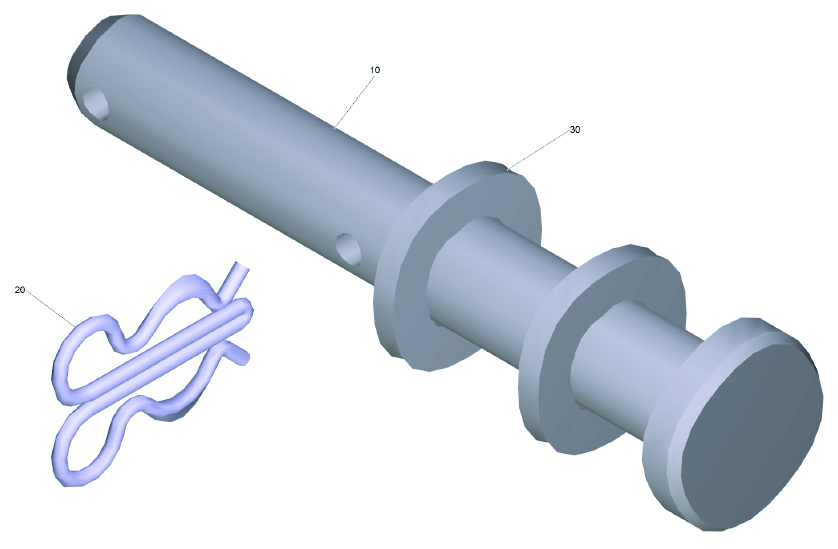

B 60 W BP Bolt
Karcher B 60 W BP Bolt
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
53160220 |
Bolt Worked |
Call to Order |
| 20 |
60350470 |
Spring Clip Double |
Buy Now |
| 30 |
73121530 |
Washer |
Buy Now |

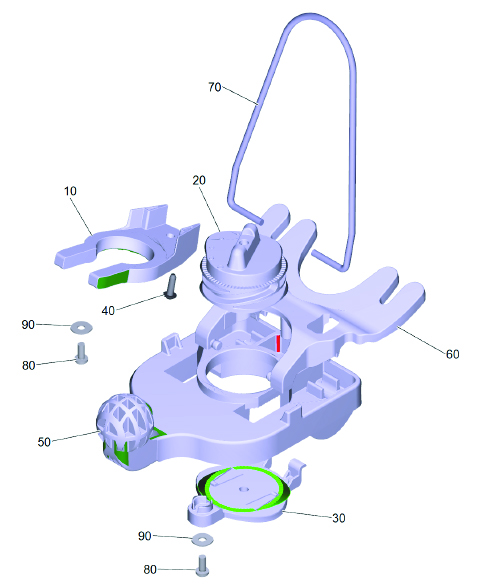

B 60 W BP Suction Bar Lifting
Karcher B 60 W BP Suction Bar Lifting
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50050050 |
Fixing Plate Suction Bar |
Buy Now |
| 20 |
50352920 |
Adjusting Knob Suction Bar Toothing |
Buy Now |
| 30 |
50352930 |
Covering Cap Suction Bar Toothing |
Buy Now |
| 40 |
73031090 |
Screw |
Buy Now |
| 50 |
40371373 |
Holder Suction Bar |
Buy Now |
| 60 |
50361280 |
Rocker Suction Bar Steel |
Call to Order |
| 70 |
50353820 |
Retaining Bracket Suction Bar |
Buy Now |
| 80 |
63060030 |
Screw |
Buy Now |
| 90 |
73122820 |
Washer |
Buy Now |

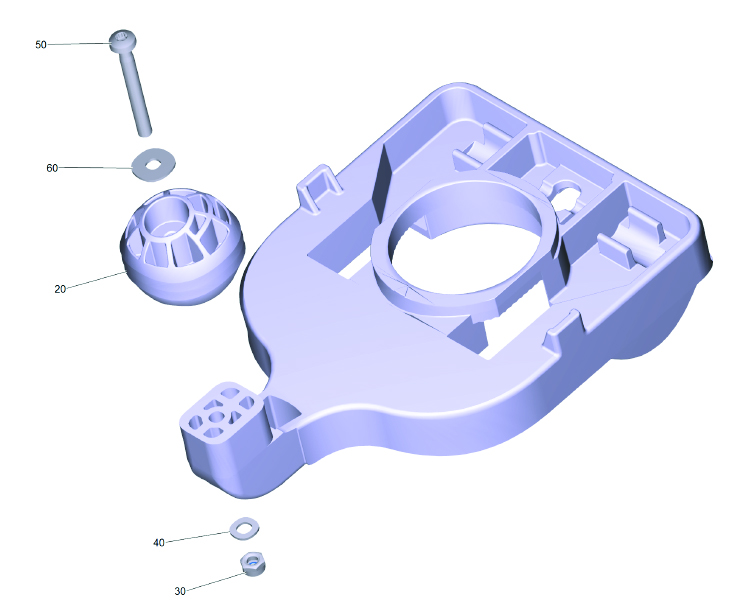

B 60 W BP Holder Suction Bar
Karcher B 60 W BP Holder Suction Bar
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50375790 |
Sphere Suction Bar Suspension |
Call to Order |
| 30 |
73114310 |
Hexagon Nut |
Buy Now |
| 40 |
73120520 |
Washer |
Buy Now |
| 50 |
73062150 |
Screw |
Call to Order |
| 60 |
73122820 |
Washer |
Buy Now |

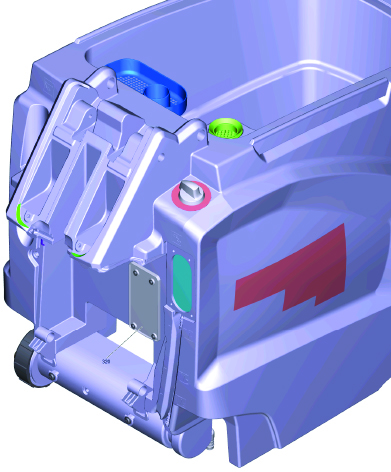

B 60 W BP Tank Complete 1
Karcher B 60 W BP Tank Complete 1
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50353410 |
Cover Fresh Water Tank Discharge |
Buy Now |
| 20 |
63951633 |
Angle Bushing |
Buy Now |
| 30 |
63100040 |
Hexagon Nut |
Buy Now |
| 50 |
55152660 |
Joint Ring Fluffing Strainer |
Buy Now |
| 60 |
50369320 |
Tank Bulk Waste Yellow |
Call to Order |
| 70 |
50340990 |
Cover Fresh Water Metering |
Call to Order |
| 90 |
73031070 |
Screw |
Buy Now |
| 100 |
50353580 |
Mounting Rope Cover Fresh Water Tank |
Buy Now |
| 130 |
63033150 |
Screw |
Buy Now |
| 140 |
50353420 |
Hose Connection Fresh Water Discharge |
Buy Now |
| 150 |
50354350 |
Tank Locking Part |
Buy Now |
| 160 |
50353760 |
Filter Discharge |
Buy Now |
| 180 |
40354630 |
Tank Replacement |
Buy Now |
| 200 |
40353380 |
Vacuum Motor Enclosure Complete |
Call to Order |

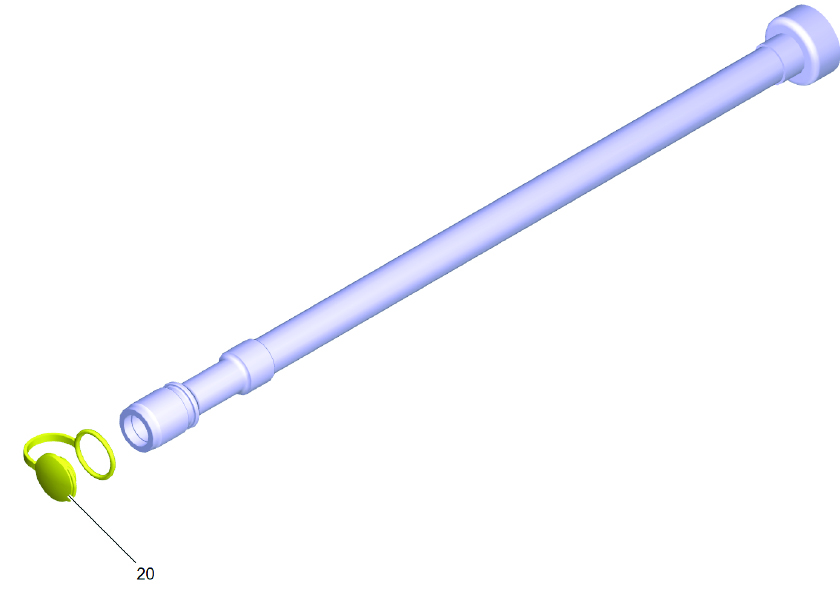

| 240 |
40352850 |

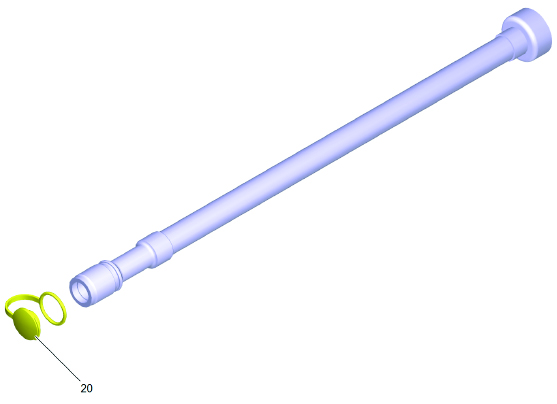

Drain Hose Cover |
Buy Now |
| 250 |
63924710 |

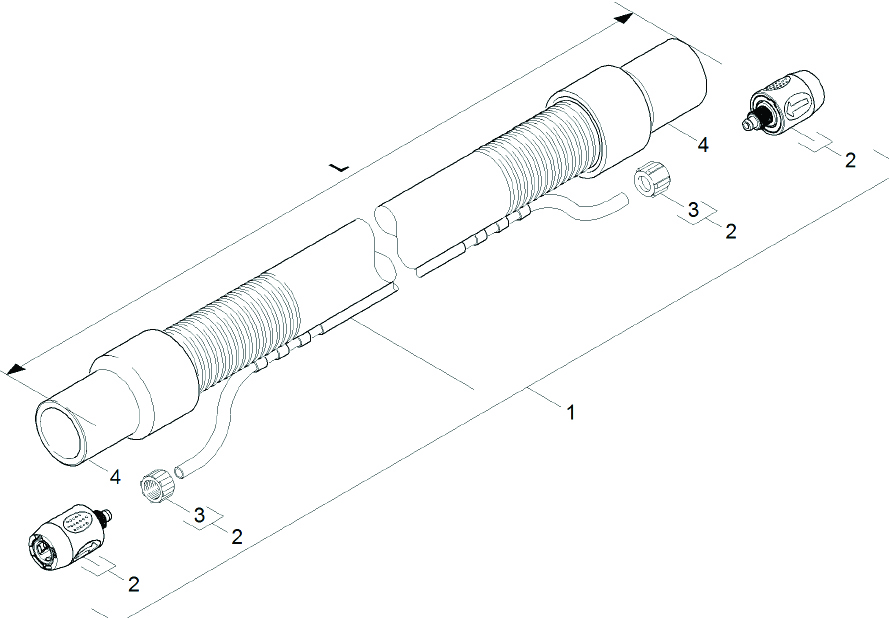

Suction Hose |
Call to Order |
| 280 |
63887670 |
Hose Clip |
Buy Now |
| 310 |
50019870 |
Plate Bracket |
Call to Order |
| 360 |
62730430 |
Sealing Tape |
Call to Order |
B 60 W BP Tank Complete 2
Karcher B 60 W BP Tank Complete 2
| Reference # |
Part # |
Description |
Add to Cart |
| 40 |
50354330 |
Adapter |
Call to Order |
| 90 |
73031070 |
Screw |
Buy Now |
| 110 |
63919130 |
Elbow Nipple |
Buy Now |
| 120 |
50355220 |
Sleeve |
Buy Now |
| 130 |
63033150 |
Screw |
Buy Now |
| 170 |
40353940 |
Ball Valve Complete |
Call to Order |
| 210 |
50356080 |
Wire Protecting Sleeve |
Buy Now |
| 220 |
50356540 |
Silicon Hose Level Indicator |
Call to Order |
| 230 |
60350720 |
Sphere Level Indicator |
Buy Now |
| 340 |
62730900 |
Sealing Tape |
Call to Order |
BD B 60 W BP Tank Complete 3
Karcher B 60 W BP Tank Complete 3
| Reference # |
Part # |
Description |
Add to Cart |
| 320 |
40353700 |

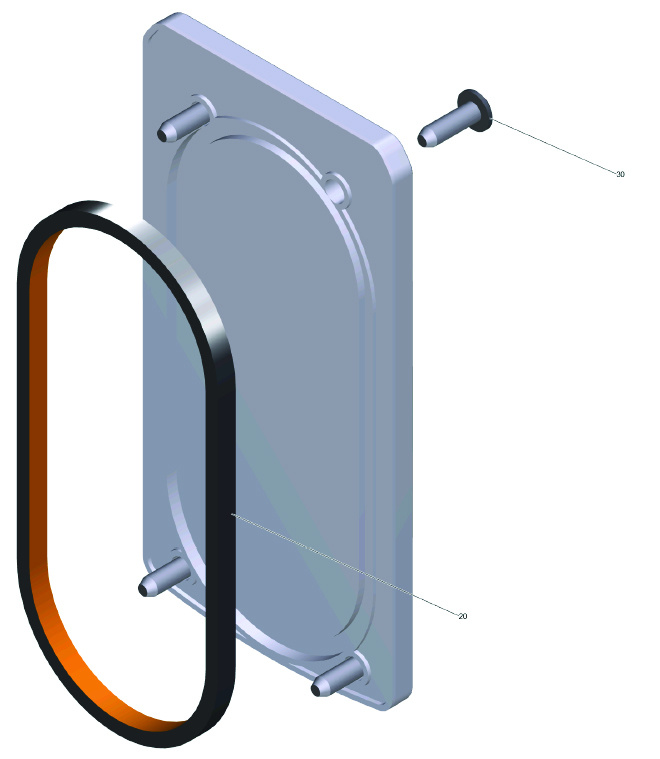

Screen Filling System |
Buy Now |

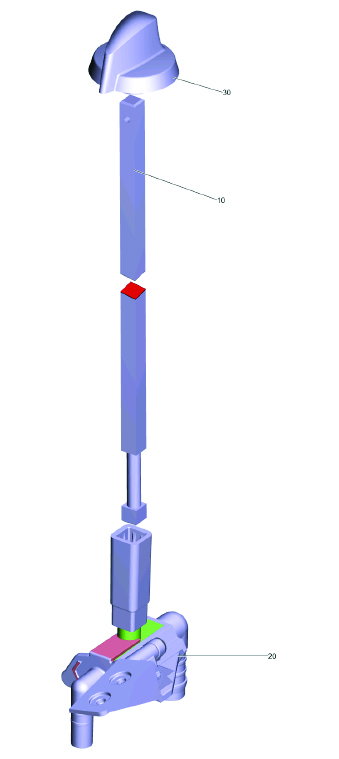

B 60 W BP Ball Valve Complete
Karcher B 60 W BP Ball Valve Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50356230 |
Bar |
Buy Now |
| 20 |
40354260 |
Bar Valve Complete Replacement |
Buy Now |
| 30 |
50354040 |
Handle |
Buy Now |

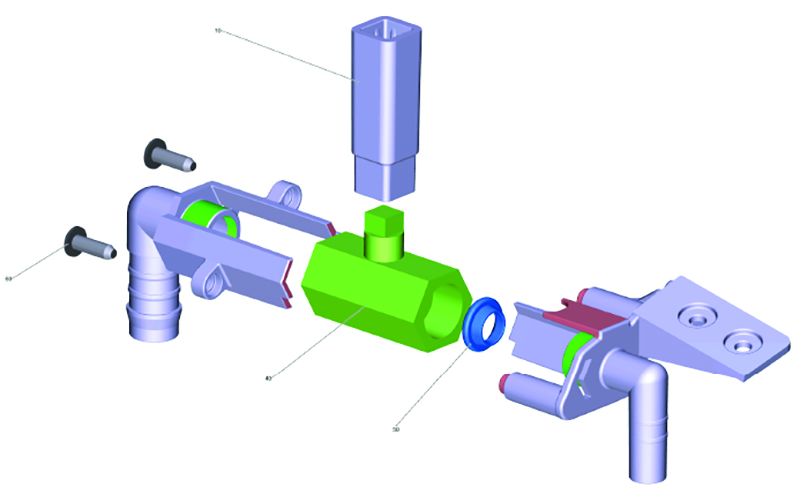

B 60 W BP Ball Valve Complete Replacement
Karcher B 60 W BP Ball Valve Complete Replacement
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50354590 |
Coupler Piece Ball Valve |
Buy Now |
| 40 |
64135860 |
Ball Valve Without Handhold |
Buy Now |
| 50 |
50357700 |
Seal Ball Valve |
Buy Now |
| 60 |
73031070 |
Screw |
Buy Now |

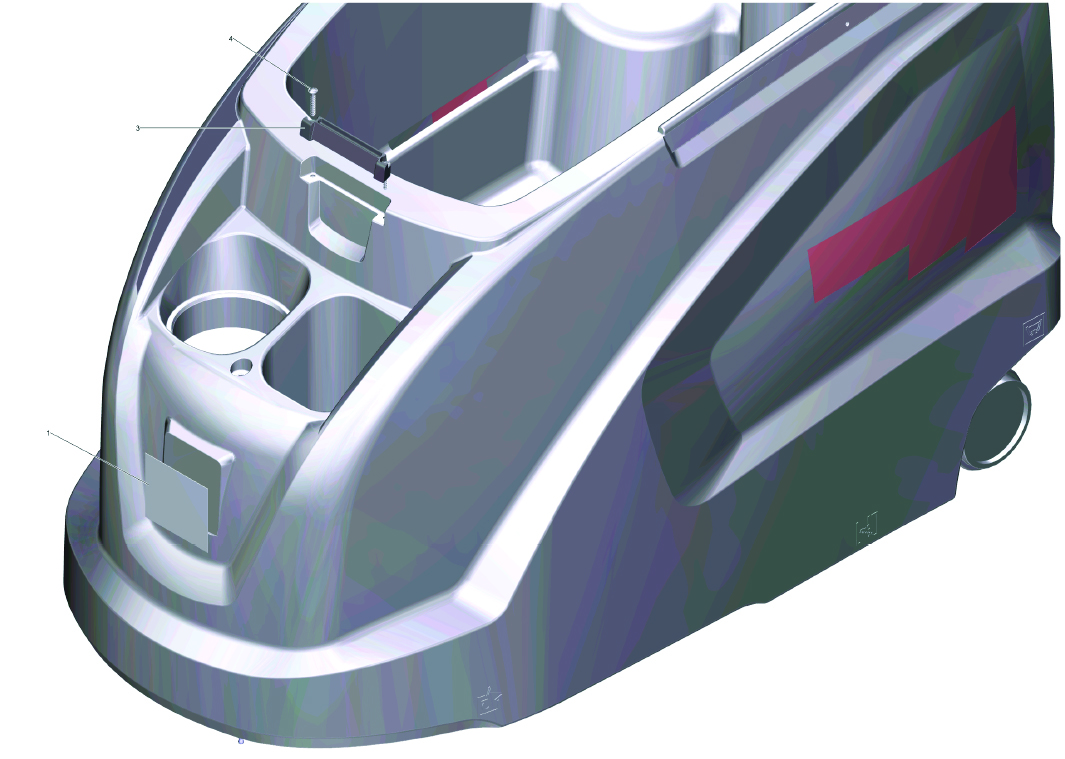

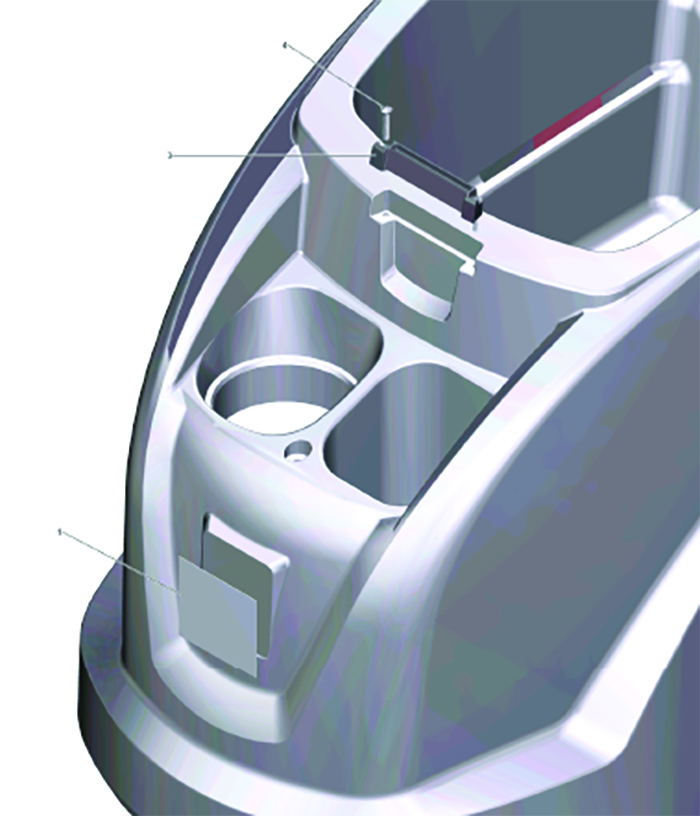

B 60 W BP Tank Replacement
Karcher B 60 W BP Tank Replacement
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
53940810 |
Label Signet Gel |
Buy Now |
| 3 |
50354820 |
Add-On Part Tank Cover |
Buy Now |
| 4 |
73030860 |
Screw |
Buy Now |

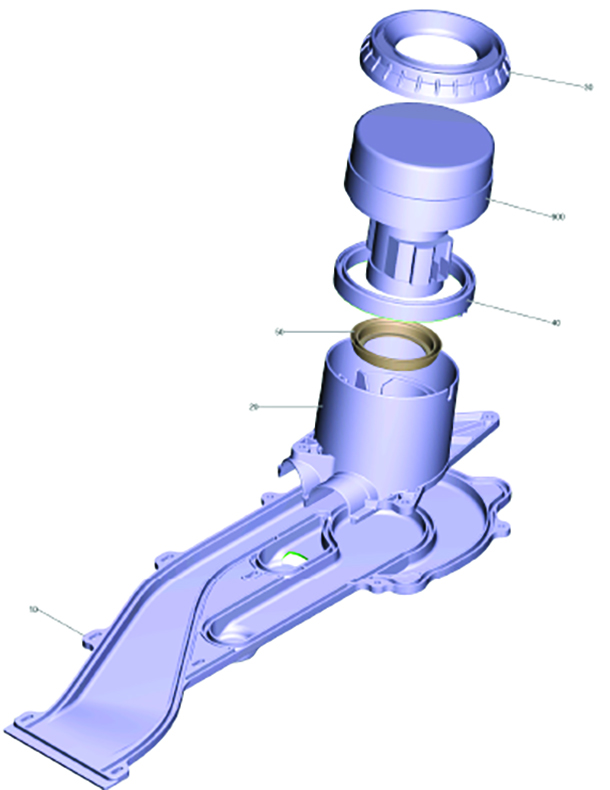

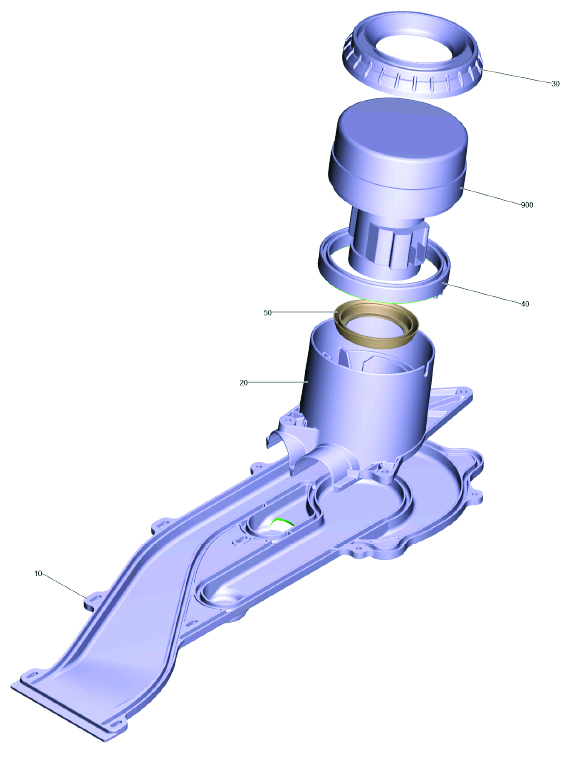

B 60 W BP Vacuum Motor Enclosure Complete
Karcher B 60 W BP Vacuum Motor Enclosure Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50340340 |
Air Circulation Turbine Above Foamed |
Buy Now |
| 20 |
50340320 |
Air Curculation Turbine Bottom |
Buy Now |
| 30 |
50353330 |
Bearing Vacuum Motor |
Buy Now |
| 40 |
50353320 |
Joint Ring Turbine |
Buy Now |
| 50 |
53633950 |
Seal |
Buy Now |
| 900 |
40350060 |
Vacuum Motor Replacement |
Buy Now |
| 910 |
40340090 |
Air Circulation Turbine Replacement |
Buy Now |
B 60 W BP Drain Hose
Karcher B 60 W BP Drain Hose
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50362490 |
Cover Plate Drain Hose |
Buy Now |
B 60 W BP Screen Filling System
Karcher B 60 W BP Screen Filling System
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50354180 |
Seal Fixing Plate |
Buy Now |
| 30 |
73031070 |
Screw |
Buy Now |

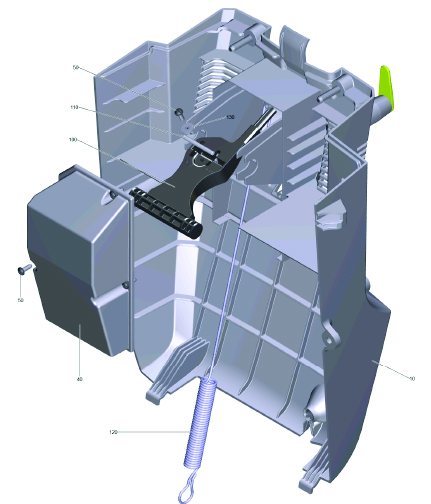

B 60 W BP Cover Cap Rear 1
Karcher B 60 W BP Cover Cap Rear 1
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50355840 |
Covering Cap Electronics |
Buy Now |
| 40 |
50354460 |
Covering Cap Rear |
Buy Now |
| 50 |
73031070 |
Screw |
Buy Now |
| 100 |
50354450 |
Lever Suction Bar |
Buy Now |
| 110 |
50354530 |
Axle Lever Suction Bar |
Buy Now |
| 120 |
50354230 |
Extension Spring |
Buy Now |
| 130 |
73122820 |
Washer |
Buy Now |
B 60 W BP Cover Cap Rear 2
Karcher B 60 W BP Cover Cap Rear 2
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50446610 |
Catch for Cable |
Buy Now |
| 30 |
63033150 |
Screw |
Buy Now |
| 60 |
40356120 |
Set Handhold Adjustment |
Buy Now |
| 140 |
53808890 |
Warning Sign |
Call to Order |

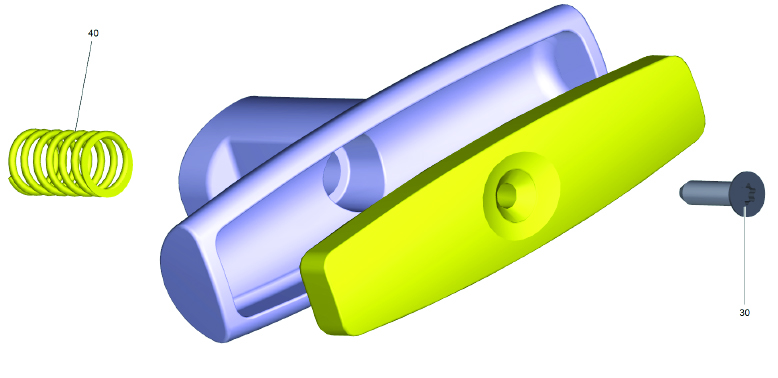

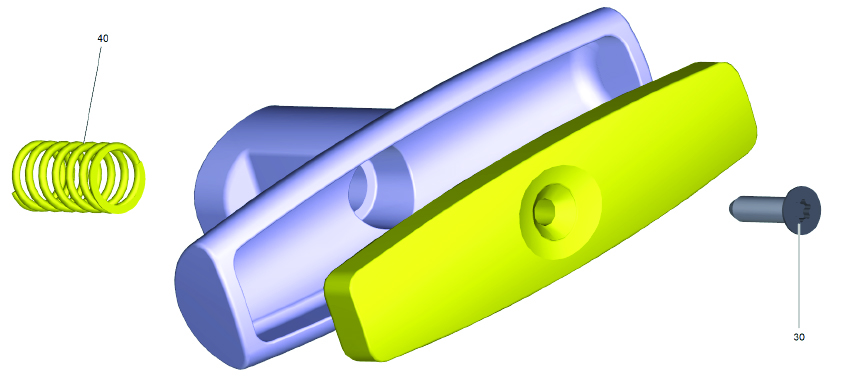

B 60 W BP Set Handhold Adjustment
Karcher B 60 W BP Set Handhold Adjustment
| Reference # |
Part # |
Description |
Add to Cart |
| 30 |
73031280 |
Countersunk Screw |
Call to Order |
| 40 |
53324810 |
Helical Spring |
Call to Order |
B 60 W BP Control Panel
Karcher B 60 W BP Control Panel
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40351340 |
Housing Control Panel Replacement |
Buy Now |
| 10 |
50352190 |
Housing Bottom Part Control Panel Complete |
Buy Now |
| 20 |
- |
Covering Cap Control Panel Complete |
Call to Order |
| 30 |
50353440 |
Key Yellow |
Buy Now |
| 40 |
73031080 |
Screw |
Buy Now |
| 50 |
50353480 |
Key Grey |
Buy Now |
| 60 |
40354310 |
Cable Harnes Control Panel Replacement |
Buy Now |
| 80 |
63301110 |
Adapter |
Buy Now |
| 81 |
50351960 |
Plate Stiffener |
Buy Now |
| 90 |
50338290 |
Rubber Stopper Control Panel |
Buy Now |
| 99 |
50353370 |
Key Red |
Buy Now |
| 9000 |
40350640 |
Set Key White |
Buy Now |
| 9000 |
40350760 |
Key White |
Buy Now |
| 9001 |
65742160 |
Ferrite Core |
Call to Order |

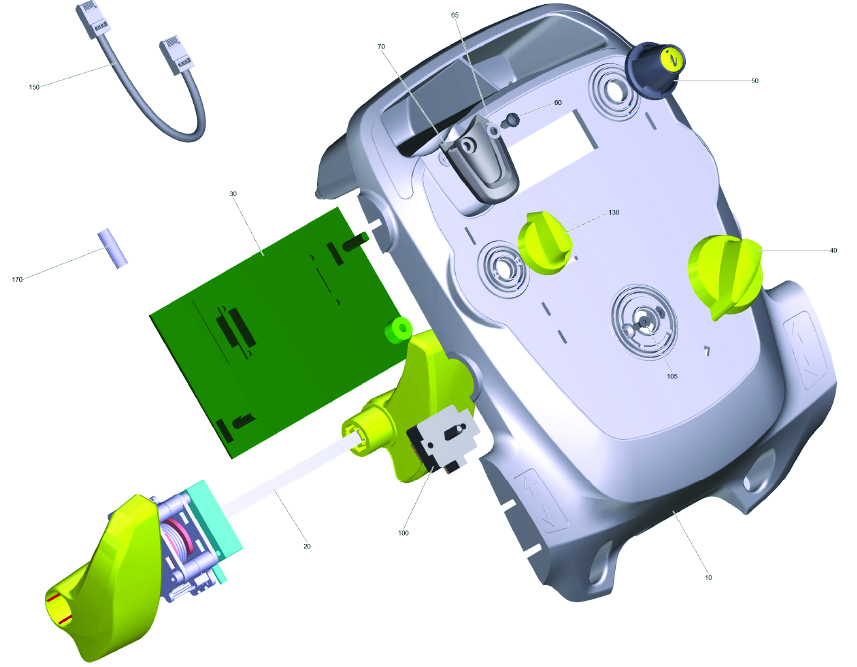

B 60 W BP Covering Cap Control Panel
Karcher B 60 W BP Covering Cap Control Panel
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40351200 |
Covering Cap Control Panel Replacement |
Buy Now |
| 10 |
40351340 |
Housing Control Panel Replacement |
Buy Now |
| 20 |
40350000 |
Tacopraph Complete |
Call to Order |
| 30 |
46833113 |
Circuit Board Replacement |
Buy Now |
| 40 |
40356080 |
Handhold Operational Concept Complete |
Buy Now |
| 50 |
53217500 |
Handhold Info Panel |
Buy Now |
| 60 |
73032740 |
Screw |
Buy Now |
| 65 |
73120520 |
Washer |
Buy Now |
| 70 |
50353430 |
Guide Key |
Buy Now |
| 100 |
40354150 |
Switch Program Selection Replacement |
Buy Now |
| 105 |
73050360 |
Countersunk Screw |
Buy Now |
| 130 |
50354370 |
Rotary Controller |
Buy Now |
| 150 |
66499330 |
Cable Patch |
Buy Now |
| 170 |
63889580 |
Hose |
Buy Now |

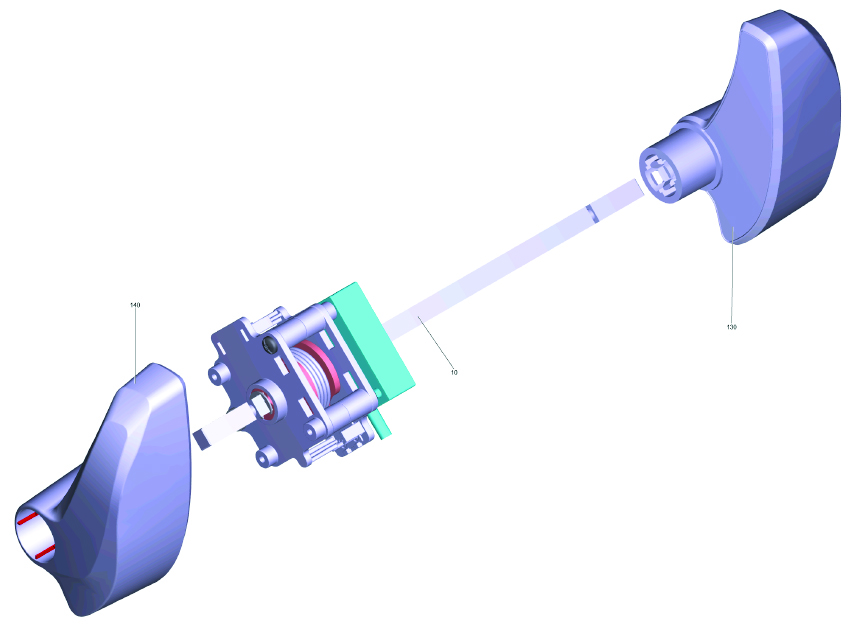

B 60 W BP Tachopraph Complete
Karcher B 60 W BP Tachopraph Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40350020 |
Tachopraph Set |
Buy Now |
| 130 |
40354950 |
Tachopraph Right Complete |
Buy Now |
| 140 |
40354960 |
Tachopraph Left Complete |
Buy Now |

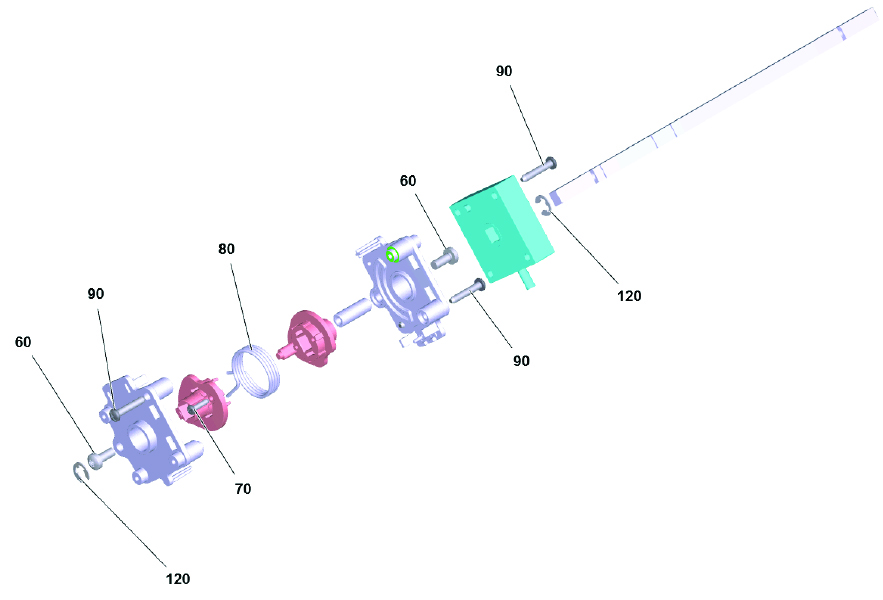

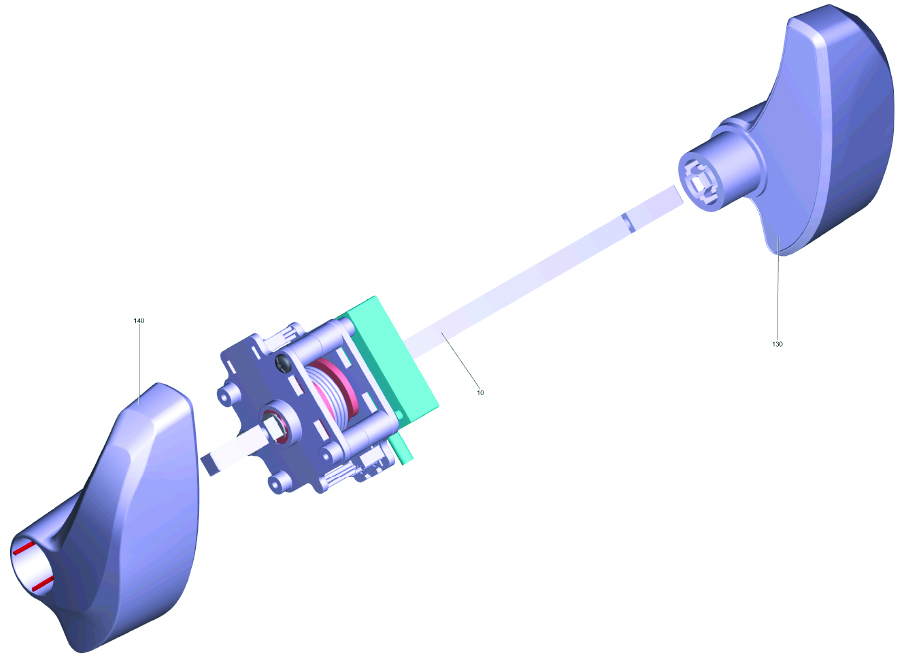

B 60 W BP Tachopraph Set
Karcher B 60 W BP Tachopraph Set
| Reference # |
Part # |
Description |
Add to Cart |
| 60 |
73063940 |
Screw |
Call to Order |
| 70 |
63035570 |
Screw |
Buy Now |
| 80 |
63304410 |
Torsion Spring Tachopraph |
Buy Now |
| 90 |
73030960 |
Screw |
Call to Order |
| 120 |
73432010 |
Lock Washer |
Buy Now |

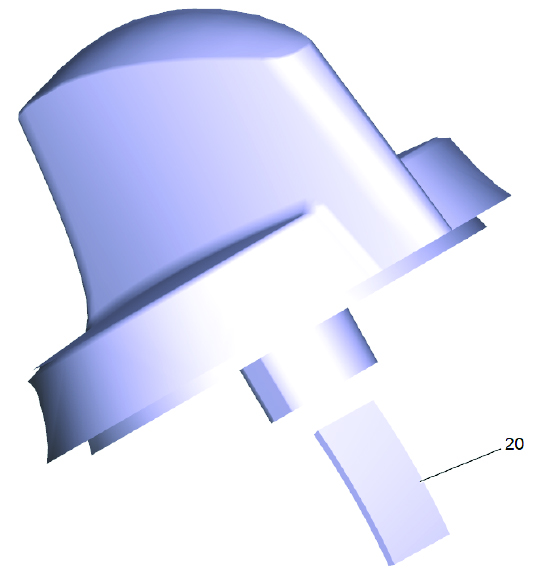

B 60 W BP Handhold Operational Concept Complete
Karcher B 60 W BP Handhold Operational Concept Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
63130140 |
Spring Element |
Buy Now |

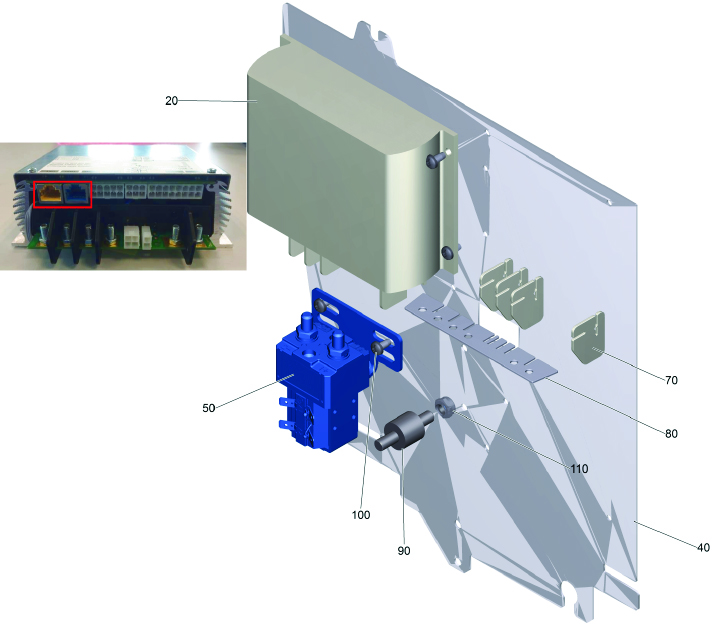

B 60 W BP Electric Equipment 1
Karcher B 60 W BP Electric Equipment 1
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
48229400 |
Cable Harness |
Buy Now |
| 20 |
46831860 |
Electronics Control System Replacement |
Buy Now |
| 40 |
50361560 |
Plate Electronics |
Call to Order |
| 50 |
66330440 |
Relay |
Buy Now |
| 70 |
50353590 |
Moulded Part Plate Electronics |
Call to Order |
| 80 |
50353620 |
Moulded Part Plate Electronics |
Call to Order |
| 90 |
66520330 |
Isolator |
Buy Now |
| 100 |
73030370 |
Screw |
Buy Now |
| 110 |
73114270 |
Hexagon Nut |
Call to Order |
| 120 |
66835920 |
Connecting Cable Loader |
Buy Now |
| 9010 |
66455540 |
Connecting Cable Control System |
Buy Now |
| 9020 |
46300100 |
Cable Micro Switch Replacement |
Buy Now |
B 60 W BP Electric Equipment 2
Karcher B 60 W BP Electric Equipment 2
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
48229400 |
Cable Harness |
Buy Now |
| 20 |
46831860 |
Electronics Control System Replacement |
Buy Now |
| 40 |
50356260 |
Plate Electronics |
Call to Order |
| 50 |
66333890 |
Relay |
Buy Now |
| 70 |
50353590 |
Moulded Part Plate Electronics |
Call to Order |
| 80 |
50353620 |
Moulded Part Plate Electronics |
Call to Order |
| 90 |
66520330 |
Isolator |
Buy Now |
| 100 |
73030370 |
Screw |
Buy Now |
| 110 |
73114270 |
Hexagon Nut |
Buy Now |
| 120 |
66835920 |
Connecting Cable Loader |
Buy Now |
| 9010 |
66455540 |
Connecting Cable Control System Battery Charger |
Buy Now |
| 9020 |
46300100 |
Cable Micro Switch Replacement |
Buy Now |
B 60 W BP Gear Complete
Karcher B 60 W BP Gear Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40354870 |
Wheel Drive Motor Replacement |
Buy Now |
| 20 |
63033150 |
Screw |
Buy Now |
| 30 |
73430070 |
Locking Ring |
Buy Now |
| 40 |
44350000 |
Wheel Complete |
Buy Now |
| 50 |
73180310 |
Parallel Key |
Call to Order |
| 50 |
73181110 |
Parallel Key |
Call to Order |
| 60 |
73122680 |
Washer |
Buy Now |
| 70 |
73062180 |
Cylinder Head Screw |
Buy Now |
| 80 |
51113160 |
Spacer Sleeve Wheel Drive Motor |
Buy Now |
B 60 W BP Pole Binder
Karcher B 60 W BP Pole Binder
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
66443480 |
Nut with Flange |
Buy Now |
| 2 |
66443600 |
Fuse |
Buy Now |
| 4 |
53961540 |
Covering Cap Battery Terminal |
Call to Order |
B 60 W BP Set Universal Hook
Karcher B 60 W BP Set Universal Hook
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50373600 |
Hook Puzzi Home Base |
Buy Now |
| 20 |
50354880 |
Adapter Homebase |
Buy Now |
BD B 60 W BP Add On Spray Kit 1
Karcher B 60 W BP Add On Spray Kit 1
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
41300330 |
Floor Tool Complete |
Call to Order |
| 20 |
40250040 |
Suction Tobe Complete |
Buy Now |
| 30 |
41300000 |
Handhold Complete |
Buy Now |
| 40 |
50354880 |
Adatper Homebase |
Buy Now |
| 50 |
69800810 |
Holder Broom |
Call to Order |
| 60 |
- |
Suction Hose |
Call to Order |
B 60 W BP Add On Spray Kit 2
Karcher B 60 W BP Add On Spray Kit 2
| Reference # |
Part # |
Description |
Add to Cart |
| 65 |
54530550 |
Connecting Sleeve |
Call to Order |
| 70 |
50356550 |
Plate Mop Bracket |
Buy Now |
| 71 |
73031070 |
Screw |
Buy Now |
| 75 |
50356560 |
Retaining Bracket Mop |
Buy Now |
| 210 |
63733270 |
Clamp |
Call to Order |
B 60 W BP Add On Spray Kit 3
Karcher B 60 W BP Add On Spray Kit 3
| Reference # |
Part # |
Description |
Add to Cart |
| 80 |
45400323 |
Pump Fresh Water |
Call to Order |
| 81 |
73062080 |
Screw |
Call to Order |
| 82 |
66832310 |
Cable Pump |
Call to Order |
| 90 |
63885450 |
Hose Clip |
Buy Now |
| 100 |
63883970 |
T-Hose Nozzle |
Call to Order |
| 110 |
64132130 |
Ball Valve |
Call to Order |
| 111 |
73061970 |
Screw |
Call to Order |
| 120 |
50359000 |
Coupler Square |
Call to Order |
| 130 |
63952570 |
Double Nipple |
Call to Order |
| 140 |
73872850 |
Sleeve |
Call to Order |
| 150 |
63867370 |
Angle |
Call to Order |
| 160 |
54092930 |
Nipple |
Call to Order |
| 170 |
63624980 |
O-Ring Seal |
Call to Order |
| 180 |
63892570 |
Hose Nozzle |
Call to Order |
| 190 |
63903240 |
Hose |
Buy Now |
| 200 |
63908920 |
Spiral Hose |
Buy Now |
B 60 W BP Floor Tool Complete
Karcher B 60 W BP Floor Tool Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 3 |
47623100 |
Hard Surface Adapter |
Call to Order |
| 4 |
63624720 |
O-Ring Seal |
Call to Order |
| 5 |
56670000 |
Nozzle Holder |
Call to Order |
| 6 |
63621130 |
O-Ring Seal |
Call to Order |
| 7 |
64151650 |
Nozzle Mouthpiece |
Buy Now |
| 8 |
53100430 |
Nut |
Buy Now |
| 9 |
57770030 |
Carpet Nozzle Covering Cap |
Call to Order |
| 10 |
73031170 |
Screw |
Call to Order |
| 9000 |
46455950 |
Set of Gaskets |
Call to Order |

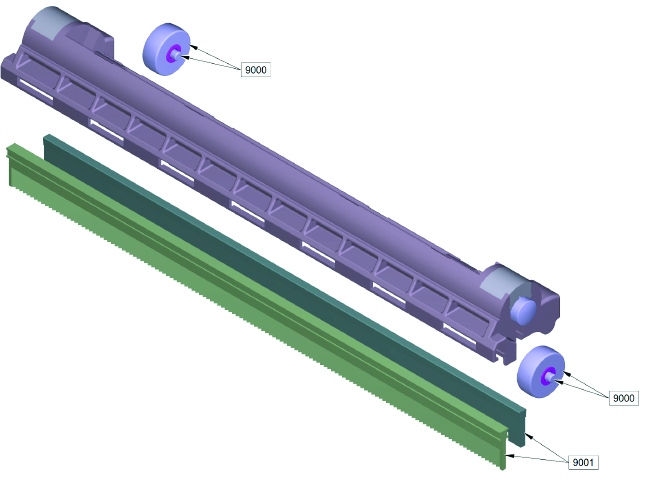

B 60 W BP Hard Surface Adapter
Karcher B 60 W BP Hard Surface Adapter
| Reference # |
Part # |
Description |
Add to Cart |
| 9000 |
45153420 |
Roller Complete with Axle |
Buy Now |
| 9001 |
40700900 |
Set Rubber Lip Brush Strip |
Call to Order |

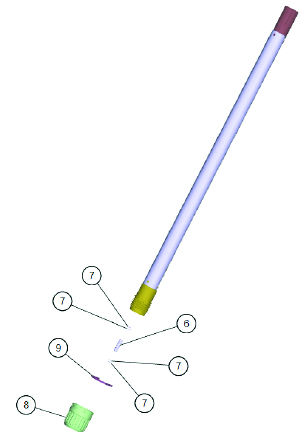

B 60 W BP Suction Tube Complete
Karcher B 60 W BP Suction Tube Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 6 |
51270210 |
Extension |
Buy Now |
| 7 |
63635740 |
O-Ring Seal |
Call to Order |
| 8 |
53100000 |
Union Nut |
Call to Order |
| 9 |
50310290 |
Tension Ring |
Call to Order |
B 60 W BP Handhold Complete
Karcher B 60 W BP Handhold Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 2 |
45800020 |
Valve Complete |
Call to Order |
| 3 |
63624020 |
O-Ring Seal |
Call to Order |
| 4 |
54530000 |
Connecting Sleeve |
Call to Order |
| 5 |
50071620 |
Plate |
Call to Order |
| 6 |
53240000 |
Pushbutton |
Call to Order |
| 7 |
77779990 |
Stockpiling Discontinued |
Call to Order |
| 8 |
53840020 |
Inspection Glass |
Call to Order |
| 11 |
73031170 |
Screw |
Call to Order |
| 12 |
53100000 |
Union Nut |
Call to Order |
| 13 |
50310290 |
Tension Ring |
Call to Order |
| 14 |
73031160 |
Screw |
Call to Order |
| 15 |
63624720 |
O-Ring Seal |
Call to Order |
| 9000 |
43210380 |
Handhold Few |
Call to Orde |

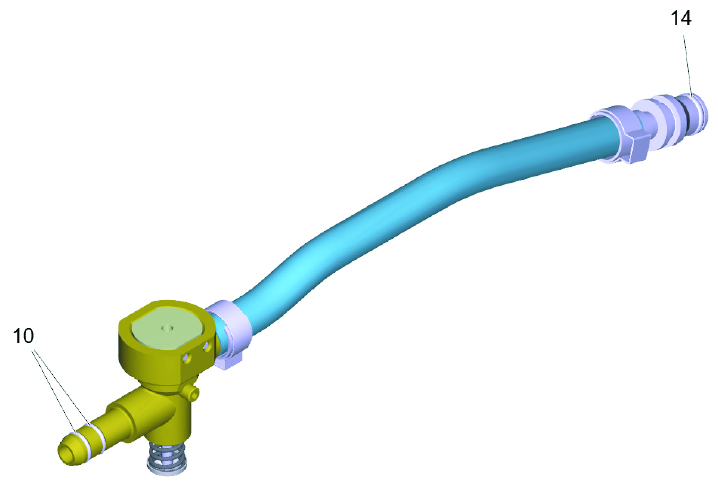

B 60 W BP Valve Complete
Karcher B 60 W BP Valve Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
63635740 |
O-Ring Seal |
Call to Order |
| 14 |
63629230 |
O-Ring Seal |
Call to Order |
B 60 W BP Suction Hose
Karcher B 60 W BP Suction Hose
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
63922230 |
Suction Hose |
Call to Order |
| 1 |
63922240 |
Suction Hose |
Call to Order |
| 2 |
44460190 |
Hose Coupling |
Buy Now |
| 3 |
63883810 |
Union Nut |
Buy Now |
| 4 |
69067130 |
Sleeve |
Call to Order |
B 60 W BP Mounting Battery Kit 1
Karcher B 60 W BP Mounting Battery Kit 1
| 10 |
66519030 |
Cable Battery |
Buy Now |
| 20 |
56420210 |
Distance Holder Battery |
Buy Now |
B 60 W BP Mounting Battery Kit 2
Karcher B 60 W BP Mounting Battery Kit 2
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
66496020 |
Cable Battery |
Call to Order |
| 20 |
56420280 |
Distance Holder Battery |
Call to Order |
| 30 |
56420210 |
Distance Holder Battery |
Buy Now |
B 60 W BP Machinery
Karcher B 60 W BP Machinery
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40353990 |
Frame Complete |
Call to Order |
| 20 |
40354000 |
Tank Complete |
Call to Order |
| 30 |
40353980 |
Covering Cap Rear Complete |
Call to Order |
| 40 |
50354880 |
Adapter Homebase |
Buy Now |
| 50 |
69800770 |
Double Hook |
Buy Now |
| 60 |
50429450 |
Holder |
Call to Order |
| 80 |
54433750 |
Hose Stem |
Buy Now |
| 90 |
63621700 |
O-Ring Seal |
Buy Now |
| 100 |
56731890 |
Splash Guard Mat |
Buy Now |
| 110 |
40351890 |
Battery Charger |
Buy Now |
| 120 |
73062360 |
Screw |
Call to Order |
| 130 |
73120010 |
Washer |
Call to Order |
| 200 |
40354930 |
Power Cable Replacement |
Buy Now |
| 200 |
40354940 |
Power Cable Replacement |
Buy Now |
B 60 W BP Frame Complete 1
Karcher B 60 W BP Frame Complete 1
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50355660 |
Frame |
Buy Now |
| 20 |
50355760 |
Bearing Sleeve |
Call to Order |
| 30 |
63033150 |
Screw |
Buy Now |
| 40 |
40355760 |
Conscription Reinforced Complete |
Call to Order |
| 70 |
50356380 |
Retaining Plate |
Buy Now |
| 80 |
50356530 |
Handhold Coating |
Call to Order |
| 90 |
50356300 |
Bolt |
Buy Now |
| 100 |
50355810 |
Limit Plate Lever |
Buy Now |
| 110 |
63304580 |
Extension Spring |
Buy Now |
| 120 |
50356400 |
Guide Plate |
Buy Now |
| 130 |
50355820 |
Locking Plate |
Call to Order |
| 140 |
50609980 |
Housing Micro Switch |
Buy Now |
| 145 |
46300100 |
Cable Micro Switch Replacement |
Buy Now |
| 150 |
66303310 |
Micro Switch |
Buy Now |
| 160 |
- |
Suction Bar Lifting Complete |
Call to Order |
| 190 |
50355770 |
Connecting Rod |
Buy Now |
| 200 |
73120050 |
Washer |
Buy Now |
| 210 |
73433020 |
Lock Washer |
Buy Now |
| 220 |
50357120 |
Bolt with Collar |
Buy Now |
| 240 |
53329650 |
Pressure Spring |
Buy Now |
| 250 |
53162320 |
Bolt |
Call to Order |
| 260 |
50355800 |
Hand Lever |
Call to Order |
| 270 |
63738770 |
Hose Clip |
Buy Now |
| 292 |
50019870 |
Plate Bracket |
Call to Order |
| 293 |
97630550 |
Strap Suction Bar |
Buy Now |
B 60 W BP Frame Complete 2
Karcher B 60 W BP Frame Complete 2
| Reference # |
Part # |
Description |
Add to Cart |
| 50 |
50353610 |
Sheet Metal Component |
Call to Order |
| 60 |
73031070 |
Screw |
Buy Now |
| 170 |
64358090 |
Castor |
Buy Now |
| 180 |
63033150 |
Screw |
Buy Now |
| 230 |
50356520 |
Wire Spring |
Buy Now |
B 60 W BP Conscription
Karcher B 60 W BP Conscription
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50359940 |
Groove Stone |
Buy Now |
| 30 |
73115120 |
Hexagon Nut |
Call to Order |
| 40 |
73122600 |
Washer |
Buy Now |
| 50 |
40355850 |
Bolt Complete |
Call to Order |
| 60 |
50355730 |
Suspension Brush-Head |
Buy Now |
| 80 |
73044170 |
Hexagonal Head Screw |
Buy Now |
| 90 |
50355750 |
Lever Brush-Head |
Call to Order |
| 100 |
73061330 |
Screw |
Call to Order |
| 101 |
73431070 |
Shim Ring |
Call to Order |
| 110 |
50353740 |
Pedal Brush-Head |
Buy Now |
| 120 |
73114320 |
Hexagon Nut |
Call to Order |
| 130 |
73060410 |
Cylinder Head Screw |
Call to Order |
B 60 W BP Bolt
Karcher B 60 W BP Bolt
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
53160220 |
Bolt Worked |
Call to Order |
| 20 |
60350470 |
Spring Clip Double |
Buy Now |
| 30 |
73121530 |
Washer |
Buy Now |
B 60 W BP Suction Bar Lifting Complete
Karcher B 60 W BP Suction Bar Lifting Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50050050 |
Fixing Plate Suction Bar |
Buy Now |
| 20 |
50352920 |
Adjustig Knob |
Buy Now |
| 30 |
50352930 |
Covering Cap |
Buy Now |
| 40 |
73031090 |
Screw |
Buy Now |
| 50 |
40371373 |
Holder Suction Bar |
Buy Now |
| 60 |
50361280 |
Rocker Suction Bar |
Call to Order |
| 70 |
50353820 |
Retaining Bracket |
Buy Now |
| 80 |
63060030 |
Screw |
Buy Now |
| 90 |
73122820 |
Washer |
Buy Now |
B 60 W BP Holder Suction Bar
Karcher B 60 W BP Holder Suction Bar
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50375790 |
Sphere Suction Bar Suspension |
Call to Order |
| 30 |
73114310 |
Hexagon Nut |
Buy Now |
| 40 |
73120520 |
Washer |
Buy Now |
| 50 |
73062150 |
Screw |
Call to Order |
| 60 |
73122820 |
Washer |
Buy Now |
B 60 W BP Tank Complete 1
Karcher B 60 W BP Tank Complete 1
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50353410 |
Cover Fresh Water Tank Discharge |
Buy Now |
| 20 |
63951633 |
Angle Bushing |
Buy Now |
| 30 |
63100040 |
Hexagon Nut |
Buy Now |
| 50 |
55152660 |
Joint Ring Fluffing Strainer |
Buy Now |
| 60 |
50369320 |
Tank Bulk Waste Yellow |
Call to Order |
| 70 |
50340990 |
Cover Fresh Water Metering |
Call to Order |
| 90 |
73031070 |
Screw |
Buy Now |
| 100 |
50353580 |
Mounting Rope |
Buy Now |
| 130 |
63033150 |
Screw |
Buy Now |
| 140 |
50353420 |
Hose Connection |
Buy Now |
| 150 |
50354350 |
Tank Locking Part |
Buy Now |
| 160 |
50353760 |
Filter Discharge |
Buy Now |
| 180 |
40354630 |
Tank Replacement |
Buy Now |
| 200 |
40353380 |
Vacuum Motor Enclosure |
Call to Order |
| 240 |
40352850 |
Drain Hose |
Buy Now |
| 250 |
63924710 |
Suction Hose |
Call to Order |
| 260 |
55152530 |
Seal |
Buy Now |
| 280 |
63887670 |
Hose Clip |
Buy Now |
| 310 |
50019870 |
Plate Bracket |
Call to Order |
| 360 |
62730430 |
Sealing Tape |
Call to Order |
B 60 W BP Tank Complete 2
Karcher B 60 W BP Tank Complete 2
| Reference # |
Part # |
Description |
Add to Cart |
| 40 |
50354330 |
Adapter |
Call to Order |
| 90 |
73031070 |
Screw |
Buy Now |
| 110 |
63919130 |
Elbow Nipple |
Buy Now |
| 120 |
50355220 |
Sleeve |
Buy Now |
| 130 |
63033150 |
Screw |
Buy Now |
| 170 |
40353940 |
Ball Valve Complete |
Call to Order |
| 210 |
50356080 |
Wire Protecting Sleeve |
Buy Now |
| 220 |
50356540 |
Silicon Hose Level Indicator |
Call to Order |
| 230 |
60350720 |
Sphere Level Indicator |
Buy Now |
| 340 |
62730900 |
Sealing Tape |
Call to Order |
| 350 |
62730900 |
Sealing Tape |
Call to Order |
B 60 W BP Tank Complete 3
Karcher B 60 W BP Tank Complete 3
| Reference # |
Part # |
Description |
Add to Cart |
| 320 |
40353700 |
Screen Filling System |
Buy Now |
B 60 W BP Ball Valve Replacement
Karcher B 60 W BP Ball Valve Replacement
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50354590 |
Coupler Piece Ball Valve |
Buy Now |
| 40 |
64135860 |
Ball Valve without Handhold |
Buy Now |
| 50 |
50357700 |
Seal Ball Valve |
Buy Now |
| 60 |
73031070 |
Screw |
Buy Now |
B 60 W BP Tank Replacement
Karcher B 60 W BP Tank Replacement
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
53940810 |
Label Signet |
Buy Now |
| 3 |
50354820 |
Add-On Part Tank Cover |
Buy Now |
| 4 |
73030860 |
Screw |
Buy Now |
B 60 W BP Vac Motor Enclosure
Karcher B 60 W BP Vac Motor Enclosure
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50340340 |
Air Circulation Turbine Above |
Buy Now |
| 20 |
50340320 |
Air Circulation Turbine Bottom |
Buy Now |
| 30 |
50353330 |
Bearing Vacuum Motor |
Buy Now |
| 40 |
50353320 |
Joint Ring Turbine |
Buy Now |
| 50 |
53633950 |
Seal |
Buy Now |
| 900 |
40350060 |
Vacuum Motor Replacement |
Buy Now |
| 910 |
40340090 |
Air Circulation Turbine Replacement |
Buy Now |
B 60 W BP Drain Hose With Cover
Karcher B 60 W BP Drain Hose With Cover
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50362490 |
Cover Plate Drain Hose |
Buy Now |
B 60 W BP Screen Filling System
Karcher B 60 W BP Screen Filling System
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50354180 |
Seal Fixing Plate |
Buy Now |
| 30 |
73031070 |
Screw |
Buy Now |
B 60 W BP Covering Cap Rear 1
Karcher B 60 W BP Covering Cap Rear 1
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
50355840 |
Covering Cap Electronics |
Buy Now |
| 40 |
50354460 |
Covering Cap Rear |
Buy Now |
| 50 |
73031070 |
Screw |
Buy Now |
| 100 |
50354450 |
Lever Suction Bar |
Buy Now |
| 110 |
50354530 |
Axle Lever Suction Bar |
Buy Now |
| 120 |
50354230 |
Extension Spring |
Buy Now |
| 130 |
73122820 |
Washer |
Buy Now |
B 60 W BP Covering Cap Rear 2
Karcher B 60 W BP Covering Cap Rear 2
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50446610 |
Catch for Cable |
Buy Now |
| 30 |
63033150 |
Screw |
Buy Now |
| 60 |
40356120 |
Set Handhold Adjustment |
Buy Now |
| 140 |
53808890 |
Warning Sign |
Call to Order |
B 60 W BP Set Handhold Adjustment
Karcher B 60 W BP Set Handhold Adjustment
| Reference # |
Part # |
Description |
Add to Cart |
| 30 |
73031280 |
Countersunk Screw |
Call to Order |
| 40 |
53324810 |
Helical Spring |
Call to Order |
B 60 W BP Control Panel Complete
Karcher B 60 W BP Control Panel Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40351340 |
Housing |
Buy Now |
| 10 |
50352190 |
Housing Bottom |
Buy Now |
| 20 |
- |
Covering Cap |
Call to Order |
| 30 |
50353440 |
Yellow Key |
Buy Now |
| 40 |
73031080 |
Screw |
Buy Now |
| 50 |
50353480 |
Grey Key |
Buy Now |
| 60 |
40354310 |
Cable Harness |
Buy Now |
| 80 |
63301110 |
Adapter |
Buy Now |
| 81 |
50351960 |
Plate Stiffener |
Buy Now |
| 90 |
50338290 |
Rubber Stopper |
Buy Now |
| 99 |
50353370 |
Red Key |
Buy Now |
| 9000 |
40350640 |
White Set Key |
Buy Now |
| 9000 |
40350760 |
White Key |
Buy Now |
| 9001 |
65742160 |
Ferrite Core |
Call to Order |
B 60 W BP Covering Cap Control Panel
Karcher B 60 W BP Covering Cap Control Panel
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40351200 |
Covering Cap Replacement |
Buy Now |
| 10 |
40351340 |
Housing Replacement |
Buy Now |
| 20 |
40350000 |
Tachopraph Complete |
Call to Order |
| 30 |
46833113 |
Circuit Board Replacement |
Buy Now |
| 40 |
40356080 |
Handhold Operational Concept Complete |
Buy Now |
| 50 |
53217500 |
Handhold Info Panel |
Buy Now |
| 60 |
73032740 |
Screw |
Buy Now |
| 65 |
73120520 |
Washer |
Buy Now |
| 70 |
50353430 |
Guide Key |
Buy Now |
| 100 |
40354150 |
Switch Program Selection Replacement |
Buy Now |
| 105 |
73050360 |
Countersunk Screw |
Buy Now |
| 130 |
50354370 |
Rotary Controller |
Buy Now |
| 150 |
66499330 |
Cable Patch |
Buy Now |
| 170 |
63889580 |
Hose |
Buy Now |
B 60 W BP Tachopraph 1
Karcher B 60 W BP Tachopraph 1
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40350020 |
Tachopraph Set |
Buy Now |
| 130 |
40354950 |
Tachopraph Right Complete |
Buy Now |
| 140 |
40354960 |
Tachopraph Left Complete |
Buy Now |
B 60 W BP Tachopraph 2
Karcher B 60 W BP Tachopraph 2
| Reference # |
Part # |
Description |
Add to Cart |
| 60 |
73063940 |
Screw |
Call to Order |
| 70 |
63035570 |
Screw |
Buy Now |
| 80 |
63304410 |
Torsion Spring Tachopraph |
Buy Now |
| 90 |
73030960 |
Screw |
Call to Order |
| 120 |
73432010 |
Lock Washer |
Buy Now |
B 60 W BP Handhold Operational Concept Complete
Karcher B 60 W BP Handhold Operational Concept Complete
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
63130140 |
Spring Element |
Buy Now |
B 60 W BP Pole Binder Single Lateral
Karcher B 60 W BP Pole Binder Single Lateral
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
66443480 |
Nut with Flange |
Buy Now |
| 2 |
66443600 |
Fuse |
Buy Now |
| 4 |
53961540 |
Covering Cap Battery Terminal |
Call to Order |
B 60 W BP Power Brush
Karcher B 60 W BP Power Brush
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
28827260 |
Conversion Kit Retainer Plate Transmission |
Buy Now |
| 1 |
50448660 |
Retainer Plate Transmission |
Buy Now |
| 2 |
73060310 |
Cylinder Head Screw |
Buy Now |
| 3 |
73120260 |
Washer |
Buy Now |
| 4 |
73130030 |
Spring Washer |
Call to Order |
| 5 |
27630320 |
Set Holder-Up Replacement |
Buy Now |
| 6 |
50560100 |
Rocker |
Buy Now |
| 7 |
51006113 |
Driveshaft |
Buy Now |
| 8 |
73180020 |
Parallel Key |
Buy Now |
| 9 |
73430150 |
Locking Ring |
Buy Now |
| 10 |
51163400 |
Bolt Holder-Up |
Buy Now |
| 11 |
73056270 |
Countersunk Screw |
Buy Now |
| 12 |
51163540 |
Bush Transmission |
Buy Now |
| 12 |
51164130 |
Sleeve |
Buy Now |
| 13 |
56254830 |
Belt Pulley 57mm |
Buy Now |
| 13 |
56254943 |
Belt Pulley 54mm |
Call to Order |
| 14 |
63431490 |
Quick-Fastener |
Buy Now |
| 15 |
63484420 |
Ribbed V-Belt |
Buy Now |
| 15 |
63484560 |
Ribbed V-Belt |
Buy Now |
| 16 |
63631580 |
Joint Ring Nilostring |
Buy Now |
| 17 |
50336650 |
Locking Part |
Buy Now |
| 18 |
74011150 |
Ball Bearing |
Buy Now |
| 18 |
74011280 |
Ball Bearing |
Buy Now |
| 19 |
73430170 |
Locking Ring 35x1 |
Buy Now |
| 19 |
73432310 |
Locking Ring 32x1 |
Buy Now |
| 20 |
73030470 |
Screw |
Call to Order |
| 21 |
50336640 |
Locking Part Tension Rod |
Buy Now |
| 22 |
50332410 |
Covering Cap Left |
Buy Now |
| 23 |
73030380 |
Screw |
Buy Now |
| 24 |
50332420 |
Covering Cap Right |
Buy Now |
| 25 |
50334030 |
Cover |
Buy Now |
| 26 |
55152670 |
Deflector Roll |
Buy Now |
| 27 |
53830970 |
Label |
Call to Order |
| 28 |
50615800 |
Brush Housing |
Call to Order |
| 29 |
50750400 |
Tank Refuse |
Buy Now |
| 30 |
51900140 |
Strip Water Distributor |
Buy Now |
| 31 |
46230170 |
Motor Complete Only for Replacement |
Buy Now |
| 31 |
46239200 |
Motor Complete |
Buy Now |
| 32 |
66100260 |
Carbon Brush Set |
Buy Now |
| 32 |
66102390 |
Carbon Brush Set ATAS |
Buy Now |
| 33 |
66100270 |
Blower Wheel Only for Replacement |
Call to Order |
| 33 |
66130250 |
Blower Wheel |
Buy Now |
| 34 |
40710030 |
Set Splash Guard Reinforced |
Buy Now |
| 34 |
40712280 |
Set Splash Guard Onesided |
Buy Now |
| 35 |
40070090 |
Retainer Strip Rubber Lip |
Buy Now |
| 35 |
50448670 |
Retainer Strip Splash Guard |
Buy Now |
| 36 |
50094010 |
Retaining Plate Right Scraper Lip |
Buy Now |
| 37 |
50094020 |
Retaining Plate Left Scraper Lip |
Buy Now |
| 38 |
51163390 |
Threaded Bolt |
Buy Now |
| 39 |
50336660 |
Adjustment Wheel |
Buy Now |
| 40 |
63304070 |
Spring Clip |
Buy Now |
| 41 |
40351870 |
Red Roller Brush |
Buy Now |
| 41 |
69069810 |
White Roller Brush |
Buy Now |
| 41 |
69069820 |
Orange Roller Brush |
Buy Now |
| 41 |
69069830 |
Green Roller Brush |
Buy Now |
| 41 |
69069840 |
Black Roller Brush |
Buy Now |
| 42 |
66460340 |
Set Plug Complete |
Buy Now |
| 43 |
66460330 |
Set Plug Complete |
Buy Now |
| 44 |
73031070 |
Screw |
Buy Now |
| 46 |
26451910 |
Hose Coupling Entry |
Buy Now |
| 48 |
63908920 |
Spiral Hose |
Buy Now |
| 49 |
40401940 |
Holder Power Brush Replacement |
Buy Now |
| 50 |
73031120 |
Screw |
Buy Now |
| 51 |
44812610 |
Holder Pivot Point Complete |
Buy Now |
| 52 |
73120080 |
Washer |
Call to Order |
| 53 |
63130220 |
Spring Clip |
Buy Now |
| 54 |
73430470 |
Lock Washer |
Buy Now |
| 55 |
73433020 |
Lock Washer |
Buy Now |
| 56 |
63885450 |
Hose Clip |
Buy Now |
| 57 |
50101210 |
Plate Suspension |
Buy Now |
| 58 |
50354240 |
Snap-Fit |
Buy Now |
| 59 |
73031100 |
Screw |
Buy Now |
| 60 |
40354720 |
Adapter Set |
Buy Now |
| 61 |
73061840 |
Screw |
Call to Order |
| 62 |
73110650 |
Hexagon Nut |
Buy Now |
| 63 |
53949110 |
Splash Guard Reinforced |
Buy Now |
| 63 |
53964190 |
Splash Guard |
Buy Now |
| 64 |
63030290 |
Screw |
Call to Order |
| 65 |
50134680 |
Safety Split Pin |
Call to Order |
| 66 |
73164710 |
Linch Pin |
Call to Order |

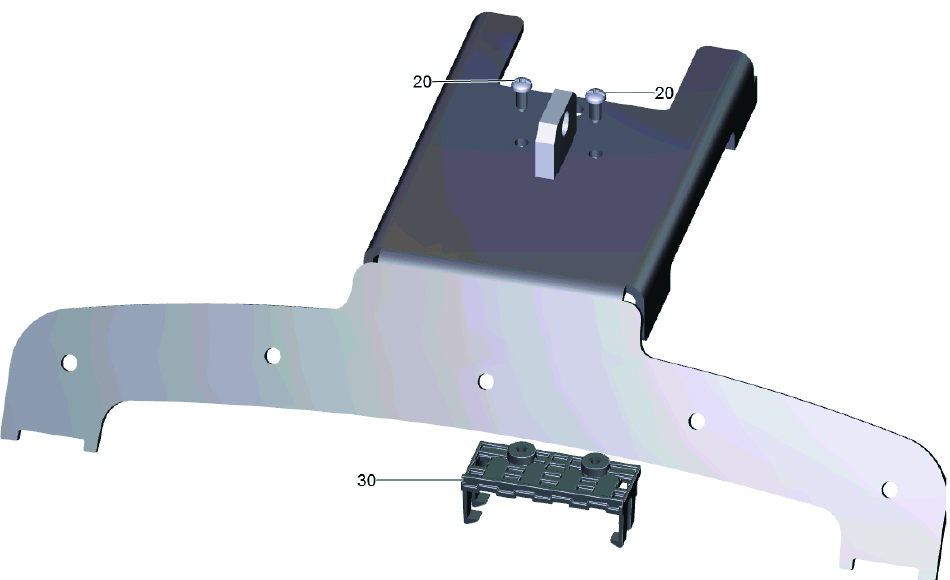

B 60 W BP Holder Power Brush Replacement
Karcher B 60 W BP Holder Power Brush Replacement
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
73032740 |
Screw |
Buy Now |
| 30 |
50340860 |
Holder Plug Power Brush |
Buy Now |
B 60 W BP Roll Pad
Karcher B 60 W BP Roll Pad
| Reference # |
Part # |
Description |
Add to Cart |
| 0 |
47624330 |
Roll Pad BR 65 |
Buy Now |
| 1 |
41150040 |
Washer Closure |
Buy Now |
| 2 |
74010050 |
Ball Bearing |
Buy Now |
| 3 |
51128230 |
Brush Torx |
Call to Order |
| 4 |
50052670 |
Ronde |
Call to Order |
| 5 |
73430370 |
Locking Ring |
Call to Order |
| 6 |
63693890 |
White Pad |
Buy Now |
| 6 |
63694540 |
Yellow Pad |
Call to Order |
| 6 |
63694550 |
Green Pad |
Buy Now |
| 6 |
63694560 |
Red Pad |
Buy Now |
| 6 |
93021510 |
Green Pad Diam. 105mm |
Call to Order |
| 7 |
41140060 |
Microfiber Roll Complete |
Buy Now |
B 60 W BP Suction Bar Curved
Karcher B 60 W BP Suction Bar Curved
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40353110 |
Suction Bar Pre-Assembled |
Call to Order |
| 20 |
50336010 |
Suction Nipple |
Buy Now |
| 30 |
50319900 |
End Piece Left |
Buy Now |
| 30 |
50319910 |
End Piece Right |
Buy Now |
| 70 |
53050080 |
Wing Screw |
Buy Now |
| 80 |
55153460 |
Deflector Roll |
Buy Now |
| 90 |
50942310 |
Sleeve Suction Bar |
Buy Now |
| 100 |
63212430 |
Star Grip Stainless Steel |
Buy Now |
| 140 |
51005590 |
Suction Bar Support Plate |
Buy Now |
| 150 |
73120170 |
Washer |
Buy Now |
| 9000 |
40352810 |
Conversion Kit Support Roller Deep |
Buy Now |
| 9002 |
62732070 |
Rubber Lip Set Oil Resistant |
Buy Now |
| 9002 |
62732290 |
Rubber Lip Set Anti Strip Oil Resistant |
Buy Now |
| 9002 |
62732900 |
Blades for Textured Floors |
Buy Now |
B 60 W BP Suction Bar Pre-Assembled Curved
Karcher B 60 W BP Suction Bar Pre-Assembled Curved
| Reference # |
Part # |
Description |
Add to Cart |
| 20 |
50335780 |
End Piece Inside Left |
Buy Now |
| 30 |
50335790 |
End Piece Inside Right |
Buy Now |
B 60 W BP Conversion Kit Support Roller Deep
Karcher B 60 W BP Conversion Kit Support Roller Deep
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
51016260 |
Housing with Additional Weight |
Buy Now |
| 20 |
64351790 |
Castor for Thread Deflector |
Buy Now |
| 30 |
53325540 |
Pressure Spring |
Buy Now |
| 40 |
63212400 |
Star Grip with Inscription |
Buy Now |
| 50 |
73060680 |
Cylinder Head Screw |
Call to Order |
| 60 |
73113820 |
Cap Nut |
Buy Now |
| 70 |
69965260 |
Serrated Locking Washer |
Buy Now |
B 60 W BP Suction Bar V-Shaped
Karcher B 60 W BP Suction Bar V-Shaped
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40440030 |
Holder Complete V-Profile |
Call to Order |
| 10 |
93121730 |
Suction Bar V-Shaped |
Call to Order |
| 20 |
73061420 |
Cylinder Head Screw |
Buy Now |
| 30 |
73120170 |
Washer |
Buy Now |
| 40 |
63212430 |
Star Grip Stainless Steel |
Buy Now |
| 50 |
44350050 |
Deflector Roll Suction Bar Complete |
Buy Now |
| 60 |
40351620 |
Profile Pre-Assembled Right |
Call to Order |
| 70 |
40351630 |
Profile Pre-Assembled Left |
Call to Order |
| 110 |
55153460 |
Deflector Roll |
Buy Now |
| 120 |
50942310 |
Sleeve Suction Bar |
Buy Now |
| 130 |
53050080 |
Wing Screw |
Buy Now |
| 140 |
28852940 |
End Piece Left/Right |
Buy Now |
| 190 |
50340560 |
Angle Adapter Pipe |
Buy Now |
| 200 |
68030710 |
Level |
Call to Order |
| 210 |
73050190 |
Countersunk Screw |
Call to Order |
| 9000 |
40340070 |
Suction Nipple Complete |
Call to Order |
| 9001 |
62730230 |
Rubber Lip Set Oil Resistant |
Buy Now |
| 9001 |
93034180 |
Rubber Lip Set Standard |
Call to Order |
| 9002 |
40351710 |
Support Roller Complete |
Buy Now |
B 60 W BP Suction Bar V-Shaped 900 mm
Karcher B 60 W BP Suction Bar V-Shaped 900 mm
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
40440030 |
Holder Complete V-Profile |
Call to Order |
| 20 |
73061420 |
Cylinder Head Screw |
Buy Now |
| 30 |
73120170 |
Washer |
Buy Now |
| 40 |
63211700 |
Star Grip |
Call to Order |
| 50 |
64353420 |
Wheel Gummed |
Call to Order |
| 60 |
50944960 |
Sleeve Suction Bar |
Call to Order |
| 70 |
44350050 |
Deflector Roll Suction Bar |
Buy Now |
| 80 |
40351620 |
Profile Pre-Assembled Right |
Call to Order |
| 90 |
40351630 |
Profile Pre-Assembled Left |
Call to Order |
| 100 |
53050080 |
Wing Screw |
Buy Now |
| 110 |
50319910 |
End Piece Right |
Buy Now |
| 120 |
50319900 |
End Piece Left |
Buy Now |
| 130 |
73050190 |
Countersunk Screw |
Call to Order |
| 140 |
68030710 |
Level |
Call to Order |
| 150 |
40351710 |
Support Roller Complete |
Buy Now |
| 160 |
40340070 |
Suction Nipple Complete |
Call to Order |
| 170 |
50340560 |
Angle Adapter Pipe |
Buy Now |
| 180 |
62730230 |
Rubber Lip Set Corrugated |
Buy Now |
| 180 |
93035100 |
Suction Lip Set Oil Resistant |
Call to Order |
B 60 W BP Deflector Roll
Karcher B 60 W BP Deflector Roll
| Reference # |
Part # |
Description |
Add to Cart |
| 10 |
63211700 |
Star Grip |
Call to Order |
| 20 |
64353420 |
Wheel Gummed |
Call to Orde |
| 30 |
50944960 |
Sleeve Suction Bar |
Call to Order |
B 60 W BP Support Roller Complete Replacement
Karcher B 60 W BP Support Roller Complete Replacement
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
64351790 |
Castor for Thread Deflector |
Buy Now |
| 2 |
53325540 |
Pressure Spring |
Buy Now |
| 3 |
63212400 |
Star Grip with Inscription |
Buy Now |
| 4 |
73060740 |
Cylinder Head Screw |
Call to Order |
| 5 |
73113820 |
Cap Nut |
Buy Now |
| 6 |
69965260 |
Serrated Locking Washer |
Buy Now |
