Clarke SPS-28

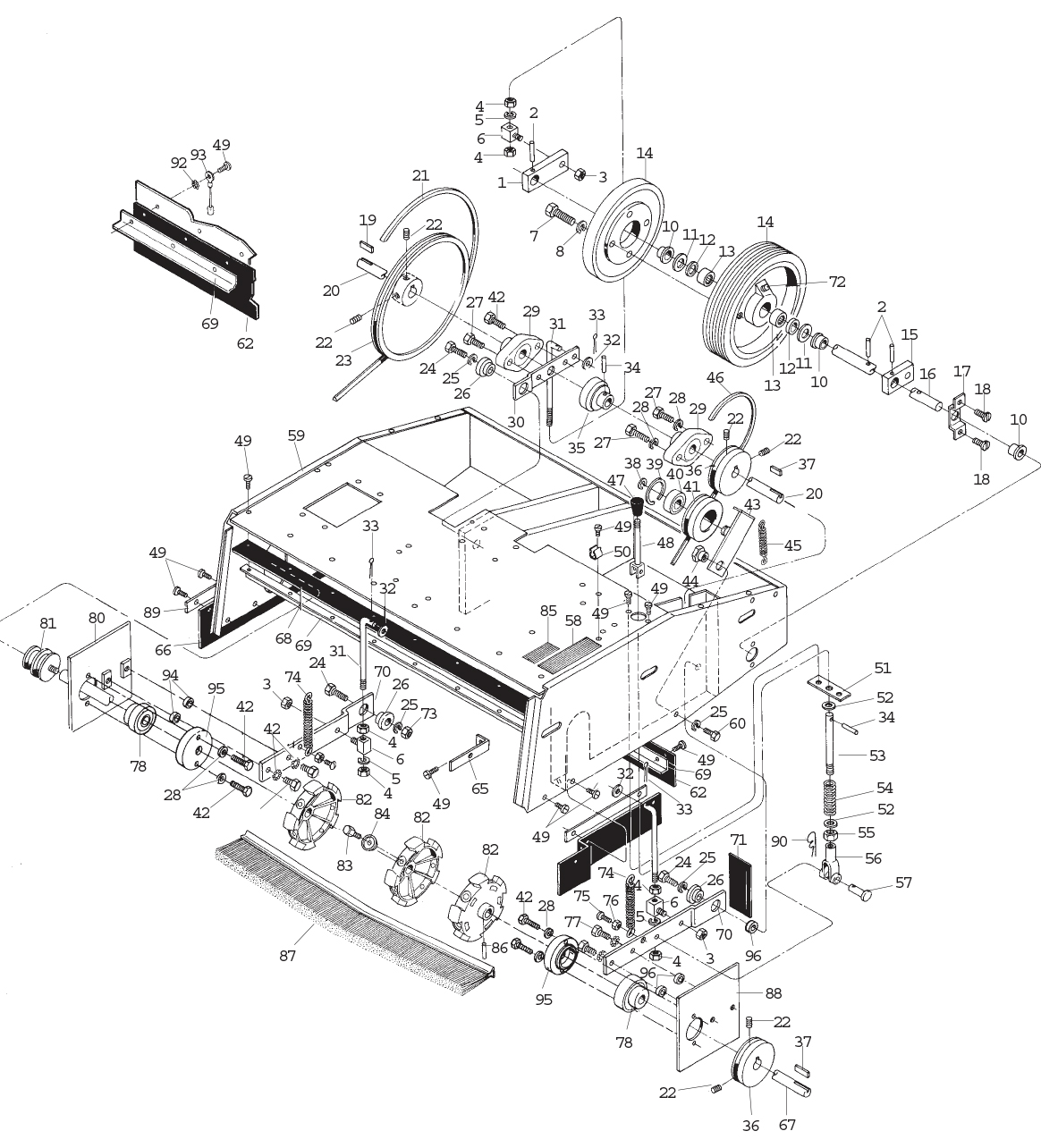

Main Frame, Brush Assembly And Drive System
Clarke SPS-28 Main Frame, Brush Assembly And Drive System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
790322 |
Lower Clutch Arm |
CALL TO ORDER |
| 2 |
925543 |
Pin-1/8x1&1/4 Roll |
Buy Now |
| 3 |
920349 |
Nut 1/4-20 |
Buy Now |
| 4 |
920160 |
Nut 5/16-18 |
Buy Now |
| 5 |
980652 |
Washer 5/16 |
Buy Now |
| 6 |
791323 |
Pedal Pivot Block |
CALL TO ORDER |
| 7 |
85813A |
Screw 5/16-18 |
Buy Now |
| 8 |
980652 |
Washer 5/16-Lock |
Buy Now |
| 9 |
799728 |
Wheel |
CALL TO ORDER |
| 10 |
902710 |
Bearing, Wheel Shaft |
CALL TO ORDER |
| 11 |
980023 |
Thrust Washer |
CALL TO ORDER |
| 12 |
877661 |
Oil Seal |
CALL TO ORDER |
| 13 |
902682 |
Wheel Bearing |
CALL TO ORDER |
| 14 |
799729 |
Wheel |
CALL TO ORDER |
| 15 |
790326 |
Lower Clutch Arm |
CALL TO ORDER |
| 16 |
797721 |
Wheel Shaft |
CALL TO ORDER |
| 17 |
798530 |
Wheel Bearing Support |
CALL TO ORDER |
| 18 |
962385 |
Screw 10-24 x 1/2 |
CALL TO ORDER |
| 19 |
915044 |
Key 3/16 x 3/16 x 1 |
Buy Now |
| 20 |
797727 |
Brush Drive Shaft |
CALL TO ORDER |
| 21 |
903540 |
Drive Belt |
CALL TO ORDER |
| 22 |
962103 |
Screw 5/16-18 x 3/8 |
Buy Now |
| 23 |
796920 |
Drive Pulley |
CALL TO ORDER |
| 24 |
962686 |
Screw 5/16-18 x 1-1/2 |
Buy Now |
| 25 |
980638 |
Lock Washer 3/8 |
Buy Now |
| 26 |
808256 |
Parallel Rear Arm Spacer |
CALL TO ORDER |
| 27 |
962219 |
Hex Screw 1/4-20 x 7/8 |
CALL TO ORDER |
| 28 |
980657 |
Lock Washer 1/4 |
Buy Now |
| 29 |
902713 |
Bearing |
CALL TO ORDER |
| 30 |
790324 |
Clutch Arm |
CALL TO ORDER |
| 31 |
797422 |
Brush Lift Rod |
CALL TO ORDER |
| 32 |
980651 |
Washer 5/16 |
CALL TO ORDER |
| 33 |
925036 |
Cotter Pin 3/32 |
Buy Now |
| 34 |
925550 |
Pin-1/8x1 Roll |
Buy Now |
| 35 |
799727 |
Friction Drive Wheel |
CALL TO ORDER |
| 36 |
796921 |
Brush Drive Pulley |
CALL TO ORDER |
| 37 |
915076 |
Key 3/16 |
Buy Now |
| 38 |
167308 |
Retaining Ring |
CALL TO ORDER |
| 39 |
857301 |
Retaining Ring |
Buy Now |
| 40 |
902659 |
Bearing |
CALL TO ORDER |
| 41 |
796926 |
Brush Drive Idler Pulley |
CALL TO ORDER |
| 42 |
962455 |
Screw 1/4-20 x 1" |
Buy Now |
| 43 |
790320 |
Idler Pulley Arm Assembly |
CALL TO ORDER |
| 44 |
798220 |
Clutch Arm Spacer |
CALL TO ORDER |
| 45 |
858345 |
Bracket Adjust Screw Spring |
CALL TO ORDER |
| 46 |
903539 |
Brush Drive Belt |
CALL TO ORDER |
| 47 |
815051 |
Knob Handle |
CALL TO ORDER |
| 48 |
793923 |
Brush Lift Handle Assembly |
CALL TO ORDER |
| 49 |
962546 |
Screw 10-1/2 |
Buy Now |
| 50 |
302101 |
Clamp |
Buy Now |
| 51 |
796623 |
Brush Lift Plate |
CALL TO ORDER |
| 52 |
791121 |
Spring Bushing |
CALL TO ORDER |
| 53 |
797423 |
Brush Lift Rod |
CALL TO ORDER |
| 54 |
858302 |
Spring |
Buy Now |
| 55 |
920329 |
Nut 5/16-24 |
Buy Now |
| 56 |
809904 |
Yoke |
CALL TO ORDER |
| 57 |
806705 |
Pin |
Buy Now |
| 58 |
795121 |
Instruction Label |
CALL TO ORDER |
| 59 |
60072A |
Main Frame Assembly |
CALL TO ORDER |
| 60 |
962302 |
Screw 3/8 x 16 x 5/8 |
CALL TO ORDER |
| 62 |
798526 |
Rear Brush Skirt |
CALL TO ORDER |
| 63 |
798528 |
L.H Brush Skirt |
CALL TO ORDER |
| 64 |
797225 |
L.H Skirt Retainer |
CALL TO ORDER |
| 65 |
797224 |
L.H Skirt Retainer |
CALL TO ORDER |
| 66 |
798527 |
R.H Brush Skirt |
CALL TO ORDER |
| 67 |
797722 |
Brush Shaft |
CALL TO ORDER |
| 68 |
798525 |
Hopper Top Skirt |
CALL TO ORDER |
| 69 |
797221 |
Retainer |
CALL TO ORDER |
| 70 |
790337 |
Brush Arm |
CALL TO ORDER |
| 71 |
797620 |
Brush Arm Seal |
CALL TO ORDER |
| 72 |
883351 |
Grease Fitting |
CALL TO ORDER |
| 73 |
920260 |
Nut 3/8-16 |
Buy Now |
| 74 |
53038A |
Spring |
Buy Now |
| 75 |
962139 |
Screw 1/4-20 |
Buy Now |
| 76 |
920208 |
Nut 1/4-20 |
Buy Now |
| 77 |
962709 |
Screw 1/4-20 x 1/2 |
Buy Now |
| 78 |
902746 |
Brush Shaft Bearing |
CALL TO ORDER |
| 80 |
797829 |
Broom Dush Shield Assembly |
CALL TO ORDER |
| 81 |
796922 |
Side Broom Drive Pulley |
CALL TO ORDER |
| 82 |
792703 |
Brush Driver |
CALL TO ORDER |
| 83 |
962893 |
Screw 1/4-20 x 7/8 |
Buy Now |
| 84 |
797205 |
Retainer |
Buy Now |
| 85 |
920364 |
Nut 1/4-20 |
CALL TO ORDER |
| 86 |
925070 |
Pin 1/4 x 1-1/2 |
Buy Now |
| 87 |
790923 |
Carpet Brush Segment |
CALL TO ORDEr |
| * |
790920 |
Brush Segment 28" |
CALL TO ORDER |
| 88 |
797828 |
L/H Broom Dust Shield Assembly |
CALL TO ORDER |
| 89 |
797223 |
R.H Skirt Retainer |
CALL TO ORDER |
| 90 |
856702 |
Pin Hair Cotter |
Buy Now |
| 91 |
797235 |
Brush Strip Retainer |
CALL TO ORDER |
| 92 |
980675 |
Washer Shakeproof |
Buy Now |
| 93 |
798541 |
Static Discharge |
CALL TO ORDER |
| 94 |
798232 |
Spacer |
CALL TO ORDER |
| 95 |
797236 |
Retainer |
CALL TO ORDER |
| 96 |
858207 |
Spacer |
CALL TO ORDER |

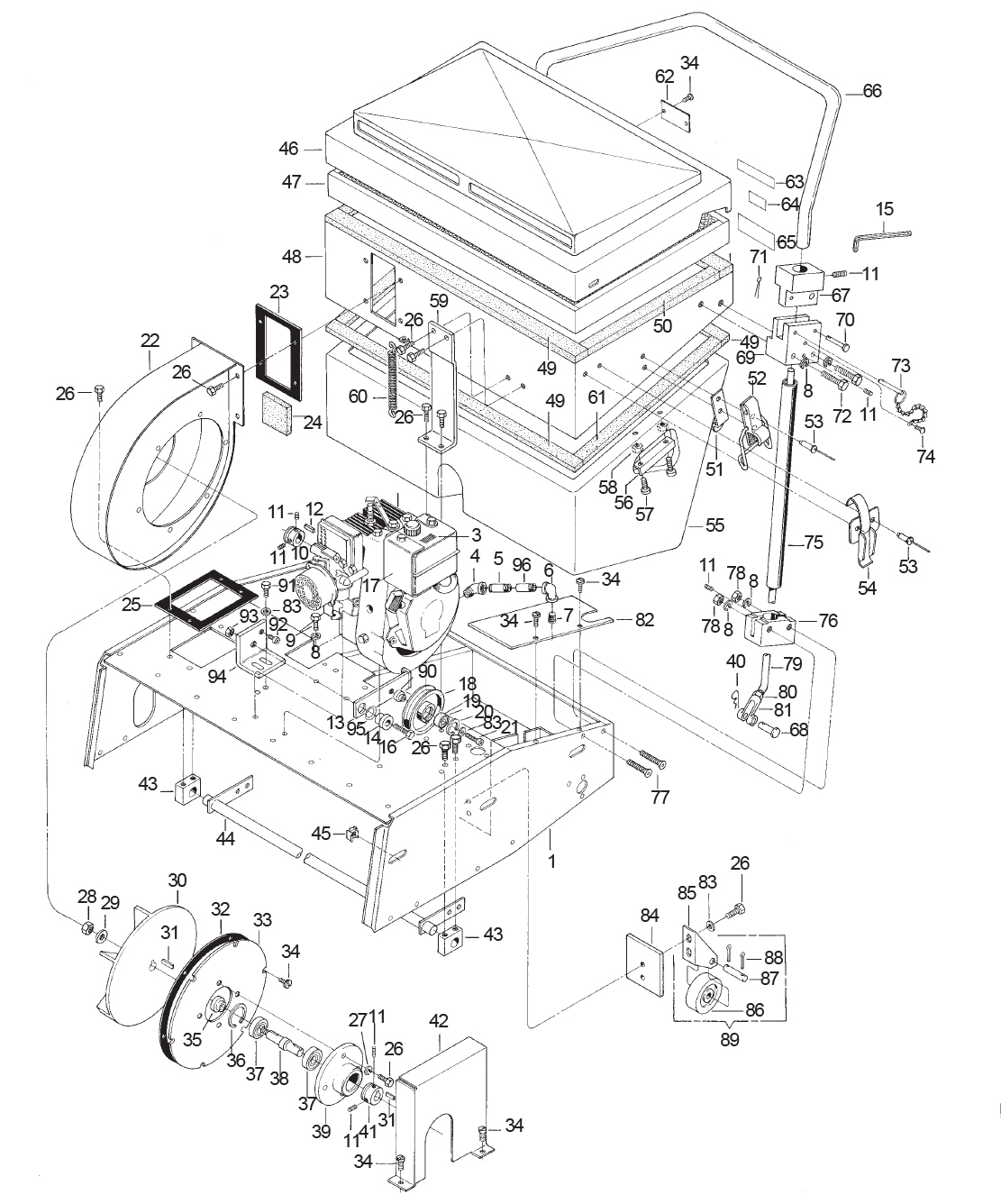

Engine, Dust Control & Handle Assembly
Clarke SPS-28 Engine
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
60072A |
Main Frame |
CALL TO ORDER |
| 2 |
792920 |
Engine |
CALL TO ORDER |
| 3 |
285161 |
Gasoline Label |
CALL TO ORDER |
| 4 |
722824 |
Elbow 1/4 |
CALL TO ORDER |
| 5 |
755721 |
Nipple 1/4 |
CALL TO ORDER |
| 6 |
822806 |
Elbow 1/4 Brass |
CALL TO ORDER |
| 7 |
* |
Drain Plug (Part of Engine) |
CALL TO ORDER |
| 8 |
822806 |
Lock Washer 5/16 |
CALL TO ORDER |
| 9 |
196157 |
Hex Screw 5/16 |
CALL TO ORDER |
| 10 |
796924 |
Engine Pulley |
CALL TO ORDER |
| 11 |
962103 |
Screw 5/16-18 |
Buy Now |
| 12 |
915044 |
Square Key 3/16 |
Buy Now |
| 13 |
790335 |
Arm Assembly |
CALL TO ORDER |
| 14 |
798231 |
Parallel Arm Rear Spacer |
CALL TO ORDEr |
| 15 |
987013 |
Allen Wrench |
CALL TO ORDER |
| 16 |
962216 |
Hex Screw 3/8 |
Buy Now |
| 17 |
793624 |
Gas Tank Guard |
CALL TO ORDER |
| 18 |
796925 |
Idler Pulley |
CALL TO ORDER |
| 19 |
902659 |
Bearing |
CALL TO ORDER |
| 20 |
857301 |
Retaining Ring |
Buy Now |
| 21 |
962454 |
Screw 1/4-20 x 1" |
Buy Now |
| 22 |
60073A |
Blowing Housing Assembly |
CALL TO ORDER |
| 23 |
793424 |
Duct to Filter Gasket |
CALL TO ORDER |
| 24 |
791221 |
Dust Hopper Bumper |
CALL TO ORDER |
| 25 |
793423 |
Duct to Frame Gasket |
CALL TO ORDER |
| 26 |
962709 |
Sems Screw 1/2 |
Buy Now |
| 27 |
980657 |
Lock Washer 1/4 |
Buy Now |
| 28 |
920110 |
Lock Nut 5/16 |
Buy Now |
| 29 |
980210 |
Impeller Washer |
Buy Now |
| 30 |
614820 |
Impeller |
Buy Now |
| 31 |
915044 |
Square Key 3/16 x 3/16 |
Buy Now |
| 32 |
793420 |
Blower Mounting Adapter Gasket |
CALL TO ORDER |
| 33 |
790221 |
Blower Mounting Adapter Assembly |
CALL TO ORDER |
| 34 |
962835 |
Screw 10x24 |
Buy Now |
| 35 |
618220 |
Impeller Spacer |
CALL TO ORDER |
| 36 |
067304 |
Snap Ring |
Buy Now |
| 37 |
902550 |
Bearing |
Buy Now |
| 38 |
617704 |
Impeller Shaft |
CALL TO ORDER |
| 39 |
794224 |
Bearing Housing |
CALL TO ORDER |
| 40 |
856702 |
Hair Cotter Pin |
Buy Now |
| 41 |
796923 |
Blower Pulley |
CALL TO ORDER |
| 42 |
793620 |
Belt Guard |
CALL TO ORDER |
| 43 |
790830 |
Lift Shaft Bracket |
CALL TO ORDER |
| 44 |
797726 |
Shaft Assembly |
CALL TO ORDER |
| 45 |
920993 |
Panel Nut 3/16 |
CALL TO ORDER |
| 46 |
60074A |
Filter Cover |
CALL TO ORDER |
| 47 |
793320 |
Dust Filter |
CALL TO ORDER |
| 48 |
15724A |
Dust Chamber Housing Assembly |
CALL TO ORDER |
| 49 |
793422 |
Dust Chamber Gasket |
CALL TO ORDER |
| 50 |
793421 |
Dust Chamber Top Gasket |
CALL TO ORDER |
| 51 |
793820 |
Dust Hopper Guide |
CALL TO ORDER |
| 52 |
682006 |
Lid Clamp Assembly |
Buy Now |
| 53 |
930086 |
Long Rivet 3/16 |
Buy Now |
| 54 |
285102 |
Inspection Door Latch |
CALL TO ORDER |
| 55 |
30315A |
Dust Hopper |
CALL TO ORDER |
| 56 |
797226 |
Dust Hopper Retainer |
CALL TO ORDER |
| 57 |
962385 |
Screw 10-24 x 1/2 |
CALL TO ORDER |
| 58 |
920200 |
Hex Nut 10-24 |
Buy Now |
| 59 |
790832 |
Dust Housing Support Bracket |
CALL TO ORDER |
| 60 |
53038A |
Spring |
Buy Now |
| 61 |
793425 |
Dust Chamber Bottom Gasket |
CALL TO ORDER |
| 63 |
215104 |
Warning Label |
CALL TO ORDER |
| 64 |
755129 |
Patent Pending Label |
CALL TO ORDER |
| 65 |
795120 |
Instruction Label |
CALL TO ORDER |
| 66 |
793920 |
Upper Handle |
CALL TO ORDER |
| 67 |
790825 |
Handle Pivot Bracket |
CALL TO ORDER |
| 68 |
806705 |
Pin |
Buy Now |
| 69 |
790824 |
Handle Bracket |
CALL TO ORDER |
| 70 |
796721 |
Handle Pivot Pin |
Buy Now |
| 71 |
925004 |
Cotter Pin 1/16 |
Buy Now |
| 72 |
85818A |
Hex Screw 5/16 |
Buy Now |
| 73 |
796720 |
Handle Release Pin Assembly |
CALL TO ORDER |
| 74 |
85392A |
Screw 6-32 |
Buy Now |
| 75 |
793922 |
Lower Handle |
CALL TO ORDER |
| 76 |
798524 |
Handle Support |
CALL TO ORDER |
| 77 |
962894 |
Screw 5/16-18 x 2-1/2 |
CALL TO ORDER |
| 78 |
920160 |
Jam Nut 5/16 |
Buy Now |
| 79 |
797420 |
Traverse Rod |
CALL TO ORDER |
| 80 |
920329 |
Hex Nut 5/16-24 |
Buy Now |
| 81 |
809904 |
Yoke |
CALL TO ORDER |
| 82 |
62665A |
Frame Cover |
CALL TO ORDER |
| 83 |
980646 |
Washer 1/4 |
CALL TO ORDER |
| 84 |
796631 |
Stabilizer Wheel |
CALL TO ORDER |
| 85 |
798537 |
Rear Wheel Support |
CALL TO ORDER |
| 86 |
419702 |
Wheel |
Buy Now |
| 87 |
796722 |
Wheel Support Pin |
CALL TO ORDER |
| 88 |
925036 |
Cotter Pin 3/32 x 3/4 |
Buy Now |
| 89 |
799724 |
Stabilizer Wheel Assembly |
CALL TO ORDER |
| 90 |
798230 |
Idler Pulley Spacer |
CALL TO ORDER |
| 91 |
962086 |
Hex Head Screw 1/4-20 |
Buy Now |
| 92 |
962799 |
Screw 1/4-20 |
CALL TO ORDER |
| 93 |
920148 |
Hex Jam Nut 3/8-16 |
CALL TO ORDER |
| 94 |
790846 |
Idler Arm Bracket |
CALL TO ORDER |
| 95 |
980202 |
Washer Wave |
Buy Now |
| 97 |
170266 |
Coupling |
CALL TO ORDER |

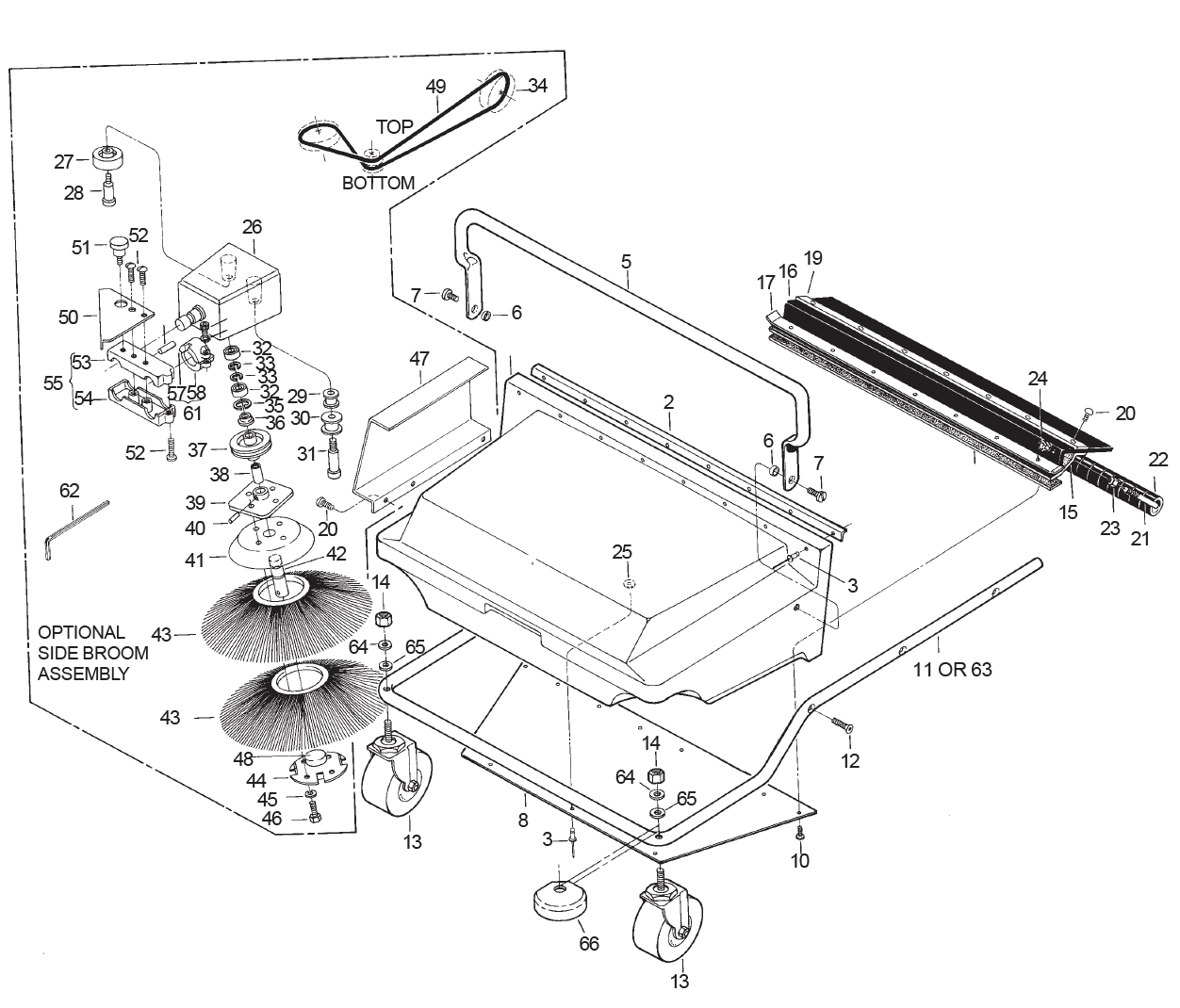

Hopper and Optional Sidebroom Assembly
Clarke SPS-28 Hopper
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
30314A |
Hopper |
CALL TO ORDER |
| 2 |
798529 |
Hopper Top Support |
CALL TO ORDER |
| 3 |
930090 |
Rivet 5/32 |
Buy Now |
| 5 |
793921 |
Hopper Handle |
CALL TO ORDER |
| 6 |
798203 |
Carrying Handle Spacer |
CALL TO ORDER |
| 7 |
962568 |
Screw 5/16-18 |
CALL TO ORDER |
| 8 |
797820 |
Hopper Shield |
CALL TO ORDER |
| 9 |
962385 |
Screw 10-24 x 1/2 |
CALL TO ORDER |
| 10 |
962677 |
Screw 10-24 x 3/4 |
Buy Now |
| 11 |
791220 |
Front Bumper |
CALL TO ORDER |
| 12 |
962803 |
Screw 5/16-18 |
Buy Now |
| 13 |
889706 |
Swivel Wheel |
CALL TO ORDER |
| 14 |
920196 |
Nut 1/2-13 |
Buy Now |
| 15 |
790823 |
Hopper Skirt Bracket |
CALL TO ORDER |
| 16 |
798523 |
Hopper Skirt |
CALL TO ORDER |
| 17 |
797220 |
Lower Skirt Retainer |
CALL TO ORDER |
| 18 |
793426 |
Hopper Gasket |
CALL TO ORDER |
| 19 |
797222 |
Hopper Skirt Retainer |
CALL TO ORDER |
| 20 |
962073 |
Screw 10-1/2 |
CALL TO ORDER |
| 21 |
797421 |
Roller Rod |
CALL TO ORDER |
| 22 |
797501 |
Roller |
CALL TO ORDER |
| 23 |
920160 |
Nut 5/16-18 Hex |
Buy Now |
| 24 |
920110 |
Nut 5/16-18 Elastic Stop |
Buy Now |
| 25 |
920200 |
Nut 10-24 Hex |
Buy Now |
| 26 |
794201 |
Side Brush Housing |
CALL TO ORDER |
| 27 |
419702 |
Wheel |
Buy Now |
| 28 |
960953 |
Bolt Shoulder 3/8 x 1 |
Buy Now |
| 29 |
796902 |
Pulley |
CALL TO ORDER |
| 30 |
796903 |
Pulley |
CALL TO ORDER |
| 31 |
960970 |
Bolt Shoulder |
Buy Now |
| 32 |
902659 |
Bearing |
CALL TO ORDER |
| 33 |
167308 |
Retaining Ring |
CALL TO ORDER |
| 34 |
796922 |
Side Broom Drive Pulley |
CALL TO ORDER |
| 35 |
857301 |
Retaining Ring |
Buy Now |
| 36 |
798205 |
Spacer |
CALL TO ORDER |
| 37 |
796901 |
Side Brush Drive Pulley |
CALL TO ORDER |
| 38 |
792401 |
Clutch |
CALL TO ORDER |
| 39 |
794320 |
Side Brush Hub |
CALL TO ORDER |
| 40 |
925062 |
Roll Pin |
Buy Now |
| 41 |
794001 |
Side Brush Holder |
CALL TO ORDER |
| 42 |
797701 |
Shaft |
CALL TO ORDER |
| 43 |
790901 |
Side Brush |
CALL TO ORDER |
| 44 |
796420 |
Brush Retaining Plate |
CALL TO ORDER |
| 45 |
980657 |
Lock Washer 1/4 |
Buy Now |
| 46 |
962481 |
Screw 1/4-20 x 1-1/4 |
Buy Now |
| 47 |
793621 |
Side Broom Belt Guard |
CALL TO ORDER |
| 48 |
798228 |
Spacer |
CALL TO ORDER |
| 49 |
903538 |
Side Brush Belt |
CALL TO ORDER |
| 50 |
793622 |
Side Brush Guard |
CALL TO ORDER |
| 51 |
725020 |
Knob |
CALL TO ORDER |
| 52 |
962716 |
Screw 1/4-20 x 1-1/2 |
CALL TO ORDER |
| 53 |
790331 |
Side Brush Top Arm |
CALL TO ORDER |
| 54 |
790331 |
Side Brush Bottom Arm |
CALL TO ORDER |
| 55 |
790331 |
Side Brush Arm Assembly |
CALL TO ORDER |
| 56 |
925132 |
Pin 1/4 x 3/4 |
CALL TO ORDER |
| 57 |
792023 |
Top Clamp |
CALL TO ORDER |
| 58 |
792023 |
Bottom Clamp |
CALL TO ORDER |
| 59 |
962454 |
Screw 1/4-20 x 1" |
Buy Now |
| 60 |
980657 |
Washer 1/4 Lock |
Buy Now |
| 61 |
792023 |
Side Brush Clamp Assembliy |
CALL TO ORDER |
| 62 |
987516 |
Wrench 3/16 |
CALL TO ORDER |
| 63 |
61300A |
Bumper (Carpet Only) |
CALL TO ORDER |
| 64 |
980626 |
Washer 1/2 Lock |
Buy Now |
| 65 |
980662 |
Washer (Carpet Only) |
Buy Now |
| 66 |
63900A |
Caster Guard (Carpet Only) |
CALL TO ORDER |

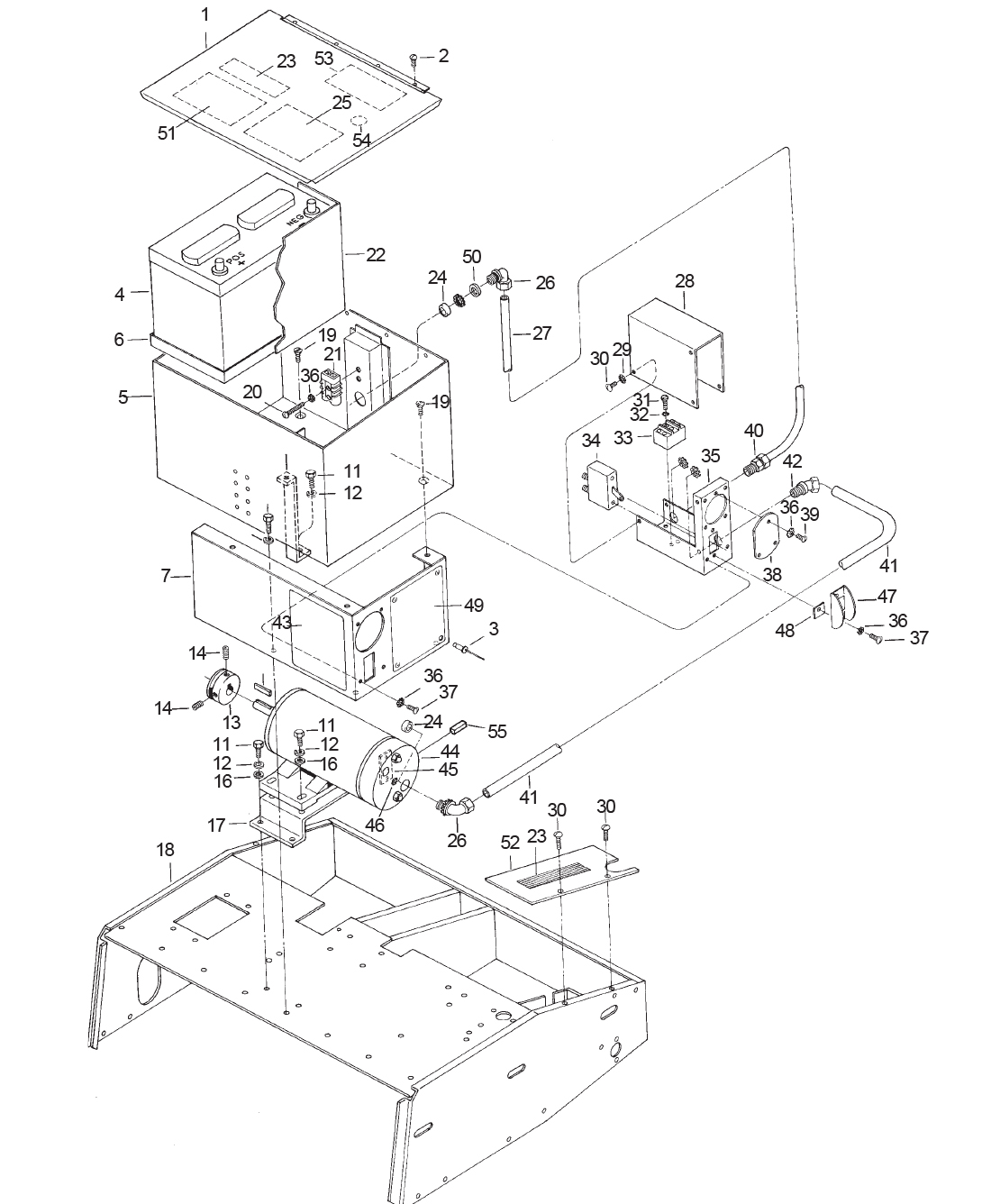

Battery Powered Model
Clarke SPS-28 Battery Powered Model
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
60071A |
Battery Access Cover Assembly |
CALL TO ORDER |
| 2 |
962003 |
Screw 10-32 x 3/4 |
Buy Now |
| 3 |
930093 |
Rivet 1/8 |
Buy Now |
| 4 |
871376 |
Battery 95 Amp (Wet) |
CALL TO ORDER |
| * |
871377 |
Battery 95 Amp (Dry) |
CALL TO ORDER |
| 5 |
15726A |
Battery Housing Assembly |
CALL TO ORDER |
| 6 |
799224 |
Battery Tray |
CALL TO ORDER |
| 7 |
15725A |
Motor Housing Assembly |
CALL TO ORDER |
| 8 |
962709 |
Screw 1/4-20 |
Buy Now |
| 9 |
980657 |
Lock Washer 1/4 |
Buy Now |
| 10 |
790826 |
Battery Support Bracket |
CALL TO ORDER |
| 11 |
85811A |
Screw 5/16 |
Buy Now |
| 12 |
980652 |
Lock Washer 5/16 |
Buy Now |
| 13 |
796927 |
Motor Pulley |
CALL TO ORDER |
| 14 |
962103 |
Screw 5/16 |
Buy Now |
| 15 |
915044 |
Key 3/16 |
Buy Now |
| 16 |
980651 |
Plain Washer 5/16 |
CALL TO ORDER |
| 17 |
790827 |
Motor Mounting Bracket Assembly |
CALL TO ORDER |
| 18 |
60072A |
Main Frame Assembly |
CALL TO ORDER |
| 19 |
962800 |
Screw 1/4-20 |
CALL TO ORDER |
| 20 |
962212 |
Screw 6-32 |
Buy Now |
| 21 |
911470 |
Battery Plug Wire Assembly |
Buy Now |
| 22 |
797827 |
Battery Shield |
CALL TO ORDER |
| 23 |
795136 |
Warning Label |
CALL TO ORDER |
| 24 |
791120 |
Conduit Insulating Bushing |
CALL TO ORDER |
| 25 |
895196 |
Warning Label |
CALL TO ORDER |
| 26 |
792437 |
Conduit Connector |
CALL TO ORDER |
| 27 |
799024 |
Tubing |
CALL TO ORDER |
| 28 |
792322 |
Enclosure Cover Assembly |
CALL TO ORDER |
| 29 |
980603 |
Washer |
Buy Now |
| 30 |
962546 |
Screw 10 x 1/2 |
Buy Now |
| 31 |
962399 |
Screw 8-32 |
CALL TO ORDER |
| 32 |
980612 |
Thrust Washer |
Buy Now |
| 33 |
911438 |
Terminal Block |
CALL TO ORDER |
| 34 |
911440 |
Toggle Switch |
CALL TO ORDER |
| 35 |
792921 |
Circuit Breaker Enclosure |
CALL TO ORDER |
| 36 |
980607 |
Washer |
Buy Now |
| 37 |
962045 |
Screw 6-32 x 1/4 |
Buy Now |
| 38 |
792325 |
Cover Enclosure |
CALL TO ORDER |
| 39 |
962330 |
Screw 6-32 x 3/8 |
Buy Now |
| 40 |
792438 |
Straight Conduit Connector |
CALL TO ORDER |
| 41 |
799021 |
Circuit Breakter to Motor Tubing |
CALL TO ORDER |
| 42 |
792436 |
Conduit Connector |
CALL TO ORDER |
| 43 |
795145 |
Wiring Diagram Label |
CALL TO ORDER |
| 44 |
795220 |
24 Volt DC Motor |
CALL TO ORDER |
| 45 |
794720 |
Insulation |
CALL TO ORDER |
| 46 |
980614 |
Washer |
Buy Now |
| 47 |
793623 |
Switch Guard |
CALL TO ORDER |
| 48 |
792337 |
Switch Guard Cover |
CALL TO ORDER |
| 49 |
796327 |
Safety Label Plate |
CALL TO ORDER |
| 50 |
980303 |
Washer |
CALL TO ORDER |
| 51 |
895178 |
Battery Care Instruction Label |
CALL TO ORDER |
| 52 |
62665A |
Frame Cover |
CALL TO ORDER |
| 53 |
795151 |
Battery Size Label |
CALL TO ORDER |
| 54 |
795143 |
UL Decal Label |
CALL TO ORDER |
| 55 |
790926 |
Motor Brush |
CALL TO ORDER |
