Clarke RA40

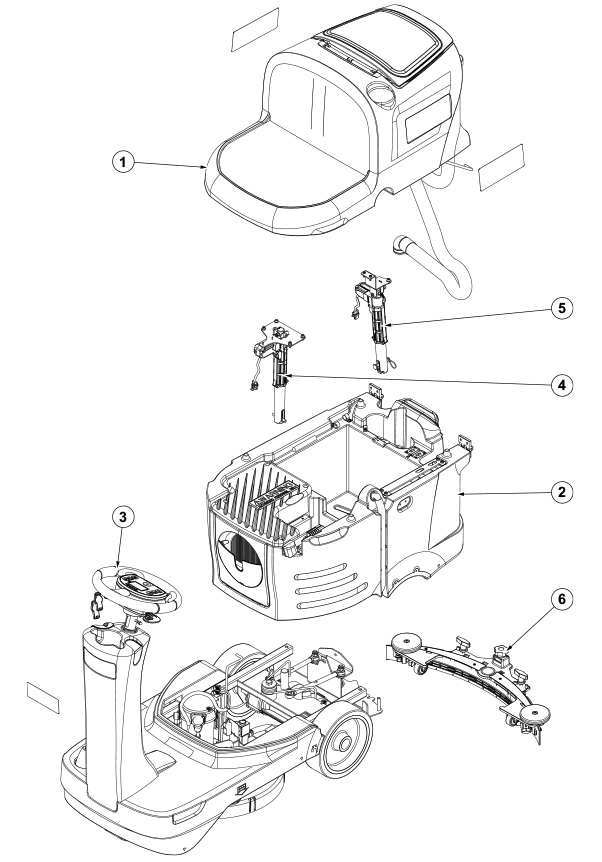

General View
Clarke RA40 General View
| 1 |
- |
Recovery Assembly |
Call to Order |
| 2 |
- |
Solution Assembly |
Call to Order |
| 3 |
- |
Machine Body |
Call to Order |
| 4 |
- |
Front Actuator Assembly |
Call to Order |
| 5 |
- |
Rear Actuator Assembly |
Call to Order |
| 6 |
- |
Squeegee Assembly |
Call to Order |

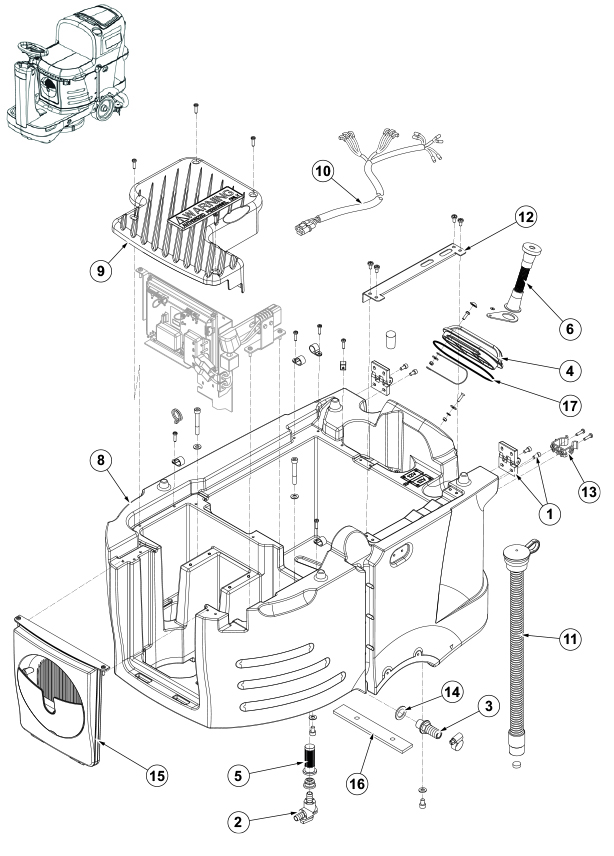

Solution Tank System
Clarke RA40 Solution Tank System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
9098329000 |
Hinges Kit |
Buy Now |
| 2 |
9100000803 |
Valve Elbow Sip |
Buy Now |
| 3 |
9100000574 |
Straight Fitting |
Buy Now |
| 4 |
1465355000 |
Solution Tank Cap Kit |
Buy Now |
| 5 |
9100001353 |
Solution Tank Filter |
Buy Now |
| 6 |
9100000952 |
Filling Hose |
Buy Now |
| 8 |
9100001855 |
Solution Tank |
Buy Now |
| 8 |
9100001854 |
Solution Tank |
Buy Now |
| 9 |
9100001102 |
Battery Charger Cover |
Buy Now |
| 10 |
9100001120 |
Tank Harness |
Buy Now |
| 11 |
9100001578 |
Fresh Water Hose Level Kit |
Buy Now |
| 12 |
9100001129 |
Safety Bar Support |
Buy Now |
| 13 |
9100001164 |
Hose Clamp |
Buy Now |
| 14 |
9100001139 |
Rubber Gasket |
Buy Now |
| 15 |
9100001182 |
Functions Cover Card Kit |
Buy Now |
| 16 |
9100001150 |
Rubber Adhesive Protection Tank |
Buy Now |
| 17 |
9100001370 |
O-Ring |
Buy Now |

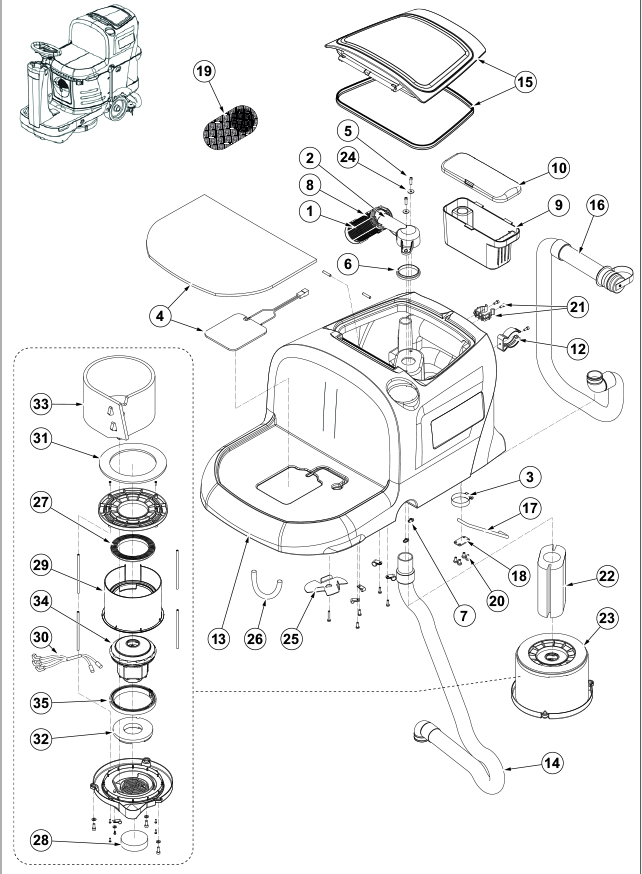

Recovery Tank System
Clarke RA40 Recovery Tank System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
9100000817 |
Floating Ball |
Buy Now |
| 2 |
- |
Float Cage |
Call to Order |
| 3 |
9100001348 |
Clamp |
Buy Now |
| 4 |
9100001130 |
Cushion Seat |
Buy Now |
| 5 |
- |
Screw |
Call to Order |
| 6 |
9100000928 |
Gasket Support Float |
Buy Now |
| 7 |
- |
Nut |
Call to Order |
| 8 |
9100000818 |
Float Cage |
Buy Now |
| 9 |
9100001091 |
Debris Tray |
Buy Now |
| 10 |
9100001092 |
Debris Tray Cover |
Buy Now |
| 12 |
9096380000 |
Clamp Kit |
Buy Now |
| 13 |
9100001135 |
Recovery Tank |
Buy Now |
| 14 |
9100001106 |
Suction Hose |
Buy Now |
| 15 |
9100001511 |
Recovery Tank Cover Kit |
Buy Now |
| 16 |
9100001113 |
Drain Hose |
Buy Now |
| 17 |
- |
Safety Bar |
Call to Order |
| 18 |
- |
Safety Bar Plate |
Call to Order |
| 19 |
9095065000 |
Antifoaming Filter |
Buy Now |
| 20 |
- |
Screw |
Call to Order |
| 21 |
9100001164 |
Hose Clamp |
Buy Now |
| 22 |
9100001164 |
Soundproofing Upper Vacuum |
Buy Now |
| 23 |
9100001181 |
Vacuum Motor |
Buy Now |
| 24 |
- |
Washer |
Call to Order |
| 25 |
9100001146 |
Harness Plate Protection |
Buy Now |
| 26 |
9100001154 |
Corrugated Hose |
Buy Now |
| 27 |
- |
Gasket Motor |
Call to Order |
| 28 |
- |
Filter |
Call to Order |
| 29 |
9100000822 |
Insulation Support |
Buy Now |
| 30 |
9100001116 |
Vacuum Motor Harness |
Buy Now |
| 31 |
- |
Vacuum Upper Cover Gasket |
Call to Order |
| 32 |
- |
Vacuum Lower Cover Gasket |
Call to Order |
| 33 |
9100001142 |
Soundproofing Vacuum Motor |
Buy Now |
| 34 |
9100001144 |
Vacuum Motor |
Buy Now |
| 35 |
- |
Upper Rubber Sealing Dome |
Call to Order |
| K1 |
9100001875 |
Float Kit Support |
Buy Now |
| K2 |
9100001165 |
Safety Bar Tank Kit |
Buy Now |
| K3 |
9100001166 |
Vacuum Motor Gasket Kit |
Buy Now |

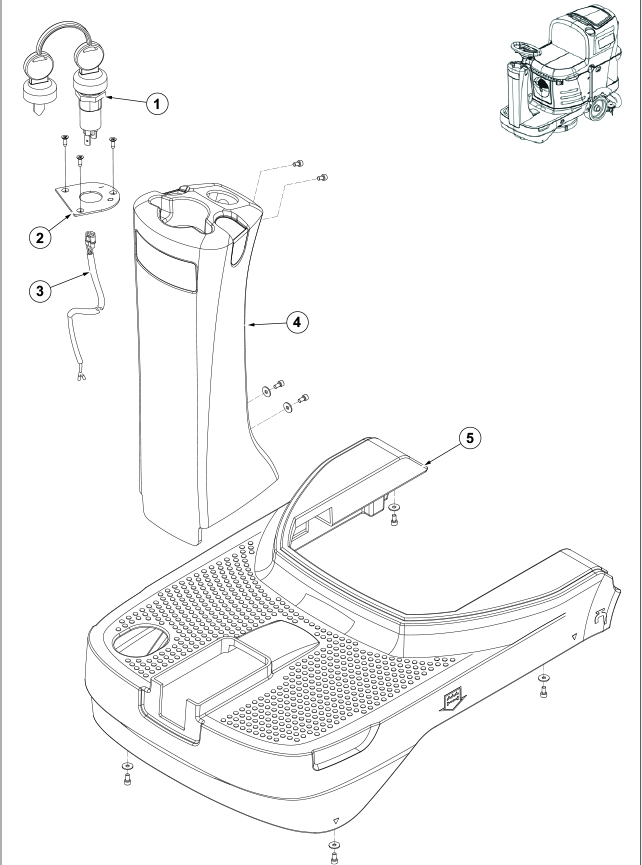

Footboard, Column & Key Systems
Clarke RA40 Footboard, Column & Key Systems
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
9100001354 |
Ignition Starter Switch |
Buy Now |
| 2 |
9100001138 |
Switch Key Plate |
Buy Now |
| 3 |
9100001147 |
Switch Key Harness |
Buy Now |
| 4 |
9100001137 |
Steering Column |
Buy Now |
| 5 |
9100001136 |
Footboard |
Buy Now |

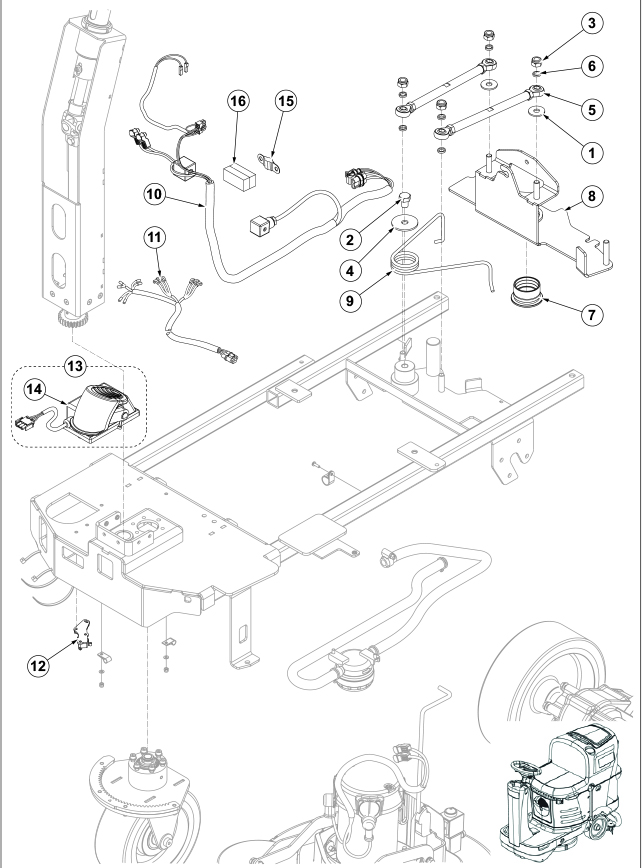

Chassis System
Clarke RA40 Chassis System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Washer |
Call to Order |
| 2 |
- |
Screw |
Call to Order |
| 3 |
- |
Nut |
Call to Order |
| 4 |
- |
Washer |
Call to Order |
| 5 |
9100001090 |
Rod Eye |
Buy Now |
| 6 |
- |
Spacer |
Call to Order |
| 7 |
9100001096 |
Suction Hose Sleeve |
Buy Now |
| 8 |
9100001108 |
Squeegee Support |
Buy Now |
| 9 |
- |
Zero Setting Squeegee Spring |
Call to Order |
| 10 |
9100002236 |
Harness Machine |
Buy Now |
| 11 |
9100002410 |
Harness Footboard |
Buy Now |
| 12 |
9100001183 |
Microswitch Kit |
Buy Now |
| 13 |
9100001180 |
Throttle Kit |
Buy Now |
| 14 |
9100001140 |
Electronic Throttle |
Buy Now |
| 15 |
9100002234 |
Bolt Down Fuse |
Buy Now |
| 16 |
9100002235 |
Fuse Holder |
Buy Now |
| K1 |
9100001167 |
Hardware Safety Bar Kit |
Buy Now |
| K2 |
9100001168 |
Zero Setting Squeegee Spring Kit |
Buy Now |

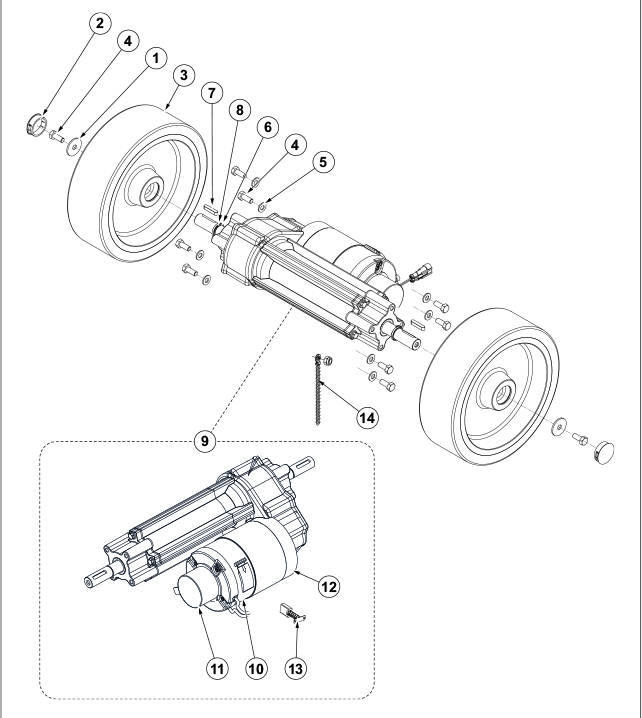

Motor Drive System
Clarke RA40 Motor Drive System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Washer |
Call to Order |
| 2 |
- |
Cap |
Call to Order |
| 3 |
9100001162 |
Wheel |
Buy Now |
| 4 |
- |
Screw |
Call to Order |
| 5 |
9100001351 |
Washer |
Buy Now |
| 6 |
9100001346 |
Ring |
Buy Now |
| 7 |
9100001156 |
Key Joint |
Buy Now |
| 8 |
9100001161 |
Spacer |
Buy Now |
| 9 |
9100001099 |
Drive Motor |
Buy Now |
| 10 |
9100001198 |
Band Metal Electric Motor Fixing Kit |
Buy Now |
| 11 |
9100001199 |
Electromagnetic Brake |
Buy Now |
| 12 |
9100001200 |
Electric Motor |
Buy Now |
| 13 |
1464432000 |
Carbon Brushes Kit |
Buy Now |
| 14 |
9100002418 |
Antistatic Chain Kit |
Buy Now |
| K1 |
9100001169 |
Hardware Wheel |
Buy Now |

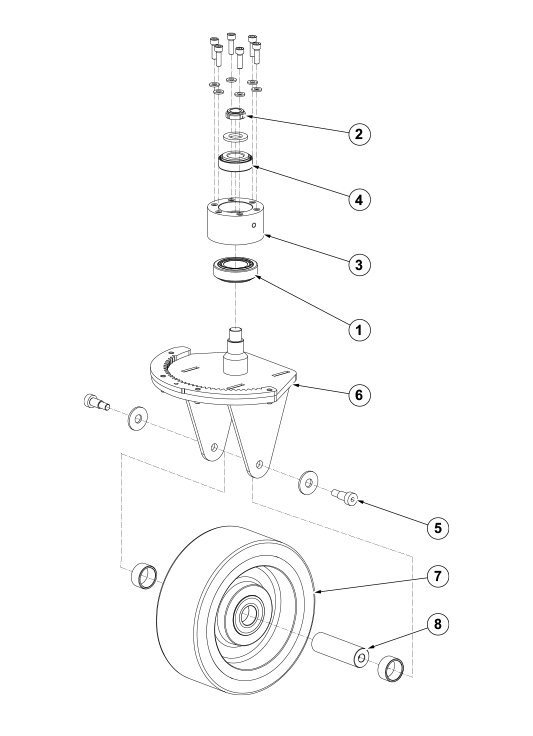

Front Wheel System
Clarke RA40 Front Wheel System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
1467636000 |
Taper Roller Bearing |
Buy Now |
| 2 |
9100001349 |
Nut Ring |
Buy Now |
| 3 |
9100001734 |
Ball Bearing Support |
Buy Now |
| 4 |
1467639000 |
Taper Roller Bearing |
Buy Now |
| 5 |
9100001160 |
Screw |
Buy Now |
| 6 |
9100001646 |
Front Wheel Support |
Buy Now |
| 7 |
9100002334 |
Wheel |
Buy Now |
| 8 |
9100001101 |
Pin Wheel |
Buy Now |

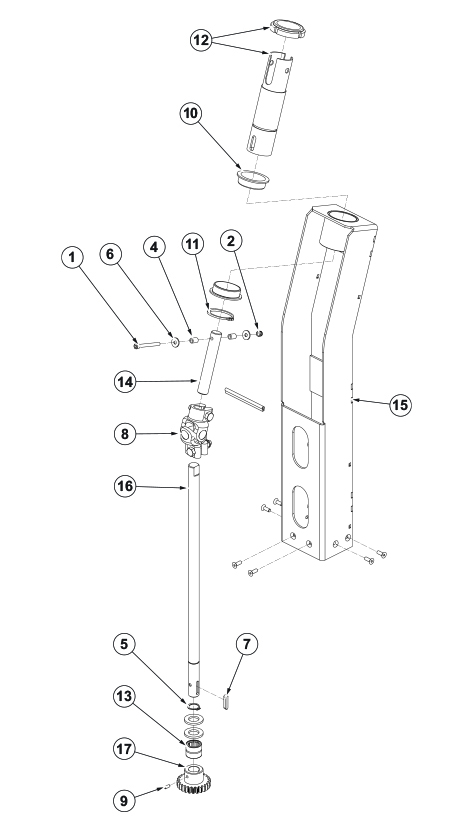

Steering Column System
Clarke RA40 Steering Column System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Screw |
Call to Order |
| 2 |
- |
Nut |
Call to Order |
| 4 |
- |
Spacer |
Call to Order |
| 5 |
9100001345 |
Ring |
Buy Now |
| 6 |
- |
Washer |
Call to Order |
| 7 |
1466146000 |
Key |
Buy Now |
| 8 |
1466319000 |
Universal Joint |
Buy Now |
| 9 |
9100001350 |
Screw |
Buy Now |
| 10 |
9100001085 |
Flange Bearing |
Buy Now |
| 11 |
9100001087 |
Ring |
Buy Now |
| 12 |
9100001450 |
Tube Steering Kit |
Buy Now |
| 13 |
9100001093 |
Bearing Needle Roller |
Buy Now |
| 13 |
9100001449 |
Hardware Steering Support Kit |
Buy Now |
| 13 |
9100002416 |
Bearing Ball |
Call to Order |
| 14 |
9100001107 |
Upper Shaft Steering |
Buy Now |
| 15 |
9100001109 |
Support Steering Column |
Buy Now |
| 16 |
9100001110 |
Lower Shaft Steering |
Buy Now |
| 17 |
9100001125 |
Pinion |
Buy Now |
| K1 |
9100001170 |
Hardware Steering Tube Kit |
Buy Now |

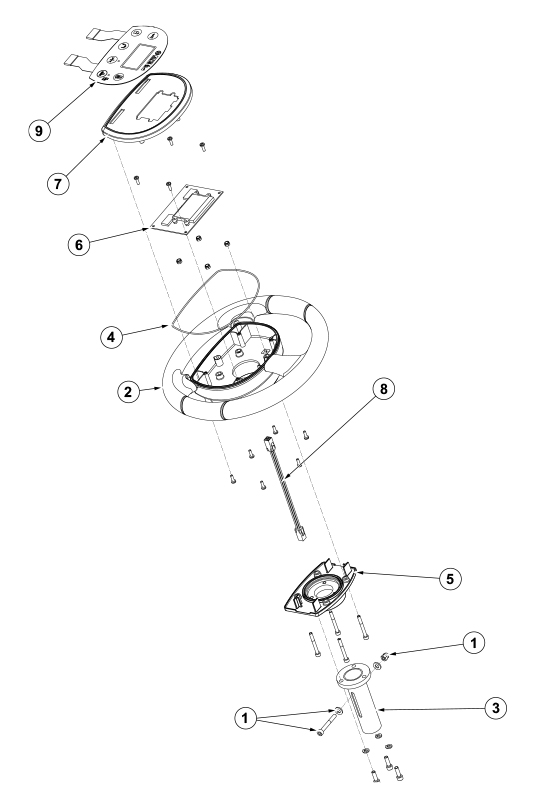

Steering Wheel System
Clarke RA40 Steering Wheel System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
9100001171 |
Hardware Steering Wheel Kit |
Buy Now |
| 2 |
9100001082 |
Steering Wheel |
Buy Now |
| 3 |
9100001086 |
Steering Wheel Tube Adjust |
Buy Now |
| 4 |
9100001088 |
Round Gasket |
Buy Now |
| 5 |
9100001089 |
Lower Cover |
Buy Now |
| 6 |
9100001104 |
Electronic Display Card |
Buy Now |
| 6 |
9100002373 |
Display Controller |
Buy Now |
| 7 |
9100001114 |
Steering Wheel Cover |
Buy Now |
| 8 |
9100001115 |
Display Card Extension Cable |
Buy Now |
| 8 |
9100002372 |
Extension Cable |
Buy Now |
| 9 |
9100001124 |
Dashboard Control Panel |
Buy Now |

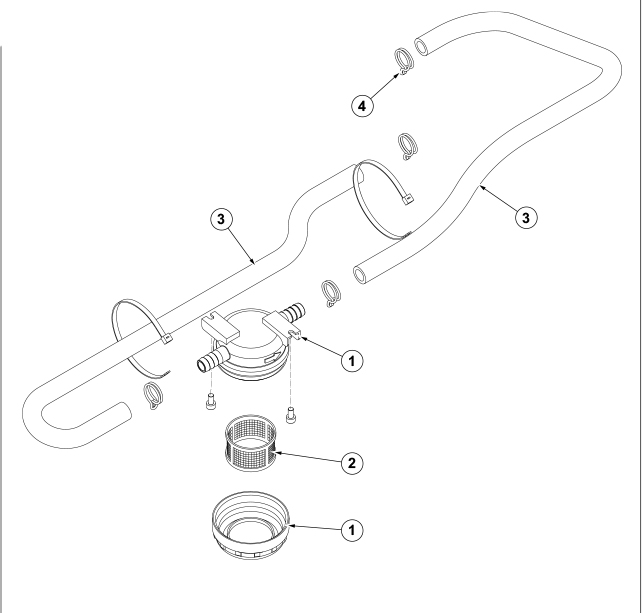

Solution System
Clarke RA40 Solution System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
9100000860 |
Water Filter |
Buy Now |
| 2 |
9100000861 |
Net Water Filter |
Buy Now |
| 3 |
9100001174 |
Hoses Solution Kit |
Buy Now |
| 4 |
9100001159 |
Double Clamp |
Buy Now |

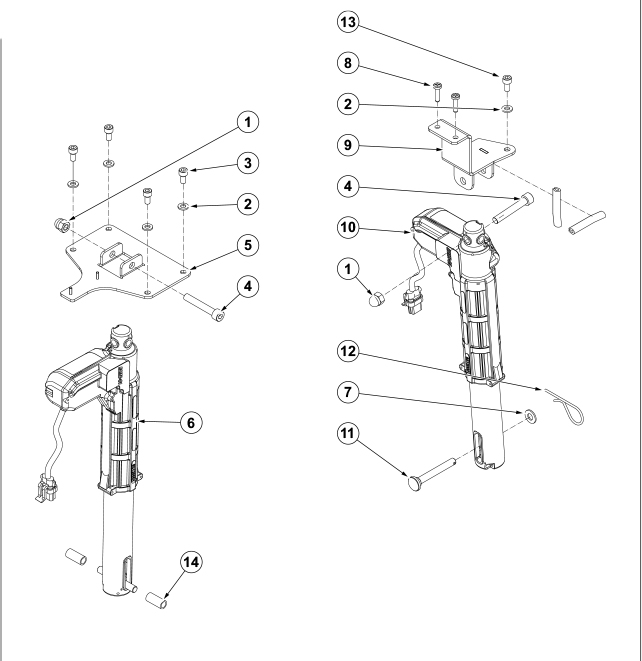

Actuator System
Clarke RA40 Actuator System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Nut |
Call to Order |
| 2 |
- |
Washer |
Call to Order |
| 3 |
- |
Screw |
Call to Order |
| 4 |
- |
Screw |
Call to Order |
| 5 |
9100001126 |
Support Deck Actuator |
Buy Now |
| 6 |
9100001131 |
Actuator |
Buy Now |
| 7 |
- |
Washer |
Call to Order |
| 8 |
- |
Screw |
Call to Order |
| 9 |
9100001103 |
Squeegee Support |
Buy Now |
| 9 |
9100001754 |
Squeegee Support |
Buy Now |
| 10 |
9100001133 |
Actuator |
Buy Now |
| 11 |
- |
Actuator Squeegee Pin |
Call to Order |
| 12 |
- |
Split Pin |
Call to Order |
| 13 |
- |
Screw |
Call to Order |
| 14 |
9100002105 |
Cap |
Buy Now |
| K1 |
9100001663 |
Hardware Actuator Support Kit |
Buy Now |
| K2 |
9100001173 |
Hardware Actuator Kit |
Buy Now |

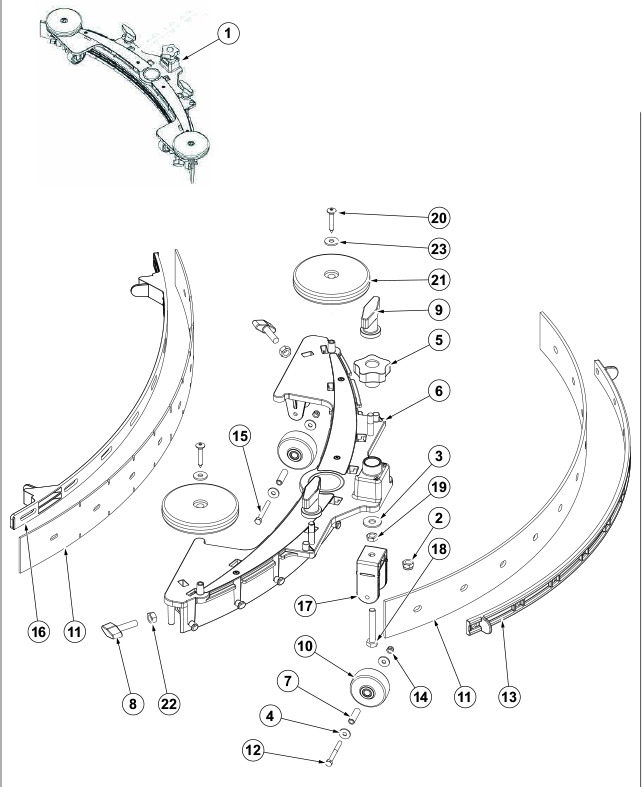

Squeegee System
Clarke RA40 Squeegee System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
9100001367 |
Squeegee |
Buy Now |
| 2 |
- |
Nut |
Call to Order |
| 3 |
- |
Washer |
Call to Order |
| 4 |
- |
Washer |
Call to Order |
| 5 |
9100000862 |
Knob |
Buy Now |
| 6 |
9100000747 |
Squeegee |
Buy Now |
| 7 |
9100002408 |
Spacer |
Buy Now |
| 8 |
9100000791 |
Knob |
Buy Now |
| 9 |
9097637000 |
Squeegee Fixing Kit |
Buy Now |
| 10 |
9100000559 |
Wheel |
Buy Now |
| 11 |
9100000810 |
Squeegee Blade Gum Kit |
Buy Now |
| 11 |
9100000490 |
Squeegee Blade PU Kit |
Buy Now |
| 11 |
9100000060 |
Squeegee Blade Gum Kit |
Buy Now |
| 12 |
- |
Screw |
Call to Order |
| 13 |
9100000864 |
Elastic Strap |
Buy Now |
| 14 |
- |
Nut |
Call to Order |
| 15 |
- |
Screw |
Call to Order |
| 16 |
9100000865 |
Front Squeegee Strap |
Buy Now |
| 17 |
9100000866 |
Squeegee Wheel Support |
Buy Now |
| 18 |
- |
Screw |
Call to Order |
| 19 |
- |
Nut |
Call to Order |
| 20 |
- |
Screw |
Call to Order |
| 21 |
9100001816 |
Wheel Bumper |
Buy Now |
| 22 |
- |
Nut |
Call to Order |
| 23 |
- |
Washer |
Call to Order |
| K1 |
9100000748 |
Hardware Squeegee Kit |
Buy Now |
Brush Deck System

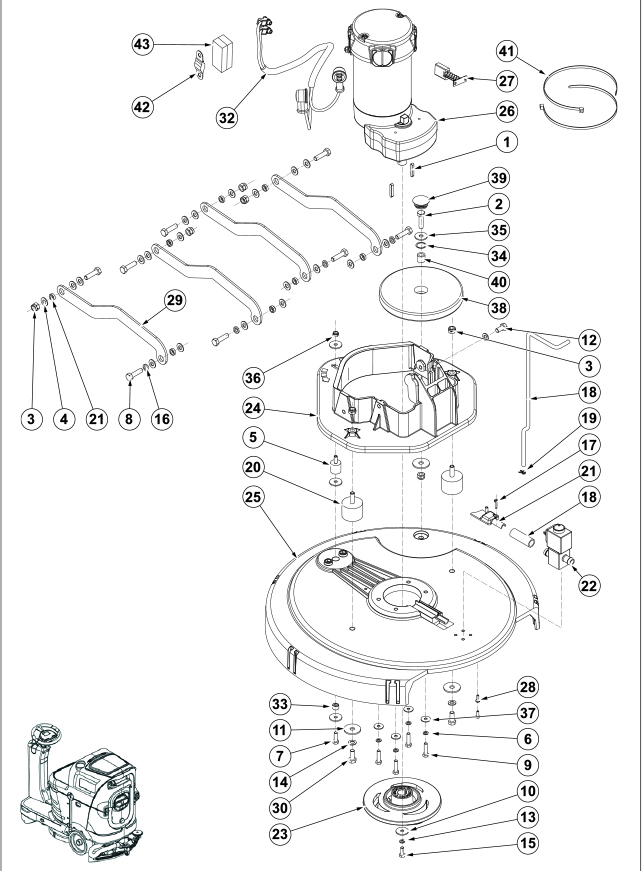

Clarke RA40 Brush Deck System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
9100000875 |
Key |
Buy Now |
| 2 |
- |
Screw |
Call to Order |
| 3 |
- |
Nut |
Call to Order |
| 4 |
- |
Washer |
Call to Order |
| 5 |
9100001352 |
Vibration Damping |
Buy Now |
| 6 |
- |
Washer |
Call to Order |
| 7 |
9100001347 |
Screw |
Buy Now |
| 8 |
- |
Screw |
Call to Order |
| 9 |
- |
Screw |
Call to Order |
| 10 |
- |
Washer |
Call to Order |
| 11 |
- |
Washer |
Call to Order |
| 12 |
- |
Screw |
Call to Order |
| 13 |
- |
Washer |
Call to Order |
| 14 |
- |
Washer |
Call to Order |
| 15 |
- |
Screw |
Call to Order |
| 16 |
- |
Washer |
Call to Order |
| 17 |
- |
Screw |
Call to Order |
| 18 |
9100000797 |
Hoses Brush Deck Kit |
Buy Now |
| 19 |
- |
Clamp |
Call to Order |
| 20 |
9100000868 |
Vibration Damping |
Buy Now |
| 21 |
9100000869 |
Cover Solution Hose Support |
Buy Now |
| 22 |
9100000870 |
Solenoid Valve |
Buy Now |
| 23 |
9100000871 |
Hub Brush |
Buy Now |
| 24 |
9100000872 |
Plate Brush Deck Holder |
Buy Now |
| 25 |
9100000873 |
Deck Brush |
Buy Now |
| 26 |
9100000874 |
Reduction Gear Motor |
Buy Now |
| 27 |
9098376000 |
Carbon Brushes Kit |
Buy Now |
| 28 |
- |
Screw |
Call to Order |
| 29 |
9100001163 |
Arm Brush Deck Lifting |
Buy Now |
| 30 |
- |
Screw |
Call to Order |
| 31 |
- |
Bushing |
Call to Order |
| 32 |
9100002237 |
Harness Brush Motor |
Buy Now |
| 33 |
- |
Spacer |
Call to Order |
| 34 |
- |
Washer |
Call to Order |
| 35 |
- |
Washer |
Call to Order |
| 36 |
- |
Nut |
Call to Order |
| 37 |
- |
Washer |
Call to Order |
| 38 |
- |
Roller Bumper |
Call to Order |
| 39 |
- |
Cap |
Call to Order |
| 40 |
- |
Spacer |
Call to Order |
| 41 |
- |
Cable Tie |
Call to Order |
| 42 |
9100002234 |
Fuse Bolt Down |
Buy Now |
| 43 |
9100002235 |
Fuse Holder |
Buy Now |
| K1 |
9096887000 |
Roller Bumper Kit |
Buy Now |
| K2 |
9100001175 |
Hardware Brush Deck Lifting Arms Kit |
Buy Now |
| K3 |
9100001176 |
Hardware Brush Deck Kit |
Buy Now |
Electrical System

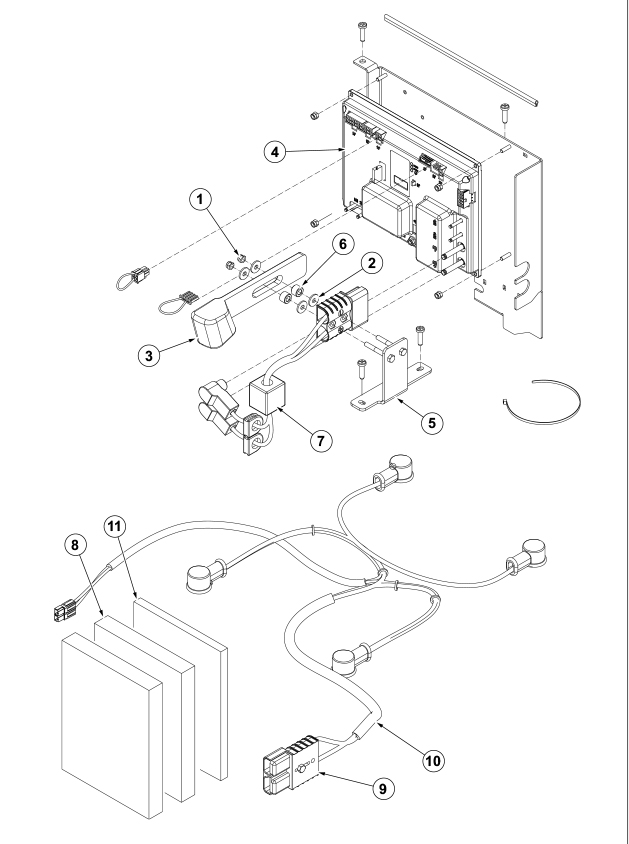

Clarke RA40 Electrical System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
- |
Nut |
Call to Order |
| 2 |
- |
Washer |
Call to Order |
| 3 |
- |
Batter Connector Lever |
Call to Order |
| 4 |
9100001122 |
Main Machine Controller |
Buy Now |
| 4 |
9100002376 |
Main Machine Controller |
Buy Now |
| 5 |
- |
Battery Connector Support |
Call to Order |
| 6 |
- |
Spacer |
Call to Order |
| 7 |
9100001141 |
Harness Components Box |
Buy Now |
| 8 |
- |
Insulating Panel |
Call to Order |
| 9 |
9100002117 |
Connector |
Buy Now |
| 10 |
9100001015 |
Battery Harness |
Buy Now |
| 11 |
- |
Isolant Panel |
Call to Order |
| K1 |
9100001177 |
Insulating Panels Kit |
Buy Now |
| K2 |
9100001179 |
Emergency Lever Kit |
Buy Now |
Battery Charger System

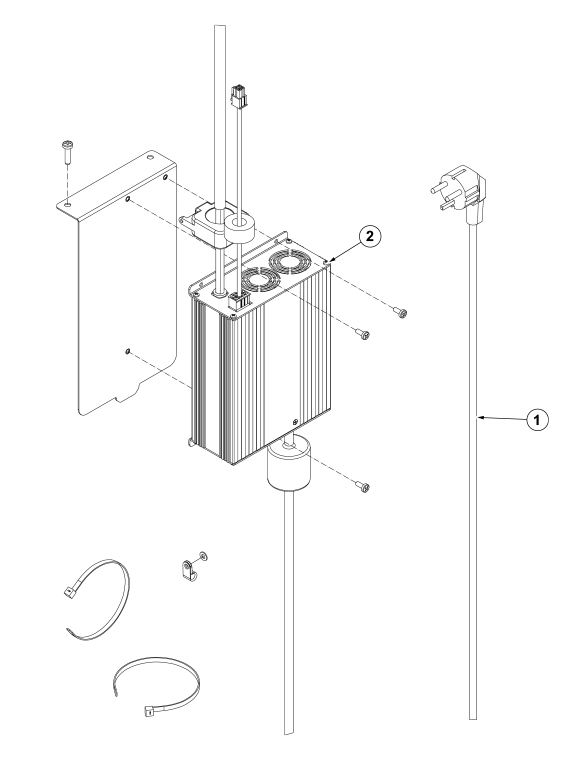

Clarke RA40 Battery Charger System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
9100000890 |
Extension Cable |
Buy Now |
| 2 |
9100001145 |
Battery Charger |
Buy Now |
Detergent Mixing System

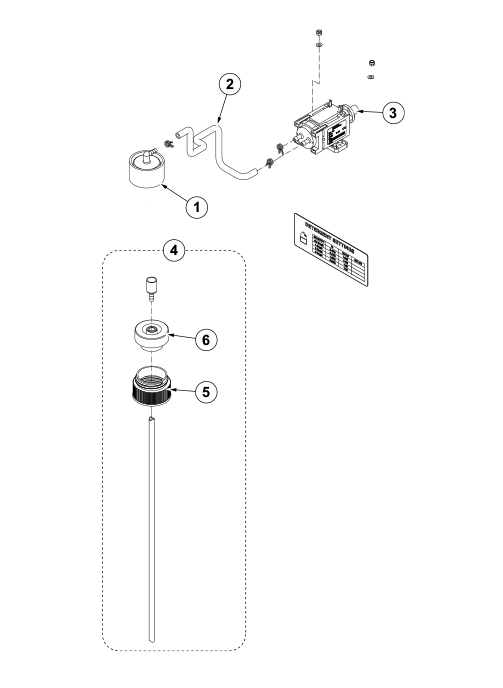

Clarke RA40 Detergent Mixing System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56315523 |
Dry Break Cap |
Buy Now |
| 2 |
9100000891 |
Silicone Hose |
Buy Now |
| 3 |
9100001819 |
Detergent Mix Pump |
Buy Now |
| 4 |
9098025000 |
Detergent Adapter Kit |
Buy Now |
| 5 |
9097023000 |
Detergent Adapter Tank |
Buy Now |
| 6 |
9097022000 |
Detergent Mix Level Sensor |
Buy Now |
| K1 |
9100000954 |
Detergent Mix System Kit |
Buy Now |
Detergent Mixing System

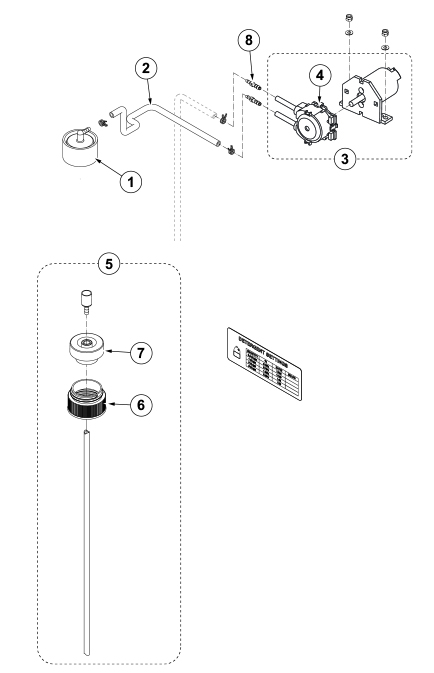

Clarke RA40 Detergent Mixing System
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
56315523 |
Dry Break Cap |
Buy Now |
| 2 |
9100000891 |
Silicone Hose |
Buy Now |
| 3 |
9100002398 |
Detergent Mix Pump |
Buy Now |
| 4 |
9100002388 |
Peristaltic Detergent Pump Head |
Buy Now |
| 5 |
9098025000 |
Detergent Adapter Kit |
Buy Now |
| 6 |
9097023000 |
Detergent Adapter Tank |
Buy Now |
| 7 |
9097022000 |
Detergent Mix Level Sensor |
Buy Now |
| 8 |
9100002402 |
Straight Hose Barb |
Buy Now |
| K1 |
9100002412 |
Detergent Mix System Kit |
Buy Now |
Beacon Flashing, Water Filling, Splash Buard, USB Port

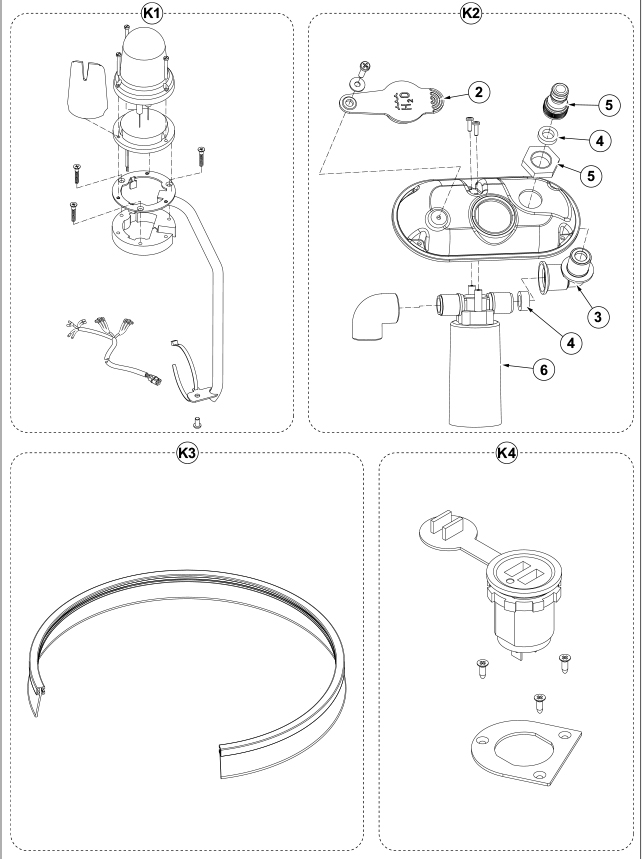

Clarke RA40 Beacon Flashing, Water Filling, Splash Buard, USB Port
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
33023155 |
Flashing Beacon |
Buy Now |
| 2 |
9100000808 |
Rubber Solution Cap |
Buy Now |
| 3 |
9100000894 |
Curved Elbow |
Buy Now |
| 4 |
9100000622 |
Rubber Gasket |
Buy Now |
| 5 |
9099675000 |
Quick Fitting Kit |
Buy Now |
| 6 |
9100000897 |
Water Stop Valve |
Buy Now |
| K1 |
9100000663 |
Flashing Beacon Kit |
Buy Now |
| K2 |
9100000707 |
Automatic water Filling Kit |
Buy Now |
| K3 |
9100001441 |
Splash Guard |
Buy Now |
| K4 |
9100002238 |
USB Port Kit |
Buy Now |
Hose Suction Hand

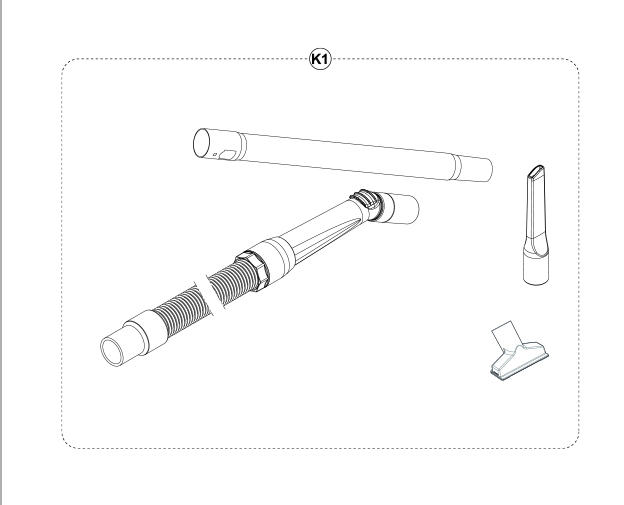

Clarke RA40 Hose Suction Hand
| Reference # |
Part # |
Description |
Add to Cart |
| K1 |
9100002205 |
Draining Hand Tool Kit |
Buy Now |
Brushes

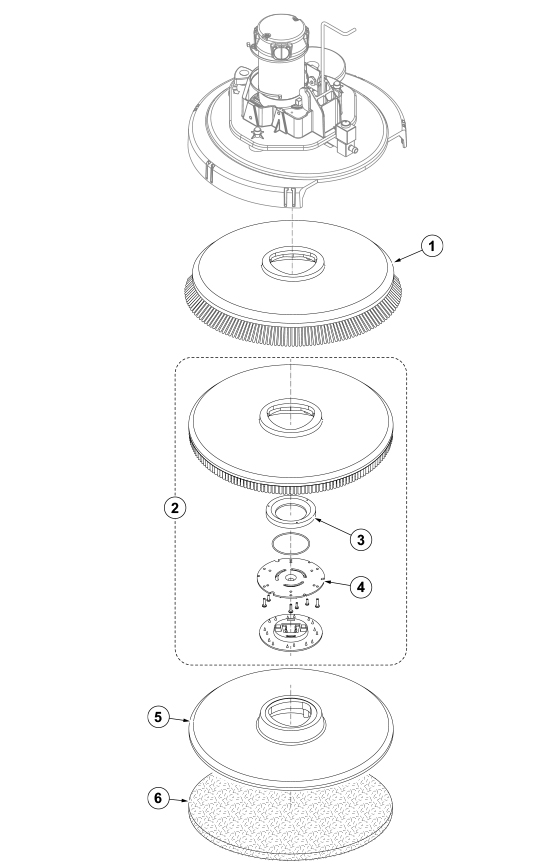

Clarke RA40 Brushes
| Reference # |
Part # |
Description |
Add to Cart |
| 1 |
L08837025 |
Prolene Brush Disc |
Buy Now |
| 1 |
L08837026 |
Prolite Brush Disc |
Buy Now |
| 1 |
L08837027 |
Union Mix Brush Disc |
Buy Now |
| 1 |
L08837028 |
Midlite Grit Brush Disc |
Buy Now |
| 1 |
L08837029 |
Mid Grit Brush Disc |
Buy Now |
| 1 |
L08837065 |
Magna Grit Brush Disc |
Buy Now |
| 1 |
L08837066 |
Dyna Grit Brush Disc |
Buy Now |
| 1 |
L08837067 |
Aglite Grit Brush Disc |
Buy Now |
| 2 |
L08837018 |
Pad Holder |
Buy Now |
| 3 |
L08603966 |
Nylon Ring |
Buy Now |
| 4 |
56505195 |
Pad Retainer |
Buy Now |
| 5 |
9099671000 |
Pad Holder |
Buy Now |
| 6 |
10001955 |
Black Pad |
Call to Order |
| 6 |
10001956 |
Blue Pad |
Call to Order |
| 6 |
10001957 |
Brown Pad |
Call to Order |
| 6 |
10001958 |
Green Pad |
Call to Order |
| 6 |
10001959 |
Red Pad |
Call to Order |
| 6 |
10001960 |
White Pad |
Call to Order |
| 6 |
10002348 |
Brilliance Red Pad |
Buy Now |
| 6 |
10002349 |
Brilliance Blue Pad |
Buy Now |
| 6 |
10002350 |
Brilliance Yellow Pad |
Buy Now |
| 6 |
10002351 |
Brilliance Green Pad |
Buy Now |
