Clarke GP

Assembly

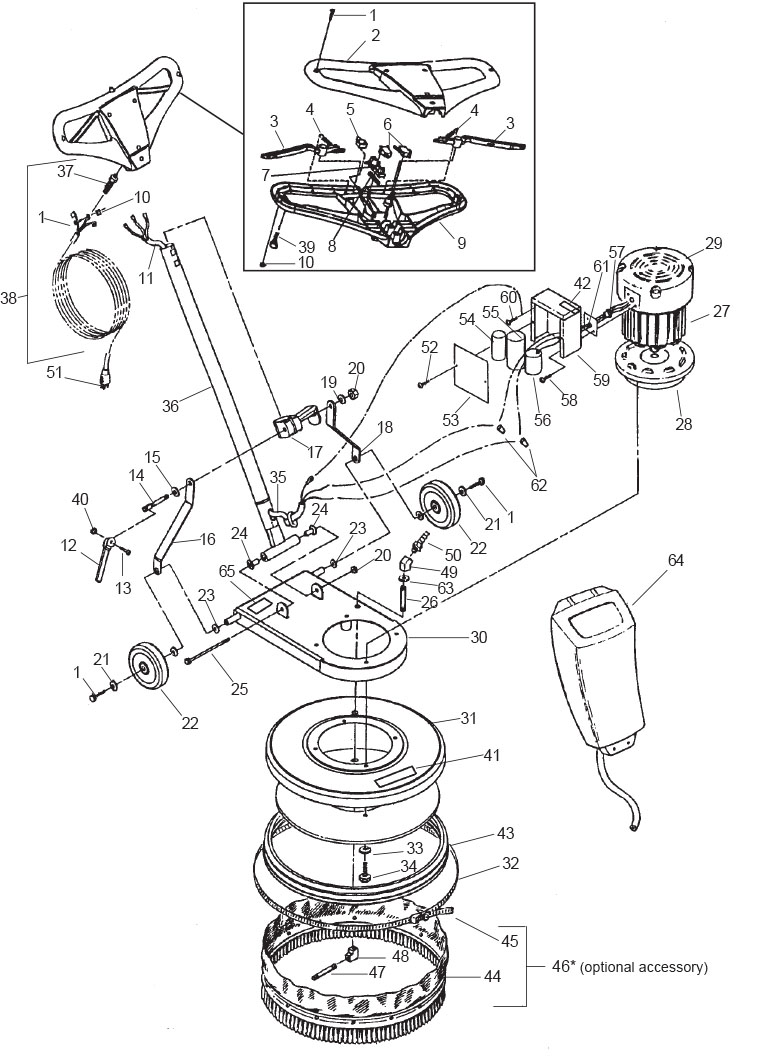

Clarke GP Assembly

1	85383A	Screw	Buy Now
2	30285A	Handle	Buy Now
3	50798A	Switch Lever	Buy Now
4	50820A	Extension Spring	Buy Now
5	50806A	Interlock Button	Buy Now
6	40109A	Switch	Buy Now
7	50799A	Main Interlock	Buy Now
8	50821A	Compression Spring	Buy Now
9	50780A	Rear Handle	Buy Now
10	920722	Nut	Call to Order
11	10084A	Interconnect Cord	Call to Order
12	503942	Locking Cam	Call to Order
13	960969	Bolt	Buy Now
14	80149A	Cam Lock Bolt	Call to Order
15	98468A	Wear Cam Washer	Buy Now
16	50791A	Right Arm Link	Buy Now
17	80150A	Handle Clamp	Call to Order
18	50792A	Left Arm Link	Buy Now
19	980645	Flat Washer	Buy Now
20	920342	Nut	Call to Order
21	87035A	Washer	Buy Now
22	50793A	Wheel	Buy Now
23	87050A	Washer	Buy Now
24	50794A	Nylon Bushing	Buy Now
25	80087A	Screw	Buy Now
26	52808A	Nipple	Call to Order
27	44663A	Motor	Call to Order
28	63705A	Gearbox	Call to Order
29	50823A	Motor Cover	Buy Now
30	50790A	Main Frame	Call to Order
31	50786A	Brush Shield	Call to Order
32	50783A	Bumper	Call to Order
33	980652	Lock Washer	Buy Now
34	85739A	Screw	Buy Now
35	50796A	Cord Bushing	Buy Now
36	50795A	Handle Tube	Buy Now
37	50797A	Strain Relief	Buy Now
38	10083A	Cord Assembly	Buy Now
39	962957	Screw	Buy Now
40	920349	Locknut	Buy Now
41	70455A	Clarke Label	Buy Now
42	77195A	Warning Label	Buy Now
43	50853A	Weight	Call to Order
44	18446A	Skirt	Call to Order
45	50831A	Clamp	Call to Order
46	10088A	Dust Skirt Kit	Buy Now
47	56362A	Nipple	Call to Order
48	53639A	Elbow	Call to Order
49	53638A	Elbow	Call to Order
50	170030	Hosebarb	Buy Now
51	45603A	Plug	Buy Now
52	962987	Screw	Buy Now
53	62666A	Enclosure Cover	Call to Order
54	41311A	Run Capacitor	Buy Now
55	-	Start Capacitor	Call to Order
56	47378A	Starter	Buy Now
57	611101	Bushing	Call to Order
58	962892	Ground Screw	Buy Now
59	62908A	Enclosure	Call to Order
60	85833A	Screw	Buy Now
61	-	Gasket	Call to Order
62	170669	Wire Nut	Call to Order
63	980648	Washer	Call to Order
64	50026B	Tank Assembly	Buy Now
65	70651A	Label	Call to Order

Gearbox

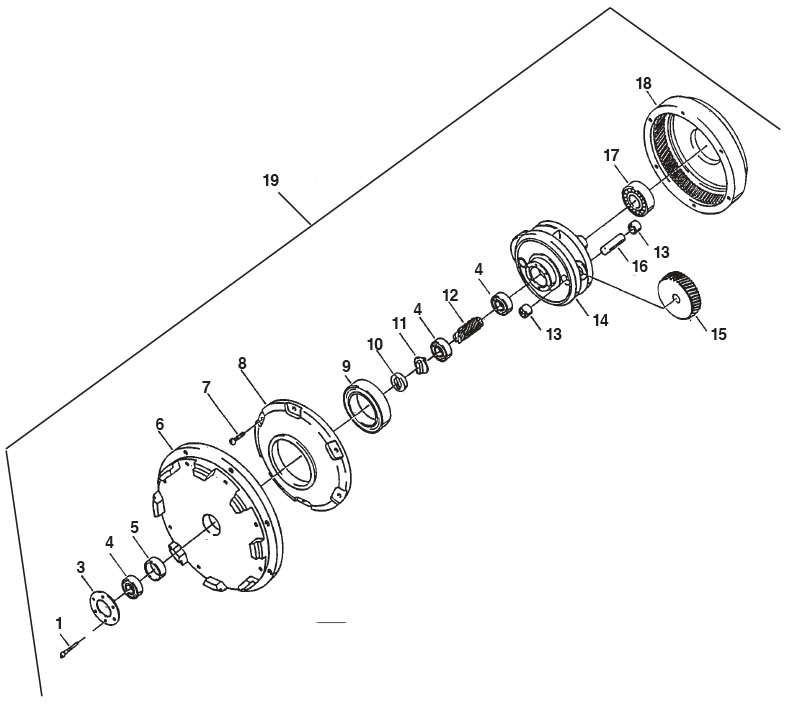

Clarke GP Gearbox

Reference #	Part #	Description	Add to Cart
1	80141A	Screw	Buy Now
3	56922A	Bearing Retainer	Buy Now
4	902606	Ball Bearing	Buy Now
5	58520A	Sleeve Spacer	Buy Now
6	69099A	Endshield	Call to Order
7	962794	Screw	Buy Now
8	54858A	Housing Cover	Call to Order
9	902736	Bearing	Buy Now
10	58314A	Retainer	Buy Now
11	69195A	Coupling	Buy Now
12	58313A	Pinion Gear	Buy Now
13	902737	Needle Bearing	Call to Order
14	-	Cage	Call to Order
15	54408A	Idler Gear	Call to Order
16	58312A	Shaft	Buy Now
17	902654	Ball Bearing	Buy Now
18	54856A	Drive Housing	Call to Order
19	63705A	Gearbox Assembly	Call to Order
NI	503802	Grease	Buy Now
