Clarke EX 40

Base System

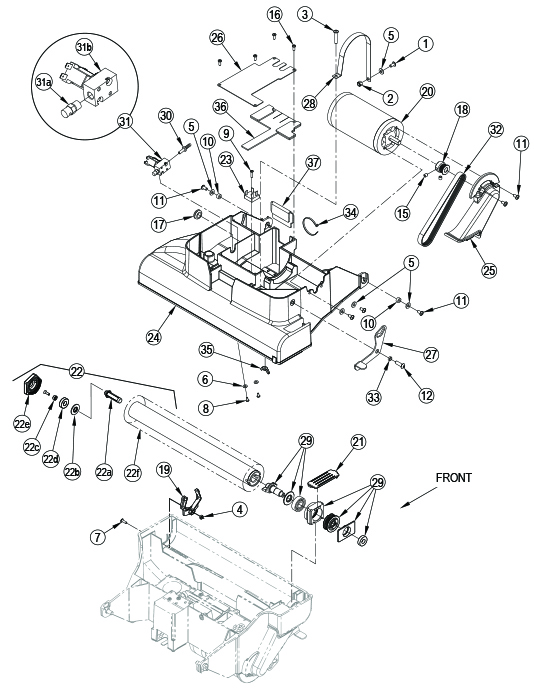

Clarke EX 40 Base System

Reference # Part # Description Add to Cart
1 56002145 Screw Buy Now
2 56002491 Nut Buy Now
3 56002905 Screw Buy Now
4 56002849 Nut Buy Now
5 56002859 Washer Buy Now
6 56002875 Washer Buy Now
7 56002896 Screw Buy Now
8 56003018 Screw Buy Now
9 56003545 Screw Buy Now
10 56265782 Bushing Buy Now
11 56003897 Screw Buy Now
12 56003963 Screw Buy Now
13 56003985 Nut Call to Order
14 56009037 Washer Call to Order
15 56009131 Screw Buy Now
16 56003093 Screw Buy Now
17 56157376 Grommet Buy Now
18 56262558 Sheave Buy Now
19 56265043 Brush Retainer Clip Buy Now
20 56265075 Motor Buy Now
21 56265091 Pulley Cover Buy Now
22 56265044 Brush Assembly 16 Buy Now
22a 56262644 Spindle Buy Now
22b 56262646 Bearing Washer Buy Now
22c 56262649 Bearing Plug Buy Now
22d 56262626 Ball Bearing Buy Now
22e 56265045 Bearing Block Buy Now
22f 56265046 Brush Buy Now
- 56265099 Brush Assembly 18 Buy Now
- 56265065 Brush 18 Buy Now
23 56265103 Rectifier Buy Now
24 56265818 Base Assembly (16ST) Buy Now
- 56265819 Base Assembly (18LX) Buy Now
25 56265629 Belt Cover Buy Now
26 56265657 Electrical Cover Buy Now
27 56265794 Brush Storage Lever Buy Now
28 56265676 Motor Strap Buy Now
29 56265690 Spindle Kit Bearing Buy Now
- 56265690 Ball Bearing Buy Now
- 56265690 Bearing Washer Buy Now
- 56265690 Block Bearing Buy Now
- 56265690 Drive Spindle Buy Now
- 56265690 Bearing Block Buy Now
- 56265690 Sheave Buy Now
- 56265690 Ring Ball Buy Now
30 56265692 Adapter Buy Now
31 56265746 Valve Buy Now
31a 56265052 Nozzle Spray Buy Now
31b 56265561 Solenoid Valve Buy Now
32 56315321 Auto Tension Belt Buy Now
33 56381818 Bushing Buy Now
34 56478246 Cable Tie Buy Now
35 56009111 Wing Nut Buy Now
36 56265790 Gasket Buy Now
37 56265788 Gasket Buy Now





Decals

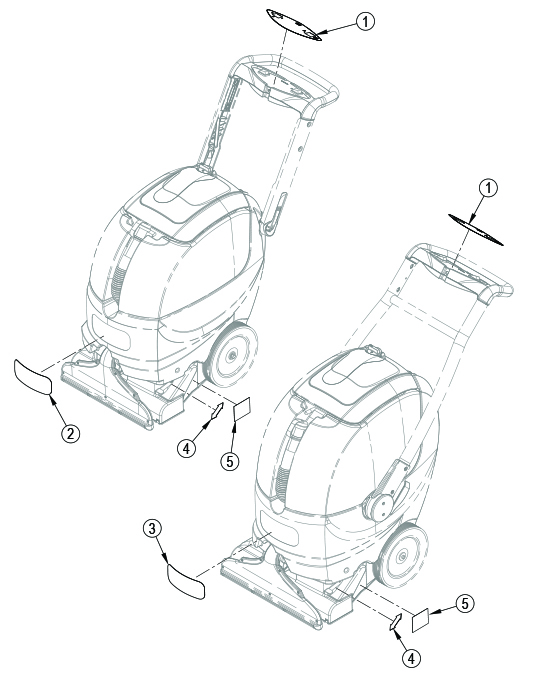

Clarke EX 40 Decals

Reference # Part # Description Add to Cart
1 56265727 ST (16ST, 18LX) Buy Now
2 56265730 Clarke EX40 (16ST) Buy Now
3 56265731 Clarke EX40 (18LX) Buy Now
4 56265750 Storage Lock (16ST, 18LX) Buy Now
5 56265792 CRI Gold Buy Now
- 56394259 Prop 65 Buy Now





Handle System 16ST

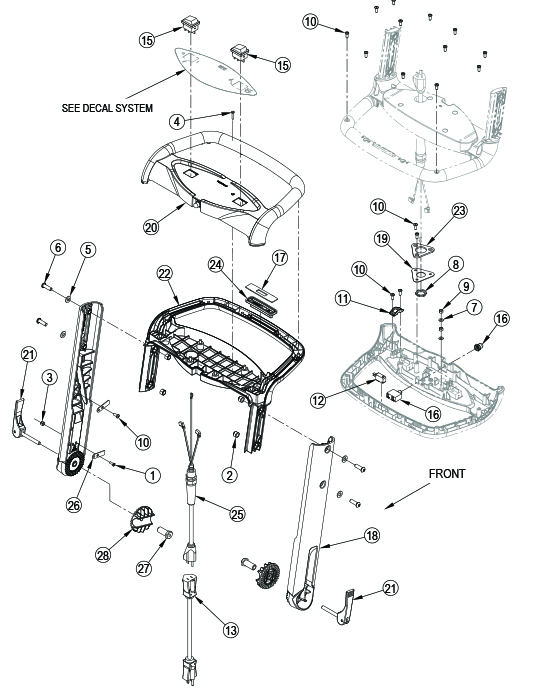

Clarke EX 40 Handle System 16ST

Reference # Part # Description Add to Cart
1 56002146 Screw Buy Now
2 56002701 Nut Buy Now
3 56002808 Nut Buy Now
4 56002874 Screw Buy Now
5 56002938 Washer Buy Now
6 56003963 Screw Buy Now
7 56009010 Washer Buy Now
8 56009095 Conduit Lock Nut Buy Now
9 56009148 Nut Buy Now
10 56009191 Screw Buy Now
11 56264119 Power Cord Clamp Buy Now
12 56265098 Switch Buy Now
13 56265112 Cord Set Buy Now
14 56265547 Main Harness Buy Now
15 56265549 Rocker Switch Buy Now
16 56265550 Circuit Breaker Buy Now
17 56265564 Switch Retainer Plate Buy Now
18 56265648 Handle Tube Buy Now
19 56265659 Cord Mounting Plate Buy Now
20 56265666 Handle Buy Now
21 56265682 Locking Assembly Lever Buy Now
22 56265693 Handle Buy Now
23 56265698 Cord Mount Gasket Buy Now
24 56265715 Handle Button Buy Now
25 56265718 Pigtail Cord Buy Now
26 56265748 Harness Retainer Buy Now
27 56265752 Bushing Buy Now
28 56265815 Ratchet Handle Adjuster Buy Now





Handle System 18LX

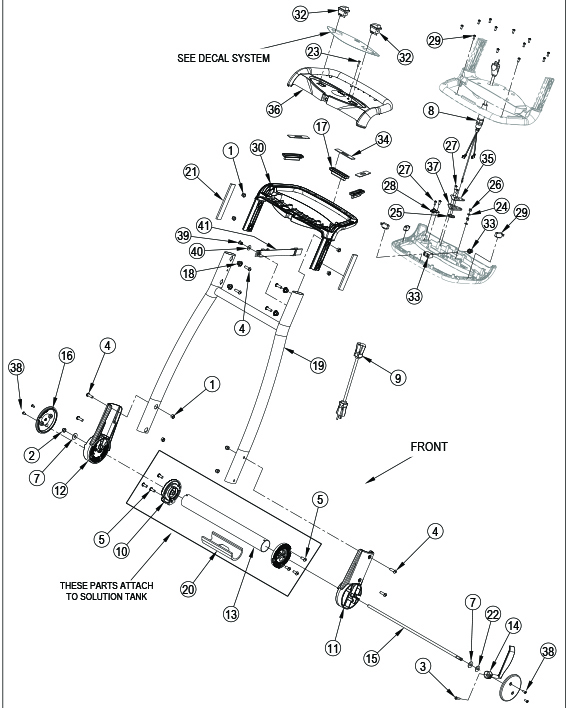

Clarke EX 40 Handle System 18LX

Reference # Part # Description Add to Cart
1 56002701 Nut Buy Now
2 56002852 Nut Buy Now
3 56003624 Screw Buy Now
4 56003963 Screw Buy Now
5 56003994 Screw Buy Now
7 56385358 Washer Buy Now
8 56265718 Pigtail Cord Buy Now
9 56265112 Cord Set Buy Now
10 56265525 Ratchet Mount Buy Now
11 56265526 Handle Socket w/ Hole Buy Now
12 56265527 Handle Socket w/o Hole Buy Now
13 56265528 Sleeve Buy Now
14 56265797 Lever Cam Buy Now
15 56265530 Shaft Cam Buy Now
16 56265533 Cap Ratchet Buy Now
17 56265715 Button Handle Buy Now
18 56265658 Bushing Handle Buy Now
19 56265688 Handle Weldment Buy Now
20 56265744 Gasket Handle Tube Buy Now
21 56265768 Gasket Handle Buy Now
22 56632681 Washer Buy Now
23 56002874 Screw Buy Now
24 56009010 Washer Buy Now
25 56009095 Conduit Lock Nut Buy Now
26 56009148 Nut Buy Now
27 56009191 Screw Buy Now
28 56264119 Power Cord Clamp Buy Now
29 56265098 Switch Buy Now
30 56265543 Bottom Cover Handle Buy Now
31 56265547 Main Harness Buy Now
32 56265549 Rocker Switch Buy Now
33 56265550 Circuit Breaker Buy Now
34 56265564 Switch Retainer Plate Buy Now
35 56265659 Cord Mounting Plate Buy Now
36 56265666 Top Cover Handle Buy Now
37 56265698 Cord Mount Gasket Buy Now
38 56009247 Screw Buy Now
39 83002A Rivet Buy Now
40 56002914 Washer Buy Now
41 56265639 Strap Buy Now





Recovery System

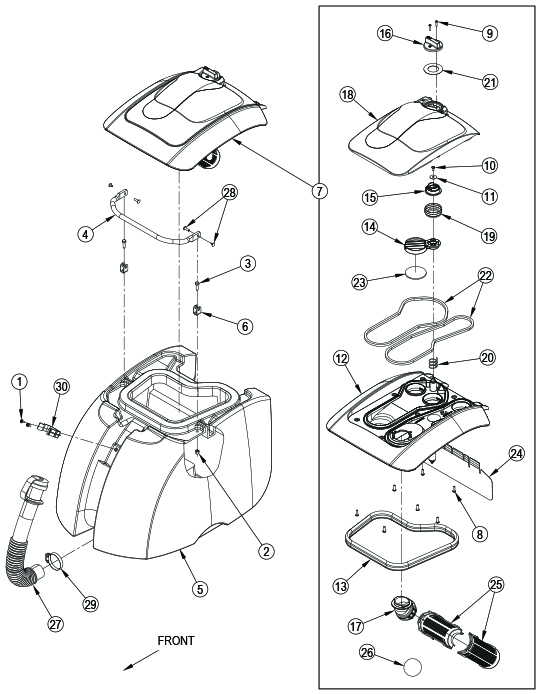

Clarke EX 40 Recovery System

Reference # Part # Description Add to Cart
1 56002900 Screw Buy Now
2 56003426 Nut Buy Now
3 56003454 Screw Buy Now
4 56265793 Tank Handle Buy Now
5 56265702 Recovery Tank (16ST) Buy Now
- 56265699 Recovery Tank (18LX) Buy Now
6 56265630 Handle Retainer Bracket Buy Now
7 56265660 Recovery Lid Assembly Buy Now
8 56002896 Screw Buy Now
9 56003197 Screw Buy Now
10 56003913 Screw Buy Now
11 56009349 Washer Buy Now
12 56265589 Recovery Tank Lid Buy Now
13 56265604 Recovery Tank Gasket Buy Now
14 56265799 Paddle Valve Buy Now
15 56265798 Actuator Valve Buy Now
16 56265795 Knob Valve Buy Now
17 56265654 Ball Float Adapter Buy Now
18 56265655 Recovery Lid Cover Buy Now
19 56265681 Diverter Valve Seal Buy Now
20 56265709 Spring Compression Buy Now
21 56265710 Selector Knob Seal Buy Now
22 56265737 Gasket Lid Buy Now
23 56265738 Gasket Paddle Buy Now
24 56265783 Flexible Lid Barrier Buy Now
25 56324497 Float Cage Buy Now
26 56391690 Float Ball Buy Now
27 56265685 Hose Drain Buy Now
28 56265747 Binding Post Buy Now
29 56329145 Hose Clamp Buy Now
30 56331154 Plastic Clamp Buy Now





Solution System 16ST 1

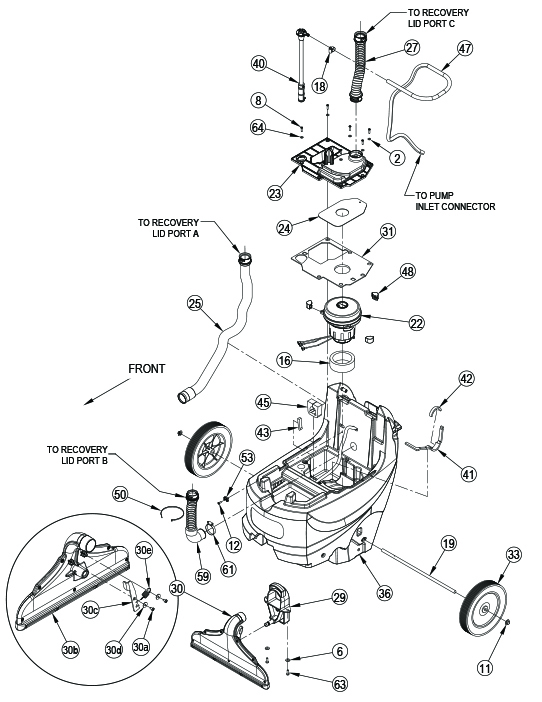

Clarke EX 40 Solution System 16ST 1

Reference # Part # Description Add to Cart
1 832803 Hose Elbow Buy Now
2 56001954 Washer Buy Now
3 56003897 Screw Buy Now
4 56002624 Screw Buy Now
5 56003913 Screw Buy Now
6 56002914 Washer Buy Now
7 56002958 Screw Buy Now
8 56003091 Screw Buy Now
9 56009022 Washer Buy Now
10 56009043 Screw Buy Now
11 56009097 Push Cap Nut Buy Now
12 56009191 Screw Buy Now
13 56052237 Phenolic Spacer Buy Now
14 56056903 Clamp Buy Now
15 56109503 Double Barb Assembly Buy Now
16 56116110 Inlet Seal Buy Now
17 56116721 Grommet Buy Now
18 56219932 Hose Clamp Buy Now
19 56265057 Axle Buy Now
20 56265373 Hose Buy Now
21 56265552 Vacuum Motor Buy Now
- 56265683 Carbon Brush Kit Buy Now
22 56265554 Pump Buy Now
23 56265582 Vac Motor Cover Buy Now
24 56265583 Vac Motor Plate Buy Now
25 56265586 Vac Hose Assembly Buy Now
26 56265617 Vac Inlet Cover Buy Now
27 56265625 Hose Assembly Buy Now
28 56265631 Back Cover Buy Now
29 56265646 Shoe Bracket Buy Now
30 56265650 Latch Assembly Buy Now
30a 56009247 Screw Buy Now
30b 56265538 Shoe Assembly Buy Now
30c 56265796 Shoe Latch Buy Now
30d 1326a Flat Washer Call to Order
30e 54196a Spring Extension Buy Now
31 56265665 Vac Motor Cover Gasket Buy Now
33 56265697 Wheel Buy Now
34 56265704 Hose Storage Hook Buy Now
35 56265705 Quick Disconnect Socket Buy Now
36 56265706 Solution Tank Buy Now
37 56265708 Hose Assembly Buy Now
38 56265712 Coupler Buy Now
39 56265722 Back Panel Gasket Buy Now
40 56265725 Solution Filter Assembly Buy Now
41 56265732 Vac Exhaust Chamber Gasket Buy Now
42 56265733 Vac Exhaust Port Gasket Buy Now
43 56265734 Vac Chamber Gasket Buy Now
44 56265735 Backpanel Gasket Buy Now
45 56265739 Vac Hose Sound Gasket Buy Now
47 56265766 Spiral Hose Buy Now
48 56315141 Vibration Mount Buy Now
49 56265745 Hose Buy Now
50 56478523 Cable Tie Buy Now
51 56756364 Hose Clamp Buy Now
52 56109566 Elbow Barb Buy Now
53 9096595000 Flat Tie Holder Buy Now
54 56112771 Hose Clamp Buy Now
55 56265787 Pump Boot Buy Now
56 56265789 Vac Inlet Cover Gasket Call to Order
57 9096380000 Clamp Kit Buy Now
58 56055989 Cuff Hose Buy Now
59 56265626 Vac Hose Assembly Buy Now
60 56265791 Hose Clamp Buy Now
61 56329145 Hose Clamp Buy Now
62 56381838 Aluminum Tube Buy Now
63 56003221 Screw Buy Now
64 56209261 Washer Buy Now





Solution System 16ST 2

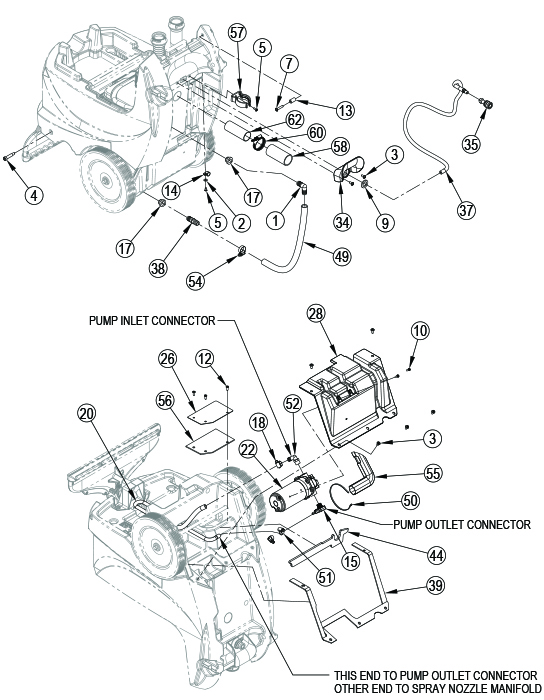

Clarke EX 40 Solution System 16ST 2

Reference # Part # Description Add to Cart
1 832803 Hose Elbow Buy Now
2 56001954 Washer Buy Now
3 56003897 Screw Buy Now
4 56002624 Screw Buy Now
5 56003913 Screw Buy Now
6 56002914 Washer Buy Now
7 56002958 Screw Buy Now
8 56003091 Screw Buy Now
9 56009022 Washer Buy Now
10 56009043 Screw Buy Now
11 56009097 Push Cap Nut Buy Now
12 56009191 Screw Buy Now
13 56052237 Phenolic Spacer Buy Now
14 56056903 Clamp Buy Now
15 56109503 Double Barb Assembly Buy Now
16 56116110 Inlet Seal Buy Now
17 56116721 Grommet Buy Now
18 56219932 Hose Clamp Buy Now
19 56265057 Axle Buy Now
20 56265373 Hose Buy Now
21 56265552 Vacuum Motor Buy Now
- 56265683 Carbon Brush Kit Buy Now
22 56265554 Pump Buy Now
23 56265582 Vac Motor Cover Buy Now
24 56265583 Vac Motor Plate Buy Now
25 56265586 Vac Hose Assembly Buy Now
26 56265617 Vac Inlet Cover Buy Now
27 56265625 Hose Assembly Buy Now
28 56265631 Back Cover Buy Now
29 56265646 Shoe Bracket Buy Now
30 56265650 Latch Assembly Buy Now
30a 56009247 Screw Buy Now
30b 56265538 Shoe Assembly Buy Now
30c 56265796 Shoe Latch Buy Now
30d 1326a Flat Washer Call to Order
30e 54196a Spring Extension Buy Now
31 56265665 Vac Motor Cover Gasket Buy Now
33 56265697 Wheel Buy Now
34 56265704 Hose Storage Hook Buy Now
35 56265705 Quick Disconnect Socket Buy Now
36 56265706 Solution Tank Buy Now
37 56265708 Hose Assembly Buy Now
38 56265712 Coupler Buy Now
39 56265722 Back Panel Gasket Buy Now
40 56265725 Solution Filter Assembly Buy Now
41 56265732 Vac Exhaust Chamber Gasket Buy Now
42 56265733 Vac Exhaust Port Gasket Buy Now
43 56265734 Vac Chamber Gasket Buy Now
44 56265735 Backpanel Gasket Buy Now
45 56265739 Vac Hose Sound Gasket Buy Now
47 56265766 Spiral Hose Buy Now
48 56315141 Vibration Mount Buy Now
49 56265745 Hose Buy Now
50 56478523 Cable Tie Buy Now
51 56756364 Hose Clamp Buy Now
52 56109566 Elbow Barb Buy Now
53 9096595000 Flat Tie Holder Buy Now
54 56112771 Hose Clamp Buy Now
55 56265787 Pump Boot Buy Now
56 56265789 Vac Inlet Cover Gasket Call to Order
57 9096380000 Clamp Kit Buy Now
58 56055989 Cuff Hose Buy Now
59 56265626 Vac Hose Assembly Buy Now
60 56265791 Hose Clamp Buy Now
61 56329145 Hose Clamp Buy Now
62 56381838 Aluminum Tube Buy Now
63 56003221 Screw Buy Now
64 56209261 Washer Buy Now

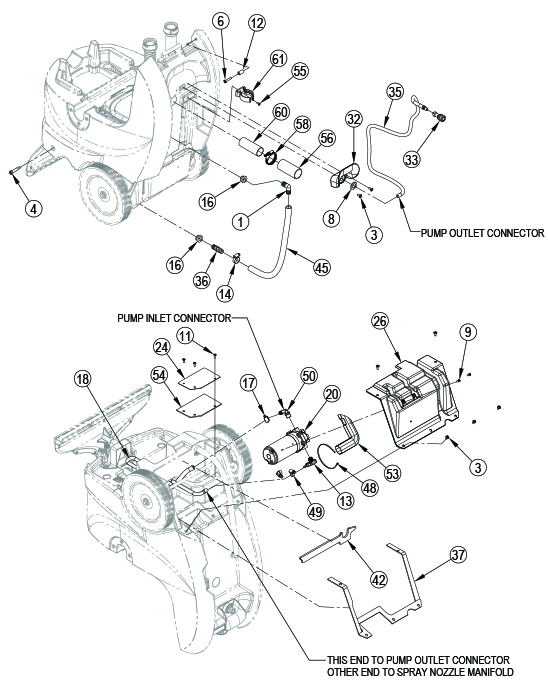

Solution System 18LX 1

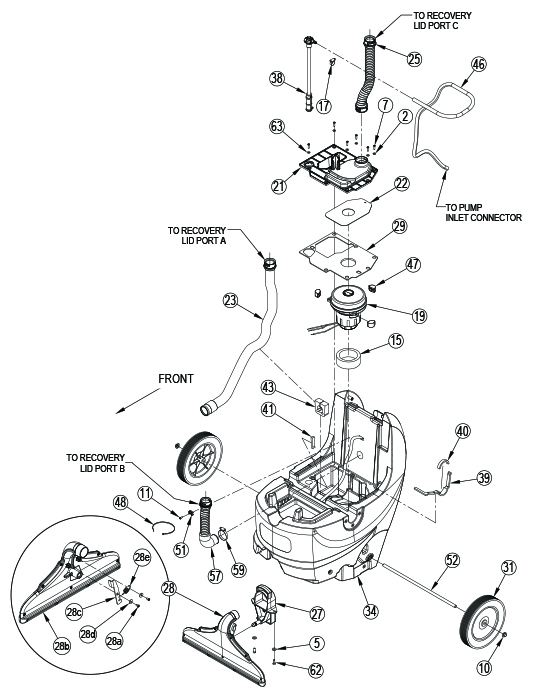

Clarke EX Solution System 18LX 1

Reference # Part # Description Add to Cart
1 832803 Elbow Hose Buy Now
2 56001954 Washer Buy Now
3 56003897 Screw Buy Now
4 56002624 Screw Buy Now
5 56002914 Washer Buy Now
6 56002958 Screw Buy Now
7 56003091 Screw Buy Now
8 56009022 Washer Buy Now
9 56009043 Screw Buy Now
10 56009097 Push Cap Nut Buy Now
11 56009191 Screw Buy Now
12 56052237 Phenolic Spacer Buy Now
13 56109503 Double Barb Assembly Buy Now
14 56112771 Hose Clamp Buy Now
15 56116110 Inlet Seal Buy Now
16 56116721 Grommet Buy Now
17 56219932 Hose Clamp Buy Now
18 56265373 Hose Buy Now
19 56265552 Vacuum Motor Buy Now
- 56265683 Carbon Brush Kit Buy Now
20 56265554 Pump Buy Now
21 56265582 Vac Motor Cover Buy Now
22 56265583 Vac Motor Plate Buy Now
23 56265586 Vac Hose Assembly Buy Now
24 56265617 Vac Inlet Cover Buy Now
25 56265625 Hose Assembly Buy Now
26 56265631 Back Cover Buy Now
27 56265646 Shoe Bracket Buy Now
28 56265662 Latch Assembly Buy Now
28a 56009247 Screw Buy Now
28b 56265538 Shoe Assembly Buy Now
28c 56265796 Shoe Latch Buy Now
28d 1326a Flat Washer Call to Order
28e 54196a Spring Extension Buy Now
29 56265665 Vac Motor Cover Gasket Buy Now
31 56265697 Wheel Buy Now
32 56265704 Hose Storage Hook Buy Now
33 56265705 Quick Disconnect Socket Buy Now
34 56265707 Solution Tank Buy Now
35 56265708 Solution Hose Assembly Buy Now
36 56265712 Barb Coupler Buy Now
37 56265722 Back Panel Gasket Buy Now
38 56265726 Solution Filter Assembly Buy Now
39 56265732 Vac Exhaust Chamber Gasket Buy Now
40 56265733 Vac Exhaust Port Gasket Buy Now
41 56265734 Vac Chamber Side Gasket Buy Now
42 56265735 Backpanel Bottom Gasket Buy Now
43 56265739 Vac Hose Sound Gasket Buy Now
45 56265745 Hose Buy Now
46 56265766 Spiral Hose Buy Now
47 56315141 Vibration Mount Buy Now
48 56478523 Cable Tie Buy Now
49 56756364 Hose Clamp Buy Now
50 56109566 Elbow Barb Buy Now
51 9096595000 Flat Tie Holder Buy Now
52 9101863 Axel Rod Call to Order
53 56265787 Pump Boot Buy Now
54 56265789 Vac Inlet Cover Gasket Call to Order
55 56003913 Screw Buy Now
56 56055989 Cuff Hose Buy Now
57 56265626 Vac Hose Assembly Buy Now
58 56265791 Hose Keyed Worm Drive Clamp Buy Now
59 56329145 Clamp Hose Buy Now
60 56381838 Aluminum Tube Buy Now
61 9096380000 Clamp Kit Buy Now
62 56003221 Screw Buy Now
63 56209261 Sealing Washer Buy Now





Solution System 18LX 2

Clarke EX 40 Solution System 18LX 2

Reference # Part # Description Add to Cart
1 832803 Elbow Hose Buy Now
2 56001954 Washer Buy Now
3 56003897 Screw Buy Now
4 56002624 Screw Buy Now
5 56002914 Washer Buy Now
6 56002958 Screw Buy Now
7 56003091 Screw Buy Now
8 56009022 Washer Buy Now
9 56009043 Screw Buy Now
10 56009097 Push Cap Nut Buy Now
11 56009191 Screw Buy Now
12 56052237 Phenolic Spacer Buy Now
13 56109503 Double Barb Assembly Buy Now
14 56112771 Hose Clamp Buy Now
15 56116110 Inlet Seal Buy Now
16 56116721 Grommet Buy Now
17 56219932 Hose Clamp Buy Now
18 56265373 Hose Buy Now
19 56265552 Vacuum Motor Buy Now
- 56265683 Carbon Brush Kit Buy Now
20 56265554 Pump Buy Now
21 56265582 Vac Motor Cover Buy Now
22 56265583 Vac Motor Plate Buy Now
23 56265586 Vac Hose Assembly Buy Now
24 56265617 Vac Inlet Cover Buy Now
25 56265625 Hose Assembly Buy Now
26 56265631 Back Cover Buy Now
27 56265646 Shoe Bracket Buy Now
28 56265662 Latch Assembly Buy Now
28a 56009247 Screw Buy Now
28b 56265538 Shoe Assembly Buy Now
28c 56265796 Shoe Latch Buy Now
28d 1326a Flat Washer Call to Order
28e 54196a Spring Extension Buy Now
29 56265665 Vac Motor Cover Gasket Buy Now
31 56265697 Wheel Buy Now
32 56265704 Hose Storage Hook Buy Now
33 56265705 Quick Disconnect Socket Buy Now
34 56265707 Solution Tank Buy Now
35 56265708 Solution Hose Assembly Buy Now
36 56265712 Barb Coupler Buy Now
37 56265722 Back Panel Gasket Buy Now
38 56265726 Solution Filter Assembly Buy Now
39 56265732 Vac Exhaust Chamber Gasket Buy Now
40 56265733 Vac Exhaust Port Gasket Buy Now
41 56265734 Vac Chamber Side Gasket Buy Now
42 56265735 Backpanel Bottom Gasket Buy Now
43 56265739 Vac Hose Sound Gasket Buy Now
45 56265745 Hose Buy Now
46 56265766 Spiral Hose Buy Now
47 56315141 Vibration Mount Buy Now
48 56478523 Cable Tie Buy Now
49 56756364 Hose Clamp Buy Now
50 56109566 Elbow Barb Buy Now
51 9096595000 Flat Tie Holder Buy Now
52 9101863 Axel Rod Call to Order
53 56265787 Pump Boot Buy Now
54 56265789 Vac Inlet Cover Gasket Call to Order
55 56003913 Screw Buy Now
56 56055989 Cuff Hose Buy Now
57 56265626 Vac Hose Assembly Buy Now
58 56265791 Hose Keyed Worm Drive Clamp Buy Now
59 56329145 Clamp Hose Buy Now
60 56381838 Aluminum Tube Buy Now
61 9096380000 Clamp Kit Buy Now
62 56003221 Screw Buy Now
63 56209261 Sealing Washer Buy Now
