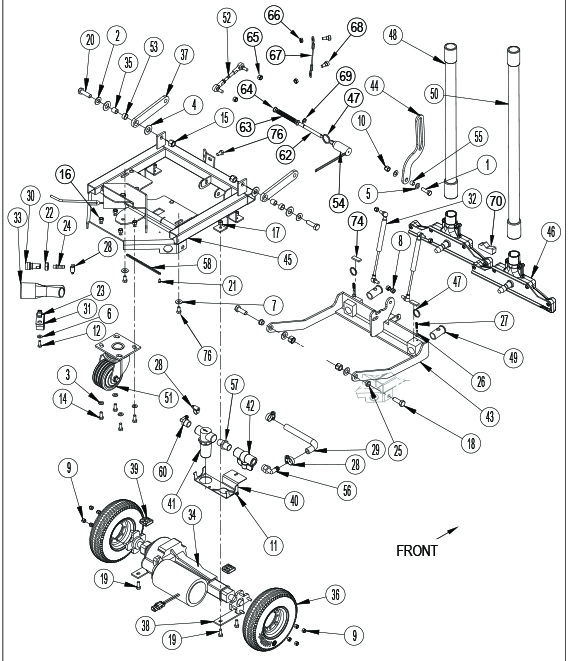

Clarke Clean Track L24

Chassis System

Clarke Clean Track L24 Chassis System

Reference # Part # Description Add to Cart
1 56001858 Screw Buy Now
2 56001879 Washer Buy Now
3 56001939 Washer Buy Now
4 56002022 Washer Buy Now
5 56002063 Washer Buy Now
6 56002098 Washer Buy Now
7 56002220 Washer Buy Now
8 56002701 Nut Buy Now
9 56002708 Nut Buy Now
10 56002769 Nut Buy Now
11 56002832 Nut Buy Now
12 56002948 Screw Buy Now
14 56003179 Screw Buy Now
15 56003312 Nut Buy Now
16 56003389 Nut Buy Now
17 56003405 Nut Buy Now
18 56003415 Screw Buy Now
19 56003435 Screw Buy Now
20 56003637 Screw Buy Now
21 56009029 Screw Buy Now
22 56009078 Nut Buy Now
23 56009289 Retainer Nut Buy Now
24 56104299 Adapter Barb Buy Now
25 56185264 Flange Bearing Buy Now
26 56317139 Pin Buy Now
27 56201448 Compression Spring Buy Now
28 56219932 Hose Clamp Buy Now
29 56262561 Spiral Hose Buy Now
30 56265208 Socket Buy Now
31 56305492 P Clamp Buy Now
32 56314206 Gas Spring Buy Now
33 56314557 Y tube Buy Now
34 56315062 Transaxle Buy Now
- 56382670 Transaxle Motor Kit Buy Now
- 56315378 Carbon Brush Buy Now
- 56315379 Neoprene Mounting Sleeve Buy Now
- 56380497 Transaxle Kit Buy Now
- 56380503 Transaxle Hub Kit Buy Now
- 56380161 Coupling Kit Buy Now
35 56315080 Bushing Buy Now
36 56315115 Drive Wheel Buy Now
37 56315179 Linkage Arm Buy Now
38 56380499 Plate Buy Now
39 56315258 Shim Buy Now
40 56381476 Filter Mount Bracket Buy Now
41 56315296 Solution Filter Buy Now
42 56381475 Ball Valve Buy Now
43 56317029 Shoe Support Weldment Buy Now
44 56317035 Lift Link Buy Now
45 56317039 Chassis Weldment Buy Now
46 56317041 Shoe Assembly Buy Now
- 56317097 Replacement Shoe Buy Now
- 56317063 Shoe Bracket Weldment Buy Now
47 56317071 Ring Buy Now
48 56317091 Vac Hose Buy Now
49 56317092 Flange Bearing Buy Now
50 56317093 Vac Hose Buy Now
51 56317121 Caster Swivel Buy Now
52 56317127 Turnbuckle Buy Now
53 56370878 Sleeve Bearing Buy Now
54 56317100 Pull Type Solenoid Buy Now
55 56388326 Bushing Buy Now
56 56409152 Elbow Barb Buy Now
57 56381474 Nipple Buy Now
58 56467544 Chain Buy Now
60 56900033 Elbow Barb Buy Now
62 56317070 Latch Rod Buy Now
63 56317067 Compression Spring Buy Now
64 56324505 Flange Bearing Buy Now
65 56002950 Nut Buy Now
66 56002826 Nut Buy Now
67 56304126 Cable Assembly Buy Now
68 56003730 Screw Buy Now
69 56003262 Ring Buy Now
70 56317156 Foam Shoe Spacer Buy Now
74 56317164 Foam Strip Buy Now
76 56003012 Screw Buy Now

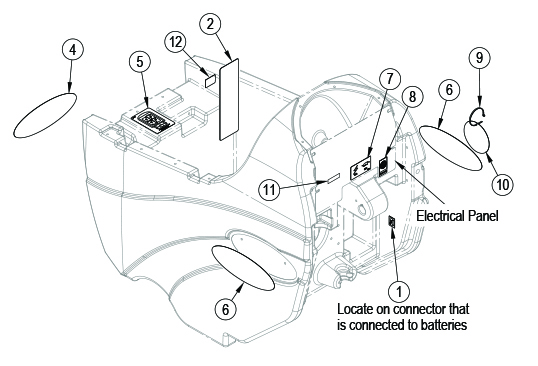

Decals

Clarke Clean Track L24 Decals

Reference # Part # Description Add to Cart
1 56054192 Charger Buy Now
2 56014601 Caution Buy Now
4 56317172 Clean Track L24 Buy Now
5 56016688 Battery Wiring Buy Now
6 56317171 Clarke Buy Now
7 56317131 Circuit Breaker Buy Now
8 56317151 CRI Bronze Buy Now
9 56478523 Cable Tie Buy Now
10 56040958 CRI Tag Buy Now
11 56014450 Patent Buy Now
12 56394259 Prop 65 Buy Now

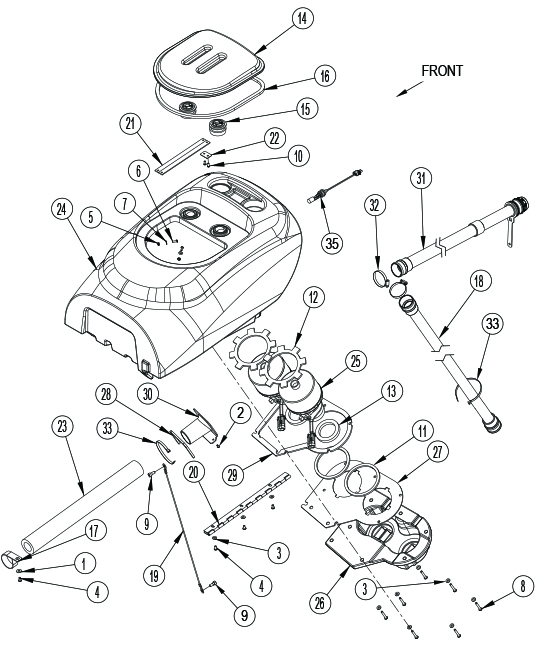

Recovery System

Clarke Clean Track L24 Recovery System

Reference # Part # Description Add to Cart
1 56001906 Washer Buy Now
2 56002043 Screw Buy Now
3 56002098 Washer Buy Now
4 56002145 Screw Buy Now
5 56002849 Nut Buy Now
6 56002896 Screw Buy Now
7 56002919 Washer Buy Now
8 56002997 Screw Buy Now
9 56003730 Screw Buy Now
10 56003711 Screw Buy Now
11 56212143 Vacuum Duct Gasket Buy Now
12 56264103 Vacuum Motor Gasket Buy Now
13 56314760 Vacuum Duct Gasket Buy Now
14 56315176 Recovery Tank Cover Buy Now
15 56315099 Fan Inlet Screen Buy Now
16 56315220 Recovery Lid Gasket Buy Now
17 56315257 P Clamp Buy Now
18 56317150 Vac Hose Assembly Buy Now
19 56315272 Cable Assembly Buy Now
20 56315293 Hinge Buy Now
21 56315303 Retaining Strap Buy Now
22 56315346 Plate Buy Now
23 56317149 Acoustical Foam Buy Now
24 56317176 Recovery Tank Buy Now
25 56317025 Motor Buy Now
- 56397098 Carbon Brush Set Buy Now
26 56317030 Vac Cover Buy Now
27 56317031 Vac Plate Buy Now
28 56317033 Exhaust Gasket Buy Now
29 56317034 Cover Gasket Buy Now
30 56317052 Exhaust Tube Buy Now
31 56383321 Drain Hose Assembly Buy Now
- 56383353 Drain Hose Cap Kit Buy Now
- 56601411 Drain Hose Cap Kit Buy Now
- 56601412 Drain Hose Kit Buy Now
- 56601410 Drain Hose Extension Buy Now
32 56440213 Hose Clamp Buy Now
33 56477613 Cable Tie Buy Now
35 56315096 Float Switch Buy Now

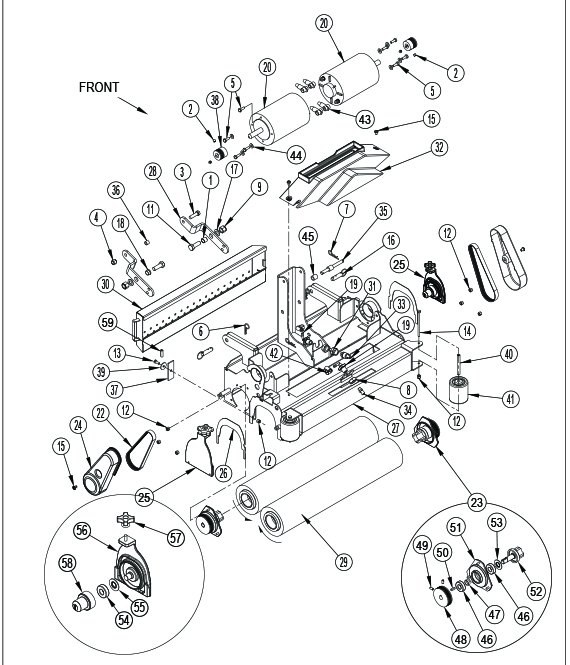

Scrub System

Clarke Clean Track L24 Scrub System

Reference # Part # Description Add to Cart
1 56367206 Bushing Buy Now
2 56002086 Screw Buy Now
3 56001858 Screw Buy Now
4 56002841 Nut Buy Now
5 56002948 Screw Buy Now
6 56002959 Cotter Hair Pin Buy Now
7 56003120 Cotter Hair Pin Buy Now
8 56003272 Nut Buy Now
9 56003312 Nut Buy Now
10 56317158 Rubber Channel Buy Now
11 56003415 Screw Buy Now
12 56003426 Nut Buy Now
13 56003431 Screw Buy Now
14 56003492 Screw Buy Now
15 56003603 Screw Buy Now
16 56003671 Ring Pin Buy Now
17 56009003 Washer Buy Now
18 56185264 Flange Bearing Buy Now
19 56265388 Panel Mount Elbow Buy Now
20 56315061 Motor Buy Now
- 56412287 Brush Buy Now
21 56315320 Brush Harness Buy Now
22 56316053 Auto Tension Belt Buy Now
23 56317157 Drive End Assembly Buy Now
24 56115314 Belt Cover Buy Now
25 56115344 Idler End Assembly Buy Now
26 56316191 Gasket Buy Now
27 56317021 Housing Weldment Buy Now
28 56317036 Pivot Link Buy Now
29 56314389 Soft Nylon Brush Buy Now
30 56317049 Extractor Hopper Weldment Buy Now
31 56317053 Nozzle Body Buy Now
32 56317054 Nozzle Cover Buy Now
33 56317064 Spray Nozzle Buy Now
34 56265052 Spray Nozzle Buy Now
35 56317084 Actuator Pin Buy Now
36 56388326 Bushing Buy Now
37 56407391 Blade Buy Now
38 56316066 Sheave Buy Now
39 56009060 Washer Buy Now
40 56412176 Bushing Buy Now
41 56412459 Wheel Buy Now
42 56219932 Hose Clamp Buy Now
43 56409538 Terminal Insulator Buy Now
44 56009064 Washer Buy Now
45 56317163 Phenolic Spacer Buy Now
46 56106070 Ball Bearing Buy Now
47 56407389 Spacer Buy Now
48 56316054 Sheave Buy Now
49 56002119 Screw Buy Now
50 56003237 Key Buy Now
51 56381765 Bearing Plate Buy Now
52 56109527 Spindle Buy Now
53 56407558 Bearing Washer Buy Now
54 56106070 Ball Bearing Buy Now
55 56407558 Bearing Washer Buy Now
56 56315447 Idler Bearing Plate Buy Now
57 56407303 Knob Buy Now
58 56115273 Hub Buy Now
- 56384137 Idler Buy Now

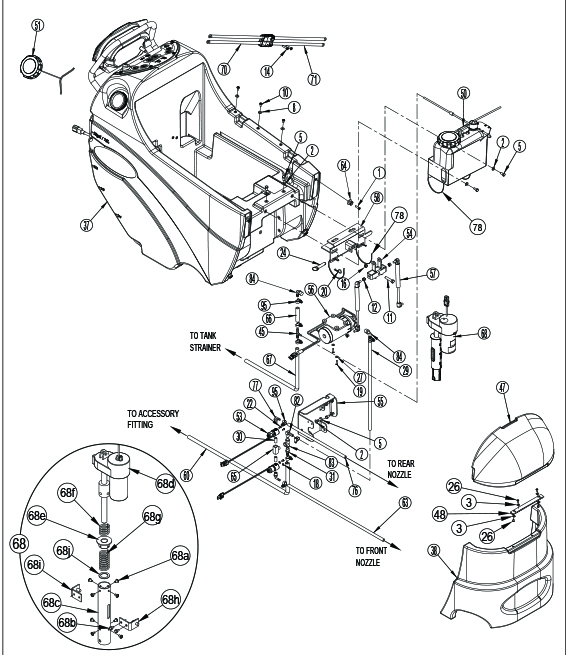

Solution System - Electrical 1

Clarke Clean Track L24 Solution System - Electrical 1

Reference # Part # Description Add to Cart
1 56001832 Screw Buy Now
2 56009122 Washer Buy Now
3 310 Washer Call to Order
5 56002667 Screw Buy Now
8 56002098 Washer Buy Now
10 56002145 Screw Buy Now
11 56002684 Screw Buy Now
12 56002826 Nut Buy Now
14 56002825 Screw Buy Now
16 56002841 Nut Buy Now
18 56002875 Washer Buy Now
19 56002894 Screw Buy Now
20 56002959 Cotter Hair Pin Buy Now
22 56003018 Screw Buy Now
24 56003679 Pin Buy Now
26 56009139 Screw Buy Now
27 56009205 Washer Buy Now
29 56054146 Vinyl Tube Buy Now
30 56150223 Nipple Buy Now
31 56155640 Adapter Barb Buy Now
37 56317173 Solution Tank Buy Now
38 56317174 Nose Cone Buy Now
45 56315265 Barb Tee Buy Now
47 56317175 Chemical Bottle Cover Buy Now
48 56315285 Hinge Buy Now
50 56315501 Chemical Tank Buy Now
51 56601599 Cap Buy Now
53 56317024 Solenoid Valve Buy Now
54 56317026 Actuator Yoke Buy Now
55 56317038 Bracket Linkage Pivot Buy Now
56 56317045 Pump Buy Now
57 56317072 Gas Spring Buy Now
58 56317078 Actuator Bracket Weldment Buy Now
60 56317083 Hose Buy Now
63 56317122 Hose Buy Now
64 56365777 Brush Driver Lug Buy Now
65 56372506 Branch Tee Buy Now
66 56387214 Hose Buy Now
67 56391773 Hose Buy Now
68 56317161 Lift Actuator Assembly Buy Now
68a 56003603 Screw Buy Now
68b 56009019 Screw Buy Now
68c 56317162 Tube Buy Now
68d 56393303 Actuator Motor Buy Now
68e 56396268 Spring Housing Guide Buy Now
68f 56412071 Compression Spring Buy Now
68g 56420018 Compression Spring Buy Now
68h 56420019 Nut Retainer Buy Now
68i 56420020 Nut Retainer Buy Now
68j 56748926 Washer Buy Now
70 56397187 Connector Assembly (connected to batteries) Buy Now
71 56397188 Conector Assembly (connected to machine) Buy Now
76 56456560 Hose Buy Now
77 56470138 Elbow Barb Buy Now
78 56478523 Cable Tie Buy Now
82 56756739 Elbow Barb Buy Now
83 56900027 Union Tee Buy Now
84 56382545 Elbow Barb Buy Now
95 56219932 Hose Clamp Buy Now

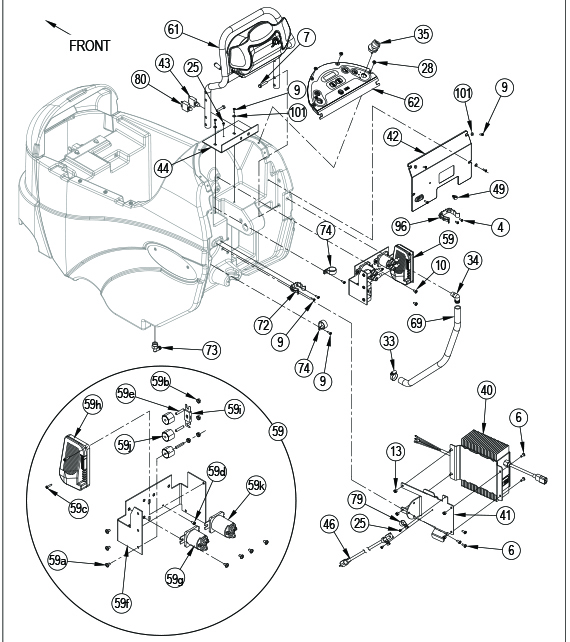

Solution System - Electrical 2

Clarke Clean Track L24 Solution System - Electrical 2

Reference # Part # Description Add to Cart
4 56001993 Screw Buy Now
6 56002066 Screw Buy Now
7 56002094 Screw Buy Now
9 56002124 Screw Buy Now
10 56002145 Screw Buy Now
13 56002708 Nut Buy Now
25 56009030 Screw Buy Now
28 56009206 Screw Buy Now
33 56244969 Hose Clamp Buy Now
34 56264442 Elbow Barb Buy Now
35 56303553 Key Switch Assembly Buy Now
40 56315773 On-Board Charger Buy Now
41 56315206 Charger Bracket Buy Now
42 56109502 Electrical Panel Buy Now
43 56315256 Circuit Breaker Buy Now
44 56109553 Circuit Breaker Plate Buy Now
46 56383385 Charger Cord Buy Now
49 56315382 Conduit Clip Buy Now
59 56317128 Electrical Box Assembly Buy Now
59a 56002462 Screw Buy Now
59b 56002561 Nut Buy Now
59c 56003698 Screw Buy Now
59d 56009030 Screw Buy Now
59e 56009203 Stud Buy Now
59f 56317081 Electrical Panel Buy Now
59g 56317101 Speed Controller Buy Now
59h 56317102 Speed Controller Buy Now
59i 56412089 Fuse Buy Now
59j 56469858 Insulated Standoff Buy Now
59k 56317116 Contactor Buy Now
61 56317098 Paddle Assembly Buy Now
62 56317111 Control Panel Assembly Buy Now
69 56396143 Hose Buy Now
72 56407361 Plastic Clamp Buy Now
73 56409152 Elbow Barb Buy Now
74 56410166 P Clamp Buy Now
79 56486112 P Clamp Buy Now
80 56507644 Circuit Breaker Buy Now
96 56212236 Plastic Clamp Buy Now
101 56002053 Washer Buy Now

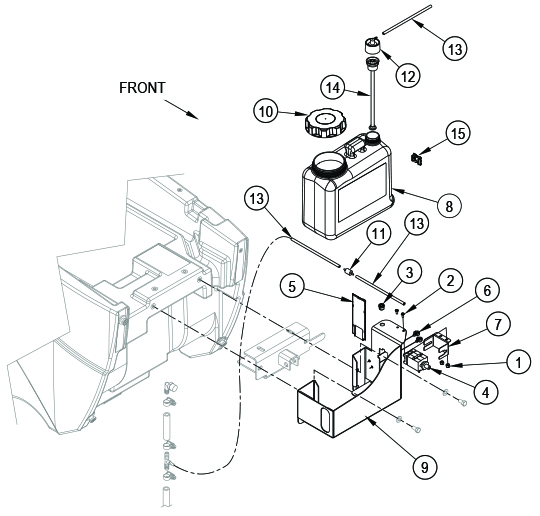

Chemical Assembly

Clarke Clean Track L24 Chemical Assembly

Reference # Part # Description Add to Cart
1 56002877 Nut Buy Now
2 56003018 Screw Buy Now
3 56003699 Bushing Buy Now
4 56315241 Chemical Pump Buy Now
5 56315340 Circuit Board Assembly Buy Now
6 56315382 Conduit Clip Buy Now
7 56315476 Chemical Pump Bracket Buy Now
8 56315502 Chemical Bottle Assembly Buy Now
9 56315515 Tank Mounting Bracket Buy Now
10 9100001512 Plastic Chemical Tank Cap Buy Now
11 56315522 Check Valve Buy Now
12 56315523 Dry Break Cap Buy Now
13 56315524 Chemical Resistant Hose Buy Now
14 56315527 Dry Break Insert Buy Now
15 56315511 Indicator Assembly Buy Now

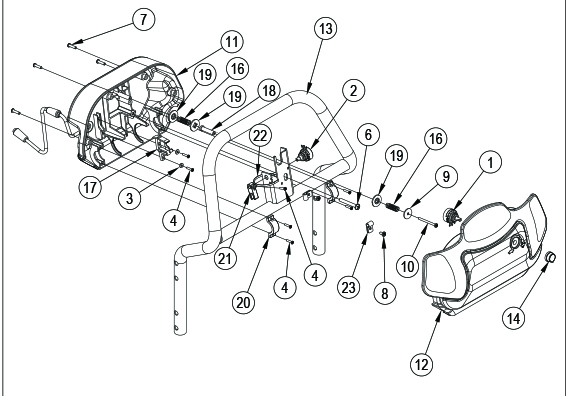

Paddle Assembly

Clarke Clean Track L24 Paddle Assembly

Reference # Part # Description Add to Cart
1 56396197 Potentiometer Buy Now
2 56397029 Potentiometer Buy Now
3 56002006 Washer Buy Now
4 56003197 Screw Buy Now
6 56003527 Screw Buy Now
7 56003545 Screw Buy Now
8 56009030 Screw Buy Now
9 56009096 Washer Buy Now
10 56009287 Screw Buy Now
11 56109716 Back Cover Paddle Buy Now
12 56315230 Front Cover Paddle Buy Now
13 56112767 Handle Bar Weldment Buy Now
14 56315280 Knob Buy Now
15 56317112 Handle Harness Buy Now
16 56325654 Compression Spring Buy Now
17 56397015 Cam Controller Buy Now
18 56397109 Sleeve Buy Now
19 56397170 Plastic Washer Buy Now
20 56397171 Clamp Buy Now
21 56109648 Potentiometer Fork Buy Now
22 56478246 Cable Tie Buy Now
23 56481890 P Clamp Buy Now
